Isuzu WW
▶
TRUCKS
▶
NMR
▶
51418 - NMR 85(RHD)EURO4
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-10 - WIRING HARNESS AND FUSE
▶
8-10 — WIRING HARNESS AND FUSE
(#94129) — 75 parça
◀
[810A] CAB HARNESS (21 parça)
[810A] FRAME HARNESS;FRONT (18 parça)
[810A] RELAY;CAB HARNESS (2 parça)
[810A] AIR CONDITIONER HARNESS (1 parça)
[810A] OTHER PARTS (12 parça)
[810A] OTHER HARNESS(NO.1) (10 parça)
[810A] ENG HARNESS (5 parça)
[810A] OTHER HARNESS(NO.2) (6 parça)
▶

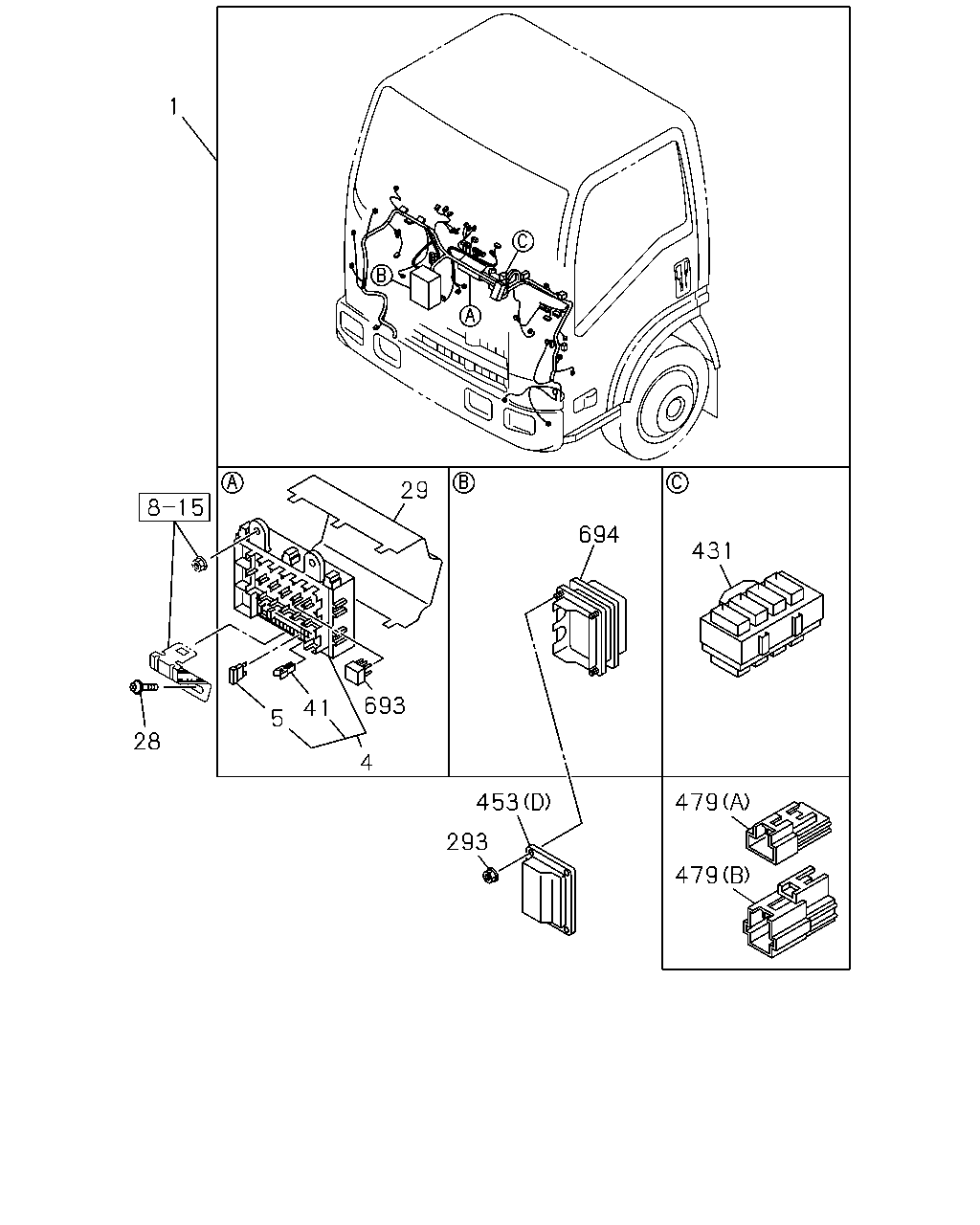

431
694
29
1
5
4
41
28
453
293
479
479
693
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
02.480 HARNESS; CAB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>
8-98207-415-0
01
1
1207-
1
02.480 HARNESS; CAB
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>
8-98207-414-0
01
1
1207-
4
02.483 BOX ASM; FUSE,HARNESS
8-98067-619-1
01
1
1207-
5
02.485 FUSE; FACIA HARNESS
10A RED
8-98054-257-0
AR
1
1207-
5
02.485 FUSE; FACIA HARNESS
15A BLUE
8-98054-258-0
AR
1
1207-
5
02.485 FUSE; FACIA HARNESS
20A YELLOW
8-98054-259-0
AR
1
1207-
28
02.483 SCREW; FUSE BOX
16.090 M5X16 HEXALOBULAR SOCKET
8-98177-744-0
01
1
1207-1212
28
02.483 SCREW; FUSE BOX
16.090 M5X16 TAPPING HEXALOBULAR
0-72180-516-0
01
1
1301-
29
02.483 COVER; FUSE BOX
8-98056-968-0
01
1
1207-
41
08.821 PULLER; FUSE
8-98054-260-0
01
1
1207-
293
02.559 NUT
01.062 M6 FLANGE
0-91180-106-0
04
1
1207-
431
02.530 CONNECTOR; JOINT
8-98046-206-0
01
1
1207-
453
02.483 PROTECTOR; HARNESS
(E)
8-94452-553-0
01
1
1207-
453
02.483 PROTECTOR; HARNESS
(B)
8-98031-850-1
01
1
1207-
453
02.483 PROTECTOR; HARNESS
(C)
8-98031-851-2
01
1
1207-
453
02.483 PROTECTOR; HARNESS
(D)
8-98034-039-1
01
1
1207-
453
02.483 PROTECTOR; HARNESS
(A)
8-98114-566-1
01
1
1207-
479
02.530 CAP; CONNECTOR
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)
8-98108-678-0
01
1
1207-
479
02.530 CAP; CONNECTOR
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)
8-98108-679-0
01
1
1207-
693
02.694 RELAY; FUSE BOX
08.852 24V 10A PANASONIC
8-97173-035-1
AR
1
1207-
694
02.483 BOX ASM; CONNECTOR
8-98057-772-0
01
1
1207-

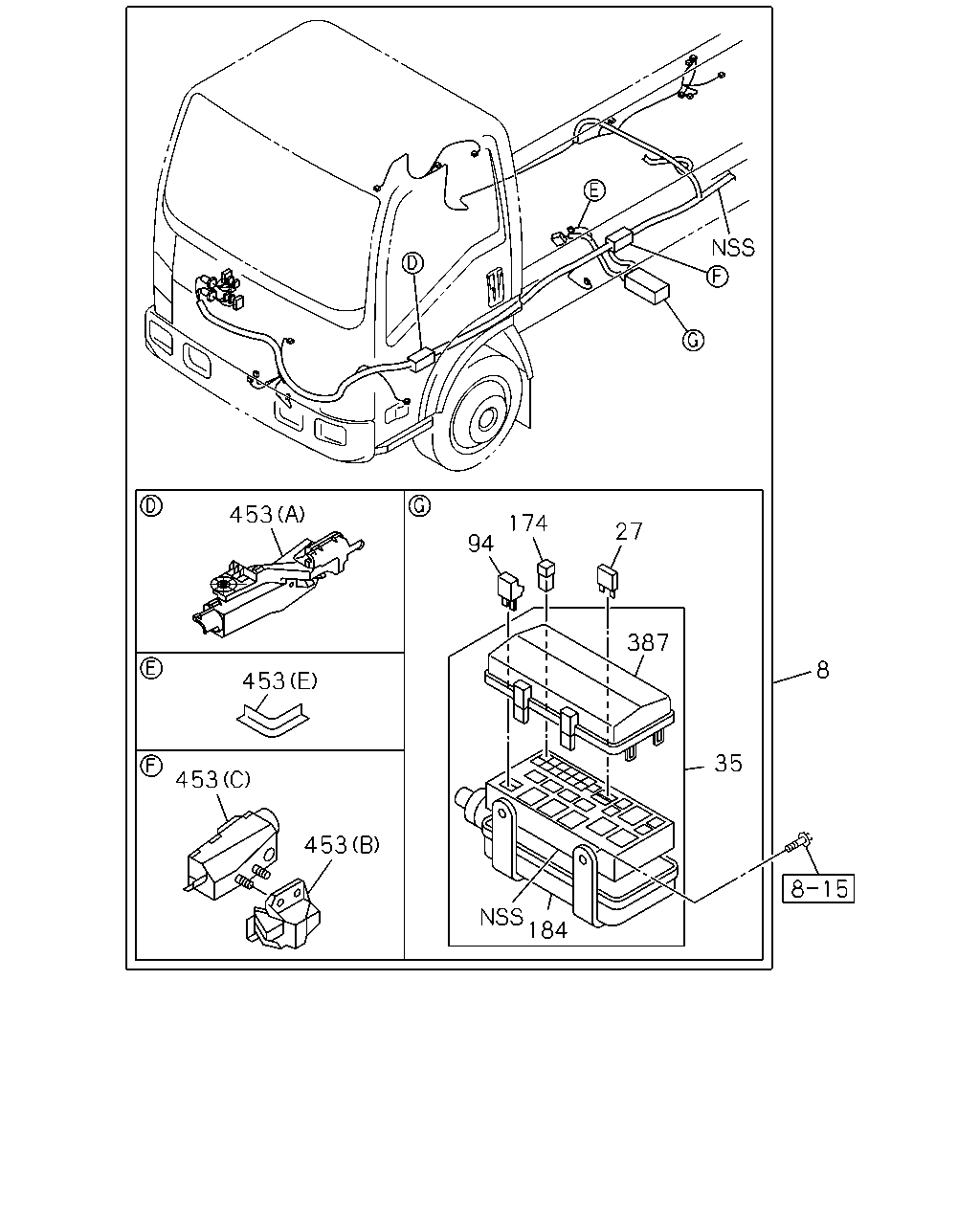

184
35
8
387
27
174
94
453
453
453
453
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
8
02.480 HARNESS; FRAME,FRT
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>
8-98212-177-1
01
1
1207-1409
8
02.480 HARNESS; FRAME,FRT
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>
8-98294-054-0
01
1
1410-
8
02.480 HARNESS; FRAME,FRT
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>
8-98212-176-1
01
1
1207-1409
8
02.480 HARNESS; FRAME,FRT
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>
8-98294-053-0
01
1
1410-
27
08.965 FUSE UNIT
02.485 10A RED
8-98054-257-0
AR
1
1207-
35
02.530 BOX; RELAY & FUSE
8-98030-763-0
01
1
1207-
94
02.483 DIODE; FRAME HARNESS
BLACK 2P-1.5A
8-94422-639-1
01
1
1207-
174
08.965 FUSE; SLOW BLOW
30A PINK
8-98079-191-0
AR
1
1207-
174
08.965 FUSE; SLOW BLOW
40A GREEN
8-98079-192-0
AR
1
1207-
174
08.965 FUSE; SLOW BLOW
50A RED
8-98079-193-0
AR
1
1207-
174
08.965 FUSE; SLOW BLOW
60A YELLOW
8-97219-407-0
AR
1
1207-
184
02.559 COVER; RELAY & FUSE BOX
8-98030-766-0
01
1
1207-
387
02.483 COVER; RELAY BOX
8-98081-367-0
01
1
1207-
453
02.483 PROTECTOR; HARNESS
(E)
8-94452-553-0
01
1
1207-
453
02.483 PROTECTOR; HARNESS
(B)
8-98031-850-1
01
1
1207-
453
02.483 PROTECTOR; HARNESS
(C)
8-98031-851-2
01
1
1207-
453
02.483 PROTECTOR; HARNESS
(D)
8-98034-039-1
01
1
1207-
453
02.483 PROTECTOR; HARNESS
(A)
8-98114-566-1
01
1
1207-

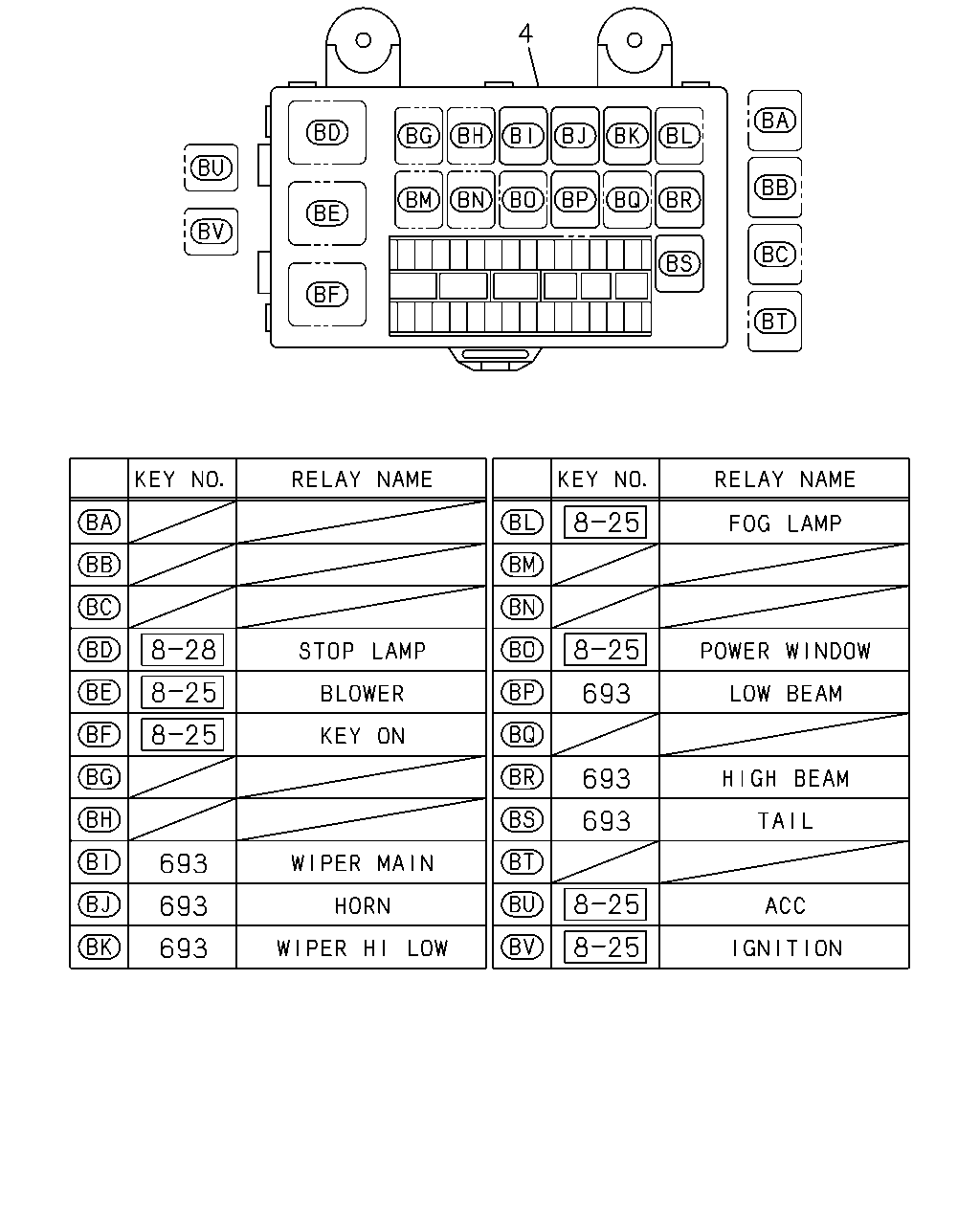

4
693
693
693
693
693
693
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
4
02.483 BOX ASM; FUSE,HARNESS
8-98067-619-1
01
1
1207-
693
02.694 RELAY; FUSE BOX
08.852 24V 10A PANASONIC
8-97173-035-1
AR
1
1207-

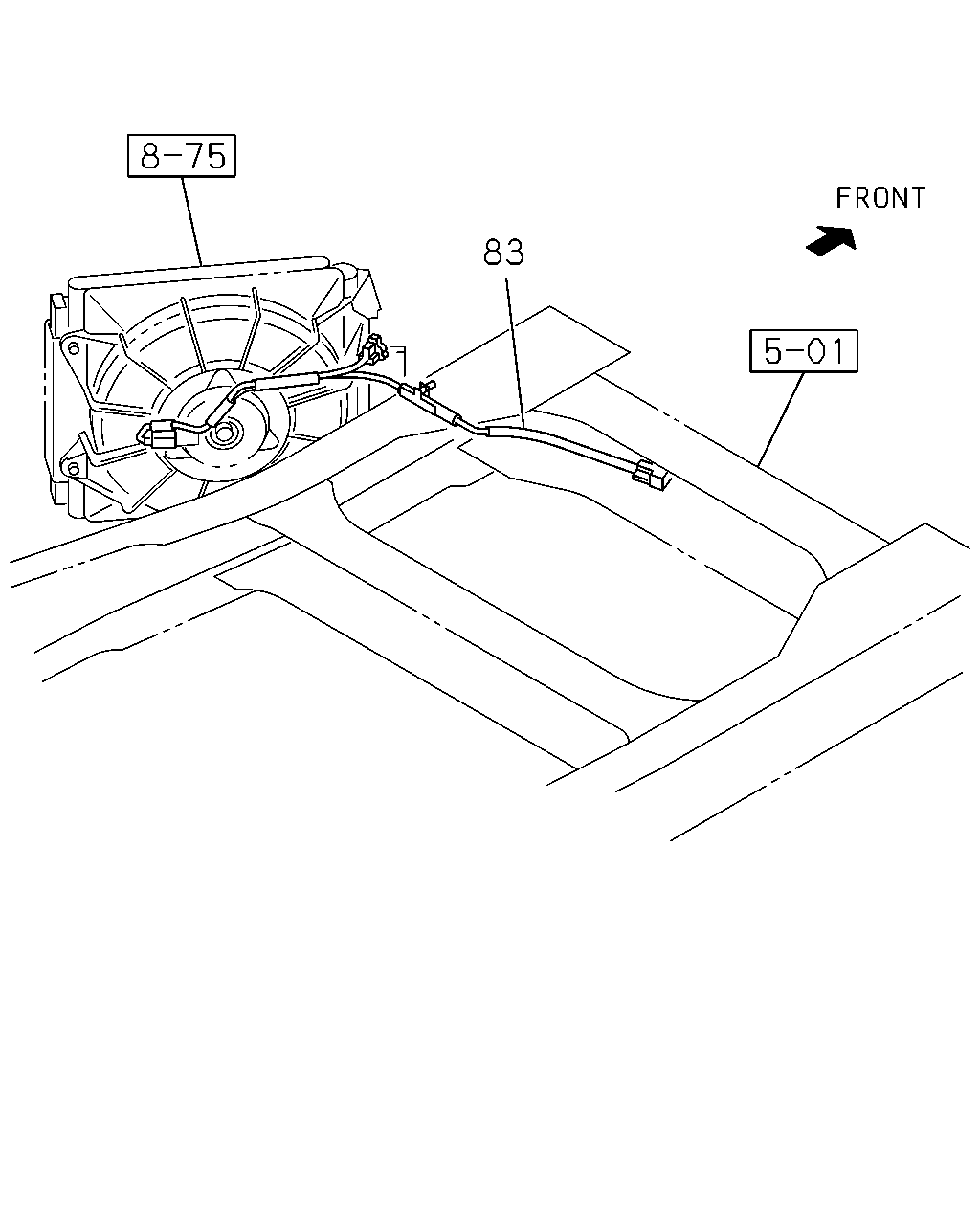

83
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
83
02.480 HARNESS; AIR CONDITIONER
AIR CONDITIONER MANUAL CONT(C60)
8-98140-333-2
01
1
1207-

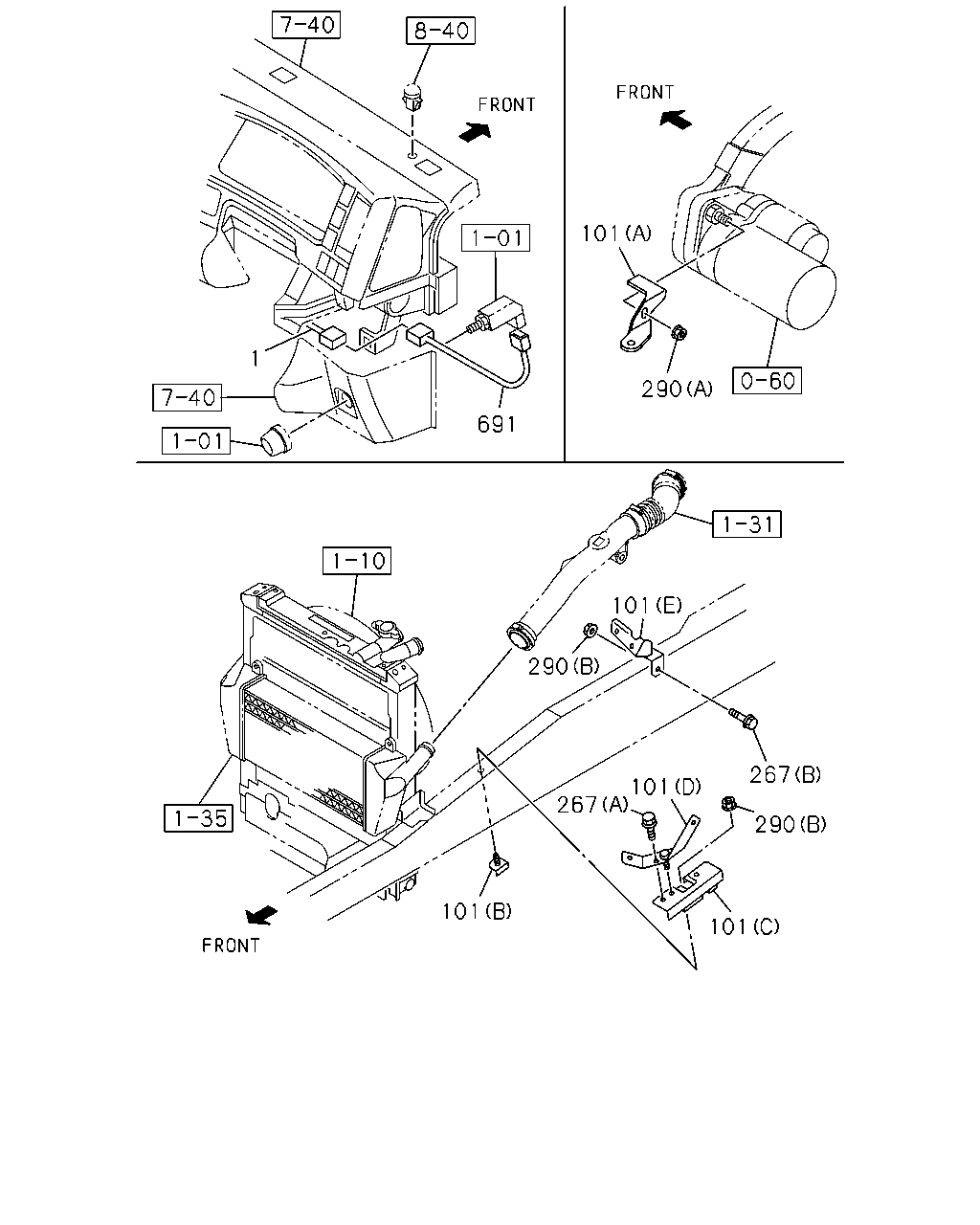

1
691
101
290
101
290
101
267
101
267
290
101
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
02.480 HARNESS; CAB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>
8-98207-415-0
01
1
1207-
1
02.480 HARNESS; CAB
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>
8-98207-414-0
01
1
1207-
101
02.483 BRACKET; HARNESS CONNECTOR
02.183 (A)
8-98030-725-1
01
1
1207-
101
02.483 BRACKET; HARNESS CONNECTOR
(C)
8-98078-070-1
01
1
1207-
101
02.483 BRACKET; HARNESS CONNECTOR
(D)
8-98078-071-1
01
1
1207-
101
02.483 BRACKET; HARNESS CONNECTOR
(B)
8-98093-465-1
01
1
1207-
101
02.483 BRACKET; HARNESS CONNECTOR
(E)
8-98217-757-0
01
1
1207-
267
02.483 BOLT; BRKT
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 06.216 (B) M8X25 FLANGE
0-28650-825-0
01
1
1207-
267
02.483 BOLT; BRKT
00.685 (A) M6X25 FLANGE
0-28650-625-0
01
1
1207-
290
02.483 NUT; BRKT
01.062 (B) M8 FLANGE
0-91180-108-0
02
1
1207-
290
02.483 NUT; BRKT
03.162 (A) M10 FLANGE
0-91180-110-0
01
1
1207-
691
02.480 HARNESS; IDLE CONT
8-98049-014-2
01
1
1207-

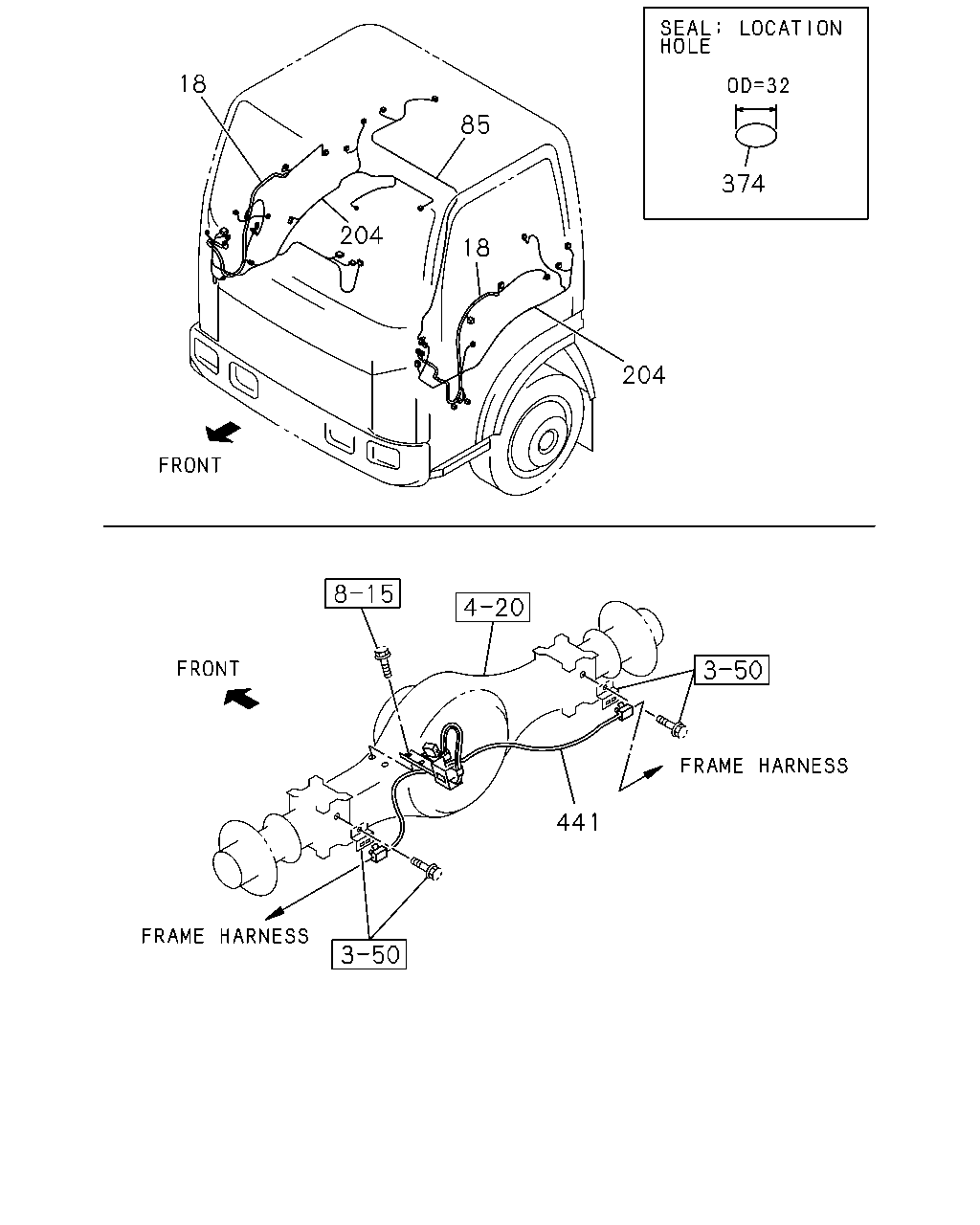

18
85
204
18
204
374
441
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
18
02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32>
8-98046-746-5
01
1
1207-
18
02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32>
8-98077-596-3
01
1
1207-
18
02.480 HARNESS; DOOR
EXC. POWER WINDOW FRT DOOR<A32>
8-98046-744-2
01
1
1207-
18
02.480 HARNESS; DOOR
EXC. POWER WINDOW FRT DOOR<A32>
8-98046-749-2
01
1
1207-
85
06.495 HARNESS; ROOM LAMP
8-98049-963-3
01
1
1207-
204
02.559 HARNESS; CABLE,FLOOR
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>
8-98047-157-6
01
1
1207-
204
02.559 HARNESS; CABLE,FLOOR
AIR BAG DRIVER & PASSENGER<AK5>
8-98075-612-3
01
1
1207-
204
02.559 HARNESS; CABLE,FLOOR
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>
8-98070-787-4
01
1
1207-
374
02.530 PLUG; HARNESS CONNECTOR
EXC. AIR BAG DRIVER & PASSENGER<AK5> 16.545 OD=32 BLACK
8-98031-126-0
01
1
1207-
441
02.480 HARNESS; CABLE,SPEED SENSOR
8-97308-220-4
01
1
1207-

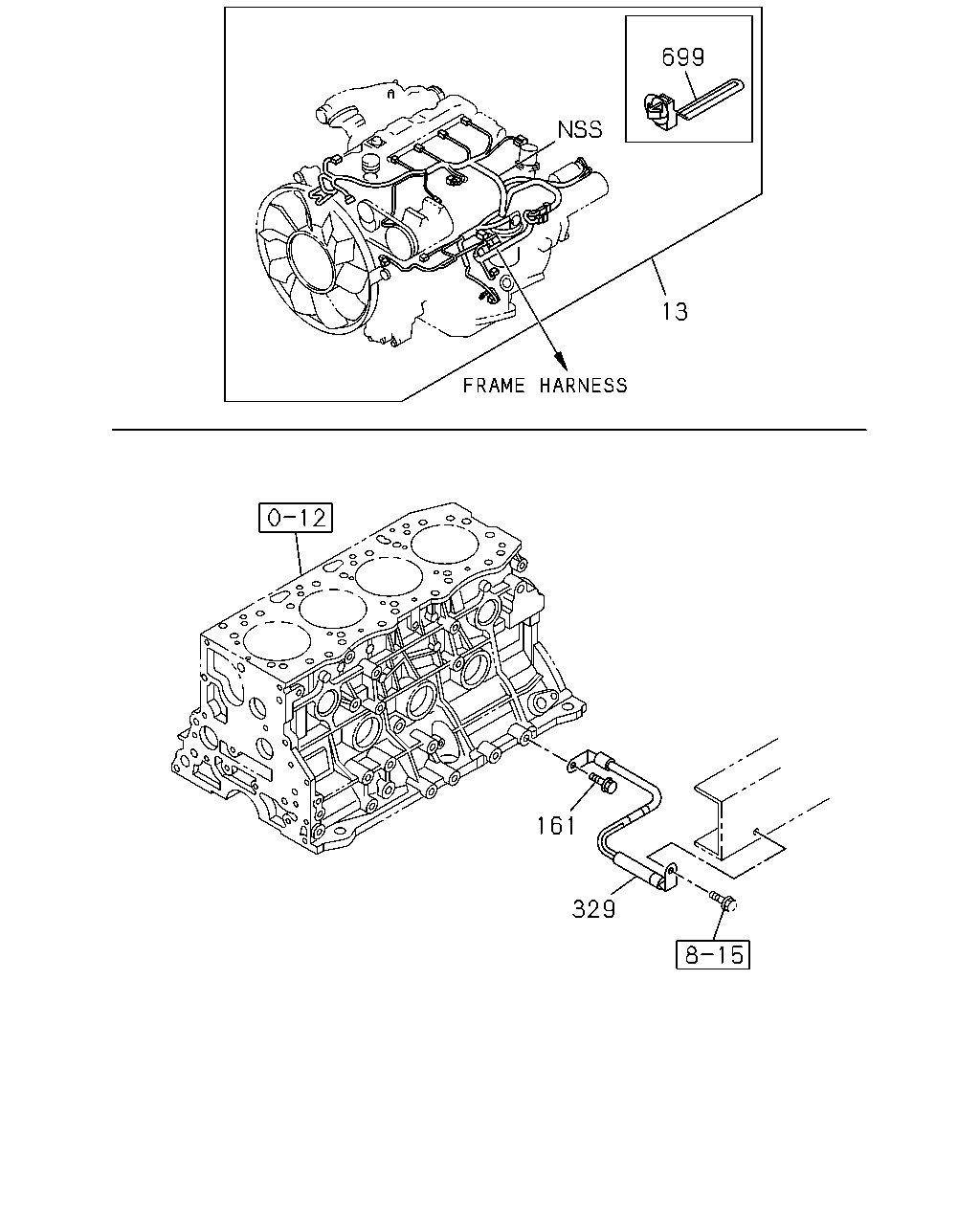

13
161
329
699
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
13
02.525 HARNESS; ENG
8-98161-951-2
01
1
1207-1310
13
02.525 HARNESS; ENG
8-98244-737-0
01
1
1311-
161
02.559 BOLT; GROUND,HARNESS
02.483 M10X16 FLANGE
0-28051-016-0
01
1
1207-
329
02.480 CABLE; ENG TO FRAME
8-98039-854-1
01
1
1207-
699
02.559 CLIP; ENG HARNESS
04.105 L=140
8-97122-360-0
02
1
1207-1310

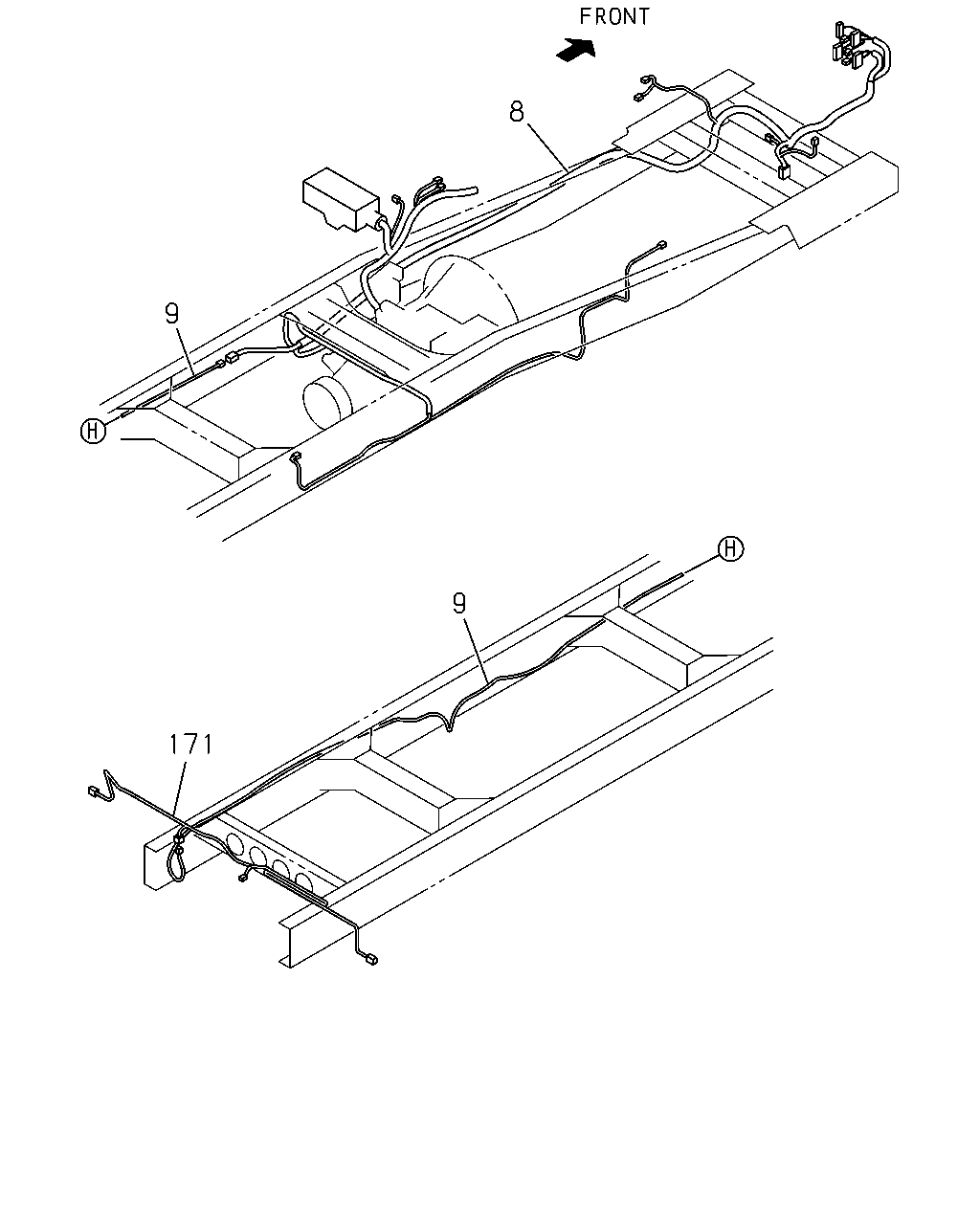

171
9
9
8
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
8
02.480 HARNESS; FRAME,FRT
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>
8-98212-177-1
01
1
1207-1409
8
02.480 HARNESS; FRAME,FRT
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>
8-98294-054-0
01
1
1410-
8
02.480 HARNESS; FRAME,FRT
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>
8-98212-176-1
01
1
1207-1409
8
02.480 HARNESS; FRAME,FRT
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>
8-98294-053-0
01
1
1410-
9
02.480 HARNESS; FRAME,RR
8-98048-424-1
01
1
1207-
171
02.596 HARNESS; CABLE,TAIL LAMP
8-98156-028-0
01
1
1207-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
