7-50 — FRONT SEAT (#94124) — 149 parça

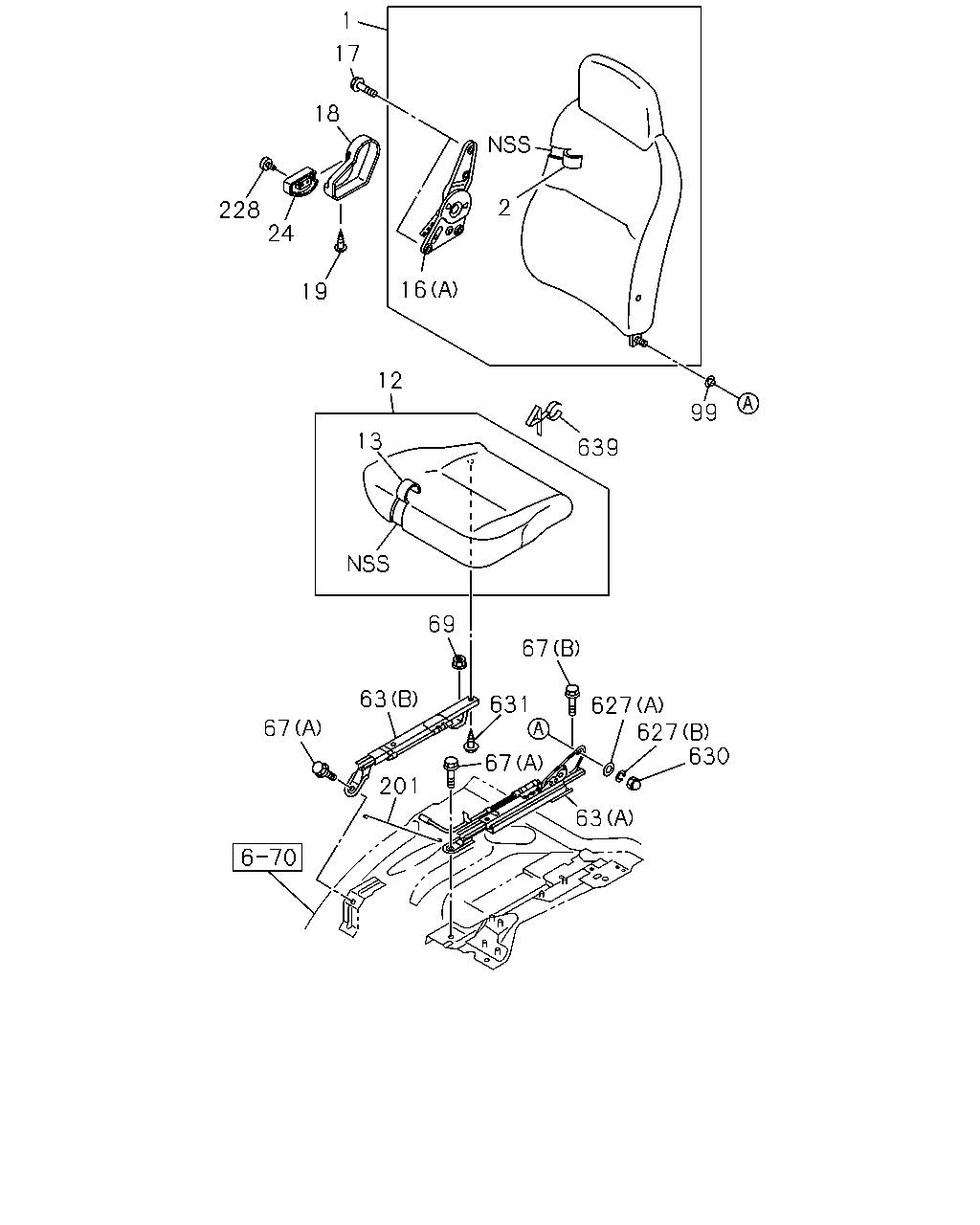

çizim 286425
99 639 2 16 19 24 228 18 17 1 12 13 67 69 631 627 627 630 63 67 201 63 67
BalonParca AdiParca NoAdetTipApplied Date
1 16.720 BACK ASM; SEAT
SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97421-235-1 01 1 1207-
1 16.720 BACK ASM; SEAT
SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97421-234-1 01 1 1207-
1 16.720 BACK ASM; SEAT
SEAT FRT,LONG SIZE<7UG> EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97414-142-7 01 1 1207-
1 16.720 BACK ASM; SEAT
EXC. SEAT CLOTH<7FL>,SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97409-312-7 01 1 1207-
2 16.724 COVER; TRIM,FRT SEAT,BACK
SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97421-254-0 01 1 1207-
2 16.724 COVER; TRIM,FRT SEAT,BACK
SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97421-253-0 01 1 1207-
2 16.724 COVER; TRIM,FRT SEAT,BACK
SEAT FRT,LONG SIZE<7UG> EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97411-910-2 01 1 1207-
2 16.724 COVER; TRIM,FRT SEAT,BACK
EXC. SEAT CLOTH<7FL>,SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97409-318-2 01 1 1207-
12 16.670 CUSHION; SEAT,FRT
SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97421-248-1 01 1 1207-
12 16.670 CUSHION; SEAT,FRT
SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97421-241-1 01 1 1207-
12 16.670 CUSHION; SEAT,FRT
SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> EXC. SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97421-247-1 01 1 1207-
12 16.670 CUSHION; SEAT,FRT
SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG>,INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97421-240-1 01 1 1207-
12 16.670 CUSHION; SEAT,FRT
SEAT FRT,LONG SIZE<7UG> INSPECTION ENGINE COVER<8GA> EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97414-149-0 01 1 1207-
12 16.670 CUSHION; SEAT,FRT
SEAT FRT,LONG SIZE<7UG> EXC. SEAT CLOTH<7FL>,INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97414-143-4 01 1 1207-
12 16.670 CUSHION; SEAT,FRT
INSPECTION ENGINE COVER<8GA> EXC. SEAT CLOTH<7FL>,SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97414-706-0 01 1 1207-
12 16.670 CUSHION; SEAT,FRT
EXC. SEAT CLOTH<7FL>,SEAT FRT,LONG SIZE<7UG>,INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97409-322-4 01 1 1207-
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97421-268-1 01 1 1207-
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97421-260-1 01 1 1207-
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> EXC. SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97421-267-1 01 1 1207-
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG>,INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97421-259-1 01 1 1207-
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
SEAT FRT,LONG SIZE<7UG> INSPECTION ENGINE COVER<8GA> EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97414-860-0 01 1 1207-
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
SEAT FRT,LONG SIZE<7UG> EXC. SEAT CLOTH<7FL>,INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97414-144-2 01 1 1207-
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
INSPECTION ENGINE COVER<8GA> EXC. SEAT CLOTH<7FL>,SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97414-707-0 01 1 1207-
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
EXC. SEAT CLOTH<7FL>,SEAT FRT,LONG SIZE<7UG>,INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97409-328-2 01 1 1207-
16 16.682 ADJUSTER ASM; RECLINING
(B) BLACK 		8-97859-273-3 01 1 1207-
16 16.682 ADJUSTER ASM; RECLINING
(A) 		8-98003-087-1 01 1 1207-1408
16 16.682 ADJUSTER ASM; RECLINING
SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> INSPECTION ENGINE COVER<8GA> (A) 		8-98003-087-1 01 1 1409-
16 16.682 ADJUSTER ASM; RECLINING
EXC. SEAT CLOTH<7FL>,SEAT FRT,LONG SIZE<7UG>,INSPECTION ENGINE COVER<8GA> (A) 		8-98003-087-1 01 1 1409-
16 16.682 ADJUSTER ASM; RECLINING
INSPECTION ENGINE COVER<8GA> EXC. SEAT CLOTH<7FL> (A) 		8-98003-087-1 01 1 1409-
16 16.682 ADJUSTER ASM; RECLINING
SEAT FRT,LONG SIZE<7UG> EXC. INSPECTION ENGINE COVER<8GA> (A) 		8-98003-087-1 01 1 1409-
16 16.682 ADJUSTER ASM; RECLINING
SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG> (A) 		8-98003-087-1 01 1 1409-
17 16.682 BOLT; RECLINING
M10X20 		8-98062-661-0 04 1 1207-1408
17 16.682 BOLT; RECLINING
SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> INSPECTION ENGINE COVER<8GA> M10X20 		8-98062-661-0 04 1 1409-
17 16.682 BOLT; RECLINING
EXC. SEAT CLOTH<7FL>,SEAT FRT,LONG SIZE<7UG>,INSPECTION ENGINE COVER<8GA> M10X20 		8-98062-661-0 04 1 1409-
17 16.682 BOLT; RECLINING
INSPECTION ENGINE COVER<8GA> EXC. SEAT CLOTH<7FL> M10X20 		8-98062-661-0 04 1 1409-
17 16.682 BOLT; RECLINING
SEAT FRT,LONG SIZE<7UG> EXC. INSPECTION ENGINE COVER<8GA> M10X20 		8-98062-661-0 04 1 1409-
17 16.682 BOLT; RECLINING
SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG> M10X20 		8-98062-661-0 04 1 1409-
18 16.682 COVER; RECLINING
GRAY 		8-97409-332-0 01 1 1207-1408
18 16.682 COVER; RECLINING
SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> INSPECTION ENGINE COVER<8GA> GRAY 		8-97409-332-0 01 1 1409-
18 16.682 COVER; RECLINING
EXC. SEAT CLOTH<7FL>,SEAT FRT,LONG SIZE<7UG>,INSPECTION ENGINE COVER<8GA> GRAY 		8-97409-332-0 01 1 1409-
18 16.682 COVER; RECLINING
INSPECTION ENGINE COVER<8GA> EXC. SEAT CLOTH<7FL> GRAY 		8-97409-332-0 01 1 1409-
18 16.682 COVER; RECLINING
SEAT FRT,LONG SIZE<7UG> EXC. INSPECTION ENGINE COVER<8GA> GRAY 		8-97409-332-0 01 1 1409-
18 16.682 COVER; RECLINING
SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG> GRAY 		8-97409-332-0 01 1 1409-
19 16.686 SCREW; COVER
M5 		8-98062-663-0 01 1 1207-1408
19 16.686 SCREW; COVER
SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> INSPECTION ENGINE COVER<8GA> M5 		8-98062-663-0 01 1 1409-
19 16.686 SCREW; COVER
EXC. SEAT CLOTH<7FL>,SEAT FRT,LONG SIZE<7UG>,INSPECTION ENGINE COVER<8GA> M5 		8-98062-663-0 01 1 1409-
19 16.686 SCREW; COVER
INSPECTION ENGINE COVER<8GA> EXC. SEAT CLOTH<7FL> M5 		8-98062-663-0 01 1 1409-
19 16.686 SCREW; COVER
SEAT FRT,LONG SIZE<7UG> EXC. INSPECTION ENGINE COVER<8GA> M5 		8-98062-663-0 01 1 1409-
19 16.686 SCREW; COVER
SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG> M5 		8-98062-663-0 01 1 1409-
24 16.682 KNOB; RECLINING,FRT,SEAT
GRAY 		8-97409-333-0 01 1 1207-1408
24 16.682 KNOB; RECLINING,FRT,SEAT
SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> INSPECTION ENGINE COVER<8GA> GRAY 		8-97409-333-0 01 1 1409-
24 16.682 KNOB; RECLINING,FRT,SEAT
EXC. SEAT CLOTH<7FL>,SEAT FRT,LONG SIZE<7UG>,INSPECTION ENGINE COVER<8GA> GRAY 		8-97409-333-0 01 1 1409-
24 16.682 KNOB; RECLINING,FRT,SEAT
INSPECTION ENGINE COVER<8GA> EXC. SEAT CLOTH<7FL> GRAY 		8-97409-333-0 01 1 1409-
24 16.682 KNOB; RECLINING,FRT,SEAT
SEAT FRT,LONG SIZE<7UG> EXC. INSPECTION ENGINE COVER<8GA> GRAY 		8-97409-333-0 01 1 1409-
24 16.682 KNOB; RECLINING,FRT,SEAT
SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG> GRAY 		8-97409-333-0 01 1 1409-
63 16.682 ADJUSTER; SEAT SLIDE
(A) INNER 		8-97382-800-2 01 1 1207-1408
63 16.682 ADJUSTER; SEAT SLIDE
SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> INSPECTION ENGINE COVER<8GA> (A) INNER 		8-97382-800-2 01 1 1409-
63 16.682 ADJUSTER; SEAT SLIDE
EXC. SEAT CLOTH<7FL>,SEAT FRT,LONG SIZE<7UG>,INSPECTION ENGINE COVER<8GA> (A) INNER 		8-97382-800-2 01 1 1409-
63 16.682 ADJUSTER; SEAT SLIDE
INSPECTION ENGINE COVER<8GA> EXC. SEAT CLOTH<7FL> (A) INNER 		8-97382-800-2 01 1 1409-
63 16.682 ADJUSTER; SEAT SLIDE
SEAT FRT,LONG SIZE<7UG> EXC. INSPECTION ENGINE COVER<8GA> (A) INNER 		8-97382-800-2 01 1 1409-
63 16.682 ADJUSTER; SEAT SLIDE
SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG> (A) INNER 		8-97382-800-2 01 1 1409-
63 16.682 ADJUSTER; SEAT SLIDE
(B) OUTER 		8-97382-801-1 01 1 1207-1408
63 16.682 ADJUSTER; SEAT SLIDE
SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> INSPECTION ENGINE COVER<8GA> (B) OUTER 		8-97382-801-1 01 1 1409-
63 16.682 ADJUSTER; SEAT SLIDE
EXC. SEAT CLOTH<7FL>,SEAT FRT,LONG SIZE<7UG>,INSPECTION ENGINE COVER<8GA> (B) OUTER 		8-97382-801-1 01 1 1409-
63 16.682 ADJUSTER; SEAT SLIDE
INSPECTION ENGINE COVER<8GA> EXC. SEAT CLOTH<7FL> (B) OUTER 		8-97382-801-1 01 1 1409-
63 16.682 ADJUSTER; SEAT SLIDE
SEAT FRT,LONG SIZE<7UG> EXC. INSPECTION ENGINE COVER<8GA> (B) OUTER 		8-97382-801-1 01 1 1409-
63 16.682 ADJUSTER; SEAT SLIDE
SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG> (B) OUTER 		8-97382-801-1 01 1 1409-
67 16.682 BOLT; FRT SEAT TO BODY
(A) M10X20 FLANGE 		8-98055-941-0 02 1 1207-
67 16.682 BOLT; FRT SEAT TO BODY
(B) M10X30 FLANGE 		8-98055-942-0 01 1 1207-
69 16.682 NUT; FRT SEAT
M10 FLANGE 		8-98055-961-0 01 1 1207-
99 16.716 BUSHING; SEAT BACK 8-98112-751-0 01 1 1207-1408
99 16.716 BUSHING; SEAT BACK
SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> INSPECTION ENGINE COVER<8GA> 		8-98112-751-0 01 1 1409-
99 16.716 BUSHING; SEAT BACK
EXC. SEAT CLOTH<7FL>,SEAT FRT,LONG SIZE<7UG>,INSPECTION ENGINE COVER<8GA> 		8-98112-751-0 01 1 1409-
99 16.716 BUSHING; SEAT BACK
INSPECTION ENGINE COVER<8GA> EXC. SEAT CLOTH<7FL> 		8-98112-751-0 01 1 1409-
99 16.716 BUSHING; SEAT BACK
SEAT FRT,LONG SIZE<7UG> EXC. INSPECTION ENGINE COVER<8GA> 		8-98112-751-0 01 1 1409-
99 16.716 BUSHING; SEAT BACK
SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG> 		8-98112-751-0 01 1 1409-
201 16.682 CABLE; ADJ 8-98003-086-1 01 1 1207-1408
201 16.682 CABLE; ADJ
SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> INSPECTION ENGINE COVER<8GA> 		8-98003-086-1 01 1 1409-
201 16.682 CABLE; ADJ
EXC. SEAT CLOTH<7FL>,SEAT FRT,LONG SIZE<7UG>,INSPECTION ENGINE COVER<8GA> 		8-98003-086-1 01 1 1409-
201 16.682 CABLE; ADJ
INSPECTION ENGINE COVER<8GA> EXC. SEAT CLOTH<7FL> 		8-98003-086-1 01 1 1409-
201 16.682 CABLE; ADJ
SEAT FRT,LONG SIZE<7UG> EXC. INSPECTION ENGINE COVER<8GA> 		8-98003-086-1 01 1 1409-
201 16.682 CABLE; ADJ
SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG> 		8-98003-086-1 01 1 1409-
228 16.714 SCREW; KNOB
M4 		8-98062-662-0 01 1 1207-1408
228 16.714 SCREW; KNOB
SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> INSPECTION ENGINE COVER<8GA> M4 		8-98062-662-0 01 1 1409-
228 16.714 SCREW; KNOB
EXC. SEAT CLOTH<7FL>,SEAT FRT,LONG SIZE<7UG>,INSPECTION ENGINE COVER<8GA> M4 		8-98062-662-0 01 1 1409-
228 16.714 SCREW; KNOB
INSPECTION ENGINE COVER<8GA> EXC. SEAT CLOTH<7FL> M4 		8-98062-662-0 01 1 1409-
228 16.714 SCREW; KNOB
SEAT FRT,LONG SIZE<7UG> EXC. INSPECTION ENGINE COVER<8GA> M4 		8-98062-662-0 01 1 1409-
228 16.714 SCREW; KNOB
SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG> M4 		8-98062-662-0 01 1 1409-
627 16.682 WASHER; FRT SEAT
(A) 		8-98063-223-0 01 1 1207-1408
627 16.682 WASHER; FRT SEAT
SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> INSPECTION ENGINE COVER<8GA> (A) 		8-98063-223-0 01 1 1409-
627 16.682 WASHER; FRT SEAT
EXC. SEAT CLOTH<7FL>,SEAT FRT,LONG SIZE<7UG>,INSPECTION ENGINE COVER<8GA> (A) 		8-98063-223-0 01 1 1409-
627 16.682 WASHER; FRT SEAT
INSPECTION ENGINE COVER<8GA> EXC. SEAT CLOTH<7FL> (A) 		8-98063-223-0 01 1 1409-
627 16.682 WASHER; FRT SEAT
SEAT FRT,LONG SIZE<7UG> EXC. INSPECTION ENGINE COVER<8GA> (A) 		8-98063-223-0 01 1 1409-
627 16.682 WASHER; FRT SEAT
SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG> (A) 		8-98063-223-0 01 1 1409-
627 16.682 WASHER; FRT SEAT
(B) 		8-98063-224-0 01 1 1207-1408
627 16.682 WASHER; FRT SEAT
SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> INSPECTION ENGINE COVER<8GA> (B) 		8-98063-224-0 01 1 1409-
627 16.682 WASHER; FRT SEAT
EXC. SEAT CLOTH<7FL>,SEAT FRT,LONG SIZE<7UG>,INSPECTION ENGINE COVER<8GA> (B) 		8-98063-224-0 01 1 1409-
627 16.682 WASHER; FRT SEAT
INSPECTION ENGINE COVER<8GA> EXC. SEAT CLOTH<7FL> (B) 		8-98063-224-0 01 1 1409-
627 16.682 WASHER; FRT SEAT
SEAT FRT,LONG SIZE<7UG> EXC. INSPECTION ENGINE COVER<8GA> (B) 		8-98063-224-0 01 1 1409-
627 16.682 WASHER; FRT SEAT
SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG> (B) 		8-98063-224-0 01 1 1409-
630 16.682 NUT; CAP
M8 		8-98063-225-0 01 1 1207-1408
630 16.682 NUT; CAP
SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> INSPECTION ENGINE COVER<8GA> M8 		8-98063-225-0 01 1 1409-
630 16.682 NUT; CAP
EXC. SEAT CLOTH<7FL>,SEAT FRT,LONG SIZE<7UG>,INSPECTION ENGINE COVER<8GA> M8 		8-98063-225-0 01 1 1409-
630 16.682 NUT; CAP
INSPECTION ENGINE COVER<8GA> EXC. SEAT CLOTH<7FL> M8 		8-98063-225-0 01 1 1409-
630 16.682 NUT; CAP
SEAT FRT,LONG SIZE<7UG> EXC. INSPECTION ENGINE COVER<8GA> M8 		8-98063-225-0 01 1 1409-
630 16.682 NUT; CAP
SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG> M8 		8-98063-225-0 01 1 1409-
631 16.682 BOLT; ADJ,SEAT
OUTER M8X25 W/LK WASHER 		8-98062-658-0 02 1 1207-1408
631 16.682 BOLT; ADJ,SEAT
SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> INSPECTION ENGINE COVER<8GA> M8X25 W/LK WASHER 		8-98062-658-0 02 1 1409-
631 16.682 BOLT; ADJ,SEAT
EXC. SEAT CLOTH<7FL>,SEAT FRT,LONG SIZE<7UG>,INSPECTION ENGINE COVER<8GA> M8X25 W/LK WASHER 		8-98062-658-0 02 1 1409-
631 16.682 BOLT; ADJ,SEAT
INSPECTION ENGINE COVER<8GA> EXC. SEAT CLOTH<7FL> M8X25 W/LK WASHER 		8-98062-658-0 02 1 1409-
631 16.682 BOLT; ADJ,SEAT
SEAT FRT,LONG SIZE<7UG> EXC. INSPECTION ENGINE COVER<8GA> M8X25 W/LK WASHER 		8-98062-658-0 02 1 1409-
631 16.682 BOLT; ADJ,SEAT
SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG> M8X25 W/LK WASHER 		8-98062-658-0 02 1 1409-
631 16.682 BOLT; ADJ,SEAT
INNER M8X32 W/LK WASHER 		8-98062-659-0 02 1 1207-1408
631 16.682 BOLT; ADJ,SEAT
SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> INSPECTION ENGINE COVER<8GA> M8X32 W/LK WASHER 		8-98062-659-0 02 1 1409-
631 16.682 BOLT; ADJ,SEAT
EXC. SEAT CLOTH<7FL>,SEAT FRT,LONG SIZE<7UG>,INSPECTION ENGINE COVER<8GA> M8X32 W/LK WASHER 		8-98062-659-0 02 1 1409-
631 16.682 BOLT; ADJ,SEAT
INSPECTION ENGINE COVER<8GA> EXC. SEAT CLOTH<7FL> M8X32 W/LK WASHER 		8-98062-659-0 02 1 1409-
631 16.682 BOLT; ADJ,SEAT
SEAT FRT,LONG SIZE<7UG> EXC. INSPECTION ENGINE COVER<8GA> M8X32 W/LK WASHER 		8-98062-659-0 02 1 1409-
631 16.682 BOLT; ADJ,SEAT
SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG> M8X32 W/LK WASHER 		8-98062-659-0 02 1 1409-
639 16.679 CLIP; SEAT
INSPECTION ENGINE COVER<8GA> 		8-98097-693-0 01 1 1207-
çizim 286428
460 16 361 368 114 126 139 478 115 139 116 480 479
BalonParca AdiParca NoAdetTipApplied Date
16 16.682 ADJUSTER ASM; RECLINING
(B) BLACK 		8-97859-273-3 01 1 1207-
16 16.682 ADJUSTER ASM; RECLINING
(A) 		8-98003-087-1 01 1 1207-1408
16 16.682 ADJUSTER ASM; RECLINING
SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> INSPECTION ENGINE COVER<8GA> (A) 		8-98003-087-1 01 1 1409-
16 16.682 ADJUSTER ASM; RECLINING
EXC. SEAT CLOTH<7FL>,SEAT FRT,LONG SIZE<7UG>,INSPECTION ENGINE COVER<8GA> (A) 		8-98003-087-1 01 1 1409-
16 16.682 ADJUSTER ASM; RECLINING
INSPECTION ENGINE COVER<8GA> EXC. SEAT CLOTH<7FL> (A) 		8-98003-087-1 01 1 1409-
16 16.682 ADJUSTER ASM; RECLINING
SEAT FRT,LONG SIZE<7UG> EXC. INSPECTION ENGINE COVER<8GA> (A) 		8-98003-087-1 01 1 1409-
16 16.682 ADJUSTER ASM; RECLINING
SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG> (A) 		8-98003-087-1 01 1 1409-
114 16.724 COVER; TRIM,PASSENGER SEAT,BACK
SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97421-288-1 01 1 1207-
114 16.724 COVER; TRIM,PASSENGER SEAT,BACK
SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97421-289-1 01 1 1207-
114 16.724 COVER; TRIM,PASSENGER SEAT,BACK
INSPECTION ENGINE COVER<8GA> EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97409-279-1 01 1 1207-
114 16.724 COVER; TRIM,PASSENGER SEAT,BACK
EXC. SEAT CLOTH<7FL>,INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97418-718-0 01 1 1207-
115 16.720 CUSHION ASM; PASSENGER SEAT
SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97421-317-2 01 1 1207-
115 16.720 CUSHION ASM; PASSENGER SEAT
SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97421-316-1 01 1 1207-
115 16.720 CUSHION ASM; PASSENGER SEAT
INSPECTION ENGINE COVER<8GA> EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97406-358-6 01 1 1207-
115 16.720 CUSHION ASM; PASSENGER SEAT
EXC. SEAT CLOTH<7FL>,INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97418-703-1 01 1 1207-
116 16.717 COVER; TRIM,PASSENGER SEAT,CUSHI
SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97421-337-1 01 1 1207-
116 16.717 COVER; TRIM,PASSENGER SEAT,CUSHI
SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97421-336-1 01 1 1207-
116 16.717 COVER; TRIM,PASSENGER SEAT,CUSHI
INSPECTION ENGINE COVER<8GA> EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97409-307-3 01 1 1207-
116 16.717 COVER; TRIM,PASSENGER SEAT,CUSHI
EXC. SEAT CLOTH<7FL>,INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97418-732-1 01 1 1207-
126 16.686 BUSHING; HINGE,RECLINING 8-98069-558-0 01 1 1207-
139 16.679 BOLT; PASSENGER SEAT
M8X20 W/PL WASHER 		8-98031-841-0 03 1 1207-
361 16.682 BOLT; ADJ,RECLINING
M8X18 		8-94279-109-1 02 1 1207-
368 16.682 BOLT; SEAT
16.320 M8X24.5 W/LK&PL WASHER 		8-94279-217-0 01 1 1207-
460 16.670 BACK ASM; PASSENGER SEAT
SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97421-275-2 01 1 1207-
460 16.670 BACK ASM; PASSENGER SEAT
SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97421-276-2 01 1 1207-
460 16.670 BACK ASM; PASSENGER SEAT
INSPECTION ENGINE COVER<8GA> EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97406-334-6 01 1 1207-
460 16.670 BACK ASM; PASSENGER SEAT
EXC. SEAT CLOTH<7FL>,INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97418-689-1 01 1 1207-
478 16.716 BRACKET ASM; HINGE,PASSENGER SEA 8-97868-186-0 01 1 1207-
479 16.716 PLUG; HINGE
16.165 OD=25 BLACK 		1-76798-019-0 02 1 1207-
480 16.716 CLIP; CUSHION 8-94279-977-0 05 1 1207-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
