7-43 — SUN VISOR AND ASSIST GRIP (#94123) — 54 parça

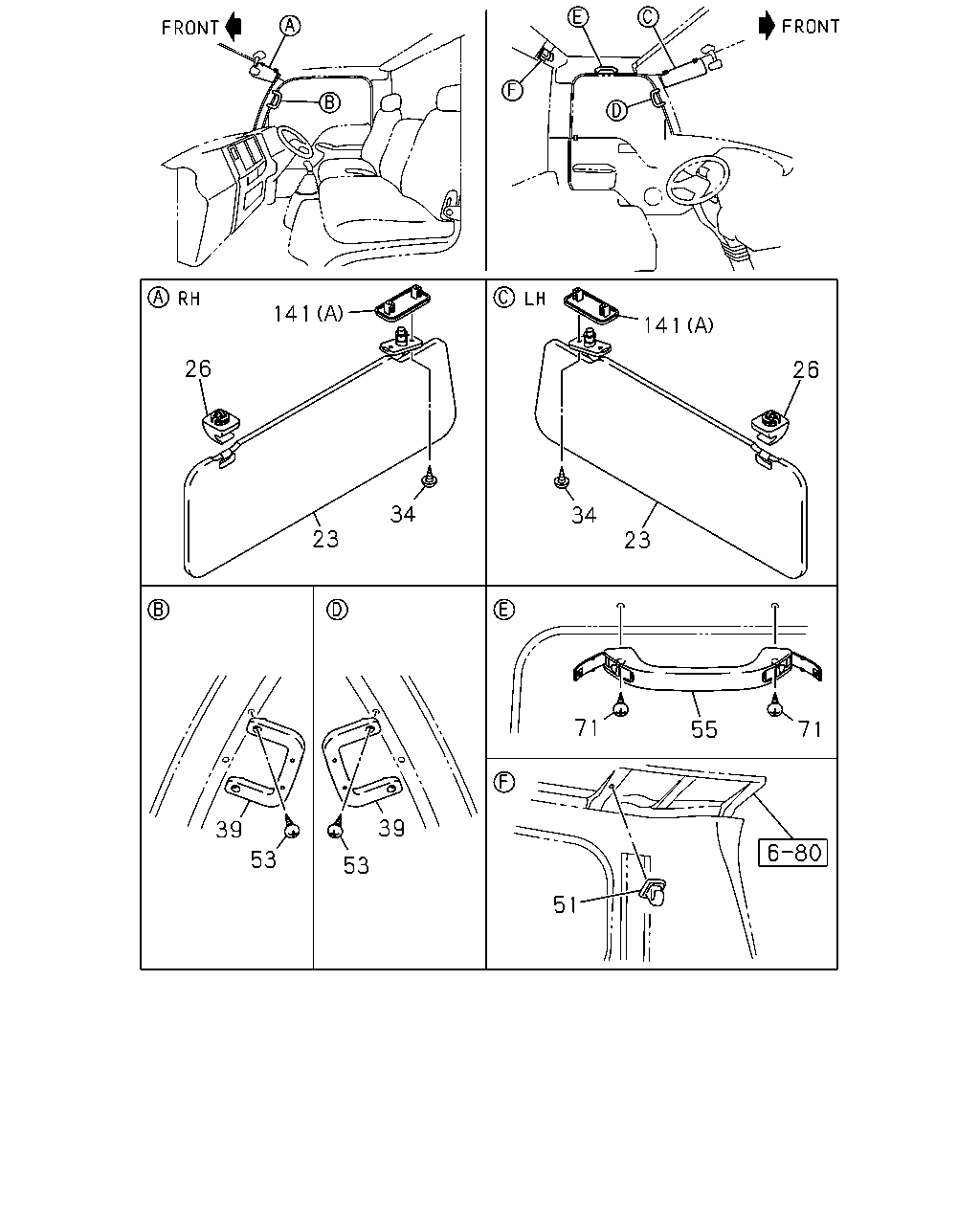

141 26 23 34 34 23 141 26 71 55 71 51 39 53 53 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
23	16.070 SUN VISOR SUNVISOR PASSENGER SIDE<D20> HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY	8-97406-197-3	01	1	1207-
23	16.070 SUN VISOR SUNVISOR PASSENGER SIDE<D20> EXC. HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY	8-97406-196-1	01	1	1207-
23	16.070 SUN VISOR HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER& PASSENGER<8LY> DARK GRAY	8-97409-857-0	01	1	1207-
23	16.070 SUN VISOR EXC. HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY	8-97409-858-0	01	1	1207-
26	16.070 HOLDER; SUN VISOR SUNVISOR PASSENGER SIDE<D20> HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY	8-97405-171-0	01	1	1207-
26	16.070 HOLDER; SUN VISOR HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER& PASSENGER<8LY> DARK GRAY	8-97405-171-0	01	1	1207-
26	16.070 HOLDER; SUN VISOR EXC. HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY	8-97406-200-0	01	1	1207-
26	16.070 HOLDER; SUN VISOR EXC. HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY	8-97406-200-0	01	1	1207-
34	16.070 SCREW; SUN VISOR SUNVISOR PASSENGER SIDE<D20> M6X26	8-98033-674-0	04	1	1207-
34	16.070 SCREW; SUN VISOR EXC. SUNVISOR PASSENGER SIDE<D20> M6X26	8-98033-674-0	02	1	1207-
34	16.070 SCREW; SUN VISOR HEADER TRAY DRIVER & PASSENGER<8LY> EXC. SUNVISOR PASSENGER SIDE<D20> M6X26	8-98033-674-0	02	1	1207-
39	16.450 HANDLE; ASSIST,A-POST DARK GRAY	8-97405-249-2	02	1	1207-
51	16.570 HOOK; COAT HANGER COAT HOOK<S9M> 16.070 DARK GRAY	8-97406-200-0	01	1	1207-
53	16.450 SCREW; ASSIST HANDLE M6X28	8-98004-344-0	04	1	1207-
55	16.450 GRIP; ASSIST,CAB SIDE UPR ASSIST GRIP PASSENGER<EG5> DARK GRAY	8-97405-285-2	01	1	1207-
71	16.450 SCREW ASSIST GRIP PASSENGER<EG5> M6X28	8-98004-344-0	02	1	1207-
141	16.070 COVER; SUN VISOR HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER& PASSENGER<8LY> (A) L=62 B=25 DARK GRAY	8-97405-173-0	01	1	1207-
141	16.070 COVER; SUN VISOR EXC. SUNVISOR PASSENGER SIDE<D20>,HEADER TRAY DRIVER & PASSENGER<8LY> (A) L=62 B=25 DARK GRAY	8-97405-173-0	01	1	1207-
141	16.070 COVER; SUN VISOR HEADER TRAY DRIVER & PASSENGER<8LY> (A) L=62 B=25 DARK GRAY	8-97405-173-0	01	1	1207-
141	16.070 COVER; SUN VISOR HEADER TRAY DRIVER & PASSENGER<8LY> EXC. SUNVISOR PASSENGER SIDE<D20> (A) L=66 B=30 DARK GRAY	8-97408-029-0	01	1	1207-
141	16.070 COVER; SUN VISOR HEADER TRAY DRIVER & PASSENGER<8LY> EXC. SUNVISOR PASSENGER SIDE<D20> (B) OD=30 T=0.05 DARK GRAY	8-97408-030-0	01	1	1207-

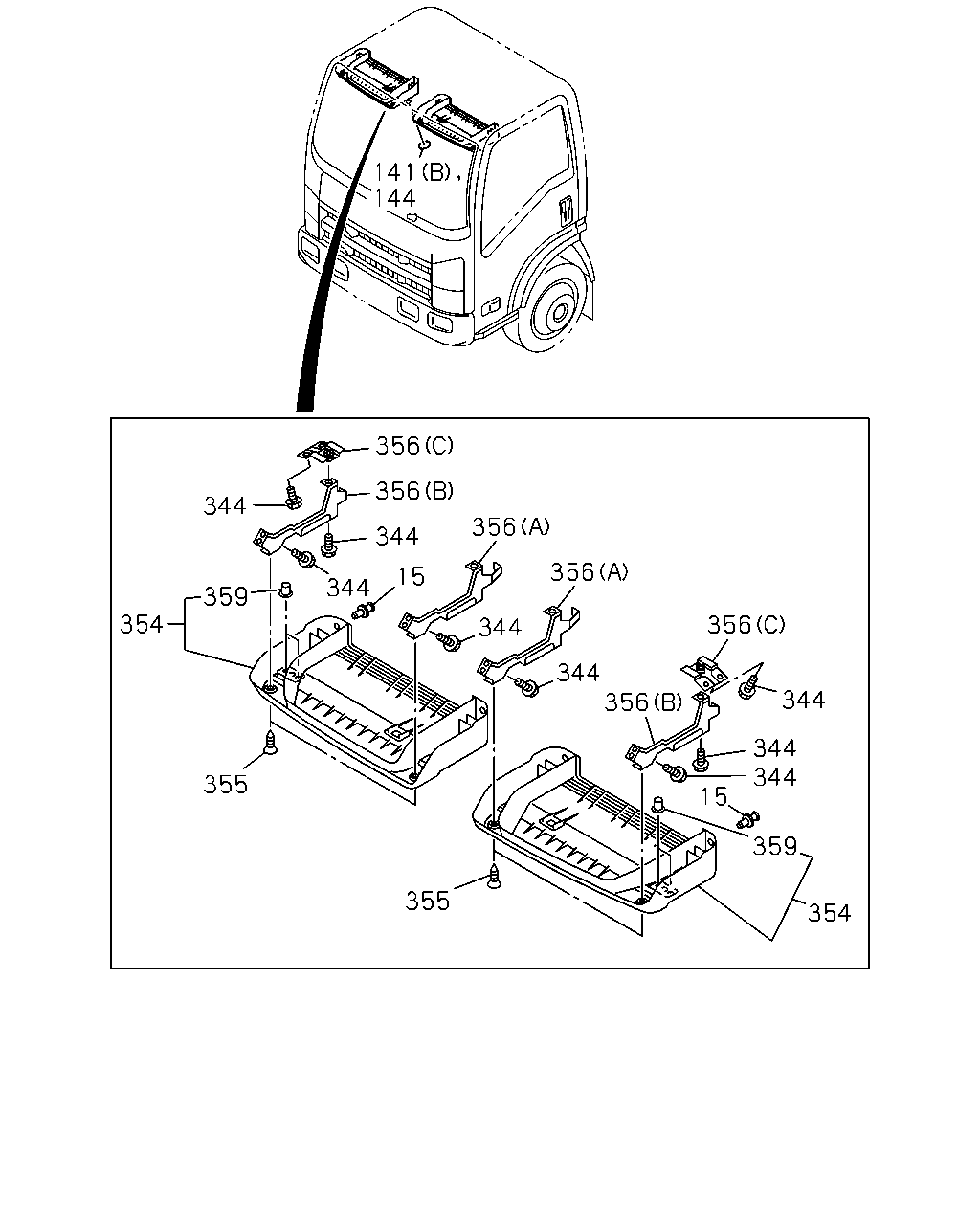

141 144 356 356 356 356 15 344 344 344 359 354 355 344 344 356 344 344 344 15 356 359 354 355

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
15	16.742 FASTENER; HEADER SHELF BOARD HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER& PASSENGER<8LY> DARK GRAY	8-97406-299-0	02	1	1207-
15	16.742 FASTENER; HEADER SHELF BOARD HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY	8-97406-299-0	02	1	1207-
141	16.070 COVER; SUN VISOR HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER& PASSENGER<8LY> (A) L=62 B=25 DARK GRAY	8-97405-173-0	01	1	1207-
141	16.070 COVER; SUN VISOR EXC. SUNVISOR PASSENGER SIDE<D20>,HEADER TRAY DRIVER & PASSENGER<8LY> (A) L=62 B=25 DARK GRAY	8-97405-173-0	01	1	1207-
141	16.070 COVER; SUN VISOR HEADER TRAY DRIVER & PASSENGER<8LY> (A) L=62 B=25 DARK GRAY	8-97405-173-0	01	1	1207-
141	16.070 COVER; SUN VISOR HEADER TRAY DRIVER & PASSENGER<8LY> EXC. SUNVISOR PASSENGER SIDE<D20> (A) L=66 B=30 DARK GRAY	8-97408-029-0	01	1	1207-
141	16.070 COVER; SUN VISOR HEADER TRAY DRIVER & PASSENGER<8LY> EXC. SUNVISOR PASSENGER SIDE<D20> (B) OD=30 T=0.05 DARK GRAY	8-97408-030-0	01	1	1207-
144	16.070 SEAL; LOCATION HOLE BODY COLOR EBONY BLACK2(508),BODY COLOR ALGRAY(517),BODY COLOR PURPLISH BLUE(668),B ODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR CARDINAL RED(736),B ODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEI GE(829),BODY COLOR MARINE BLUE(890),BODY COLOR HIGHWAY ORANGE(944),BODY COLOR SUNBEL T GREEN(989),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) EXC. HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> 16.165 OD=20 T=0.05 BLACK	5-76777-036-0	04	1	1504-
144	16.070 SEAL; LOCATION HOLE BODY COLOR EBONY BLACK2(508),BODY COLOR ALGRAY(517),BODY COLOR PURPLISH BLUE(668),B ODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR CARDINAL RED(736),B ODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEI GE(829),BODY COLOR MARINE BLUE(890),BODY COLOR HIGHWAY ORANGE(944),BODY COLOR SUNBEL T GREEN(989),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) EXC. HEADER TRAY DRIVER & PASSENGER<8LY> 16.165 OD=20 T=0.05 BLACK	5-76777-036-0	04	1	1504-
144	16.070 SEAL; LOCATION HOLE BODY COLOR POLAR WHITE(534),BODY COLOR ARCWHITE(729) EXC. HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> 16.570 OD=20 T=0.05 WHITE	8-98059-421-0	04	1	1504-
144	16.070 SEAL; LOCATION HOLE BODY COLOR POLAR WHITE(534),BODY COLOR ARCWHITE(729) EXC. HEADER TRAY DRIVER & PASSENGER<8LY> 16.570 OD=20 T=0.05 WHITE	8-98059-421-0	04	1	1504-
144	16.070 SEAL; LOCATION HOLE BODY COLOR EBONY BLACK2(508),BODY COLOR ALGRAY(517),BODY COLOR PURPLISH BLUE(668),B ODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR CARDINAL RED(736),B ODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEI GE(829),BODY COLOR MARINE BLUE(890),BODY COLOR HIGHWAY ORANGE(944),BODY COLOR SUNBEL T GREEN(989),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) EXC. HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> 16.165 OD=20 T=0.05 BLACK	5-76777-036-0	01	1	1207-1503
144	16.070 SEAL; LOCATION HOLE BODY COLOR EBONY BLACK2(508),BODY COLOR ALGRAY(517),BODY COLOR PURPLISH BLUE(668),B ODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR CARDINAL RED(736),B ODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEI GE(829),BODY COLOR MARINE BLUE(890),BODY COLOR HIGHWAY ORANGE(944),BODY COLOR SUNBEL T GREEN(989),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) EXC. SUNVISOR PASSENGER SIDE<D20>,HEADER TRAY DRIVER & PASSENGER<8LY> 16.165 OD=20 T=0.05 BLACK	5-76777-036-0	01	1	1207-1503
144	16.070 SEAL; LOCATION HOLE BODY COLOR EBONY BLACK2(508),BODY COLOR ALGRAY(517),BODY COLOR PURPLISH BLUE(668),B ODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR CARDINAL RED(736),B ODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEI GE(829),BODY COLOR MARINE BLUE(890),BODY COLOR HIGHWAY ORANGE(944),BODY COLOR SUNBEL T GREEN(989),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) EXC. HEADER TRAY DRIVER & PASSENGER<8LY> 16.165 OD=20 T=0.05 BLACK	5-76777-036-0	01	1	1207-1503
144	16.070 SEAL; LOCATION HOLE BODY COLOR EBONY BLACK2(508),BODY COLOR ALGRAY(517),BODY COLOR PURPLISH BLUE(668),B ODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR CARDINAL RED(736),B ODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEI GE(829),BODY COLOR MARINE BLUE(890),BODY COLOR HIGHWAY ORANGE(944),BODY COLOR SUNBEL T GREEN(989),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) EXC. SUNVISOR PASSENGER SIDE<D20>,HEADER TRAY DRIVER & PASSENGER<8LY> 16.165 OD=20 T=0.05 BLACK	5-76777-036-0	01	1	1504-
144	16.070 SEAL; LOCATION HOLE BODY COLOR POLAR WHITE(534),BODY COLOR ARCWHITE(729) EXC. SUNVISOR PASSENGER SIDE<D20>,HEADER TRAY DRIVER & PASSENGER<8LY> 16.570 OD=20 T=0.05 WHITE	8-98059-421-0	01	1	1207-1503
144	16.070 SEAL; LOCATION HOLE BODY COLOR POLAR WHITE(534),BODY COLOR ARCWHITE(729) EXC. HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> 16.570 OD=20 T=0.05 WHITE	8-98059-421-0	01	1	1207-1503
144	16.070 SEAL; LOCATION HOLE BODY COLOR POLAR WHITE(534),BODY COLOR ARCWHITE(729) EXC. HEADER TRAY DRIVER & PASSENGER<8LY> 16.570 OD=20 T=0.05 WHITE	8-98059-421-0	01	1	1207-1503
144	16.070 SEAL; LOCATION HOLE BODY COLOR POLAR WHITE(534),BODY COLOR ARCWHITE(729) EXC. SUNVISOR PASSENGER SIDE<D20>,HEADER TRAY DRIVER & PASSENGER<8LY> 16.570 OD=20 T=0.05 WHITE	8-98059-421-0	01	1	1504-
344	16.450 BOLT; BRKT,FRT HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER& PASSENGER<8LY> 03.604 M6X12 FLANGE	8-97108-669-0	06	1	1207-
344	16.450 BOLT; BRKT,FRT HEADER TRAY DRIVER & PASSENGER<8LY> 03.604 M6X12 FLANGE	8-97108-669-0	06	1	1207-
354	16.120 TRAY; HEADER ROOF HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER& PASSENGER<8LY> DARK GRAY	8-97408-064-2	01	1	1207-
354	16.120 TRAY; HEADER ROOF HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY	8-97408-065-2	01	1	1207-
355	16.742 SCREW; TRAY HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER& PASSENGER<8LY> 16.570 M5X16 TAPPING HEXALOBULAR	0-72380-516-0	04	1	1207-
355	16.742 SCREW; TRAY HEADER TRAY DRIVER & PASSENGER<8LY> 16.570 M5X16 TAPPING HEXALOBULAR	0-72380-516-0	04	1	1207-
356	16.742 BRACKET; ROOF OUTER HEADER TRAY DRIVER & PASSENGER<8LY> (A)	8-98036-023-4	01	1	1207-
356	16.742 BRACKET; ROOF OUTER HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER& PASSENGER<8LY> (A)	8-98036-022-4	01	1	1207-
356	16.742 BRACKET; ROOF OUTER HEADER TRAY DRIVER & PASSENGER<8LY> (B)	8-97585-576-4	01	1	1207-
356	16.742 BRACKET; ROOF OUTER HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER& PASSENGER<8LY> (B)	8-97585-576-4	01	1	1207-
356	16.742 BRACKET; ROOF OUTER HEADER TRAY DRIVER & PASSENGER<8LY> (C)	8-97386-874-1	01	1	1207-
356	16.742 BRACKET; ROOF OUTER HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER& PASSENGER<8LY> (C)	8-97386-874-1	01	1	1207-
359	16.070 HOLDER; HEADER TRAY HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER& PASSENGER<8LY>	8-98041-754-0	02	1	1207-
359	16.070 HOLDER; HEADER TRAY HEADER TRAY DRIVER & PASSENGER<8LY>	8-98041-754-0	02	1	1207-
