◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 10826 - FRR/FSR/FRD(AUST) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-65 - REAR LEAF SPRING ▶
4-65 — REAR LEAF SPRING (#9412) — 184 parça

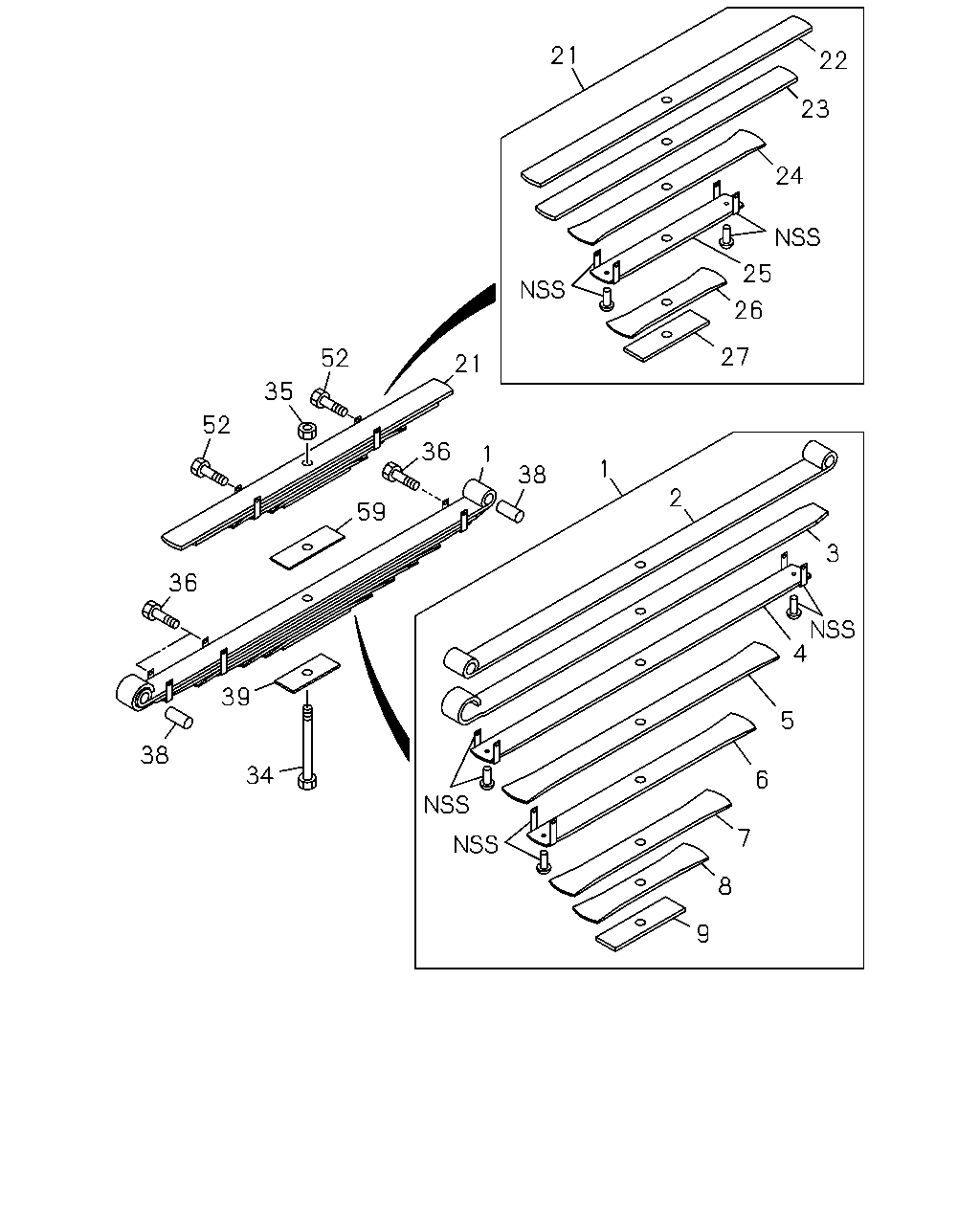

çizim 38434
21 22 23 24 25 26 27 52 21 35 52 36 1 1 38 2 59 3 36 4 39 5 38 34 6 7 8 9
BalonParca AdiParca NoAdetTipApplied Date
1 SPRING ASM; LEAF,RR MAIN
15 LEAF ASM PART: A = 1-51300-362-3 		1-51310-713-1 01 1 -
1 SPRING ASM; LEAF,RR MAIN
14 LEAF ASM PART: C = 1-51300-524-1 		1-51310-715-0 01 1 -
1 SPRING ASM; LEAF,RR MAIN
15 LEAF ASM PART: B = 1-51300-508-1 		1-51410-049-0 01 1 -
2 SPRING; LEAF,NO 1,RR MAIN
15 LEAF ASM PART: A = 1-51300-362-3 		1-51311-713-0 01 1 -
2 SPRING; LEAF,NO 1,RR MAIN
14 LEAF ASM PART: C = 1-51300-524-1 		1-51311-715-0 01 1 -
2 SPRING; LEAF,NO 1,RR MAIN
15 LEAF ASM PART: B = 1-51300-508-1 		1-51411-049-0 01 1 -
3 SPRING; LEAF,NO 2,RR MAIN
15 LEAF ASM PART: A = 1-51300-362-3 		1-51312-713-0 01 1 -
3 SPRING; LEAF,NO 2,RR MAIN
14 LEAF ASM PART: C = 1-51300-524-1 		1-51312-715-0 01 1 -
3 SPRING; LEAF,NO 2,RR MAIN
15 LEAF ASM PART: B = 1-51300-508-1 		1-51412-049-0 01 1 -
4 SPRING; LEAF,NO 3,RR MAIN
15 LEAF, W/CLIP ASM PART: A = 1-51300-362-3 		1-51313-713-1 01 1 -
4 SPRING; LEAF,NO 3,RR MAIN
14 LEAF, W/CLIP ASM PART: C = 1-51300-524-1 		1-51313-715-0 01 1 -
4 SPRING; LEAF,NO 3,RR MAIN
15 LEAF, W/CLIP ASM PART: B = 1-51300-508-1 		1-51413-049-0 01 1 -
5 SPRING; LEAF,NO 4,RR MAIN
15 LEAF ASM PART: A = 1-51300-362-3 		1-51314-713-1 01 1 -
5 SPRING; LEAF,NO 4,RR MAIN
14 LEAF ASM PART: C = 1-51300-524-1 		1-51314-715-0 01 1 -
5 SPRING; LEAF,NO 4,RR MAIN
15 LEAF ASM PART: B = 1-51300-508-1 		1-51414-049-0 01 1 -
6 SPRING; LEAF,NO 5,RR MAIN
15 LEAF, W/CLIP ASM PART: A = 1-51300-362-3 		1-51315-713-0 01 1 -
6 SPRING; LEAF,NO 5,RR MAIN
14 LEAF, W/CLIP ASM PART: C = 1-51300-524-1 		1-51315-715-0 01 1 -
6 SPRING; LEAF,NO 5,RR MAIN
15 LEAF, W/CLIP ASM PART: B = 1-51300-508-1 		1-51415-049-0 01 1 -
7 SPRING; LEAF,NO 6,RR MAIN
15 LEAF ASM PART: A = 1-51300-362-3 		1-51316-713-0 01 1 -
7 SPRING; LEAF,NO 6,RR MAIN
14 LEAF ASM PART: C = 1-51300-524-1 		1-51316-715-0 01 1 -
7 SPRING; LEAF,NO 6,RR MAIN
15 LEAF ASM PART: B = 1-51300-508-1 		1-51416-049-0 01 1 -
8 SPRING; LEAF,NO 7,RR MAIN
15 LEAF ASM PART: A = 1-51300-362-3 		1-51317-713-0 01 1 -
8 SPRING; LEAF,NO 7,RR MAIN
14 LEAF ASM PART: C = 1-51300-524-1 		1-51317-715-0 01 1 -
8 SPRING; LEAF,NO 7,RR MAIN
15 LEAF ASM PART: B = 1-51300-508-1 		1-51417-049-0 01 1 -
9 SPRING; LEAF,NO 8,RR MAIN
15 LEAF ASM PART: A = 1-51300-362-3 		1-51318-713-0 01 1 -
9 SPRING; LEAF,NO 8,RR MAIN
14 LEAF ASM PART: C = 1-51300-524-1 		1-51318-715-0 01 1 -
9 SPRING; LEAF,NO 8,RR MAIN
15 LEAF ASM PART: B = 1-51300-508-1 		1-51418-049-0 01 1 -
21 SPRING ASM; LEAF,RR SUB
14 LEAF ASM PART: C = 1-51300-524-1 		1-51340-431-0 01 1 -
21 SPRING ASM; LEAF,RR SUB
15 LEAF ASM PART: A = 1-51300-362-3 		1-51340-457-0 01 1 -
21 SPRING ASM; LEAF,RR SUB
15 LEAF ASM PART: B = 1-51300-508-1 		1-51340-602-0 01 1 -
22 SPRING; LEAF,NO 1,RR SUB
14 LEAF ASM PART: C = 1-51300-524-1 		1-51341-431-0 01 1 -
22 SPRING; LEAF,NO 1,RR SUB
15 LEAF ASM PART: A = 1-51300-362-3 		1-51341-457-0 01 1 -
22 SPRING; LEAF,NO 1,RR SUB
15 LEAF ASM PART: B = 1-51300-508-1 		1-51341-602-0 01 1 -
23 SPRING; LEAF,NO 2,RR SUB
14 LEAF ASM PART: C = 1-51300-524-1 		1-51342-431-0 01 1 -
23 SPRING; LEAF,NO 2,RR SUB
15 LEAF ASM PART: A = 1-51300-362-3 		1-51342-457-0 01 1 -
23 SPRING; LEAF,NO 2,RR SUB
15 LEAF ASM PART: B = 1-51300-508-1 		1-51342-602-0 01 1 -
24 SPRING; LEAF,NO 3,RR SUB
14 LEAF ASM PART: C = 1-51300-524-1 		1-51343-431-0 01 1 -
24 SPRING; LEAF,NO 3,RR SUB
15 LEAF ASM PART: A = 1-51300-362-3 		1-51343-457-0 01 1 -
24 SPRING; LEAF,NO 3,RR SUB
15 LEAF ASM PART: B = 1-51300-508-1 		1-51343-602-0 01 1 -
25 SPRING; LEAF,NO 4,RR SUB
14 LEAF, W/CLIP ASM PART: C = 1-51300-524-1 		1-51344-431-0 01 1 -
25 SPRING; LEAF,NO 4,RR SUB
15 LEAF, W/CLIP ASM PART: A = 1-51300-362-3 		1-51344-457-0 01 1 -
25 SPRING; LEAF,NO 4,RR SUB
15 LEAF, W/CLIP ASM PART: B = 1-51300-508-1 		1-51344-602-0 01 1 -
26 SPRING; LEAF,NO 5,RR SUB
14 LEAF ASM PART: C = 1-51300-524-1 		1-51345-431-0 01 1 -
26 SPRING; LEAF,NO 5,RR SUB
15 LEAF ASM PART: A = 1-51300-362-3 		1-51345-457-0 01 1 -
26 SPRING; LEAF,NO 5,RR SUB
15 LEAF ASM PART: B = 1-51300-508-1 		1-51345-602-0 01 1 -
27 SPRING; LEAF,NO 6,RR SUB
14 LEAF ASM PART: C = 1-51300-524-1 		1-51346-431-0 01 1 -
27 SPRING; LEAF,NO 6,RR SUB
15 LEAF ASM PART: A = 1-51300-362-3 		1-51346-457-0 01 1 -
27 SPRING; LEAF,NO 6,RR SUB
15 LEAF ASM PART: B = 1-51300-508-1 		1-51346-602-0 01 1 -
34 BOLT; CENTER,LEAF SPR,RR MAIN
L=195 ASM PART: C = 1-51300-524-1 		1-51356-189-0 01 1 -
34 BOLT; CENTER,LEAF SPR,RR MAIN
L=210 ASM PART: B = 1-51300-508-1 		1-51356-216-0 01 1 -
34 BOLT; CENTER,LEAF SPR,RR MAIN
L=210 ASM PART: A = 1-51300-362-3 		1-51356-223-0 01 1 -
35 NUT; CENTER BOLT,LEAF SPR,RR
M12 ASM PART: A = 1-51300-362-3, B = 1-51300-508-1, C = 1-51300-524-1 		9-99110-512-0 01 1 -
36 BOLT; CLIP,LEAF SPR,RR
M8X87 ASM PART: B = 1-51300-508-1, C = 1-51300-524-1 		1-09000-335-0 03 1 -
36 BOLT; CLIP,LEAF SPR,RR
M8X85 ASM PART: A = 1-51300-362-3 		1-09000-366-0 03 1 -
38 BUSHING; LEAF SPR,RR
ID=25 ASM PART: A = 1-51300-362-3, B = 1-51300-508-1, C = 1-51300-524-1 		9-51151-032-0 02 1 -
39 SEAT; LEAF SPR,RR MAIN
T=9 ASM PART: B = 1-51300-508-1, C = 1-51300-524-1 		1-51377-139-0 01 1 -
39 SEAT; LEAF SPR,RR MAIN
T=7 ASM PART: A = 1-51300-362-3 		1-51377-145-0 04 1 -
52 BOLT; CLIP,LEAF SPR,RR SUB
M8X87 ASM PART: B = 1-51300-508-1, C = 1-51300-524-1 		1-09000-335-0 02 1 -
52 BOLT; CLIP,LEAF SPR,RR SUB
M8X85 ASM PART: A = 1-51300-362-3 		1-09000-366-0 01 1 -
59 SEAT; RR SPRING,SUB
T=4.5 ASM PART: A = 1-51300-362-3, B = 1-51300-508-1, C = 1-51300-524-1 		1-51377-140-0 01 1 -

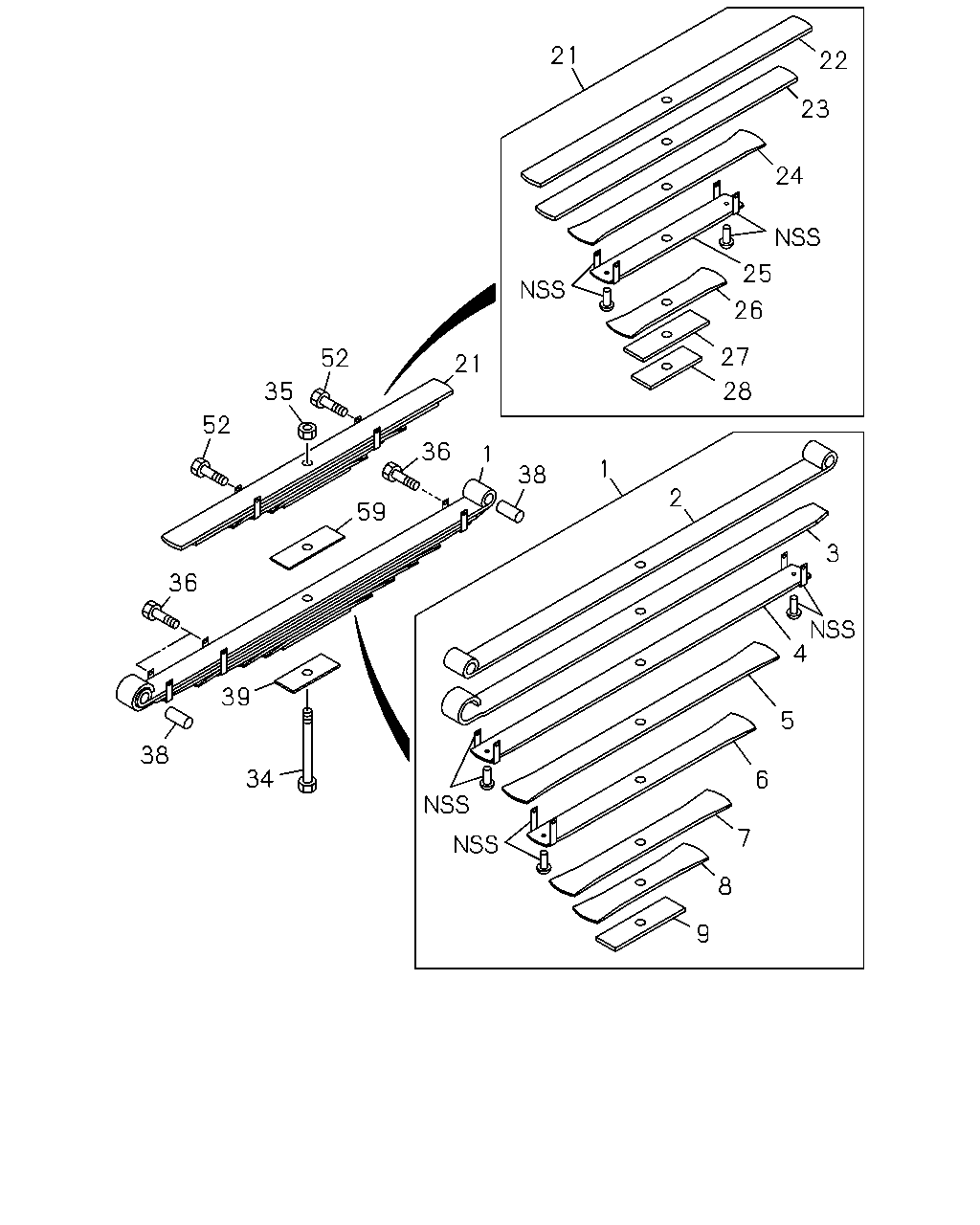

çizim 38573
21 22 23 24 25 26 27 52 21 28 35 52 36 1 1 38 2 59 3 36 4 39 5 38 34 6 7 8 9
BalonParca AdiParca NoAdetTipApplied Date
1 SPRING ASM; LEAF,RR MAIN
15 LEAF ASM PART: A = 1-51300-362-3 		1-51310-713-1 01 1 -
1 SPRING ASM; LEAF,RR MAIN
14 LEAF ASM PART: C = 1-51300-524-1 		1-51310-715-0 01 1 -
1 SPRING ASM; LEAF,RR MAIN
15 LEAF ASM PART: B = 1-51300-508-1 		1-51410-049-0 01 1 -
2 SPRING; LEAF,NO 1,RR MAIN
15 LEAF ASM PART: A = 1-51300-362-3 		1-51311-713-0 01 1 -
2 SPRING; LEAF,NO 1,RR MAIN
14 LEAF ASM PART: C = 1-51300-524-1 		1-51311-715-0 01 1 -
2 SPRING; LEAF,NO 1,RR MAIN
15 LEAF ASM PART: B = 1-51300-508-1 		1-51411-049-0 01 1 -
3 SPRING; LEAF,NO 2,RR MAIN
15 LEAF ASM PART: A = 1-51300-362-3 		1-51312-713-0 01 1 -
3 SPRING; LEAF,NO 2,RR MAIN
14 LEAF ASM PART: C = 1-51300-524-1 		1-51312-715-0 01 1 -
3 SPRING; LEAF,NO 2,RR MAIN
15 LEAF ASM PART: B = 1-51300-508-1 		1-51412-049-0 01 1 -
4 SPRING; LEAF,NO 3,RR MAIN
15 LEAF, W/CLIP ASM PART: A = 1-51300-362-3 		1-51313-713-1 01 1 -
4 SPRING; LEAF,NO 3,RR MAIN
14 LEAF, W/CLIP ASM PART: C = 1-51300-524-1 		1-51313-715-0 01 1 -
4 SPRING; LEAF,NO 3,RR MAIN
15 LEAF, W/CLIP ASM PART: B = 1-51300-508-1 		1-51413-049-0 01 1 -
5 SPRING; LEAF,NO 4,RR MAIN
15 LEAF ASM PART: A = 1-51300-362-3 		1-51314-713-1 01 1 -
5 SPRING; LEAF,NO 4,RR MAIN
14 LEAF ASM PART: C = 1-51300-524-1 		1-51314-715-0 01 1 -
5 SPRING; LEAF,NO 4,RR MAIN
15 LEAF ASM PART: B = 1-51300-508-1 		1-51414-049-0 01 1 -
6 SPRING; LEAF,NO 5,RR MAIN
15 LEAF, W/CLIP ASM PART: A = 1-51300-362-3 		1-51315-713-0 01 1 -
6 SPRING; LEAF,NO 5,RR MAIN
14 LEAF, W/CLIP ASM PART: C = 1-51300-524-1 		1-51315-715-0 01 1 -
6 SPRING; LEAF,NO 5,RR MAIN
15 LEAF, W/CLIP ASM PART: B = 1-51300-508-1 		1-51415-049-0 01 1 -
7 SPRING; LEAF,NO 6,RR MAIN
15 LEAF ASM PART: A = 1-51300-362-3 		1-51316-713-0 01 1 -
7 SPRING; LEAF,NO 6,RR MAIN
14 LEAF ASM PART: C = 1-51300-524-1 		1-51316-715-0 01 1 -
7 SPRING; LEAF,NO 6,RR MAIN
15 LEAF ASM PART: B = 1-51300-508-1 		1-51416-049-0 01 1 -
8 SPRING; LEAF,NO 7,RR MAIN
15 LEAF ASM PART: A = 1-51300-362-3 		1-51317-713-0 01 1 -
8 SPRING; LEAF,NO 7,RR MAIN
14 LEAF ASM PART: C = 1-51300-524-1 		1-51317-715-0 01 1 -
8 SPRING; LEAF,NO 7,RR MAIN
15 LEAF ASM PART: B = 1-51300-508-1 		1-51417-049-0 01 1 -
9 SPRING; LEAF,NO 8,RR MAIN
15 LEAF ASM PART: A = 1-51300-362-3 		1-51318-713-0 01 1 -
9 SPRING; LEAF,NO 8,RR MAIN
14 LEAF ASM PART: C = 1-51300-524-1 		1-51318-715-0 01 1 -
9 SPRING; LEAF,NO 8,RR MAIN
15 LEAF ASM PART: B = 1-51300-508-1 		1-51418-049-0 01 1 -
21 SPRING ASM; LEAF,RR SUB
14 LEAF ASM PART: C = 1-51300-524-1 		1-51340-431-0 01 1 -
21 SPRING ASM; LEAF,RR SUB
15 LEAF ASM PART: A = 1-51300-362-3 		1-51340-457-0 01 1 -
21 SPRING ASM; LEAF,RR SUB
15 LEAF ASM PART: B = 1-51300-508-1 		1-51340-602-0 01 1 -
22 SPRING; LEAF,NO 1,RR SUB
14 LEAF ASM PART: C = 1-51300-524-1 		1-51341-431-0 01 1 -
22 SPRING; LEAF,NO 1,RR SUB
15 LEAF ASM PART: A = 1-51300-362-3 		1-51341-457-0 01 1 -
22 SPRING; LEAF,NO 1,RR SUB
15 LEAF ASM PART: B = 1-51300-508-1 		1-51341-602-0 01 1 -
23 SPRING; LEAF,NO 2,RR SUB
14 LEAF ASM PART: C = 1-51300-524-1 		1-51342-431-0 01 1 -
23 SPRING; LEAF,NO 2,RR SUB
15 LEAF ASM PART: A = 1-51300-362-3 		1-51342-457-0 01 1 -
23 SPRING; LEAF,NO 2,RR SUB
15 LEAF ASM PART: B = 1-51300-508-1 		1-51342-602-0 01 1 -
24 SPRING; LEAF,NO 3,RR SUB
14 LEAF ASM PART: C = 1-51300-524-1 		1-51343-431-0 01 1 -
24 SPRING; LEAF,NO 3,RR SUB
15 LEAF ASM PART: A = 1-51300-362-3 		1-51343-457-0 01 1 -
24 SPRING; LEAF,NO 3,RR SUB
15 LEAF ASM PART: B = 1-51300-508-1 		1-51343-602-0 01 1 -
25 SPRING; LEAF,NO 4,RR SUB
14 LEAF, W/CLIP ASM PART: C = 1-51300-524-1 		1-51344-431-0 01 1 -
25 SPRING; LEAF,NO 4,RR SUB
15 LEAF, W/CLIP ASM PART: A = 1-51300-362-3 		1-51344-457-0 01 1 -
25 SPRING; LEAF,NO 4,RR SUB
15 LEAF, W/CLIP ASM PART: B = 1-51300-508-1 		1-51344-602-0 01 1 -
26 SPRING; LEAF,NO 5,RR SUB
14 LEAF ASM PART: C = 1-51300-524-1 		1-51345-431-0 01 1 -
26 SPRING; LEAF,NO 5,RR SUB
15 LEAF ASM PART: A = 1-51300-362-3 		1-51345-457-0 01 1 -
26 SPRING; LEAF,NO 5,RR SUB
15 LEAF ASM PART: B = 1-51300-508-1 		1-51345-602-0 01 1 -
27 SPRING; LEAF,NO 6,RR SUB
14 LEAF ASM PART: C = 1-51300-524-1 		1-51346-431-0 01 1 -
27 SPRING; LEAF,NO 6,RR SUB
15 LEAF ASM PART: A = 1-51300-362-3 		1-51346-457-0 01 1 -
27 SPRING; LEAF,NO 6,RR SUB
15 LEAF ASM PART: B = 1-51300-508-1 		1-51346-602-0 01 1 -
28 SPRING; LEAF,NO 7,RR SUB
15 LEAF ASM PART: A = 1-51300-362-3 		1-51347-457-0 01 1 -
28 SPRING; LEAF,NO 7,RR SUB
15 LEAF ASM PART: B = 1-51300-508-1 		1-51347-602-0 01 1 -
34 BOLT; CENTER,LEAF SPR,RR MAIN
L=195 ASM PART: C = 1-51300-524-1 		1-51356-189-0 01 1 -
34 BOLT; CENTER,LEAF SPR,RR MAIN
L=210 ASM PART: B = 1-51300-508-1 		1-51356-216-0 01 1 -
34 BOLT; CENTER,LEAF SPR,RR MAIN
L=210 ASM PART: A = 1-51300-362-3 		1-51356-223-0 01 1 -
35 NUT; CENTER BOLT,LEAF SPR,RR
M12 ASM PART: A = 1-51300-362-3, B = 1-51300-508-1, C = 1-51300-524-1 		9-99110-512-0 01 1 -
36 BOLT; CLIP,LEAF SPR,RR
M8X87 ASM PART: B = 1-51300-508-1, C = 1-51300-524-1 		1-09000-335-0 03 1 -
36 BOLT; CLIP,LEAF SPR,RR
M8X85 ASM PART: A = 1-51300-362-3 		1-09000-366-0 03 1 -
38 BUSHING; LEAF SPR,RR
ID=25 ASM PART: A = 1-51300-362-3, B = 1-51300-508-1, C = 1-51300-524-1 		9-51151-032-0 02 1 -
39 SEAT; LEAF SPR,RR MAIN
T=9 ASM PART: B = 1-51300-508-1, C = 1-51300-524-1 		1-51377-139-0 01 1 -
39 SEAT; LEAF SPR,RR MAIN
T=7 ASM PART: A = 1-51300-362-3 		1-51377-145-0 04 1 -
52 BOLT; CLIP,LEAF SPR,RR SUB
M8X87 ASM PART: B = 1-51300-508-1, C = 1-51300-524-1 		1-09000-335-0 02 1 -
52 BOLT; CLIP,LEAF SPR,RR SUB
M8X85 ASM PART: A = 1-51300-362-3 		1-09000-366-0 01 1 -
59 SEAT; RR SPRING,SUB
T=4.5 ASM PART: A = 1-51300-362-3, B = 1-51300-508-1, C = 1-51300-524-1 		1-51377-140-0 01 1 -

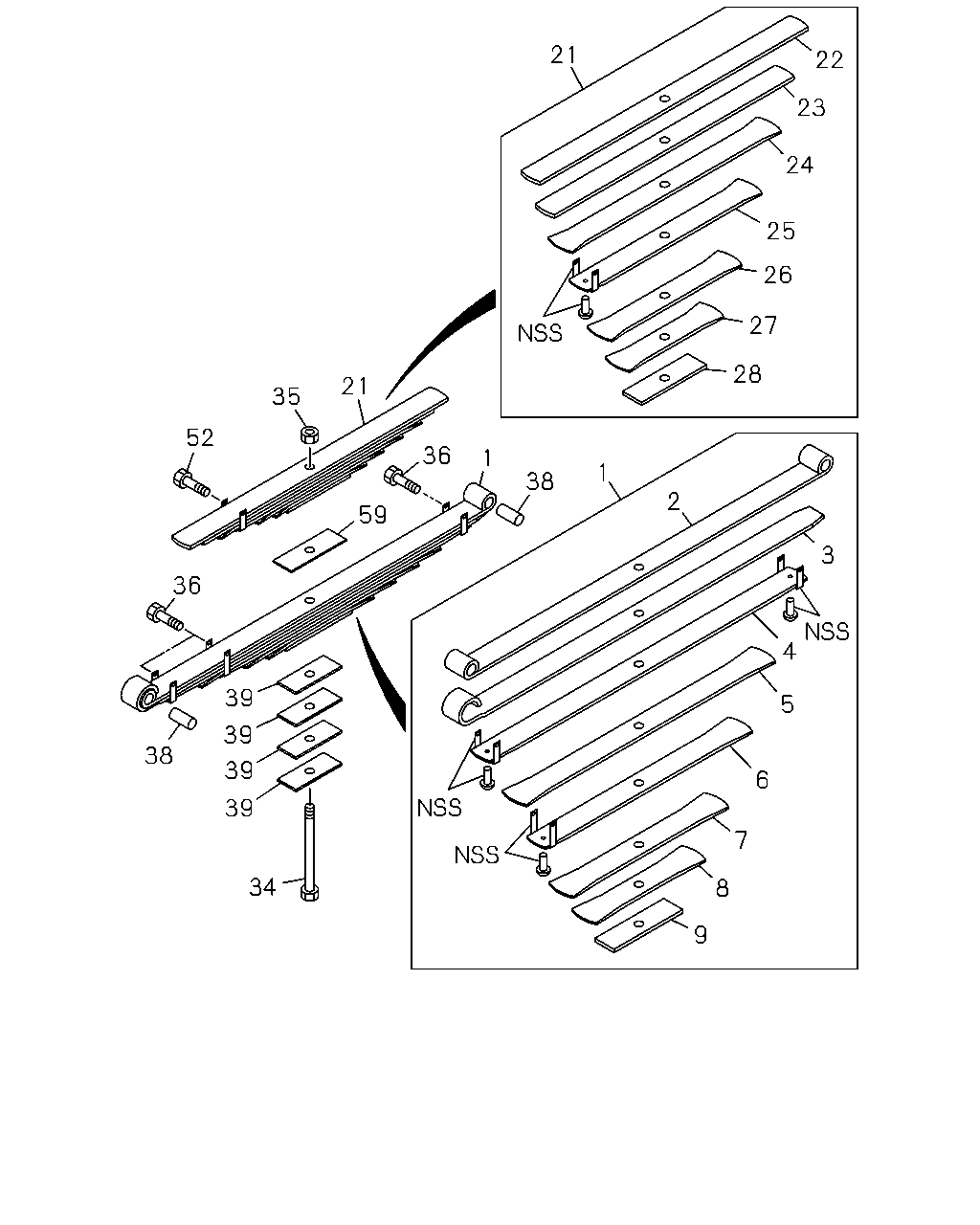

çizim 38945
21 22 23 24 25 26 27 28 21 35 52 36 1 1 38 2 59 3 36 4 39 5 39 38 39 6 39 7 34 8 9
BalonParca AdiParca NoAdetTipApplied Date
1 SPRING ASM; LEAF,RR MAIN
15 LEAF ASM PART: A = 1-51300-362-3 		1-51310-713-1 01 1 -
1 SPRING ASM; LEAF,RR MAIN
14 LEAF ASM PART: C = 1-51300-524-1 		1-51310-715-0 01 1 -
1 SPRING ASM; LEAF,RR MAIN
15 LEAF ASM PART: B = 1-51300-508-1 		1-51410-049-0 01 1 -
2 SPRING; LEAF,NO 1,RR MAIN
15 LEAF ASM PART: A = 1-51300-362-3 		1-51311-713-0 01 1 -
2 SPRING; LEAF,NO 1,RR MAIN
14 LEAF ASM PART: C = 1-51300-524-1 		1-51311-715-0 01 1 -
2 SPRING; LEAF,NO 1,RR MAIN
15 LEAF ASM PART: B = 1-51300-508-1 		1-51411-049-0 01 1 -
3 SPRING; LEAF,NO 2,RR MAIN
15 LEAF ASM PART: A = 1-51300-362-3 		1-51312-713-0 01 1 -
3 SPRING; LEAF,NO 2,RR MAIN
14 LEAF ASM PART: C = 1-51300-524-1 		1-51312-715-0 01 1 -
3 SPRING; LEAF,NO 2,RR MAIN
15 LEAF ASM PART: B = 1-51300-508-1 		1-51412-049-0 01 1 -
4 SPRING; LEAF,NO 3,RR MAIN
15 LEAF, W/CLIP ASM PART: A = 1-51300-362-3 		1-51313-713-1 01 1 -
4 SPRING; LEAF,NO 3,RR MAIN
14 LEAF, W/CLIP ASM PART: C = 1-51300-524-1 		1-51313-715-0 01 1 -
4 SPRING; LEAF,NO 3,RR MAIN
15 LEAF, W/CLIP ASM PART: B = 1-51300-508-1 		1-51413-049-0 01 1 -
5 SPRING; LEAF,NO 4,RR MAIN
15 LEAF ASM PART: A = 1-51300-362-3 		1-51314-713-1 01 1 -
5 SPRING; LEAF,NO 4,RR MAIN
14 LEAF ASM PART: C = 1-51300-524-1 		1-51314-715-0 01 1 -
5 SPRING; LEAF,NO 4,RR MAIN
15 LEAF ASM PART: B = 1-51300-508-1 		1-51414-049-0 01 1 -
6 SPRING; LEAF,NO 5,RR MAIN
15 LEAF, W/CLIP ASM PART: A = 1-51300-362-3 		1-51315-713-0 01 1 -
6 SPRING; LEAF,NO 5,RR MAIN
14 LEAF, W/CLIP ASM PART: C = 1-51300-524-1 		1-51315-715-0 01 1 -
6 SPRING; LEAF,NO 5,RR MAIN
15 LEAF, W/CLIP ASM PART: B = 1-51300-508-1 		1-51415-049-0 01 1 -
7 SPRING; LEAF,NO 6,RR MAIN
15 LEAF ASM PART: A = 1-51300-362-3 		1-51316-713-0 01 1 -
7 SPRING; LEAF,NO 6,RR MAIN
14 LEAF ASM PART: C = 1-51300-524-1 		1-51316-715-0 01 1 -
7 SPRING; LEAF,NO 6,RR MAIN
15 LEAF ASM PART: B = 1-51300-508-1 		1-51416-049-0 01 1 -
8 SPRING; LEAF,NO 7,RR MAIN
15 LEAF ASM PART: A = 1-51300-362-3 		1-51317-713-0 01 1 -
8 SPRING; LEAF,NO 7,RR MAIN
14 LEAF ASM PART: C = 1-51300-524-1 		1-51317-715-0 01 1 -
8 SPRING; LEAF,NO 7,RR MAIN
15 LEAF ASM PART: B = 1-51300-508-1 		1-51417-049-0 01 1 -
9 SPRING; LEAF,NO 8,RR MAIN
15 LEAF ASM PART: A = 1-51300-362-3 		1-51318-713-0 01 1 -
9 SPRING; LEAF,NO 8,RR MAIN
14 LEAF ASM PART: C = 1-51300-524-1 		1-51318-715-0 01 1 -
9 SPRING; LEAF,NO 8,RR MAIN
15 LEAF ASM PART: B = 1-51300-508-1 		1-51418-049-0 01 1 -
21 SPRING ASM; LEAF,RR SUB
14 LEAF ASM PART: C = 1-51300-524-1 		1-51340-431-0 01 1 -
21 SPRING ASM; LEAF,RR SUB
15 LEAF ASM PART: A = 1-51300-362-3 		1-51340-457-0 01 1 -
21 SPRING ASM; LEAF,RR SUB
15 LEAF ASM PART: B = 1-51300-508-1 		1-51340-602-0 01 1 -
22 SPRING; LEAF,NO 1,RR SUB
14 LEAF ASM PART: C = 1-51300-524-1 		1-51341-431-0 01 1 -
22 SPRING; LEAF,NO 1,RR SUB
15 LEAF ASM PART: A = 1-51300-362-3 		1-51341-457-0 01 1 -
22 SPRING; LEAF,NO 1,RR SUB
15 LEAF ASM PART: B = 1-51300-508-1 		1-51341-602-0 01 1 -
23 SPRING; LEAF,NO 2,RR SUB
14 LEAF ASM PART: C = 1-51300-524-1 		1-51342-431-0 01 1 -
23 SPRING; LEAF,NO 2,RR SUB
15 LEAF ASM PART: A = 1-51300-362-3 		1-51342-457-0 01 1 -
23 SPRING; LEAF,NO 2,RR SUB
15 LEAF ASM PART: B = 1-51300-508-1 		1-51342-602-0 01 1 -
24 SPRING; LEAF,NO 3,RR SUB
14 LEAF ASM PART: C = 1-51300-524-1 		1-51343-431-0 01 1 -
24 SPRING; LEAF,NO 3,RR SUB
15 LEAF ASM PART: A = 1-51300-362-3 		1-51343-457-0 01 1 -
24 SPRING; LEAF,NO 3,RR SUB
15 LEAF ASM PART: B = 1-51300-508-1 		1-51343-602-0 01 1 -
25 SPRING; LEAF,NO 4,RR SUB
14 LEAF, W/CLIP ASM PART: C = 1-51300-524-1 		1-51344-431-0 01 1 -
25 SPRING; LEAF,NO 4,RR SUB
15 LEAF, W/CLIP ASM PART: A = 1-51300-362-3 		1-51344-457-0 01 1 -
25 SPRING; LEAF,NO 4,RR SUB
15 LEAF, W/CLIP ASM PART: B = 1-51300-508-1 		1-51344-602-0 01 1 -
26 SPRING; LEAF,NO 5,RR SUB
14 LEAF ASM PART: C = 1-51300-524-1 		1-51345-431-0 01 1 -
26 SPRING; LEAF,NO 5,RR SUB
15 LEAF ASM PART: A = 1-51300-362-3 		1-51345-457-0 01 1 -
26 SPRING; LEAF,NO 5,RR SUB
15 LEAF ASM PART: B = 1-51300-508-1 		1-51345-602-0 01 1 -
27 SPRING; LEAF,NO 6,RR SUB
14 LEAF ASM PART: C = 1-51300-524-1 		1-51346-431-0 01 1 -
27 SPRING; LEAF,NO 6,RR SUB
15 LEAF ASM PART: A = 1-51300-362-3 		1-51346-457-0 01 1 -
27 SPRING; LEAF,NO 6,RR SUB
15 LEAF ASM PART: B = 1-51300-508-1 		1-51346-602-0 01 1 -
28 SPRING; LEAF,NO 7,RR SUB
15 LEAF ASM PART: A = 1-51300-362-3 		1-51347-457-0 01 1 -
28 SPRING; LEAF,NO 7,RR SUB
15 LEAF ASM PART: B = 1-51300-508-1 		1-51347-602-0 01 1 -
34 BOLT; CENTER,LEAF SPR,RR MAIN
L=195 ASM PART: C = 1-51300-524-1 		1-51356-189-0 01 1 -
34 BOLT; CENTER,LEAF SPR,RR MAIN
L=210 ASM PART: B = 1-51300-508-1 		1-51356-216-0 01 1 -
34 BOLT; CENTER,LEAF SPR,RR MAIN
L=210 ASM PART: A = 1-51300-362-3 		1-51356-223-0 01 1 -
35 NUT; CENTER BOLT,LEAF SPR,RR
M12 ASM PART: A = 1-51300-362-3, B = 1-51300-508-1, C = 1-51300-524-1 		9-99110-512-0 01 1 -
36 BOLT; CLIP,LEAF SPR,RR
M8X87 ASM PART: B = 1-51300-508-1, C = 1-51300-524-1 		1-09000-335-0 03 1 -
36 BOLT; CLIP,LEAF SPR,RR
M8X85 ASM PART: A = 1-51300-362-3 		1-09000-366-0 03 1 -
38 BUSHING; LEAF SPR,RR
ID=25 ASM PART: A = 1-51300-362-3, B = 1-51300-508-1, C = 1-51300-524-1 		9-51151-032-0 02 1 -
39 SEAT; LEAF SPR,RR MAIN
T=9 ASM PART: B = 1-51300-508-1, C = 1-51300-524-1 		1-51377-139-0 01 1 -
39 SEAT; LEAF SPR,RR MAIN
T=7 ASM PART: A = 1-51300-362-3 		1-51377-145-0 04 1 -
52 BOLT; CLIP,LEAF SPR,RR SUB
M8X87 ASM PART: B = 1-51300-508-1, C = 1-51300-524-1 		1-09000-335-0 02 1 -
52 BOLT; CLIP,LEAF SPR,RR SUB
M8X85 ASM PART: A = 1-51300-362-3 		1-09000-366-0 01 1 -
59 SEAT; RR SPRING,SUB
T=4.5 ASM PART: A = 1-51300-362-3, B = 1-51300-508-1, C = 1-51300-524-1 		1-51377-140-0 01 1 -
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
