7-20 — MIRROR AND MIRROR STAY (#94119) — 27 parça

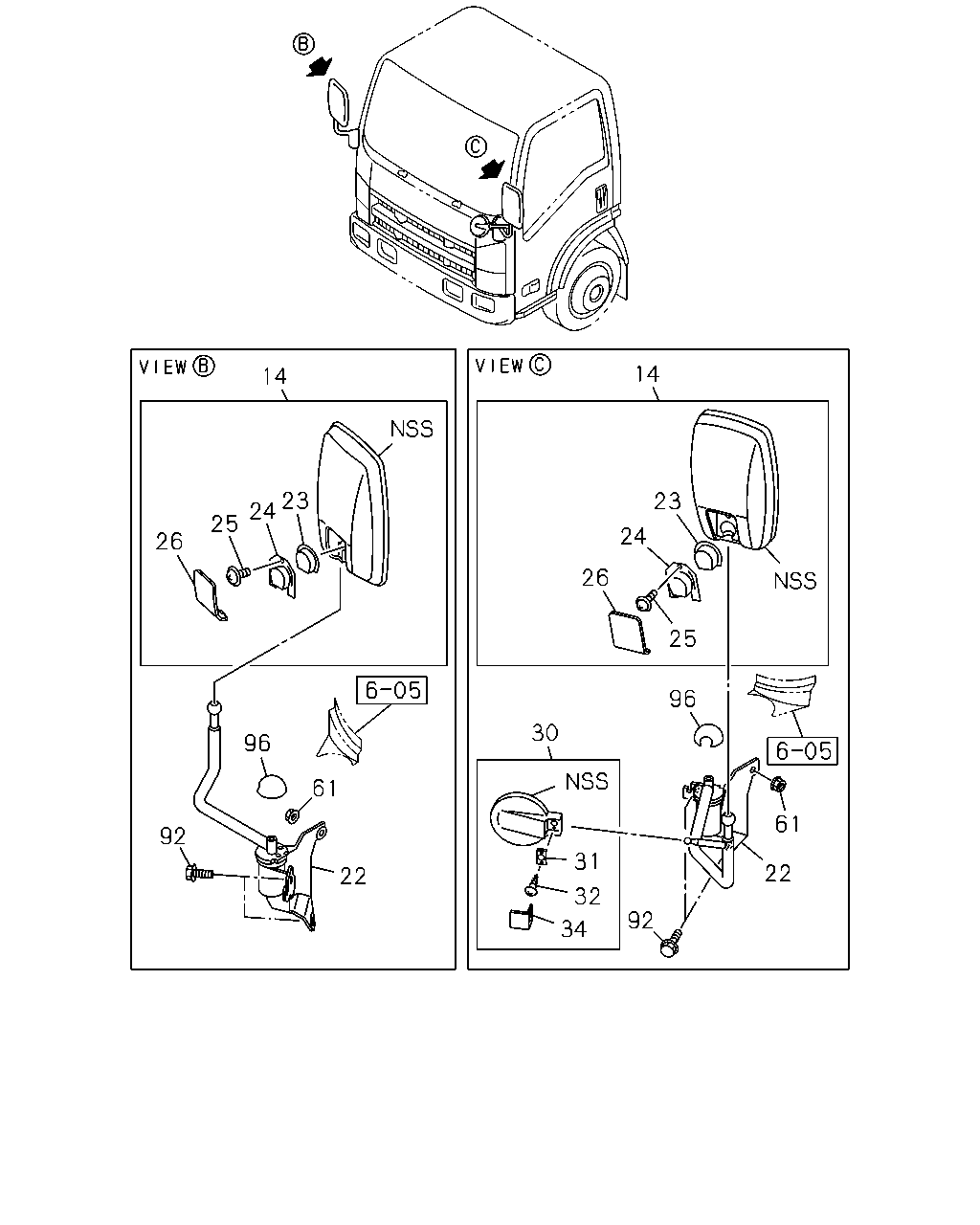

çizim 286409
14 23 24 26 25 96 30 31 32 34 92 22 61 22 61 96 92 26 25 24 23 14
BalonParca AdiParca NoAdetTipApplied Date
14 16.068 MIRROR ASM; OUTSIDE
O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY <6TF>,O/SIDE MIRROR ASSIST SIDE EXTEND LONG STAY<8EB> 		8-94262-542-3 01 1 1207-
14 16.068 MIRROR ASM; OUTSIDE
O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY <6TF>,O/SIDE MIRROR ASSIST SIDE EXTEND LONG STAY<8EB> 		8-94262-542-3 01 1 1207-
22 16.069 STAY; OUTSIDE MIRROR
UNDER MIRROR<RR9> O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY <6TF> 		8-98027-519-0 01 1 1207-
22 16.069 STAY; OUTSIDE MIRROR
UNDER MIRROR<RR9> O/SIDE MIRROR ASSIST SIDE EXTEND LONG STAY <8EB> 		8-98147-079-0 01 1 1207-
22 16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY <6TF> 		8-98038-224-1 01 1 1207-
22 16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY <6TF> EXC. UNDER MIRROR<RR9> 		8-98070-509-0 01 1 1207-
22 16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE EXTEND LONG STAY <8EB> 		8-98147-082-0 01 1 1207-
22 16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE EXTEND LONG STAY <8EB> EXC. UNDER MIRROR<RR9> 		8-98147-080-0 01 1 1207-
23 16.069 WASHER; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY <6TF>,O/SIDE MIRROR ASSIST SIDE EXTEND LONG STAY<8EB> T=2.0 		8-94262-545-0 01 1 1207-
23 16.069 WASHER; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY <6TF>,O/SIDE MIRROR ASSIST SIDE EXTEND LONG STAY<8EB> T=2.0 		8-94262-545-0 01 1 1207-
24 16.069 HOLDER; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY <6TF>,O/SIDE MIRROR ASSIST SIDE EXTEND LONG STAY<8EB> T=1.6 		8-94262-546-1 01 1 1207-
24 16.069 HOLDER; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY <6TF>,O/SIDE MIRROR ASSIST SIDE EXTEND LONG STAY<8EB> T=1.6 		8-94262-546-1 01 1 1207-
25 16.069 SCREW; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY <6TF>,O/SIDE MIRROR ASSIST SIDE EXTEND LONG STAY<8EB> M6X30 		8-94279-365-0 01 1 1207-
25 16.069 SCREW; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY <6TF>,O/SIDE MIRROR ASSIST SIDE EXTEND LONG STAY<8EB> M6X30 		8-94279-365-0 01 1 1207-
26 16.069 COVER; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY <6TF>,O/SIDE MIRROR ASSIST SIDE EXTEND LONG STAY<8EB> T=2.3 		8-94262-547-2 01 1 1207-
26 16.069 COVER; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY <6TF>,O/SIDE MIRROR ASSIST SIDE EXTEND LONG STAY<8EB> T=2.3 		8-94262-547-2 01 1 1207-
30 16.068 MIRROR; UNDER
UNDER MIRROR<RR9> O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY <6TF>,O/SIDE MIRROR ASSIST SIDE EXTEND LONG STAY<8EB> 		8-94262-625-2 01 1 1207-
31 16.069 PLATE; MIRROR
UNDER MIRROR<RR9> O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY <6TF>,O/SIDE MIRROR ASSIST SIDE EXTEND LONG STAY<8EB> 		8-94262-631-0 01 1 1207-
32 16.069 SCREW; UNDER MIRROR
UNDER MIRROR<RR9> O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY <6TF>,O/SIDE MIRROR ASSIST SIDE EXTEND LONG STAY<8EB> M5X18 		8-94279-372-0 02 1 1207-
34 16.069 CAP; MIRROR
UNDER MIRROR<RR9> O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY <6TF>,O/SIDE MIRROR ASSIST SIDE EXTEND LONG STAY<8EB> 		8-94262-629-0 01 1 1207-
61 16.069 NUT; STAY,OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY <6TF>,O/SIDE MIRROR ASSIST SIDE EXTEND LONG STAY<8EB> 01.062 M8 FLANGE 		0-91180-108-0 02 1 1207-
92 16.069 BOLT; STAY BRKT,MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY <6TF>,O/SIDE MIRROR ASSIST SIDE EXTEND LONG STAY<8EB> 06.216 M8X25 FLANGE 		0-28650-825-0 04 1 1207-
96 16.069 CAP; MIRROR STAY
O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY <6TF>,O/SIDE MIRROR ASSIST SIDE EXTEND LONG STAY<8EB> 		8-98027-552-2 02 1 1207-

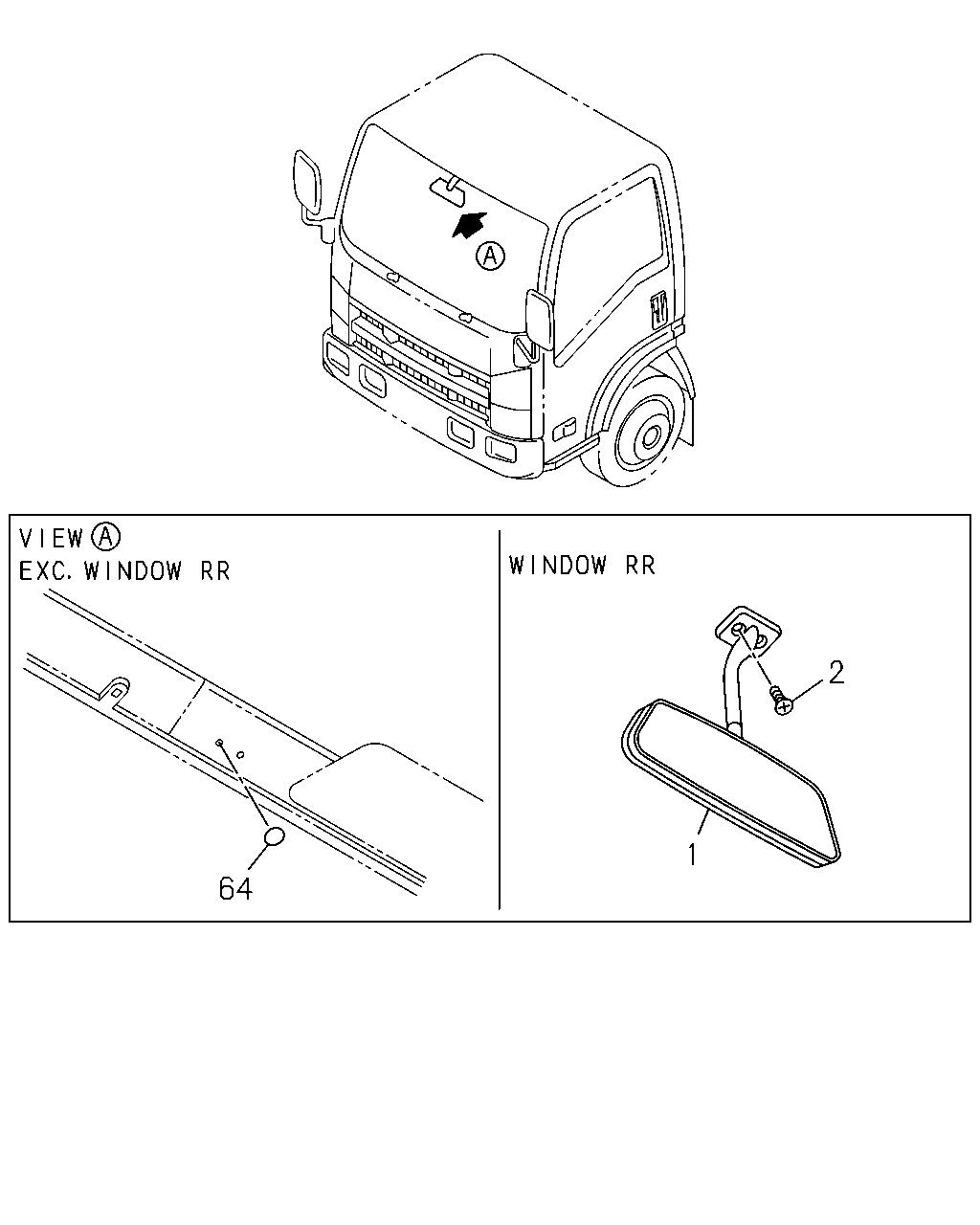

çizim 286616
1 2 64
BalonParca AdiParca NoAdetTipApplied Date
1 16.068 MIRROR; ROOM
WINDOW RR<8LF> DARK GRAY 		8-98097-534-1 01 1 1207-
2 16.069 SCREW; MIRROR TO BODY
WINDOW RR<8LF> 16.070 M6X26 		8-98033-674-0 02 1 1207-
64 16.069 SEAL; MIRROR
BODY COLOR EBONY BLACK2(508),BODY COLOR ALGRAY(517),BODY COLOR PURPLISH BLUE(668),B ODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR CARDINAL RED(736),B ODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEI GE(829),BODY COLOR MARINE BLUE(890),BODY COLOR HIGHWAY ORANGE(944),BODY COLOR SUNBEL T GREEN(989),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) EXC. WINDOW RR<8LF> 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 1207-
64 16.069 SEAL; MIRROR
BODY COLOR POLAR WHITE(534),BODY COLOR ARCWHITE(729) EXC. WINDOW RR<8LF> 16.570 OD=20 T=0.05 WHITE 		8-98059-421-0 02 1 1207-
