◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 10826 - FRR/FSR/FRD(AUST) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-60 - REAR SUSPENSION ▶
4-60 — REAR SUSPENSION (#9410) — 144 parça

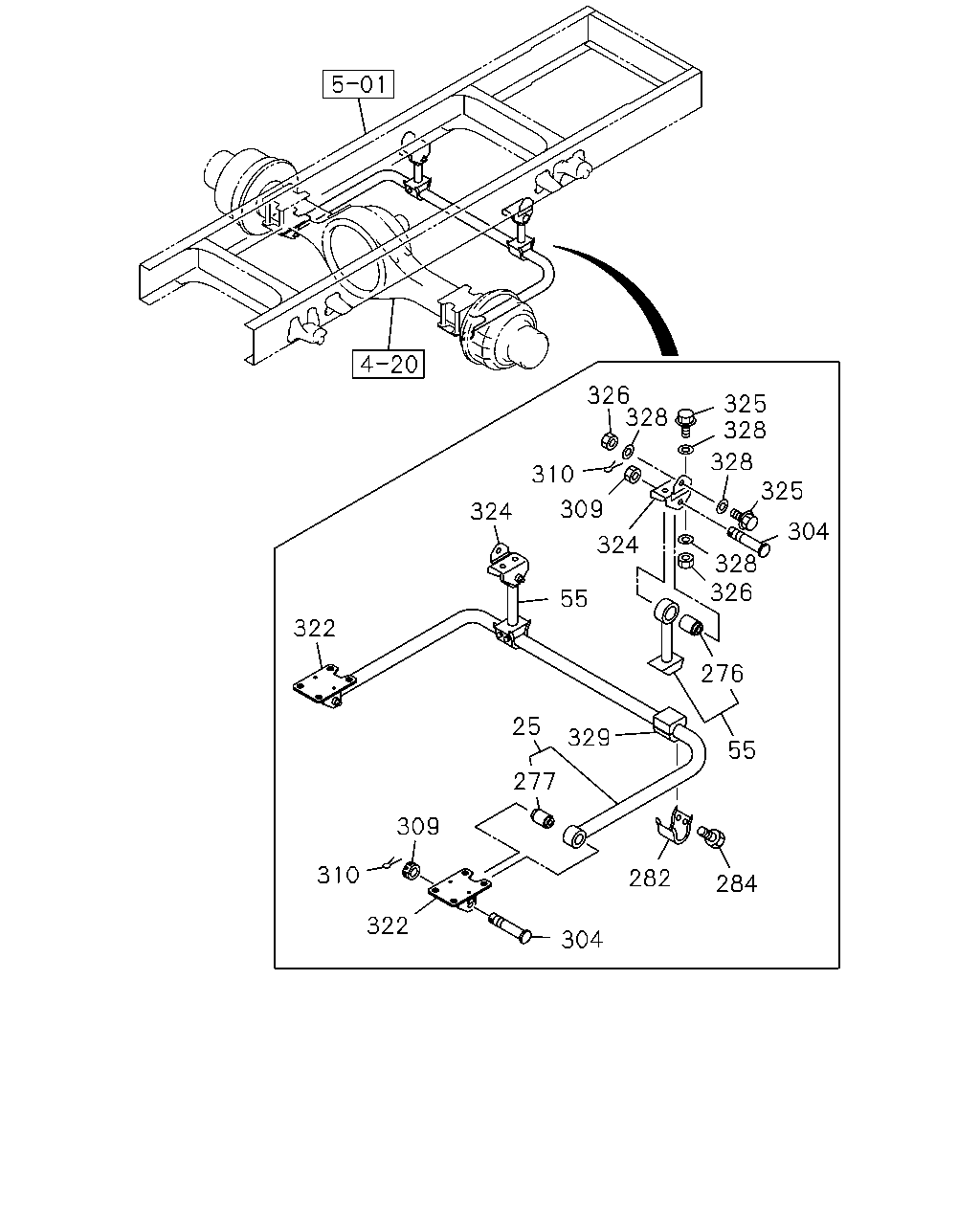

çizim 38304
326 328 325 328 328 325 310 309 324 304 324 328 326 55 322 276 25 329 55 277 309 310 282 284 322 304
BalonParca AdiParca NoAdetTipApplied Date A B C D
25 BAR ASM; STAB,RR SUSP 1-51771-197-0 01 1 0412-0412 ●
25 BAR ASM; STAB,RR SUSP 8-97604-141-0 01 1 0501-1209 ●
25 BAR ASM; STAB,RR SUSP 8-98223-550-1 01 1 1210- ●
25 BAR ASM; STAB,RR SUSP
REAR STABILIZER SHAFT<F61> 		1-51770-111-1 01 1 0211- ●
25 BAR ASM; STAB,RR SUSP 1-51770-111-1 01 1 0211- ●
55 ROD; STAB
REAR STABILIZER SHAFT<F61> 		1-51770-023-0 02 1 0211- ●
55 ROD; STAB 1-51770-023-0 02 1 0211- ●
276 BUSHING; STAB ROD
REAR STABILIZER SHAFT<F61> 		1-51779-019-0 04 1 0211-0401 ●
276 BUSHING; STAB ROD 1-51779-019-0 04 1 0211-0401 ●
276 BUSHING; STAB ROD
REAR STABILIZER SHAFT<F61> 		1-51779-019-0 02 1 0402- ●
276 BUSHING; STAB ROD 1-51779-019-0 02 1 0402- ●
277 BUSHING; STAB,RR UPR 8-97604-143-1 02 1 1306- ●
277 BUSHING; STAB,RR UPR 1-51519-176-0 02 1 0412-0412 ●
277 BUSHING; STAB,RR UPR 8-97604-143-0 02 1 0501-1209 ●
277 BUSHING; STAB,RR UPR
REAR STABILIZER SHAFT<F61> 		1-51779-067-0 02 1 0211- ●
277 BUSHING; STAB,RR UPR 1-51779-067-0 02 1 0211- ●
282 RETAINER; STAB BAR
REAR STABILIZER SHAFT<F61> 		1-51789-015-2 02 1 0211- ●
282 RETAINER; STAB BAR 1-51789-015-2 02 1 0211- ●
284 BOLT; RET TO RET
REAR STABILIZER SHAFT<F61> M10X25 		8-94463-351-0 08 1 0211- ●
284 BOLT; RET TO RET
M10X25 		8-94463-351-0 08 1 0211- ●
304 PIN; STAB ROD
REAR STABILIZER SHAFT<F61> 		1-51789-020-2 04 1 0211- ●
304 PIN; STAB ROD 1-51789-020-2 04 1 0211- ●
309 NUT; STAB ROD
REAR STABILIZER SHAFT<F61> M24 		9-99116-424-0 04 1 0211- ●
309 NUT; STAB ROD
M24 		9-99116-424-0 04 1 0211- ●
310 PIN; SPLIT,STAB ROD
REAR STABILIZER SHAFT<F61> OD=4.6 L=45 		9-08115-045-0 04 1 0211-0606 ●
310 PIN; SPLIT,STAB ROD
OD=4.6 L=45 		9-08115-045-0 04 1 0211-0606 ●
310 PIN; SPLIT,STAB ROD
REAR STABILIZER SHAFT<F61> OD=4.6 L=45 		0-81125-045-0 04 1 0607- ●
310 PIN; SPLIT,STAB ROD
OD=4.6 L=45 		0-81125-045-0 04 1 0607- ●
322 BRACKET; STAB BAR TO RR AXLE
REAR STABILIZER SHAFT<F61> 		1-51781-081-0 01 1 0211- ●
322 BRACKET; STAB BAR TO RR AXLE 1-51781-081-0 01 1 0211- ●
322 BRACKET; STAB BAR TO RR AXLE
REAR STABILIZER SHAFT<F61> 		1-51781-080-0 01 1 0211- ●
322 BRACKET; STAB BAR TO RR AXLE 1-51781-080-0 01 1 0211- ●
324 BRACKET; STAB BAR TO FRAME
REAR STABILIZER SHAFT<F61> 		1-51781-059-0 02 1 0211- ●
324 BRACKET; STAB BAR TO FRAME 1-51781-059-0 02 1 0211- ●
325 BOLT; BRKT TO FRAME
REAR STABILIZER SHAFT<F61> M14X45 		9-92061-445-0 06 1 0211- ●
325 BOLT; BRKT TO FRAME
M14X45 		9-92061-445-0 06 1 0211- ●
326 NUT; BRKT TO FRAME
REAR STABILIZER SHAFT<F61> M14 		9-99110-514-0 06 1 0211-0512 ●
326 NUT; BRKT TO FRAME
M14 		9-99110-514-0 06 1 0211-0512 ●
326 NUT; BRKT TO FRAME
REAR STABILIZER SHAFT<F61> M14 		0-91110-514-0 06 1 0601- ●
326 NUT; BRKT TO FRAME
M14 		0-91110-514-0 06 1 0601- ●
328 WASHER; PL,BRKT
REAR STABILIZER SHAFT<F61> ID=15 		9-09651-069-0 12 1 0211-0910 ●
328 WASHER; PL,BRKT
ID=15 		9-09651-069-0 12 1 0211-0910 ●
328 WASHER; PL,BRKT
REAR STABILIZER SHAFT<F61> ID=15 		8-98010-627-1 12 1 0911- ●
328 WASHER; PL,BRKT
ID=15 		8-98010-627-1 12 1 0911- ●
329 BUSHING; STAB ROD
REAR STABILIZER SHAFT<F61> 		1-51789-017-0 02 1 0211- ●
329 BUSHING; STAB ROD 1-51789-017-0 02 1 0211- ●

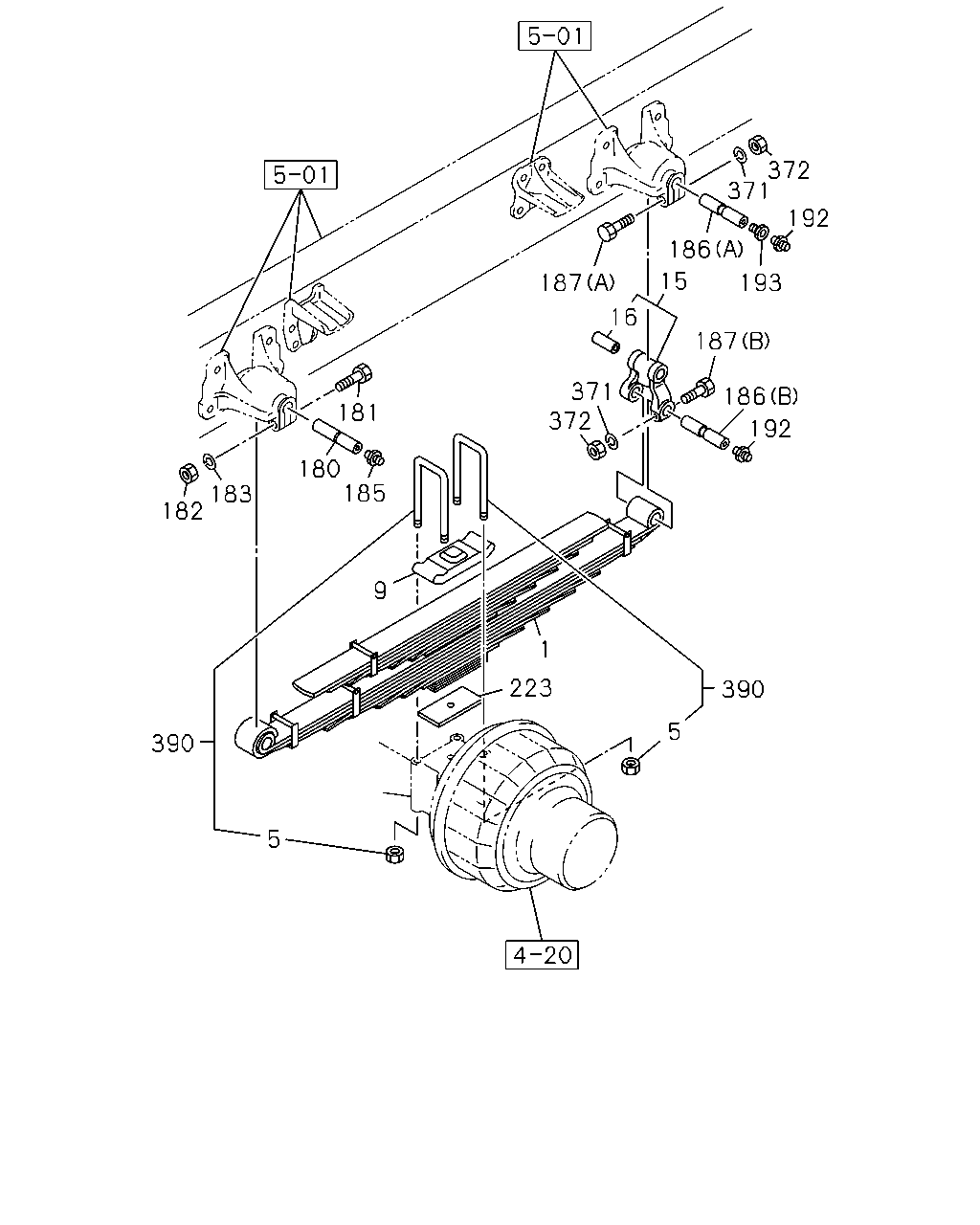

çizim 38943
372 371 192 186 15 193 187 16 187 371 372 186 181 192 180 185 183 182 9 1 223 390 5 390 5
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. 15-LEAF 		1-51300-362-3 02 1 0005- ● ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. 15-LEAF 		1-51300-508-1 02 1 0005-0310 ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. 14-LEAF 		1-51300-524-1 02 1 0311- ●
5 NUT; U-BOLT,RR SPR
M18 FLANGE 		1-09440-039-1 08 1 0005- ● ● ●
9 PAD; U BOLT,RR SPR 1-51372-059-0 02 1 0005- ● ● ●
15 SHACKLE; RR SPR 1-51362-038-2 02 1 0005- ● ● ●
16 BUSHING; SHACKLE,RR SPR
ID=25 		9-51151-032-0 02 1 0005-0902 ● ● ●
16 BUSHING; SHACKLE,RR SPR
ID=25 		8-98082-176-0 02 1 0903- ● ● ●
180 PIN; RR SPR
DO=25 L=115 PT1/8 		1-51361-016-0 02 1 0005- ● ● ●
181 BOLT; SPR & SHACKLE
M12X55 		0-10811-255-0 02 1 0005- ● ● ●
182 NUT; PIN,RR SPR
M12 		9-99110-512-0 02 1 0005-0512 ● ● ●
182 NUT; PIN,RR SPR
M12 		0-91110-512-0 02 1 0601- ● ● ●
183 WASHER; LK,PIN,RR SPR
ID=12.2 		9-09150-612-0 02 1 0005-0603 ● ● ●
183 WASHER; LK,PIN,RR SPR
ID=12.2 		0-91510-612-0 02 1 0604- ● ● ●
185 NIPPLE; GREASE,PIN,RR SPR
PT1/8 STRAIGHT 		9-09031-010-0 02 1 0005-0512 ● ● ●
185 NIPPLE; GREASE,PIN,RR SPR
PT1/8 STRAIGHT 		0-90301-410-0 02 1 0601- ● ● ●
186 PIN; SHACKLE,RR SPR
(A) DO=25 L=115 PT1/8 		1-51361-016-0 02 1 0005- ● ● ●
186 PIN; SHACKLE,RR SPR
(B) DO=25 L=115 M12 		1-51361-017-0 02 1 0005- ● ● ●
187 BOLT; SPR & SHACKLE
(A) M12X55 		0-10811-255-0 02 1 0005- ● ● ●
187 BOLT; SPR & SHACKLE
(B) M12X65 		0-10811-265-0 02 1 0005- ● ● ●
192 NIPPLE; GREASE,SHACKLE PIN
PT1/8 STRAIGHT 		9-09031-010-0 04 1 0005-0512 ● ● ●
192 NIPPLE; GREASE,SHACKLE PIN
PT1/8 STRAIGHT 		0-90301-410-0 04 1 0601- ● ● ●
193 ATTACHMENT; GREASE NIPPLE 9-43165-001-0 02 1 0005- ● ● ●
223 SPACER; U BOLT,RR SPR 1-51377-329-1 02 1 0005- ● ● ●
371 WASHER; LK,SHACKLE
ID=12.2 		9-09150-612-0 04 1 0005-0603 ● ● ●
371 WASHER; LK,SHACKLE
ID=12.2 		0-91510-612-0 04 1 0604- ● ● ●
372 NUT; SHACKLE
M12 		9-99110-512-0 04 1 0005-0512 ● ● ●
372 NUT; SHACKLE
M12 		0-91110-512-0 04 1 0601- ● ● ●
390 U-BOLT SET; RR SPRING
L=405 		1-87870-353-0 04 1 0005- ● ● ●

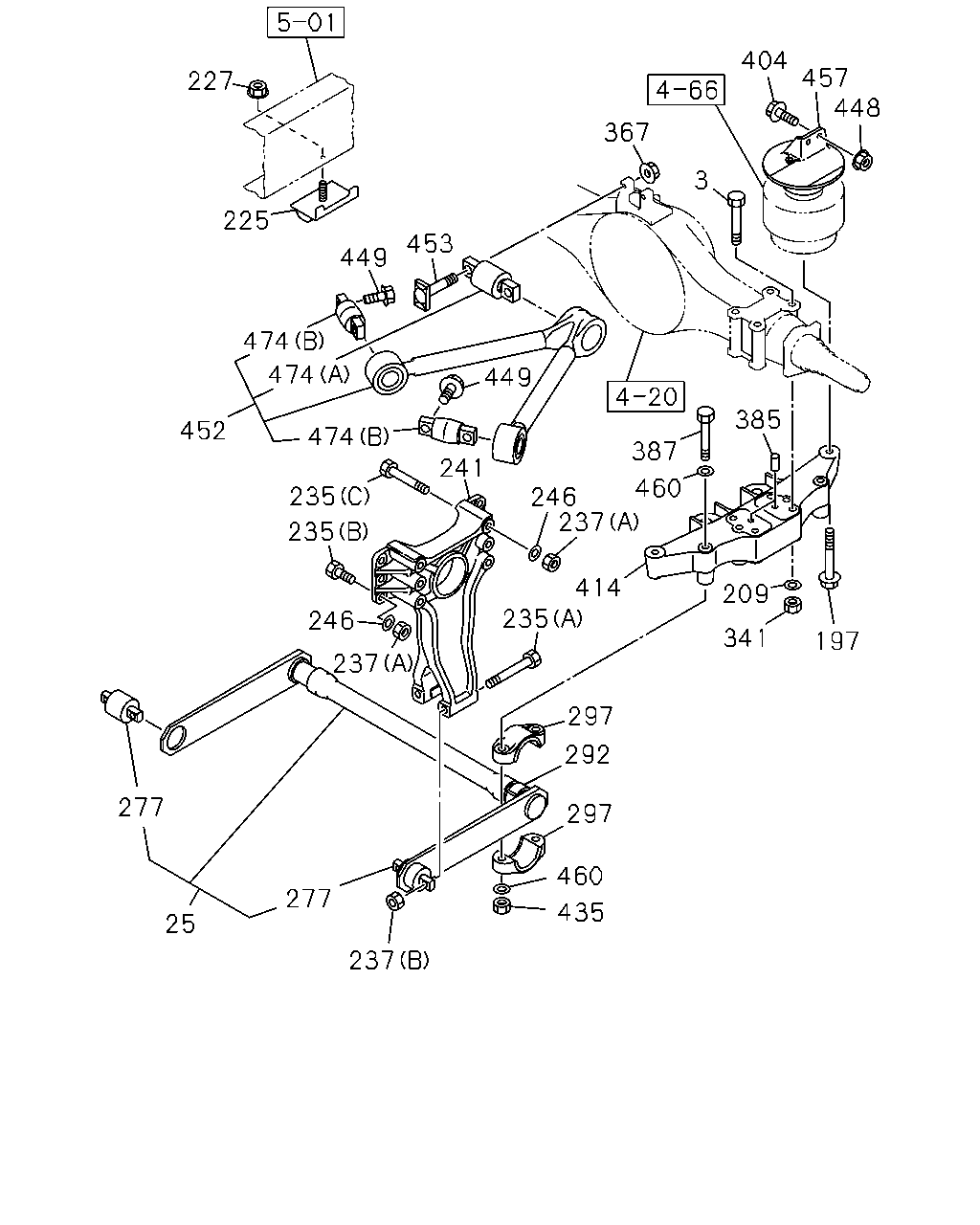

çizim 99802
404 457 448 227 1 367 3 225 453 449 474 474 449 385 452 474 387 241 460 235 246 237 235 414 209 235 246 341 197 237 297 292 277 297 460 277 435 25 237
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. 15-LEAF 		1-51300-362-3 02 1 0005- ● ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. 15-LEAF 		1-51300-508-1 02 1 0005-0310 ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. 14-LEAF 		1-51300-524-1 02 1 0311- ●
3 BOLT; BEAM
M18X265 		1-09000-656-1 08 1 0412-0702 ●
3 BOLT; BEAM
M18X265 		8-98010-545-0 08 1 0703- ●
25 BAR ASM; STAB,RR SUSP 1-51771-197-0 01 1 0412-0412 ●
25 BAR ASM; STAB,RR SUSP 8-97604-141-0 01 1 0501-1209 ●
25 BAR ASM; STAB,RR SUSP 8-98223-550-1 01 1 1210- ●
25 BAR ASM; STAB,RR SUSP
REAR STABILIZER SHAFT<F61> 		1-51770-111-1 01 1 0211- ●
25 BAR ASM; STAB,RR SUSP 1-51770-111-1 01 1 0211- ●
197 BOLT
M16X110 FLANGE 		1-09044-100-1 04 1 0412-0702 ●
197 BOLT
M16X110 		8-98074-591-0 04 1 0703- ●
209 WASHER; PL
ID=19 		1-09503-288-1 08 1 0412-0702 ●
209 WASHER; PL
ID=19 		8-98010-401-0 08 1 0703- ●
225 RUBBER; CUSHION,RR SPR 1-53366-168-0 02 1 0412-1103 ●
225 RUBBER; CUSHION,RR SPR 8-98187-339-0 02 1 1104- ●
227 NUT; CUSHION RUBBER
M12 FLANGE 		0-91150-212-0 02 1 0412-0602 ●
227 NUT; CUSHION RUBBER
M12 FLANGE 		0-91180-212-0 02 1 0603- ●
235 BOLT; TORQUE ROD
(B) M20X60 		1-09000-655-1 04 1 0412-0702 ●
235 BOLT; TORQUE ROD
(B) M20X60 		8-98010-410-0 04 1 0703- ●
235 BOLT; TORQUE ROD
(C) M20X150 		1-09000-660-1 08 1 0412-0702 ●
235 BOLT; TORQUE ROD
(C) M20X150 		8-98010-546-0 08 1 0703- ●
235 BOLT; TORQUE ROD
(A) M18X170 		1-09000-698-1 04 1 0412-0702 ●
235 BOLT; TORQUE ROD
(A) M18X170 		8-98010-544-0 04 1 0703- ●
237 NUT; TORQUE ROD
(A) M20 		1-09400-137-1 12 1 0412-0702 ●
237 NUT; TORQUE ROD
(A) M20 		8-98010-408-0 12 1 0703- ●
237 NUT; TORQUE ROD
(B) M18 SELF LOCK 		1-09464-032-0 04 1 0412-0702 ●
237 NUT; TORQUE ROD
(B) M18 SELF LOCK 		8-98010-391-0 04 1 0703- ●
241 BRACKET; TORQUE ROD 1-53361-090-1 02 1 0412- ●
246 WASHER; TORQUE ROD
ID=21 		1-09503-290-2 12 1 0412-0702 ●
246 WASHER; TORQUE ROD
ID=21 		8-98010-403-0 12 1 0703- ●
277 BUSHING; STAB,RR UPR 8-97604-143-1 02 1 1306- ●
277 BUSHING; STAB,RR UPR 1-51519-176-0 02 1 0412-0412 ●
277 BUSHING; STAB,RR UPR 8-97604-143-0 02 1 0501-1209 ●
277 BUSHING; STAB,RR UPR
REAR STABILIZER SHAFT<F61> 		1-51779-067-0 02 1 0211- ●
277 BUSHING; STAB,RR UPR 1-51779-067-0 02 1 0211- ●
292 BUSHING; RUBBER,STAB 1-51779-111-2 02 1 0412-1209 ●
292 BUSHING; RUBBER,STAB 8-98156-746-1 02 1 1210- ●
297 CAP; STAB BAR 1-52175-015-1 04 1 0412-1209 ●
297 CAP; STAB BAR 8-98174-447-0 04 1 1210- ●
341 NUT; BEAM
M18 		1-09400-135-1 08 1 0412-0702 ●
341 NUT; BEAM
M18 		8-98010-407-0 08 1 0703- ●
367 NUT
M24 FLANGE 		1-42334-050-0 02 1 0412-0702 ●
367 NUT
M24 FLANGE 		8-98010-393-0 02 1 0703- ●
385 PIN; KNOCK,SUSP BEAM 1-52179-036-2 04 1 0412- ●
387 BOLT; CAP FIX,STAB BAR
M18X200 		1-09000-658-1 04 1 0412-0702 ●
387 BOLT; CAP FIX,STAB BAR
M18X200 		8-98074-641-0 04 1 0703- ●
404 BOLT; PLATE
M14X110 FLANGE 		1-09044-110-0 08 1 0412-0702 ●
404 BOLT; PLATE
M14X110 		8-98010-543-0 08 1 0703- ●
414 BEAM; AIR SPR 1-52171-284-0 02 1 0412- ●
435 NUT; CAP
M18 		1-09400-135-1 04 1 0412-0702 ●
435 NUT; CAP
M18 		8-98010-407-0 04 1 0703- ●
448 NUT; PLATE
M14 FLANGE 		1-09440-057-0 08 1 0412-0702 ●
448 NUT; PLATE
M14 FLANGE 		8-98010-395-0 08 1 0703- ●
449 BOLT; FRAME
M18X70 FLANGE 		1-09044-102-1 04 1 0412-0702 ●
449 BOLT; FRAME
M18X70 FLANGE 		8-98010-540-0 04 1 0703-1102 ●
449 BOLT; FRAME
M18X70 FLANGE 		8-98183-506-0 04 1 1103- ●
452 ROD ASM; V 1-51510-770-1 01 1 0412-1309 ●
452 ROD ASM; V 8-98239-062-0 01 1 1310- ●
453 PIN; AXLE
M24X78 SQUARE HEAD 		1-09749-038-1 02 1 0412-0702 ●
453 PIN; AXLE
M24X78 SQUARE HEAD 		8-98010-551-0 02 1 0703- ●
457 PLATE; AIR SPRING,UPR 8-97375-200-0 02 1 0412- ●
457 PLATE; AIR SPRING,UPR 8-97375-201-0 02 1 0412- ●
460 WASHER; CAP
ID=19 		1-09503-288-1 08 1 0412-0702 ●
460 WASHER; CAP
ID=19 		8-98010-401-0 08 1 0703- ●
474 REPAIR KIT; V-ROD
(A) 		1-51519-159-1 01 1 0412-1309 ●
474 REPAIR KIT; V-ROD
(A) 		8-98240-108-0 01 1 1310- ●
474 REPAIR KIT; V-ROD
(B) 		1-51519-160-2 02 1 0412-1309 ●
474 REPAIR KIT; V-ROD
(B) 		8-98240-109-0 02 1 1310- ●
