Isuzu WW
▶
TRUCKS
▶
FTR
▶
10627 - FTR-LHD
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-30 - STEERING WHEEL AND COWL
▶

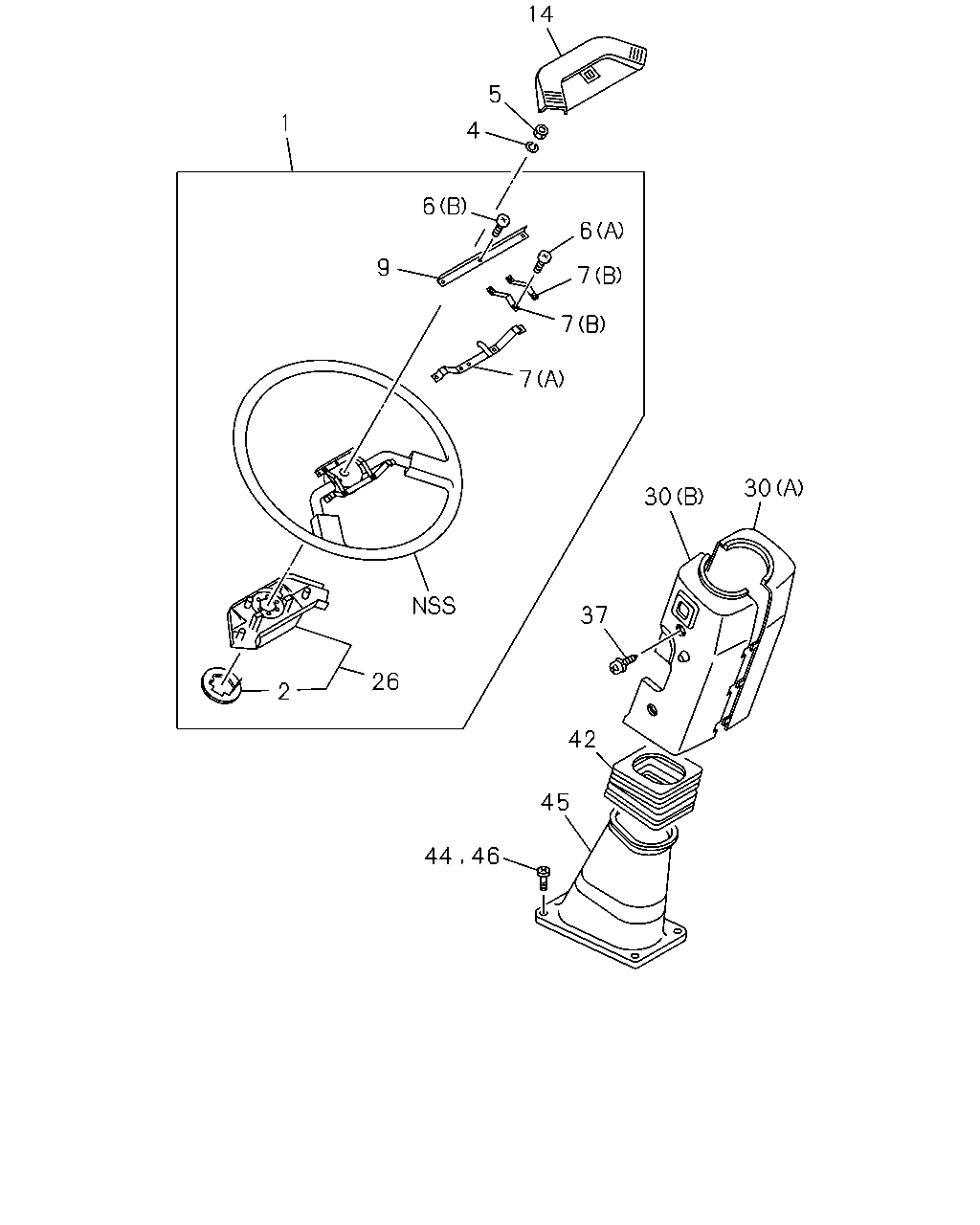

4-30 — STEERING WHEEL AND COWL
(#941) — 21 parça
Tümü
A - FTR6MC
B - FTR6MF
14
1
4
6
6
9
7
7
7
30
30
37
26
2
42
45
44
46
5
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
WHEEL; STRG
1-44110-121-1
01
1
9202-
●
●
2
RING; HORN CONTACT
1-44129-020-2
01
1
9202-
●
●
4
WASHER; LK,STRG WHEEL
ID=20.2
9-09150-520-0
01
1
9202-
●
●
5
NUT; STRG WHEEL TO SHAFT
M20
9-99110-420-0
01
1
9202-
●
●
6
SCREW; HORN SPR CONTACT
(B) M4X10
1-44129-034-0
01
1
9202-
●
●
6
SCREW; HORN SPR CONTACT
(A)
1-44129-035-0
06
1
9202-
●
●
7
SPRING; HORN CONTACT
(A)
1-44129-032-1
01
1
9202-
●
●
7
SPRING; HORN CONTACT
(B)
1-44129-033-0
02
1
9202-
●
●
9
PLATE; HORN CONTACT
1-44129-031-0
01
1
9202-9312
●
●
9
PLATE; HORN CONTACT
1-44129-038-0
01
1
9401-
●
●
14
BUTTON; HORN,STRG WHEEL
1-44120-030-0
01
1
9202-
●
●
26
COVER; STRG WHEEL,LWR
1-44120-033-0
01
1
9202-
●
●
30
COWL; STEERING
DRIVING POSITION WIDE LEG SPACE<PR2> (B)
1-79997-265-0
01
1
9202-
●
●
30
COWL; STEERING
DRIVING POSITION WIDE LEG SPACE<PR2> (A)
1-79997-264-0
01
1
9202-
●
●
30
COWL; STEERING
EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B)
1-79997-288-1
01
1
9202-
●
●
30
COWL; STEERING
EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (A)
1-79997-282-0
01
1
9202-
●
●
37
SCREW; STRG COWL UPR
M6X12 W/PL WASHER
1-09981-380-0
04
1
9202-
●
●
42
BOOT; STEERING COLUMN
1-79997-184-0
01
1
9202-
●
●
44
SCREW; STRG COWL
M6X16
1-09981-425-0
04
1
9202-9207
●
●
45
BOOT; STRG SHAFT
1-79998-184-1
01
1
9202-
●
●
46
SCREW; STRG SHAFT BOOT
M6X16 W/PL WASHER
1-09981-505-0
04
1
9208-
●
●
