Isuzu WW
▶
TRUCKS
▶
NMR
▶
51418 - NMR 85(RHD)EURO4
▶
5 - Frame, Cab Mounting
▶
5-20 - BATTERY CARRIER
▶

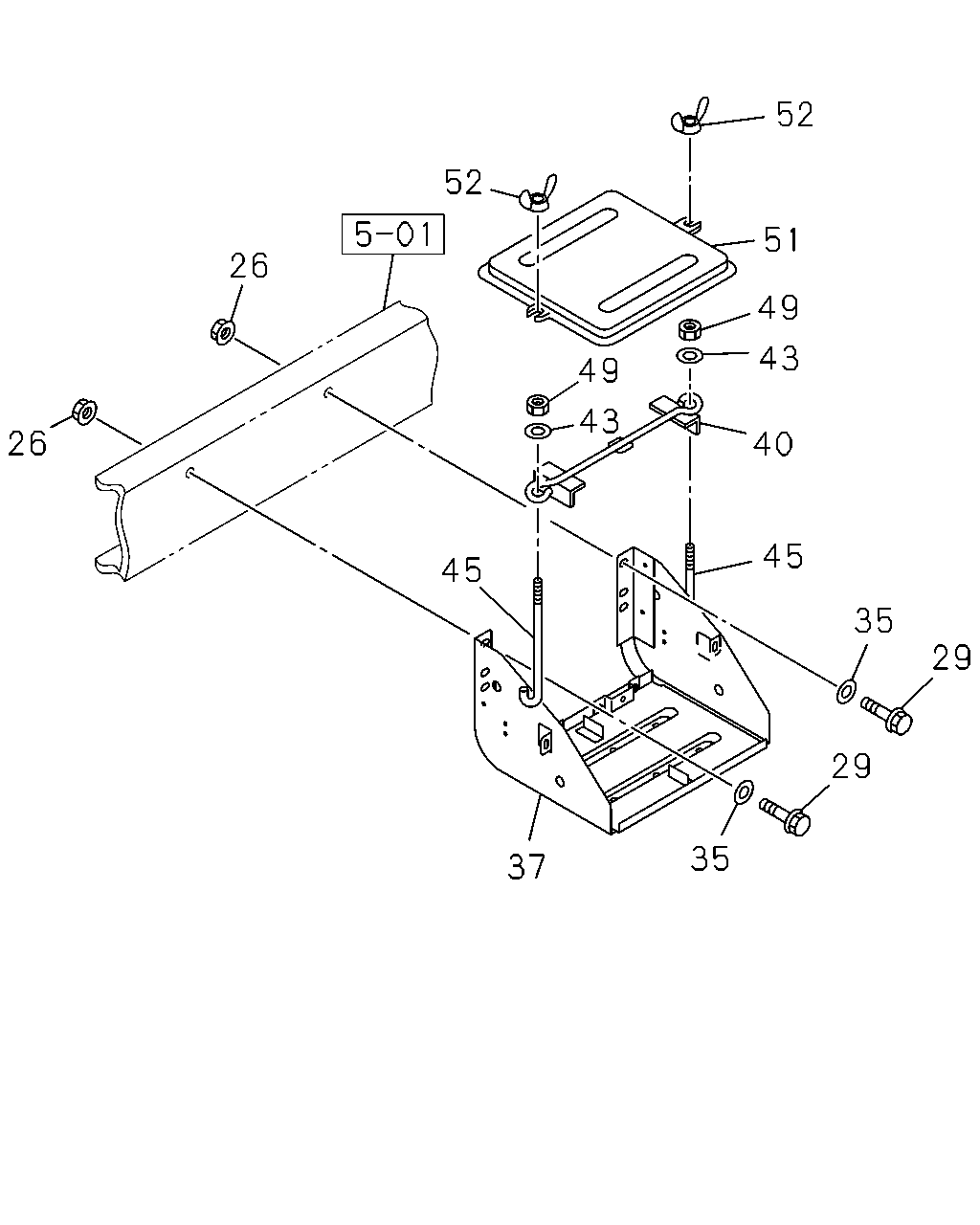

5-20 — BATTERY CARRIER
(#94093) — 11 parça
37
35
29
29
35
45
45
43
49
40
43
49
51
52
52
26
26
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
26
02.334 NUT; BRKT
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> 04.085 M10 FLANGE
0-91180-210-0
03
1
1207-
29
02.334 BOLT; BRKT TO FRAME
03.023 M10X35 FLANGE
0-28661-035-0
04
1
1207-
35
02.334 WASHER; PL,BATTERY CARRIER
04.046 ID=10.5 OD=22 T=1.6
0-91610-610-0
04
1
1207-
37
02.333 BRACKET; BATTERY
BATTERY 80D26L<TM1>
8-97384-067-2
01
1
1207-
37
02.333 BRACKET; BATTERY
BATTERY 65D23L<8EJ>,BATTERY 75D23L<8LZ>
8-97384-068-2
01
1
1207-
40
02.335 CLAMP; BATTERY
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ>
5-53615-004-1
01
1
1207-
43
02.334 WASHER; PL,CLAMP
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> 02.277 ID=8.4 OD=22
0-91614-708-0
02
1
1207-
45
02.334 ROD; TENSION,BATTERY
9-53616-615-0
02
1
1207-
49
02.334 NUT; ROD,BATTERY
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> 01.062 M8 FLANGE
0-91180-108-0
02
1
1207-
51
02.335 COVER; BATTERY
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ>
8-97120-747-0
01
1
1207-
52
02.335 NUT; WING,COVER FIX
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> M8 WING NUT
0-91118-408-0
02
1
1207-
