5-01 — FRAME AND OTHER PARTS
(#94090) — 61 parça
◀
[501A] CROSS MEMBER AND BRACKET(NO.1) (11 parça)
[501A] CROSS MEMBER AND BRACKET(NO.3) (17 parça)
[501A] CROSS MEMBER AND BRACKET(NO.2) (11 parça)
[501A] RIVET,BOLT,NUT (20 parça)
[501A] FRAME ASM (2 parça)
▶

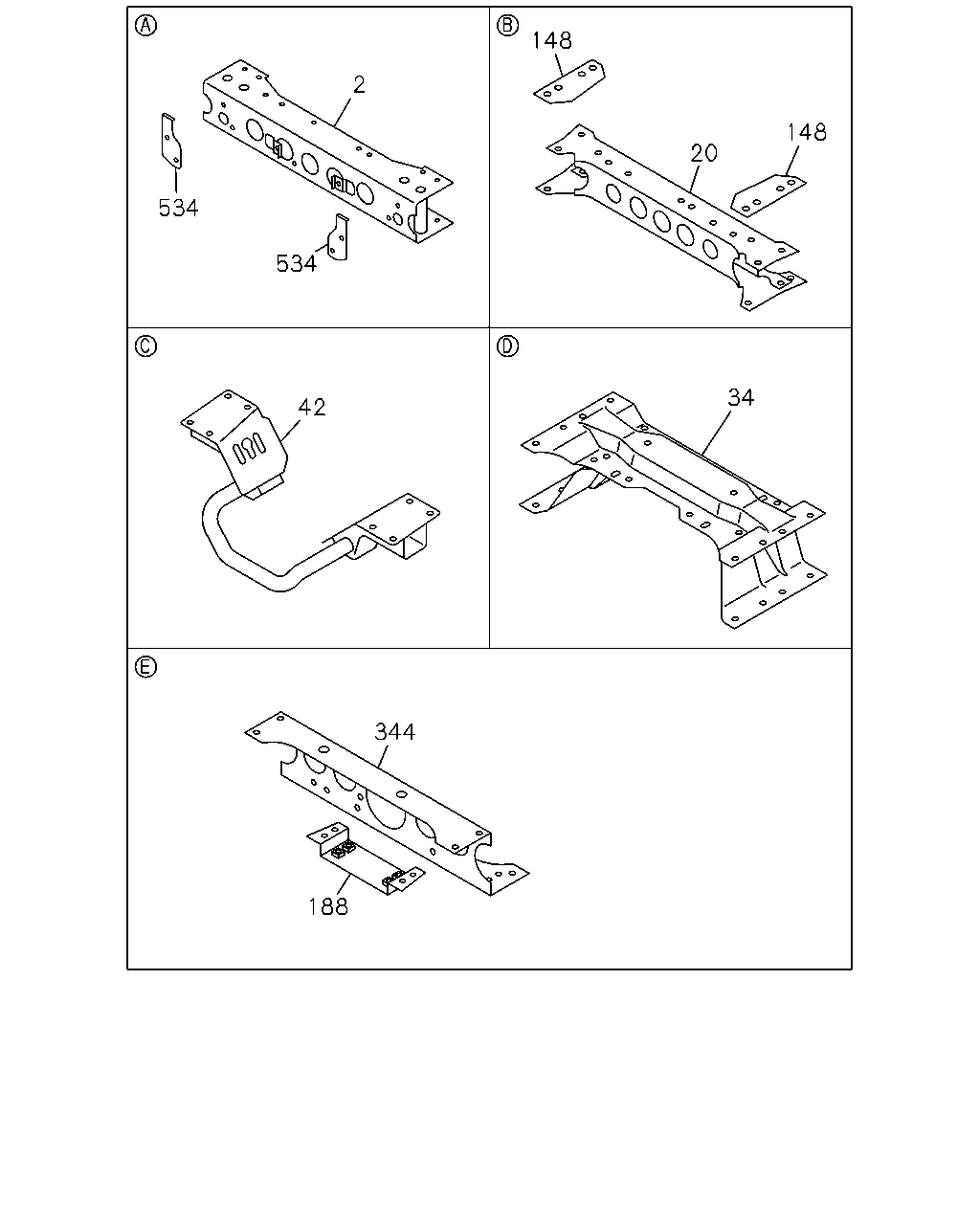

344
188
34
148
20
148
2
534
534
42
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
07.010 MEMBER; CROSS,1ST
8-97384-741-5
01
1
1207-
20
07.012 MEMBER; CROSS,2ND
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>
8-98038-419-2
01
1
1207-
20
07.012 MEMBER; CROSS,2ND
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>
8-98088-281-1
01
1
1207-
34
07.012 MEMBER; CROSS,3RD
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>
8-97384-743-1
01
1
1207-
34
07.012 MEMBER; CROSS,3RD
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>
8-98081-959-0
01
1
1207-
42
07.011 MEMBER; CROSS,ENG MTG
8-98006-224-1
01
1
1207-
148
07.105 SPACER; C/MBR
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>
8-98081-958-0
04
1
1207-
188
07.039 BRACKET; SUPPORT,CTR BRG
8-97083-157-1
01
1
1207-
344
07.012 MEMBER; CROSS,4TH
8-98005-959-1
01
1
1207-
534
07.869 BRACKET; BACK BAR
8-98061-413-0
01
1
1207-
534
07.869 BRACKET; BACK BAR
8-98061-414-0
01
1
1207-

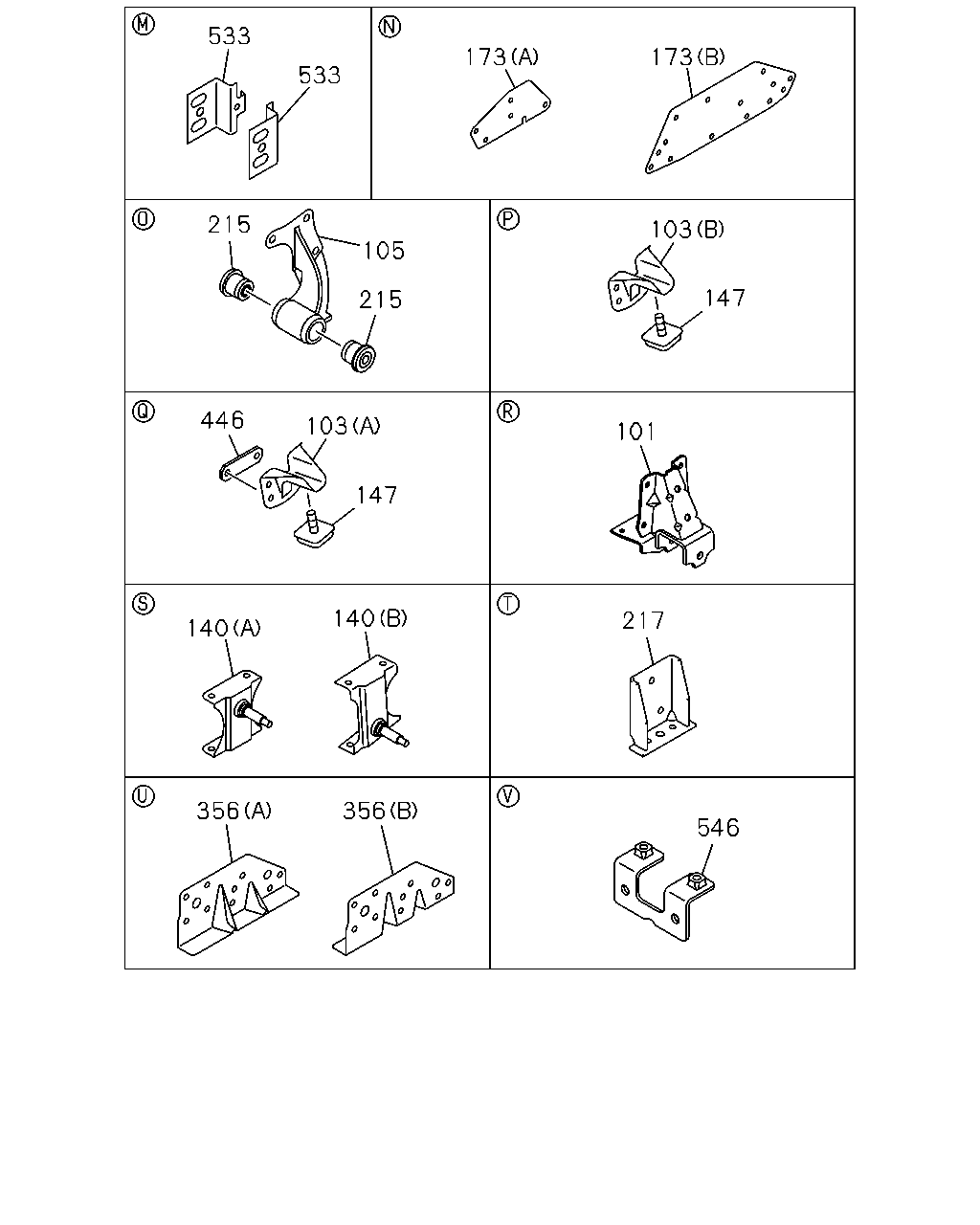

546
356
356
140
140
217
101
147
103
446
215
105
147
103
215
533
533
173
173
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
101
07.112 BRACKET; RR SPR,FRT
8-97034-156-1
02
1
1207-
103
07.420 STOPPER; SUB SPR
(B)
8-97223-748-0
02
1
1207-
103
07.420 STOPPER; SUB SPR
(A)
8-97223-750-0
02
1
1207-
105
07.112 BRACKET; RR SPR,RR
8-98032-488-0
01
1
1207-
105
07.112 BRACKET; RR SPR,RR
8-98032-489-0
01
1
1207-
140
07.112 BRACKET; S/ABS,RR
(B)
8-98006-176-0
01
1
1207-
140
07.112 BRACKET; S/ABS,RR
(A)
8-98006-180-0
01
1
1207-
147
07.535 RUBBER; SUB SPRING
8-97254-387-0
04
1
1207-
173
07.112 STIFFENER; RR SPRING
(B)
8-98012-947-3
02
1
1207-
173
07.112 STIFFENER; RR SPRING
(A)
8-98012-948-2
02
1
1207-
215
07.524 BUSHING; BRKT,RR SPRING
8-97184-699-1
04
1
1207-
217
07.535 BRACKET; HELPER RUBBER,RR SPRING
8-97202-417-0
02
1
1207-
356
07.011 BRACKET; ENG SUPPORT,INNER
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A)
8-98062-610-1
01
1
1207-
356
07.011 BRACKET; ENG SUPPORT,INNER
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (B)
8-98062-611-1
01
1
1207-
446
07.112 STIFFENER; SPRING STOPPER
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>
8-98060-184-1
01
1
1207-
533
07.010 STIFFENER; REINFORCEMENT
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>
8-98006-680-1
02
1
1207-
546
03.671 BRACKET; ECM
8-98119-084-0
01
1
1207-
198
139
198
75
345
75
130
24
165
39
51
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
24
07.105 BRACKET; FRT SPR,FRT
8-98029-126-0
01
1
1207-
24
07.105 BRACKET; FRT SPR,FRT
8-98029-127-0
01
1
1207-
39
07.112 BRACKET; FRT SPR,RR
8-94258-091-0
02
1
1207-
51
07.011 BRACKET; ENG SUPPORT,OUTER
8-98038-962-3
02
1
1207-
75
07.039 GUSSET; 5TH C/MBR
8-98011-863-0
04
1
1207-
130
07.014 MEMBER; CROSS,END
8-98041-239-1
01
1
1207-
139
07.012 MEMBER; CROSS,6TH
8-97384-745-0
01
1
1207-
165
01.270 BRACKET; RAD STAY
8-98000-886-0
01
1
1207-
198
07.039 GUSSET; 6TH C/MBR
RH-LOWER,LH-UPPER
8-94258-068-1
02
1
1207-
198
07.039 GUSSET; 6TH C/MBR
RH-UPPER,LH-LOWER
8-94258-069-1
02
1
1207-
345
07.012 MEMBER; CROSS,5TH
8-98011-861-2
01
1
1207-
118
62
67
40
60
176
376
376
376
376
376
376
376
376
376
376
376
376
376
376
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
40
08.155 BOLT; BRKT TO FRAME
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 04.338 M8X20 FLANGE
0-28050-820-0
02
1
1207-
60
05.601 BOLT; MBR
07.039 M10X30
0-20851-030-0
04
1
1207-
62
05.601 NUT; MBR
04.085 M10 FLANGE
0-91180-210-0
04
1
1207-
67
07.011 NUT; C/MBR
04.085 M10 FLANGE
0-91180-210-0
04
1
1207-
118
07.529 NUT; STOPPER
M8 LOCK NUT
0-91370-008-0
02
1
1207-
176
04.085 BOLT; C/MBR,ENG MTG
03.890 M10X30 FLANGE
0-28051-030-0
08
1
1207-
376
07.039 RIVET; FRAME
07.011 (A) D8X22 TAPER END
9-06750-822-0
AR
1
1207-
376
07.039 RIVET; FRAME
07.395 (B) D8X26 TAPER END
9-06750-826-0
AR
1
1207-
376
07.039 RIVET; FRAME
(C) D10X22 TAPER END
9-06751-022-0
AR
1
1207-
376
07.039 RIVET; FRAME
(D) D10X24 TAPER END
9-06751-024-0
AR
1
1207-
376
07.039 RIVET; FRAME
(E) D10X26 TAPER END
9-06751-026-0
AR
1
1207-
376
07.039 RIVET; FRAME
(F) D10X28 TAPER END
9-06751-028-0
AR
1
1207-
376
07.039 RIVET; FRAME
(G) D10X30 TAPER END
9-06751-030-0
AR
1
1207-
376
07.039 RIVET; FRAME
(H) D10X32 TAPER END
9-06751-032-0
AR
1
1207-
376
07.039 RIVET; FRAME
(I) M10X34 TAPER END
9-06751-034-0
AR
1
1207-
376
07.039 RIVET; FRAME
(J) D10X36 TAPER END
9-06751-036-0
AR
1
1207-
376
07.039 RIVET; FRAME
07.105 (K) D12X30 TAPER END
9-06751-230-0
AR
1
1207-
376
07.039 RIVET; FRAME
07.006 (L) D12X32 TAPER END
9-06751-232-0
AR
1
1207-
376
07.039 RIVET; FRAME
07.535 (M) D12X34 TAPER END
9-06751-234-0
AR
1
1207-
376
07.039 RIVET; FRAME
07.428 (N) D12X36 TAPER END
9-06751-236-0
AR
1
1207-

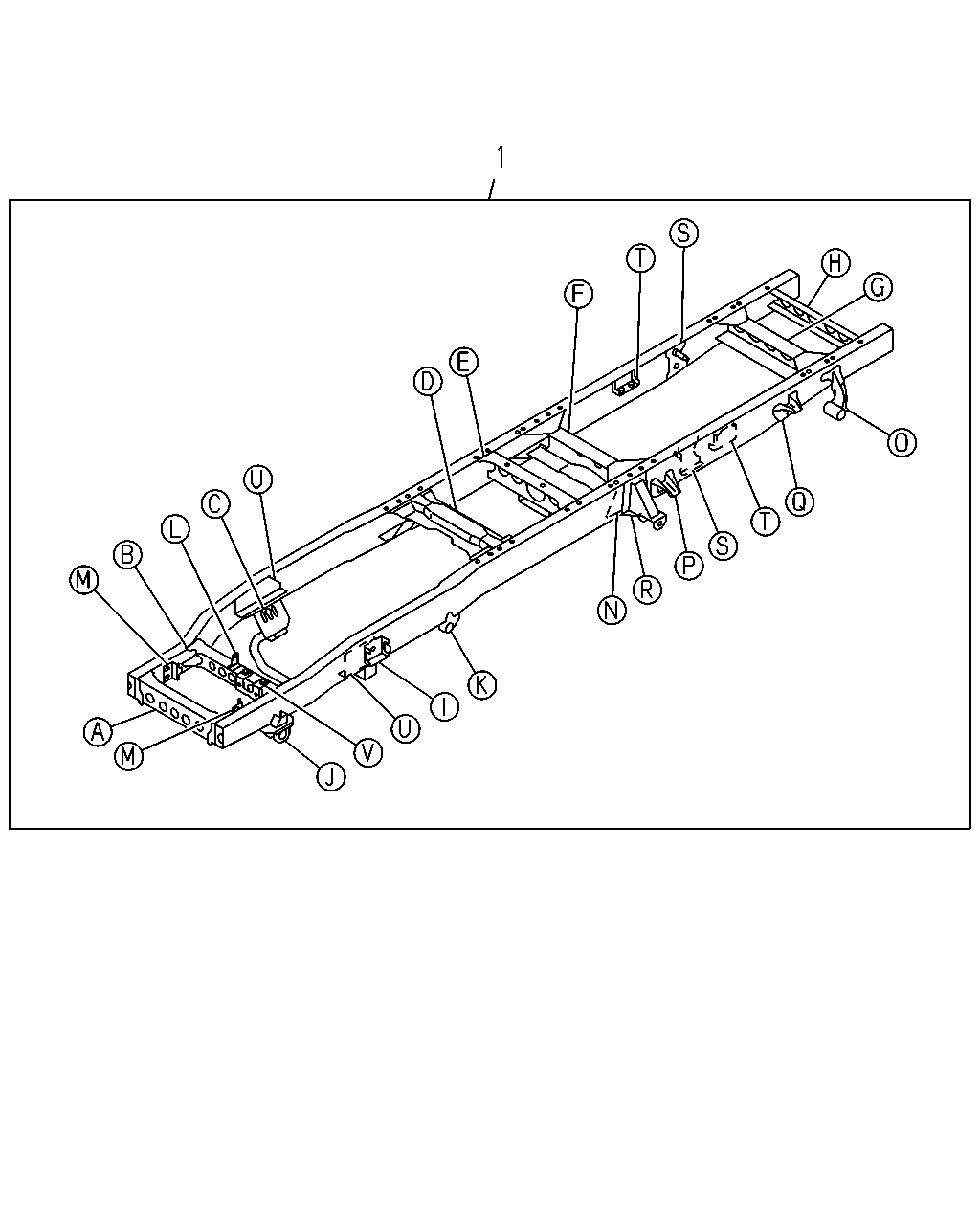

1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
07.003 FRAME ASM
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>
8-98175-357-2
01
1
1207-
1
07.003 FRAME ASM
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>
8-98175-358-2
01
1
1207-
