◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 10826 - FRR/FSR/FRD(AUST) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-55 - FRONT LEAF SPRING ▶
4-55 — FRONT LEAF SPRING (#9409) — 173 parça

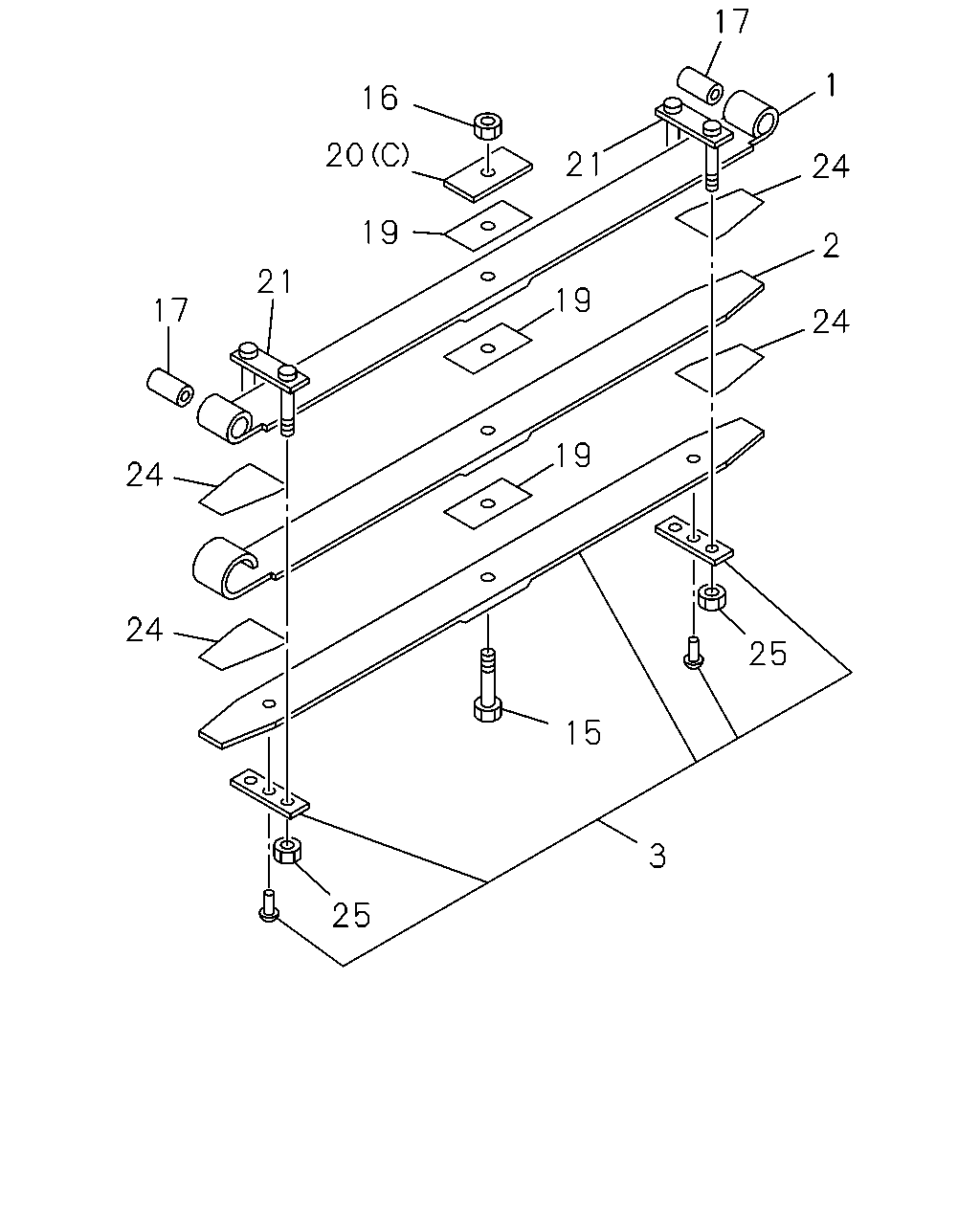

çizim 38714
17 1 16 20 21 24 19 2 21 19 17 24 19 24 24 25 15 3 25
BalonParca AdiParca NoAdetTipApplied Date
1 SPRING; LEAF,NO 1,FRT
3 LEAF ASM PART: C = 1-51130-529-0 		1-51131-003-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
3 LEAF ASM PART: D = 1-51130-530-0 		1-51131-004-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
8 LEAF ASM PART: A = 1-51130-266-0 		1-51131-266-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
7 LEAF ASM PART: B = 1-51130-341-0 		1-51131-341-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
4 LEAF ASM PART: E = 1-51130-533-0 		1-51131-435-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
4 LEAF ASM PART: F = 1-51130-534-0 		1-51131-436-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
3 LEAF ASM PART: D = 1-51130-530-0 		1-51132-004-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
8 LEAF ASM PART: A = 1-51130-266-0 		1-51132-266-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
7 LEAF ASM PART: B = 1-51130-341-0 		1-51132-341-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
3 LEAF ASM PART: C = 1-51130-529-0 		1-51132-529-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
4 LEAF ASM PART: E = 1-51130-533-0 		1-51132-533-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
4 LEAF ASM PART: F = 1-51130-534-0 		1-51132-534-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
3 LEAF, W/CLIP ASM PART: D = 1-51130-530-0 		1-51133-004-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
8 LEAF, W/CLIP ASM PART: A = 1-51130-266-0 		1-51133-266-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
7 LEAF, W/CLIP ASM PART: B = 1-51130-341-0 		1-51133-341-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
3 LEAF, W/CLIP ASM PART: C = 1-51130-529-0 		1-51133-529-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
4 LEAF ASM PART: E = 1-51130-533-0 		1-51133-533-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
4 LEAF ASM PART: F = 1-51130-534-0 		1-51133-534-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=75 ASM PART: D = 1-51130-530-0 		1-51156-278-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=75 ASM PART: C = 1-51130-529-0 		1-51156-322-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=105 ASM PART: A = 1-51130-266-0 		1-51156-323-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=95 ASM PART: E = 1-51130-533-0, F = 1-51130-534-0 		1-51156-325-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=150 ASM PART: B = 1-51130-341-0 		1-51156-328-0 01 1 -
16 NUT; CENTER BOLT,LEAF SPR,FRT
M16 ASM PART: B = 1-51130-341-0 		1-09400-054-0 01 1 -
16 NUT; CENTER BOLT,LEAF SPR,FRT
M14 ASM PART: A = 1-51130-266-0, C = 1-51130-529-0, D = 1-51130-530-0, E = 1-51130-533-0, F = 1-51130-534-0 		9-99110-514-0 01 1 -
17 BUSHING; LEAF SPR,FRT
OD=38 ASM PART: B = 1-51130-341-0 		1-51351-009-0 02 1 -
17 BUSHING; LEAF SPR,FRT
ID=25 ASM PART: A = 1-51130-266-0, C = 1-51130-529-0, D = 1-51130-530-0, E = 1-51130-533-0, F = 1-51130-534-0 		9-51151-032-0 02 1 -
19 SPACER; LEAF SPRING,FRT
T=1 ASM PART: B = 1-51130-341-0 		1-51177-071-0 04 1 -
19 SPACER; LEAF SPRING,FRT
T=1 ASM PART: C = 1-51130-529-0, D = 1-51130-530-0 		1-51177-263-0 03 1 -
19 SPACER; LEAF SPRING,FRT
T=1 ASM PART: A = 1-51130-266-0 		1-51177-263-0 01 1 -
19 SPACER; LEAF SPRING,FRT
T=1 ASM PART: E = 1-51130-533-0, F = 1-51130-534-0 		1-51177-263-0 04 1 -
20 SEAT; LEAF SPR,FRT
(A), T=12 ASM PART: B = 1-51130-341-0 		1-51177-107-0 03 1 -
20 SEAT; LEAF SPR,FRT
(B), T=9 ASM PART: B = 1-51130-341-0 		1-51177-114-0 01 1 -
20 SEAT; LEAF SPR,FRT
(C), T=6 ASM PART: A = 1-51130-266-0, C = 1-51130-529-0, D = 1-51130-530-0, E = 1-51130-533-0, F = 1-51130-534-0 		1-51177-262-0 01 1 -
21 CLAMP; FRT SPRING
ASM PART: D = 1-51130-530-0 		1-51173-031-0 02 1 -
21 CLAMP; FRT SPRING
ASM PART: C = 1-51130-529-0, E = 1-51130-533-0, F = 1-51130-534-0 		1-51173-032-0 02 1 -
24 LINER; LEAF SPR,FWD FRT
ASM PART: C = 1-51130-529-0, D = 1-51130-530-0, E = 1-51130-533-0, F = 1-51130-534-0 		1-51159-026-0 04 1 -
25 NUT; CLAMP
ASM PART: C = 1-51130-529-0, D = 1-51130-530-0, E = 1-51130-533-0, F = 1-51130-534-0 		1-09464-021-0 04 1 -

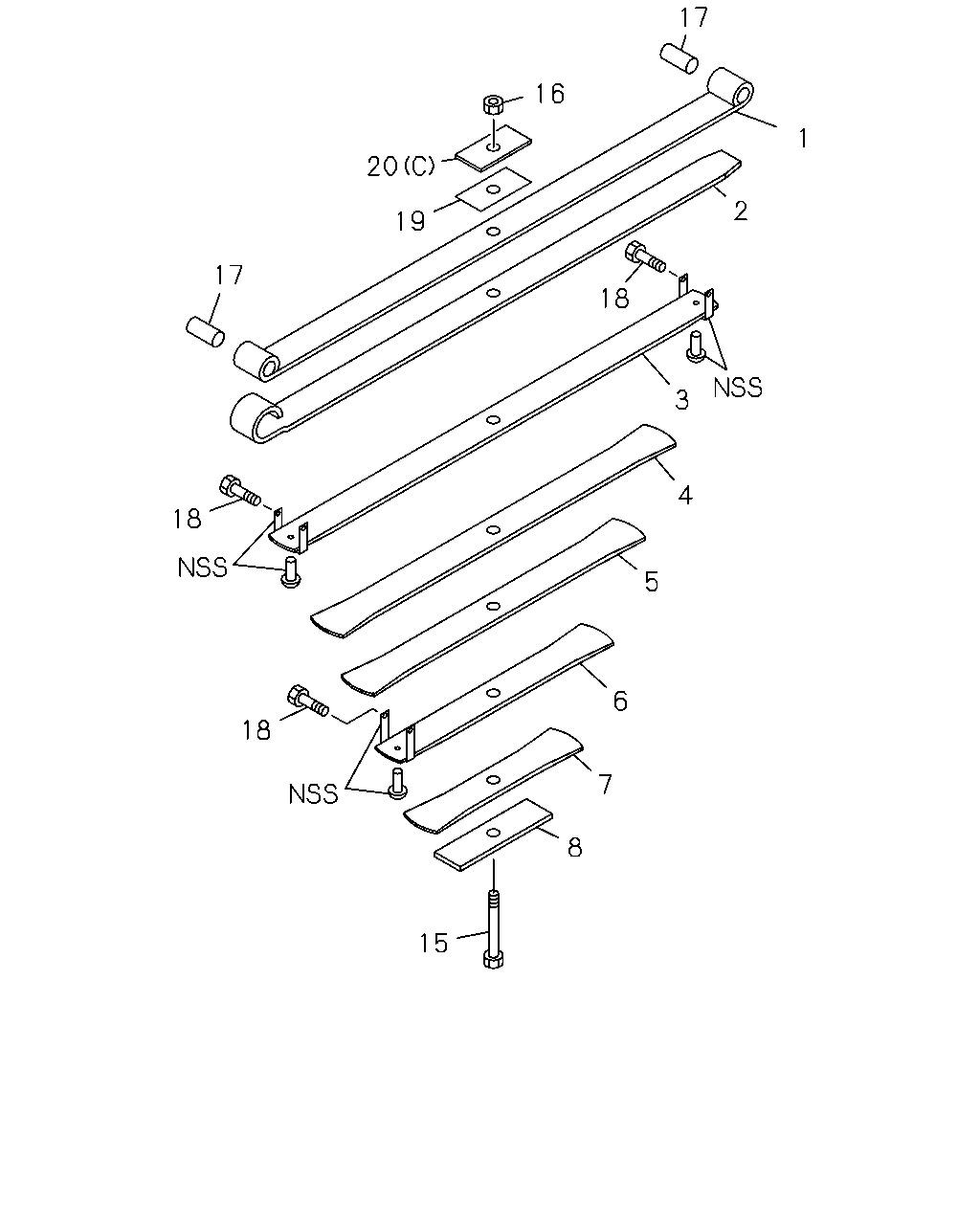

çizim 38941
17 16 1 20 2 19 17 18 3 4 18 5 6 18 7 8 15
BalonParca AdiParca NoAdetTipApplied Date
1 SPRING; LEAF,NO 1,FRT
3 LEAF ASM PART: C = 1-51130-529-0 		1-51131-003-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
3 LEAF ASM PART: D = 1-51130-530-0 		1-51131-004-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
8 LEAF ASM PART: A = 1-51130-266-0 		1-51131-266-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
7 LEAF ASM PART: B = 1-51130-341-0 		1-51131-341-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
4 LEAF ASM PART: E = 1-51130-533-0 		1-51131-435-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
4 LEAF ASM PART: F = 1-51130-534-0 		1-51131-436-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
3 LEAF ASM PART: D = 1-51130-530-0 		1-51132-004-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
8 LEAF ASM PART: A = 1-51130-266-0 		1-51132-266-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
7 LEAF ASM PART: B = 1-51130-341-0 		1-51132-341-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
3 LEAF ASM PART: C = 1-51130-529-0 		1-51132-529-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
4 LEAF ASM PART: E = 1-51130-533-0 		1-51132-533-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
4 LEAF ASM PART: F = 1-51130-534-0 		1-51132-534-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
3 LEAF, W/CLIP ASM PART: D = 1-51130-530-0 		1-51133-004-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
8 LEAF, W/CLIP ASM PART: A = 1-51130-266-0 		1-51133-266-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
7 LEAF, W/CLIP ASM PART: B = 1-51130-341-0 		1-51133-341-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
3 LEAF, W/CLIP ASM PART: C = 1-51130-529-0 		1-51133-529-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
4 LEAF ASM PART: E = 1-51130-533-0 		1-51133-533-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
4 LEAF ASM PART: F = 1-51130-534-0 		1-51133-534-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
8 LEAF ASM PART: A = 1-51130-266-0 		1-51134-266-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
7 LEAF ASM PART: B = 1-51130-341-0 		1-51134-341-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
4 LEAF, W/CLIP ASM PART: E = 1-51130-533-0 		1-51134-435-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
4 LEAF, W/CLIP ASM PART: F = 1-51130-534-0 		1-51134-436-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
8 LEAF ASM PART: A = 1-51130-266-0 		1-51135-266-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
7 LEAF, W/CLIP ASM PART: B = 1-51130-341-0 		1-51135-341-0 01 1 -
6 SPRING; LEAF,NO 6,FRT
8 LEAF, W/CLIP ASM PART: A = 1-51130-266-0 		1-51136-266-0 01 1 -
6 SPRING; LEAF,NO 6,FRT
7 LEAF ASM PART: B = 1-51130-341-0 		1-51136-341-0 01 1 -
7 SPRING; LEAF,NO 7,FRT
8 LEAF ASM PART: A = 1-51130-266-0 		1-51137-266-0 01 1 -
7 SPRING; LEAF,NO 7,FRT
7 LEAF ASM PART: B = 1-51130-341-0 		1-51137-341-0 01 1 -
8 SPRING; LEAF,NO 8,FRT
8 LEAF ASM PART: A = 1-51130-266-0 		1-51138-266-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=75 ASM PART: D = 1-51130-530-0 		1-51156-278-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=75 ASM PART: C = 1-51130-529-0 		1-51156-322-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=105 ASM PART: A = 1-51130-266-0 		1-51156-323-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=95 ASM PART: E = 1-51130-533-0, F = 1-51130-534-0 		1-51156-325-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=150 ASM PART: B = 1-51130-341-0 		1-51156-328-0 01 1 -
16 NUT; CENTER BOLT,LEAF SPR,FRT
M16 ASM PART: B = 1-51130-341-0 		1-09400-054-0 01 1 -
16 NUT; CENTER BOLT,LEAF SPR,FRT
M14 ASM PART: A = 1-51130-266-0, C = 1-51130-529-0, D = 1-51130-530-0, E = 1-51130-533-0, F = 1-51130-534-0 		9-99110-514-0 01 1 -
17 BUSHING; LEAF SPR,FRT
OD=38 ASM PART: B = 1-51130-341-0 		1-51351-009-0 02 1 -
17 BUSHING; LEAF SPR,FRT
ID=25 ASM PART: A = 1-51130-266-0, C = 1-51130-529-0, D = 1-51130-530-0, E = 1-51130-533-0, F = 1-51130-534-0 		9-51151-032-0 02 1 -
18 BOLT; CLIP,LEAF SPR,FRT
M10X99 ASM PART: B = 1-51130-341-0 		1-09000-328-0 03 1 -
18 BOLT; CLIP,LEAF SPR,FRT
M8X87 ASM PART: A = 1-51130-266-0 		1-09000-335-0 03 1 -
19 SPACER; LEAF SPRING,FRT
T=1 ASM PART: B = 1-51130-341-0 		1-51177-071-0 04 1 -
19 SPACER; LEAF SPRING,FRT
T=1 ASM PART: C = 1-51130-529-0, D = 1-51130-530-0 		1-51177-263-0 03 1 -
19 SPACER; LEAF SPRING,FRT
T=1 ASM PART: A = 1-51130-266-0 		1-51177-263-0 01 1 -
19 SPACER; LEAF SPRING,FRT
T=1 ASM PART: E = 1-51130-533-0, F = 1-51130-534-0 		1-51177-263-0 04 1 -
20 SEAT; LEAF SPR,FRT
(A), T=12 ASM PART: B = 1-51130-341-0 		1-51177-107-0 03 1 -
20 SEAT; LEAF SPR,FRT
(B), T=9 ASM PART: B = 1-51130-341-0 		1-51177-114-0 01 1 -
20 SEAT; LEAF SPR,FRT
(C), T=6 ASM PART: A = 1-51130-266-0, C = 1-51130-529-0, D = 1-51130-530-0, E = 1-51130-533-0, F = 1-51130-534-0 		1-51177-262-0 01 1 -

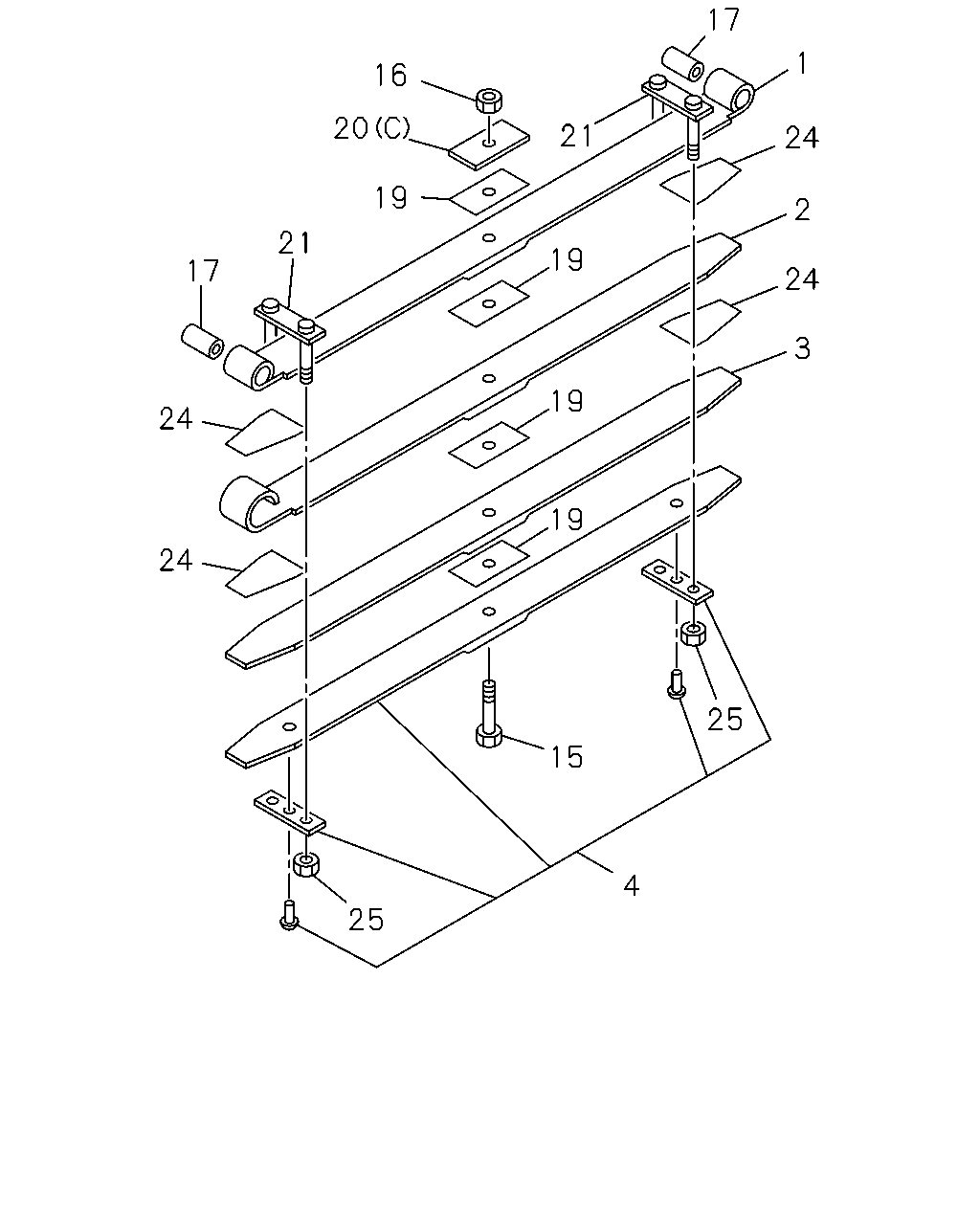

çizim 38973
17 1 16 20 21 24 19 2 21 19 17 24 3 19 24 19 24 25 15 4 25
BalonParca AdiParca NoAdetTipApplied Date
1 SPRING; LEAF,NO 1,FRT
3 LEAF ASM PART: C = 1-51130-529-0 		1-51131-003-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
3 LEAF ASM PART: D = 1-51130-530-0 		1-51131-004-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
8 LEAF ASM PART: A = 1-51130-266-0 		1-51131-266-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
7 LEAF ASM PART: B = 1-51130-341-0 		1-51131-341-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
4 LEAF ASM PART: E = 1-51130-533-0 		1-51131-435-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
4 LEAF ASM PART: F = 1-51130-534-0 		1-51131-436-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
3 LEAF ASM PART: D = 1-51130-530-0 		1-51132-004-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
8 LEAF ASM PART: A = 1-51130-266-0 		1-51132-266-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
7 LEAF ASM PART: B = 1-51130-341-0 		1-51132-341-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
3 LEAF ASM PART: C = 1-51130-529-0 		1-51132-529-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
4 LEAF ASM PART: E = 1-51130-533-0 		1-51132-533-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
4 LEAF ASM PART: F = 1-51130-534-0 		1-51132-534-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
3 LEAF, W/CLIP ASM PART: D = 1-51130-530-0 		1-51133-004-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
8 LEAF, W/CLIP ASM PART: A = 1-51130-266-0 		1-51133-266-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
7 LEAF, W/CLIP ASM PART: B = 1-51130-341-0 		1-51133-341-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
3 LEAF, W/CLIP ASM PART: C = 1-51130-529-0 		1-51133-529-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
4 LEAF ASM PART: E = 1-51130-533-0 		1-51133-533-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
4 LEAF ASM PART: F = 1-51130-534-0 		1-51133-534-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
8 LEAF ASM PART: A = 1-51130-266-0 		1-51134-266-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
7 LEAF ASM PART: B = 1-51130-341-0 		1-51134-341-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
4 LEAF, W/CLIP ASM PART: E = 1-51130-533-0 		1-51134-435-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
4 LEAF, W/CLIP ASM PART: F = 1-51130-534-0 		1-51134-436-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=75 ASM PART: D = 1-51130-530-0 		1-51156-278-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=75 ASM PART: C = 1-51130-529-0 		1-51156-322-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=105 ASM PART: A = 1-51130-266-0 		1-51156-323-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=95 ASM PART: E = 1-51130-533-0, F = 1-51130-534-0 		1-51156-325-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=150 ASM PART: B = 1-51130-341-0 		1-51156-328-0 01 1 -
16 NUT; CENTER BOLT,LEAF SPR,FRT
M16 ASM PART: B = 1-51130-341-0 		1-09400-054-0 01 1 -
16 NUT; CENTER BOLT,LEAF SPR,FRT
M14 ASM PART: A = 1-51130-266-0, C = 1-51130-529-0, D = 1-51130-530-0, E = 1-51130-533-0, F = 1-51130-534-0 		9-99110-514-0 01 1 -
17 BUSHING; LEAF SPR,FRT
OD=38 ASM PART: B = 1-51130-341-0 		1-51351-009-0 02 1 -
17 BUSHING; LEAF SPR,FRT
ID=25 ASM PART: A = 1-51130-266-0, C = 1-51130-529-0, D = 1-51130-530-0, E = 1-51130-533-0, F = 1-51130-534-0 		9-51151-032-0 02 1 -
19 SPACER; LEAF SPRING,FRT
T=1 ASM PART: B = 1-51130-341-0 		1-51177-071-0 04 1 -
19 SPACER; LEAF SPRING,FRT
T=1 ASM PART: C = 1-51130-529-0, D = 1-51130-530-0 		1-51177-263-0 03 1 -
19 SPACER; LEAF SPRING,FRT
T=1 ASM PART: A = 1-51130-266-0 		1-51177-263-0 01 1 -
19 SPACER; LEAF SPRING,FRT
T=1 ASM PART: E = 1-51130-533-0, F = 1-51130-534-0 		1-51177-263-0 04 1 -
20 SEAT; LEAF SPR,FRT
(A), T=12 ASM PART: B = 1-51130-341-0 		1-51177-107-0 03 1 -
20 SEAT; LEAF SPR,FRT
(B), T=9 ASM PART: B = 1-51130-341-0 		1-51177-114-0 01 1 -
20 SEAT; LEAF SPR,FRT
(C), T=6 ASM PART: A = 1-51130-266-0, C = 1-51130-529-0, D = 1-51130-530-0, E = 1-51130-533-0, F = 1-51130-534-0 		1-51177-262-0 01 1 -
21 CLAMP; FRT SPRING
ASM PART: D = 1-51130-530-0 		1-51173-031-0 02 1 -
21 CLAMP; FRT SPRING
ASM PART: C = 1-51130-529-0, E = 1-51130-533-0, F = 1-51130-534-0 		1-51173-032-0 02 1 -
24 LINER; LEAF SPR,FWD FRT
ASM PART: C = 1-51130-529-0, D = 1-51130-530-0, E = 1-51130-533-0, F = 1-51130-534-0 		1-51159-026-0 04 1 -
25 NUT; CLAMP
ASM PART: C = 1-51130-529-0, D = 1-51130-530-0, E = 1-51130-533-0, F = 1-51130-534-0 		1-09464-021-0 04 1 -
çizim 39157
17 16 20 1 19 19 2 18 17 19 3 18 19 4 5 18 6 7 20 20 20 15
BalonParca AdiParca NoAdetTipApplied Date
1 SPRING; LEAF,NO 1,FRT
3 LEAF ASM PART: C = 1-51130-529-0 		1-51131-003-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
3 LEAF ASM PART: D = 1-51130-530-0 		1-51131-004-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
8 LEAF ASM PART: A = 1-51130-266-0 		1-51131-266-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
7 LEAF ASM PART: B = 1-51130-341-0 		1-51131-341-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
4 LEAF ASM PART: E = 1-51130-533-0 		1-51131-435-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
4 LEAF ASM PART: F = 1-51130-534-0 		1-51131-436-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
3 LEAF ASM PART: D = 1-51130-530-0 		1-51132-004-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
8 LEAF ASM PART: A = 1-51130-266-0 		1-51132-266-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
7 LEAF ASM PART: B = 1-51130-341-0 		1-51132-341-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
3 LEAF ASM PART: C = 1-51130-529-0 		1-51132-529-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
4 LEAF ASM PART: E = 1-51130-533-0 		1-51132-533-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
4 LEAF ASM PART: F = 1-51130-534-0 		1-51132-534-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
3 LEAF, W/CLIP ASM PART: D = 1-51130-530-0 		1-51133-004-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
8 LEAF, W/CLIP ASM PART: A = 1-51130-266-0 		1-51133-266-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
7 LEAF, W/CLIP ASM PART: B = 1-51130-341-0 		1-51133-341-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
3 LEAF, W/CLIP ASM PART: C = 1-51130-529-0 		1-51133-529-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
4 LEAF ASM PART: E = 1-51130-533-0 		1-51133-533-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
4 LEAF ASM PART: F = 1-51130-534-0 		1-51133-534-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
8 LEAF ASM PART: A = 1-51130-266-0 		1-51134-266-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
7 LEAF ASM PART: B = 1-51130-341-0 		1-51134-341-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
4 LEAF, W/CLIP ASM PART: E = 1-51130-533-0 		1-51134-435-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
4 LEAF, W/CLIP ASM PART: F = 1-51130-534-0 		1-51134-436-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
8 LEAF ASM PART: A = 1-51130-266-0 		1-51135-266-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
7 LEAF, W/CLIP ASM PART: B = 1-51130-341-0 		1-51135-341-0 01 1 -
6 SPRING; LEAF,NO 6,FRT
8 LEAF, W/CLIP ASM PART: A = 1-51130-266-0 		1-51136-266-0 01 1 -
6 SPRING; LEAF,NO 6,FRT
7 LEAF ASM PART: B = 1-51130-341-0 		1-51136-341-0 01 1 -
7 SPRING; LEAF,NO 7,FRT
8 LEAF ASM PART: A = 1-51130-266-0 		1-51137-266-0 01 1 -
7 SPRING; LEAF,NO 7,FRT
7 LEAF ASM PART: B = 1-51130-341-0 		1-51137-341-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=75 ASM PART: D = 1-51130-530-0 		1-51156-278-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=75 ASM PART: C = 1-51130-529-0 		1-51156-322-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=105 ASM PART: A = 1-51130-266-0 		1-51156-323-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=95 ASM PART: E = 1-51130-533-0, F = 1-51130-534-0 		1-51156-325-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=150 ASM PART: B = 1-51130-341-0 		1-51156-328-0 01 1 -
16 NUT; CENTER BOLT,LEAF SPR,FRT
M16 ASM PART: B = 1-51130-341-0 		1-09400-054-0 01 1 -
16 NUT; CENTER BOLT,LEAF SPR,FRT
M14 ASM PART: A = 1-51130-266-0, C = 1-51130-529-0, D = 1-51130-530-0, E = 1-51130-533-0, F = 1-51130-534-0 		9-99110-514-0 01 1 -
17 BUSHING; LEAF SPR,FRT
OD=38 ASM PART: B = 1-51130-341-0 		1-51351-009-0 02 1 -
17 BUSHING; LEAF SPR,FRT
ID=25 ASM PART: A = 1-51130-266-0, C = 1-51130-529-0, D = 1-51130-530-0, E = 1-51130-533-0, F = 1-51130-534-0 		9-51151-032-0 02 1 -
18 BOLT; CLIP,LEAF SPR,FRT
M10X99 ASM PART: B = 1-51130-341-0 		1-09000-328-0 03 1 -
18 BOLT; CLIP,LEAF SPR,FRT
M8X87 ASM PART: A = 1-51130-266-0 		1-09000-335-0 03 1 -
19 SPACER; LEAF SPRING,FRT
T=1 ASM PART: B = 1-51130-341-0 		1-51177-071-0 04 1 -
19 SPACER; LEAF SPRING,FRT
T=1 ASM PART: C = 1-51130-529-0, D = 1-51130-530-0 		1-51177-263-0 03 1 -
19 SPACER; LEAF SPRING,FRT
T=1 ASM PART: A = 1-51130-266-0 		1-51177-263-0 01 1 -
19 SPACER; LEAF SPRING,FRT
T=1 ASM PART: E = 1-51130-533-0, F = 1-51130-534-0 		1-51177-263-0 04 1 -
20 SEAT; LEAF SPR,FRT
(A), T=12 ASM PART: B = 1-51130-341-0 		1-51177-107-0 03 1 -
20 SEAT; LEAF SPR,FRT
(B), T=9 ASM PART: B = 1-51130-341-0 		1-51177-114-0 01 1 -
20 SEAT; LEAF SPR,FRT
(C), T=6 ASM PART: A = 1-51130-266-0, C = 1-51130-529-0, D = 1-51130-530-0, E = 1-51130-533-0, F = 1-51130-534-0 		1-51177-262-0 01 1 -
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
