Sayfa 4-50 - Isuzu EPC

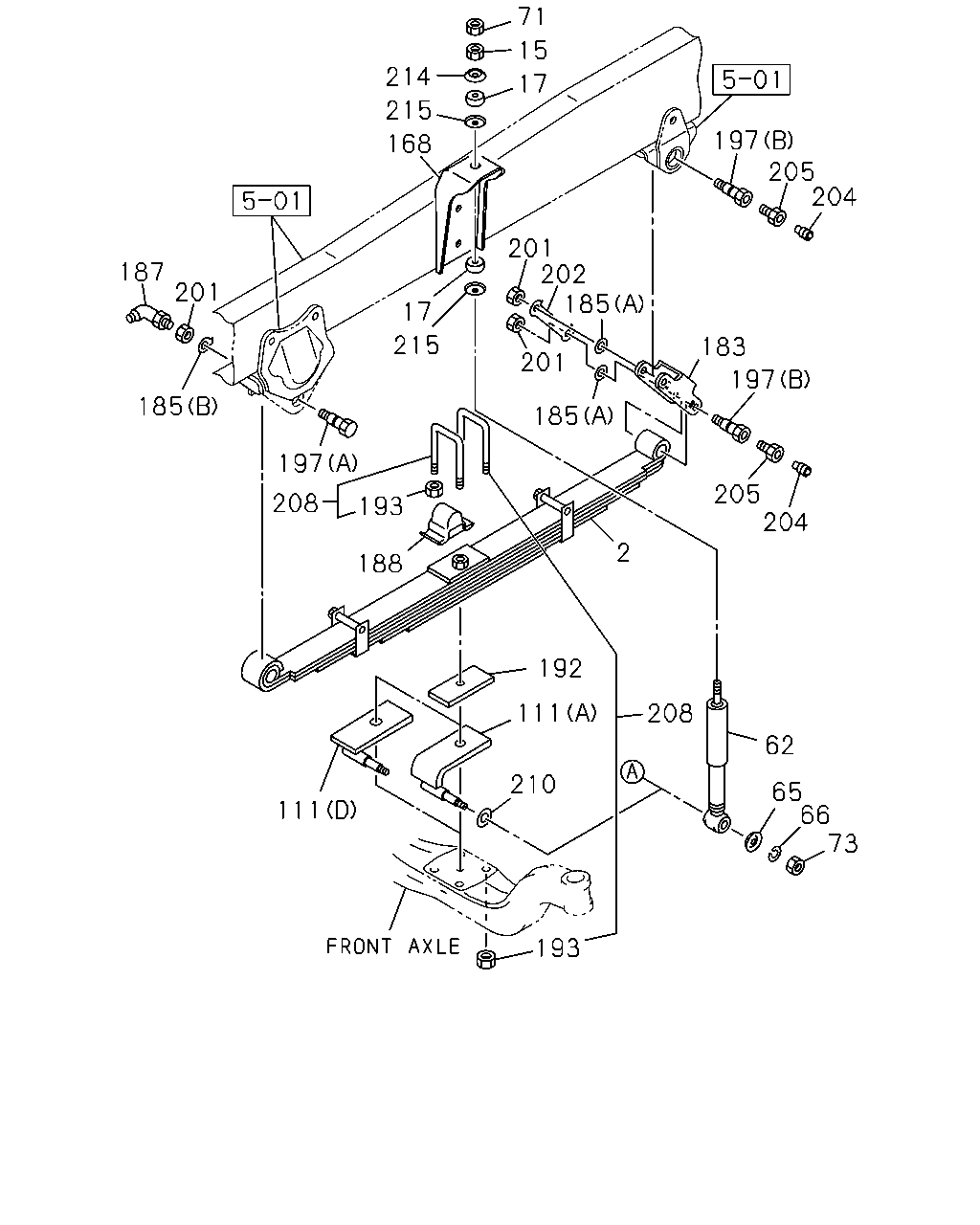

4-50 — FRONT SUSPENSION (#9408) — 460 parça

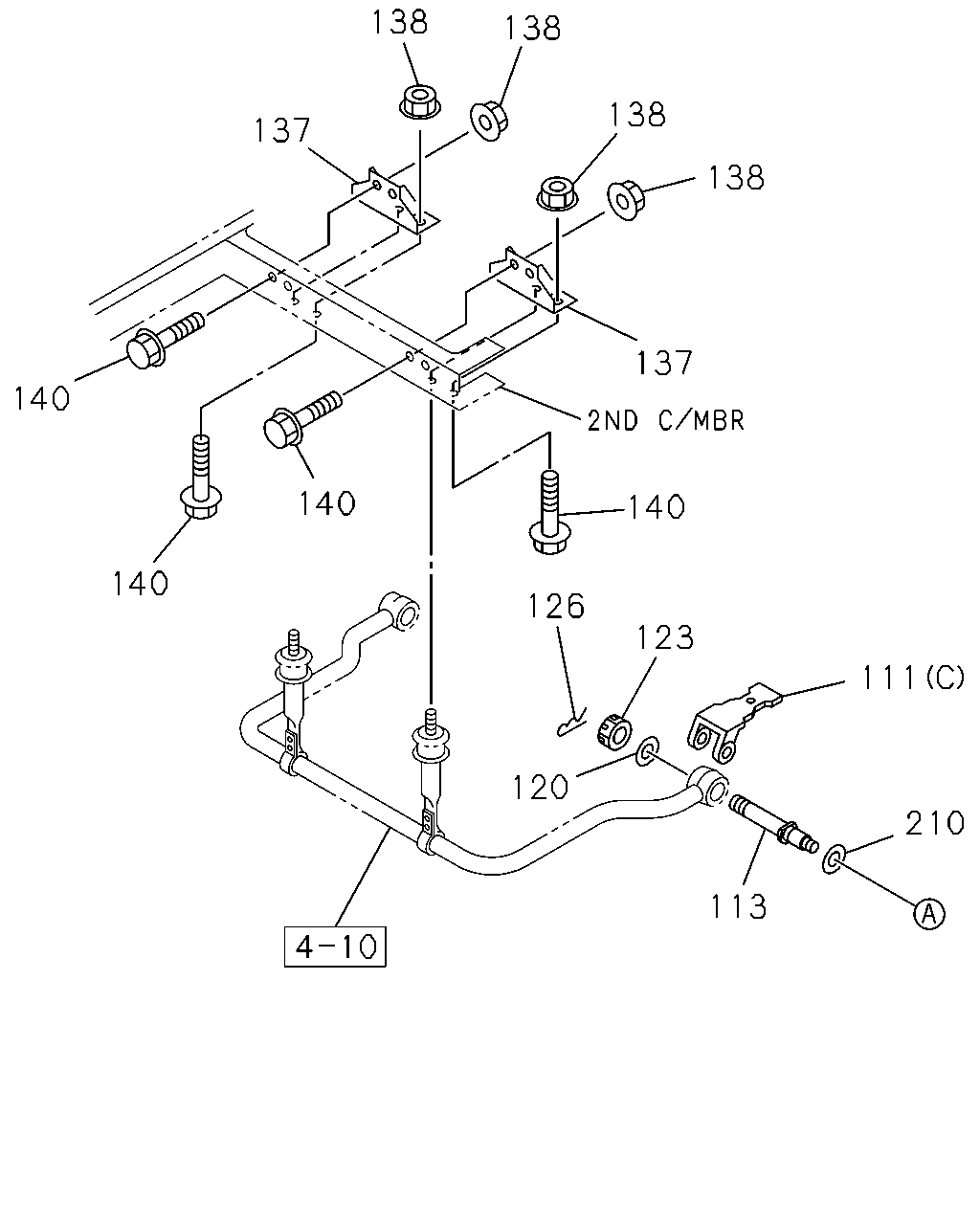

138 138 138 137 138 137 140 140 140 140 126 123 111 120 210 113

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
111	SUPPORTER; S/ABS,FRT SUSP EXC. FRONT SPRING LONG SPAN<W36> (D)	1-51681-741-0	01	1	0612-	●
111	SUPPORTER; S/ABS,FRT SUSP EXC. FRONT SPRING LONG SPAN<W36> (D)	1-51681-742-0	01	1	0612-	●
111	SUPPORTER; S/ABS,FRT SUSP FRONT STABILIZER SHAFT<F59> (C)	1-51681-655-1	01	1	0211-0512	●
111	SUPPORTER; S/ABS,FRT SUSP FRONT STABILIZER SHAFT<F59> (C)	1-51681-655-1	01	1	0601-0611	●	●
111	SUPPORTER; S/ABS,FRT SUSP FRONT STABILIZER SHAFT<F59> FRONT SPRING LONG SPAN<W36> (C)	1-51681-655-1	01	1	0612-	●
111	SUPPORTER; S/ABS,FRT SUSP FRONT STABILIZER SHAFT<F59> (C)	1-51681-655-1	01	1	0612-		●
111	SUPPORTER; S/ABS,FRT SUSP FRONT STABILIZER SHAFT<F59> (C)	1-51681-654-1	01	1	0211-0512	●
111	SUPPORTER; S/ABS,FRT SUSP FRONT STABILIZER SHAFT<F59> (C)	1-51681-654-1	01	1	0601-0611	●	●
111	SUPPORTER; S/ABS,FRT SUSP FRONT STABILIZER SHAFT<F59> FRONT SPRING LONG SPAN<W36> (C)	1-51681-654-1	01	1	0612-	●
111	SUPPORTER; S/ABS,FRT SUSP FRONT STABILIZER SHAFT<F59> (C)	1-51681-654-1	01	1	0612-		●
111	SUPPORTER; S/ABS,FRT SUSP (A)	1-51681-742-0	01	1	0005-0210	●		●
111	SUPPORTER; S/ABS,FRT SUSP EXC. FRONT STABILIZER SHAFT<F59> (A)	1-51681-795-0	01	1	0211-0411	●
111	SUPPORTER; S/ABS,FRT SUSP (A)	1-51681-795-0	01	1	0211-0411			●
111	SUPPORTER; S/ABS,FRT SUSP EXC. FRONT STABILIZER SHAFT<F59> (A)	1-51681-795-0	01	1	0412-0512	●
111	SUPPORTER; S/ABS,FRT SUSP (A)	1-51681-795-0	01	1	0412-0512		●	●
111	SUPPORTER; S/ABS,FRT SUSP EXC. FRONT STABILIZER SHAFT<F59> (A)	1-51681-795-0	01	1	0601-0611	●	●
111	SUPPORTER; S/ABS,FRT SUSP (A)	1-51681-795-0	01	1	0601-0611			●
111	SUPPORTER; S/ABS,FRT SUSP FRONT SPRING LONG SPAN<W36> EXC. FRONT STABILIZER SHAFT<F59> (A)	1-51681-795-0	01	1	0612-	●
111	SUPPORTER; S/ABS,FRT SUSP (A)	1-51681-795-0	01	1	0612-			●
111	SUPPORTER; S/ABS,FRT SUSP EXC. FRONT STABILIZER SHAFT<F59> (A)	1-51681-795-0	01	1	0612-		●
111	SUPPORTER; S/ABS,FRT SUSP (A)	1-51681-741-0	01	1	0005-0210	●		●
111	SUPPORTER; S/ABS,FRT SUSP EXC. FRONT STABILIZER SHAFT<F59> (A)	1-51681-794-0	01	1	0211-0411	●
111	SUPPORTER; S/ABS,FRT SUSP (A)	1-51681-794-0	01	1	0211-0411			●
111	SUPPORTER; S/ABS,FRT SUSP EXC. FRONT STABILIZER SHAFT<F59> (A)	1-51681-794-0	01	1	0412-0512	●
111	SUPPORTER; S/ABS,FRT SUSP (A)	1-51681-794-0	01	1	0412-0512		●	●
111	SUPPORTER; S/ABS,FRT SUSP EXC. FRONT STABILIZER SHAFT<F59> (A)	1-51681-794-0	01	1	0601-0611	●	●
111	SUPPORTER; S/ABS,FRT SUSP (A)	1-51681-794-0	01	1	0601-0611			●
111	SUPPORTER; S/ABS,FRT SUSP FRONT SPRING LONG SPAN<W36> EXC. FRONT STABILIZER SHAFT<F59> (A)	1-51681-794-0	01	1	0612-	●
111	SUPPORTER; S/ABS,FRT SUSP (A)	1-51681-794-0	01	1	0612-			●
111	SUPPORTER; S/ABS,FRT SUSP EXC. FRONT STABILIZER SHAFT<F59> (A)	1-51681-794-0	01	1	0612-		●
111	SUPPORTER; S/ABS,FRT SUSP (B)	1-51681-721-0	01	1	0005-0210				●
111	SUPPORTER; S/ABS,FRT SUSP (C)	1-51681-633-1	01	1	0211-				●
111	SUPPORTER; S/ABS,FRT SUSP (B)	1-51681-720-0	01	1	0005-0210				●
111	SUPPORTER; S/ABS,FRT SUSP (C)	1-51681-632-1	01	1	0211-				●
113	PIN; SUPPORTER FRONT STABILIZER SHAFT<F59>	1-51682-126-1	02	1	0211-0512	●
113	PIN; SUPPORTER FRONT STABILIZER SHAFT<F59>	1-51682-126-1	02	1	0601-	●	●
113	PIN; SUPPORTER	1-51682-127-1	02	1	0211-				●
120	WASHER; PL,SUPPORT BRKT TO BODY FRONT STABILIZER SHAFT<F59>	9-09160-522-0	02	1	0211-0512	●
120	WASHER; PL,SUPPORT BRKT TO BODY	9-09160-522-0	02	1	0211-0512				●
120	WASHER; PL,SUPPORT BRKT TO BODY FRONT STABILIZER SHAFT<F59>	9-09160-522-0	02	1	0601-	●	●
120	WASHER; PL,SUPPORT BRKT TO BODY	9-09160-522-0	02	1	0601-				●
123	NUT; PIN TO SUPPORTER FRONT STABILIZER SHAFT<F59> M22	9-09116-522-0	02	1	0211-0512	●
123	NUT; PIN TO SUPPORTER M22	9-09116-522-0	02	1	0211-0512				●
123	NUT; PIN TO SUPPORTER FRONT STABILIZER SHAFT<F59> M22	0-91116-522-0	02	1	0601-0601	●
123	NUT; PIN TO SUPPORTER M22	0-91116-522-0	02	1	0601-0601				●
123	NUT; PIN TO SUPPORTER FRONT STABILIZER SHAFT<F59> M22	0-91116-522-0	02	1	0601-	●	●
123	NUT; PIN TO SUPPORTER M22	0-91116-522-0	02	1	0601-				●
126	PIN; SPLIT,STAB FRONT STABILIZER SHAFT<F59> OD=4.6 L=45	9-08115-045-0	02	1	0211-0512	●
126	PIN; SPLIT,STAB OD=4.6 L=45	9-08115-045-0	02	1	0211-0512				●
126	PIN; SPLIT,STAB FRONT STABILIZER SHAFT<F59> OD=4.6 L=45	9-08115-045-0	02	1	0601-0606	●	●
126	PIN; SPLIT,STAB OD=4.6 L=45	9-08115-045-0	02	1	0601-0606				●
126	PIN; SPLIT,STAB FRONT STABILIZER SHAFT<F59> OD=4.6 L=45	0-81125-045-0	02	1	0607-	●	●
126	PIN; SPLIT,STAB OD=4.6 L=45	0-81125-045-0	02	1	0607-				●
137	BRACKET; STAB BAR TO FRAME FRONT STABILIZER SHAFT<F59>	1-51781-060-2	02	1	0211-0512	●
137	BRACKET; STAB BAR TO FRAME	1-51781-060-2	02	1	0211-0512				●
137	BRACKET; STAB BAR TO FRAME FRONT STABILIZER SHAFT<F59>	1-51781-060-2	02	1	0601-	●	●
137	BRACKET; STAB BAR TO FRAME	1-51781-060-2	02	1	0601-				●
138	NUT; BRKT FRONT STABILIZER SHAFT<F59> M10 FLANGE	0-91150-210-0	08	1	0211-0512	●
138	NUT; BRKT M10 FLANGE	0-91150-210-0	08	1	0211-0512				●
138	NUT; BRKT FRONT STABILIZER SHAFT<F59> M10 FLANGE	0-91150-210-0	08	1	0601-0602	●	●
138	NUT; BRKT M10 FLANGE	0-91150-210-0	08	1	0601-0602				●
138	NUT; BRKT FRONT STABILIZER SHAFT<F59> M10 FLANGE	0-91180-210-0	08	1	0603-	●	●
138	NUT; BRKT M10 FLANGE	0-91180-210-0	08	1	0603-				●
140	BOLT; BRKT FRONT STABILIZER SHAFT<F59> M10X30 FLANGE	0-28681-030-0	08	1	0211-0512	●
140	BOLT; BRKT M10X30 FLANGE	0-28681-030-0	08	1	0211-0512				●
140	BOLT; BRKT FRONT STABILIZER SHAFT<F59> M10X30 FLANGE	0-28651-030-0	08	1	0601-0601	●
140	BOLT; BRKT M10X30 FLANGE	0-28651-030-0	08	1	0601-0601				●
140	BOLT; BRKT FRONT STABILIZER SHAFT<F59> M10X30 FLANGE	0-28651-030-0	08	1	0601-	●	●
140	BOLT; BRKT M10X30 FLANGE	0-28651-030-0	08	1	0601-				●
210	WASHER; S/ABS,OUTER ID=12.5	1-09503-171-0	02	1	0005-0411	●		●
210	WASHER; S/ABS,OUTER ID=12.5	1-09503-171-0	02	1	0412-	●	●	●
210	WASHER; S/ABS,OUTER ID=17	1-51631-020-0	02	1	0005-				●

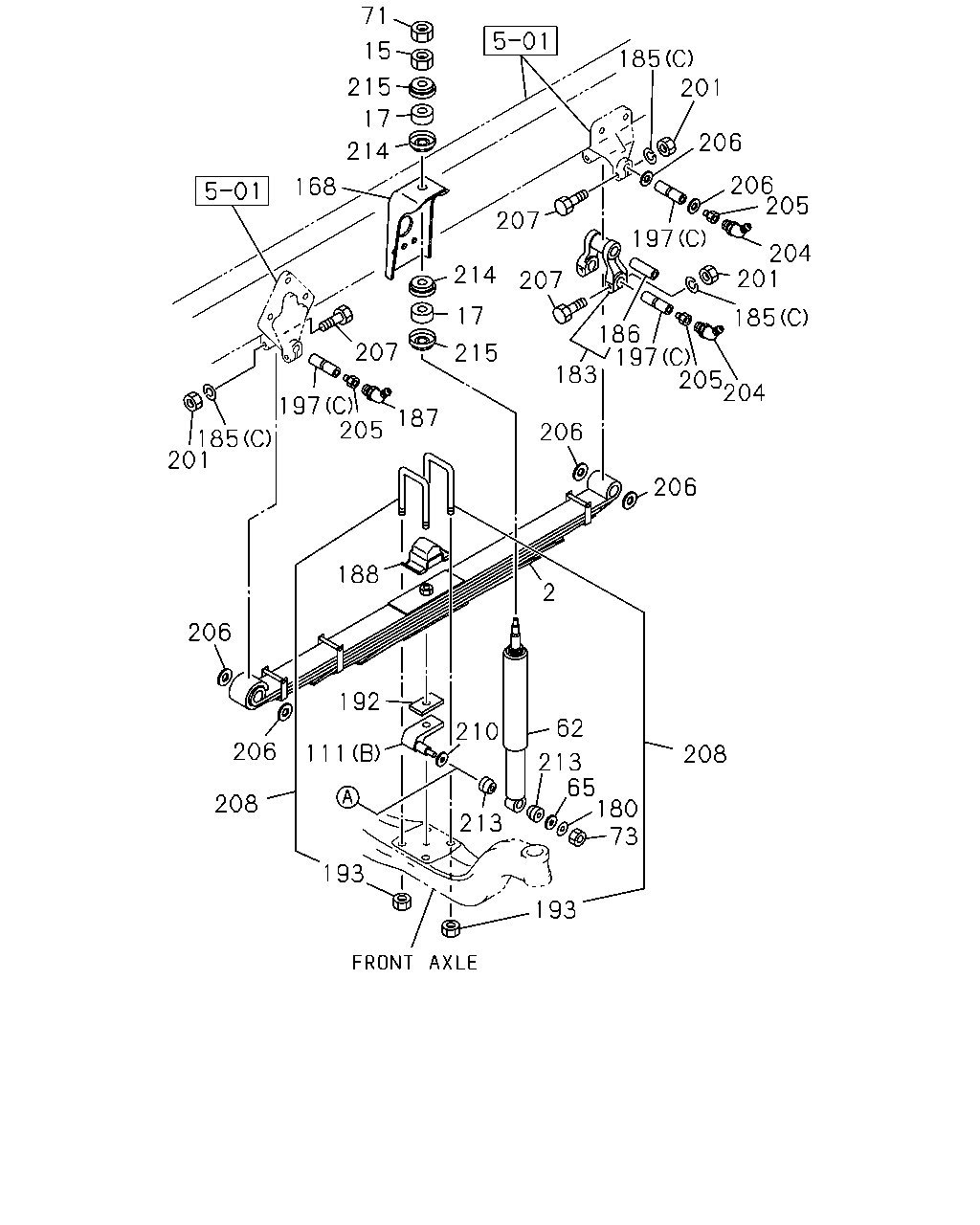

71 15 185 201 215 17 206 214 206 205 168 207 197 204 201 214 207 17 185 186 197 205 204 207 215 183 197 205 187 206 185 201 206 188 2 206 192 62 210 206 111 208 213 65 180 73 208 213 193 193

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRONT SPRING LONG SPAN<W36> 8-LEAF	1-51130-266-0	02	1	0612-	●
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> 3-LEAF	1-51130-530-0	01	1	0211-0512	●
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> 3-LEAF	1-51130-530-0	01	1	0601-0611	●	●
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> FRONT SPRING LONG SPAN<W36> 3-LEAF	1-51130-530-0	01	1	0612-	●
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> 3-LEAF	1-51130-530-0	01	1	0612-		●
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> 3-LEAF	1-51130-529-0	01	1	0211-0512	●
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> 3-LEAF	1-51130-529-0	01	1	0601-0611	●	●
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> FRONT SPRING LONG SPAN<W36> 3-LEAF	1-51130-529-0	01	1	0612-	●
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> 3-LEAF	1-51130-529-0	01	1	0612-		●
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRONT STABILIZER SHAFT<F59> 4-LEAF	1-51130-534-0	01	1	0211-0411	●
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. 4-LEAF	1-51130-534-0	01	1	0211-0411			●
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRONT STABILIZER SHAFT<F59> 4-LEAF	1-51130-534-0	01	1	0412-0512	●
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. 4-LEAF	1-51130-534-0	01	1	0412-0512		●	●
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRONT STABILIZER SHAFT<F59> 4-LEAF	1-51130-534-0	01	1	0601-0611	●	●
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. 4-LEAF	1-51130-534-0	01	1	0601-0611			●
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT SPRING LONG SPAN<W36> EXC. FRONT STABILIZER SHAFT<F59> 4-LEAF	1-51130-534-0	01	1	0612-	●
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT.	1-51130-534-0	01	1	0612-			●
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRONT STABILIZER SHAFT<F59> 4-LEAF	1-51130-534-0	01	1	0612-		●
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. 8-LEAF	1-51130-266-0	02	1	0005-0210	●		●
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRONT STABILIZER SHAFT<F59> 4-LEAF	1-51130-533-0	01	1	0211-0411	●
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. 4-LEAF	1-51130-533-0	01	1	0211-0411			●
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRONT STABILIZER SHAFT<F59> 4-LEAF	1-51130-533-0	01	1	0412-0512	●
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. 4-LEAF	1-51130-533-0	01	1	0412-0512		●	●
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRONT STABILIZER SHAFT<F59> 4-LEAF	1-51130-533-0	01	1	0601-0611	●	●
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. 4-LEAF	1-51130-533-0	01	1	0601-0611			●
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT SPRING LONG SPAN<W36> EXC. FRONT STABILIZER SHAFT<F59> 4-LEAF	1-51130-533-0	01	1	0612-	●
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT.	1-51130-533-0	01	1	0612-			●
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRONT STABILIZER SHAFT<F59> 4-LEAF	1-51130-533-0	01	1	0612-		●
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. 7-LEAF	1-51130-341-0	02	1	0005-				●
15	NUT; S/ABS,UPR M10 FLANGE	0-91150-210-0	02	1	0005-0411	●		●
15	NUT; S/ABS,UPR M10 FLANGE	0-91150-210-0	02	1	0412-0602	●	●	●
15	NUT; S/ABS,UPR M10 FLANGE	0-91180-210-0	02	1	0603-	●	●	●
15	NUT; S/ABS,UPR M12	1-09400-006-0	02	1	0005-0910				●
15	NUT; S/ABS,UPR M12	8-98010-412-0	02	1	0911-				●
17	BUSHING; RUBBER,S/ABS	1-51631-004-0	04	1	0005-0411	●		●
17	BUSHING; RUBBER,S/ABS	1-51631-004-0	04	1	0412-	●	●	●
17	BUSHING; RUBBER,S/ABS	9-51631-050-0	04	1	0005-				●
62	ABSORBER ASM; SHOCK,FRT	1-51630-381-0	02	1	0005-0210	●		●
62	ABSORBER ASM; SHOCK,FRT	1-51630-712-0	02	1	0211-0308	●		●
62	ABSORBER ASM; SHOCK,FRT	1-51630-838-0	02	1	0309-0411	●		●
62	ABSORBER ASM; SHOCK,FRT	1-51630-838-0	02	1	0412-	●	●	●
62	ABSORBER ASM; SHOCK,FRT	1-51630-180-3	02	1	0005-				●
65	WASHER; S/ABS ID=17	9-09164-516-0	02	1	0005-0411	●		●
65	WASHER; S/ABS ID=17	9-09164-516-0	02	1	0412-	●	●	●
65	WASHER; S/ABS ID=23	1-51631-019-0	02	1	0005-				●
71	NUT; LK,S/ABS,UPR M10	9-09111-410-0	02	1	0005-0411	●		●
71	NUT; LK,S/ABS,UPR M10	9-09111-410-0	02	1	0412-0512	●	●	●
71	NUT; LK,S/ABS,UPR M10	0-91111-510-0	02	1	0601-	●	●	●
71	NUT; LK,S/ABS,UPR M12	1-09400-006-0	02	1	0005-0910				●
71	NUT; LK,S/ABS,UPR M12	8-98010-412-0	02	1	0911-				●
73	NUT; BRKT,SHOCK M12	9-99110-512-0	02	1	0005-0411	●		●
73	NUT; BRKT,SHOCK M12	9-99110-512-0	02	1	0412-0512	●	●	●
73	NUT; BRKT,SHOCK M12	0-91110-512-0	02	1	0601-	●	●	●
73	NUT; BRKT,SHOCK M16	9-99110-516-0	02	1	0005-0206				●
73	NUT; BRKT,SHOCK M16	9-99110-416-0	02	1	0207-0512				●
73	NUT; BRKT,SHOCK M16	0-91110-516-0	02	1	0601-				●
111	SUPPORTER; S/ABS,FRT SUSP EXC. FRONT SPRING LONG SPAN<W36> (D)	1-51681-741-0	01	1	0612-	●
111	SUPPORTER; S/ABS,FRT SUSP EXC. FRONT SPRING LONG SPAN<W36> (D)	1-51681-742-0	01	1	0612-	●
111	SUPPORTER; S/ABS,FRT SUSP FRONT STABILIZER SHAFT<F59> (C)	1-51681-655-1	01	1	0211-0512	●
111	SUPPORTER; S/ABS,FRT SUSP FRONT STABILIZER SHAFT<F59> (C)	1-51681-655-1	01	1	0601-0611	●	●
111	SUPPORTER; S/ABS,FRT SUSP FRONT STABILIZER SHAFT<F59> FRONT SPRING LONG SPAN<W36> (C)	1-51681-655-1	01	1	0612-	●
111	SUPPORTER; S/ABS,FRT SUSP FRONT STABILIZER SHAFT<F59> (C)	1-51681-655-1	01	1	0612-		●
111	SUPPORTER; S/ABS,FRT SUSP FRONT STABILIZER SHAFT<F59> (C)	1-51681-654-1	01	1	0211-0512	●
111	SUPPORTER; S/ABS,FRT SUSP FRONT STABILIZER SHAFT<F59> (C)	1-51681-654-1	01	1	0601-0611	●	●
111	SUPPORTER; S/ABS,FRT SUSP FRONT STABILIZER SHAFT<F59> FRONT SPRING LONG SPAN<W36> (C)	1-51681-654-1	01	1	0612-	●
111	SUPPORTER; S/ABS,FRT SUSP FRONT STABILIZER SHAFT<F59> (C)	1-51681-654-1	01	1	0612-		●
111	SUPPORTER; S/ABS,FRT SUSP (A)	1-51681-742-0	01	1	0005-0210	●		●
111	SUPPORTER; S/ABS,FRT SUSP EXC. FRONT STABILIZER SHAFT<F59> (A)	1-51681-795-0	01	1	0211-0411	●
111	SUPPORTER; S/ABS,FRT SUSP (A)	1-51681-795-0	01	1	0211-0411			●
111	SUPPORTER; S/ABS,FRT SUSP EXC. FRONT STABILIZER SHAFT<F59> (A)	1-51681-795-0	01	1	0412-0512	●
111	SUPPORTER; S/ABS,FRT SUSP (A)	1-51681-795-0	01	1	0412-0512		●	●
111	SUPPORTER; S/ABS,FRT SUSP EXC. FRONT STABILIZER SHAFT<F59> (A)	1-51681-795-0	01	1	0601-0611	●	●
111	SUPPORTER; S/ABS,FRT SUSP (A)	1-51681-795-0	01	1	0601-0611			●
111	SUPPORTER; S/ABS,FRT SUSP FRONT SPRING LONG SPAN<W36> EXC. FRONT STABILIZER SHAFT<F59> (A)	1-51681-795-0	01	1	0612-	●
111	SUPPORTER; S/ABS,FRT SUSP (A)	1-51681-795-0	01	1	0612-			●
111	SUPPORTER; S/ABS,FRT SUSP EXC. FRONT STABILIZER SHAFT<F59> (A)	1-51681-795-0	01	1	0612-		●
111	SUPPORTER; S/ABS,FRT SUSP (A)	1-51681-741-0	01	1	0005-0210	●		●
111	SUPPORTER; S/ABS,FRT SUSP EXC. FRONT STABILIZER SHAFT<F59> (A)	1-51681-794-0	01	1	0211-0411	●
111	SUPPORTER; S/ABS,FRT SUSP (A)	1-51681-794-0	01	1	0211-0411			●
111	SUPPORTER; S/ABS,FRT SUSP EXC. FRONT STABILIZER SHAFT<F59> (A)	1-51681-794-0	01	1	0412-0512	●
111	SUPPORTER; S/ABS,FRT SUSP (A)	1-51681-794-0	01	1	0412-0512		●	●
111	SUPPORTER; S/ABS,FRT SUSP EXC. FRONT STABILIZER SHAFT<F59> (A)	1-51681-794-0	01	1	0601-0611	●	●
111	SUPPORTER; S/ABS,FRT SUSP (A)	1-51681-794-0	01	1	0601-0611			●
111	SUPPORTER; S/ABS,FRT SUSP FRONT SPRING LONG SPAN<W36> EXC. FRONT STABILIZER SHAFT<F59> (A)	1-51681-794-0	01	1	0612-	●
111	SUPPORTER; S/ABS,FRT SUSP (A)	1-51681-794-0	01	1	0612-			●
111	SUPPORTER; S/ABS,FRT SUSP EXC. FRONT STABILIZER SHAFT<F59> (A)	1-51681-794-0	01	1	0612-		●
111	SUPPORTER; S/ABS,FRT SUSP (B)	1-51681-721-0	01	1	0005-0210				●
111	SUPPORTER; S/ABS,FRT SUSP (C)	1-51681-633-1	01	1	0211-				●
111	SUPPORTER; S/ABS,FRT SUSP (B)	1-51681-720-0	01	1	0005-0210				●
111	SUPPORTER; S/ABS,FRT SUSP (C)	1-51681-632-1	01	1	0211-				●
168	BRACKET; S/ABS,FRT SUSP WHEEL BASE 3700MM(37W)	1-51681-494-0	02	1	0612-	●
168	BRACKET; S/ABS,FRT SUSP	1-51681-494-0	02	1	0005-0210	●		●
168	BRACKET; S/ABS,FRT SUSP	1-51681-522-0	02	1	0211-0411	●		●
168	BRACKET; S/ABS,FRT SUSP	1-51681-522-0	02	1	0412-0611	●	●	●
168	BRACKET; S/ABS,FRT SUSP WHEEL BASE 4200MM(42W),WHEEL BASE 5100MM(51W)	1-51681-522-0	02	1	0612-	●
168	BRACKET; S/ABS,FRT SUSP	1-51681-522-0	02	1	0612-		●	●
168	BRACKET; S/ABS,FRT SUSP	1-51681-306-0	02	1	0005-0210				●
168	BRACKET; S/ABS,FRT SUSP WHEEL BASE 5500MM(55W)	1-51681-306-0	02	1	0211-0305				●
168	BRACKET; S/ABS,FRT SUSP 6HK1 TCC ENG(81L) WHEEL BASE 5500MM(55W)	1-51681-306-0	02	1	0306-0306				●
168	BRACKET; S/ABS,FRT SUSP 6HK1 TCS ENG(80L),6HK1 TCC ENG(81L) WHEEL BASE 5500MM(55W)	1-51681-306-0	02	1	0307-				●
180	WASHER; PL,PIN ID=17	9-09160-516-0	02	1	0005-0605				●
180	WASHER; PL,PIN ID=17 OD=30	0-91610-516-0	02	1	0606-				●
183	SHACKLE; FRT SUSP	1-51162-037-0	02	1	0005-0411	●		●
183	SHACKLE; FRT SUSP	1-51162-037-0	02	1	0412-	●	●	●
183	SHACKLE; FRT SUSP	1-51162-029-5	02	1	0005-				●
185	WASHER; LK,PIN (A) ID=25.5	1-09503-011-0	04	1	0005-0411	●		●
185	WASHER; LK,PIN (A) ID=25.5	1-09503-011-0	04	1	0412-0910	●	●	●
185	WASHER; LK,PIN (A) ID=25.5	8-98010-404-0	04	1	0911-	●	●	●
185	WASHER; LK,PIN (B) ID=23	1-51169-003-0	02	1	0005-0411	●		●
185	WASHER; LK,PIN (B) ID=23	1-51169-003-0	02	1	0412-0910	●	●	●
185	WASHER; LK,PIN (B) ID=23	8-98010-411-0	02	1	0911-	●	●	●
185	WASHER; LK,PIN (C) ID=12.2	9-09150-612-0	12	1	0005-0603				●
185	WASHER; LK,PIN (C) ID=12.2	0-91510-612-0	12	1	0604-				●
186	BUSHING; SHACKLE OD=38	1-51351-009-0	02	1	0005-0902				●
186	BUSHING; SHACKLE OD=38	8-98081-829-0	02	1	0903-				●
187	NIPPLE; GREASE,FRT PT1/8 ELBOW	9-09031-210-0	02	1	0005-0411	●		●	●
187	NIPPLE; GREASE,FRT PT1/8 ELBOW	9-09031-210-0	02	1	0412-0512	●	●	●	●
187	NIPPLE; GREASE,FRT PT1/8 ELBOW	0-90301-610-0	02	1	0601-	●	●	●	●
188	RUBBER; CLAMP,U-BOLT,FRT SPR	1-51172-112-0	02	1	0005-0411	●		●
188	RUBBER; CLAMP,U-BOLT,FRT SPR	1-51172-112-0	02	1	0412-	●	●	●
188	RUBBER; CLAMP,U-BOLT,FRT SPR	1-51172-085-2	02	1	0005-				●
192	PIECE; DIST EXC. FRONT SPRING LONG SPAN<W36> T=4.5	1-51177-149-0	01	1	0612-	●
192	PIECE; DIST T=4.5	1-51177-149-0	01	1	0005-0210	●		●
192	PIECE; DIST 80X144 ID=17.5	1-51177-284-1	01	1	0005-				●
193	NUT; U BOLT M16	1-09440-028-1	08	1	0005-0411	●		●
193	NUT; U BOLT M16	1-09440-028-1	08	1	0412-0503	●	●	●
193	NUT; U BOLT M16	8-94107-767-0	08	1	0504-0706	●	●	●
193	NUT; U BOLT M16	8-97360-121-0	08	1	0707-	●	●	●
193	NUT; U BOLT M22	9-09112-822-0	08	1	0005-0512				●
193	NUT; U BOLT M22	0-91112-822-0	08	1	0601-1206				●
193	NUT; U BOLT M22	8-98179-318-0	08	1	1207-				●
197	PIN; FRT SPR,FRT (A)	1-51161-004-3	02	1	0005-0411	●		●
197	PIN; FRT SPR,FRT (A)	1-51161-004-3	02	1	0412-0911	●	●	●
197	PIN; FRT SPR,FRT (A)	8-98060-335-0	02	1	0912-	●	●	●
197	PIN; FRT SPR,FRT (B)	1-51161-005-3	04	1	0005-0411	●		●
197	PIN; FRT SPR,FRT (B)	1-51161-005-3	04	1	0412-0911	●	●	●
197	PIN; FRT SPR,FRT (B)	8-98060-333-0	04	1	0912-	●	●	●
197	PIN; FRT SPR,FRT (C)	1-51161-031-0	06	1	0005-				●
201	NUT; PIN LK M22	9-09111-522-0	06	1	0005-0411	●		●
201	NUT; PIN LK M22	9-09111-522-0	06	1	0412-0512	●	●	●
201	NUT; PIN LK M22	0-91111-522-0	06	1	0601-	●	●	●
201	NUT; PIN LK M12	9-99110-512-0	12	1	0005-0512				●
201	NUT; PIN LK M12	0-91110-512-0	12	1	0601-				●
204	NIPPLE; GREASE,RR PT1/8 STRAIGHT	9-09031-010-0	04	1	0005-0210	●		●	●
204	NIPPLE; GREASE,RR PT1/8 STRAIGHT	9-09031-010-0	02	1	0211-0411	●		●	●
204	NIPPLE; GREASE,RR PT1/8 STRAIGHT	9-09031-010-0	02	1	0211-0411	●		●
204	NIPPLE; GREASE,RR PT1/8 STRAIGHT	9-09031-010-0	02	1	0412-0512	●	●	●	●
204	NIPPLE; GREASE,RR PT1/8 STRAIGHT	9-09031-010-0	02	1	0412-0512	●	●	●
204	NIPPLE; GREASE,RR PT1/8 STRAIGHT	0-90301-410-0	02	1	0601-	●	●	●	●
204	NIPPLE; GREASE,RR PT1/8 STRAIGHT	0-90301-410-0	02	1	0601-	●	●	●
204	NIPPLE; GREASE,RR PT1/8 ELBOW	9-09031-210-0	02	1	0211-0512				●
204	NIPPLE; GREASE,RR PT1/8 ELBOW	0-90301-610-0	02	1	0601-				●
205	ATTACHMENT; GREASE NIPPLE	9-43165-001-0	04	1	0005-0411	●		●
205	ATTACHMENT; GREASE NIPPLE	9-43165-001-0	04	1	0412-	●	●	●
205	ATTACHMENT; GREASE NIPPLE	9-43165-001-0	06	1	0005-				●
206	WASHER; LK,SPRING PIN ID=32.4	1-51169-018-0	12	1	0005-				●
207	BOLT; SPR TO SHACKLE M12X80	0-10806-280-0	12	1	0005-0512				●
207	BOLT; SPR TO SHACKLE M12X80	0-10856-280-0	12	1	0601-				●
208	U-BOLT SET; FRT SPRING FRONT STABILIZER SHAFT<F59> L=135	1-87870-405-0	04	1	0211-0503	●
208	U-BOLT SET; FRT SPRING FRONT STABILIZER SHAFT<F59> L=135	1-87870-446-0	04	1	0504-0512	●
208	U-BOLT SET; FRT SPRING FRONT STABILIZER SHAFT<F59> L=135	1-87870-446-0	04	1	0601-0611	●	●
208	U-BOLT SET; FRT SPRING FRONT STABILIZER SHAFT<F59> FRONT SPRING LONG SPAN<W36> L=135	1-87870-446-0	04	1	0612-0706	●
208	U-BOLT SET; FRT SPRING FRONT STABILIZER SHAFT<F59> L=135	1-87870-446-0	04	1	0612-0706		●
208	U-BOLT SET; FRT SPRING FRONT STABILIZER SHAFT<F59> FRONT SPRING LONG SPAN<W36> L=135	1-87870-465-0	04	1	0707-	●
208	U-BOLT SET; FRT SPRING FRONT STABILIZER SHAFT<F59> L=135	1-87870-465-0	04	1	0707-		●
208	U-BOLT SET; FRT SPRING L=165	1-87870-407-0	04	1	0005-0210	●		●
208	U-BOLT SET; FRT SPRING EXC. FRONT STABILIZER SHAFT<F59> L=165	1-87870-407-0	04	1	0211-0411	●
208	U-BOLT SET; FRT SPRING L=165	1-87870-407-0	04	1	0211-0411			●
208	U-BOLT SET; FRT SPRING EXC. FRONT STABILIZER SHAFT<F59> L=165	1-87870-407-0	04	1	0412-0503	●
208	U-BOLT SET; FRT SPRING L=165	1-87870-407-0	04	1	0412-0503		●	●
208	U-BOLT SET; FRT SPRING EXC. FRONT STABILIZER SHAFT<F59> L=165	1-87870-447-0	04	1	0504-0512	●
208	U-BOLT SET; FRT SPRING L=165	1-87870-447-0	04	1	0504-0512		●	●
208	U-BOLT SET; FRT SPRING EXC. FRONT STABILIZER SHAFT<F59> L=165	1-87870-447-0	04	1	0601-0611	●	●
208	U-BOLT SET; FRT SPRING L=165	1-87870-447-0	04	1	0601-0611			●
208	U-BOLT SET; FRT SPRING FRONT SPRING LONG SPAN<W36> EXC. FRONT STABILIZER SHAFT<F59> L=165	1-87870-447-0	04	1	0612-0706	●
208	U-BOLT SET; FRT SPRING EXC. FRONT SPRING LONG SPAN<W36> L=165	1-87870-447-0	04	1	0612-0706	●
208	U-BOLT SET; FRT SPRING L=165	1-87870-447-0	04	1	0612-0706			●
208	U-BOLT SET; FRT SPRING EXC. FRONT STABILIZER SHAFT<F59> L=165	1-87870-447-0	04	1	0612-0706		●
208	U-BOLT SET; FRT SPRING FRONT SPRING LONG SPAN<W36> EXC. FRONT STABILIZER SHAFT<F59> L=165	1-87870-483-0	04	1	0707-	●
208	U-BOLT SET; FRT SPRING EXC. FRONT SPRING LONG SPAN<W36> L=165	1-87870-483-0	04	1	0707-	●
208	U-BOLT SET; FRT SPRING L=165	1-87870-483-0	04	1	0707-			●
208	U-BOLT SET; FRT SPRING EXC. FRONT STABILIZER SHAFT<F59> L=165	1-87870-483-0	04	1	0707-		●
208	U-BOLT SET; FRT SPRING L=210	1-87870-380-0	04	1	0005-0210				●
208	U-BOLT SET; FRT SPRING L=230	1-87870-269-2	04	1	0211-1206				●
208	U-BOLT SET; FRT SPRING L=230	1-87870-493-0	04	1	1207-				●
210	WASHER; S/ABS,OUTER ID=12.5	1-09503-171-0	02	1	0005-0411	●		●
210	WASHER; S/ABS,OUTER ID=12.5	1-09503-171-0	02	1	0412-	●	●	●
210	WASHER; S/ABS,OUTER ID=17	1-51631-020-0	02	1	0005-				●
213	BUSHING; RUBBER,LWR	1-51631-009-1	04	1	0005-				●
214	WASHER; S/ABS,UPR,INNER	1-51631-023-0	02	1	0005-0411	●		●
214	WASHER; S/ABS,UPR,INNER	1-51631-023-0	02	1	0412-	●	●	●
214	WASHER; S/ABS,UPR,INNER ID=16.8	1-51631-022-0	04	1	0005-				●
215	WASHER; S/ABS,UPR,OUTER ID=10.5 OD=40 T=3.2	9-09651-094-0	04	1	0005-0411	●		●
215	WASHER; S/ABS,UPR,OUTER ID=10.5 OD=40 T=3.2	9-09651-094-0	04	1	0412-	●	●	●
215	WASHER; S/ABS,UPR,OUTER ID=14.5	9-51631-051-0	04	1	0005-				●

71 15 214 17 215 197 205 204 168 201 202 185 201 187 201 17 215 183 197 185 185 197 205 204 208 193 2 188 192 208 111 62 210 65 66 73 111 193

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRONT SPRING LONG SPAN<W36> 8-LEAF	1-51130-266-0	02	1	0612-	●
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> 3-LEAF	1-51130-530-0	01	1	0211-0512	●
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> 3-LEAF	1-51130-530-0	01	1	0601-0611	●	●
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> FRONT SPRING LONG SPAN<W36> 3-LEAF	1-51130-530-0	01	1	0612-	●
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> 3-LEAF	1-51130-530-0	01	1	0612-		●
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> 3-LEAF	1-51130-529-0	01	1	0211-0512	●
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> 3-LEAF	1-51130-529-0	01	1	0601-0611	●	●
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> FRONT SPRING LONG SPAN<W36> 3-LEAF	1-51130-529-0	01	1	0612-	●
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> 3-LEAF	1-51130-529-0	01	1	0612-		●
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRONT STABILIZER SHAFT<F59> 4-LEAF	1-51130-534-0	01	1	0211-0411	●
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. 4-LEAF	1-51130-534-0	01	1	0211-0411			●
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRONT STABILIZER SHAFT<F59> 4-LEAF	1-51130-534-0	01	1	0412-0512	●
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. 4-LEAF	1-51130-534-0	01	1	0412-0512		●	●
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRONT STABILIZER SHAFT<F59> 4-LEAF	1-51130-534-0	01	1	0601-0611	●	●
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. 4-LEAF	1-51130-534-0	01	1	0601-0611			●
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT SPRING LONG SPAN<W36> EXC. FRONT STABILIZER SHAFT<F59> 4-LEAF	1-51130-534-0	01	1	0612-	●
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT.	1-51130-534-0	01	1	0612-			●
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRONT STABILIZER SHAFT<F59> 4-LEAF	1-51130-534-0	01	1	0612-		●
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. 8-LEAF	1-51130-266-0	02	1	0005-0210	●		●
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRONT STABILIZER SHAFT<F59> 4-LEAF	1-51130-533-0	01	1	0211-0411	●
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. 4-LEAF	1-51130-533-0	01	1	0211-0411			●
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRONT STABILIZER SHAFT<F59> 4-LEAF	1-51130-533-0	01	1	0412-0512	●
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. 4-LEAF	1-51130-533-0	01	1	0412-0512		●	●
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRONT STABILIZER SHAFT<F59> 4-LEAF	1-51130-533-0	01	1	0601-0611	●	●
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. 4-LEAF	1-51130-533-0	01	1	0601-0611			●
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT SPRING LONG SPAN<W36> EXC. FRONT STABILIZER SHAFT<F59> 4-LEAF	1-51130-533-0	01	1	0612-	●
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT.	1-51130-533-0	01	1	0612-			●
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRONT STABILIZER SHAFT<F59> 4-LEAF	1-51130-533-0	01	1	0612-		●
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. 7-LEAF	1-51130-341-0	02	1	0005-				●
15	NUT; S/ABS,UPR M10 FLANGE	0-91150-210-0	02	1	0005-0411	●		●
15	NUT; S/ABS,UPR M10 FLANGE	0-91150-210-0	02	1	0412-0602	●	●	●
15	NUT; S/ABS,UPR M10 FLANGE	0-91180-210-0	02	1	0603-	●	●	●
15	NUT; S/ABS,UPR M12	1-09400-006-0	02	1	0005-0910				●
15	NUT; S/ABS,UPR M12	8-98010-412-0	02	1	0911-				●
17	BUSHING; RUBBER,S/ABS	1-51631-004-0	04	1	0005-0411	●		●
17	BUSHING; RUBBER,S/ABS	1-51631-004-0	04	1	0412-	●	●	●
17	BUSHING; RUBBER,S/ABS	9-51631-050-0	04	1	0005-				●
62	ABSORBER ASM; SHOCK,FRT	1-51630-381-0	02	1	0005-0210	●		●
62	ABSORBER ASM; SHOCK,FRT	1-51630-712-0	02	1	0211-0308	●		●
62	ABSORBER ASM; SHOCK,FRT	1-51630-838-0	02	1	0309-0411	●		●
62	ABSORBER ASM; SHOCK,FRT	1-51630-838-0	02	1	0412-	●	●	●
62	ABSORBER ASM; SHOCK,FRT	1-51630-180-3	02	1	0005-				●
65	WASHER; S/ABS ID=17	9-09164-516-0	02	1	0005-0411	●		●
65	WASHER; S/ABS ID=17	9-09164-516-0	02	1	0412-	●	●	●
65	WASHER; S/ABS ID=23	1-51631-019-0	02	1	0005-				●
66	WASHER; LK,S/ABS SETTING ID=12.2	9-09150-512-0	02	1	0005-0411	●		●
66	WASHER; LK,S/ABS SETTING ID=12.2	9-09150-512-0	02	1	0412-0603	●	●	●
66	WASHER; LK,S/ABS SETTING ID=12.2	0-91510-512-0	02	1	0604-	●	●	●
71	NUT; LK,S/ABS,UPR M10	9-09111-410-0	02	1	0005-0411	●		●
71	NUT; LK,S/ABS,UPR M10	9-09111-410-0	02	1	0412-0512	●	●	●
71	NUT; LK,S/ABS,UPR M10	0-91111-510-0	02	1	0601-	●	●	●
71	NUT; LK,S/ABS,UPR M12	1-09400-006-0	02	1	0005-0910				●
71	NUT; LK,S/ABS,UPR M12	8-98010-412-0	02	1	0911-				●
73	NUT; BRKT,SHOCK M12	9-99110-512-0	02	1	0005-0411	●		●
73	NUT; BRKT,SHOCK M12	9-99110-512-0	02	1	0412-0512	●	●	●
73	NUT; BRKT,SHOCK M12	0-91110-512-0	02	1	0601-	●	●	●
73	NUT; BRKT,SHOCK M16	9-99110-516-0	02	1	0005-0206				●
73	NUT; BRKT,SHOCK M16	9-99110-416-0	02	1	0207-0512				●
73	NUT; BRKT,SHOCK M16	0-91110-516-0	02	1	0601-				●
111	SUPPORTER; S/ABS,FRT SUSP EXC. FRONT SPRING LONG SPAN<W36> (D)	1-51681-741-0	01	1	0612-	●
111	SUPPORTER; S/ABS,FRT SUSP EXC. FRONT SPRING LONG SPAN<W36> (D)	1-51681-742-0	01	1	0612-	●
111	SUPPORTER; S/ABS,FRT SUSP FRONT STABILIZER SHAFT<F59> (C)	1-51681-655-1	01	1	0211-0512	●
111	SUPPORTER; S/ABS,FRT SUSP FRONT STABILIZER SHAFT<F59> (C)	1-51681-655-1	01	1	0601-0611	●	●
111	SUPPORTER; S/ABS,FRT SUSP FRONT STABILIZER SHAFT<F59> FRONT SPRING LONG SPAN<W36> (C)	1-51681-655-1	01	1	0612-	●
111	SUPPORTER; S/ABS,FRT SUSP FRONT STABILIZER SHAFT<F59> (C)	1-51681-655-1	01	1	0612-		●
111	SUPPORTER; S/ABS,FRT SUSP FRONT STABILIZER SHAFT<F59> (C)	1-51681-654-1	01	1	0211-0512	●
111	SUPPORTER; S/ABS,FRT SUSP FRONT STABILIZER SHAFT<F59> (C)	1-51681-654-1	01	1	0601-0611	●	●
111	SUPPORTER; S/ABS,FRT SUSP FRONT STABILIZER SHAFT<F59> FRONT SPRING LONG SPAN<W36> (C)	1-51681-654-1	01	1	0612-	●
111	SUPPORTER; S/ABS,FRT SUSP FRONT STABILIZER SHAFT<F59> (C)	1-51681-654-1	01	1	0612-		●
111	SUPPORTER; S/ABS,FRT SUSP (A)	1-51681-742-0	01	1	0005-0210	●		●
111	SUPPORTER; S/ABS,FRT SUSP EXC. FRONT STABILIZER SHAFT<F59> (A)	1-51681-795-0	01	1	0211-0411	●
111	SUPPORTER; S/ABS,FRT SUSP (A)	1-51681-795-0	01	1	0211-0411			●
111	SUPPORTER; S/ABS,FRT SUSP EXC. FRONT STABILIZER SHAFT<F59> (A)	1-51681-795-0	01	1	0412-0512	●
111	SUPPORTER; S/ABS,FRT SUSP (A)	1-51681-795-0	01	1	0412-0512		●	●
111	SUPPORTER; S/ABS,FRT SUSP EXC. FRONT STABILIZER SHAFT<F59> (A)	1-51681-795-0	01	1	0601-0611	●	●
111	SUPPORTER; S/ABS,FRT SUSP (A)	1-51681-795-0	01	1	0601-0611			●
111	SUPPORTER; S/ABS,FRT SUSP FRONT SPRING LONG SPAN<W36> EXC. FRONT STABILIZER SHAFT<F59> (A)	1-51681-795-0	01	1	0612-	●
111	SUPPORTER; S/ABS,FRT SUSP (A)	1-51681-795-0	01	1	0612-			●
111	SUPPORTER; S/ABS,FRT SUSP EXC. FRONT STABILIZER SHAFT<F59> (A)	1-51681-795-0	01	1	0612-		●
111	SUPPORTER; S/ABS,FRT SUSP (A)	1-51681-741-0	01	1	0005-0210	●		●
111	SUPPORTER; S/ABS,FRT SUSP EXC. FRONT STABILIZER SHAFT<F59> (A)	1-51681-794-0	01	1	0211-0411	●
111	SUPPORTER; S/ABS,FRT SUSP (A)	1-51681-794-0	01	1	0211-0411			●
111	SUPPORTER; S/ABS,FRT SUSP EXC. FRONT STABILIZER SHAFT<F59> (A)	1-51681-794-0	01	1	0412-0512	●
111	SUPPORTER; S/ABS,FRT SUSP (A)	1-51681-794-0	01	1	0412-0512		●	●
111	SUPPORTER; S/ABS,FRT SUSP EXC. FRONT STABILIZER SHAFT<F59> (A)	1-51681-794-0	01	1	0601-0611	●	●
111	SUPPORTER; S/ABS,FRT SUSP (A)	1-51681-794-0	01	1	0601-0611			●
111	SUPPORTER; S/ABS,FRT SUSP FRONT SPRING LONG SPAN<W36> EXC. FRONT STABILIZER SHAFT<F59> (A)	1-51681-794-0	01	1	0612-	●
111	SUPPORTER; S/ABS,FRT SUSP (A)	1-51681-794-0	01	1	0612-			●
111	SUPPORTER; S/ABS,FRT SUSP EXC. FRONT STABILIZER SHAFT<F59> (A)	1-51681-794-0	01	1	0612-		●
111	SUPPORTER; S/ABS,FRT SUSP (B)	1-51681-721-0	01	1	0005-0210				●
111	SUPPORTER; S/ABS,FRT SUSP (C)	1-51681-633-1	01	1	0211-				●
111	SUPPORTER; S/ABS,FRT SUSP (B)	1-51681-720-0	01	1	0005-0210				●
111	SUPPORTER; S/ABS,FRT SUSP (C)	1-51681-632-1	01	1	0211-				●
168	BRACKET; S/ABS,FRT SUSP WHEEL BASE 3700MM(37W)	1-51681-494-0	02	1	0612-	●
168	BRACKET; S/ABS,FRT SUSP	1-51681-494-0	02	1	0005-0210	●		●
168	BRACKET; S/ABS,FRT SUSP	1-51681-522-0	02	1	0211-0411	●		●
168	BRACKET; S/ABS,FRT SUSP	1-51681-522-0	02	1	0412-0611	●	●	●
168	BRACKET; S/ABS,FRT SUSP WHEEL BASE 4200MM(42W),WHEEL BASE 5100MM(51W)	1-51681-522-0	02	1	0612-	●
168	BRACKET; S/ABS,FRT SUSP	1-51681-522-0	02	1	0612-		●	●
168	BRACKET; S/ABS,FRT SUSP	1-51681-306-0	02	1	0005-0210				●
168	BRACKET; S/ABS,FRT SUSP WHEEL BASE 5500MM(55W)	1-51681-306-0	02	1	0211-0305				●
168	BRACKET; S/ABS,FRT SUSP 6HK1 TCC ENG(81L) WHEEL BASE 5500MM(55W)	1-51681-306-0	02	1	0306-0306				●
168	BRACKET; S/ABS,FRT SUSP 6HK1 TCS ENG(80L),6HK1 TCC ENG(81L) WHEEL BASE 5500MM(55W)	1-51681-306-0	02	1	0307-				●
183	SHACKLE; FRT SUSP	1-51162-037-0	02	1	0005-0411	●		●
183	SHACKLE; FRT SUSP	1-51162-037-0	02	1	0412-	●	●	●
183	SHACKLE; FRT SUSP	1-51162-029-5	02	1	0005-				●
185	WASHER; LK,PIN (A) ID=25.5	1-09503-011-0	04	1	0005-0411	●		●
185	WASHER; LK,PIN (A) ID=25.5	1-09503-011-0	04	1	0412-0910	●	●	●
185	WASHER; LK,PIN (A) ID=25.5	8-98010-404-0	04	1	0911-	●	●	●
185	WASHER; LK,PIN (B) ID=23	1-51169-003-0	02	1	0005-0411	●		●
185	WASHER; LK,PIN (B) ID=23	1-51169-003-0	02	1	0412-0910	●	●	●
185	WASHER; LK,PIN (B) ID=23	8-98010-411-0	02	1	0911-	●	●	●
185	WASHER; LK,PIN (C) ID=12.2	9-09150-612-0	12	1	0005-0603				●
185	WASHER; LK,PIN (C) ID=12.2	0-91510-612-0	12	1	0604-				●
187	NIPPLE; GREASE,FRT PT1/8 ELBOW	9-09031-210-0	02	1	0005-0411	●		●	●
187	NIPPLE; GREASE,FRT PT1/8 ELBOW	9-09031-210-0	02	1	0412-0512	●	●	●	●
187	NIPPLE; GREASE,FRT PT1/8 ELBOW	0-90301-610-0	02	1	0601-	●	●	●	●
188	RUBBER; CLAMP,U-BOLT,FRT SPR	1-51172-112-0	02	1	0005-0411	●		●
188	RUBBER; CLAMP,U-BOLT,FRT SPR	1-51172-112-0	02	1	0412-	●	●	●
188	RUBBER; CLAMP,U-BOLT,FRT SPR	1-51172-085-2	02	1	0005-				●
192	PIECE; DIST EXC. FRONT SPRING LONG SPAN<W36> T=4.5	1-51177-149-0	01	1	0612-	●
192	PIECE; DIST T=4.5	1-51177-149-0	01	1	0005-0210	●		●
192	PIECE; DIST 80X144 ID=17.5	1-51177-284-1	01	1	0005-				●
193	NUT; U BOLT M16	1-09440-028-1	08	1	0005-0411	●		●
193	NUT; U BOLT M16	1-09440-028-1	08	1	0412-0503	●	●	●
193	NUT; U BOLT M16	8-94107-767-0	08	1	0504-0706	●	●	●
193	NUT; U BOLT M16	8-97360-121-0	08	1	0707-	●	●	●
193	NUT; U BOLT M22	9-09112-822-0	08	1	0005-0512				●
193	NUT; U BOLT M22	0-91112-822-0	08	1	0601-1206				●
193	NUT; U BOLT M22	8-98179-318-0	08	1	1207-				●
197	PIN; FRT SPR,FRT (A)	1-51161-004-3	02	1	0005-0411	●		●
197	PIN; FRT SPR,FRT (A)	1-51161-004-3	02	1	0412-0911	●	●	●
197	PIN; FRT SPR,FRT (A)	8-98060-335-0	02	1	0912-	●	●	●
197	PIN; FRT SPR,FRT (B)	1-51161-005-3	04	1	0005-0411	●		●
197	PIN; FRT SPR,FRT (B)	1-51161-005-3	04	1	0412-0911	●	●	●
197	PIN; FRT SPR,FRT (B)	8-98060-333-0	04	1	0912-	●	●	●
197	PIN; FRT SPR,FRT (C)	1-51161-031-0	06	1	0005-				●
201	NUT; PIN LK M22	9-09111-522-0	06	1	0005-0411	●		●
201	NUT; PIN LK M22	9-09111-522-0	06	1	0412-0512	●	●	●
201	NUT; PIN LK M22	0-91111-522-0	06	1	0601-	●	●	●
201	NUT; PIN LK M12	9-99110-512-0	12	1	0005-0512				●
201	NUT; PIN LK M12	0-91110-512-0	12	1	0601-				●
202	PLATE; LK,SPR PIN	1-51169-016-0	02	1	0005-0411	●		●
202	PLATE; LK,SPR PIN	1-51169-016-0	02	1	0412-0910	●	●	●
202	PLATE; LK,SPR PIN	8-98010-648-0	02	1	0911-	●	●	●
204	NIPPLE; GREASE,RR PT1/8 STRAIGHT	9-09031-010-0	04	1	0005-0210	●		●	●
204	NIPPLE; GREASE,RR PT1/8 STRAIGHT	9-09031-010-0	02	1	0211-0411	●		●	●
204	NIPPLE; GREASE,RR PT1/8 STRAIGHT	9-09031-010-0	02	1	0211-0411	●		●
204	NIPPLE; GREASE,RR PT1/8 STRAIGHT	9-09031-010-0	02	1	0412-0512	●	●	●	●
204	NIPPLE; GREASE,RR PT1/8 STRAIGHT	9-09031-010-0	02	1	0412-0512	●	●	●
204	NIPPLE; GREASE,RR PT1/8 STRAIGHT	0-90301-410-0	02	1	0601-	●	●	●	●
204	NIPPLE; GREASE,RR PT1/8 STRAIGHT	0-90301-410-0	02	1	0601-	●	●	●
204	NIPPLE; GREASE,RR PT1/8 ELBOW	9-09031-210-0	02	1	0211-0512				●
204	NIPPLE; GREASE,RR PT1/8 ELBOW	0-90301-610-0	02	1	0601-				●
205	ATTACHMENT; GREASE NIPPLE	9-43165-001-0	04	1	0005-0411	●		●
205	ATTACHMENT; GREASE NIPPLE	9-43165-001-0	04	1	0412-	●	●	●
205	ATTACHMENT; GREASE NIPPLE	9-43165-001-0	06	1	0005-				●
208	U-BOLT SET; FRT SPRING FRONT STABILIZER SHAFT<F59> L=135	1-87870-405-0	04	1	0211-0503	●
208	U-BOLT SET; FRT SPRING FRONT STABILIZER SHAFT<F59> L=135	1-87870-446-0	04	1	0504-0512	●
208	U-BOLT SET; FRT SPRING FRONT STABILIZER SHAFT<F59> L=135	1-87870-446-0	04	1	0601-0611	●	●
208	U-BOLT SET; FRT SPRING FRONT STABILIZER SHAFT<F59> FRONT SPRING LONG SPAN<W36> L=135	1-87870-446-0	04	1	0612-0706	●
208	U-BOLT SET; FRT SPRING FRONT STABILIZER SHAFT<F59> L=135	1-87870-446-0	04	1	0612-0706		●
208	U-BOLT SET; FRT SPRING FRONT STABILIZER SHAFT<F59> FRONT SPRING LONG SPAN<W36> L=135	1-87870-465-0	04	1	0707-	●
208	U-BOLT SET; FRT SPRING FRONT STABILIZER SHAFT<F59> L=135	1-87870-465-0	04	1	0707-		●
208	U-BOLT SET; FRT SPRING L=165	1-87870-407-0	04	1	0005-0210	●		●
208	U-BOLT SET; FRT SPRING EXC. FRONT STABILIZER SHAFT<F59> L=165	1-87870-407-0	04	1	0211-0411	●
208	U-BOLT SET; FRT SPRING L=165	1-87870-407-0	04	1	0211-0411			●
208	U-BOLT SET; FRT SPRING EXC. FRONT STABILIZER SHAFT<F59> L=165	1-87870-407-0	04	1	0412-0503	●
208	U-BOLT SET; FRT SPRING L=165	1-87870-407-0	04	1	0412-0503		●	●
208	U-BOLT SET; FRT SPRING EXC. FRONT STABILIZER SHAFT<F59> L=165	1-87870-447-0	04	1	0504-0512	●
208	U-BOLT SET; FRT SPRING L=165	1-87870-447-0	04	1	0504-0512		●	●
208	U-BOLT SET; FRT SPRING EXC. FRONT STABILIZER SHAFT<F59> L=165	1-87870-447-0	04	1	0601-0611	●	●
208	U-BOLT SET; FRT SPRING L=165	1-87870-447-0	04	1	0601-0611			●
208	U-BOLT SET; FRT SPRING FRONT SPRING LONG SPAN<W36> EXC. FRONT STABILIZER SHAFT<F59> L=165	1-87870-447-0	04	1	0612-0706	●
208	U-BOLT SET; FRT SPRING EXC. FRONT SPRING LONG SPAN<W36> L=165	1-87870-447-0	04	1	0612-0706	●
208	U-BOLT SET; FRT SPRING L=165	1-87870-447-0	04	1	0612-0706			●
208	U-BOLT SET; FRT SPRING EXC. FRONT STABILIZER SHAFT<F59> L=165	1-87870-447-0	04	1	0612-0706		●
208	U-BOLT SET; FRT SPRING FRONT SPRING LONG SPAN<W36> EXC. FRONT STABILIZER SHAFT<F59> L=165	1-87870-483-0	04	1	0707-	●
208	U-BOLT SET; FRT SPRING EXC. FRONT SPRING LONG SPAN<W36> L=165	1-87870-483-0	04	1	0707-	●
208	U-BOLT SET; FRT SPRING L=165	1-87870-483-0	04	1	0707-			●
208	U-BOLT SET; FRT SPRING EXC. FRONT STABILIZER SHAFT<F59> L=165	1-87870-483-0	04	1	0707-		●
208	U-BOLT SET; FRT SPRING L=210	1-87870-380-0	04	1	0005-0210				●
208	U-BOLT SET; FRT SPRING L=230	1-87870-269-2	04	1	0211-1206				●
208	U-BOLT SET; FRT SPRING L=230	1-87870-493-0	04	1	1207-				●
210	WASHER; S/ABS,OUTER ID=12.5	1-09503-171-0	02	1	0005-0411	●		●
210	WASHER; S/ABS,OUTER ID=12.5	1-09503-171-0	02	1	0412-	●	●	●
210	WASHER; S/ABS,OUTER ID=17	1-51631-020-0	02	1	0005-				●
214	WASHER; S/ABS,UPR,INNER	1-51631-023-0	02	1	0005-0411	●		●
214	WASHER; S/ABS,UPR,INNER	1-51631-023-0	02	1	0412-	●	●	●
214	WASHER; S/ABS,UPR,INNER ID=16.8	1-51631-022-0	04	1	0005-				●
215	WASHER; S/ABS,UPR,OUTER ID=10.5 OD=40 T=3.2	9-09651-094-0	04	1	0005-0411	●		●
215	WASHER; S/ABS,UPR,OUTER ID=10.5 OD=40 T=3.2	9-09651-094-0	04	1	0412-	●	●	●
215	WASHER; S/ABS,UPR,OUTER ID=14.5	9-51631-051-0	04	1	0005-				●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
