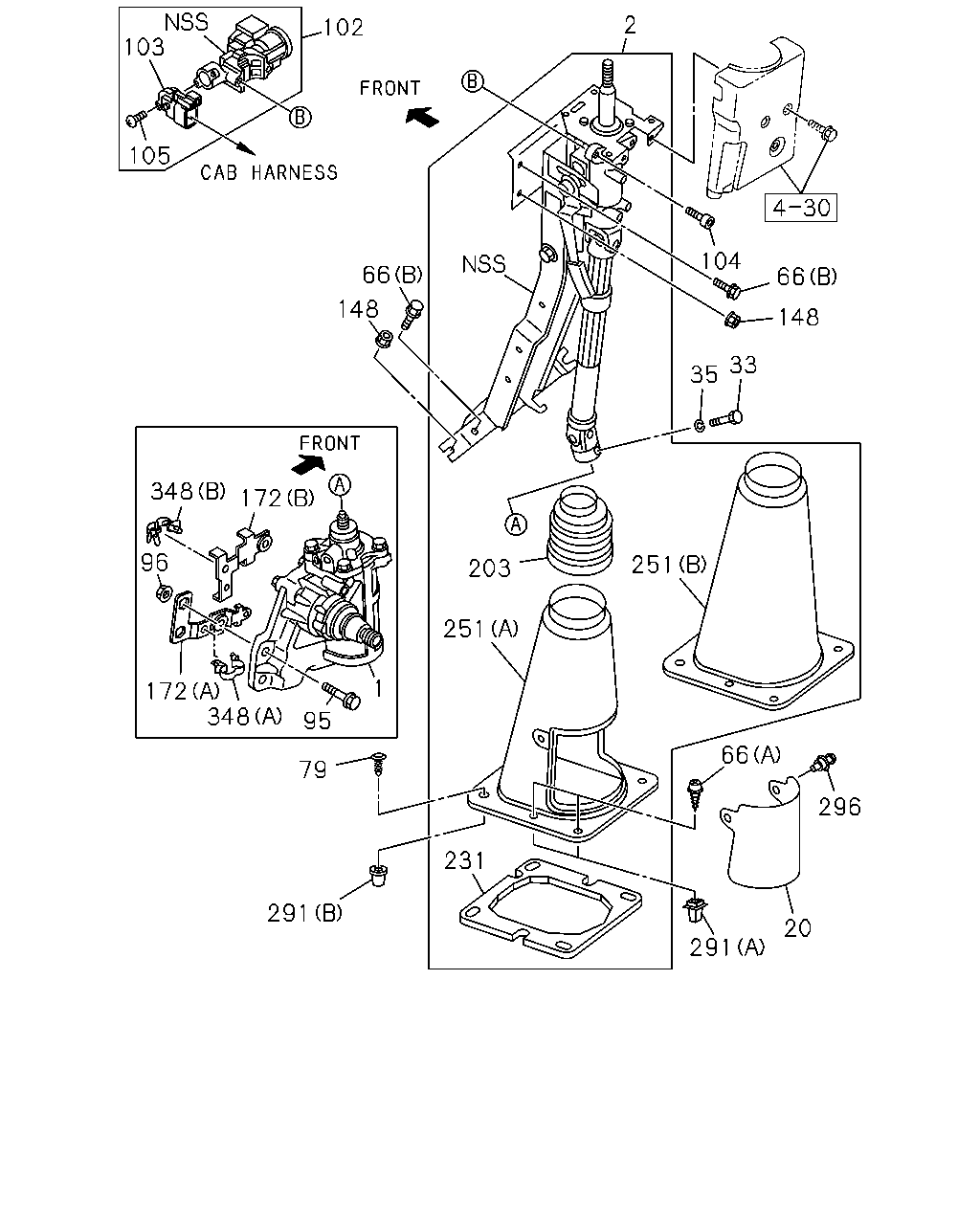

4-31 — STEERING COLUMN AND SHAFT
(#94078) — 28 parça
296
66
20
291
231
291
79
95
348
172
96
348
172
148
66
203
251
251
35
33
148
66
104
2
102
103
105
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
06.508 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT.
8-98101-297-3
01
1
1207-
2
06.518 SHAFT ASM; STRG
MANUAL TILT CAB<RWZ> BLACK
8-97418-801-2
01
1
1207-
2
06.518 SHAFT ASM; STRG
EXC. MANUAL TILT CAB<RWZ> BLACK
8-97405-355-8
01
1
1207-
20
06.525 COVER; STRG SHAFT
EXC. MANUAL TILT CAB<RWZ> BLACK
8-97405-159-0
01
1
1207-
33
06.525 BOLT; STRG SHAFT TO UNIT
M8X30
8-97359-615-0
01
1
1207-
35
06.525 WASHER; LK,STRG SHAFT
02.559 ID=8.2
0-91510-808-0
01
1
1207-
66
06.514 BOLT; STRG COLUMN
01.531 (B) M8X20 FLANGE
0-28650-820-0
02
1
1207-
66
06.514 BOLT; STRG COLUMN
(A) M5X18 TAPPING
0-72180-518-0
04
1
1207-
66
06.514 BOLT; STRG COLUMN
(B) M8X24.5 W/LK&PL WASHER
8-98051-939-0
02
1
1207-
79
06.760 CLIP; STRG COLUMN COVER
16.800 L=19 BLACK
8-94363-776-0
02
1
1207-
95
06.509 BOLT; STRG UNIT
M12X47 FLANGE
8-98055-055-0
04
1
1207-
96
06.509 NUT; STRG UNIT
M12 FLANGE
8-97359-618-0
02
1
1207-
102
06.500 LOCK ASM; STRG
8-98006-150-0
01
1
1207-
103
02.188 SWITCH; IGNITION
8-98045-349-0
01
1
1207-
104
06.500 BOLT; STRG LOCK TO COLUMN
M8X20 TORQUE SHEAR BOLT
8-97321-385-0
02
1
1207-
105
06.500 SCREW; IGN SW
8-98045-346-0
02
1
1207-
148
06.514 NUT; COLUMN TO BRKT
01.840 M8 W/DISHED WASHER
8-97329-625-0
03
1
1207-
172
06.509 BRACKET; STRG
(B)
8-98055-061-0
01
1
1207-
172
06.509 BRACKET; STRG
(A)
8-98078-803-0
01
1
1207-
203
06.525 BOOT; STRG COLUMN LWR
8-98137-331-0
01
1
1207-
231
06.525 SEAL; RUBBER,STRG COLUMN
8-98137-329-0
01
1
1207-
251
06.518 COVER; LWR
MANUAL TILT CAB<RWZ> (B) BLACK
8-97418-804-0
01
1
1207-
251
06.518 COVER; LWR
EXC. MANUAL TILT CAB<RWZ> (A) BLACK
8-97417-049-0
01
1
1207-
291
06.518 GROMMET; STRG SHAFT COVER
04.931 (A) H=15
8-94463-268-1
04
1
1207-
291
06.518 GROMMET; STRG SHAFT COVER
(B)
8-98029-442-1
02
1
1207-
296
06.525 CLIP; COVER
EXC. MANUAL TILT CAB<RWZ> BLACK
8-97868-409-0
01
1
1207-
348
06.525 CLIP; BRKT,STRG
(A) ID=5-12 L=18
1-09709-287-0
01
1
1207-
348
06.525 CLIP; BRKT,STRG
(B) ID=5-12 L=22
1-09709-288-0
01
1
1207-
