Isuzu WW
▶
TRUCKS
▶
NMR
▶
51418 - NMR 85(RHD)EURO4
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-30 - STEERING WHEEL AND COWL
▶

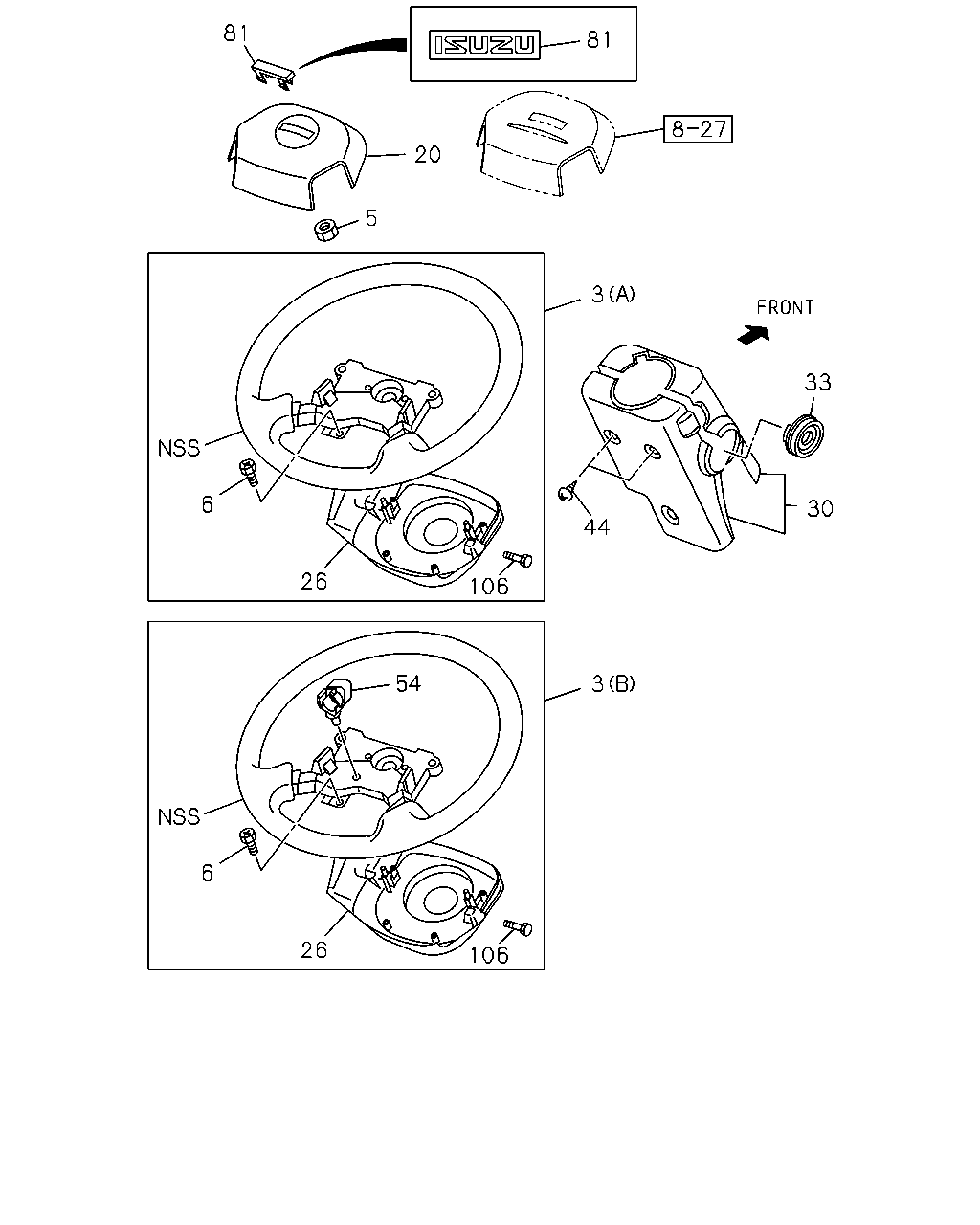

4-30 — STEERING WHEEL AND COWL
(#94077) — 14 parça
81
81
20
5
3
6
26
106
44
33
30
3
54
6
26
106
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
3
06.513 WHEEL; STRG
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A) DARK GRAY
8-97421-977-0
01
1
1207-1210
3
06.513 WHEEL; STRG
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (B) DARK GRAY
8-97423-997-0
01
1
1211-
3
06.513 WHEEL; STRG
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A) DARK GRAY
8-97412-556-1
01
1
1207-
5
06.515 NUT; STRG WHEEL TO SHAFT
M14
0-91111-514-0
01
1
1207-
6
02.820 SCREW; HORN SPR CONTACT
M4X12
8-97167-588-0
04
1
1207-
20
06.512 SHROUD; PAD,STRG WHEEL
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> DARK GRAY
8-97405-985-1
01
1
1207-
26
06.514 COVER; STRG WHEEL,LWR
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> DARK GRAY
8-97421-978-0
01
1
1207-
26
06.514 COVER; STRG WHEEL,LWR
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> DARK GRAY
8-97409-275-2
01
1
1207-
30
06.518 COWL; STEERING
DARK GRAY
8-97418-761-1
01
1
1207-
33
06.518 COVER; STRG COWL
DARK GRAY
8-97409-495-0
01
1
1207-
44
06.514 SCREW; STRG COWL
M5X12
0-38050-512-0
03
1
1207-
54
02.559 CLIP; HARNESS
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>
8-98165-703-0
01
1
1211-
81
02.820 EMBLEM; STRG WHEEL
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> DARK GRAY
8-97405-986-0
01
1
1207-
106
05.453 BOLT; TORX
8-98231-397-0
02
1
1207-
