Isuzu WW
▶
TRUCKS
▶
NMR
▶
51418 - NMR 85(RHD)EURO4
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-01 - PROPELLER SHAFT
▶

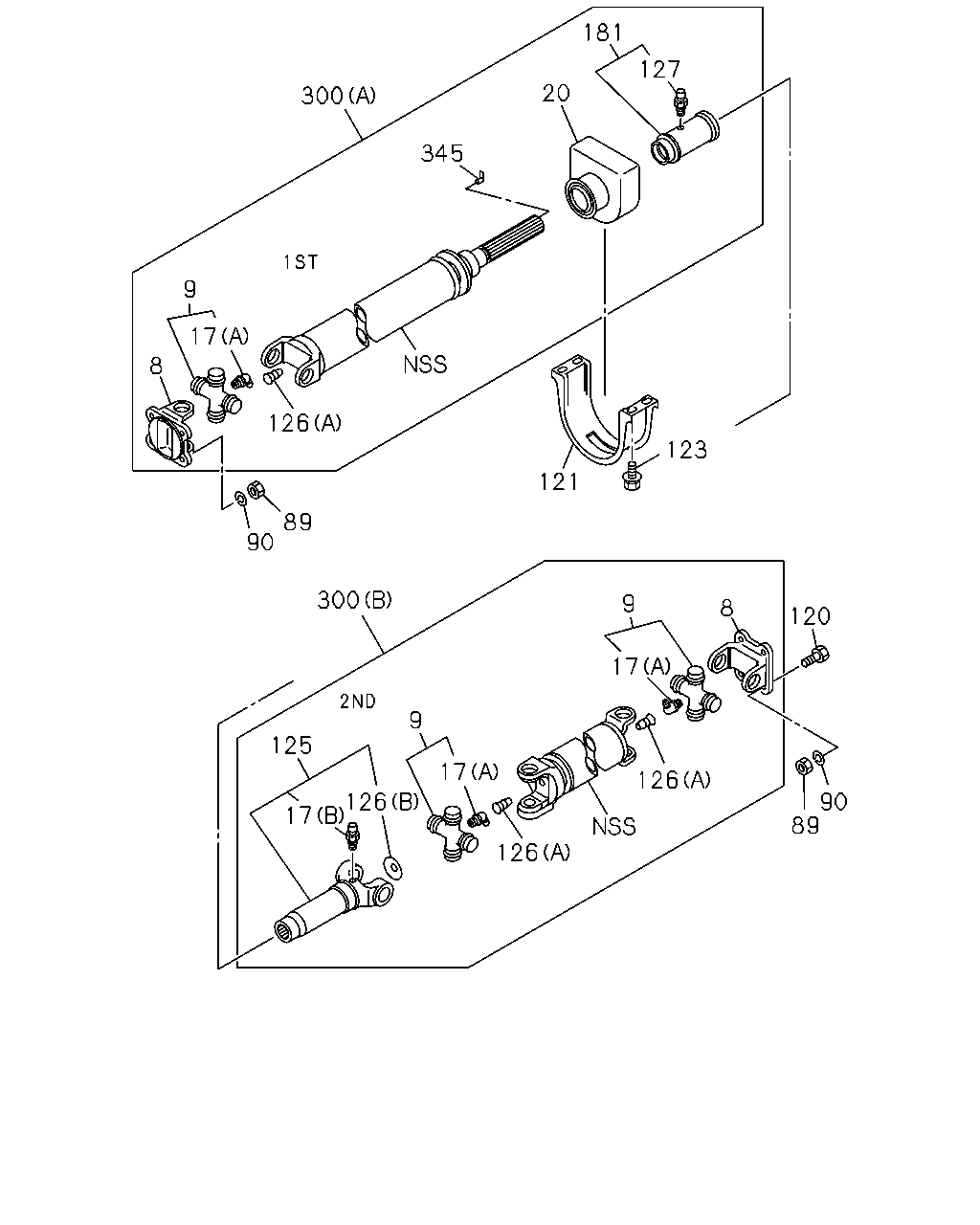

4-01 — PROPELLER SHAFT
(#94072) — 22 parça
120
90
89
126
126
17
125
9
17
126
17
8
9
121
123
300
90
89
126
8
17
9
300
345
20
127
181
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
8
05.544 YOKE; FLANGE,PROP SHAFT
D=80
8-97322-663-0
01
1
1207-
8
05.544 YOKE; FLANGE,PROP SHAFT
D=80
8-97322-663-0
01
1
1207-
9
05.548 JOURNAL ASM; PROP SHAFT
8-98033-605-1
01
1
1207-
9
05.548 JOURNAL ASM; PROP SHAFT
8-98033-605-1
02
1
1207-
17
05.601 NIPPLE; GREASE,PROP SHAFT
(B) M6 STRAIGHT
0-90301-406-0
02
1
1207-
17
05.601 NIPPLE; GREASE,PROP SHAFT
08.984 (A) PT1/8 ELBOW
0-90301-610-0
01
1
1207-
17
05.601 NIPPLE; GREASE,PROP SHAFT
08.984 (A) PT1/8 ELBOW
0-90301-610-0
02
1
1207-
20
05.600 BEARING ASM; CTR,PROP SHAFT
8-98033-936-0
01
1
1207-
89
05.586 NUT; YOKE TO RR AXLE
M12
8-97365-450-1
08
1
1207-
90
05.586 WASHER; LK,YOKE TO RR AXLE
07.347 ID=12.2
0-91510-812-0
08
1
1207-
120
05.586 BOLT; YOKE TO RR AXLE
M12X35
8-97365-451-1
04
1
1207-
121
05.598 RETAINER; CUSHION RUBBER
8-97035-623-1
01
1
1207-
123
05.601 BOLT; RET
M10X25 W/LK&PL WASHER
0-50641-025-0
04
1
1207-
125
05.545 YOKE ASM; SPLINED,PROP SHAFT
L=183
8-98033-647-2
01
1
1207-
126
05.556 PLUG; SPLINED YOKE
(A)
1-09600-023-0
01
1
1207-
126
05.556 PLUG; SPLINED YOKE
(A)
1-09600-023-0
02
1
1207-
126
05.556 PLUG; SPLINED YOKE
(B)
8-94366-900-0
01
1
1207-
127
05.586 NIPPLE; GREASE,SPLINED YOKE
05.601 M6 STRAIGHT
0-90301-406-0
01
1
1207-1304
181
05.586 COVER; BRG,PROP SHAFT
8-98046-526-0
01
1
1207-
300
05.544 SHAFT ASM; PROP,RR
(B) L=1076
8-97383-854-4
01
1
1207-
300
05.544 SHAFT ASM; PROP,RR
(A) L=830
8-98039-644-1
01
1
1207-
345
05.600 PLUG; PROP SHAFT
8-98042-692-0
01
1
1207-
