51418 - NMR 85(RHD)EURO4
▶
3 - Brakes, Brake System
▶
3-50 - BRAKE PIPING; OIL,MASTER CYLINDER
▶
3-50 — BRAKE PIPING; OIL,MASTER CYLINDER
(#94067) — 26 parça
◀
[350A] CAB OUTSIDE (10 parça)
[350A] FRAME SIDE (5 parça)
[350A] AXLE SIDE (2 parça)
[350A] CAB SIDE (9 parça)
▶

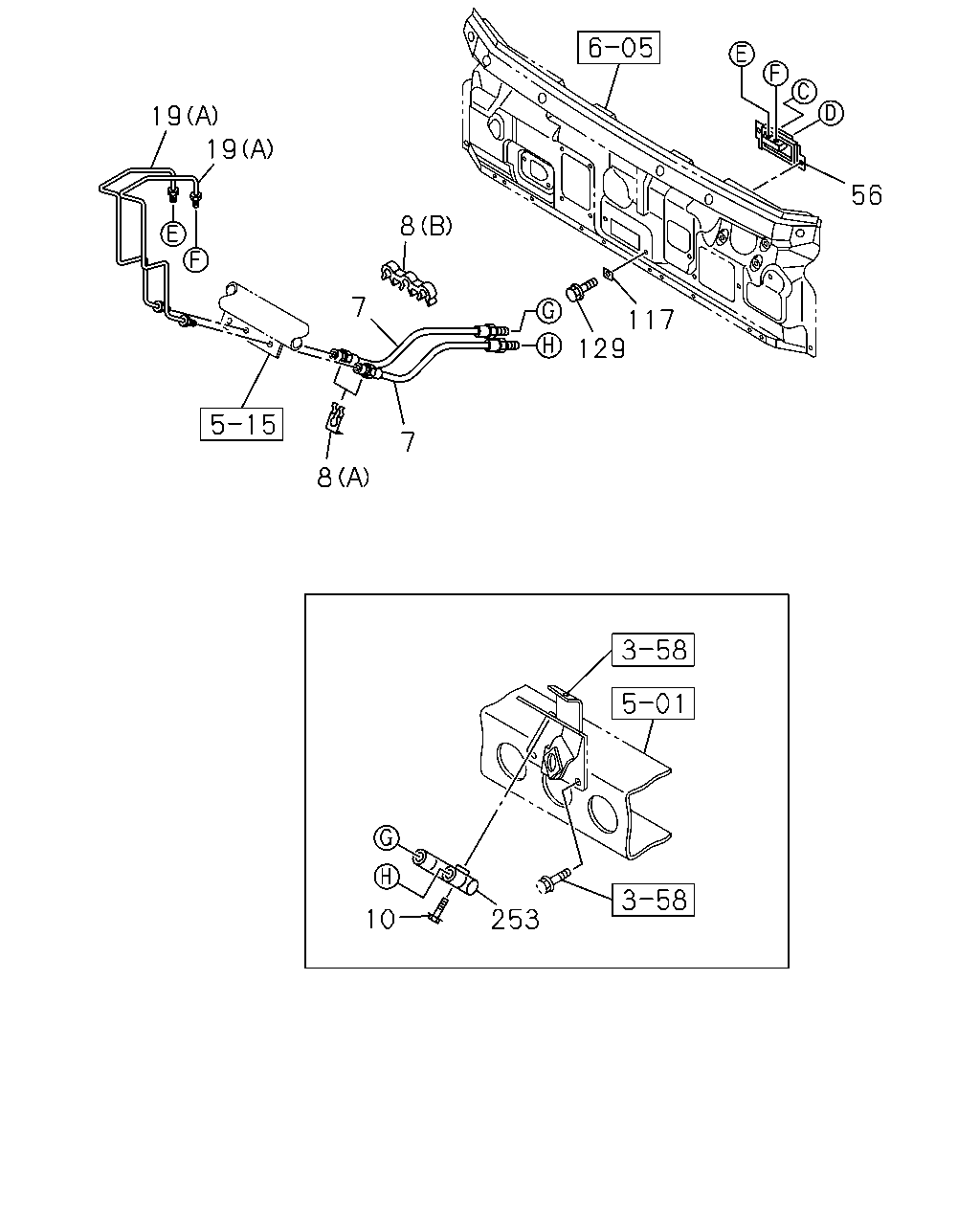

19
19
7
8
7
8
129
117
56
10
253
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
7
04.680 HOSE; FLEX,PIPE TO 5 WAY JOINT
8-98033-732-0
02
1
1207-
8
04.681 CLIP; FLEX HOSE,CABLE SIDE
(A)
8-97365-304-0
02
1
1207-
8
04.681 CLIP; FLEX HOSE,CABLE SIDE
(B)
8-98056-614-0
01
1
1207-
10
04.686 BOLT; JOINT
00.685 M6X40 FLANGE
0-28650-640-0
01
1
1207-
19
04.685 PIPE; BRK,M/CYL TO UNION
(B)
8-97389-337-3
01
1
1207-
19
04.685 PIPE; BRK,M/CYL TO UNION
(A)
8-98012-095-1
02
1
1207-
56
04.686 BRACKET; UNION,BRK
8-98154-264-1
01
1
1207-
117
04.686 SEAL; UNION,BRK PIPE JOINT
08.845
8-97856-616-0
02
1
1207-
129
04.710 BOLT; BRKT
08.857 M6X20 W/LK&PL WASHER
8-98081-030-0
02
1
1207-
253
04.840 JOINT
8-97038-940-1
01
1
1207-

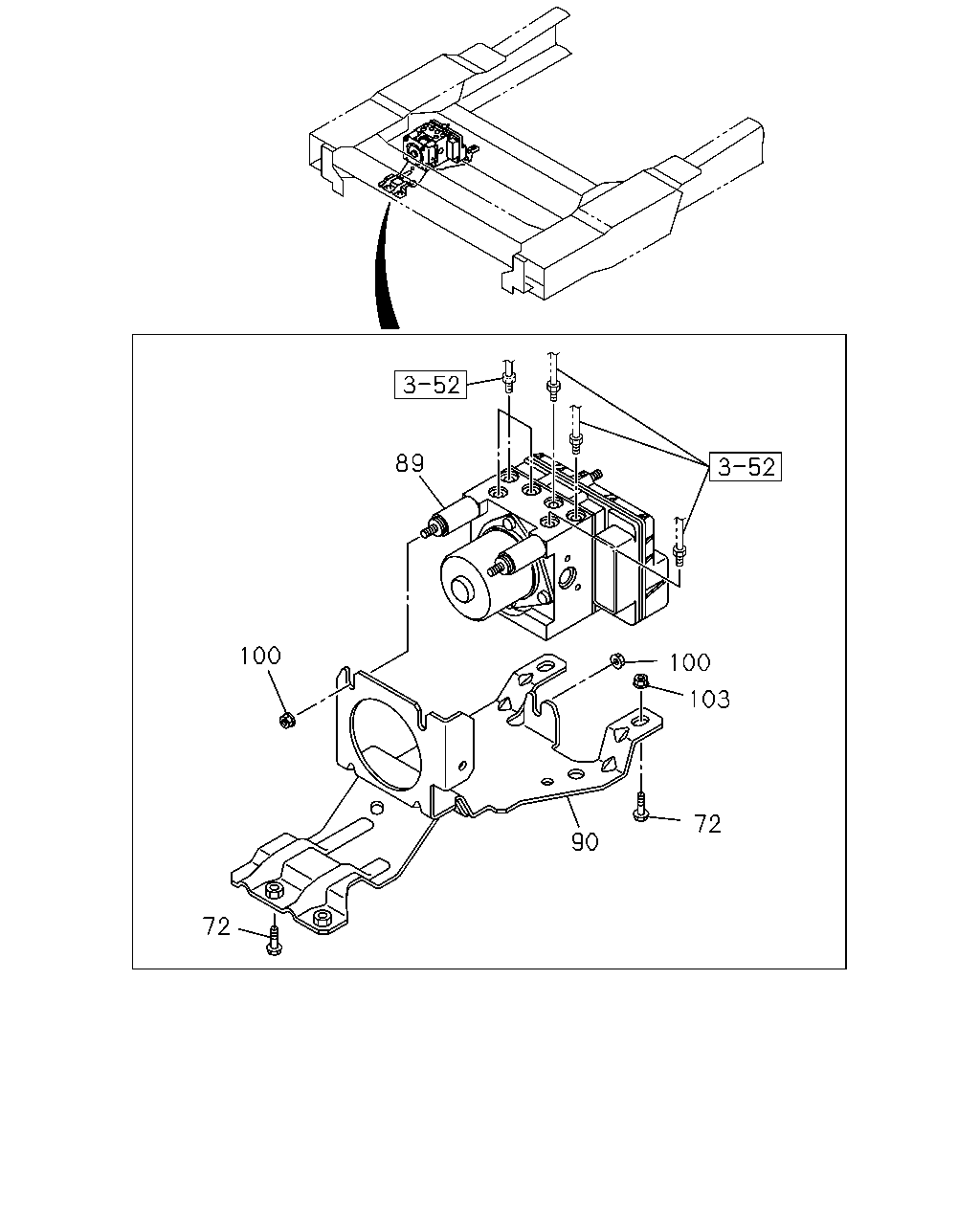

72
90
72
103
100
100
89
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
72
04.686 BOLT; BRKT TO BODY
06.216 M8X25 FLANGE
0-28650-825-0
04
1
1207-
89
04.730 HYDRAULIC UNIT; ANTI LOCK BRK
8-98158-007-1
01
1
1207-
90
04.730 BRACKET; HYDRAULIC UNIT,ABS
8-97386-355-0
01
1
1207-
100
04.730 NUT; HYDRAULIC UNIT
01.062 M8 FLANGE
0-91180-108-0
03
1
1207-
103
04.730 NUT; HYDRAULIC UNIT BRKT
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 01.062 M8 FLANGE
0-91180-108-0
02
1
1207-
131
130
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
130
04.686 BRACKET; SPEED SENSOR
8-97080-060-2
02
1
1207-
131
04.710 BOLT; BRKT
02.343 M8X12 FLANGE
0-28050-812-0
02
1
1207-

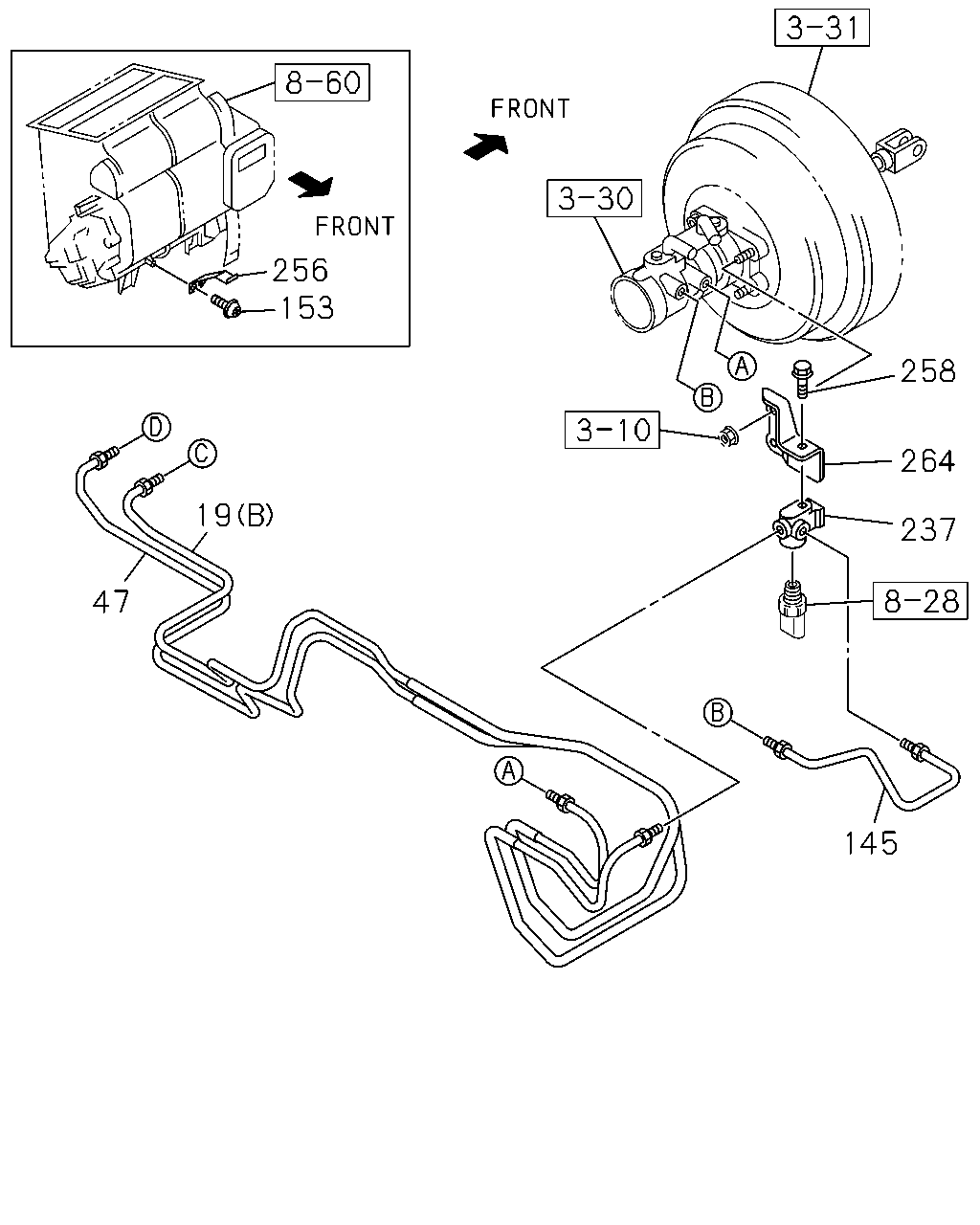

47
19
153
256
258
264
237
145
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
19
04.685 PIPE; BRK,M/CYL TO UNION
(B)
8-97389-337-3
01
1
1207-
19
04.685 PIPE; BRK,M/CYL TO UNION
(A)
8-98012-095-1
02
1
1207-
47
04.685 PIPE; OIL,FRT BRK
L=1173
8-98133-413-0
01
1
1207-
145
04.685 PIPE; BRK,METERING VLV TO UNION
L=201
8-98133-407-0
01
1
1207-
153
04.730 SCREW; BRKT FIX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 04.681 T25 M5X12 TAPPING HEXALOBULAR
0-72180-512-0
01
1
1207-
237
04.840 CONNECTOR; MODULATOR
8-98111-748-1
01
1
1207-
256
04.840 BRACKET; BRK PIPE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)
8-98163-521-0
01
1
1207-
258
04.730 BOLT; PIPE,BRK
02.343 M8X12 FLANGE
0-28050-812-0
01
1
1207-
264
04.681 BRACKET; SENSOR,PRESSURE
8-97387-683-2
01
1
1207-
