Isuzu WW
▶
TRUCKS
▶
NMR
▶
51418 - NMR 85(RHD)EURO4
▶
3 - Brakes, Brake System
▶
3-11 - PARKING BRAKE CONTROL
▶
3-11 — PARKING BRAKE CONTROL
(#94062) — 34 parça
◀

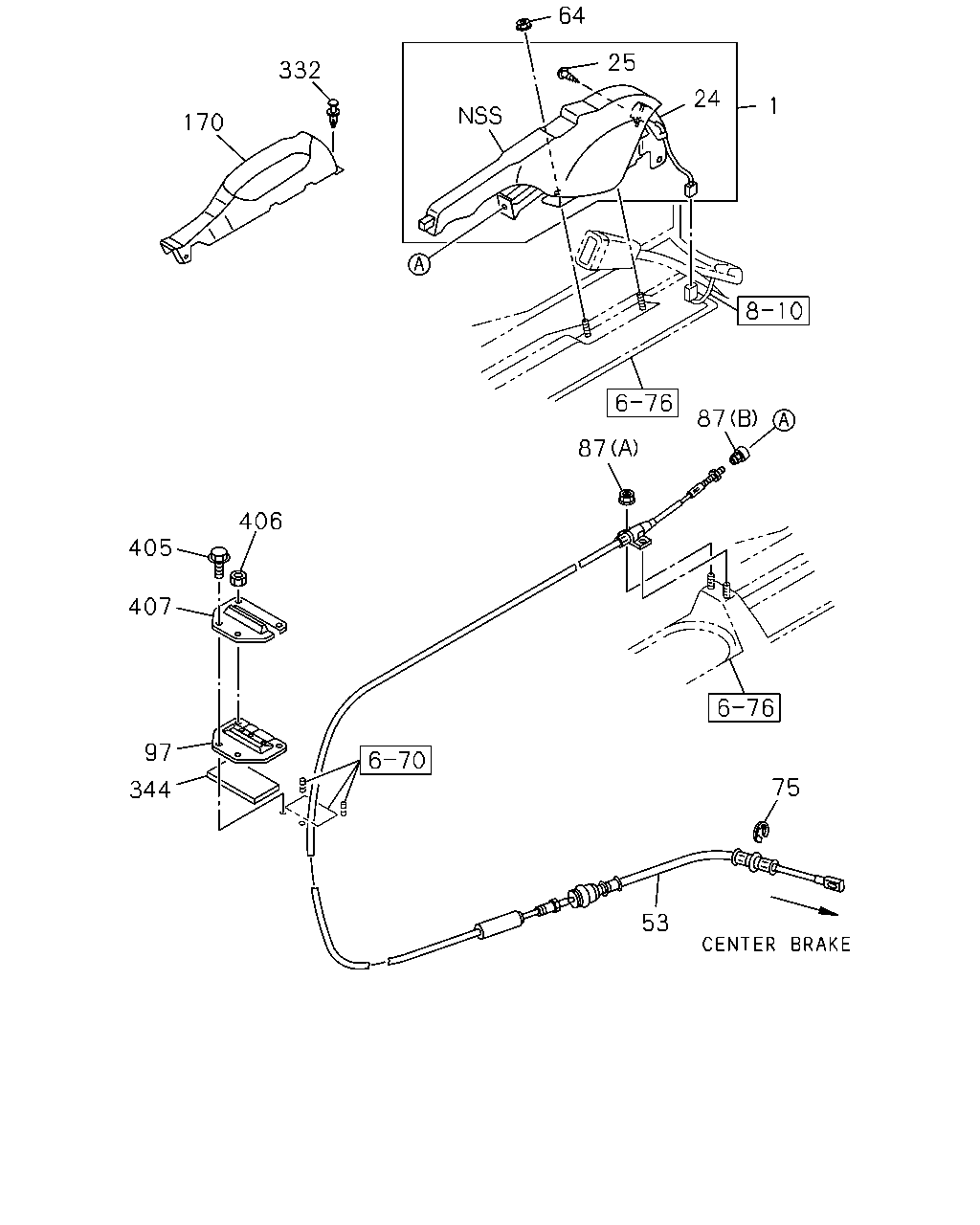

[311A] STEM AND CABLE (17 parça)
[311A] FIXING PARTS (17 parça)
▶
170
332
64
25
24
1
87
87
406
405
407
97
344
53
75
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
04.592 STEM ASM; PARKING BRK
GRAY
8-97405-353-0
01
1
1207-1303
1
04.592 STEM ASM; PARKING BRK
GRAY
8-97426-513-0
01
1
1304-
24
04.589 SWITCH ASM; PARK BRK
8-97995-828-1
01
1
1207-1303
24
04.589 SWITCH ASM; PARK BRK
8-98238-611-0
01
1
1304-
25
04.589 SCREW; SW,PARKING BRK
8-98152-463-0
01
1
1207-
53
04.779 CABLE; PARK BRK,FRT LWR
8-98102-912-0
01
1
1207-
64
04.595 NUT; PARKING BRK
16.682 M8 LOCK NUT FLANGE
0-91380-008-0
02
1
1207-
75
04.790 RING; SNAP,HAND BRK CABLE
ID=12
0-91805-512-0
01
1
1207-
87
04.785 NUT
01.062 (B) M8 FLANGE
0-91180-108-0
02
1
1207-
87
04.785 NUT
(A) M6
8-98034-313-1
01
1
1207-
97
04.785 GROMMET; PARKING BRK CABLE
04.010
8-97065-212-1
01
1
1207-
170
04.595 COVER; PARKING BRK LEVER
GRAY
8-97406-170-1
01
1
1207-
332
04.785 CLIP; COVER
GRAY
8-97406-171-0
01
1
1207-
344
04.595 GASKET; DASH LWR
MANUAL TILT CAB<RWZ> 04.047
8-97096-753-0
01
1
1207-
405
04.785 BOLT; GROMMET
00.785 M6X20 FLANGE
0-28450-620-0
02
1
1207-
406
04.785 NUT; GROMMET
01.062 M6 FLANGE
0-91180-106-0
02
1
1207-
407
04.785 RETAINER; GROMMET
04.047
1-33657-674-0
01
1
1207-

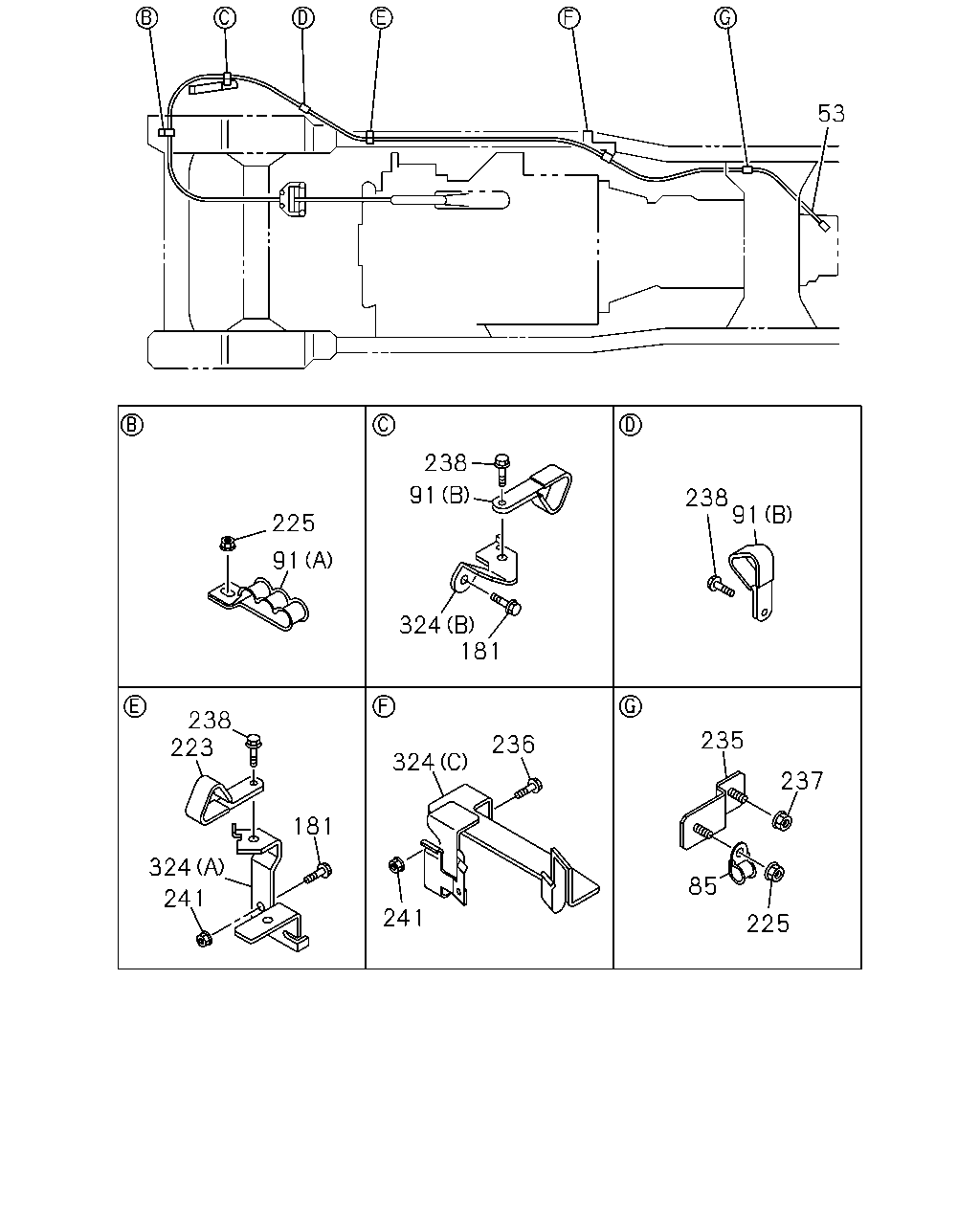

53
238
91
238
91
225
91
324
181
238
223
324
181
241
241
324
236
235
237
85
225
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
53
04.779 CABLE; PARK BRK,FRT LWR
8-98102-912-0
01
1
1207-
85
04.785 CLIP; BRKT
ID=14.5 L=20
1-09701-012-0
01
1
1207-
91
04.785 CLIP; PARKING BRK CABLE
04.047 (B)
8-97036-333-1
02
1
1207-
91
04.785 CLIP; PARKING BRK CABLE
(A)
8-98023-622-0
01
1
1207-
181
04.785 BOLT; BRKT
02.343 M8X16 FLANGE
0-28050-816-0
01
1
1207-
181
04.785 BOLT; BRKT
06.216 M8X25 FLANGE
0-28650-825-0
01
1
1207-
223
04.785 CLIP; PARKING BRK CABLE
04.047
8-97036-333-1
01
1
1207-
225
04.785 NUT; CABLE CLIP
01.062 M8 FLANGE
0-91180-108-0
01
1
1207-
225
04.785 NUT; CABLE CLIP
01.062 M8 FLANGE
0-91180-108-0
01
1
1207-
235
04.785 BRACKET; CONT CABLE TO FRAME
8-98034-352-0
01
1
1207-
236
04.785 BOLT; BRKT TO FRAME
06.216 M8X25 FLANGE
0-28650-825-0
01
1
1207-
237
04.785 NUT; BRKT TO FRAME
01.062 M8 FLANGE
0-91180-108-0
01
1
1207-
238
04.785 BOLT; CLIP TO BRKT
06.216 M8X25 FLANGE
0-28650-825-0
03
1
1207-
241
04.785 NUT; BRKT
01.062 M8 FLANGE
0-91180-108-0
01
1
1207-
324
04.785 BRACKET
(A)
8-98003-642-1
01
1
1207-
324
04.785 BRACKET
(C)
8-98026-099-2
01
1
1207-
324
04.785 BRACKET
(B)
8-98034-115-0
01
1
1207-
