2-81 — POWER TAKE OFF; TRANSMISSION SIDE (#94055) — 87 parça

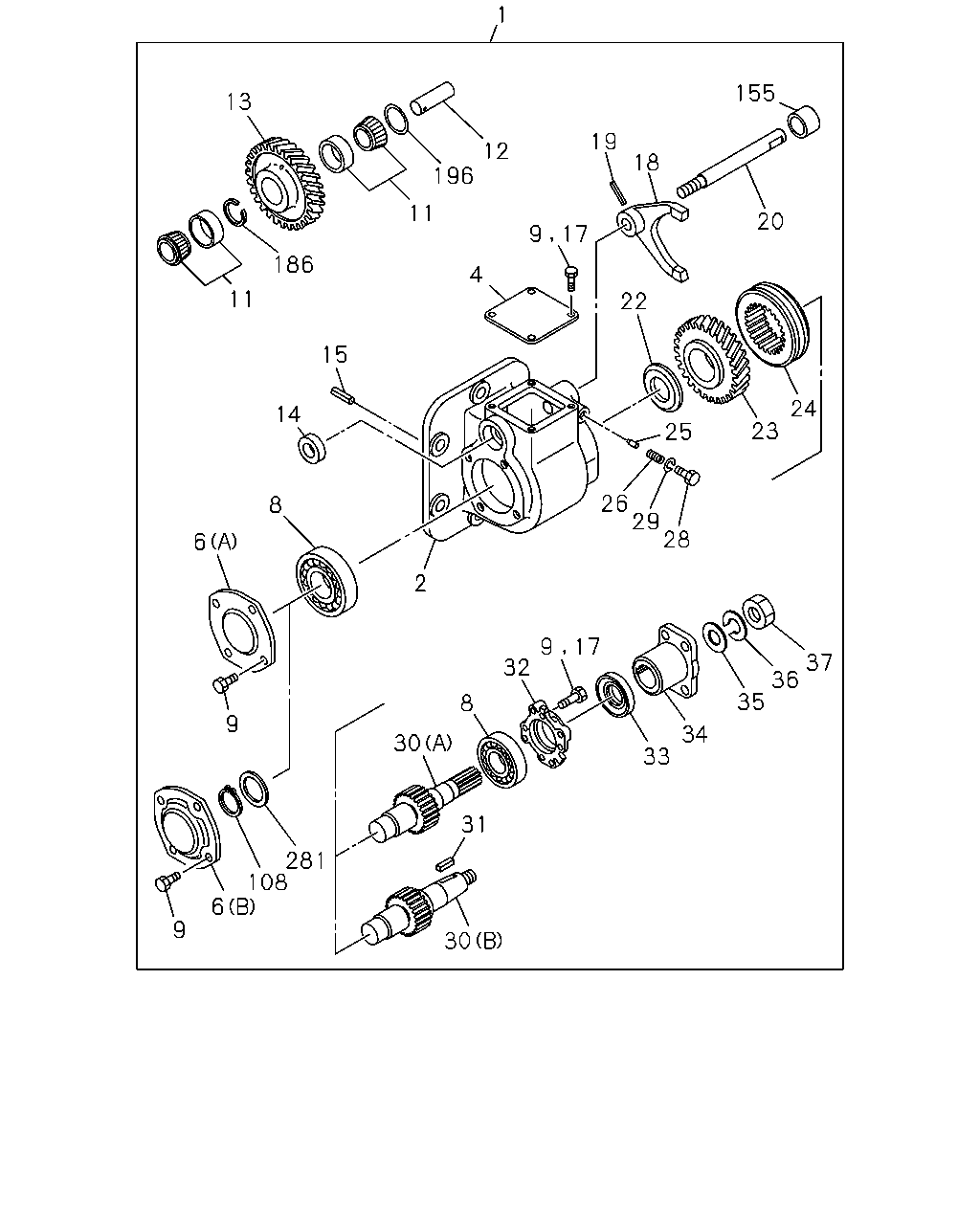

çizim 286588
1 13 11 186 11 196 12 9 6 14 15 4 9 17 19 18 155 20 22 8 2 25 23 24 26 29 28 9 6 108 281 30 32 9 17 33 34 35 36 37 8 31 30
BalonParca AdiParca NoAdetTipApplied Date
1 04.439 POWER TAKE OFF ASM; TRANS SIDE
PTO TRANSMISSION SIDE(V66) IDENTIFICATION=YG 		8-97286-908-7 01 1 1207-1210
1 04.439 POWER TAKE OFF ASM; TRANS SIDE
PTO TRANSMISSION SIDE(V66) IDENTIFICATION=YG 		8-98223-523-0 01 1 1211-1305
1 04.439 POWER TAKE OFF ASM; TRANS SIDE
PTO TRANSMISSION SIDE(V66) IDENTIFICATION=YG 		8-98233-783-0 01 1 1306-1310
1 04.439 POWER TAKE OFF ASM; TRANS SIDE
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) IDENTIFICATION=YG 		8-98233-783-1 01 1 1311-
2 04.439 CASE; GEAR,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66) 		8-97308-689-2 01 1 1207-1310
2 04.439 CASE; GEAR,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) 		8-97308-689-2 01 1 1311-1409
2 04.439 CASE; GEAR,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) 		8-98282-381-0 01 1 1410-
4 04.439 COVER; UPR,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66) 		8-98046-613-0 01 1 1207-1310
4 04.439 COVER; UPR,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) 		8-98046-613-0 01 1 1311-
6 04.439 COVER; FRT,OUTPUT SHAFT,TRANS SI
PTO TRANSMISSION SIDE(V66) (A) 		8-98046-612-0 01 1 1207-1305
6 04.439 COVER; FRT,OUTPUT SHAFT,TRANS SI
PTO TRANSMISSION SIDE(V66) (B) 		8-98233-778-0 01 1 1306-1310
6 04.439 COVER; FRT,OUTPUT SHAFT,TRANS SI
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) (B) 		8-98233-778-0 01 1 1311-
8 04.439 BEARING; OUTPUT SHAFT,TRANS SIDE
PTO TRANSMISSION SIDE(V66) ID=25 OD=62 		8-94343-031-1 02 1 1207-1310
8 04.439 BEARING; OUTPUT SHAFT,TRANS SIDE
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) ID=25 OD=62 		8-94343-031-1 02 1 1311-
9 04.439 BOLT; OUTPUT SHAFT COVER,TRANS S
PTO TRANSMISSION SIDE(V66) 04.338 M8X20 FLANGE 		0-28050-820-0 08 1 1207-1310
9 04.439 BOLT; OUTPUT SHAFT COVER,TRANS S
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) 04.338 M8X20 FLANGE 		0-28050-820-0 08 1 1311-
11 04.439 BEARING; IDLE GEAR,TRANS SIDE PT
PTO TRANSMISSION SIDE(V66) NSK 		8-97106-734-0 02 1 1207-1310
11 04.439 BEARING; IDLE GEAR,TRANS SIDE PT
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) NSK 		8-97106-734-0 02 1 1311-
12 04.439 SHAFT; IDLE GEAR,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66) 		9-38211-606-0 01 1 1207-1310
12 04.439 SHAFT; IDLE GEAR,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) 		9-38211-606-0 01 1 1311-
13 04.439 GEAR; IDLE,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66) Z=31 		8-97308-700-0 01 1 1207-1310
13 04.439 GEAR; IDLE,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) Z=31 		8-97308-700-0 01 1 1311-
14 04.439 SEAL; OIL,GEAR CASE,TRANS SIDE P
PTO TRANSMISSION SIDE(V66) 		8-98028-789-0 01 1 1207-1310
14 04.439 SEAL; OIL,GEAR CASE,TRANS SIDE P
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) 		8-98028-789-0 01 1 1311-
15 04.439 PIN; SPR,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66) L=16 		9-09878-613-0 01 1 1207-1310
15 04.439 PIN; SPR,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) L=16 		9-09878-613-0 01 1 1311-
17 04.439 BOLT; UPR COVER,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66) 04.338 M8X20 FLANGE 		0-28050-820-0 04 1 1207-1310
17 04.439 BOLT; UPR COVER,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) 04.338 M8X20 FLANGE 		0-28050-820-0 04 1 1311-
18 04.439 ARM; GEAR SHIFT,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66) 		8-97224-702-0 01 1 1207-1310
18 04.439 ARM; GEAR SHIFT,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) 		8-97224-702-0 01 1 1311-
19 04.439 PIN; SPR,SHIFT ARM,TRANS SIDE PT
PTO TRANSMISSION SIDE(V66) 04.303 L=25 OD=5 		8-94135-771-0 01 1 1207-1310
19 04.439 PIN; SPR,SHIFT ARM,TRANS SIDE PT
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) 04.303 L=25 OD=5 		8-94135-771-0 01 1 1311-
20 04.439 ROD; GEAR SHIFTER,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66) 		8-98046-623-0 01 1 1207-1310
20 04.439 ROD; GEAR SHIFTER,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) 		8-98046-623-0 01 1 1311-
22 04.439 COLLAR; DIST,OUTPUT SHAFT,TRANS
PTO TRANSMISSION SIDE(V66) 		9-38245-603-1 01 1 1207-1310
22 04.439 COLLAR; DIST,OUTPUT SHAFT,TRANS
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) 		9-38245-603-1 01 1 1311-
23 04.439 GEAR; OUTPUT,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66) Z=27 		8-98120-609-0 01 1 1207-1310
23 04.439 GEAR; OUTPUT,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) Z=27 		8-98120-609-0 01 1 1311-
24 04.439 SLEEVE; DOG CLU,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66) 		8-97231-316-1 01 1 1207-1310
24 04.439 SLEEVE; DOG CLU,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) 		8-97231-316-1 01 1 1311-
25 04.439 PIN; LK,SIDE PTO
PTO TRANSMISSION SIDE(V66) 		8-94169-071-0 01 1 1207-1310
25 04.439 PIN; LK,SIDE PTO
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) 		8-94169-071-0 01 1 1311-
26 04.439 SPRING; SHIFTER ROD,TRANS SIDE P
PTO TRANSMISSION SIDE(V66) 		9-09940-380-0 01 1 1207-1310
26 04.439 SPRING; SHIFTER ROD,TRANS SIDE P
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) 		9-09940-380-0 01 1 1311-
28 04.439 BOLT; SPRING,SIDE PTO
PTO TRANSMISSION SIDE(V66) M8 		8-98038-424-0 01 1 1207-1310
28 04.439 BOLT; SPRING,SIDE PTO
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) M8 		8-98038-424-0 01 1 1311-
29 04.439 WASHER; LK,SPRING,SIDE PTO
PTO TRANSMISSION SIDE(V66) 02.559 ID=8.2 		0-91510-808-0 01 1 1207-1310
29 04.439 WASHER; LK,SPRING,SIDE PTO
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) 02.559 ID=8.2 		0-91510-808-0 01 1 1311-
30 04.439 SHAFT; OUTPUT,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66) (A) 		8-97118-183-1 01 1 1207-1210
30 04.439 SHAFT; OUTPUT,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66) (B) 		8-98223-518-0 01 1 1211-1305
30 04.439 SHAFT; OUTPUT,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66) (B) 		8-98233-777-0 01 1 1306-1310
30 04.439 SHAFT; OUTPUT,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) (B) 		8-98233-777-0 01 1 1311-
31 04.439 KEY; OUTPUT SHAFT,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66) L=25 		8-98068-088-0 01 1 1211-1310
31 04.439 KEY; OUTPUT SHAFT,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) L=25 		8-98068-088-0 01 1 1311-
32 04.439 COVER; RR,OUTPUT SHAFT,TRANS SID
PTO TRANSMISSION SIDE(V66) 		8-97305-794-0 01 1 1207-1310
32 04.439 COVER; RR,OUTPUT SHAFT,TRANS SID
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) 		8-97305-794-0 01 1 1311-
33 04.439 SEAL; OIL,OUTPUT SHAFT,TRANS SID
PTO TRANSMISSION SIDE(V66) 		1-38159-007-0 01 1 1207-1310
33 04.439 SEAL; OIL,OUTPUT SHAFT,TRANS SID
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) 		1-38159-007-0 01 1 1311-
34 04.439 FLANGE; OUTPUT SHAFT,TRANS SIDE
PTO TRANSMISSION SIDE(V66) 		8-98046-624-0 01 1 1207-1210
34 04.439 FLANGE; OUTPUT SHAFT,TRANS SIDE
PTO TRANSMISSION SIDE(V66) 		8-98223-519-0 01 1 1211-1310
34 04.439 FLANGE; OUTPUT SHAFT,TRANS SIDE
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) 		8-98223-519-0 01 1 1311-
35 04.439 WASHER; PL,FLANGE FIX,TRANS SIDE
PTO TRANSMISSION SIDE(V66) 04.634 ID=15 		0-91610-514-0 01 1 1207-1310
35 04.439 WASHER; PL,FLANGE FIX,TRANS SIDE
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) 04.634 ID=15 		0-91610-514-0 01 1 1311-
36 04.439 WASHER; LK,FLANGE FIX,TRANS SIDE
PTO TRANSMISSION SIDE(V66) 06.174 ID=14.2 		0-91510-814-0 01 1 1207-1310
36 04.439 WASHER; LK,FLANGE FIX,TRANS SIDE
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) 06.174 ID=14.2 		0-91510-814-0 01 1 1311-
37 04.439 NUT; FLANGE FIX,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66) 06.515 M14 		0-91111-514-0 01 1 1207-1310
37 04.439 NUT; FLANGE FIX,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) 06.515 M14 		0-91111-514-0 01 1 1311-
108 04.439 RING; SNAP,OUTPUT SHAFT,TRANS SI
PTO TRANSMISSION SIDE(V66) 08.934 ID=23.2 		9-09180-025-0 01 1 1306-1310
108 04.439 RING; SNAP,OUTPUT SHAFT,TRANS SI
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) 08.934 ID=23.2 		9-09180-025-0 01 1 1311-
155 04.439 PLUG; SHIFTER ROD
PTO TRANSMISSION SIDE(V66) 		8-98037-770-0 01 1 1207-1310
155 04.439 PLUG; SHIFTER ROD
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) 		8-98037-770-0 01 1 1311-
186 04.439 RING; SNAP,IDLE GEAR,TRANS SIDE
PTO TRANSMISSION SIDE(V66) 		8-97106-730-0 01 1 1207-1310
186 04.439 RING; SNAP,IDLE GEAR,TRANS SIDE
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) 		8-97106-730-0 01 1 1311-
196 04.439 PIECE; THRUST
PTO TRANSMISSION SIDE(V66) T=1.50 		8-97106-724-0 02 1 1207-1310
196 04.439 PIECE; THRUST
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) T=1.50 		8-97106-724-0 02 1 1311-
196 04.439 PIECE; THRUST
PTO TRANSMISSION SIDE(V66) T=1.60 		8-97106-725-0 02 1 1207-1310
196 04.439 PIECE; THRUST
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) T=1.60 		8-97106-725-0 02 1 1311-
196 04.439 PIECE; THRUST
PTO TRANSMISSION SIDE(V66) T=1.65 		8-97106-726-0 02 1 1207-1310
196 04.439 PIECE; THRUST
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) T=1.65 		8-97106-726-0 02 1 1311-
196 04.439 PIECE; THRUST
PTO TRANSMISSION SIDE(V66) T=1.70 		8-97106-727-0 02 1 1207-1310
196 04.439 PIECE; THRUST
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) T=1.70 		8-97106-727-0 02 1 1311-
196 04.439 PIECE; THRUST
PTO TRANSMISSION SIDE(V66) T=1.80 		8-97106-728-0 02 1 1207-1310
196 04.439 PIECE; THRUST
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) T=1.80 		8-97106-728-0 02 1 1311-
196 04.439 PIECE; THRUST
PTO TRANSMISSION SIDE(V66) T=1.85 		8-97106-729-0 02 1 1207-1310
196 04.439 PIECE; THRUST
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) T=1.85 		8-97106-729-0 02 1 1311-
281 04.439 SHIM; OUTPUT SHAFT
PTO TRANSMISSION SIDE(V66) T=1.85 		8-97106-729-0 01 1 1306-1310
281 04.439 SHIM; OUTPUT SHAFT
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) T=1.85 		8-97106-729-0 01 1 1311-
