Isuzu WW
▶
TRUCKS
▶
NMR
▶
51418 - NMR 85(RHD)EURO4
▶
2 - Clutch, Transmission, Trans Axle
▶

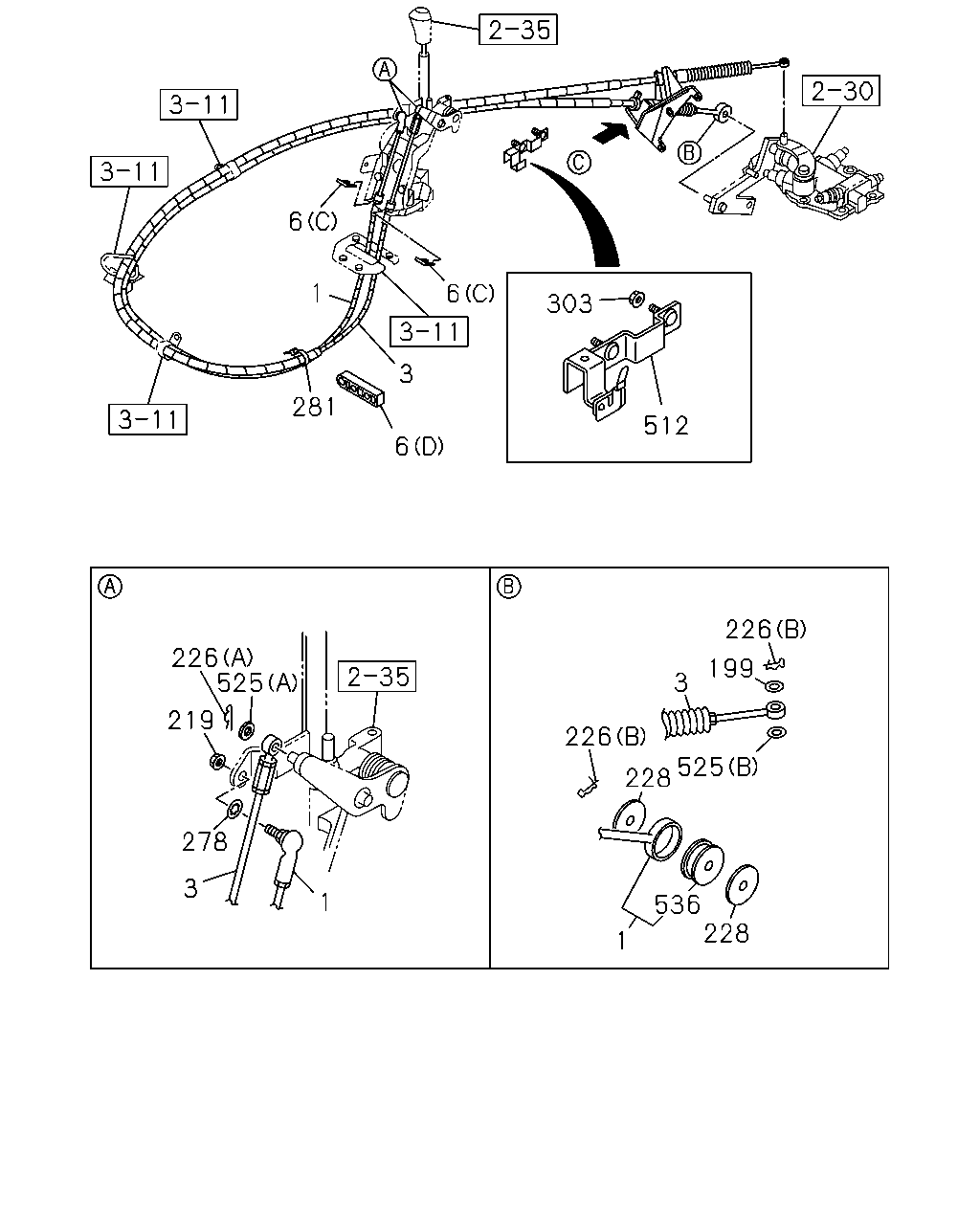

2-36 - MANUAL TRANSMISSION CONT LINK AND CABLE
▶
2-36 — MANUAL TRANSMISSION CONT LINK AND CABLE
(#94054) — 29 parça
◀
[236A] NO.1 (20 parça)
[236A] NO.2 (9 parça)
▶
226
525
219
278
3
1
1
228
536
228
525
226
3
199
226
512
6
281
3
1
6
303
6
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
00.854 CABLE; SHIFT,TRANS CONT
L=2955
8-98164-353-1
01
1
1207-1411
1
00.854 CABLE; SHIFT,TRANS CONT
L=2955
8-98292-916-0
01
1
1412-
3
00.852 CABLE; SELECT,TRANS CONT
L=3035
8-98164-362-1
01
1
1207-1411
3
00.852 CABLE; SELECT,TRANS CONT
L=3035
8-98283-986-0
01
1
1412-
6
04.047 CLIP; CABLE
00.854 (A) ID=22.2
1-09701-209-1
01
1
1207-
6
04.047 CLIP; CABLE
(C)
8-97011-448-0
02
1
1207-
6
04.047 CLIP; CABLE
(B) ID=19.2
8-97211-011-0
01
1
1207-
6
04.047 CLIP; CABLE
EXC. MANUAL TILT CAB<RWZ> 04.008 (D)
8-97093-491-1
01
1
1207-
199
04.012 WASHER; PL,SELECT
03.417 ID=8.4 OD=16
0-91610-508-0
01
1
1207-
219
04.047 NUT; FLANGE,SHAFT CABLE
04.037 M8 T=8.0
8-94363-045-0
01
1
1207-
226
04.047 PIN; SHIFT CABLE
00.833 (A) L=27.7
8-94111-137-0
01
1
1207-
226
04.047 PIN; SHIFT CABLE
(B) L=23
8-94170-378-0
02
1
1207-
228
04.047 WASHER; PL,SHIFT CABLE
ID=8.2 OD=40
8-97182-975-0
02
1
1207-
278
00.854 WASHER; LK,SHIFT WIRE
ID=8.4 TOOTH LK INT
0-91541-208-0
01
1
1207-
281
04.042 CLIP; BAND
03.162 L=140
5-09707-031-1
01
1
1207-
303
00.855 NUT; CLIP
01.062 M8 FLANGE
0-91180-108-0
01
1
1207-
512
04.012 GUIDE; CABLE,GEAR CONT
8-98111-916-0
01
1
1207-
525
04.047 WASHER; SHIFT CABLE
06.056 (A) ID=8.4 OD=16
0-91614-508-0
01
1
1207-
525
04.047 WASHER; SHIFT CABLE
00.854 (B) ID=8.4 OD=14
5-09550-002-0
01
1
1207-
536
00.854 DAMPER; CABLE
8-98097-681-0
01
1
1207-
6
6
282
1
3
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
00.854 CABLE; SHIFT,TRANS CONT
L=2955
8-98164-353-1
01
1
1207-1411
1
00.854 CABLE; SHIFT,TRANS CONT
L=2955
8-98292-916-0
01
1
1412-
3
00.852 CABLE; SELECT,TRANS CONT
L=3035
8-98164-362-1
01
1
1207-1411
3
00.852 CABLE; SELECT,TRANS CONT
L=3035
8-98283-986-0
01
1
1412-
6
04.047 CLIP; CABLE
00.854 (A) ID=22.2
1-09701-209-1
01
1
1207-
6
04.047 CLIP; CABLE
(C)
8-97011-448-0
02
1
1207-
6
04.047 CLIP; CABLE
(B) ID=19.2
8-97211-011-0
01
1
1207-
6
04.047 CLIP; CABLE
EXC. MANUAL TILT CAB<RWZ> 04.008 (D)
8-97093-491-1
01
1
1207-
282
04.010 BRACKET; TRANS SIDE
8-97350-449-0
01
1
1207-
