◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 10826 - FRR/FSR/FRD(AUST) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-36 - POWER STEERING CONTROL; ENGINE SIDE ▶
4-36 — POWER STEERING CONTROL; ENGINE SIDE (#9405) — 211 parça

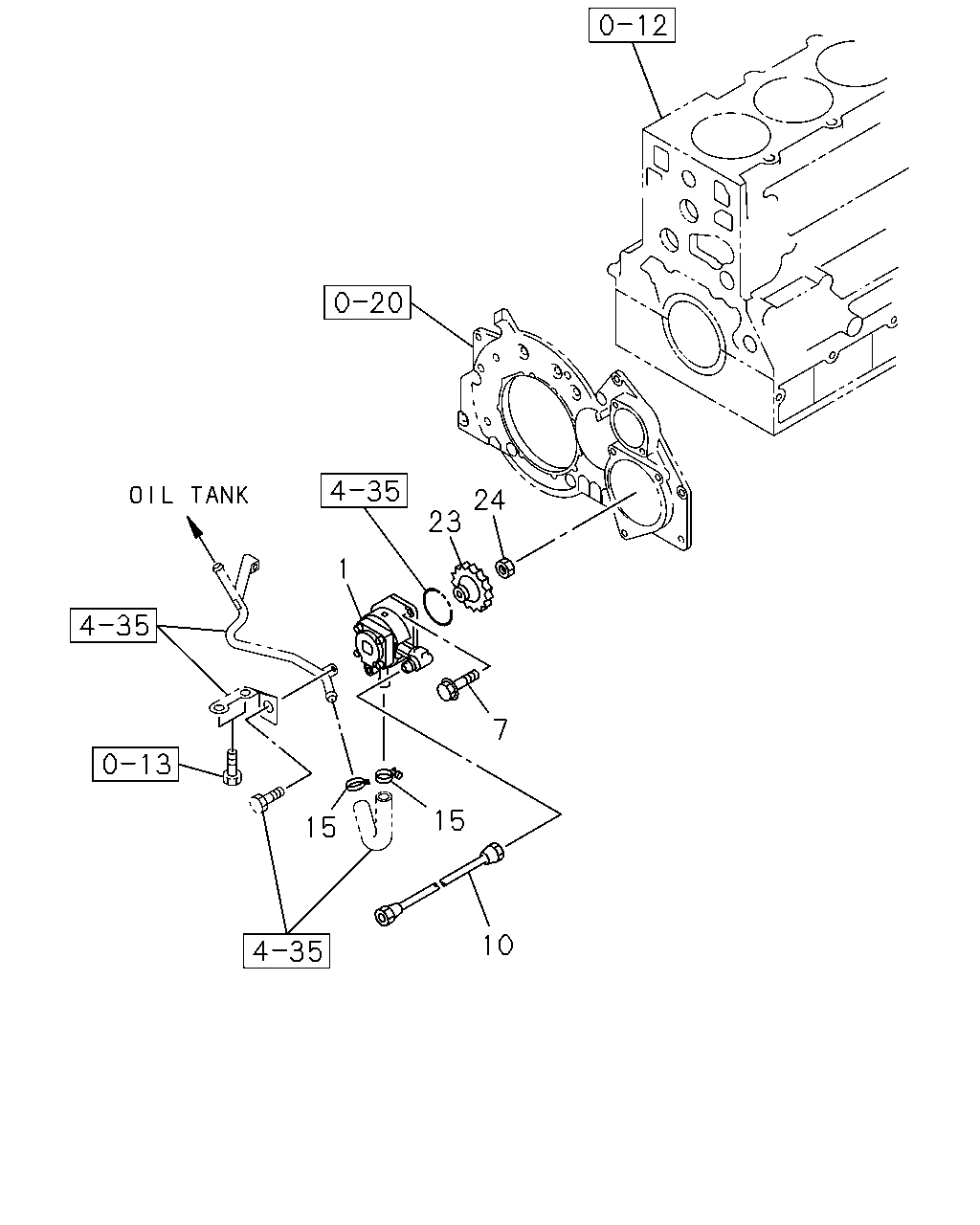

çizim 38328
24 23 1 7 15 15 10
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 6HK1 TCC ENG(81L) 		1-19500-538-2 01 1 0211-0411 ● ● ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 6HK1 TCN ENG(82L) EXC. ENGINE REAR PTO(SV1) 		1-19500-538-2 01 1 0211-0411 ● ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 6HK1 TCC ENG(81L) 		1-19500-538-2 01 1 0412- ● ● ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 6HK1 TCN ENG(82L) EXC. ENGINE REAR PTO(SV1) 		1-19500-538-2 01 1 0412- ● ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 		1-19500-538-2 01 1 0412- ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 		1-19500-465-0 01 1 0005-0202 ● ● ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 		1-19500-589-0 01 1 0203-0210 ● ● ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 6HK1 TCN ENG(82L) ENGINE REAR PTO(SV1) 		1-19500-589-0 01 1 0211-0306 ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 6HK1 TCS ENG(80L) 		1-19500-589-1 01 1 0307-1112 ● ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 6HK1 TCN ENG(82L) ENGINE REAR PTO(SV1) 		1-19500-589-1 01 1 0307-1112 ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 6HK1 TCS ENG(80L) 		8-98202-666-0 01 1 1201- ● ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 6HK1 TCN ENG(82L) ENGINE REAR PTO(SV1) 		8-98202-666-0 01 1 1201- ●
7 BOLT; OIL PUMP,P/S
M10X55 FLANGE 		8-94399-863-1 02 1 0005-0210 ● ● ●
7 BOLT; OIL PUMP,P/S
6HK1 TCN ENG(82L) ENGINE REAR PTO(SV1) M10X55 FLANGE 		8-94399-863-1 02 1 0211-0306 ●
7 BOLT; OIL PUMP,P/S
6HK1 TCS ENG(80L) M10X55 FLANGE 		8-94399-863-1 02 1 0307-0805 ● ●
7 BOLT; OIL PUMP,P/S
6HK1 TCN ENG(82L) ENGINE REAR PTO(SV1) M10X55 FLANGE 		8-94399-863-1 02 1 0307-0805 ●
7 BOLT; OIL PUMP,P/S
6HK1 TCS ENG(80L) M10X55 FLANGE 		8-97365-449-0 02 1 0806- ● ●
7 BOLT; OIL PUMP,P/S
6HK1 TCN ENG(82L) ENGINE REAR PTO(SV1) M10X55 FLANGE 		8-97365-449-0 02 1 0806- ●
10 HOSE; FLEX,P/S OIL PUMP,INL
6HK1 TCS ENG(80L) L=860 		1-09365-288-0 01 1 0307- ● ●
10 HOSE; FLEX,P/S OIL PUMP,INL
L=820 		1-09364-931-0 01 1 0005-0210 ● ● ●
10 HOSE; FLEX,P/S OIL PUMP,INL
L=1350 		1-09365-066-0 01 1 0211-0305 ● ● ●
10 HOSE; FLEX,P/S OIL PUMP,INL
6HK1 TCC ENG(81L),6HK1 TCN ENG(82L) L=1350 		1-09365-066-0 01 1 0306-0411 ● ●
10 HOSE; FLEX,P/S OIL PUMP,INL
6HK1 TCC ENG(81L) L=1350 		1-09365-066-0 01 1 0306-0411 ●
10 HOSE; FLEX,P/S OIL PUMP,INL
6HK1 TCC ENG(81L),6HK1 TCN ENG(82L) L=1350 		1-09365-066-0 01 1 0412- ● ●
10 HOSE; FLEX,P/S OIL PUMP,INL
6HK1 TCC ENG(81L) L=1350 		1-09365-066-0 01 1 0412- ●
10 HOSE; FLEX,P/S OIL PUMP,INL
6HK1 TCN ENG(82L) L=1350 		1-09365-066-0 01 1 0412- ●
15 CLIP; OIL PIPE SUCTION
6HK1 TCC ENG(81L) 		1-09701-210-0 02 1 0211-0411 ● ● ●
15 CLIP; OIL PIPE SUCTION
6HK1 TCN ENG(82L) EXC. ENGINE REAR PTO(SV1) 		1-09701-210-0 02 1 0211-0411 ● ●
15 CLIP; OIL PIPE SUCTION
6HK1 TCC ENG(81L) 		1-09701-210-0 02 1 0412- ● ● ●
15 CLIP; OIL PIPE SUCTION
6HK1 TCN ENG(82L) EXC. ENGINE REAR PTO(SV1) 		1-09701-210-0 02 1 0412- ● ●
15 CLIP; OIL PIPE SUCTION 1-09701-210-0 02 1 0412- ●
15 CLIP; OIL PIPE SUCTION
ID=32 		1-09704-085-0 02 1 0005-0210 ● ● ●
15 CLIP; OIL PIPE SUCTION
6HK1 TCN ENG(82L) ENGINE REAR PTO(SV1) ID=32 		1-09704-085-0 02 1 0211-0306 ●
15 CLIP; OIL PIPE SUCTION
6HK1 TCS ENG(80L) ID=32 		1-09704-085-0 02 1 0307- ● ●
15 CLIP; OIL PIPE SUCTION
6HK1 TCN ENG(82L) ENGINE REAR PTO(SV1) ID=32 		1-09704-085-0 02 1 0307- ●
23 GEAR; OIL PUMP
6HK1 TCC ENG(81L) Z=30 		8-94390-842-1 01 1 0211-0411 ● ● ●
23 GEAR; OIL PUMP
6HK1 TCN ENG(82L) EXC. ENGINE REAR PTO(SV1) Z=30 		8-94390-842-1 01 1 0211-0411 ● ●
23 GEAR; OIL PUMP
6HK1 TCC ENG(81L) Z=30 		8-94390-842-1 01 1 0412- ● ● ●
23 GEAR; OIL PUMP
6HK1 TCN ENG(82L) EXC. ENGINE REAR PTO(SV1) Z=30 		8-94390-842-1 01 1 0412- ● ●
23 GEAR; OIL PUMP
Z=30 		8-94390-842-1 01 1 0412- ●
23 GEAR; OIL PUMP
Z=30 		8-94396-957-3 01 1 0005-0210 ● ● ●
23 GEAR; OIL PUMP
6HK1 TCN ENG(82L) ENGINE REAR PTO(SV1) Z=30 		8-94396-957-3 01 1 0211-0306 ●
23 GEAR; OIL PUMP
6HK1 TCS ENG(80L) Z=30 		8-94396-957-3 01 1 0307- ● ●
23 GEAR; OIL PUMP
6HK1 TCN ENG(82L) ENGINE REAR PTO(SV1) Z=30 		8-94396-957-3 01 1 0307- ●
24 NUT; GEAR,P/S PUMP
6HK1 TCC ENG(81L) M12 FLANGE 		0-91150-112-0 01 1 0211-0411 ● ● ●
24 NUT; GEAR,P/S PUMP
6HK1 TCN ENG(82L) EXC. ENGINE REAR PTO(SV1) M12 FLANGE 		0-91150-112-0 01 1 0211-0411 ● ●
24 NUT; GEAR,P/S PUMP
6HK1 TCC ENG(81L) M12 FLANGE 		0-91150-112-0 01 1 0412-0602 ● ● ●
24 NUT; GEAR,P/S PUMP
6HK1 TCN ENG(82L) EXC. ENGINE REAR PTO(SV1) M12 FLANGE 		0-91150-112-0 01 1 0412-0602 ● ●
24 NUT; GEAR,P/S PUMP
M12 FLANGE 		0-91150-112-0 01 1 0412-0602 ●
24 NUT; GEAR,P/S PUMP
6HK1 TCC ENG(81L) M12 FLANGE 		0-91180-112-0 01 1 0603- ● ● ●
24 NUT; GEAR,P/S PUMP
6HK1 TCN ENG(82L) EXC. ENGINE REAR PTO(SV1) M12 FLANGE 		0-91180-112-0 01 1 0603- ● ●
24 NUT; GEAR,P/S PUMP
M12 FLANGE 		0-91180-112-0 01 1 0603- ●
24 NUT; GEAR,P/S PUMP
M14 FLANGE 		0-91150-114-0 01 1 0005-0210 ● ● ●
24 NUT; GEAR,P/S PUMP
6HK1 TCN ENG(82L) ENGINE REAR PTO(SV1) M14 FLANGE 		0-91150-114-0 01 1 0211-0306 ●
24 NUT; GEAR,P/S PUMP
6HK1 TCS ENG(80L) M14 FLANGE 		0-91150-114-0 01 1 0307-0712 ● ●
24 NUT; GEAR,P/S PUMP
6HK1 TCN ENG(82L) ENGINE REAR PTO(SV1) M14 FLANGE 		0-91150-114-0 01 1 0307-0712 ●
24 NUT; GEAR,P/S PUMP
6HK1 TCS ENG(80L) M14 FLANGE 		0-91180-114-0 01 1 0801- ● ●
24 NUT; GEAR,P/S PUMP
6HK1 TCN ENG(82L) ENGINE REAR PTO(SV1) M14 FLANGE 		0-91180-114-0 01 1 0801- ●

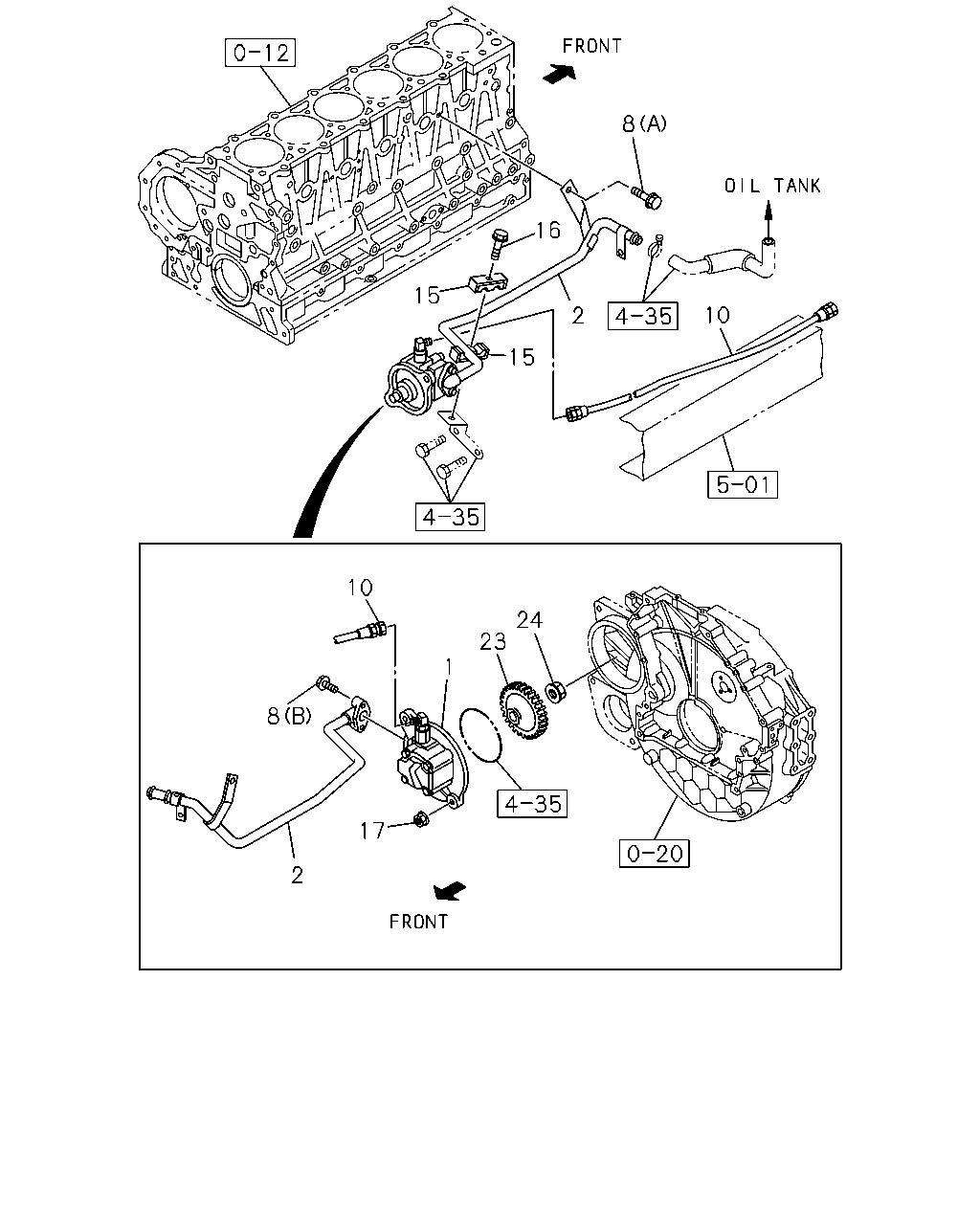

çizim 38352
8 16 15 10 2 15 10 24 23 1 8 17 2
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 6HK1 TCC ENG(81L) 		1-19500-538-2 01 1 0211-0411 ● ● ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 6HK1 TCN ENG(82L) EXC. ENGINE REAR PTO(SV1) 		1-19500-538-2 01 1 0211-0411 ● ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 6HK1 TCC ENG(81L) 		1-19500-538-2 01 1 0412- ● ● ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 6HK1 TCN ENG(82L) EXC. ENGINE REAR PTO(SV1) 		1-19500-538-2 01 1 0412- ● ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 		1-19500-538-2 01 1 0412- ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 		1-19500-465-0 01 1 0005-0202 ● ● ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 		1-19500-589-0 01 1 0203-0210 ● ● ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 6HK1 TCN ENG(82L) ENGINE REAR PTO(SV1) 		1-19500-589-0 01 1 0211-0306 ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 6HK1 TCS ENG(80L) 		1-19500-589-1 01 1 0307-1112 ● ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 6HK1 TCN ENG(82L) ENGINE REAR PTO(SV1) 		1-19500-589-1 01 1 0307-1112 ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 6HK1 TCS ENG(80L) 		8-98202-666-0 01 1 1201- ● ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 6HK1 TCN ENG(82L) ENGINE REAR PTO(SV1) 		8-98202-666-0 01 1 1201- ●
2 PIPE ASM; OIL,SUCTION
6HK1 TCC ENG(81L) 		8-97602-703-0 01 1 0211-0411 ● ● ●
2 PIPE ASM; OIL,SUCTION
6HK1 TCN ENG(82L) EXC. ENGINE REAR PTO(SV1) 		8-97602-703-0 01 1 0211-0411 ● ●
2 PIPE ASM; OIL,SUCTION
6HK1 TCC ENG(81L) 		8-97602-703-0 01 1 0412- ● ● ●
2 PIPE ASM; OIL,SUCTION
6HK1 TCN ENG(82L) EXC. ENGINE REAR PTO(SV1) 		8-97602-703-0 01 1 0412- ● ●
2 PIPE ASM; OIL,SUCTION 8-97602-703-0 01 1 0412- ●
8 BOLT; OIL PIPE
6HK1 TCC ENG(81L) (A) M8X16 FLANGE 		0-28080-816-0 01 1 0211-0411 ● ● ●
8 BOLT; OIL PIPE
6HK1 TCN ENG(82L) EXC. ENGINE REAR PTO(SV1) (A) M8X16 FLANGE 		0-28080-816-0 01 1 0211-0411 ● ●
8 BOLT; OIL PIPE
6HK1 TCC ENG(81L) (A) M8X16 FLANGE 		0-28080-816-0 01 1 0412-0512 ● ● ●
8 BOLT; OIL PIPE
6HK1 TCN ENG(82L) EXC. ENGINE REAR PTO(SV1) (A) M8X16 FLANGE 		0-28080-816-0 01 1 0412-0512 ● ●
8 BOLT; OIL PIPE
(A) M8X16 FLANGE 		0-28080-816-0 01 1 0412-0512 ●
8 BOLT; OIL PIPE
6HK1 TCC ENG(81L) (A) M8X16 FLANGE 		0-28050-816-0 01 1 0601- ● ● ●
8 BOLT; OIL PIPE
6HK1 TCN ENG(82L) EXC. ENGINE REAR PTO(SV1) (A) M8X16 FLANGE 		0-28050-816-0 01 1 0601- ● ●
8 BOLT; OIL PIPE
(A) M8X16 FLANGE 		0-28050-816-0 01 1 0601- ●
8 BOLT; OIL PIPE
6HK1 TCC ENG(81L) (B) M8X30 FLANGE 		0-28080-830-0 02 1 0211-0411 ● ● ●
8 BOLT; OIL PIPE
6HK1 TCN ENG(82L) EXC. ENGINE REAR PTO(SV1) (B) M8X30 FLANGE 		0-28080-830-0 02 1 0211-0411 ● ●
8 BOLT; OIL PIPE
6HK1 TCC ENG(81L) (B) M8X30 FLANGE 		0-28080-830-0 02 1 0412-0512 ● ● ●
8 BOLT; OIL PIPE
6HK1 TCN ENG(82L) EXC. ENGINE REAR PTO(SV1) (B) M8X30 FLANGE 		0-28080-830-0 02 1 0412-0512 ● ●
8 BOLT; OIL PIPE
(B) M8X30 FLANGE 		0-28080-830-0 02 1 0412-0512 ●
8 BOLT; OIL PIPE
6HK1 TCC ENG(81L) (B) M8X30 FLANGE 		0-28050-830-0 02 1 0601- ● ● ●
8 BOLT; OIL PIPE
6HK1 TCN ENG(82L) EXC. ENGINE REAR PTO(SV1) (B) M8X30 FLANGE 		0-28050-830-0 02 1 0601- ● ●
8 BOLT; OIL PIPE
(B) M8X30 FLANGE 		0-28050-830-0 02 1 0601- ●
10 HOSE; FLEX,P/S OIL PUMP,INL
6HK1 TCS ENG(80L) L=860 		1-09365-288-0 01 1 0307- ● ●
10 HOSE; FLEX,P/S OIL PUMP,INL
L=820 		1-09364-931-0 01 1 0005-0210 ● ● ●
10 HOSE; FLEX,P/S OIL PUMP,INL
L=1350 		1-09365-066-0 01 1 0211-0305 ● ● ●
10 HOSE; FLEX,P/S OIL PUMP,INL
6HK1 TCC ENG(81L),6HK1 TCN ENG(82L) L=1350 		1-09365-066-0 01 1 0306-0411 ● ●
10 HOSE; FLEX,P/S OIL PUMP,INL
6HK1 TCC ENG(81L) L=1350 		1-09365-066-0 01 1 0306-0411 ●
10 HOSE; FLEX,P/S OIL PUMP,INL
6HK1 TCC ENG(81L),6HK1 TCN ENG(82L) L=1350 		1-09365-066-0 01 1 0412- ● ●
10 HOSE; FLEX,P/S OIL PUMP,INL
6HK1 TCC ENG(81L) L=1350 		1-09365-066-0 01 1 0412- ●
10 HOSE; FLEX,P/S OIL PUMP,INL
6HK1 TCN ENG(82L) L=1350 		1-09365-066-0 01 1 0412- ●
15 CLIP; OIL PIPE SUCTION
6HK1 TCC ENG(81L) 		1-09701-210-0 02 1 0211-0411 ● ● ●
15 CLIP; OIL PIPE SUCTION
6HK1 TCN ENG(82L) EXC. ENGINE REAR PTO(SV1) 		1-09701-210-0 02 1 0211-0411 ● ●
15 CLIP; OIL PIPE SUCTION
6HK1 TCC ENG(81L) 		1-09701-210-0 02 1 0412- ● ● ●
15 CLIP; OIL PIPE SUCTION
6HK1 TCN ENG(82L) EXC. ENGINE REAR PTO(SV1) 		1-09701-210-0 02 1 0412- ● ●
15 CLIP; OIL PIPE SUCTION 1-09701-210-0 02 1 0412- ●
15 CLIP; OIL PIPE SUCTION
ID=32 		1-09704-085-0 02 1 0005-0210 ● ● ●
15 CLIP; OIL PIPE SUCTION
6HK1 TCN ENG(82L) ENGINE REAR PTO(SV1) ID=32 		1-09704-085-0 02 1 0211-0306 ●
15 CLIP; OIL PIPE SUCTION
6HK1 TCS ENG(80L) ID=32 		1-09704-085-0 02 1 0307- ● ●
15 CLIP; OIL PIPE SUCTION
6HK1 TCN ENG(82L) ENGINE REAR PTO(SV1) ID=32 		1-09704-085-0 02 1 0307- ●
16 BOLT; STAY,P/S OIL PUMP
6HK1 TCC ENG(81L) M6X45 FLANGE 		0-28080-645-0 01 1 0211-0411 ● ● ●
16 BOLT; STAY,P/S OIL PUMP
6HK1 TCN ENG(82L) EXC. ENGINE REAR PTO(SV1) M6X45 FLANGE 		0-28080-645-0 01 1 0211-0411 ● ●
16 BOLT; STAY,P/S OIL PUMP
6HK1 TCC ENG(81L) M6X45 FLANGE 		0-28080-645-0 01 1 0412-0512 ● ● ●
16 BOLT; STAY,P/S OIL PUMP
6HK1 TCN ENG(82L) EXC. ENGINE REAR PTO(SV1) M6X45 FLANGE 		0-28080-645-0 01 1 0412-0512 ● ●
16 BOLT; STAY,P/S OIL PUMP
M6X45 FLANGE 		0-28080-645-0 01 1 0412-0512 ●
16 BOLT; STAY,P/S OIL PUMP
6HK1 TCC ENG(81L) M6X45 FLANGE 		0-28050-645-0 01 1 0601- ● ● ●
16 BOLT; STAY,P/S OIL PUMP
6HK1 TCN ENG(82L) EXC. ENGINE REAR PTO(SV1) M6X45 FLANGE 		0-28050-645-0 01 1 0601- ● ●
16 BOLT; STAY,P/S OIL PUMP
M6X45 FLANGE 		0-28050-645-0 01 1 0601- ●
17 NUT; POWER STRG PUMP
6HK1 TCC ENG(81L) M10 FLANGE 		0-91150-110-0 02 1 0211-0411 ● ● ●
17 NUT; POWER STRG PUMP
6HK1 TCN ENG(82L) EXC. ENGINE REAR PTO(SV1) M10 FLANGE 		0-91150-110-0 02 1 0211-0411 ● ●
17 NUT; POWER STRG PUMP
6HK1 TCC ENG(81L) M10 FLANGE 		0-91150-110-0 02 1 0412-0602 ● ● ●
17 NUT; POWER STRG PUMP
6HK1 TCN ENG(82L) EXC. ENGINE REAR PTO(SV1) M10 FLANGE 		0-91150-110-0 02 1 0412-0602 ● ●
17 NUT; POWER STRG PUMP
M10 FLANGE 		0-91150-110-0 02 1 0412-0602 ●
17 NUT; POWER STRG PUMP
6HK1 TCC ENG(81L) M10 FLANGE 		0-91180-110-0 02 1 0603- ● ● ●
17 NUT; POWER STRG PUMP
6HK1 TCN ENG(82L) EXC. ENGINE REAR PTO(SV1) M10 FLANGE 		0-91180-110-0 02 1 0603- ● ●
17 NUT; POWER STRG PUMP
M10 FLANGE 		0-91180-110-0 02 1 0603- ●
23 GEAR; OIL PUMP
6HK1 TCC ENG(81L) Z=30 		8-94390-842-1 01 1 0211-0411 ● ● ●
23 GEAR; OIL PUMP
6HK1 TCN ENG(82L) EXC. ENGINE REAR PTO(SV1) Z=30 		8-94390-842-1 01 1 0211-0411 ● ●
23 GEAR; OIL PUMP
6HK1 TCC ENG(81L) Z=30 		8-94390-842-1 01 1 0412- ● ● ●
23 GEAR; OIL PUMP
6HK1 TCN ENG(82L) EXC. ENGINE REAR PTO(SV1) Z=30 		8-94390-842-1 01 1 0412- ● ●
23 GEAR; OIL PUMP
Z=30 		8-94390-842-1 01 1 0412- ●
23 GEAR; OIL PUMP
Z=30 		8-94396-957-3 01 1 0005-0210 ● ● ●
23 GEAR; OIL PUMP
6HK1 TCN ENG(82L) ENGINE REAR PTO(SV1) Z=30 		8-94396-957-3 01 1 0211-0306 ●
23 GEAR; OIL PUMP
6HK1 TCS ENG(80L) Z=30 		8-94396-957-3 01 1 0307- ● ●
23 GEAR; OIL PUMP
6HK1 TCN ENG(82L) ENGINE REAR PTO(SV1) Z=30 		8-94396-957-3 01 1 0307- ●
24 NUT; GEAR,P/S PUMP
6HK1 TCC ENG(81L) M12 FLANGE 		0-91150-112-0 01 1 0211-0411 ● ● ●
24 NUT; GEAR,P/S PUMP
6HK1 TCN ENG(82L) EXC. ENGINE REAR PTO(SV1) M12 FLANGE 		0-91150-112-0 01 1 0211-0411 ● ●
24 NUT; GEAR,P/S PUMP
6HK1 TCC ENG(81L) M12 FLANGE 		0-91150-112-0 01 1 0412-0602 ● ● ●
24 NUT; GEAR,P/S PUMP
6HK1 TCN ENG(82L) EXC. ENGINE REAR PTO(SV1) M12 FLANGE 		0-91150-112-0 01 1 0412-0602 ● ●
24 NUT; GEAR,P/S PUMP
M12 FLANGE 		0-91150-112-0 01 1 0412-0602 ●
24 NUT; GEAR,P/S PUMP
6HK1 TCC ENG(81L) M12 FLANGE 		0-91180-112-0 01 1 0603- ● ● ●
24 NUT; GEAR,P/S PUMP
6HK1 TCN ENG(82L) EXC. ENGINE REAR PTO(SV1) M12 FLANGE 		0-91180-112-0 01 1 0603- ● ●
24 NUT; GEAR,P/S PUMP
M12 FLANGE 		0-91180-112-0 01 1 0603- ●
24 NUT; GEAR,P/S PUMP
M14 FLANGE 		0-91150-114-0 01 1 0005-0210 ● ● ●
24 NUT; GEAR,P/S PUMP
6HK1 TCN ENG(82L) ENGINE REAR PTO(SV1) M14 FLANGE 		0-91150-114-0 01 1 0211-0306 ●
24 NUT; GEAR,P/S PUMP
6HK1 TCS ENG(80L) M14 FLANGE 		0-91150-114-0 01 1 0307-0712 ● ●
24 NUT; GEAR,P/S PUMP
6HK1 TCN ENG(82L) ENGINE REAR PTO(SV1) M14 FLANGE 		0-91150-114-0 01 1 0307-0712 ●
24 NUT; GEAR,P/S PUMP
6HK1 TCS ENG(80L) M14 FLANGE 		0-91180-114-0 01 1 0801- ● ●
24 NUT; GEAR,P/S PUMP
6HK1 TCN ENG(82L) ENGINE REAR PTO(SV1) M14 FLANGE 		0-91180-114-0 01 1 0801- ●

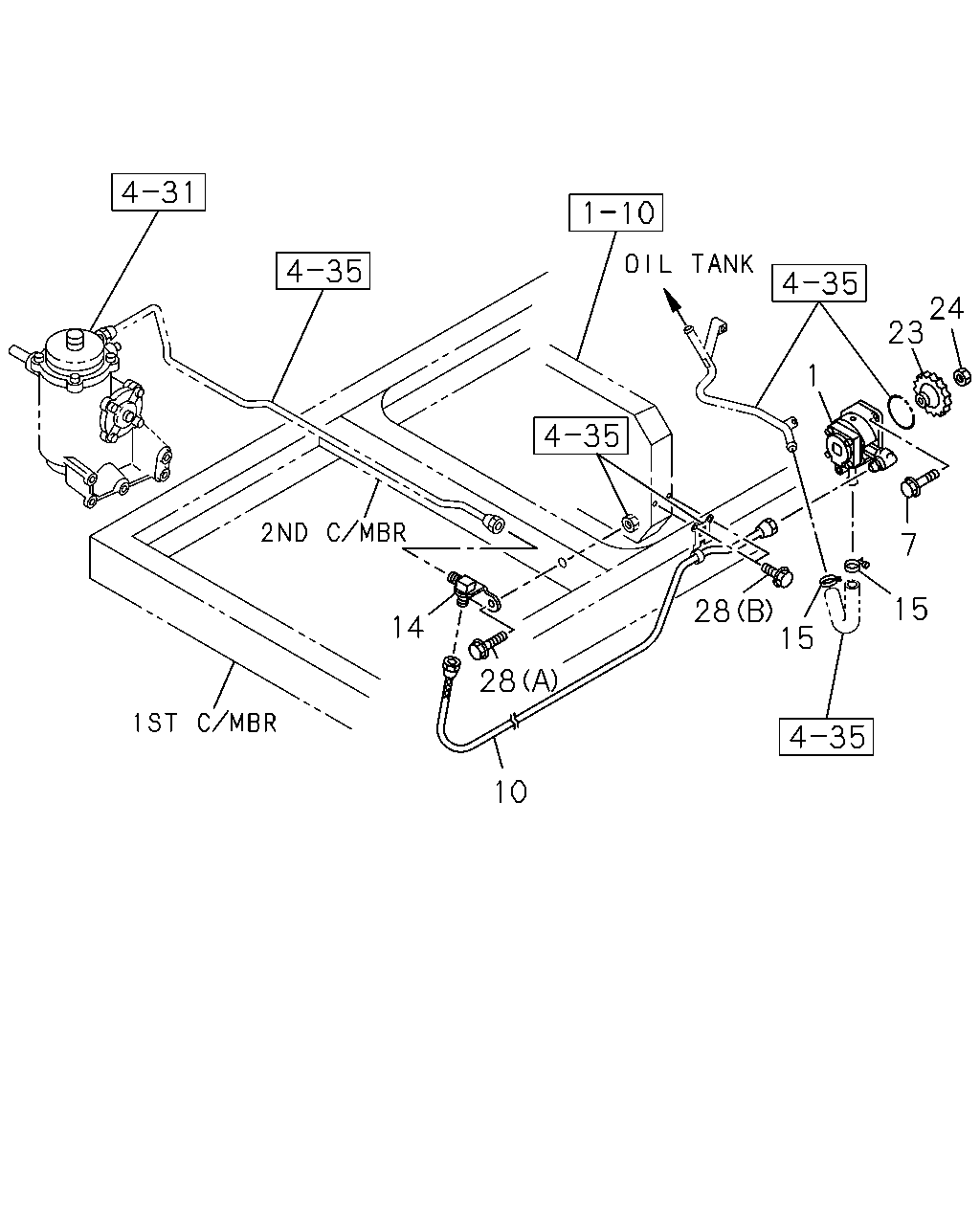

çizim 100320
24 23 1 7 15 28 15 14 28 10
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 6HK1 TCC ENG(81L) 		1-19500-538-2 01 1 0211-0411 ● ● ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 6HK1 TCN ENG(82L) EXC. ENGINE REAR PTO(SV1) 		1-19500-538-2 01 1 0211-0411 ● ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 6HK1 TCC ENG(81L) 		1-19500-538-2 01 1 0412- ● ● ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 6HK1 TCN ENG(82L) EXC. ENGINE REAR PTO(SV1) 		1-19500-538-2 01 1 0412- ● ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 		1-19500-538-2 01 1 0412- ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 		1-19500-465-0 01 1 0005-0202 ● ● ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 		1-19500-589-0 01 1 0203-0210 ● ● ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 6HK1 TCN ENG(82L) ENGINE REAR PTO(SV1) 		1-19500-589-0 01 1 0211-0306 ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 6HK1 TCS ENG(80L) 		1-19500-589-1 01 1 0307-1112 ● ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 6HK1 TCN ENG(82L) ENGINE REAR PTO(SV1) 		1-19500-589-1 01 1 0307-1112 ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 6HK1 TCS ENG(80L) 		8-98202-666-0 01 1 1201- ● ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 6HK1 TCN ENG(82L) ENGINE REAR PTO(SV1) 		8-98202-666-0 01 1 1201- ●
7 BOLT; OIL PUMP,P/S
M10X55 FLANGE 		8-94399-863-1 02 1 0005-0210 ● ● ●
7 BOLT; OIL PUMP,P/S
6HK1 TCN ENG(82L) ENGINE REAR PTO(SV1) M10X55 FLANGE 		8-94399-863-1 02 1 0211-0306 ●
7 BOLT; OIL PUMP,P/S
6HK1 TCS ENG(80L) M10X55 FLANGE 		8-94399-863-1 02 1 0307-0805 ● ●
7 BOLT; OIL PUMP,P/S
6HK1 TCN ENG(82L) ENGINE REAR PTO(SV1) M10X55 FLANGE 		8-94399-863-1 02 1 0307-0805 ●
7 BOLT; OIL PUMP,P/S
6HK1 TCS ENG(80L) M10X55 FLANGE 		8-97365-449-0 02 1 0806- ● ●
7 BOLT; OIL PUMP,P/S
6HK1 TCN ENG(82L) ENGINE REAR PTO(SV1) M10X55 FLANGE 		8-97365-449-0 02 1 0806- ●
10 HOSE; FLEX,P/S OIL PUMP,INL
6HK1 TCS ENG(80L) L=860 		1-09365-288-0 01 1 0307- ● ●
10 HOSE; FLEX,P/S OIL PUMP,INL
L=820 		1-09364-931-0 01 1 0005-0210 ● ● ●
10 HOSE; FLEX,P/S OIL PUMP,INL
L=1350 		1-09365-066-0 01 1 0211-0305 ● ● ●
10 HOSE; FLEX,P/S OIL PUMP,INL
6HK1 TCC ENG(81L),6HK1 TCN ENG(82L) L=1350 		1-09365-066-0 01 1 0306-0411 ● ●
10 HOSE; FLEX,P/S OIL PUMP,INL
6HK1 TCC ENG(81L) L=1350 		1-09365-066-0 01 1 0306-0411 ●
10 HOSE; FLEX,P/S OIL PUMP,INL
6HK1 TCC ENG(81L),6HK1 TCN ENG(82L) L=1350 		1-09365-066-0 01 1 0412- ● ●
10 HOSE; FLEX,P/S OIL PUMP,INL
6HK1 TCC ENG(81L) L=1350 		1-09365-066-0 01 1 0412- ●
10 HOSE; FLEX,P/S OIL PUMP,INL
6HK1 TCN ENG(82L) L=1350 		1-09365-066-0 01 1 0412- ●
14 UNION; FLEX HOSE,P/S
6HK1 TCS ENG(80L) 		1-47470-654-0 01 1 0307- ● ●
14 UNION; FLEX HOSE,P/S 1-47470-463-1 01 1 0005-0210 ● ● ●
15 CLIP; OIL PIPE SUCTION
6HK1 TCC ENG(81L) 		1-09701-210-0 02 1 0211-0411 ● ● ●
15 CLIP; OIL PIPE SUCTION
6HK1 TCN ENG(82L) EXC. ENGINE REAR PTO(SV1) 		1-09701-210-0 02 1 0211-0411 ● ●
15 CLIP; OIL PIPE SUCTION
6HK1 TCC ENG(81L) 		1-09701-210-0 02 1 0412- ● ● ●
15 CLIP; OIL PIPE SUCTION
6HK1 TCN ENG(82L) EXC. ENGINE REAR PTO(SV1) 		1-09701-210-0 02 1 0412- ● ●
15 CLIP; OIL PIPE SUCTION 1-09701-210-0 02 1 0412- ●
15 CLIP; OIL PIPE SUCTION
ID=32 		1-09704-085-0 02 1 0005-0210 ● ● ●
15 CLIP; OIL PIPE SUCTION
6HK1 TCN ENG(82L) ENGINE REAR PTO(SV1) ID=32 		1-09704-085-0 02 1 0211-0306 ●
15 CLIP; OIL PIPE SUCTION
6HK1 TCS ENG(80L) ID=32 		1-09704-085-0 02 1 0307- ● ●
15 CLIP; OIL PIPE SUCTION
6HK1 TCN ENG(82L) ENGINE REAR PTO(SV1) ID=32 		1-09704-085-0 02 1 0307- ●
23 GEAR; OIL PUMP
6HK1 TCC ENG(81L) Z=30 		8-94390-842-1 01 1 0211-0411 ● ● ●
23 GEAR; OIL PUMP
6HK1 TCN ENG(82L) EXC. ENGINE REAR PTO(SV1) Z=30 		8-94390-842-1 01 1 0211-0411 ● ●
23 GEAR; OIL PUMP
6HK1 TCC ENG(81L) Z=30 		8-94390-842-1 01 1 0412- ● ● ●
23 GEAR; OIL PUMP
6HK1 TCN ENG(82L) EXC. ENGINE REAR PTO(SV1) Z=30 		8-94390-842-1 01 1 0412- ● ●
23 GEAR; OIL PUMP
Z=30 		8-94390-842-1 01 1 0412- ●
23 GEAR; OIL PUMP
Z=30 		8-94396-957-3 01 1 0005-0210 ● ● ●
23 GEAR; OIL PUMP
6HK1 TCN ENG(82L) ENGINE REAR PTO(SV1) Z=30 		8-94396-957-3 01 1 0211-0306 ●
23 GEAR; OIL PUMP
6HK1 TCS ENG(80L) Z=30 		8-94396-957-3 01 1 0307- ● ●
23 GEAR; OIL PUMP
6HK1 TCN ENG(82L) ENGINE REAR PTO(SV1) Z=30 		8-94396-957-3 01 1 0307- ●
24 NUT; GEAR,P/S PUMP
6HK1 TCC ENG(81L) M12 FLANGE 		0-91150-112-0 01 1 0211-0411 ● ● ●
24 NUT; GEAR,P/S PUMP
6HK1 TCN ENG(82L) EXC. ENGINE REAR PTO(SV1) M12 FLANGE 		0-91150-112-0 01 1 0211-0411 ● ●
24 NUT; GEAR,P/S PUMP
6HK1 TCC ENG(81L) M12 FLANGE 		0-91150-112-0 01 1 0412-0602 ● ● ●
24 NUT; GEAR,P/S PUMP
6HK1 TCN ENG(82L) EXC. ENGINE REAR PTO(SV1) M12 FLANGE 		0-91150-112-0 01 1 0412-0602 ● ●
24 NUT; GEAR,P/S PUMP
M12 FLANGE 		0-91150-112-0 01 1 0412-0602 ●
24 NUT; GEAR,P/S PUMP
6HK1 TCC ENG(81L) M12 FLANGE 		0-91180-112-0 01 1 0603- ● ● ●
24 NUT; GEAR,P/S PUMP
6HK1 TCN ENG(82L) EXC. ENGINE REAR PTO(SV1) M12 FLANGE 		0-91180-112-0 01 1 0603- ● ●
24 NUT; GEAR,P/S PUMP
M12 FLANGE 		0-91180-112-0 01 1 0603- ●
24 NUT; GEAR,P/S PUMP
M14 FLANGE 		0-91150-114-0 01 1 0005-0210 ● ● ●
24 NUT; GEAR,P/S PUMP
6HK1 TCN ENG(82L) ENGINE REAR PTO(SV1) M14 FLANGE 		0-91150-114-0 01 1 0211-0306 ●
24 NUT; GEAR,P/S PUMP
6HK1 TCS ENG(80L) M14 FLANGE 		0-91150-114-0 01 1 0307-0712 ● ●
24 NUT; GEAR,P/S PUMP
6HK1 TCN ENG(82L) ENGINE REAR PTO(SV1) M14 FLANGE 		0-91150-114-0 01 1 0307-0712 ●
24 NUT; GEAR,P/S PUMP
6HK1 TCS ENG(80L) M14 FLANGE 		0-91180-114-0 01 1 0801- ● ●
24 NUT; GEAR,P/S PUMP
6HK1 TCN ENG(82L) ENGINE REAR PTO(SV1) M14 FLANGE 		0-91180-114-0 01 1 0801- ●
28 BOLT; BRKT,FLEX HOSE,P/S
6HK1 TCS ENG(80L) (A) M8X20 FLANGE 		0-28680-820-0 02 1 0307-0512 ● ●
28 BOLT; BRKT,FLEX HOSE,P/S
6HK1 TCS ENG(80L) (A) M8X20 FLANGE 		0-28650-820-0 02 1 0601- ● ●
28 BOLT; BRKT,FLEX HOSE,P/S
(A) M8X20 FLANGE 		0-28680-820-0 02 1 0005-0210 ● ● ●
28 BOLT; BRKT,FLEX HOSE,P/S
(B) M8X16 W/LK&PL WASHER 		1-09980-498-0 02 1 0005-0210 ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
