◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NMR ▶ 51418 - NMR 85(RHD)EURO4 ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-06 - CLUTCH SLAVE CYLINDER ▶
2-06 — CLUTCH SLAVE CYLINDER (#94045) — 23 parça
çizim 286181
1 8 7 3 6 4 2
BalonParca AdiParca NoAdetTipApplied Date
1 00.780 CYLINDER; SLAVE,CLU
CLUTCH SYSTEM AUTO ADJUSTER<8BG> (B) 		8-97310-989-1 01 1 1207-
1 00.780 CYLINDER; SLAVE,CLU
EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG> (A) 		8-98040-043-1 01 1 1207-
2 00.780 REPAIR KIT; CLU SLAVE CYL
CLUTCH SYSTEM AUTO ADJUSTER<8BG> 		5-87831-364-0 01 1 1207-1209
2 00.780 REPAIR KIT; CLU SLAVE CYL
CLUTCH SYSTEM AUTO ADJUSTER<8BG> 		5-87832-285-0 01 1 1210-
2 00.780 REPAIR KIT; CLU SLAVE CYL
EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG> 		5-87831-204-0 01 1 1207-
3 00.780 ROD; PUSH,SLAVE CYL
CLUTCH SYSTEM AUTO ADJUSTER<8BG> 		8-97255-517-0 01 1 1207-
3 00.780 ROD; PUSH,SLAVE CYL
EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG> 		8-98061-132-0 01 1 1207-
4 00.780 NUT; ADJ,SLAVE CYL PUSH ROD
EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG> 		8-98061-149-0 01 1 1207-
6 00.787 NUT; LK,ROD END
EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG> M10 		0-91111-510-0 01 1 1207-
7 00.780 SCREW; BLEEDER,SLAVE CYL
M8X10 		8-98020-477-0 01 1 1207-
8 00.780 CAP; BLEEDER,SLAVE CYL
OD=9.5 		9-47619-005-0 01 1 1207-1209
8 00.780 CAP; BLEEDER,SLAVE CYL
OD=10 		8-97940-638-0 01 1 1210-

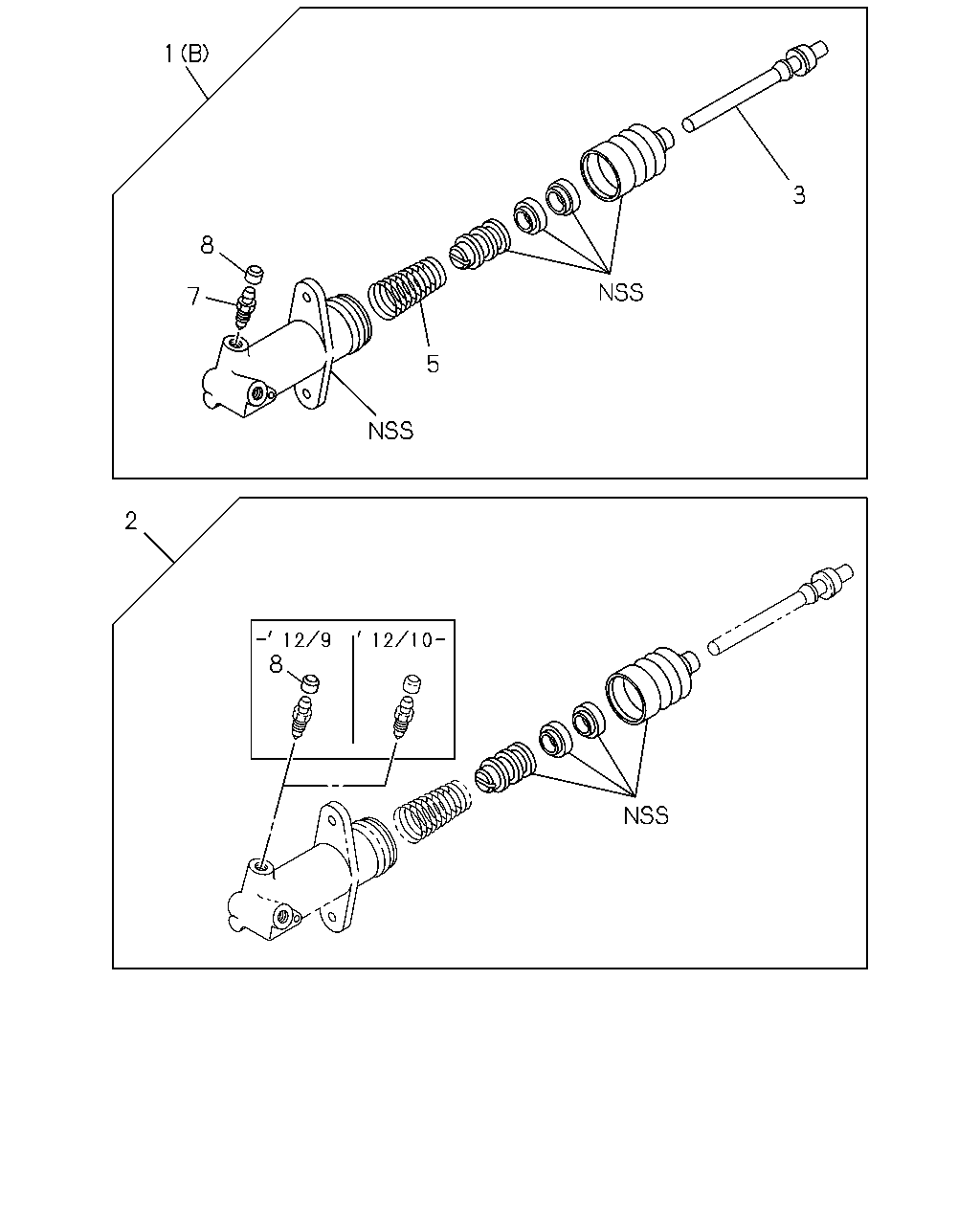

çizim 286583
1 8 7 5 3 8 2
BalonParca AdiParca NoAdetTipApplied Date
1 00.780 CYLINDER; SLAVE,CLU
CLUTCH SYSTEM AUTO ADJUSTER<8BG> (B) 		8-97310-989-1 01 1 1207-
1 00.780 CYLINDER; SLAVE,CLU
EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG> (A) 		8-98040-043-1 01 1 1207-
2 00.780 REPAIR KIT; CLU SLAVE CYL
CLUTCH SYSTEM AUTO ADJUSTER<8BG> 		5-87831-364-0 01 1 1207-1209
2 00.780 REPAIR KIT; CLU SLAVE CYL
CLUTCH SYSTEM AUTO ADJUSTER<8BG> 		5-87832-285-0 01 1 1210-
2 00.780 REPAIR KIT; CLU SLAVE CYL
EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG> 		5-87831-204-0 01 1 1207-
3 00.780 ROD; PUSH,SLAVE CYL
CLUTCH SYSTEM AUTO ADJUSTER<8BG> 		8-97255-517-0 01 1 1207-
3 00.780 ROD; PUSH,SLAVE CYL
EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG> 		8-98061-132-0 01 1 1207-
5 00.780 SPRING ASM; PISTON,SLAVE CYL
CLUTCH SYSTEM AUTO ADJUSTER<8BG> 		8-97160-570-0 01 1 1207-
7 00.780 SCREW; BLEEDER,SLAVE CYL
M8X10 		8-98020-477-0 01 1 1207-
8 00.780 CAP; BLEEDER,SLAVE CYL
OD=9.5 		9-47619-005-0 01 1 1207-1209
8 00.780 CAP; BLEEDER,SLAVE CYL
OD=10 		8-97940-638-0 01 1 1210-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
