Isuzu WW
▶
TRUCKS
▶
NMR
▶
51418 - NMR 85(RHD)EURO4
▶
2 - Clutch, Transmission, Trans Axle
▶
2-05 - CLUTCH PIPING
▶

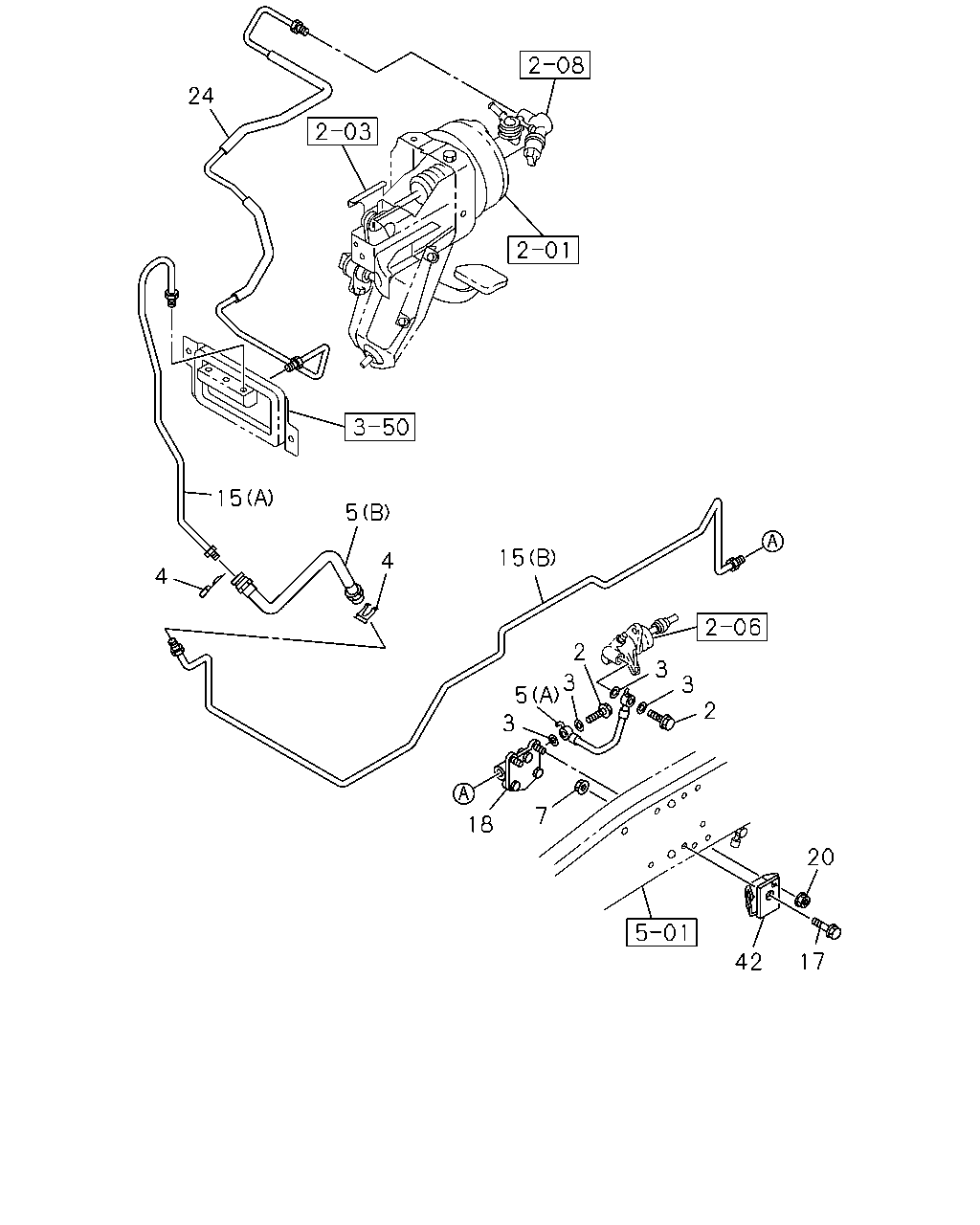

2-05 — CLUTCH PIPING
(#94044) — 16 parça
◀
[205A] NO.1 (15 parça)
[205A] NO.2 (1 parça)
▶
24
15
4
4
5
15
2
3
5
3
18
7
3
3
2
20
17
42
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
00.782 BOLT; EYE,SLAVE CYL
04.681 M10X22
8-98014-005-0
02
1
1207-
3
00.785 GASKET; FLEX HOSE,CLU
08.955 ID=10.2 OD=16.0
9-09571-410-0
04
1
1207-
4
00.785 CLIP; FLEX HOSE,CLU CONT
04.681
8-97365-304-0
02
1
1207-
5
00.785 HOSE; FLEX,CLU PIPE
CLUTCH SYSTEM AUTO ADJUSTER<8BG> (A)
8-98098-575-1
01
1
1207-
5
00.785 HOSE; FLEX,CLU PIPE
(B)
8-98083-907-0
01
1
1207-
5
00.785 HOSE; FLEX,CLU PIPE
EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG> (A)
8-98077-611-2
01
1
1207-
7
00.785 NUT; FLEX HOSE,CLU CONT
03.162 M10 FLANGE
0-91180-110-0
01
1
1207-
15
00.785 PIPE; CLU,FLEX HOSE
(A)
8-97389-642-1
01
1
1207-
15
00.785 PIPE; CLU,FLEX HOSE
(B)
8-98110-845-0
01
1
1207-
17
00.785 BOLT; BRKT
00.029 M10X30 FLANGE
0-28651-030-0
01
1
1207-
18
00.830 DAMPER ASM; CLU OIL
8-98077-610-1
01
1
1207-
20
00.837 NUT; CLU OIL DAMPER
01.062 M8 FLANGE
0-91180-108-0
02
1
1207-
24
00.785 PIPE ASM; CLU,M/CYL TO UNION
POWER ASSIST CLUTCH(S2T)
8-97389-356-1
01
1
1207-
24
00.785 PIPE ASM; CLU,M/CYL TO UNION
EXC. POWER ASSIST CLUTCH(S2T)
8-98077-617-0
01
1
1207-
42
00.785 BRACKET; FLEX HOSE,CLU CONT
8-98041-335-1
01
1
1207-
183
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
183
00.785 HOSE; VAC,VAC TANK SIDE
POWER ASSIST CLUTCH(S2T)
8-98121-942-0
01
1
1207-
