Isuzu WW
▶
TRUCKS
▶
NMR
▶
51418 - NMR 85(RHD)EURO4
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-56 - EXHAUST BRAKE SYSTEM
▶
1-56 — EXHAUST BRAKE SYSTEM
(#94041) — 13 parça
◀

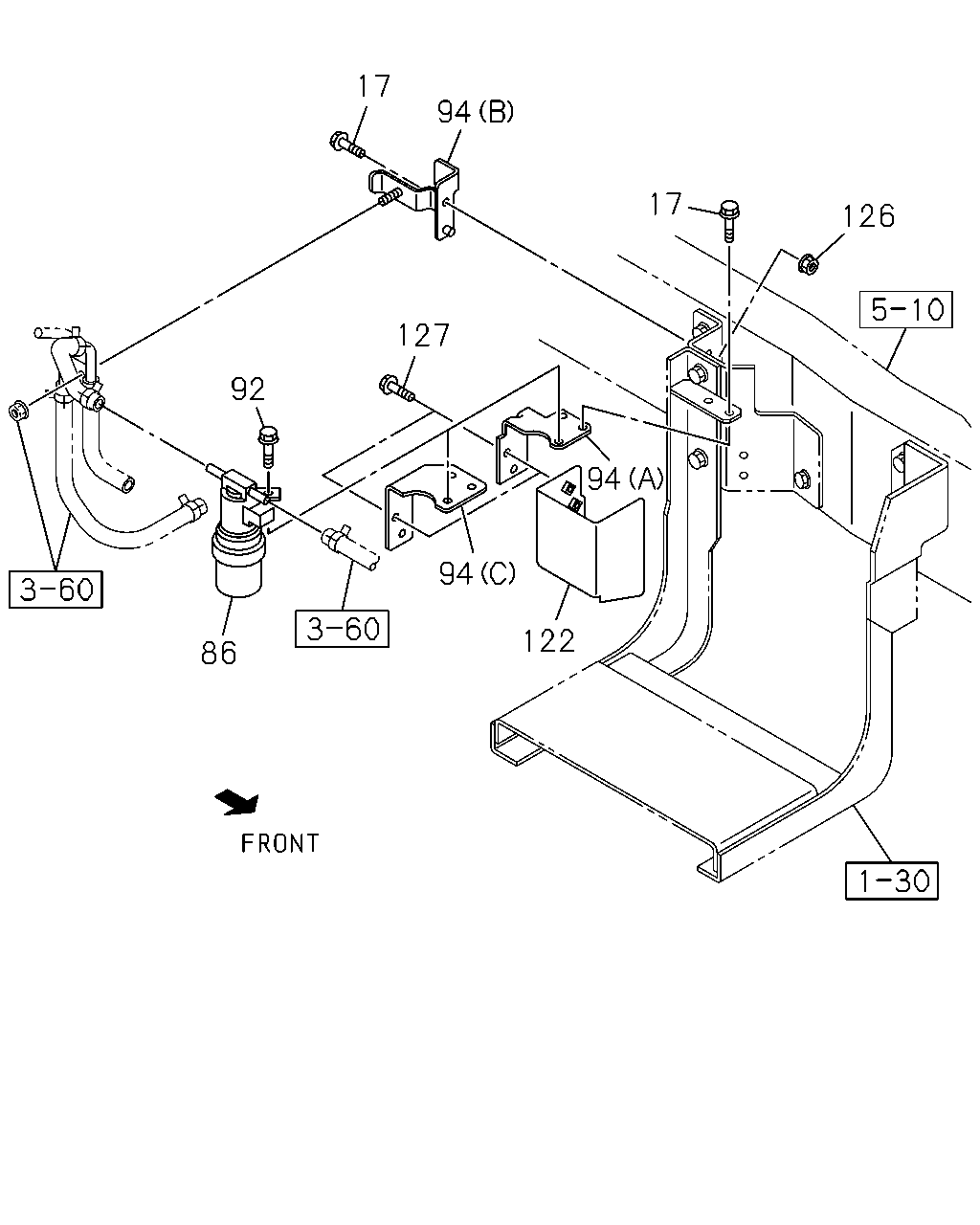

[156A] EXH BRAKE MAG VALVE (10 parça)
[156A] EXH BRAKE UNIT (3 parça)
▶
86
92
127
94
122
94
17
94
17
126
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
17
03.634 BOLT; BRKT
06.216 M8X25 FLANGE
0-28650-825-0
01
1
1207-
17
03.634 BOLT; BRKT
06.216 M8X25 FLANGE
0-28650-825-0
02
1
1207-
86
03.636 VALVE; MAG,EXH BRK
8-98043-344-0
01
1
1207-
92
08.900 BOLT; MAG VLV
06.216 M8X25 FLANGE
0-28650-825-0
01
1
1207-
94
03.634 BRACKET; MAG VLV,EXH BRAKE
(B)
8-98042-694-2
01
1
1207-
94
03.634 BRACKET; MAG VLV,EXH BRAKE
(A)
8-98042-145-2
01
1
1207-1207
94
03.634 BRACKET; MAG VLV,EXH BRAKE
(C)
8-98211-757-1
01
1
1207-
122
03.640 PROTECTOR; MAG VLV
8-98098-564-0
01
1
1207-
126
03.634 NUT; BRKT
01.062 M8 FLANGE
0-91180-108-0
01
1
1207-
127
04.902 BOLT; PROTECTOR
03.162 M6X12 FLANGE
0-28050-612-0
02
1
1207-
5
1
5
8
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
03.632 BRAKE UNIT; EXH
8-98033-200-1
01
1
1207-
5
03.634 GASKET; EXH BRAKE UNIT
ID=54
8-94328-354-0
02
1
1207-
8
03.632 NUT; EXH BRAKE UNIT FIX
03.417 M8 W/LK WASHER
8-97581-234-0
04
1
1207-
