Isuzu WW
▶
TRUCKS
▶
NMR
▶
51418 - NMR 85(RHD)EURO4
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-40 - FUEL TANK
▶
1-40 — FUEL TANK
(#94037) — 25 parça
◀

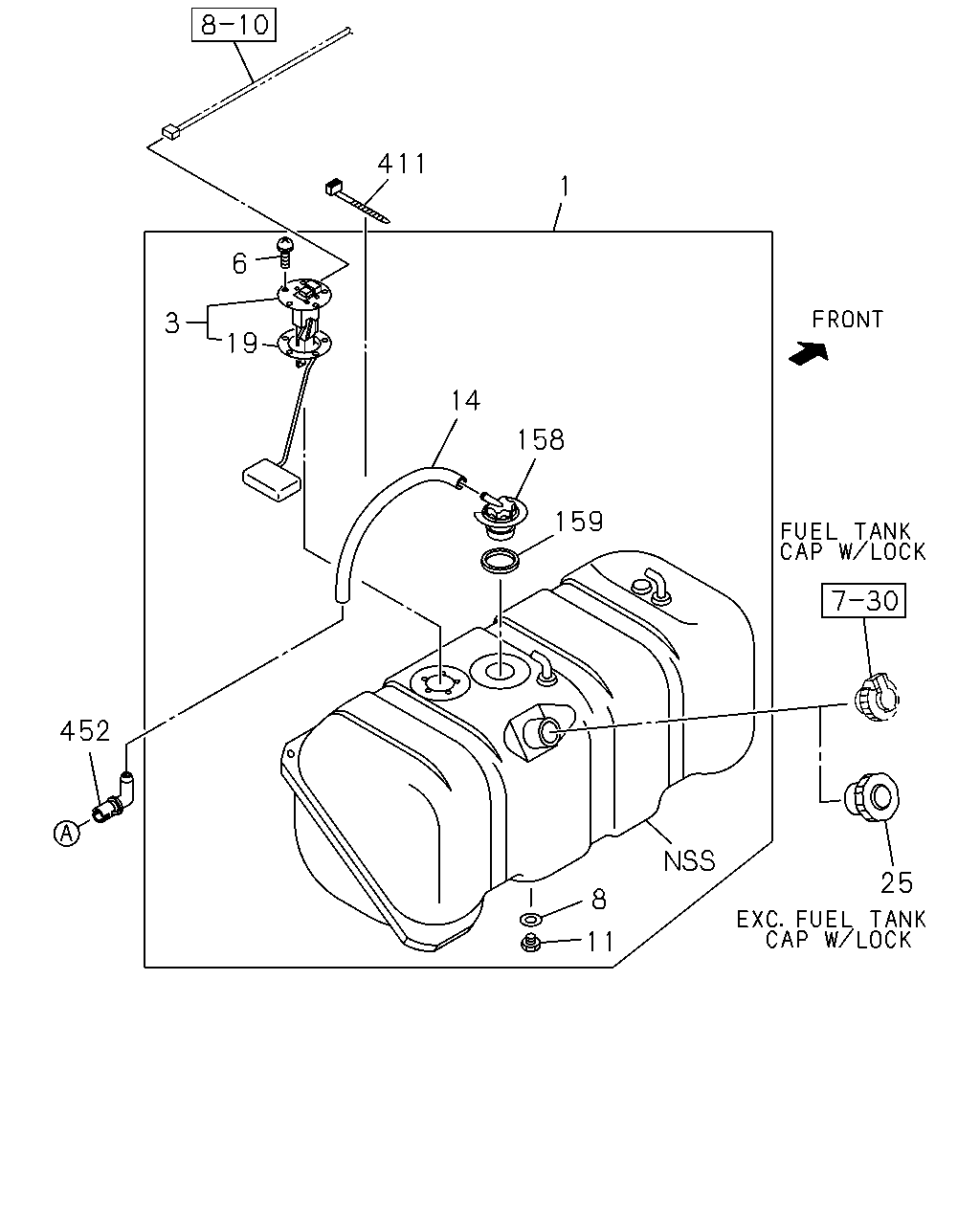

[140A] COMPONENT;FUEL TANK (12 parça)

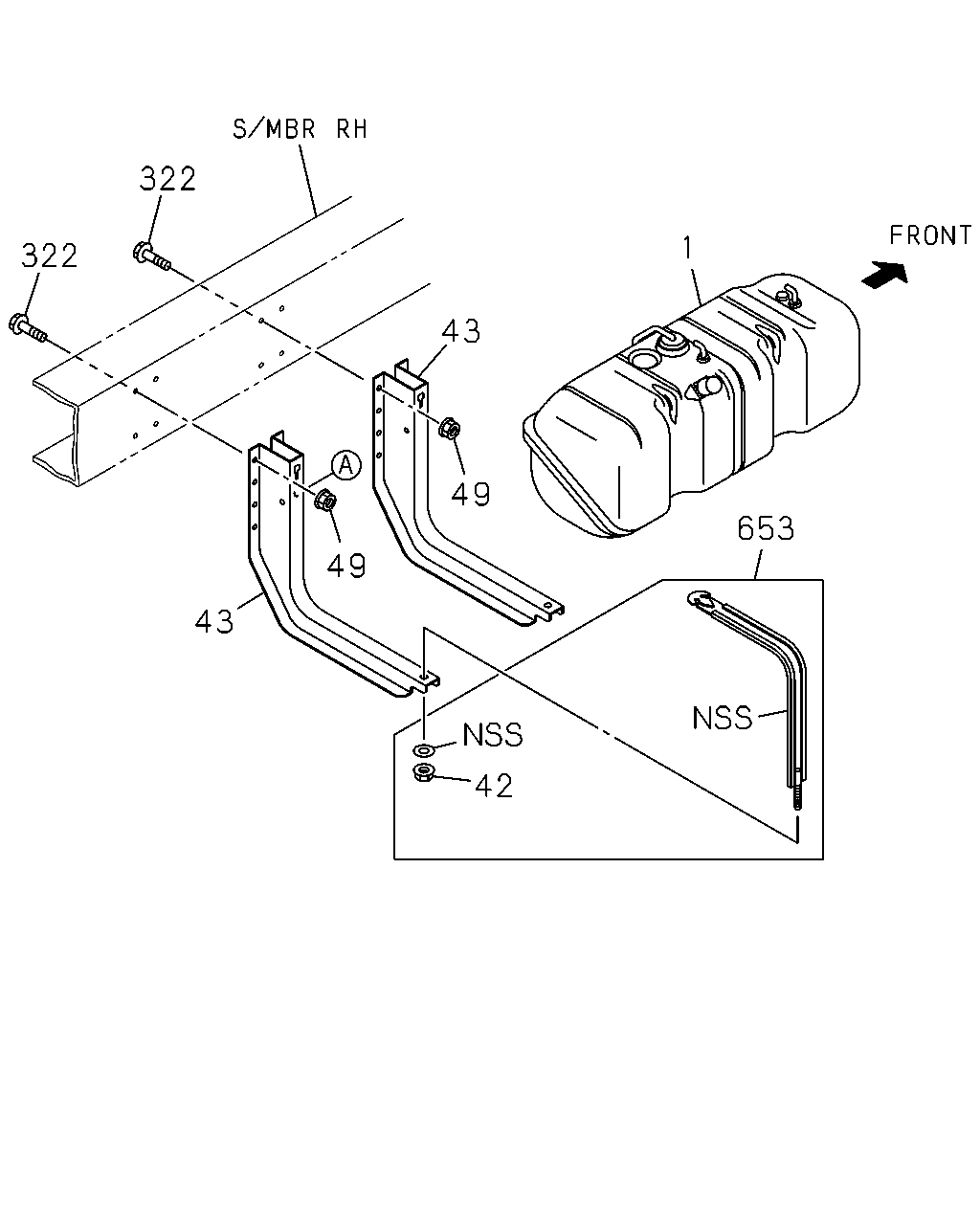

[140A] FIXING;FUEL TANK (9 parça)
[140A] FIXING;SEDIMENTER BRACKET (4 parça)
▶
411
1
14
158
159
19
3
6
452
25
8
11
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
03.001 TANK; FUEL
1003X375X380 100L
8-98021-295-6
01
1
1207-
3
03.107 UNIT; FUEL TANK,SUB
8-98056-704-0
01
1
1207-
6
03.115 SCREW; TANK UNIT TO SUB FUEL TAN
M5X12 W/LK WASHER
0-36220-512-0
05
1
1207-
8
03.890 GASKET; DRAIN PLUG,FUEL TANK
08.955 ID=8.2 OD=17
9-09572-008-0
01
1
1207-
11
03.890 PLUG; DRAIN,FUEL TANK
02.343 M8X12 FLANGE
0-28050-812-0
01
1
1207-
14
03.163 HOSE; BREATHER,OUTLET
L=420
8-98157-809-0
01
1
1207-
19
03.112 GASKET; FUEL TANK UNIT
8-98051-797-0
01
1
1207-
25
03.028 CAP; FILLER,FUEL TANK
EXC. FUEL TANK CAP W/LOCK<N05>
8-97387-179-0
01
1
1207-
158
03.164 VALVE; ROLL OVER & FLOAT
8-97179-645-0
01
1
1207-
159
03.015 SEAL; ROLL OVER & FLOAT VALVE
8-97326-488-0
01
1
1207-
411
02.559 CLIP; FUEL TANK UNIT HARNESS
03.162 L=140
5-09707-031-1
02
1
1207-
452
03.028 BREATHER; FUEL TANK
8-97357-261-0
01
1
1207-
322
322
43
49
49
43
1
653
42
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
03.001 TANK; FUEL
1003X375X380 100L
8-98021-295-6
01
1
1207-
42
03.023 NUT; SUPPORT BELT
M8 FLANGE
9-09130-408-0
02
1
1207-
43
03.015 BRACKET; FUEL TANK
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FRONT
8-97384-056-1
01
1
1207-
43
03.015 BRACKET; FUEL TANK
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REAR
8-97384-081-1
01
1
1207-
43
03.015 BRACKET; FUEL TANK
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FRONT
8-98061-738-1
01
1
1207-
43
03.015 BRACKET; FUEL TANK
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REAR
8-98061-739-1
01
1
1207-
49
03.023 NUT; BRKT
04.085 M10 FLANGE
0-91180-210-0
08
1
1207-
322
03.895 BOLT; BRKT FIX
07.068 M10X30 FLANGE
0-28661-030-0
08
1
1207-
653
03.022 BAND KIT; FUEL TANK
5-87411-970-0
02
1
1207-
300
303
302
300
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
300
03.162 BOLT; BRKT TO BODY
06.216 (A) M8X25 FLANGE
0-28650-825-0
02
1
1207-
300
03.162 BOLT; BRKT TO BODY
03.613 (B) M10X40 FLANGE
0-28651-040-0
02
1
1207-
302
03.162 WASHER; PL,SEDIMENTER
04.085 ID=10.5 OD=26
0-91614-710-0
02
1
1207-
303
03.162 NUT; SEDIMENTER BRKT
M10 FLANGE
0-91180-110-0
02
1
1207-
