Isuzu WW
▶
TRUCKS
▶
NMR
▶
51418 - NMR 85(RHD)EURO4
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-10 - RADIATOR
▶
1-10 — RADIATOR
(#94032) — 45 parça
◀
[110A] NO.1 (16 parça)
[110A] NO.2 (29 parça)
▶

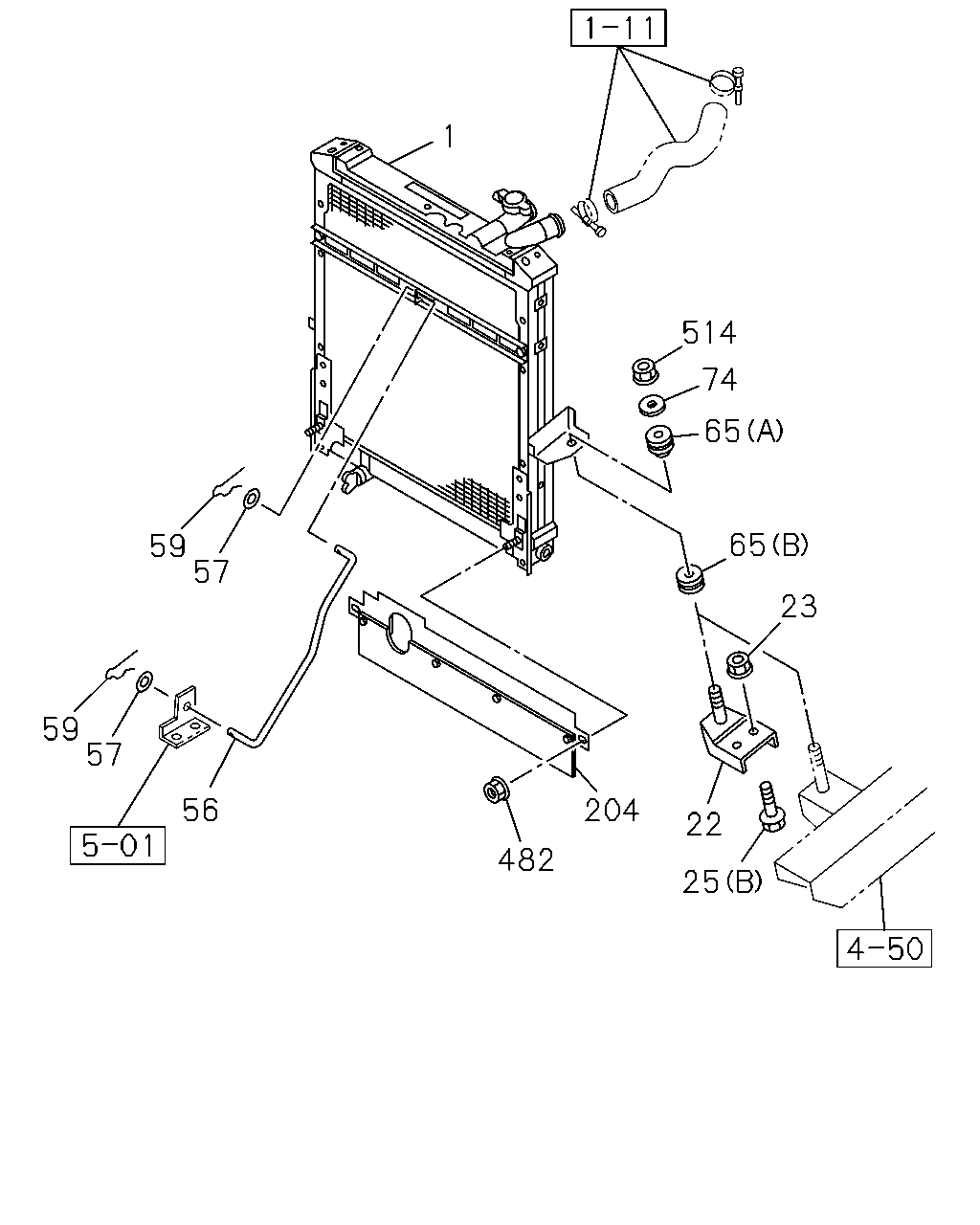

1
514
65
74
65
23
204
22
25
482
56
57
59
59
57
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
01.219 RADIATOR ASM
8-98094-463-0
01
1
1207-1410
1
01.219 RADIATOR ASM
8-98296-900-0
01
1
1411-
22
01.270 BRACKET; RAD MTG
8-97383-951-0
01
1
1207-
22
01.270 BRACKET; RAD MTG
8-97383-952-0
01
1
1207-
23
01.271 NUT; RAD MTG
03.162 M10 FLANGE
0-91180-110-0
04
1
1207-
25
01.271 BOLT; BRKT
03.162 (A) M6X12 FLANGE
0-28050-612-0
04
1
1207-
25
01.271 BOLT; BRKT
00.029 (B) M10X30 FLANGE
0-28651-030-0
04
1
1207-
56
01.270 STAY; RAD
8-97383-947-1
01
1
1207-
57
01.271 WASHER; PL,STAY
17.198 ID=10.5
0-91610-510-0
02
1
1207-
59
01.271 PIN; SNAP,STAY
L=32.6
8-97359-052-0
02
1
1207-
65
01.271 INSULATOR; RAD
01.270 (A)
8-94249-346-0
02
1
1207-
65
01.271 INSULATOR; RAD
01.270 (B)
8-94249-347-0
02
1
1207-
74
01.270 WASHER; PL,CUSHION RUBBER
ID=8.5 OD=36
8-97359-049-1
02
1
1207-
204
01.267 GUIDE ASM; AIR
8-97383-928-1
01
1
1207-
482
01.277 NUT; AIR GUIDE
01.062 M8 FLANGE
0-91180-108-0
02
1
1207-
514
01.276 NUT; RAD
01.062 M8 FLANGE
0-91180-108-0
02
1
1207-

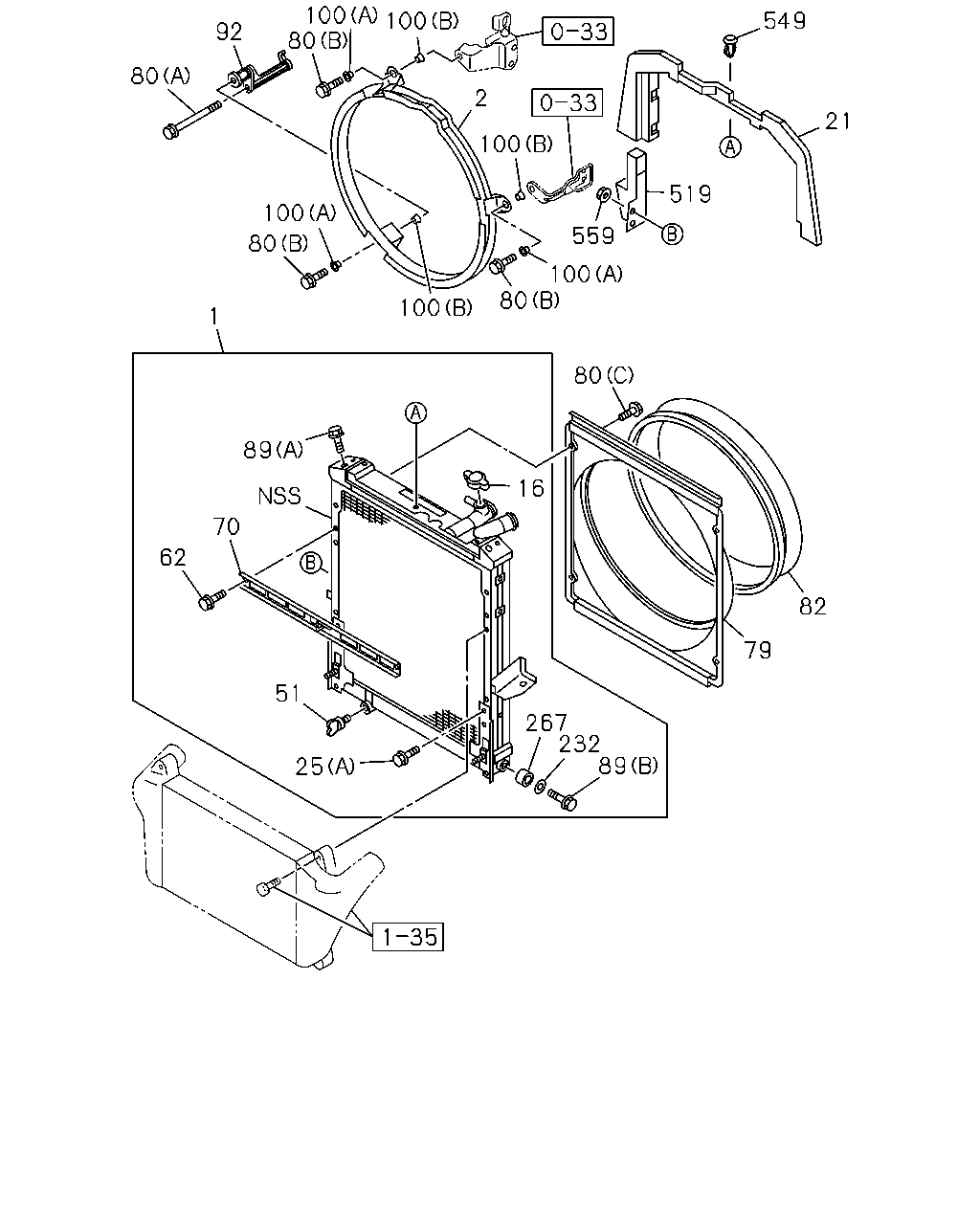

89
232
267
79
82
25
51
62
70
1
16
100
80
80
100
559
519
21
549
100
2
100
100
80
92
80
100
80
89
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
01.219 RADIATOR ASM
8-98094-463-0
01
1
1207-1410
1
01.219 RADIATOR ASM
8-98296-900-0
01
1
1411-
2
01.277 GUIDE; FAN
8-98054-659-0
01
1
1207-
16
01.203 CAP; RAD
8-97239-187-0
01
1
1207-
21
01.276 SEAL; RAD
8-98000-816-0
01
1
1207-
25
01.271 BOLT; BRKT
03.162 (A) M6X12 FLANGE
0-28050-612-0
04
1
1207-
25
01.271 BOLT; BRKT
00.029 (B) M10X30 FLANGE
0-28651-030-0
04
1
1207-
51
08.951 PLUG; DRAIN
W/GASKET
8-97171-437-0
01
1
1207-
62
01.271 BOLT; STAY
02.343 M8X12 FLANGE
0-28050-812-0
02
1
1207-
70
01.271 STAY; RAD
8-98114-297-0
01
1
1207-
79
01.277 GUIDE; FAN,RAD
8-97387-081-1
01
1
1207-1410
79
01.277 GUIDE; FAN,RAD
8-98234-712-0
01
1
1411-
80
01.277 BOLT; FAN GUIDE
01.428 (A) M8X130 FLANGE
0-28055-813-0
01
1
1207-
80
01.277 BOLT; FAN GUIDE
03.403 (B) M8X30 FLANGE
0-28650-830-0
03
1
1207-
80
01.277 BOLT; FAN GUIDE
(C) M6X12
8-98039-672-0
02
1
1207-1410
80
01.277 BOLT; FAN GUIDE
(C) M6X12
8-98039-672-0
04
1
1411-
82
01.277 COVER; FAN,RAD
8-97387-085-1
01
1
1207-
89
01.277 BOLT
02.343 (A) M8X12 FLANGE
0-28050-812-0
02
1
1207-
89
01.277 BOLT
01.271 (B) M8X25 W/PL WASHER
1-21469-153-0
02
1
1207-
92
01.277 BRACKET; FAN GUIDE
8-97381-550-1
01
1
1207-1303
92
01.277 BRACKET; FAN GUIDE
8-98237-770-0
01
1
1304-
100
01.277 RUBBER; MTG
(B) OD=32
8-94395-766-0
03
1
1207-
100
01.277 RUBBER; MTG
(A) OD=32
8-98058-502-1
03
1
1207-
232
01.540 COLLAR; DIST,CUSHION RUBBER
1-87410-723-0
02
1
1207-1410
232
01.540 COLLAR; DIST,CUSHION RUBBER
8-98141-232-0
02
1
1411-
267
01.277 RUBBER; CUSHION
1-21467-023-0
02
1
1207-
519
01.276 SEAL; RAD SIDE
8-98038-591-0
01
1
1207-
549
03.438 CLIP; SEAL,RAD
01.276
8-97228-568-0
05
1
1207-
559
01.276 NUT; RAD SIDE
01.062 M6 FLANGE
0-91180-106-0
02
1
1207-
