Isuzu WW
▶
TRUCKS
▶
FRR
▶
10826 - FRR/FSR/FRD(AUST)
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-33 - STEERING LINKAGE
▶
4-33 — STEERING LINKAGE
(#9403) — 60 parça
Tümü
A - FRR5MF
B - FRR5WF
C - FRD5MF
D - FSR5MF
◀

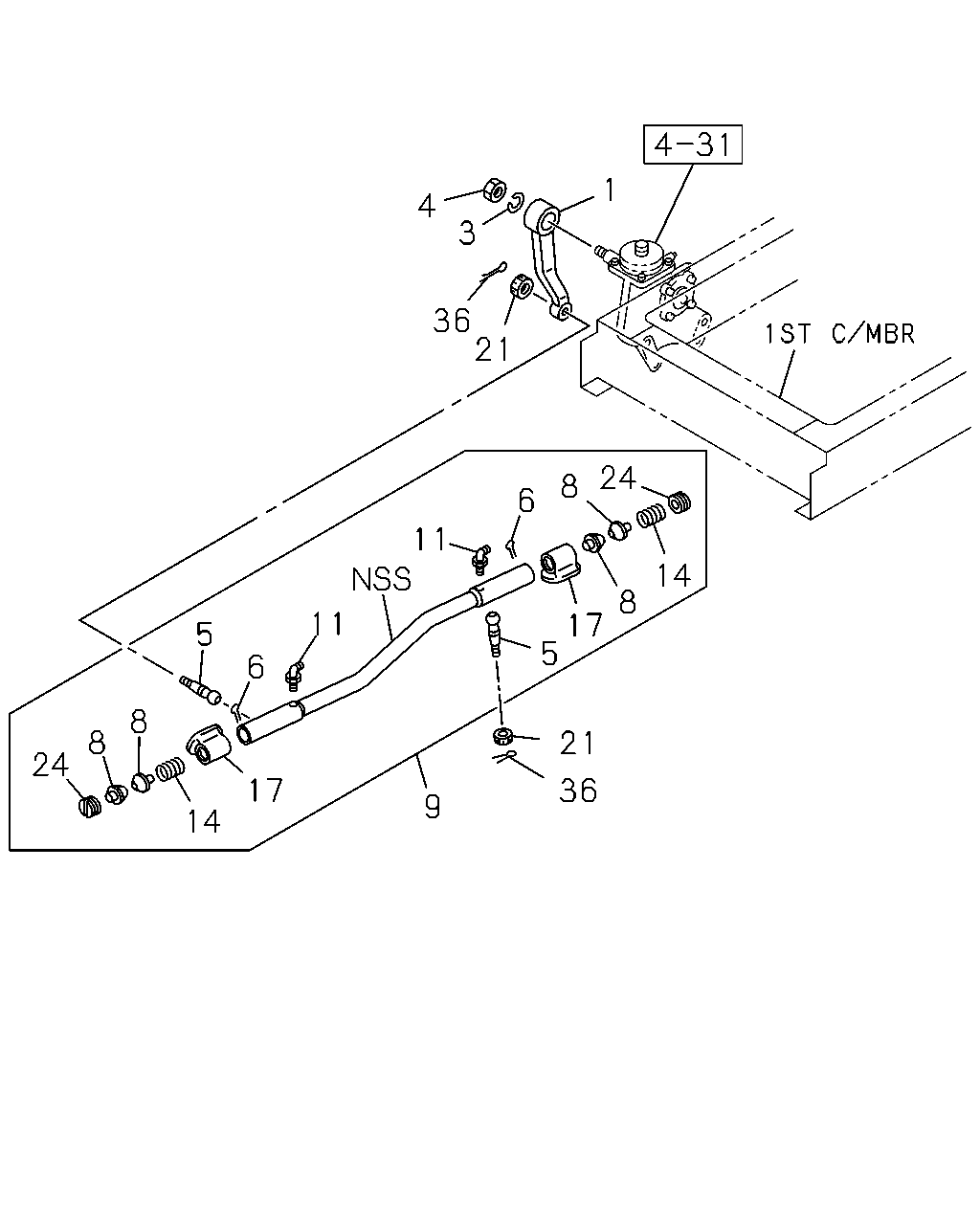

[433A] FSR (32 parça)

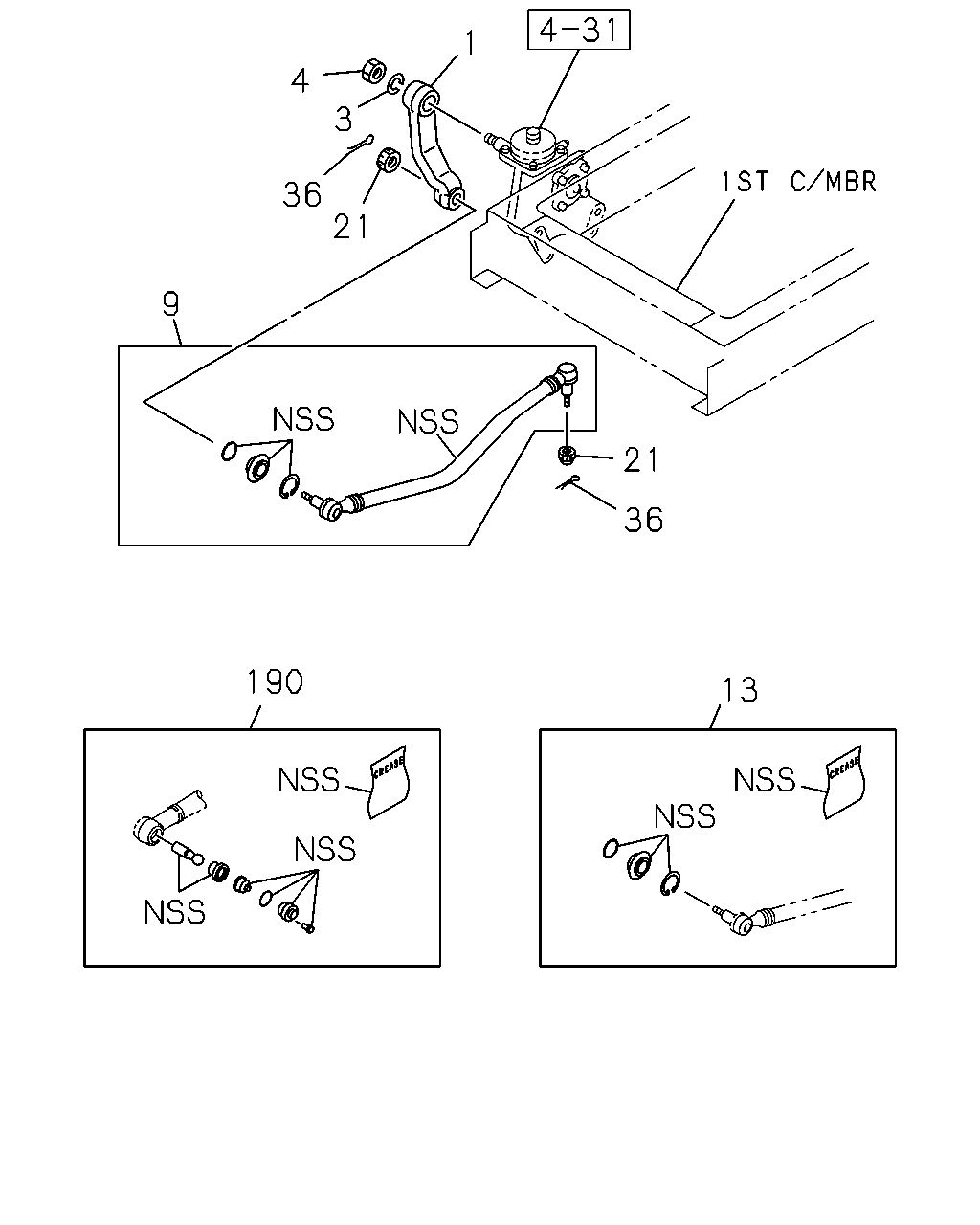

[433A] FRR,FRD (28 parça)
▶
1
4
3
36
21
24
8
6
11
14
8
11
17
5
5
6
8
8
21
24
17
36
9
14
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
1
ARM; PITMAN,STRG
1-44341-406-0
01
1
0005-0211
●
●
1
ARM; PITMAN,STRG
1-44341-479-1
01
1
0212-0411
●
●
1
ARM; PITMAN,STRG
1-44341-479-1
01
1
0412-
●
●
●
1
ARM; PITMAN,STRG
1-44341-309-3
01
1
0005-
●
3
WASHER; LK,PITMAN ARM
ID=30.5
1-09500-026-0
01
1
0005-0411
●
●
●
3
WASHER; LK,PITMAN ARM
ID=30.5
1-09500-026-0
01
1
0412-0805
●
●
●
●
3
WASHER; LK,PITMAN ARM
ID=30.5
1-09500-055-0
01
1
0806-
●
●
●
●
4
NUT; PITMAN ARM
M30
1-09400-050-0
01
1
0005-0411
●
●
●
4
NUT; PITMAN ARM
M30
1-09400-050-0
01
1
0412-0805
●
●
●
●
4
NUT; PITMAN ARM
M30
1-09400-166-0
01
1
0806-
●
●
●
●
5
BALL; JOINT,DRAG LINK
1-44361-110-1
02
1
0005-
●
6
PIN; SPLIT,ADJ SCREW
9-08115-065-0
03
1
0005-
●
8
SEAT; SPR,ROD END
OD=36
9-09881-340-0
04
1
0005-
●
9
LINK; DRAG
1-44380-153-0
01
1
0005-0109
●
●
9
LINK; DRAG
1-44380-262-0
01
1
0110-0411
●
●
9
LINK; DRAG
1-44380-262-0
01
1
0412-
●
●
●
9
LINK; DRAG
1-44380-072-1
01
1
0005-
●
11
NIPPLE; GREASE,DRAG LINK
PT1/8 ELBOW 67.5 DEGREES
9-09031-110-0
02
1
0005-0512
●
11
NIPPLE; GREASE,DRAG LINK
PT1/8 ELBOW 67.5 DEGREES
0-90301-510-0
02
1
0601-
●
14
SPRING; COIL,DRAG LINK
9-09940-639-1
02
1
0005-
●
17
GUARD; MUD,DRAG LINK
1-44365-020-0
02
1
0005-
●
21
NUT; LK,JOINT BALL
M16 SLOTTED
1-09442-021-1
02
1
0005-0411
●
●
21
NUT; LK,JOINT BALL
M16 SLOTTED
1-09442-021-1
02
1
0412-0805
●
●
●
21
NUT; LK,JOINT BALL
M16 SLOTTED
1-09442-031-0
02
1
0806-
●
●
●
21
NUT; LK,JOINT BALL
M24 SLOTTED
1-09442-020-0
02
1
0005-0805
●
21
NUT; LK,JOINT BALL
M24
1-09442-032-0
02
1
0806-
●
24
PLUG; ADJ,DRAG LINK
9-44375-021-0
02
1
0005-
●
36
PIN; SPLIT,DRAG LINK
OD=3.7 L=25
9-08114-025-0
02
1
0005-0411
●
●
36
PIN; SPLIT,DRAG LINK
OD=3.7 L=25
9-08114-025-0
02
1
0412-0606
●
●
●
36
PIN; SPLIT,DRAG LINK
OD=3.7 L=25
0-81124-025-0
02
1
0607-
●
●
●
36
PIN; SPLIT,DRAG LINK
OD=4.6 L=35
9-08115-035-0
02
1
0005-0606
●
36
PIN; SPLIT,DRAG LINK
OD=4.6 L=35
0-81125-035-0
02
1
0607-
●
1
4
3
36
21
9
21
36
190
13
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
1
ARM; PITMAN,STRG
1-44341-406-0
01
1
0005-0211
●
●
1
ARM; PITMAN,STRG
1-44341-479-1
01
1
0212-0411
●
●
1
ARM; PITMAN,STRG
1-44341-479-1
01
1
0412-
●
●
●
1
ARM; PITMAN,STRG
1-44341-309-3
01
1
0005-
●
3
WASHER; LK,PITMAN ARM
ID=30.5
1-09500-026-0
01
1
0005-0411
●
●
●
3
WASHER; LK,PITMAN ARM
ID=30.5
1-09500-026-0
01
1
0412-0805
●
●
●
●
3
WASHER; LK,PITMAN ARM
ID=30.5
1-09500-055-0
01
1
0806-
●
●
●
●
4
NUT; PITMAN ARM
M30
1-09400-050-0
01
1
0005-0411
●
●
●
4
NUT; PITMAN ARM
M30
1-09400-050-0
01
1
0412-0805
●
●
●
●
4
NUT; PITMAN ARM
M30
1-09400-166-0
01
1
0806-
●
●
●
●
9
LINK; DRAG
1-44380-153-0
01
1
0005-0109
●
●
9
LINK; DRAG
1-44380-262-0
01
1
0110-0411
●
●
9
LINK; DRAG
1-44380-262-0
01
1
0412-
●
●
●
9
LINK; DRAG
1-44380-072-1
01
1
0005-
●
13
BOOT; DRAG LINK
1-85574-063-0
02
1
0005-0109
●
●
13
BOOT; DRAG LINK
1-85574-046-0
02
1
0110-0411
●
●
13
BOOT; DRAG LINK
1-85574-046-0
02
1
0412-
●
●
●
21
NUT; LK,JOINT BALL
M16 SLOTTED
1-09442-021-1
02
1
0005-0411
●
●
21
NUT; LK,JOINT BALL
M16 SLOTTED
1-09442-021-1
02
1
0412-0805
●
●
●
21
NUT; LK,JOINT BALL
M16 SLOTTED
1-09442-031-0
02
1
0806-
●
●
●
21
NUT; LK,JOINT BALL
M24 SLOTTED
1-09442-020-0
02
1
0005-0805
●
21
NUT; LK,JOINT BALL
M24
1-09442-032-0
02
1
0806-
●
36
PIN; SPLIT,DRAG LINK
OD=3.7 L=25
9-08114-025-0
02
1
0005-0411
●
●
36
PIN; SPLIT,DRAG LINK
OD=3.7 L=25
9-08114-025-0
02
1
0412-0606
●
●
●
36
PIN; SPLIT,DRAG LINK
OD=3.7 L=25
0-81124-025-0
02
1
0607-
●
●
●
36
PIN; SPLIT,DRAG LINK
OD=4.6 L=35
9-08115-035-0
02
1
0005-0606
●
36
PIN; SPLIT,DRAG LINK
OD=4.6 L=35
0-81125-035-0
02
1
0607-
●
190
REPAIR KIT; DRAG LINK
1-85574-062-0
02
1
0005-0109
●
●
