0-52 — OIL AND VACUUM PIPING; ENGINE (#94025) — 41 parça

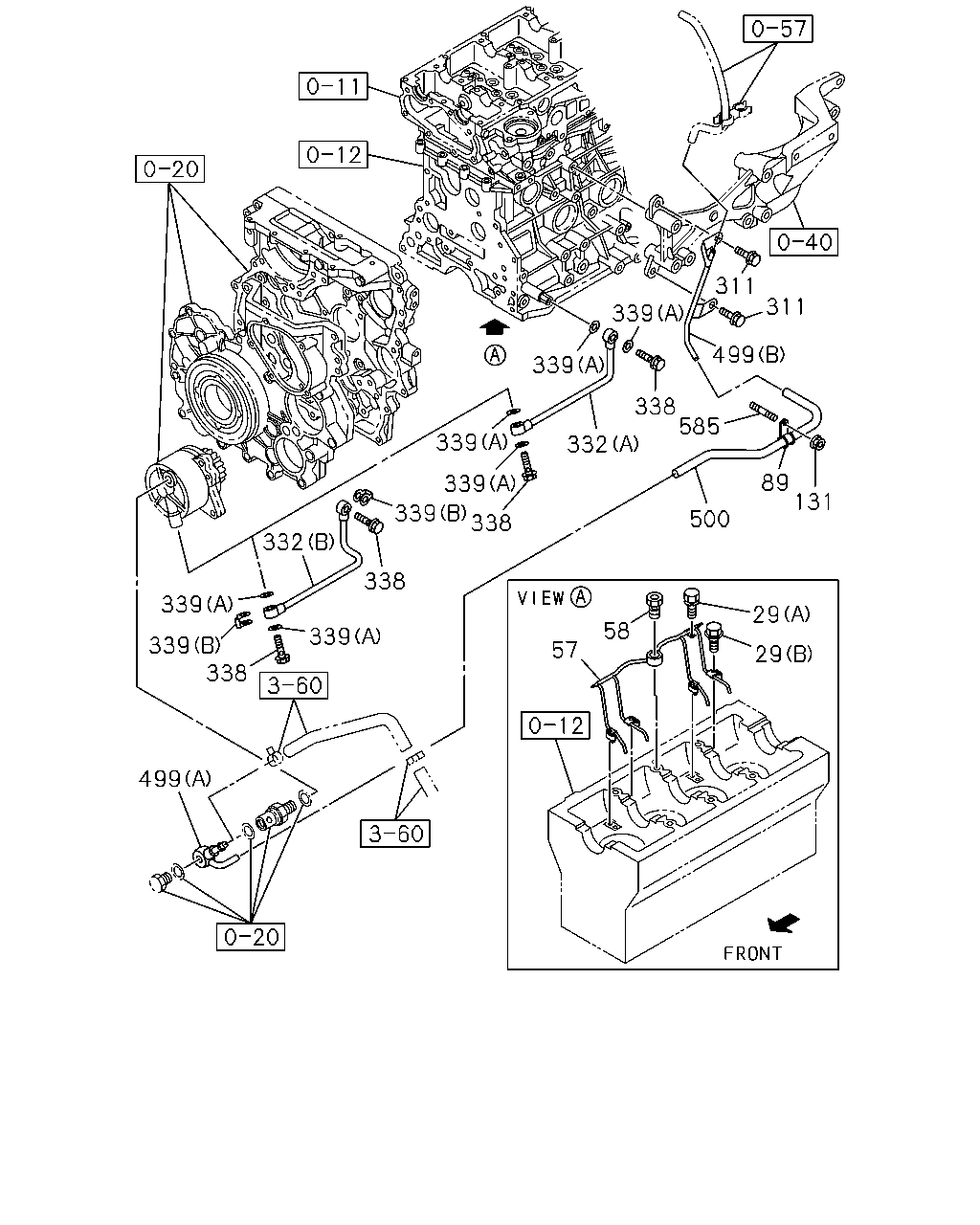

çizim 286105
339 339 338 339 338 339 338 339 339 499 58 57 29 29 89 500 131 585 338 332 339 339 311 311 499 332
BalonParca AdiParca NoAdetTipApplied Date
29 01.531 BOLT; OIL PIPE,OIL JET
03.407 (A) M8X10 FLANGE 		0-28050-810-0 01 1 1207-
29 01.531 BOLT; OIL PIPE,OIL JET
(B) M6X20 		8-97117-298-1 04 1 1207-
57 01.519 PIPE; OIL,OIL JET 8-97312-132-3 01 1 1207-
58 01.531 VALVE; RELIEF,OIL JET,PISTON COO 8-97239-048-1 01 1 1207-1407
58 01.531 VALVE; RELIEF,OIL JET,PISTON COO 8-98285-334-0 01 1 1408-
89 04.681 CLIP; VAC HOSE 9-09520-835-0 01 1 1207-
131 01.531 NUT; UNION
06.164 M8 FLANGE 		5-09440-010-0 01 1 1207-
311 01.531 BOLT; PIPE FIX
03.162 M6X12 FLANGE 		0-28050-612-0 02 1 1207-
332 01.519 PIPE; OIL,C/BL TO VAC PUMP
(A) 		8-98038-929-0 01 1 1207-1212
332 01.519 PIPE; OIL,C/BL TO VAC PUMP
(B) 		8-98201-785-0 01 1 1301-
338 01.531 BOLT; JOINT,OIL PIPE
M8X20 EYE-BOLT 		5-09675-018-1 02 1 1207-
339 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 03.332 (B) ID=8.3 OD=15.0 		8-98065-992-0 01 1 1301-1302
339 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 03.332 (B) ID=8.3 OD=15.0 		8-98065-992-0 02 1 1303-
339 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 05.398 (A) ID=8.2 OD=14.0 T=1.0 		9-09571-408-0 04 1 1207-1212
339 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 05.398 (A) ID=8.2 OD=14.0 T=1.0 		9-09571-408-0 02 1 1301-1302
499 04.681 PIPE; VACUUM
(A) 		8-97381-661-3 01 1 1207-
499 04.681 PIPE; VACUUM
(B) 		8-97385-434-1 01 1 1207-
500 04.681 HOSE; VACUUM 8-97369-587-1 01 1 1207-
585 01.531 STUD; CLIP
01.428 M8X18 L=30 		0-41010-818-0 01 1 1207-

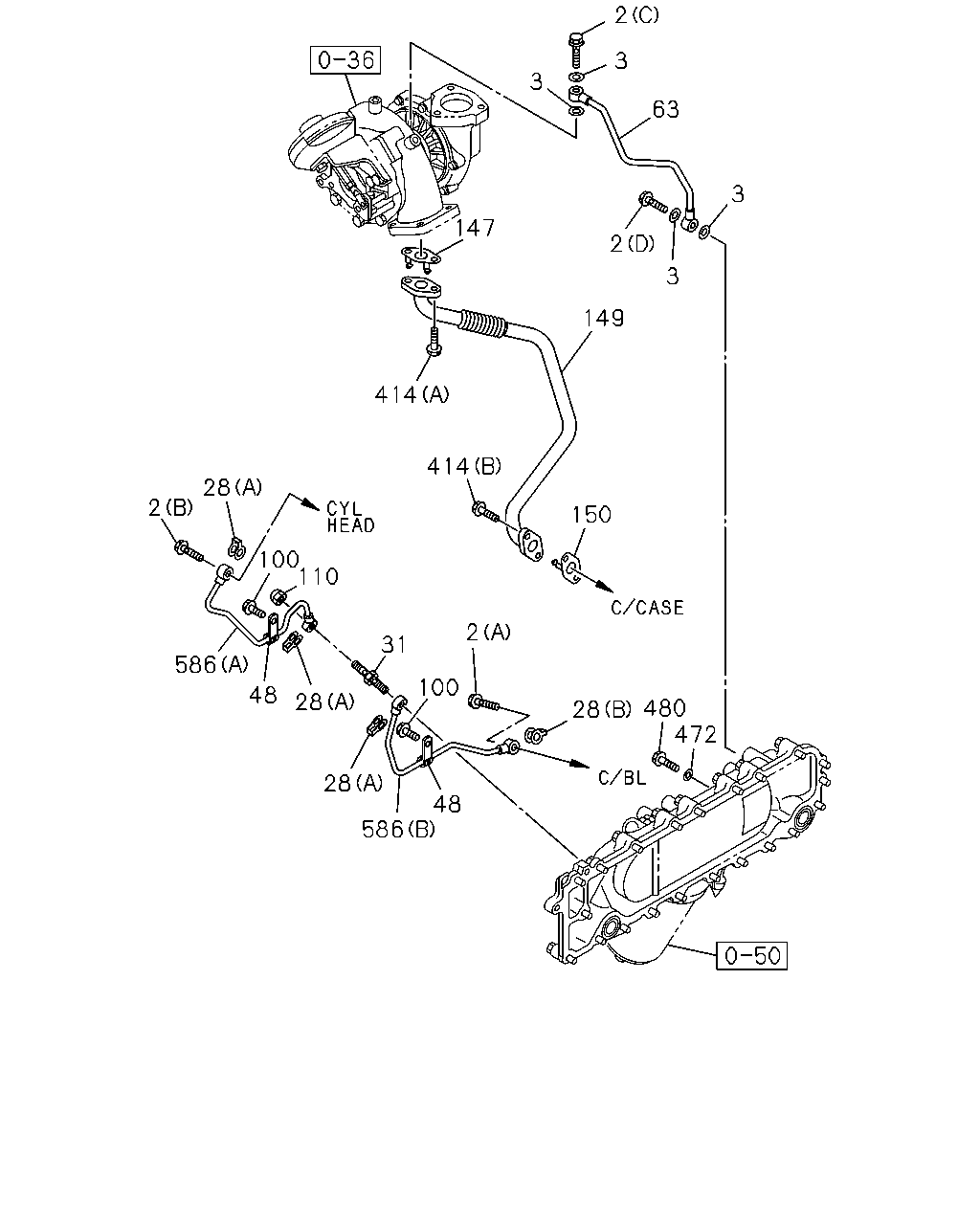

çizim 286106
2 3 3 63 3 3 2 147 149 414 414 150 2 100 31 28 2 110 100 48 28 586 28 48 586 28 472 480
BalonParca AdiParca NoAdetTipApplied Date
2 01.531 BOLT; EYE,OIL PIPE
03.162 (A) M14X27 FLANGE 		1-09675-086-0 01 1 1207-
2 01.531 BOLT; EYE,OIL PIPE
(C) M10X27 FLANGE 		8-94443-535-0 01 1 1207-
2 01.531 BOLT; EYE,OIL PIPE
(B) M8X23 FLANGE 		8-98108-689-0 01 1 1207-
2 01.531 BOLT; EYE,OIL PIPE
03.280 (D) M10X24 		9-09906-205-1 01 1 1207-
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 ID=10.2 OD=16.0 		9-09571-410-0 04 1 1207-
28 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 03.162 (A) ID=8.2 		8-97251-046-0 03 1 1207-
28 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=14.2 OD=20.0 		8-98113-762-0 01 1 1207-
31 01.540 NIPPLE; OIL PIPE 8-98130-410-1 01 1 1207-
48 01.531 CLIP; OIL PIPE
ID=7 L=28 		8-98121-233-0 02 1 1207-
63 01.519 PIPE; OIL,TURBOCHARGER FEED 8-97381-488-0 01 1 1207-
100 01.531 BOLT; CLIP
02.343 M8X12 FLANGE 		0-28050-812-0 02 1 1207-
110 01.531 NUT; CAP OIL PIPE
00.349 M8 CAP NUT FLANGE 		8-97372-242-0 01 1 1207-1309
110 01.531 NUT; CAP OIL PIPE
M8 CAP NUT FLANGE 		8-98251-964-0 01 1 1310-
147 01.531 GASKET; OIL PIPE TO TURBOCHARGER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=16 		8-98029-475-0 01 1 1207-
149 01.519 PIPE; OIL RETURN,TURBOCHARGER 8-97381-489-2 01 1 1207-
150 01.531 GASKET; OIL PIPE TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-98029-476-0 01 1 1207-
414 01.531 BOLT; OIL PIPE
00.724 (A) M6X16 HEX SOCKET 		0-58330-616-0 02 1 1207-
414 01.531 BOLT; OIL PIPE
01.758 (B) M8X20 HEX SOCKET 		0-58330-820-0 02 1 1207-
472 01.519 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 ID=10.2 OD=16.0 		9-09571-410-0 01 1 1207-
480 01.519 PLUG; OIL FILTER
M10X10 		1-09604-074-0 01 1 1207-
586 01.519 PIPE; OIL,TENSIONER
(A) 		8-98074-743-1 01 1 1207-
586 01.519 PIPE; OIL,TENSIONER
(B) 		8-98130-165-0 01 1 1207-
