Isuzu WW
▶
TRUCKS
▶
NMR
▶
51418 - NMR 85(RHD)EURO4
▶
0 - Engine, Emission, Engine Electrical
▶
0-51 - OIL PUMP AND OIL STRAINER
▶

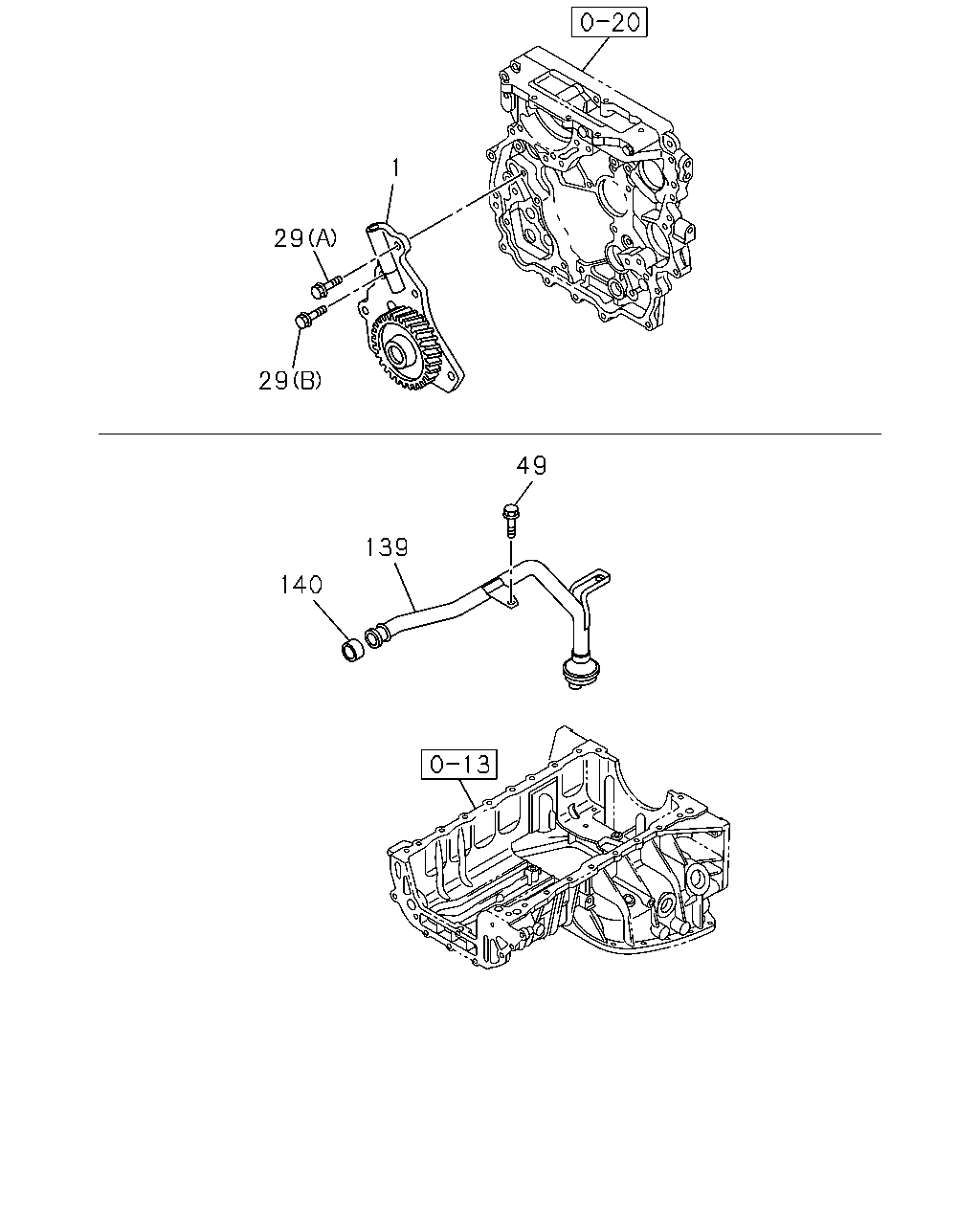

0-51 — OIL PUMP AND OIL STRAINER
(#94024) — 8 parça
1
29
29
49
139
140
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
01.652 PUMP ASM; OIL
8-98128-134-0
01
1
1207-1303
1
01.652 PUMP ASM; OIL
8-98232-624-1
01
1
1304-
29
01.652 BOLT; OIL PUMP
00.206 (B) M8X30 FLANGE
0-28050-830-0
04
1
1207-
29
01.652 BOLT; OIL PUMP
09.173 (A) M8X45 FLANGE
0-28050-845-0
02
1
1207-
49
01.531 BOLT; STRAINER,OIL PUMP
02.343 M8X12 FLANGE
0-28050-812-0
02
1
1207-1403
49
01.531 BOLT; STRAINER,OIL PUMP
02.343 M8X16 FLANGE
0-28050-816-0
02
1
1404-
139
01.639 PIPE; OIL STRAINER
8-98149-035-0
01
1
1207-
140
01.639 GASKET; OIL STRAINER
ALSO INCLUDED IN GASKET SET(ENGINE).
8-97356-150-0
01
1
1207-
