◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NMR ▶ 51418 - NMR 85(RHD)EURO4 ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-50 - OIL COOLER AND OIL FILTER ▶
0-50 — OIL COOLER AND OIL FILTER (#94023) — 27 parça

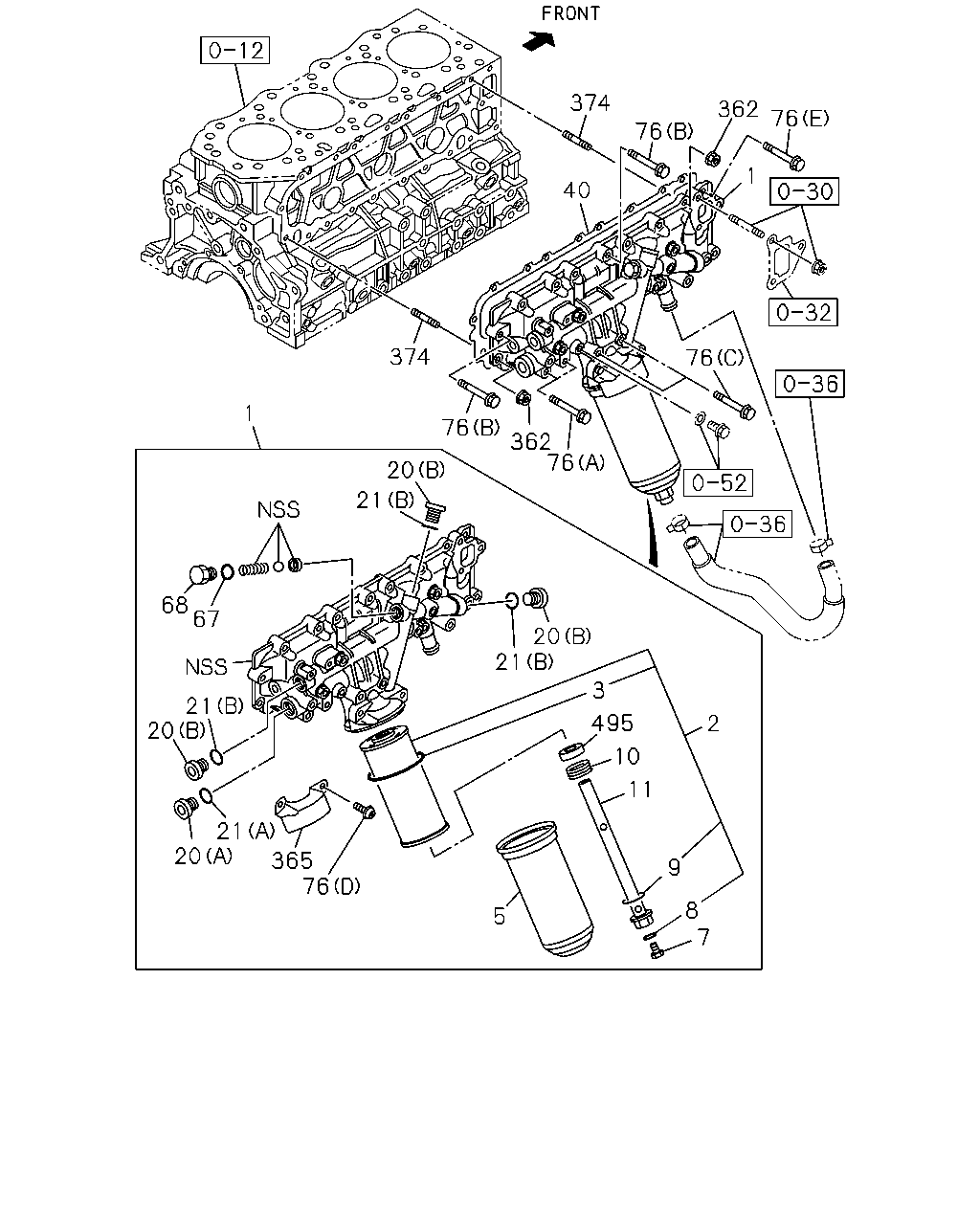

çizim 286098
7 8 9 2 11 10 495 3 21 20 5 76 365 21 20 20 21 67 68 1 21 20 362 76 374 76 1 362 76 374 40 76 76
BalonParca AdiParca NoAdetTipApplied Date
1 01.540 FILTER & COOLER ASM; OIL 8-98074-745-5 01 1 1207-1408
1 01.540 FILTER & COOLER ASM; OIL 8-98270-497-0 01 1 1409-
2 01.836 ELEMENT; OIL FILTER 8-98018-858-0 01 1 1207-
2 01.836 ELEMENT; OIL FILTER
BEST VALUE PARTS 		5-87610-118-0 01 1 1207-
3 01.540 GASKET 8-98024-708-0 01 1 1207-
5 01.837 CASE; OIL FILTER 8-98018-862-0 01 1 1207-
7 01.840 PLUG; CENTER BOLT 8-98018-846-0 01 1 1207-
8 01.840 GASKET; PLUG
03.417 ID=9.8 		1-09623-055-0 01 1 1207-
9 01.840 GASKET; CENTER BOLT 1-09623-500-0 01 1 1207-
10 01.840 SPRING; ELEMENT 8-98018-850-0 01 1 1207-
11 01.840 BOLT; CENTER 8-98018-847-0 01 1 1207-
20 01.540 PLUG; COOLER BODY
(A) 		8-94396-753-0 01 1 1207-
20 01.540 PLUG; COOLER BODY
(B) 		8-98133-978-0 03 1 1207-
21 01.550 GASKET; PLUG
(A) 		8-98133-060-0 01 1 1207-
21 01.550 GASKET; PLUG
(B) 		8-98133-979-0 03 1 1207-
40 01.550 GASKET; COVER TO OIL COOLER
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-98074-746-0 01 1 1207-
67 01.550 GASKET; VLV 8-98133-059-0 01 1 1207-
68 01.837 PLUG; VLV
01.540 		9-13263-010-0 01 1 1207-
76 01.840 BOLT; OIL FILTER
04.338 (E) M8X20 FLANGE 		0-28050-820-0 01 1 1207-
76 01.840 BOLT; OIL FILTER
00.206 (A) M8X70 FLANGE 		0-28050-870-0 02 1 1207-
76 01.840 BOLT; OIL FILTER
02.100 (C) M8X90 FLANGE 		0-28050-890-0 02 1 1207-
76 01.840 BOLT; OIL FILTER
01.060 (B) M8X35 FLANGE 		0-28650-835-0 12 1 1207-
76 01.840 BOLT; OIL FILTER
(D) 		8-98041-912-0 02 1 1207-
362 01.837 NUT; OIL FILTER
01.540 M8 FLANGE 		0-91180-208-0 02 1 1207-
365 01.840 PROTECTOR; OIL FILTER 8-98133-061-0 01 1 1207-
374 01.840 STUD; OIL FILTER
02.510 M8X20 L=32 		0-41010-820-0 02 1 1207-
495 03.680 PLATE; OIL FILTER 8-98018-853-0 01 1 1207-
