Isuzu WW
▶
TRUCKS
▶
NMR
▶
51418 - NMR 85(RHD)EURO4
▶
0 - Engine, Emission, Engine Electrical
▶
0-36 - TURBOCHARGER SYSTEM
▶
0-36 — TURBOCHARGER SYSTEM
(#94020) — 49 parça
◀

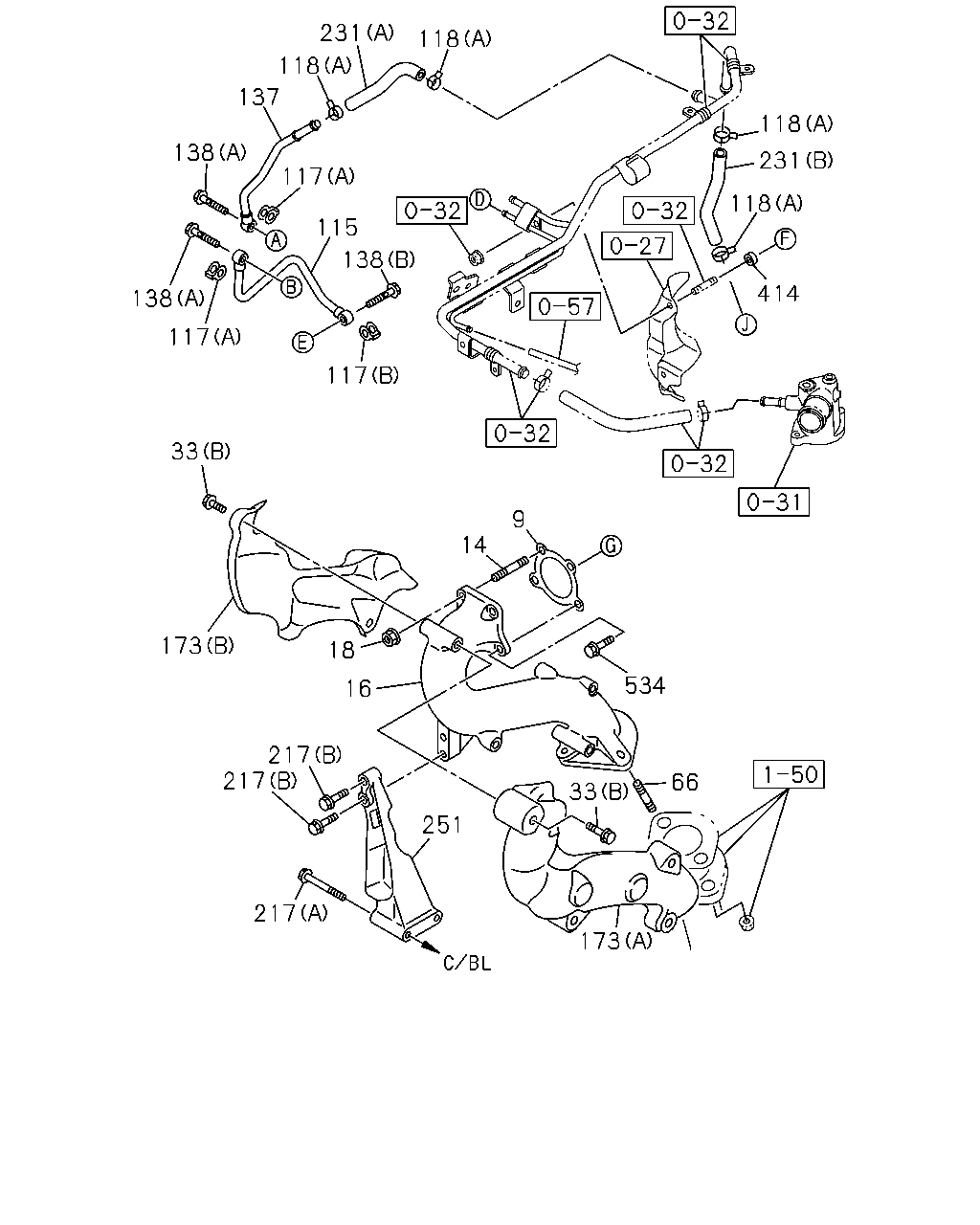

[036A] NO.2 (25 parça)

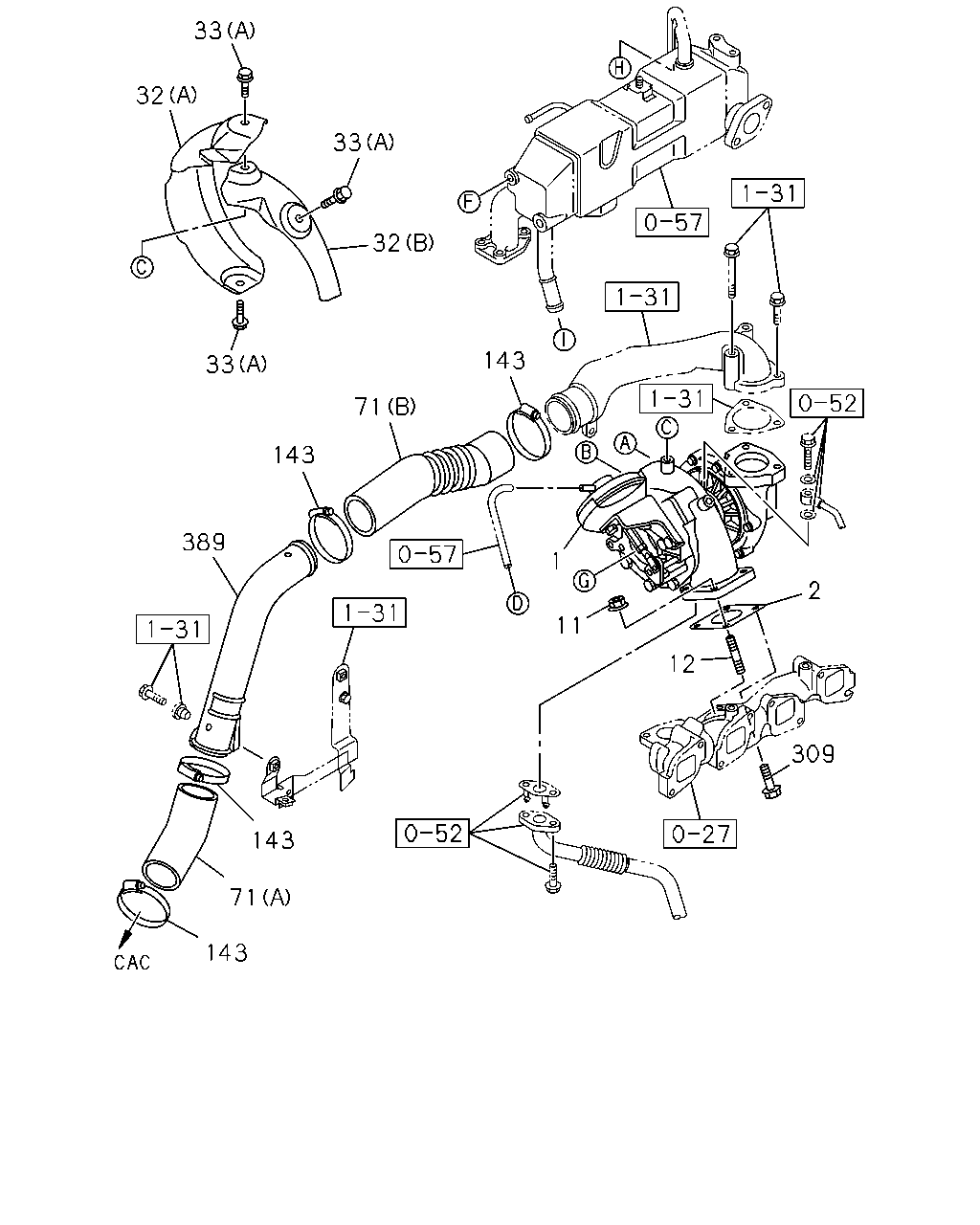

[036A] NO.1 (13 parça)

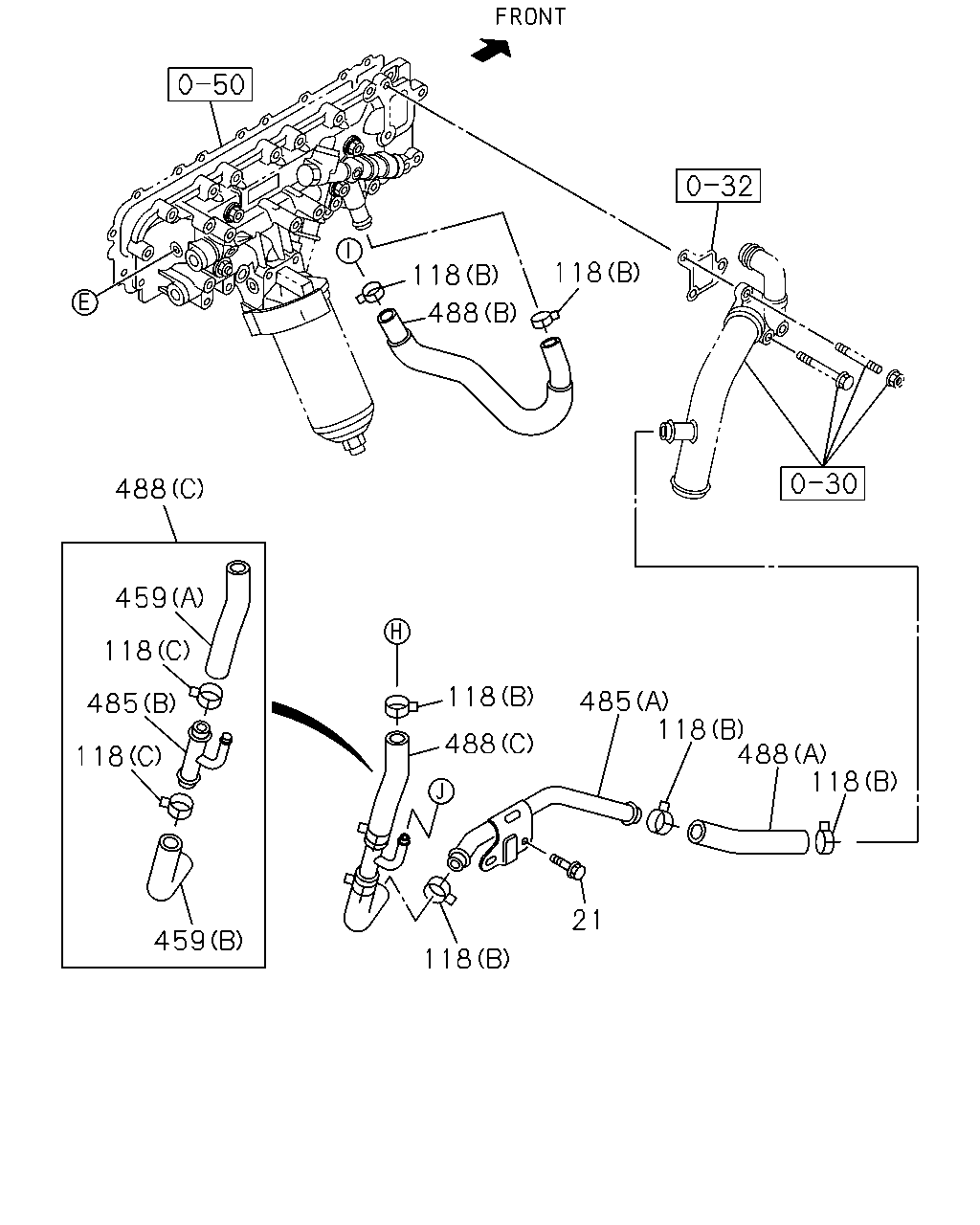

[036A] NO.3 (11 parça)
▶
118
231
118
137
138
117
115
138
138
117
117
33
173
18
16
217
217
217
251
173
33
66
534
14
9
414
118
231
118
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
9
03.342 GASKET; TURBOCHARGER TO EXH DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 03.611
8-98011-532-0
01
1
1207-
14
03.342 STUD; TURBOCHARGER TO EXH PIPE
03.601 M8X25 L=36
8-97378-062-0
02
1
1207-
16
03.609 ADAPTER; EXH PIPE
8-98147-897-1
01
1
1207-
18
03.613 NUT; EXH PIPE
M8 FLANGE
8-97161-607-0
02
1
1207-
33
03.342 BOLT; HEAT PROTECTOR
03.162 (A) M6X12 FLANGE
0-28050-612-0
03
1
1207-
33
03.342 BOLT; HEAT PROTECTOR
02.343 (B) M8X12 FLANGE
0-28050-812-0
07
1
1207-
66
03.342 STUD; EXH PIPE
M10X25 L=45
0-43211-025-0
03
1
1207-
115
03.342 PIPE; WATER,TURBOCHARGER OUT
8-98083-025-1
01
1
1207-
117
03.342 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 (A) ID=12.6
8-97331-137-1
02
1
1207-
117
03.342 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 (B) ID=14.2 OD=20.0
8-98113-762-0
01
1
1207-
118
03.342 CLIP; WATER HOSE
01.166 (C) ID=20.8
8-94125-862-1
02
1
1207-
118
03.342 CLIP; WATER HOSE
01.153 (A) ID=12.8
8-94367-943-0
04
1
1207-
118
03.342 CLIP; WATER HOSE
03.278 (B) ID=22
8-97359-141-0
06
1
1207-
137
01.097 PIPE; WATER,TURBOCHARGER IN
8-98074-761-0
01
1
1207-
138
03.342 BOLT; EYE,WATER PIPE
01.531 (A) M12X24 EYE-BOLT
1-09675-081-0
02
1
1207-
138
03.342 BOLT; EYE,WATER PIPE
01.531 (B) M14X33 FLANGE
1-09675-088-0
01
1
1207-
173
03.417 PROTECTOR; HEAT,FUEL PIPE
(A)
8-98032-022-3
01
1
1207-
173
03.417 PROTECTOR; HEAT,FUEL PIPE
(B)
8-98032-024-3
01
1
1207-
217
03.417 BOLT; BRKT
03.706 (A) M10X70 FLANGE
0-28051-070-0
02
1
1207-
217
03.417 BOLT; BRKT
03.604 (B) M10X30 FLANGE
8-98032-158-0
02
1
1207-
231
03.342 HOSE; RUBBER,TURBOCHARGER OUT
(A)
8-98075-182-1
01
1
1207-
231
03.342 HOSE; RUBBER,TURBOCHARGER OUT
(B)
8-98120-394-1
01
1
1207-
251
03.417 BRACKET; ADAPTER
8-98009-098-1
01
1
1207-
414
03.602 SPACER
8-98143-884-0
01
1
1207-
534
03.342 BOLT; TURBOCHARGER TO EXH PIPE
03.417 M8X23 FLANGE
8-97378-077-0
02
1
1207-
33
32
33
32
33
143
71
143
389
143
71
143
1
11
12
309
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
03.342 TURBOCHARGER ASM
8-98083-041-2
01
1
1207-
2
03.342 GASKET; TURBOCHARGER TO EXH MANI
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-94433-605-0
01
1
1207-
11
03.342 NUT; TURBOCHARGER
03.613 M8 FLANGE
8-97161-607-0
02
1
1207-
12
03.342 STUD; TURBOCHARGER
03.601 M8X25 L=36
8-97378-062-0
02
1
1207-
32
03.342 PROTECTOR; HEAT,TURBOCHARGER
(A)
8-98034-990-3
01
1
1207-
32
03.342 PROTECTOR; HEAT,TURBOCHARGER
(B)
8-98034-991-1
01
1
1207-
33
03.342 BOLT; HEAT PROTECTOR
03.162 (A) M6X12 FLANGE
0-28050-612-0
03
1
1207-
33
03.342 BOLT; HEAT PROTECTOR
02.343 (B) M8X12 FLANGE
0-28050-812-0
07
1
1207-
71
03.417 HOSE; INLET PIPE TO TURBOCHARGER
(A)
8-98036-513-2
01
1
1207-
71
03.417 HOSE; INLET PIPE TO TURBOCHARGER
(B)
8-98050-918-1
01
1
1207-
143
03.407 CLIP; HOSE,TURBOCHARGER OUTLET
ID=60-65
8-98096-418-0
04
1
1207-
309
03.342 BOLT; TURBOCHARGER
03.417 M8X28 FLANGE
8-98043-528-0
02
1
1207-
389
03.342 PIPE; INL,TURBOCHARGER TO CAC
8-98038-996-1
01
1
1207-
118
488
118
488
459
118
485
118
459
118
488
118
21
485
118
488
118
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
21
03.358 BOLT; PIPE
09.242 M6X16 FLANGE
0-28050-616-0
02
1
1207-
118
03.342 CLIP; WATER HOSE
01.166 (C) ID=20.8
8-94125-862-1
02
1
1207-
118
03.342 CLIP; WATER HOSE
01.153 (A) ID=12.8
8-94367-943-0
04
1
1207-
118
03.342 CLIP; WATER HOSE
03.278 (B) ID=22
8-97359-141-0
06
1
1207-
459
03.341 HOSE; WATER
(A)
8-98107-347-0
01
1
1207-
459
03.341 HOSE; WATER
(B)
8-98108-321-0
01
1
1207-
485
01.097 PIPE; WATER EGR
(A)
8-98082-424-1
01
1
1207-
485
01.097 PIPE; WATER EGR
(B)
8-98107-346-0
01
1
1207-
488
03.163 HOSE; RUBBER
(A) L=90 SERVICED BY L=3000
0-03666-300-0
01
1
1207-
488
03.163 HOSE; RUBBER
(B)
8-98075-184-0
01
1
1207-
488
03.163 HOSE; RUBBER
(C)
8-98082-221-0
01
1
1207-
