Isuzu WW
▶
TRUCKS
▶
NMR
▶
51418 - NMR 85(RHD)EURO4
▶
0 - Engine, Emission, Engine Electrical
▶
0-27 - EXHAUST MANIFOLD
▶

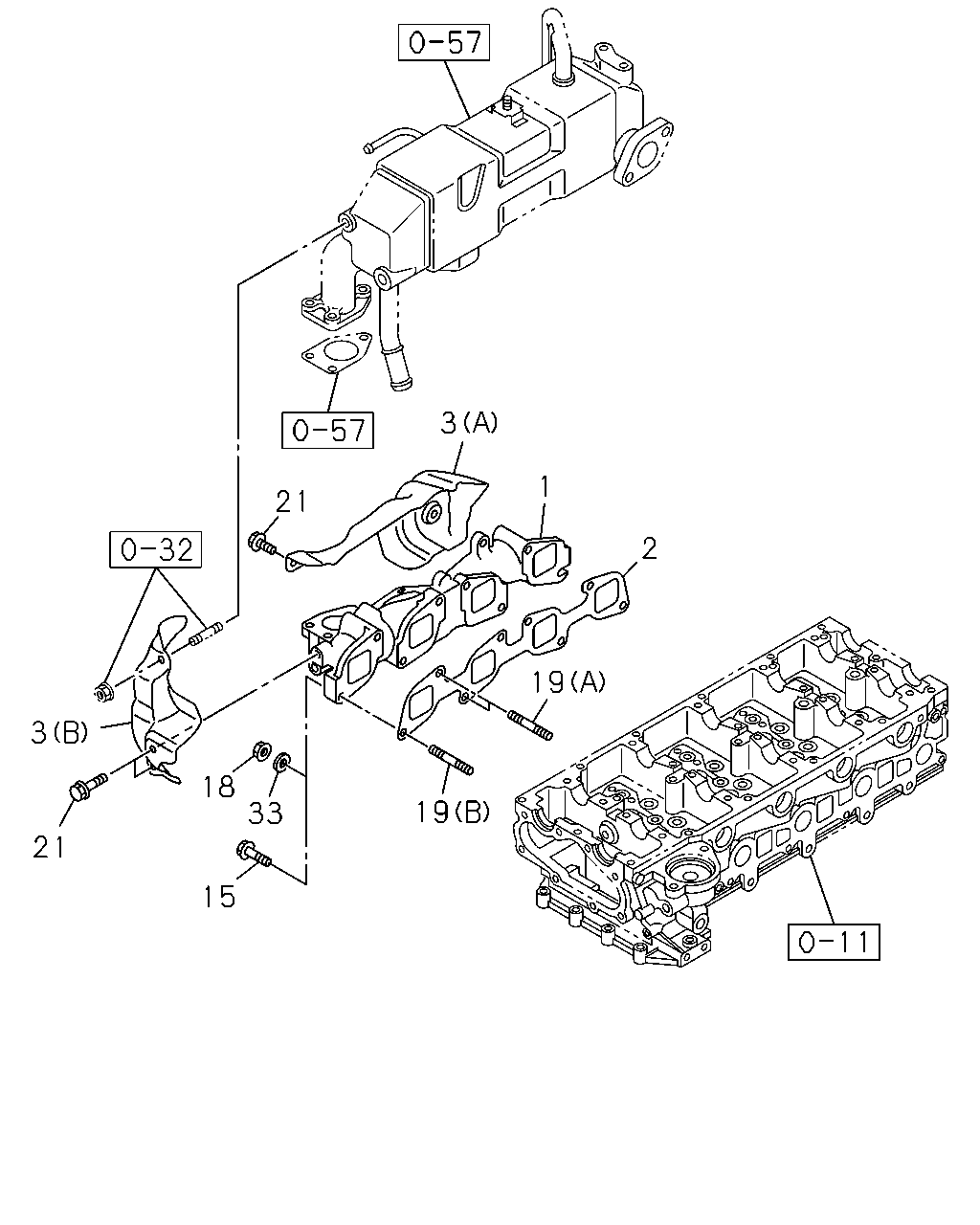

0-27 — EXHAUST MANIFOLD
(#94015) — 16 parça
2
19
1
3
21
19
3
18
33
15
21
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
03.601 MANIFOLD; EXHAUST
8-98080-313-0
01
1
1207-1210
1
03.601 MANIFOLD; EXHAUST
8-98147-698-0
01
1
1211-
2
03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-98215-752-0
01
1
1207-1312
2
03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-98229-782-0
01
1
1401-
3
03.602 PROTECTOR; HEAT,EXH MANIF
(B)
8-98105-030-1
01
1
1207-1309
3
03.602 PROTECTOR; HEAT,EXH MANIF
(B)
8-98231-992-0
01
1
1310-
3
03.602 PROTECTOR; HEAT,EXH MANIF
(A)
8-98105-031-1
01
1
1207-1210
3
03.602 PROTECTOR; HEAT,EXH MANIF
(A)
8-98147-699-0
01
1
1211-
15
03.604 BOLT; EXH MANIF
M10X30 FLANGE
8-98032-158-0
04
1
1304-
18
03.604 NUT; EXH MANIF
M10 FLANGE
8-97381-617-0
08
1
1207-1303
18
03.604 NUT; EXH MANIF
M10 FLANGE
8-97381-617-0
04
1
1304-
19
03.604 STUD; MANIF TO CYL HD
03.275 (B) M10X33 L=48
8-97307-075-2
04
1
1207-1303
19
03.604 STUD; MANIF TO CYL HD
(A) M10X70 L=83
8-98048-446-0
04
1
1207-
21
03.604 BOLT; HEAT PROTECTOR
02.343 M8X12 FLANGE
0-28050-812-0
06
1
1207-1210
21
03.604 BOLT; HEAT PROTECTOR
02.343 M8X12 FLANGE
0-28050-812-0
05
1
1211-
33
03.604 WASHER; EXH MANIF
03.613 ID=10.5
5-09500-013-0
08
1
1207-
