◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NMR ▶ 51418 - NMR 85(RHD)EURO4 ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-15 - CRANKSHAFT,PISTON AND FLYWHEEL ▶
0-15 — CRANKSHAFT,PISTON AND FLYWHEEL (#94011) — 37 parça

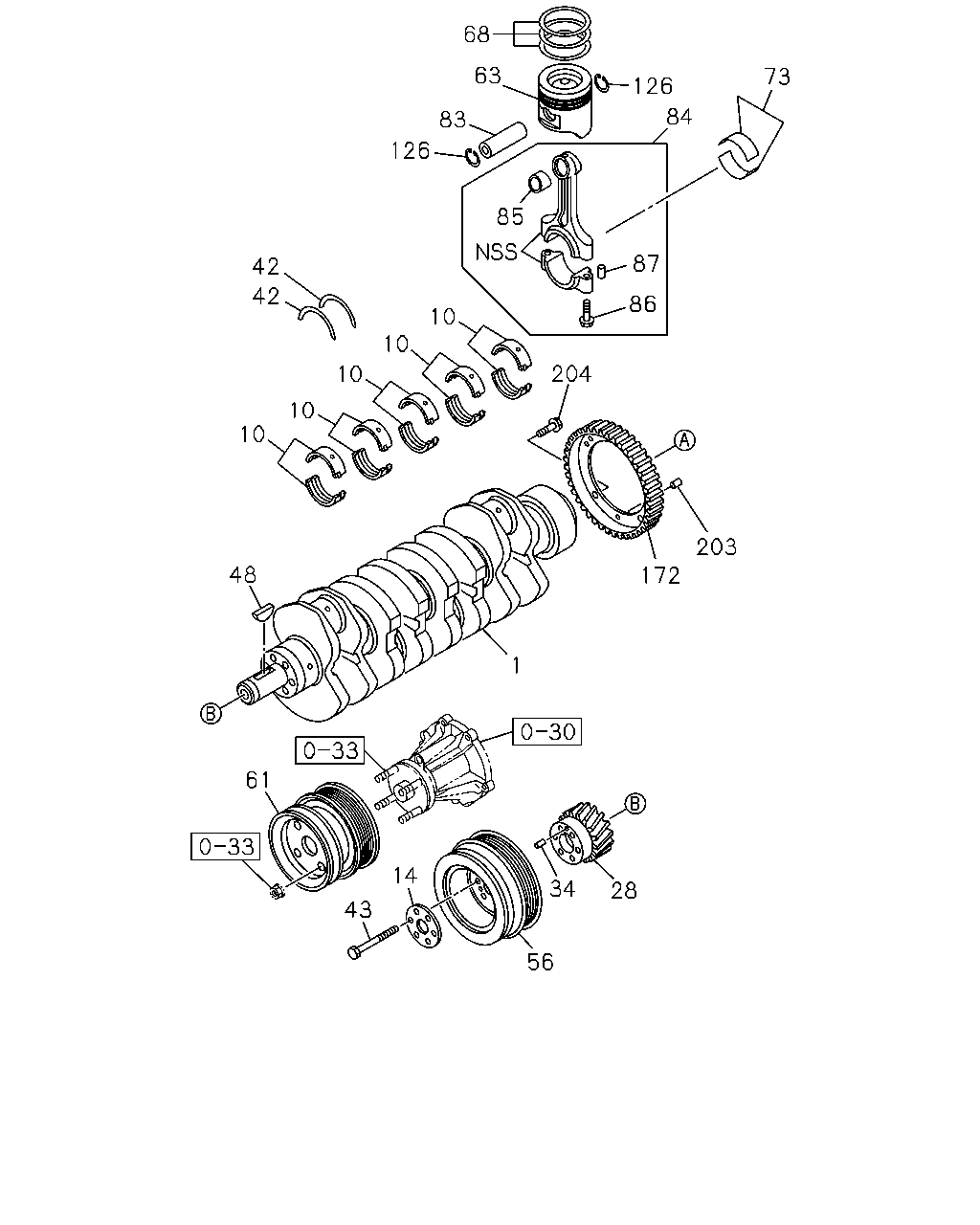

çizim 286024
73 84 87 86 204 203 172 1 28 34 56 14 43 61 48 10 10 10 10 10 85 42 42 126 83 63 68 126
BalonParca AdiParca NoAdetTipApplied Date
1 00.646 CRANKSHAFT 8-98154-950-2 01 1 1207-1409
1 00.646 CRANKSHAFT 8-98273-590-0 01 1 1410-
10 00.094 METAL SET; CRANKSHAFT,STANDARD
GRADE 1 		8-97387-964-0 05 1 1207-
10 00.094 METAL SET; CRANKSHAFT,STANDARD
GRADE 2 		8-97387-965-0 05 1 1207-
10 00.094 METAL SET; CRANKSHAFT,STANDARD
GRADE 3 		8-97387-966-0 05 1 1207-
10 00.094 METAL SET; CRANKSHAFT,STANDARD
CRANK 1,2,4,5 GRADE 4 		8-97387-967-0 04 1 1207-
10 00.094 METAL SET; CRANKSHAFT,STANDARD
CRANK 1,2,4,5 GRADE 5 		8-97387-968-0 04 1 1207-
10 00.094 METAL SET; CRANKSHAFT,STANDARD
CRANK 3 GRADE 9 		8-98053-576-0 01 1 1207-
10 00.094 METAL SET; CRANKSHAFT,STANDARD
CRANK 3 GRADE 0 		8-98053-578-0 01 1 1207-
14 00.662 WASHER; PULLEY DAMPER
ID=23 OD=72 T=3 		8-98165-125-0 01 1 1207-
28 00.728 GEAR; CR/SHF
Z=44 		8-98154-945-1 01 1 1207-
34 00.738 PIN; GEAR SETTING
OD=5 L=10 		9-08160-510-0 01 1 1207-
42 00.095 WASHER; THRUST,CR/SHF 8-98040-704-0 02 1 1207-
43 00.662 BOLT; CR/SHF PULLEY
M10X90 		8-98165-234-1 06 1 1207-
48 00.662 KEY; WOODRUFF,CR/SHF
00.729 		8-94201-641-0 01 1 1207-
56 00.659 PULLEY; CR/SHF DAMPER
2-GROOVE 		8-98154-943-1 01 1 1207-
61 00.659 PULLEY; FAN DRIVE
2-GROOVE 		8-97362-215-2 01 1 1207-
63 00.629 PISTON
GRADE=A 		8-98043-703-0 04 1 1207-
63 00.629 PISTON
GRADE=B 		8-98043-704-0 04 1 1207-
63 00.629 PISTON
GRADE=C 		8-98043-705-0 04 1 1207-
68 00.643 RING SET; PISTON,STANDARD 8-98185-780-0 04 1 1207-
73 00.616 METAL SET; CONN ROD,STANDARD 8-97358-234-0 04 1 1207-
83 00.636 PIN; PISTON 8-98015-193-1 04 1 1207-
84 00.603 ROD ASM; CONN 8-97388-921-2 04 1 1207-
85 00.613 BUSHING; CONNROD
AFTER PRESS FITTING,SHAPE THE BUSHING. 		8-97383-066-0 04 1 1207-
86 00.623 BOLT; CONNROD
M11X44.5 		8-98048-538-0 08 1 1207-
87 00.613 PIN; CONNROD BIG END
OD=5 L=8 		9-08160-508-0 08 1 1207-
126 00.639 RING; SNAP,PISTON PIN
OD=37.5 		8-94460-687-0 08 1 1207-
172 02.383 ROTOR; CRANK SENSOR 8-98163-693-0 01 1 1207-
203 01.150 PIN; ROTOR
00.613 OD=5 L=8 		9-08160-508-0 01 1 1207-
204 01.150 BOLT; ROTOR
02.383 M6X10 		8-98038-343-0 03 1 1207-

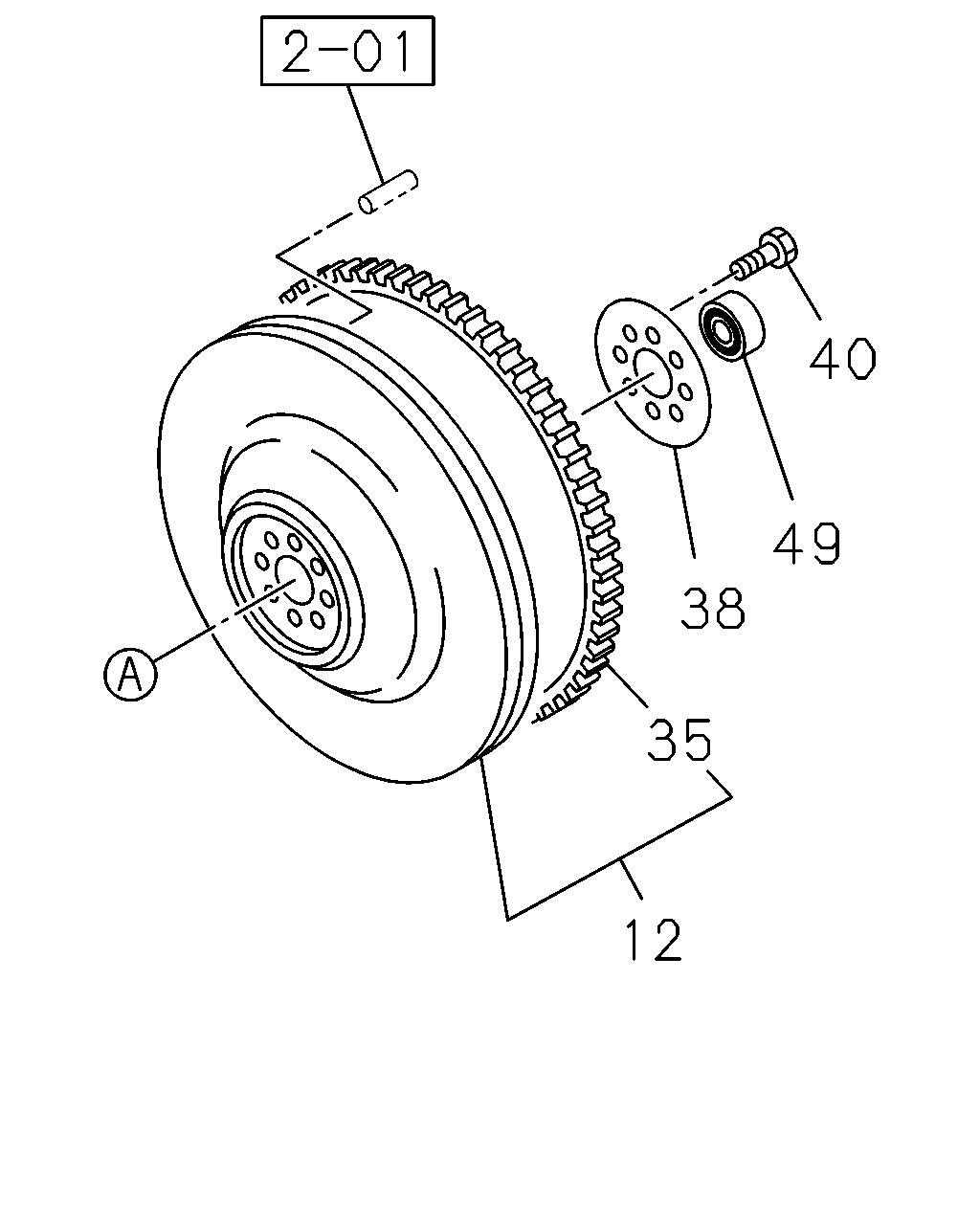

çizim 286563
12 35 38 49 40
BalonParca AdiParca NoAdetTipApplied Date
12 00.666 FLYWHEEL 8-98148-063-1 01 1 1207-
35 00.673 GEAR; RING
Z=138 		8-97046-366-1 01 1 1207-
38 00.862 WASHER; FLYWHEEL 8-98171-700-0 01 1 1207-
40 00.669 BOLT; FLYWHEEL
M13X45 		8-94418-050-0 08 1 1207-
49 00.669 BEARING; PILOT 8-97325-153-0 01 1 1207-
49 00.669 BEARING; PILOT
BEST VALUE PARTS 		5-87610-166-0 01 1 1207-
