Isuzu WW
▶
TRUCKS
▶
NMR
▶
51418 - NMR 85(RHD)EURO4
▶
0 - Engine, Emission, Engine Electrical
▶
0-10 - CYLINDER HEAD COVER
▶

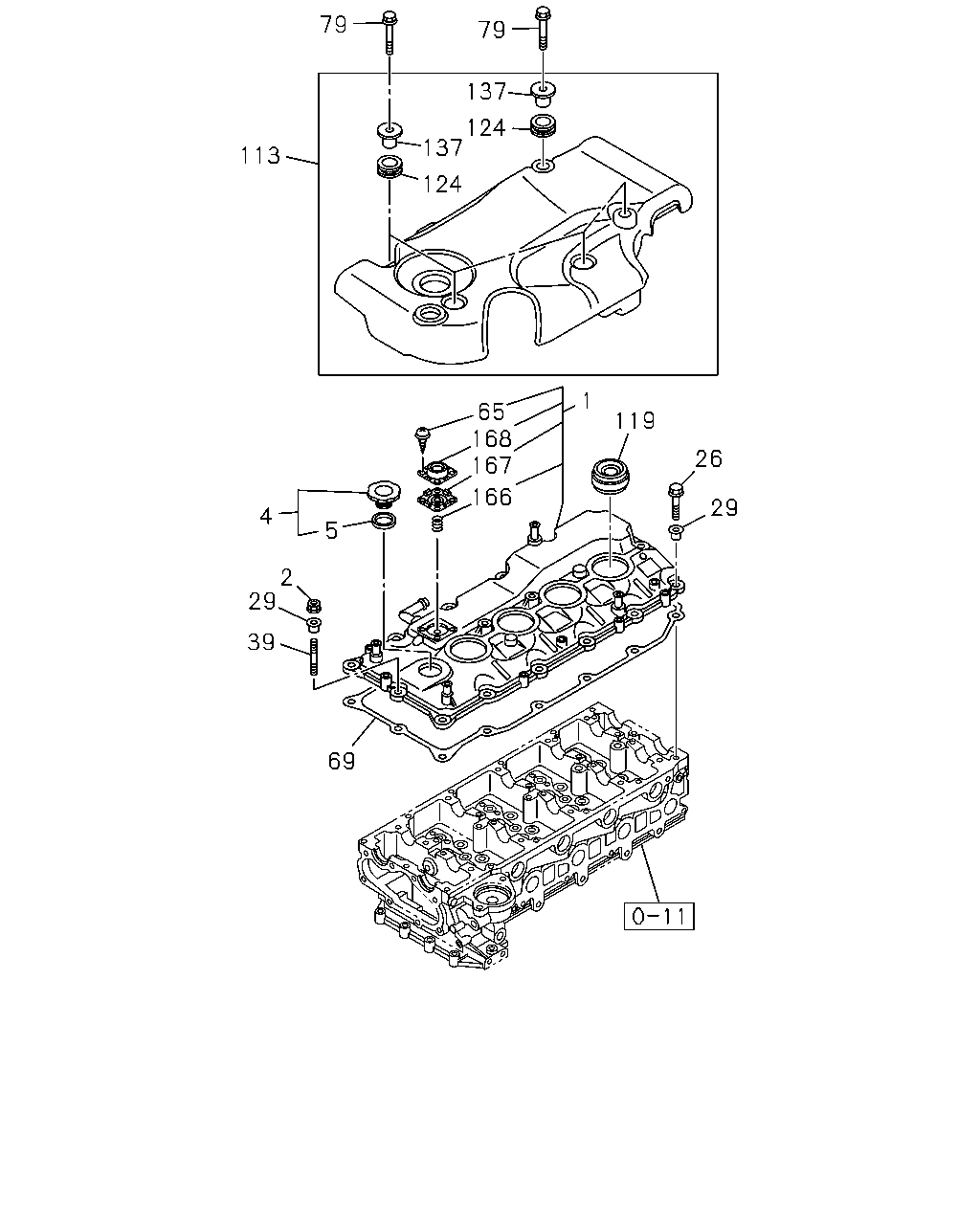

0-10 — CYLINDER HEAD COVER
(#94006) — 22 parça
69
39
29
2
4
5
166
167
168
65
1
119
26
29
113
79
124
137
124
137
79
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
00.386 COVER; CYL HD
8-98051-197-1
01
1
1207-1305
1
00.386 COVER; CYL HD
8-98226-103-0
01
1
1306-1505
1
00.386 COVER; CYL HD
8-98051-197-1
01
1
1506-
2
00.413 NUT; COVER,HD
01.540 M6 FLANGE
0-91180-206-0
01
1
1207-
4
01.758 CAP; OIL FILLER
8-94133-207-5
01
1
1207-
5
01.758 GASKET; OIL FILLER
ALSO INCLUDED IN GASKET SET(ENGINE). 00.413 ID=32 OD=40
8-94123-623-1
01
1
1207-
26
08.900 BOLT; CYL HD COVER
03.680 M6X30 FLANGE
0-28650-630-0
13
1
1207-
29
00.413 RUBBER; MTG,HD COVER
8-97381-524-0
14
1
1207-1408
29
00.413 RUBBER; MTG,HD COVER
00.206
8-97168-200-1
14
1
1409-
39
00.413 STUD; COVER,HD
M6X30 L=38
8-97372-795-0
01
1
1207-
65
00.413 SCREW; ADAPTER
M5X10 W/LK WASHER
8-97366-592-0
04
1
1207-
69
00.423 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-97945-338-0
01
1
1207-
79
00.293 BOLT; COVER
04.338 M8X20 FLANGE
0-28050-820-0
05
1
1207-
113
00.386 COVER; CYL HEAD COVER
8-98158-904-1
01
1
1207-
119
00.386 COVER; SEAL,NOZZLE
8-98037-543-0
04
1
1207-
124
00.413 RUBBER; MTG,COVER
8-98036-119-0
05
1
1207-
137
00.413 BUSHING; MTG RUBBER,COVER
8-98036-120-0
05
1
1207-
166
00.283 SPRING; VENTILATOR
00.423
8-97365-998-0
01
1
1207-
167
00.283 DIAPHRAGM; VENTILATOR
8-98003-164-0
01
1
1207-1305
167
00.283 DIAPHRAGM; VENTILATOR
8-98226-101-0
01
1
1306-1505
167
00.283 DIAPHRAGM; VENTILATOR
8-98003-164-0
01
1
1506-
168
00.283 COVER; VENTILATOR
00.269
8-97365-992-0
01
1
1207-
