6-90 — REAR BUMPER (#94) — 24 parça

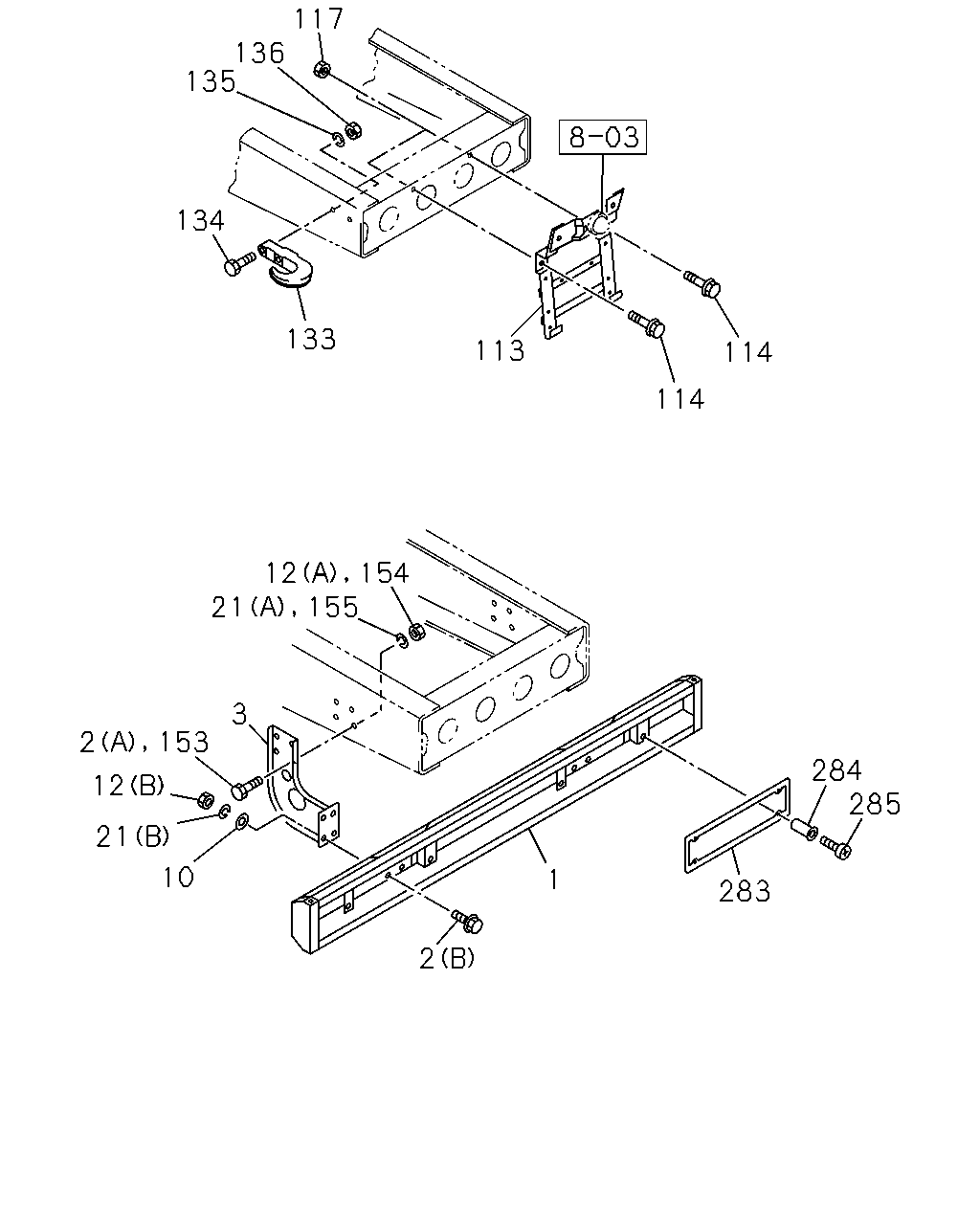

çizim 94460
117 136 135 134 133 113 114 114 12 154 21 155 3 2 153 284 285 12 21 10 1 283 2
BalonParca AdiParca NoAdetTipApplied Date A B
1 BUMPER; RR
STEEL WIDE REINFORCEMENT REAR BUMPER<SMS> 		1-71220-079-2 01 1 9308- ●
2 BOLT; BACK BAR
STEEL WIDE REINFORCEMENT REAR BUMPER<SMS> (A) M16X40 		0-20801-640-0 04 1 9308- ●
2 BOLT; BACK BAR
STEEL WIDE REINFORCEMENT REAR BUMPER<SMS> (B) M12X30 W/LK WASHER 		0-50041-230-0 08 1 9308- ●
3 BRACKET; BUMPER
STEEL WIDE REINFORCEMENT REAR BUMPER<SMS> STAMP GU 		1-71230-271-1 01 1 9308- ●
3 BRACKET; BUMPER
STEEL WIDE REINFORCEMENT REAR BUMPER<SMS> STAMP GU 		1-71230-270-1 01 1 9308- ●
10 WASHER; PL,BRKT
STEEL WIDE REINFORCEMENT REAR BUMPER<SMS> ID=12.5 OD=32 		9-09160-712-0 08 1 9308- ●
12 NUT; BRKT
STEEL WIDE REINFORCEMENT REAR BUMPER<SMS> (B) M12 		9-99110-512-0 08 1 9308- ●
12 NUT; BRKT
STEEL WIDE REINFORCEMENT REAR BUMPER<SMS> (A) M16 		9-99110-516-0 04 1 9308- ●
21 WASHER; LK,BUMPER
STEEL WIDE REINFORCEMENT REAR BUMPER<SMS> (B) ID=12.2 		9-09150-512-0 08 1 9308- ●
21 WASHER; LK,BUMPER
STEEL WIDE REINFORCEMENT REAR BUMPER<SMS> (A) ID=16.2 		9-09150-816-0 04 1 9308- ●
113 BRACKET; LICENSE PLATE 1-53485-048-2 01 1 9202- ● ●
114 BOLT; BRKT,LICENSE PLATE
M8X20 FLANGE 		0-28010-820-0 02 1 9202-9204 ● ●
114 BOLT; BRKT,LICENSE PLATE
M8X20 FLANGE 		0-28080-820-0 02 1 9205- ● ●
117 NUT; BRKT
M8 		9-09110-408-0 02 1 9202- ● ●
133 HOOK 1-57181-003-5 01 1 9202- ● ●
134 BOLT; HOOK
M14X50 		0-10811-450-0 02 1 9202- ● ●
135 WASHER; LK,HOOK
ID=14.2 		9-09150-514-0 02 1 9202- ● ●
136 NUT; HOOK
M14 		9-99110-414-0 02 1 9202- ● ●
153 BOLT; BRKT
STEEL WIDE REINFORCEMENT REAR BUMPER<SMS> M16X40 		0-20801-640-0 04 1 9308- ●
154 NUT; BRKT
STEEL WIDE REINFORCEMENT REAR BUMPER<SMS> M16 		9-99110-516-0 04 1 9308- ●
155 WASHER; LK,BRKT
STEEL WIDE REINFORCEMENT REAR BUMPER<SMS> ID=16.2 		9-09150-816-0 04 1 9308- ●
283 REFLECTOR; REFLEX,RR
REFLECTOR SEPARATE<SMR> 		1-82290-040-0 02 1 9308- ●
284 NUT; REFLECTOR
REFLECTOR SEPARATE<SMR> M6 		1-09470-003-0 08 1 9308- ●
285 BOLT; REFLECTOR
REFLECTOR SEPARATE<SMR> M6X24 W/PL WASHER 		8-94496-062-0 08 1 9308- ●
