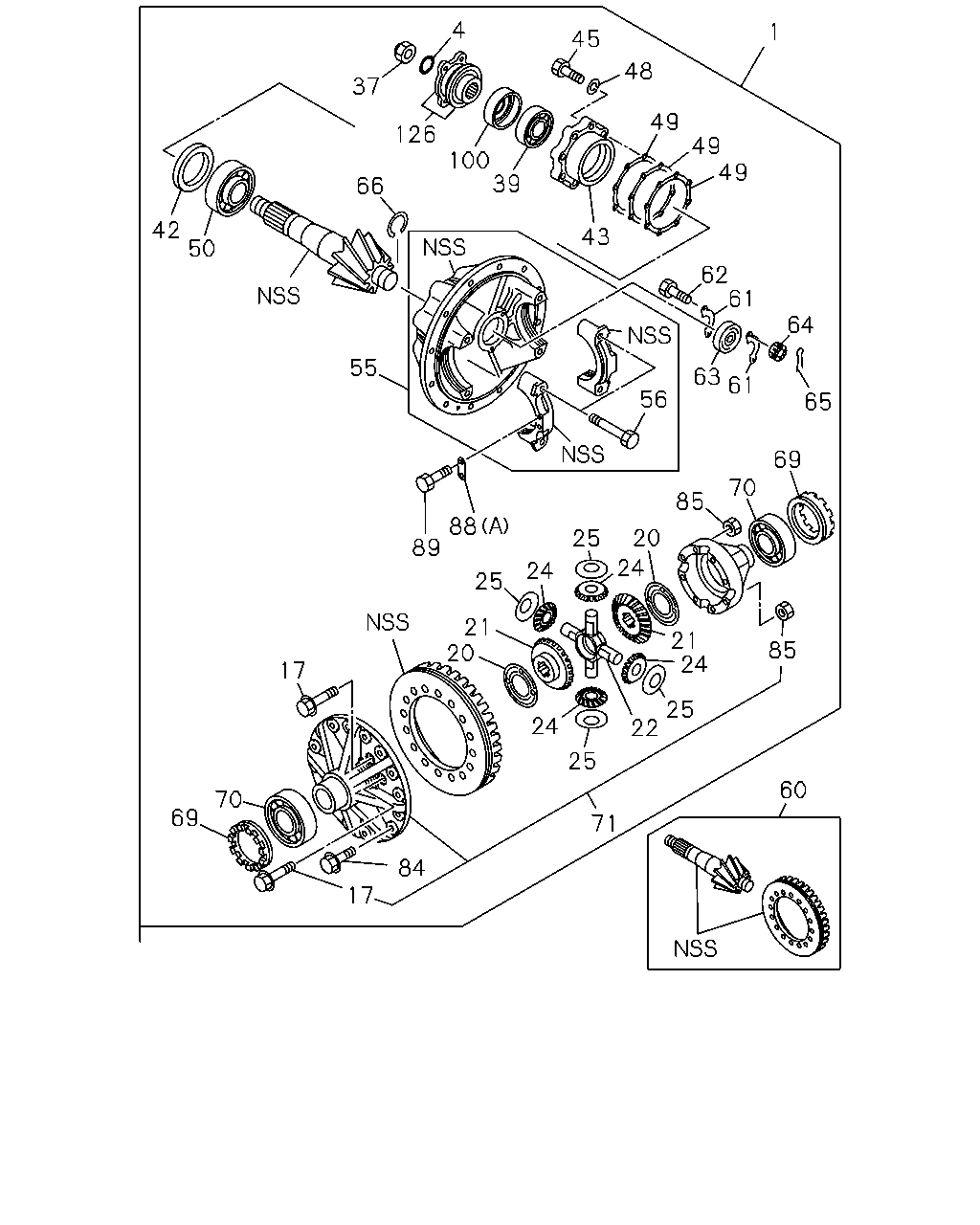

4-25A — REAR FINAL DRIVE (#9399) — 54 parça
çizim 100374
4 1 45 48 37 49 126 49 49 100 39 66 42 50 43 62 61 64 55 63 61 56 65 69 70 85 88 89 20 25 24 24 25 21 20 21 24 85 17 25 22 24 25 60 70 69 71 84 17
BalonParca AdiParca NoAdetTipApplied Date A B C
1 DRIVE ASM; FINAL,RR
38/8 		1-41001-461-0 01 1 0005-0210 ●
1 DRIVE ASM; FINAL,RR
39/9 		1-41001-460-0 01 1 0005-0210 ●
1 DRIVE ASM; FINAL,RR
41/8 		1-41001-462-0 01 1 0005-0210 ●
4 GASKET; FLANGE,FINAL PINION
ID=35.7 T=5 		1-09623-379-0 01 1 0005-0210 ● ● ●
17 BOLT; DIFF CAGE SETTING
M14X100 		1-09070-006-0 08 1 0005-0210 ● ●
17 BOLT; DIFF CAGE SETTING
M14X85 		1-09044-023-0 08 1 0005-0210 ●
20 WASHER; THRUST,SIDE GEAR
T=2.80 		1-41562-073-0 AR 1 0005-0210 ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=2.90 		1-41562-074-0 AR 1 0005-0210 ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.00 		1-41562-075-0 AR 1 0005-0210 ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.10 		1-41562-076-0 AR 1 0005-0210 ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.20 		1-41562-077-0 AR 1 0005-0210 ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.30 		1-41562-078-0 AR 1 0005-0210 ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.40 		1-41562-079-0 AR 1 0005-0210 ● ● ●
21 GEAR; SIDE,DIFF
Z=16 		1-41561-084-1 02 1 0005-0210 ● ● ●
22 SPIDER; DIFF PINION 1-41521-035-0 01 1 0005-0210 ● ● ●
24 GEAR; PINION,DIFF
Z=10 		1-41551-024-0 04 1 0005-0210 ● ● ●
25 WASHER; THRUST,PINION 1-41552-020-0 04 1 0005-0210 ● ● ●
37 NUT; DRIVING PINION
M30 FLANGE 		1-09449-066-1 01 1 0005-0210 ● ● ●
39 BEARING; FINAL PINION
NSK 		1-09812-026-0 01 1 0005-0210 ● ● ●
42 COLLAR; DIST,COLLAPSIBLE
T=15.75 		1-41219-004-0 01 1 0005-0210 ● ● ●
43 CAGE; FINAL PINION 1-41151-063-0 01 1 0005-0210 ● ● ●
45 BOLT; FINAL PINION CAGE
M12X40 		9-02361-240-0 06 1 0005-0210 ● ● ●
48 WASHER; LK,FINAL PINION
ID=12.2 		9-09150-512-0 06 1 0005-0210 ● ● ●
49 SHIM; FINAL PINION CAGE
T=0.50 		1-41154-021-1 AR 1 0005-0210 ● ● ●
49 SHIM; FINAL PINION CAGE
T=0.30 		1-41154-051-1 AR 1 0005-0210 ● ● ●
49 SHIM; FINAL PINION CAGE
T=0.40 		1-41154-052-1 AR 1 0005-0210 ● ● ●
49 SHIM; FINAL PINION CAGE
T=1.00 		1-41154-053-1 AR 1 0005-0210 ● ● ●
50 BEARING; FINAL PINION
NSK 		1-09812-041-2 01 1 0005-0210 ● ● ●
55 CARRIER; DIFF 1-41110-105-0 01 1 0005-0210 ● ● ●
56 BOLT; BRG CAP
M14X95 FLANGE 		1-09070-027-0 04 1 0005-0210 ● ● ●
60 GEAR SET; FINAL DRIVE,RR
38/8 		1-41210-501-0 01 1 0005-0210 ●
60 GEAR SET; FINAL DRIVE,RR
39/9 		1-41210-527-0 01 1 0005-0210 ●
60 GEAR SET; FINAL DRIVE,RR
41/8 		1-41210-528-0 01 1 0005-0210 ●
61 RETAINER; PILOT BRG,PINION 9-41227-006-0 02 1 0005-0210 ● ● ●
62 BOLT; RET
M8X35 W/PIN HOLE 		1-09042-034-0 02 1 0005-0210 ● ● ●
63 BEARING; PINION PILOT
NSK 		1-09810-062-1 01 1 0005-0210 ● ● ●
63 BEARING; PINION PILOT
KOYO 		1-09810-063-2 01 1 0005-0210 ● ● ●
64 NUT; RET
M8 SLOTTED 		9-09117-508-0 02 1 0005-0210 ● ● ●
65 PIN; SPLIT,RET 9-08112-012-0 02 1 0005-0210 ● ● ●
66 RING; SNAP,PILOT BRG
OD=32.2 		1-09588-065-1 01 1 0005-0210 ● ● ●
69 NUT; ADJ,DIFF CAGE
M115 H=26 		1-41121-028-0 01 1 0005-0210 ● ● ●
69 NUT; ADJ,DIFF CAGE
M115 H=20 		1-41121-039-0 01 1 0005-0210 ● ● ●
70 BEARING; DIFF CAGE
KOYO ID=66.7 OD=113 T=30 		9-00093-130-0 02 1 0005-0210 ● ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-230-0 01 1 0005-0105 ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-301-0 01 1 0106-0210 ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-240-0 01 1 0005-0105 ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-298-0 01 1 0106-0210 ●
84 BOLT; FINAL DRIVE GEAR
M14X29.5 FLANGE 		1-09070-085-0 16 1 0005-0210 ● ● ●
85 NUT; DIFF CAGE SETTING
M14 		1-09400-077-1 08 1 0005-0210 ● ● ●
88 PLATE; LK,ADJ NUT
(A) T=2.3 		9-41124-015-0 02 1 0005-0210 ● ● ●
89 BOLT; LK PLATE
M8X16 		0-20800-816-0 04 1 0005-0210 ● ● ●
100 SEAL; OIL,FINAL PINION
NOK 		1-09625-484-0 01 1 0005-0210 ● ● ●
100 SEAL; OIL,FINAL PINION
TKK 		1-09625-637-0 01 1 0005-0210 ● ● ●
126 COUPLING; DRIVING PINION 1-37245-067-4 01 1 0005-0210 ● ● ●
