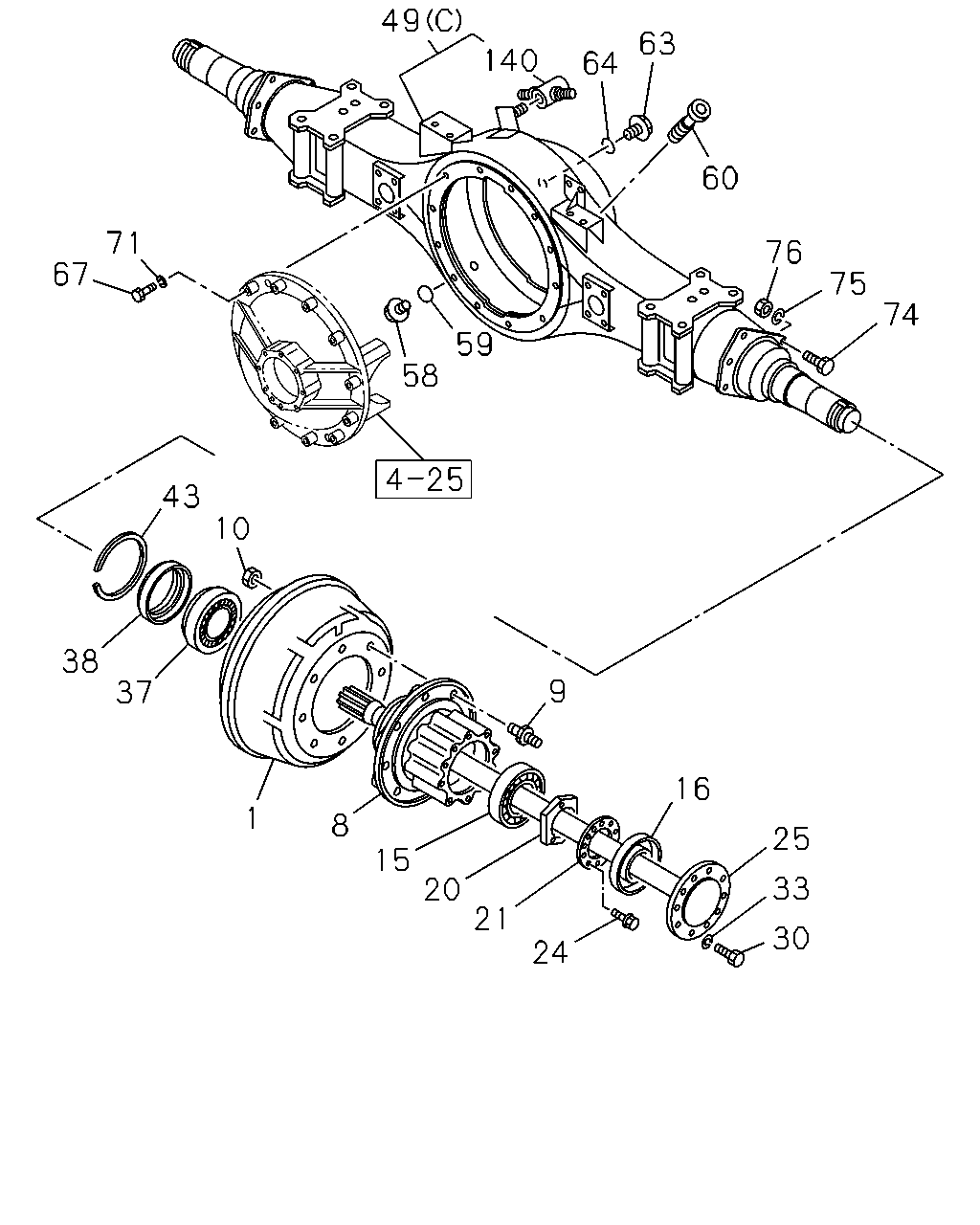

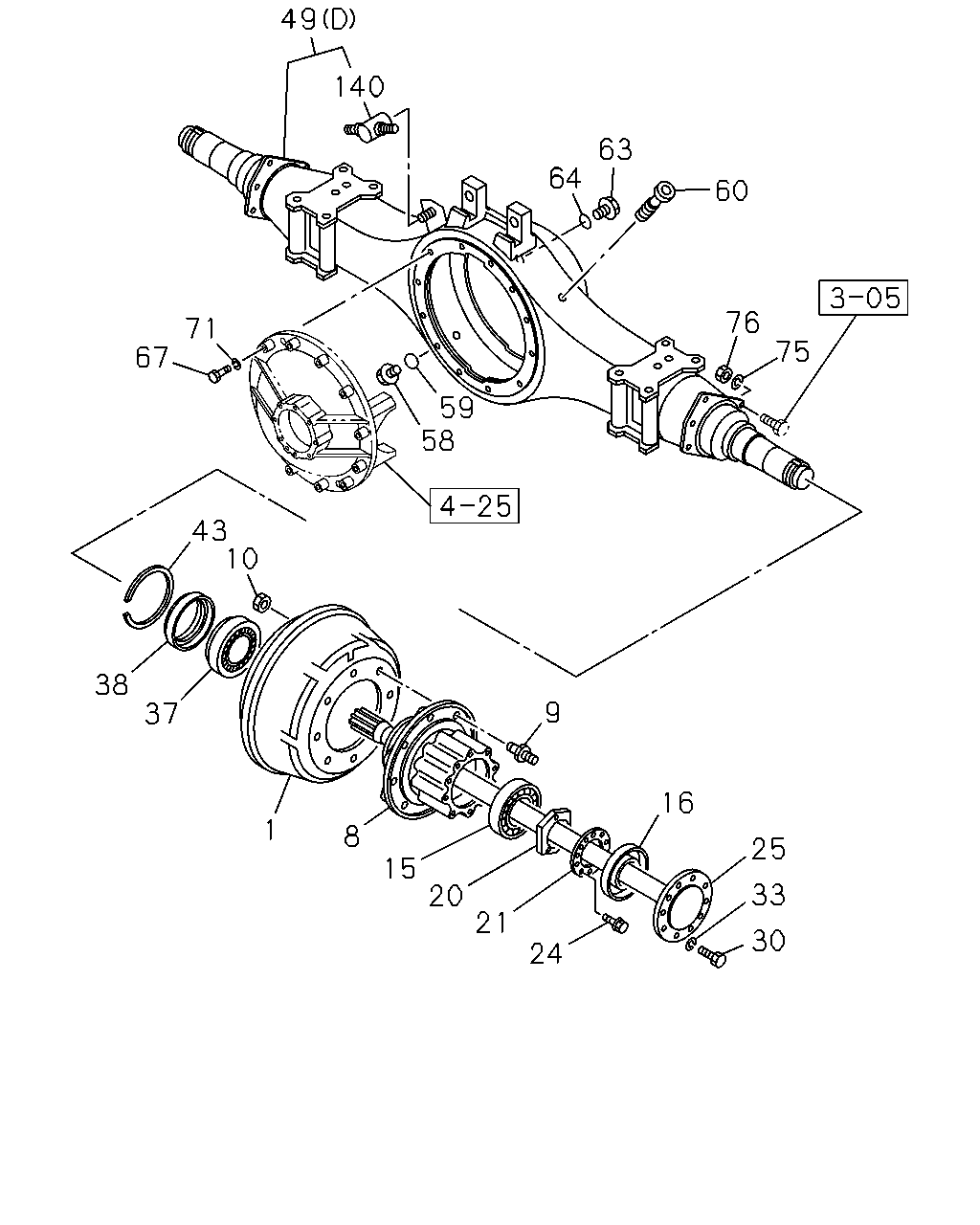

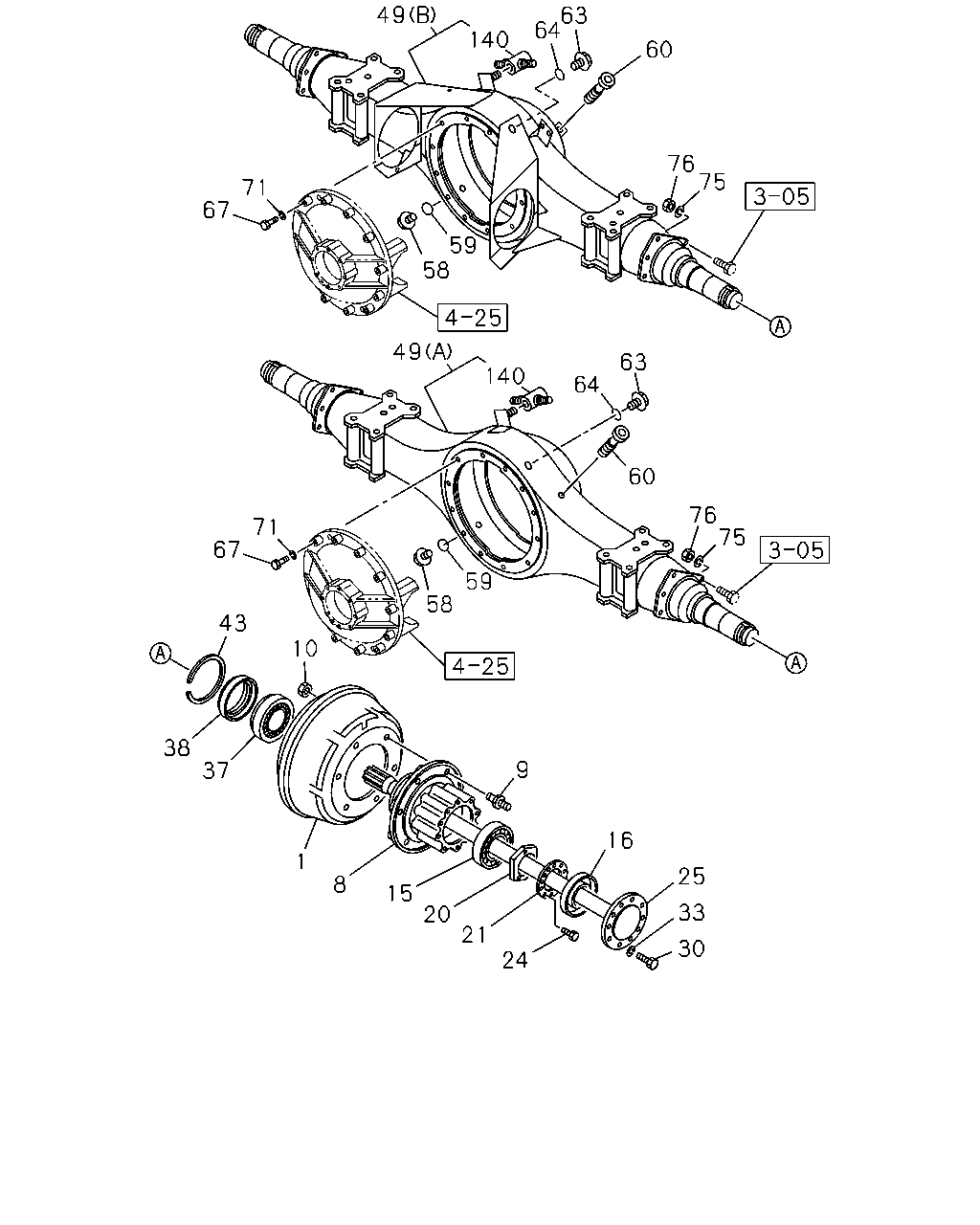

4-20 — REAR AXLE CASE AND SHAFT (#9398) — 314 parça

49 63 140 64 60 71 76 67 75 74 59 58 43 10 38 9 37 16 1 8 25 15 20 21 33 30 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	DRUM; BRK,RR	1-42315-361-0	02	1	0005-0411	●	●
1	DRUM; BRK,RR	1-42315-361-0	02	1	0412-	●	●	●
1	DRUM; BRK,RR	1-42315-362-1	02	1	0005-				●
8	HUB; RR AXLE	1-42311-009-6	02	1	0005-0411	●	●
8	HUB; RR AXLE	1-42311-009-6	02	1	0412-	●	●	●
8	HUB; RR AXLE	1-42311-021-1	02	1	0005-				●
9	PIN; WHEEL,RR AXLE M20X34.5 LH THREAD,M22X43.5 RH THREAD	1-42332-106-0	06	1	0005-0411	●	●
9	PIN; WHEEL,RR AXLE M20X34.5 LH THREAD,M22X43.5 RH THREAD	1-42332-106-2	06	1	0412-	●	●	●
9	PIN; WHEEL,RR AXLE M20X34.5,M22X43.5 RH THREAD	1-42331-106-0	06	1	0005-0411	●	●
9	PIN; WHEEL,RR AXLE M20X34.5,M22X43.5 RH THREAD	1-42331-106-2	06	1	0412-	●	●	●
9	PIN; WHEEL,RR AXLE M20X34.5 LH THREAD,M22X51.5 RH THREAD	1-42332-110-2	08	1	0005-				●
9	PIN; WHEEL,RR AXLE M20X34.5,M22X51.5 RH THREAD	1-42331-110-2	08	1	0005-				●
10	NUT; WHEEL PIN,RR AXLE M22 FLANGE	1-09440-065-0	12	1	0005-0411	●	●
10	NUT; WHEEL PIN,RR AXLE M22 FLANGE	1-09440-065-0	12	1	0412-	●	●	●
10	NUT; WHEEL PIN,RR AXLE M22 FLANGE	1-09440-065-0	16	1	0005-				●
15	BEARING; HUB OUTER,RR AXLE KOYO	1-09812-049-0	02	1	0005-0411	●	●		●
15	BEARING; HUB OUTER,RR AXLE KOYO	1-09812-049-0	02	1	0412-1002	●	●	●	●
15	BEARING; HUB OUTER,RR AXLE KOYO	8-98156-814-0	02	1	1003-	●	●	●	●
15	BEARING; HUB OUTER,RR AXLE NSK	9-00093-159-0	02	1	0005-0411	●	●		●
15	BEARING; HUB OUTER,RR AXLE NSK	9-00093-159-0	02	1	0412-	●	●	●	●
16	SEAL; OIL,RR HUB,OUTER TKK	1-09625-331-0	02	1	0005-0411	●	●		●
16	SEAL; OIL,RR HUB,OUTER TKK	1-09625-331-1	02	1	0412-	●	●	●	●
20	NUT; BRG,RR HUB M64	9-09843-721-2	02	1	0005-0411	●	●		●
20	NUT; BRG,RR HUB M64	9-09843-721-2	02	1	0412-	●	●	●	●
21	WASHER; LK,BRG NUT ID=64	9-09854-122-0	02	1	0005-0411	●	●		●
21	WASHER; LK,BRG NUT ID=64	9-09854-122-0	02	1	0412-	●	●	●	●
24	BOLT; LK WASHER M6X16 FLANGE	0-28680-616-0	06	1	0005-0411	●	●		●
24	BOLT; LK WASHER M6X16 FLANGE	0-28680-616-0	06	1	0412-0512	●	●	●	●
24	BOLT; LK WASHER M6X16 FLANGE	0-28650-616-0	06	1	0601-	●	●	●	●
25	SHAFT; AXLE,RR FINAL GEAR 38/8 13.5" HYPOID(W1A),FINAL GEAR 39/9 13.5" HYPOID(W1N),FINAL GEAR 41/8 13.5" HYPOID(W4E) L=921.5	1-42171-360-1	02	1	0005-0210	●
25	SHAFT; AXLE,RR L=921.5	1-42171-360-1	02	1	0005-0210		●
25	SHAFT; AXLE,RR FINAL GEAR 39/9 14.5" HYPOID(W4X) L=921.5	1-42171-484-0	02	1	0005-0210	●
25	SHAFT; AXLE,RR L=921.5	1-42171-484-0	02	1	0005-0210				●
25	SHAFT; AXLE,RR L=921.5	1-42171-484-0	02	1	0211-0411	●	●		●
25	SHAFT; AXLE,RR L=921.5	1-42171-484-0	02	1	0412-	●	●	●	●
30	BOLT; HUB TO AXLE SHAFT M12X45	9-09804-239-1	20	1	0005-0411	●	●		●
30	BOLT; HUB TO AXLE SHAFT M12X45	9-09804-239-1	20	1	0412-	●	●	●	●
33	WASHER; AXLE SHAFT ID=12.2	9-09150-812-0	20	1	0005-0411	●	●		●
33	WASHER; AXLE SHAFT ID=12.2	9-09150-812-0	20	1	0412-0603	●	●	●	●
33	WASHER; AXLE SHAFT ID=12.2	0-91510-812-0	20	1	0604-	●	●	●	●
37	BEARING; HUB INNER,RR AXLE KOYO	1-09812-044-0	02	1	0005-0411	●	●		●
37	BEARING; HUB INNER,RR AXLE KOYO	1-09812-044-0	02	1	0412-1002	●	●	●	●
37	BEARING; HUB INNER,RR AXLE KOYO	1-09812-154-0	02	1	1003-	●	●	●	●
37	BEARING; HUB INNER,RR AXLE NACHI	1-09812-053-0	02	1	0005-0411	●	●		●
37	BEARING; HUB INNER,RR AXLE NACHI	1-09812-053-0	02	1	0412-1002	●	●	●	●
37	BEARING; HUB INNER,RR AXLE NSK	9-00093-161-0	02	1	0005-0411	●	●		●
37	BEARING; HUB INNER,RR AXLE NSK	9-00093-161-0	02	1	0412-1002	●	●	●	●
37	BEARING; HUB INNER,RR AXLE NSK	1-09812-153-0	02	1	1003-	●	●	●	●
38	SEAL; OIL,RR HUB,INNER TKK	1-09625-569-0	02	1	0005-0411	●	●		●
38	SEAL; OIL,RR HUB,INNER TKK	1-09625-569-0	02	1	0412-	●	●	●	●
43	RING; SNAP,HUB SEAL,RR AXLE	9-09950-201-0	02	1	0005-0411	●	●		●
43	RING; SNAP,HUB SEAL,RR AXLE	9-09950-201-0	02	1	0412-	●	●	●	●
49	CASE; RR AXLE (D)	8-98000-689-0	01	1	0412-0509			●
49	CASE; RR AXLE (D)	8-97388-134-0	01	1	0510-			●
49	CASE; RR AXLE FINAL GEAR 38/8 13.5" HYPOID(W1A),FINAL GEAR 39/9 13.5" HYPOID(W1N),FINAL GEAR 41/8 13.5" HYPOID(W4E) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-42150-956-0	01	1	0005-0210	●
49	CASE; RR AXLE FINAL GEAR 38/8 13.5" HYPOID(W1A),FINAL GEAR 39/9 13.5" HYPOID(W1N),FINAL GEAR 41/8 13.5" HYPOID(W4E) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-42160-146-0	01	1	0005-0210	●
49	CASE; RR AXLE (B)	1-42160-146-0	01	1	0005-0210		●
49	CASE; RR AXLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-42160-145-0	01	1	0211-	●
49	CASE; RR AXLE FINAL GEAR 39/9 14.5" HYPOID(W4X) (B)	1-42160-706-0	01	1	0005-0210	●
49	CASE; RR AXLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-42160-706-0	01	1	0211-	●
49	CASE; RR AXLE (B)	1-42160-706-0	01	1	0211-		●
49	CASE; RR AXLE (C)	1-42160-150-1	01	1	0005-				●
58	PLUG; DRAIN,AXLE CASE M24X17 FLANGE	1-09604-023-0	01	1	0005-0411	●	●		●
58	PLUG; DRAIN,AXLE CASE M24X17 FLANGE	1-09604-023-0	01	1	0412-	●	●	●	●
59	GASKET; DRAIN PLUG ID=26.8	9-09920-605-0	01	1	0005-0411	●	●		●
59	GASKET; DRAIN PLUG ID=26.8	9-09920-605-0	01	1	0412-	●	●	●	●
60	BREATHER; RR AXLE CASE	1-09893-003-0	01	1	0005-0411	●	●		●
60	BREATHER; RR AXLE CASE	1-09893-003-0	01	1	0412-	●	●	●	●
63	PLUG; OIL FILLER,AXLE CASE M24X17 FLANGE	1-09604-022-0	01	1	0005-0411	●	●		●
63	PLUG; OIL FILLER,AXLE CASE M24X17 FLANGE	1-09604-022-0	01	1	0412-	●	●	●	●
64	GASKET; OIL FILLER,AXLE CASE ID=26.8	9-09920-605-0	01	1	0005-0411	●	●		●
64	GASKET; OIL FILLER,AXLE CASE ID=26.8	9-09920-605-0	01	1	0412-	●	●	●	●
67	BOLT; FINAL DRIVE SETTING FINAL GEAR 38/8 13.5" HYPOID(W1A),FINAL GEAR 39/9 13.5" HYPOID(W1N),FINAL GEAR 41/8 13.5" HYPOID(W4E) M10X35	1-09000-398-0	08	1	0005-0210	●
67	BOLT; FINAL DRIVE SETTING M10X35	1-09000-398-0	08	1	0005-0210		●
67	BOLT; FINAL DRIVE SETTING FINAL GEAR 38/8 13.5" HYPOID(W1A),FINAL GEAR 39/9 13.5" HYPOID(W1N),FINAL GEAR 41/8 13.5" HYPOID(W4E) M10X55	1-09000-429-1	04	1	0005-0210	●
67	BOLT; FINAL DRIVE SETTING M10X55	1-09000-429-1	04	1	0005-0210		●
67	BOLT; FINAL DRIVE SETTING FINAL GEAR 39/9 14.5" HYPOID(W4X) M12X55	9-91066-255-0	04	1	0005-0210	●
67	BOLT; FINAL DRIVE SETTING M12X55	9-91066-255-0	04	1	0005-0210				●
67	BOLT; FINAL DRIVE SETTING M12X55	9-91066-255-0	04	1	0211-0411	●	●		●
67	BOLT; FINAL DRIVE SETTING M12X55	9-91066-255-0	04	1	0412-	●	●	●	●
67	BOLT; FINAL DRIVE SETTING FINAL GEAR 39/9 14.5" HYPOID(W4X) M12X35	9-92061-235-0	08	1	0005-0210	●
67	BOLT; FINAL DRIVE SETTING M12X35	9-92061-235-0	08	1	0005-0210				●
67	BOLT; FINAL DRIVE SETTING M12X35	9-92061-235-0	08	1	0211-0411	●	●		●
67	BOLT; FINAL DRIVE SETTING M12X35	9-92061-235-0	08	1	0412-0512	●	●	●	●
67	BOLT; FINAL DRIVE SETTING M12X35	0-20951-235-0	08	1	0601-	●	●	●	●
71	WASHER; LK,FINAL DRIVE SETTING FINAL GEAR 38/8 13.5" HYPOID(W1A),FINAL GEAR 39/9 13.5" HYPOID(W1N),FINAL GEAR 41/8 13.5" HYPOID(W4E) ID=10.2	9-09150-810-0	12	1	0005-0210	●
71	WASHER; LK,FINAL DRIVE SETTING ID=10.2	9-09150-810-0	12	1	0005-0210		●
71	WASHER; LK,FINAL DRIVE SETTING FINAL GEAR 39/9 14.5" HYPOID(W4X) ID=12.2	9-09150-812-0	12	1	0005-0210	●
71	WASHER; LK,FINAL DRIVE SETTING ID=12.2	9-09150-812-0	12	1	0005-0210				●
71	WASHER; LK,FINAL DRIVE SETTING ID=12.2	9-09150-812-0	12	1	0211-0411	●	●		●
71	WASHER; LK,FINAL DRIVE SETTING ID=12.2	9-09150-812-0	12	1	0412-0603	●	●	●	●
71	WASHER; LK,FINAL DRIVE SETTING ID=12.2	0-91510-812-0	12	1	0604-	●	●	●	●
74	BOLT; RR BRK ASM SETTING M14X50	9-92061-450-0	12	1	0005-0512				●
74	BOLT; RR BRK ASM SETTING M14X50	0-20951-450-0	12	1	0601-				●
75	WASHER; LK,RR BRK ASM SETTING ID=14.2	9-09150-814-0	12	1	0005-0411	●	●
75	WASHER; LK,RR BRK ASM SETTING ID=14.2	9-09150-814-0	12	1	0412-0603	●	●	●
75	WASHER; LK,RR BRK ASM SETTING ID=14.2	0-91510-814-0	12	1	0604-	●	●	●
75	WASHER; LK,RR BRK ASM SETTING ID=14.2	9-09150-814-0	16	1	0005-0603				●
75	WASHER; LK,RR BRK ASM SETTING ID=14.2	0-91510-814-0	16	1	0604-				●
76	NUT; RR BRK ASM SETTING M14	9-99110-514-0	12	1	0005-0411	●	●
76	NUT; RR BRK ASM SETTING M14	9-99110-514-0	12	1	0412-0512	●	●	●
76	NUT; RR BRK ASM SETTING M14	0-91110-514-0	12	1	0601-	●	●	●
76	NUT; RR BRK ASM SETTING M14	9-99110-514-0	16	1	0005-0512				●
76	NUT; RR BRK ASM SETTING M14	0-91110-514-0	16	1	0601-				●
140	CONNECTOR; AXLE CASE	1-09656-239-3	01	1	0005-0411	●	●		●
140	CONNECTOR; AXLE CASE	1-09656-239-3	01	1	0412-	●	●	●	●

49 140 63 64 60 76 71 75 67 59 58 43 10 38 9 37 16 1 8 25 15 20 21 33 30 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	DRUM; BRK,RR	1-42315-361-0	02	1	0005-0411	●	●
1	DRUM; BRK,RR	1-42315-361-0	02	1	0412-	●	●	●
1	DRUM; BRK,RR	1-42315-362-1	02	1	0005-				●
8	HUB; RR AXLE	1-42311-009-6	02	1	0005-0411	●	●
8	HUB; RR AXLE	1-42311-009-6	02	1	0412-	●	●	●
8	HUB; RR AXLE	1-42311-021-1	02	1	0005-				●
9	PIN; WHEEL,RR AXLE M20X34.5 LH THREAD,M22X43.5 RH THREAD	1-42332-106-0	06	1	0005-0411	●	●
9	PIN; WHEEL,RR AXLE M20X34.5 LH THREAD,M22X43.5 RH THREAD	1-42332-106-2	06	1	0412-	●	●	●
9	PIN; WHEEL,RR AXLE M20X34.5,M22X43.5 RH THREAD	1-42331-106-0	06	1	0005-0411	●	●
9	PIN; WHEEL,RR AXLE M20X34.5,M22X43.5 RH THREAD	1-42331-106-2	06	1	0412-	●	●	●
9	PIN; WHEEL,RR AXLE M20X34.5 LH THREAD,M22X51.5 RH THREAD	1-42332-110-2	08	1	0005-				●
9	PIN; WHEEL,RR AXLE M20X34.5,M22X51.5 RH THREAD	1-42331-110-2	08	1	0005-				●
10	NUT; WHEEL PIN,RR AXLE M22 FLANGE	1-09440-065-0	12	1	0005-0411	●	●
10	NUT; WHEEL PIN,RR AXLE M22 FLANGE	1-09440-065-0	12	1	0412-	●	●	●
10	NUT; WHEEL PIN,RR AXLE M22 FLANGE	1-09440-065-0	16	1	0005-				●
15	BEARING; HUB OUTER,RR AXLE KOYO	1-09812-049-0	02	1	0005-0411	●	●		●
15	BEARING; HUB OUTER,RR AXLE KOYO	1-09812-049-0	02	1	0412-1002	●	●	●	●
15	BEARING; HUB OUTER,RR AXLE KOYO	8-98156-814-0	02	1	1003-	●	●	●	●
15	BEARING; HUB OUTER,RR AXLE NSK	9-00093-159-0	02	1	0005-0411	●	●		●
15	BEARING; HUB OUTER,RR AXLE NSK	9-00093-159-0	02	1	0412-	●	●	●	●
16	SEAL; OIL,RR HUB,OUTER TKK	1-09625-331-0	02	1	0005-0411	●	●		●
16	SEAL; OIL,RR HUB,OUTER TKK	1-09625-331-1	02	1	0412-	●	●	●	●
20	NUT; BRG,RR HUB M64	9-09843-721-2	02	1	0005-0411	●	●		●
20	NUT; BRG,RR HUB M64	9-09843-721-2	02	1	0412-	●	●	●	●
21	WASHER; LK,BRG NUT ID=64	9-09854-122-0	02	1	0005-0411	●	●		●
21	WASHER; LK,BRG NUT ID=64	9-09854-122-0	02	1	0412-	●	●	●	●
24	BOLT; LK WASHER M6X16 FLANGE	0-28680-616-0	06	1	0005-0411	●	●		●
24	BOLT; LK WASHER M6X16 FLANGE	0-28680-616-0	06	1	0412-0512	●	●	●	●
24	BOLT; LK WASHER M6X16 FLANGE	0-28650-616-0	06	1	0601-	●	●	●	●
25	SHAFT; AXLE,RR FINAL GEAR 38/8 13.5" HYPOID(W1A),FINAL GEAR 39/9 13.5" HYPOID(W1N),FINAL GEAR 41/8 13.5" HYPOID(W4E) L=921.5	1-42171-360-1	02	1	0005-0210	●
25	SHAFT; AXLE,RR L=921.5	1-42171-360-1	02	1	0005-0210		●
25	SHAFT; AXLE,RR FINAL GEAR 39/9 14.5" HYPOID(W4X) L=921.5	1-42171-484-0	02	1	0005-0210	●
25	SHAFT; AXLE,RR L=921.5	1-42171-484-0	02	1	0005-0210				●
25	SHAFT; AXLE,RR L=921.5	1-42171-484-0	02	1	0211-0411	●	●		●
25	SHAFT; AXLE,RR L=921.5	1-42171-484-0	02	1	0412-	●	●	●	●
30	BOLT; HUB TO AXLE SHAFT M12X45	9-09804-239-1	20	1	0005-0411	●	●		●
30	BOLT; HUB TO AXLE SHAFT M12X45	9-09804-239-1	20	1	0412-	●	●	●	●
33	WASHER; AXLE SHAFT ID=12.2	9-09150-812-0	20	1	0005-0411	●	●		●
33	WASHER; AXLE SHAFT ID=12.2	9-09150-812-0	20	1	0412-0603	●	●	●	●
33	WASHER; AXLE SHAFT ID=12.2	0-91510-812-0	20	1	0604-	●	●	●	●
37	BEARING; HUB INNER,RR AXLE KOYO	1-09812-044-0	02	1	0005-0411	●	●		●
37	BEARING; HUB INNER,RR AXLE KOYO	1-09812-044-0	02	1	0412-1002	●	●	●	●
37	BEARING; HUB INNER,RR AXLE KOYO	1-09812-154-0	02	1	1003-	●	●	●	●
37	BEARING; HUB INNER,RR AXLE NACHI	1-09812-053-0	02	1	0005-0411	●	●		●
37	BEARING; HUB INNER,RR AXLE NACHI	1-09812-053-0	02	1	0412-1002	●	●	●	●
37	BEARING; HUB INNER,RR AXLE NSK	9-00093-161-0	02	1	0005-0411	●	●		●
37	BEARING; HUB INNER,RR AXLE NSK	9-00093-161-0	02	1	0412-1002	●	●	●	●
37	BEARING; HUB INNER,RR AXLE NSK	1-09812-153-0	02	1	1003-	●	●	●	●
38	SEAL; OIL,RR HUB,INNER TKK	1-09625-569-0	02	1	0005-0411	●	●		●
38	SEAL; OIL,RR HUB,INNER TKK	1-09625-569-0	02	1	0412-	●	●	●	●
43	RING; SNAP,HUB SEAL,RR AXLE	9-09950-201-0	02	1	0005-0411	●	●		●
43	RING; SNAP,HUB SEAL,RR AXLE	9-09950-201-0	02	1	0412-	●	●	●	●
49	CASE; RR AXLE (D)	8-98000-689-0	01	1	0412-0509			●
49	CASE; RR AXLE (D)	8-97388-134-0	01	1	0510-			●
49	CASE; RR AXLE FINAL GEAR 38/8 13.5" HYPOID(W1A),FINAL GEAR 39/9 13.5" HYPOID(W1N),FINAL GEAR 41/8 13.5" HYPOID(W4E) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-42150-956-0	01	1	0005-0210	●
49	CASE; RR AXLE FINAL GEAR 38/8 13.5" HYPOID(W1A),FINAL GEAR 39/9 13.5" HYPOID(W1N),FINAL GEAR 41/8 13.5" HYPOID(W4E) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-42160-146-0	01	1	0005-0210	●
49	CASE; RR AXLE (B)	1-42160-146-0	01	1	0005-0210		●
49	CASE; RR AXLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-42160-145-0	01	1	0211-	●
49	CASE; RR AXLE FINAL GEAR 39/9 14.5" HYPOID(W4X) (B)	1-42160-706-0	01	1	0005-0210	●
49	CASE; RR AXLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-42160-706-0	01	1	0211-	●
49	CASE; RR AXLE (B)	1-42160-706-0	01	1	0211-		●
49	CASE; RR AXLE (C)	1-42160-150-1	01	1	0005-				●
58	PLUG; DRAIN,AXLE CASE M24X17 FLANGE	1-09604-023-0	01	1	0005-0411	●	●		●
58	PLUG; DRAIN,AXLE CASE M24X17 FLANGE	1-09604-023-0	01	1	0412-	●	●	●	●
59	GASKET; DRAIN PLUG ID=26.8	9-09920-605-0	01	1	0005-0411	●	●		●
59	GASKET; DRAIN PLUG ID=26.8	9-09920-605-0	01	1	0412-	●	●	●	●
60	BREATHER; RR AXLE CASE	1-09893-003-0	01	1	0005-0411	●	●		●
60	BREATHER; RR AXLE CASE	1-09893-003-0	01	1	0412-	●	●	●	●
63	PLUG; OIL FILLER,AXLE CASE M24X17 FLANGE	1-09604-022-0	01	1	0005-0411	●	●		●
63	PLUG; OIL FILLER,AXLE CASE M24X17 FLANGE	1-09604-022-0	01	1	0412-	●	●	●	●
64	GASKET; OIL FILLER,AXLE CASE ID=26.8	9-09920-605-0	01	1	0005-0411	●	●		●
64	GASKET; OIL FILLER,AXLE CASE ID=26.8	9-09920-605-0	01	1	0412-	●	●	●	●
67	BOLT; FINAL DRIVE SETTING FINAL GEAR 38/8 13.5" HYPOID(W1A),FINAL GEAR 39/9 13.5" HYPOID(W1N),FINAL GEAR 41/8 13.5" HYPOID(W4E) M10X35	1-09000-398-0	08	1	0005-0210	●
67	BOLT; FINAL DRIVE SETTING M10X35	1-09000-398-0	08	1	0005-0210		●
67	BOLT; FINAL DRIVE SETTING FINAL GEAR 38/8 13.5" HYPOID(W1A),FINAL GEAR 39/9 13.5" HYPOID(W1N),FINAL GEAR 41/8 13.5" HYPOID(W4E) M10X55	1-09000-429-1	04	1	0005-0210	●
67	BOLT; FINAL DRIVE SETTING M10X55	1-09000-429-1	04	1	0005-0210		●
67	BOLT; FINAL DRIVE SETTING FINAL GEAR 39/9 14.5" HYPOID(W4X) M12X55	9-91066-255-0	04	1	0005-0210	●
67	BOLT; FINAL DRIVE SETTING M12X55	9-91066-255-0	04	1	0005-0210				●
67	BOLT; FINAL DRIVE SETTING M12X55	9-91066-255-0	04	1	0211-0411	●	●		●
67	BOLT; FINAL DRIVE SETTING M12X55	9-91066-255-0	04	1	0412-	●	●	●	●
67	BOLT; FINAL DRIVE SETTING FINAL GEAR 39/9 14.5" HYPOID(W4X) M12X35	9-92061-235-0	08	1	0005-0210	●
67	BOLT; FINAL DRIVE SETTING M12X35	9-92061-235-0	08	1	0005-0210				●
67	BOLT; FINAL DRIVE SETTING M12X35	9-92061-235-0	08	1	0211-0411	●	●		●
67	BOLT; FINAL DRIVE SETTING M12X35	9-92061-235-0	08	1	0412-0512	●	●	●	●
67	BOLT; FINAL DRIVE SETTING M12X35	0-20951-235-0	08	1	0601-	●	●	●	●
71	WASHER; LK,FINAL DRIVE SETTING FINAL GEAR 38/8 13.5" HYPOID(W1A),FINAL GEAR 39/9 13.5" HYPOID(W1N),FINAL GEAR 41/8 13.5" HYPOID(W4E) ID=10.2	9-09150-810-0	12	1	0005-0210	●
71	WASHER; LK,FINAL DRIVE SETTING ID=10.2	9-09150-810-0	12	1	0005-0210		●
71	WASHER; LK,FINAL DRIVE SETTING FINAL GEAR 39/9 14.5" HYPOID(W4X) ID=12.2	9-09150-812-0	12	1	0005-0210	●
71	WASHER; LK,FINAL DRIVE SETTING ID=12.2	9-09150-812-0	12	1	0005-0210				●
71	WASHER; LK,FINAL DRIVE SETTING ID=12.2	9-09150-812-0	12	1	0211-0411	●	●		●
71	WASHER; LK,FINAL DRIVE SETTING ID=12.2	9-09150-812-0	12	1	0412-0603	●	●	●	●
71	WASHER; LK,FINAL DRIVE SETTING ID=12.2	0-91510-812-0	12	1	0604-	●	●	●	●
75	WASHER; LK,RR BRK ASM SETTING ID=14.2	9-09150-814-0	12	1	0005-0411	●	●
75	WASHER; LK,RR BRK ASM SETTING ID=14.2	9-09150-814-0	12	1	0412-0603	●	●	●
75	WASHER; LK,RR BRK ASM SETTING ID=14.2	0-91510-814-0	12	1	0604-	●	●	●
75	WASHER; LK,RR BRK ASM SETTING ID=14.2	9-09150-814-0	16	1	0005-0603				●
75	WASHER; LK,RR BRK ASM SETTING ID=14.2	0-91510-814-0	16	1	0604-				●
76	NUT; RR BRK ASM SETTING M14	9-99110-514-0	12	1	0005-0411	●	●
76	NUT; RR BRK ASM SETTING M14	9-99110-514-0	12	1	0412-0512	●	●	●
76	NUT; RR BRK ASM SETTING M14	0-91110-514-0	12	1	0601-	●	●	●
76	NUT; RR BRK ASM SETTING M14	9-99110-514-0	16	1	0005-0512				●
76	NUT; RR BRK ASM SETTING M14	0-91110-514-0	16	1	0601-				●
140	CONNECTOR; AXLE CASE	1-09656-239-3	01	1	0005-0411	●	●		●
140	CONNECTOR; AXLE CASE	1-09656-239-3	01	1	0412-	●	●	●	●

49 63 64 140 60 76 75 71 67 59 58 49 63 140 64 60 76 75 71 67 59 58 43 10 38 9 37 16 1 25 8 15 33 20 21 30 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	DRUM; BRK,RR	1-42315-361-0	02	1	0005-0411	●	●
1	DRUM; BRK,RR	1-42315-361-0	02	1	0412-	●	●	●
1	DRUM; BRK,RR	1-42315-362-1	02	1	0005-				●
8	HUB; RR AXLE	1-42311-009-6	02	1	0005-0411	●	●
8	HUB; RR AXLE	1-42311-009-6	02	1	0412-	●	●	●
8	HUB; RR AXLE	1-42311-021-1	02	1	0005-				●
9	PIN; WHEEL,RR AXLE M20X34.5 LH THREAD,M22X43.5 RH THREAD	1-42332-106-0	06	1	0005-0411	●	●
9	PIN; WHEEL,RR AXLE M20X34.5 LH THREAD,M22X43.5 RH THREAD	1-42332-106-2	06	1	0412-	●	●	●
9	PIN; WHEEL,RR AXLE M20X34.5,M22X43.5 RH THREAD	1-42331-106-0	06	1	0005-0411	●	●
9	PIN; WHEEL,RR AXLE M20X34.5,M22X43.5 RH THREAD	1-42331-106-2	06	1	0412-	●	●	●
9	PIN; WHEEL,RR AXLE M20X34.5 LH THREAD,M22X51.5 RH THREAD	1-42332-110-2	08	1	0005-				●
9	PIN; WHEEL,RR AXLE M20X34.5,M22X51.5 RH THREAD	1-42331-110-2	08	1	0005-				●
10	NUT; WHEEL PIN,RR AXLE M22 FLANGE	1-09440-065-0	12	1	0005-0411	●	●
10	NUT; WHEEL PIN,RR AXLE M22 FLANGE	1-09440-065-0	12	1	0412-	●	●	●
10	NUT; WHEEL PIN,RR AXLE M22 FLANGE	1-09440-065-0	16	1	0005-				●
15	BEARING; HUB OUTER,RR AXLE KOYO	1-09812-049-0	02	1	0005-0411	●	●		●
15	BEARING; HUB OUTER,RR AXLE KOYO	1-09812-049-0	02	1	0412-1002	●	●	●	●
15	BEARING; HUB OUTER,RR AXLE KOYO	8-98156-814-0	02	1	1003-	●	●	●	●
15	BEARING; HUB OUTER,RR AXLE NSK	9-00093-159-0	02	1	0005-0411	●	●		●
15	BEARING; HUB OUTER,RR AXLE NSK	9-00093-159-0	02	1	0412-	●	●	●	●
16	SEAL; OIL,RR HUB,OUTER TKK	1-09625-331-0	02	1	0005-0411	●	●		●
16	SEAL; OIL,RR HUB,OUTER TKK	1-09625-331-1	02	1	0412-	●	●	●	●
20	NUT; BRG,RR HUB M64	9-09843-721-2	02	1	0005-0411	●	●		●
20	NUT; BRG,RR HUB M64	9-09843-721-2	02	1	0412-	●	●	●	●
21	WASHER; LK,BRG NUT ID=64	9-09854-122-0	02	1	0005-0411	●	●		●
21	WASHER; LK,BRG NUT ID=64	9-09854-122-0	02	1	0412-	●	●	●	●
24	BOLT; LK WASHER M6X16 FLANGE	0-28680-616-0	06	1	0005-0411	●	●		●
24	BOLT; LK WASHER M6X16 FLANGE	0-28680-616-0	06	1	0412-0512	●	●	●	●
24	BOLT; LK WASHER M6X16 FLANGE	0-28650-616-0	06	1	0601-	●	●	●	●
25	SHAFT; AXLE,RR FINAL GEAR 38/8 13.5" HYPOID(W1A),FINAL GEAR 39/9 13.5" HYPOID(W1N),FINAL GEAR 41/8 13.5" HYPOID(W4E) L=921.5	1-42171-360-1	02	1	0005-0210	●
25	SHAFT; AXLE,RR L=921.5	1-42171-360-1	02	1	0005-0210		●
25	SHAFT; AXLE,RR FINAL GEAR 39/9 14.5" HYPOID(W4X) L=921.5	1-42171-484-0	02	1	0005-0210	●
25	SHAFT; AXLE,RR L=921.5	1-42171-484-0	02	1	0005-0210				●
25	SHAFT; AXLE,RR L=921.5	1-42171-484-0	02	1	0211-0411	●	●		●
25	SHAFT; AXLE,RR L=921.5	1-42171-484-0	02	1	0412-	●	●	●	●
30	BOLT; HUB TO AXLE SHAFT M12X45	9-09804-239-1	20	1	0005-0411	●	●		●
30	BOLT; HUB TO AXLE SHAFT M12X45	9-09804-239-1	20	1	0412-	●	●	●	●
33	WASHER; AXLE SHAFT ID=12.2	9-09150-812-0	20	1	0005-0411	●	●		●
33	WASHER; AXLE SHAFT ID=12.2	9-09150-812-0	20	1	0412-0603	●	●	●	●
33	WASHER; AXLE SHAFT ID=12.2	0-91510-812-0	20	1	0604-	●	●	●	●
37	BEARING; HUB INNER,RR AXLE KOYO	1-09812-044-0	02	1	0005-0411	●	●		●
37	BEARING; HUB INNER,RR AXLE KOYO	1-09812-044-0	02	1	0412-1002	●	●	●	●
37	BEARING; HUB INNER,RR AXLE KOYO	1-09812-154-0	02	1	1003-	●	●	●	●
37	BEARING; HUB INNER,RR AXLE NACHI	1-09812-053-0	02	1	0005-0411	●	●		●
37	BEARING; HUB INNER,RR AXLE NACHI	1-09812-053-0	02	1	0412-1002	●	●	●	●
37	BEARING; HUB INNER,RR AXLE NSK	9-00093-161-0	02	1	0005-0411	●	●		●
37	BEARING; HUB INNER,RR AXLE NSK	9-00093-161-0	02	1	0412-1002	●	●	●	●
37	BEARING; HUB INNER,RR AXLE NSK	1-09812-153-0	02	1	1003-	●	●	●	●
38	SEAL; OIL,RR HUB,INNER TKK	1-09625-569-0	02	1	0005-0411	●	●		●
38	SEAL; OIL,RR HUB,INNER TKK	1-09625-569-0	02	1	0412-	●	●	●	●
43	RING; SNAP,HUB SEAL,RR AXLE	9-09950-201-0	02	1	0005-0411	●	●		●
43	RING; SNAP,HUB SEAL,RR AXLE	9-09950-201-0	02	1	0412-	●	●	●	●
49	CASE; RR AXLE (D)	8-98000-689-0	01	1	0412-0509			●
49	CASE; RR AXLE (D)	8-97388-134-0	01	1	0510-			●
49	CASE; RR AXLE FINAL GEAR 38/8 13.5" HYPOID(W1A),FINAL GEAR 39/9 13.5" HYPOID(W1N),FINAL GEAR 41/8 13.5" HYPOID(W4E) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-42150-956-0	01	1	0005-0210	●
49	CASE; RR AXLE FINAL GEAR 38/8 13.5" HYPOID(W1A),FINAL GEAR 39/9 13.5" HYPOID(W1N),FINAL GEAR 41/8 13.5" HYPOID(W4E) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-42160-146-0	01	1	0005-0210	●
49	CASE; RR AXLE (B)	1-42160-146-0	01	1	0005-0210		●
49	CASE; RR AXLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-42160-145-0	01	1	0211-	●
49	CASE; RR AXLE FINAL GEAR 39/9 14.5" HYPOID(W4X) (B)	1-42160-706-0	01	1	0005-0210	●
49	CASE; RR AXLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-42160-706-0	01	1	0211-	●
49	CASE; RR AXLE (B)	1-42160-706-0	01	1	0211-		●
49	CASE; RR AXLE (C)	1-42160-150-1	01	1	0005-				●
58	PLUG; DRAIN,AXLE CASE M24X17 FLANGE	1-09604-023-0	01	1	0005-0411	●	●		●
58	PLUG; DRAIN,AXLE CASE M24X17 FLANGE	1-09604-023-0	01	1	0412-	●	●	●	●
59	GASKET; DRAIN PLUG ID=26.8	9-09920-605-0	01	1	0005-0411	●	●		●
59	GASKET; DRAIN PLUG ID=26.8	9-09920-605-0	01	1	0412-	●	●	●	●
60	BREATHER; RR AXLE CASE	1-09893-003-0	01	1	0005-0411	●	●		●
60	BREATHER; RR AXLE CASE	1-09893-003-0	01	1	0412-	●	●	●	●
63	PLUG; OIL FILLER,AXLE CASE M24X17 FLANGE	1-09604-022-0	01	1	0005-0411	●	●		●
63	PLUG; OIL FILLER,AXLE CASE M24X17 FLANGE	1-09604-022-0	01	1	0412-	●	●	●	●
64	GASKET; OIL FILLER,AXLE CASE ID=26.8	9-09920-605-0	01	1	0005-0411	●	●		●
64	GASKET; OIL FILLER,AXLE CASE ID=26.8	9-09920-605-0	01	1	0412-	●	●	●	●
67	BOLT; FINAL DRIVE SETTING FINAL GEAR 38/8 13.5" HYPOID(W1A),FINAL GEAR 39/9 13.5" HYPOID(W1N),FINAL GEAR 41/8 13.5" HYPOID(W4E) M10X35	1-09000-398-0	08	1	0005-0210	●
67	BOLT; FINAL DRIVE SETTING M10X35	1-09000-398-0	08	1	0005-0210		●
67	BOLT; FINAL DRIVE SETTING FINAL GEAR 38/8 13.5" HYPOID(W1A),FINAL GEAR 39/9 13.5" HYPOID(W1N),FINAL GEAR 41/8 13.5" HYPOID(W4E) M10X55	1-09000-429-1	04	1	0005-0210	●
67	BOLT; FINAL DRIVE SETTING M10X55	1-09000-429-1	04	1	0005-0210		●
67	BOLT; FINAL DRIVE SETTING FINAL GEAR 39/9 14.5" HYPOID(W4X) M12X55	9-91066-255-0	04	1	0005-0210	●
67	BOLT; FINAL DRIVE SETTING M12X55	9-91066-255-0	04	1	0005-0210				●
67	BOLT; FINAL DRIVE SETTING M12X55	9-91066-255-0	04	1	0211-0411	●	●		●
67	BOLT; FINAL DRIVE SETTING M12X55	9-91066-255-0	04	1	0412-	●	●	●	●
67	BOLT; FINAL DRIVE SETTING FINAL GEAR 39/9 14.5" HYPOID(W4X) M12X35	9-92061-235-0	08	1	0005-0210	●
67	BOLT; FINAL DRIVE SETTING M12X35	9-92061-235-0	08	1	0005-0210				●
67	BOLT; FINAL DRIVE SETTING M12X35	9-92061-235-0	08	1	0211-0411	●	●		●
67	BOLT; FINAL DRIVE SETTING M12X35	9-92061-235-0	08	1	0412-0512	●	●	●	●
67	BOLT; FINAL DRIVE SETTING M12X35	0-20951-235-0	08	1	0601-	●	●	●	●
71	WASHER; LK,FINAL DRIVE SETTING FINAL GEAR 38/8 13.5" HYPOID(W1A),FINAL GEAR 39/9 13.5" HYPOID(W1N),FINAL GEAR 41/8 13.5" HYPOID(W4E) ID=10.2	9-09150-810-0	12	1	0005-0210	●
71	WASHER; LK,FINAL DRIVE SETTING ID=10.2	9-09150-810-0	12	1	0005-0210		●
71	WASHER; LK,FINAL DRIVE SETTING FINAL GEAR 39/9 14.5" HYPOID(W4X) ID=12.2	9-09150-812-0	12	1	0005-0210	●
71	WASHER; LK,FINAL DRIVE SETTING ID=12.2	9-09150-812-0	12	1	0005-0210				●
71	WASHER; LK,FINAL DRIVE SETTING ID=12.2	9-09150-812-0	12	1	0211-0411	●	●		●
71	WASHER; LK,FINAL DRIVE SETTING ID=12.2	9-09150-812-0	12	1	0412-0603	●	●	●	●
71	WASHER; LK,FINAL DRIVE SETTING ID=12.2	0-91510-812-0	12	1	0604-	●	●	●	●
75	WASHER; LK,RR BRK ASM SETTING ID=14.2	9-09150-814-0	12	1	0005-0411	●	●
75	WASHER; LK,RR BRK ASM SETTING ID=14.2	9-09150-814-0	12	1	0412-0603	●	●	●
75	WASHER; LK,RR BRK ASM SETTING ID=14.2	0-91510-814-0	12	1	0604-	●	●	●
75	WASHER; LK,RR BRK ASM SETTING ID=14.2	9-09150-814-0	16	1	0005-0603				●
75	WASHER; LK,RR BRK ASM SETTING ID=14.2	0-91510-814-0	16	1	0604-				●
76	NUT; RR BRK ASM SETTING M14	9-99110-514-0	12	1	0005-0411	●	●
76	NUT; RR BRK ASM SETTING M14	9-99110-514-0	12	1	0412-0512	●	●	●
76	NUT; RR BRK ASM SETTING M14	0-91110-514-0	12	1	0601-	●	●	●
76	NUT; RR BRK ASM SETTING M14	9-99110-514-0	16	1	0005-0512				●
76	NUT; RR BRK ASM SETTING M14	0-91110-514-0	16	1	0601-				●
140	CONNECTOR; AXLE CASE	1-09656-239-3	01	1	0005-0411	●	●		●
140	CONNECTOR; AXLE CASE	1-09656-239-3	01	1	0412-	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
