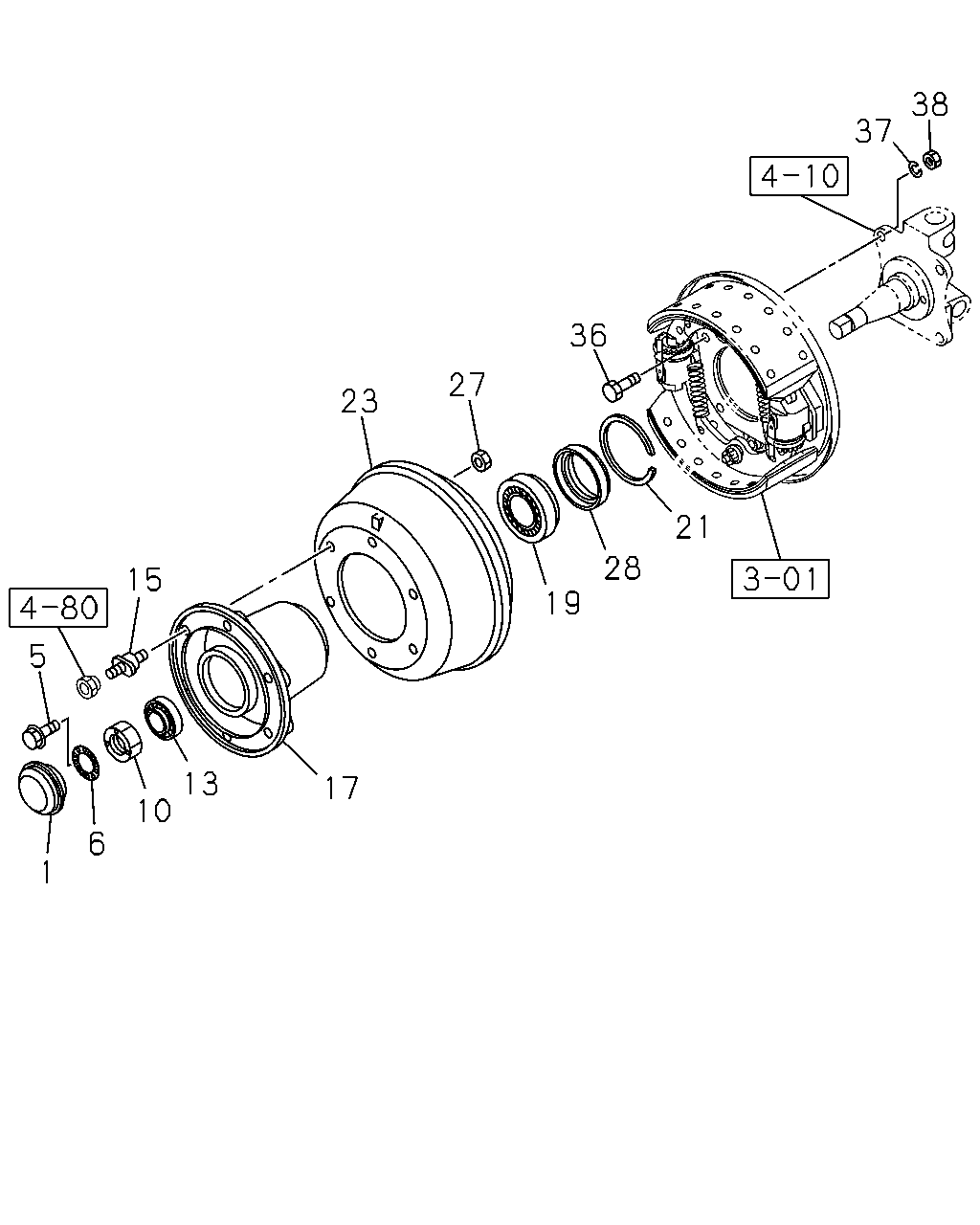

4-11 — FRONT HUB AND DRUM OR ROTOR (#9397) — 129 parça

38 37 36 27 23 21 28 15 19 5 13 10 17 6 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	CAP; HUB,FRT AXLE	1-42313-019-1	02	1	0005-0411	●	●
1	CAP; HUB,FRT AXLE	1-42313-019-1	02	1	0412-0507	●	●	●
1	CAP; HUB,FRT AXLE	1-42313-029-0	02	1	0508-0704	●	●	●
1	CAP; HUB,FRT AXLE	1-42313-030-0	02	1	0705-	●	●	●
1	CAP; HUB,FRT AXLE OD=136	1-42313-007-1	02	1	0005-				●
5	BOLT; LK WASHER M6X16 FLANGE	8-98084-271-0	04	1	0708-1201				●
5	BOLT; LK WASHER M6X16 FLANGE	8-98200-943-0	04	1	1202-				●
5	BOLT; LK WASHER M6X16 FLANGE	0-28680-616-0	04	1	0005-0411	●	●		●
5	BOLT; LK WASHER M6X16 FLANGE	0-28680-616-0	04	1	0412-0512	●	●	●	●
5	BOLT; LK WASHER M6X16 FLANGE	0-28650-616-0	04	1	0601-0707	●	●	●	●
5	BOLT; LK WASHER M6X16 FLANGE	0-28650-616-0	04	1	0708-	●	●	●
6	WASHER; LK,FRT HUB ID=39	8-98086-313-0	02	1	0708-				●
6	WASHER; LK,FRT HUB ID=39	1-09841-003-0	02	1	0005-0411	●	●		●
6	WASHER; LK,FRT HUB ID=39	1-09841-003-0	02	1	0412-0707	●	●	●	●
6	WASHER; LK,FRT HUB ID=39	1-09841-003-0	02	1	0708-	●	●	●
10	NUT; FRT HUB BRG M39	1-09840-019-1	02	1	0005-0411	●	●		●
10	NUT; FRT HUB BRG M39	1-09840-019-1	02	1	0412-	●	●	●	●
13	BEARING; HUB OUTER,FRT AXLE NSK	1-09812-064-0	02	1	0005-0411	●	●
13	BEARING; HUB OUTER,FRT AXLE NSK	1-09812-064-0	02	1	0412-	●	●	●
13	BEARING; HUB OUTER,FRT AXLE KOYO	1-09812-065-0	02	1	0005-0411	●	●
13	BEARING; HUB OUTER,FRT AXLE KOYO	1-09812-065-0	02	1	0412-	●	●	●
13	BEARING; HUB OUTER,FRT AXLE NSK	9-00093-146-0	02	1	0005-				●
13	BEARING; HUB OUTER,FRT AXLE KOYO	9-00093-147-1	02	1	0005-				●
15	PIN; WHEEL,FRT AXLE M24X37.5 LH THREAD,M22X51.5 RH THREAD	1-42332-112-1	06	1	0005-0411	●	●
15	PIN; WHEEL,FRT AXLE M24X37.5 LH THREAD,M22X51.5 RH THREAD	1-42332-112-1	06	1	0412-	●	●	●
15	PIN; WHEEL,FRT AXLE M24X37.5,M22X51.5 RH THREAD	1-42331-112-1	06	1	0005-0411	●	●
15	PIN; WHEEL,FRT AXLE M24X37.5,M22X51.5 RH THREAD	1-42331-112-1	06	1	0412-	●	●	●
15	PIN; WHEEL,FRT AXLE M24X37.5 LH THREAD,M22X51.5 RH THREAD	1-42332-112-1	08	1	0005-				●
15	PIN; WHEEL,FRT AXLE M24X37.5,M22X51.5 RH THREAD	1-42331-112-1	08	1	0005-				●
17	HUB; FRT AXLE	1-42312-117-3	02	1	0005-0411	●	●
17	HUB; FRT AXLE	1-42312-117-3	02	1	0412-	●	●	●
17	HUB; FRT AXLE	1-42312-113-0	02	1	0005-				●
19	BEARING; HUB INNER,FRT AXLE NSK	8-98143-848-0	02	1	0907-				●
19	BEARING; HUB INNER,FRT AXLE NSK	9-00093-031-1	02	1	0005-0411	●	●
19	BEARING; HUB INNER,FRT AXLE NSK	9-00093-031-1	02	1	0412-1002	●	●	●
19	BEARING; HUB INNER,FRT AXLE KOYO	9-00093-205-1	02	1	0005-0411	●	●
19	BEARING; HUB INNER,FRT AXLE KOYO	9-00093-205-1	02	1	0412-1002	●	●	●
19	BEARING; HUB INNER,FRT AXLE KOYO	1-09812-206-0	02	1	1003-	●	●	●
19	BEARING; HUB INNER,FRT AXLE KOYO	9-00093-114-0	02	1	0005-				●
21	RING; SNAP,HUB OD=117	1-09587-001-0	02	1	0005-0411	●	●
21	RING; SNAP,HUB OD=117	1-09587-001-0	02	1	0412-	●	●	●
21	RING; SNAP,HUB OD=132	9-09950-164-0	02	1	0005-				●
23	DRUM; BRK,FRT	1-42315-359-1	02	1	0005-0411	●	●
23	DRUM; BRK,FRT	1-42315-359-1	02	1	0412-	●	●	●
23	DRUM; BRK,FRT	1-42315-138-2	02	1	0005-				●
27	NUT; WHEEL PIN,FRT AXLE M22 FLANGE	1-09440-065-0	12	1	0005-0411	●	●
27	NUT; WHEEL PIN,FRT AXLE M22 FLANGE	1-09440-065-0	12	1	0412-	●	●	●
27	NUT; WHEEL PIN,FRT AXLE M22 FLANGE	1-09440-065-0	16	1	0005-				●
28	SEAL; OIL,FRT HUB	1-09625-568-0	02	1	0005-0411	●	●
28	SEAL; OIL,FRT HUB	1-09625-568-0	02	1	0412-	●	●	●
28	SEAL; OIL,FRT HUB OD=128	1-09625-129-0	02	1	0005-				●
36	BOLT; BACK PLATE M14X45	9-92061-445-0	08	1	0005-0411	●	●
36	BOLT; BACK PLATE M14X45	9-92061-445-0	08	1	0412-	●	●	●
37	WASHER; LK,BACK PLATE ID=14.2	9-09150-814-0	08	1	0005-0411	●	●
37	WASHER; LK,BACK PLATE ID=14.2	9-09150-814-0	08	1	0412-0603	●	●	●
37	WASHER; LK,BACK PLATE ID=14.2	0-91510-814-0	08	1	0604-	●	●	●
37	WASHER; LK,BACK PLATE ID=16.2	9-09150-816-0	08	1	0005-0603				●
37	WASHER; LK,BACK PLATE ID=16.2	0-91510-816-0	08	1	0604-				●
38	NUT; BACK PLATE M14	9-99110-514-0	08	1	0005-0411	●	●
38	NUT; BACK PLATE M14	9-99110-514-0	08	1	0412-0512	●	●	●
38	NUT; BACK PLATE M14	0-91110-514-0	08	1	0601-	●	●	●
38	NUT; BACK PLATE M16	9-99110-416-0	08	1	0005-0512				●
38	NUT; BACK PLATE M16	0-91110-516-0	08	1	0601-				●

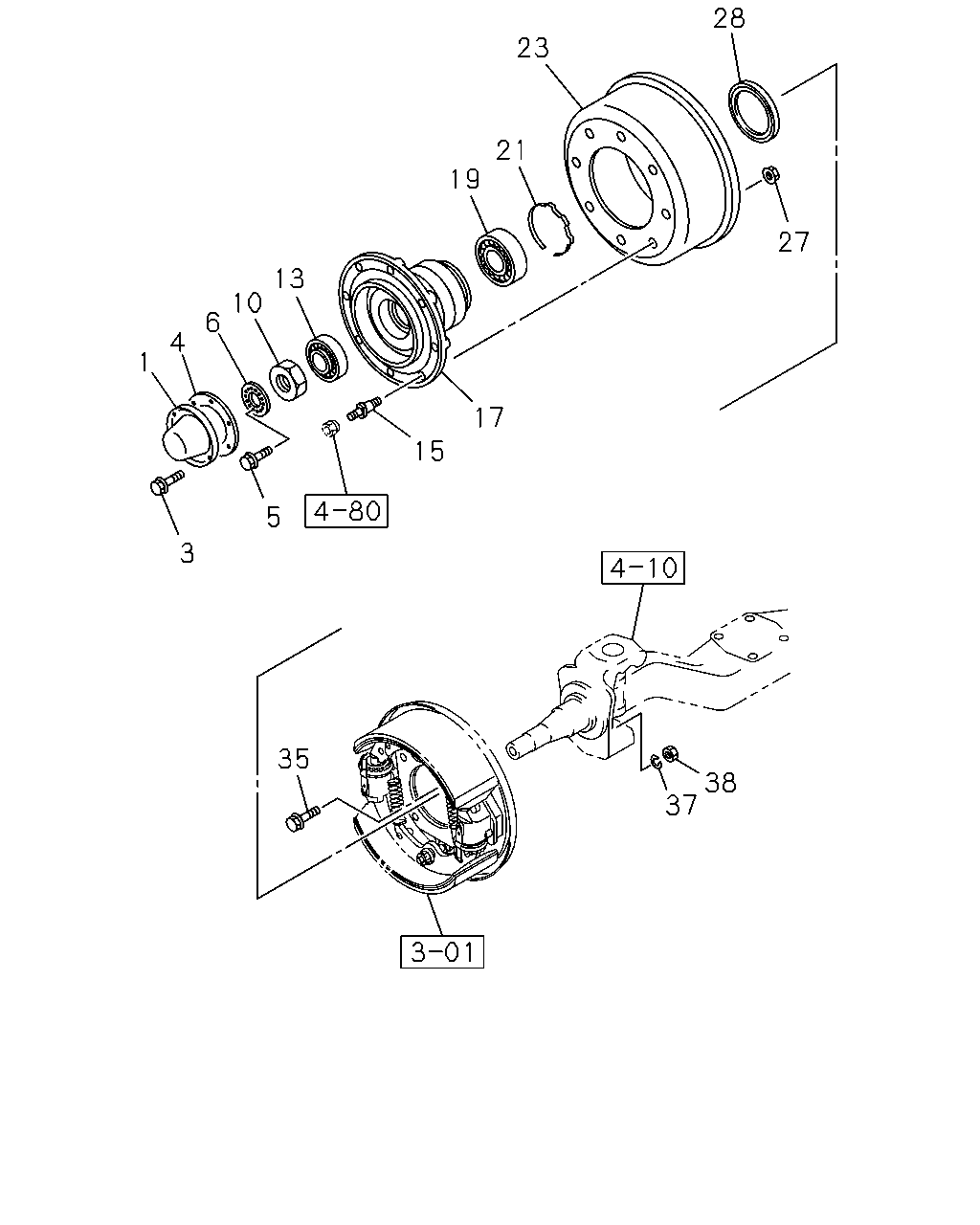

28 23 21 19 27 13 10 6 4 1 17 15 5 3 35 38 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	CAP; HUB,FRT AXLE	1-42313-019-1	02	1	0005-0411	●	●
1	CAP; HUB,FRT AXLE	1-42313-019-1	02	1	0412-0507	●	●	●
1	CAP; HUB,FRT AXLE	1-42313-029-0	02	1	0508-0704	●	●	●
1	CAP; HUB,FRT AXLE	1-42313-030-0	02	1	0705-	●	●	●
1	CAP; HUB,FRT AXLE OD=136	1-42313-007-1	02	1	0005-				●
3	BOLT; HUB CAP,FRT WHEEL M8X12 FLANGE	0-28080-812-0	12	1	0005-0512				●
3	BOLT; HUB CAP,FRT WHEEL M8X12 FLANGE	0-28050-812-0	12	1	0601-				●
4	GASKET; HUB CAP,FRT WHEEL	1-42319-028-0	02	1	0005-				●
5	BOLT; LK WASHER M6X16 FLANGE	8-98084-271-0	04	1	0708-1201				●
5	BOLT; LK WASHER M6X16 FLANGE	8-98200-943-0	04	1	1202-				●
5	BOLT; LK WASHER M6X16 FLANGE	0-28680-616-0	04	1	0005-0411	●	●		●
5	BOLT; LK WASHER M6X16 FLANGE	0-28680-616-0	04	1	0412-0512	●	●	●	●
5	BOLT; LK WASHER M6X16 FLANGE	0-28650-616-0	04	1	0601-0707	●	●	●	●
5	BOLT; LK WASHER M6X16 FLANGE	0-28650-616-0	04	1	0708-	●	●	●
6	WASHER; LK,FRT HUB ID=39	8-98086-313-0	02	1	0708-				●
6	WASHER; LK,FRT HUB ID=39	1-09841-003-0	02	1	0005-0411	●	●		●
6	WASHER; LK,FRT HUB ID=39	1-09841-003-0	02	1	0412-0707	●	●	●	●
6	WASHER; LK,FRT HUB ID=39	1-09841-003-0	02	1	0708-	●	●	●
10	NUT; FRT HUB BRG M39	1-09840-019-1	02	1	0005-0411	●	●		●
10	NUT; FRT HUB BRG M39	1-09840-019-1	02	1	0412-	●	●	●	●
13	BEARING; HUB OUTER,FRT AXLE NSK	1-09812-064-0	02	1	0005-0411	●	●
13	BEARING; HUB OUTER,FRT AXLE NSK	1-09812-064-0	02	1	0412-	●	●	●
13	BEARING; HUB OUTER,FRT AXLE KOYO	1-09812-065-0	02	1	0005-0411	●	●
13	BEARING; HUB OUTER,FRT AXLE KOYO	1-09812-065-0	02	1	0412-	●	●	●
13	BEARING; HUB OUTER,FRT AXLE NSK	9-00093-146-0	02	1	0005-				●
13	BEARING; HUB OUTER,FRT AXLE KOYO	9-00093-147-1	02	1	0005-				●
15	PIN; WHEEL,FRT AXLE M24X37.5 LH THREAD,M22X51.5 RH THREAD	1-42332-112-1	06	1	0005-0411	●	●
15	PIN; WHEEL,FRT AXLE M24X37.5 LH THREAD,M22X51.5 RH THREAD	1-42332-112-1	06	1	0412-	●	●	●
15	PIN; WHEEL,FRT AXLE M24X37.5,M22X51.5 RH THREAD	1-42331-112-1	06	1	0005-0411	●	●
15	PIN; WHEEL,FRT AXLE M24X37.5,M22X51.5 RH THREAD	1-42331-112-1	06	1	0412-	●	●	●
15	PIN; WHEEL,FRT AXLE M24X37.5 LH THREAD,M22X51.5 RH THREAD	1-42332-112-1	08	1	0005-				●
15	PIN; WHEEL,FRT AXLE M24X37.5,M22X51.5 RH THREAD	1-42331-112-1	08	1	0005-				●
17	HUB; FRT AXLE	1-42312-117-3	02	1	0005-0411	●	●
17	HUB; FRT AXLE	1-42312-117-3	02	1	0412-	●	●	●
17	HUB; FRT AXLE	1-42312-113-0	02	1	0005-				●
19	BEARING; HUB INNER,FRT AXLE NSK	8-98143-848-0	02	1	0907-				●
19	BEARING; HUB INNER,FRT AXLE NSK	9-00093-031-1	02	1	0005-0411	●	●
19	BEARING; HUB INNER,FRT AXLE NSK	9-00093-031-1	02	1	0412-1002	●	●	●
19	BEARING; HUB INNER,FRT AXLE KOYO	9-00093-205-1	02	1	0005-0411	●	●
19	BEARING; HUB INNER,FRT AXLE KOYO	9-00093-205-1	02	1	0412-1002	●	●	●
19	BEARING; HUB INNER,FRT AXLE KOYO	1-09812-206-0	02	1	1003-	●	●	●
19	BEARING; HUB INNER,FRT AXLE KOYO	9-00093-114-0	02	1	0005-				●
21	RING; SNAP,HUB OD=117	1-09587-001-0	02	1	0005-0411	●	●
21	RING; SNAP,HUB OD=117	1-09587-001-0	02	1	0412-	●	●	●
21	RING; SNAP,HUB OD=132	9-09950-164-0	02	1	0005-				●
23	DRUM; BRK,FRT	1-42315-359-1	02	1	0005-0411	●	●
23	DRUM; BRK,FRT	1-42315-359-1	02	1	0412-	●	●	●
23	DRUM; BRK,FRT	1-42315-138-2	02	1	0005-				●
27	NUT; WHEEL PIN,FRT AXLE M22 FLANGE	1-09440-065-0	12	1	0005-0411	●	●
27	NUT; WHEEL PIN,FRT AXLE M22 FLANGE	1-09440-065-0	12	1	0412-	●	●	●
27	NUT; WHEEL PIN,FRT AXLE M22 FLANGE	1-09440-065-0	16	1	0005-				●
28	SEAL; OIL,FRT HUB	1-09625-568-0	02	1	0005-0411	●	●
28	SEAL; OIL,FRT HUB	1-09625-568-0	02	1	0412-	●	●	●
28	SEAL; OIL,FRT HUB OD=128	1-09625-129-0	02	1	0005-				●
35	BOLT; DRUM COVER M16X50	0-20801-650-0	08	1	0005-0512				●
35	BOLT; DRUM COVER M16X50	0-20851-650-0	08	1	0601-				●
37	WASHER; LK,BACK PLATE ID=14.2	9-09150-814-0	08	1	0005-0411	●	●
37	WASHER; LK,BACK PLATE ID=14.2	9-09150-814-0	08	1	0412-0603	●	●	●
37	WASHER; LK,BACK PLATE ID=14.2	0-91510-814-0	08	1	0604-	●	●	●
37	WASHER; LK,BACK PLATE ID=16.2	9-09150-816-0	08	1	0005-0603				●
37	WASHER; LK,BACK PLATE ID=16.2	0-91510-816-0	08	1	0604-				●
38	NUT; BACK PLATE M14	9-99110-514-0	08	1	0005-0411	●	●
38	NUT; BACK PLATE M14	9-99110-514-0	08	1	0412-0512	●	●	●
38	NUT; BACK PLATE M14	0-91110-514-0	08	1	0601-	●	●	●
38	NUT; BACK PLATE M16	9-99110-416-0	08	1	0005-0512				●
38	NUT; BACK PLATE M16	0-91110-516-0	08	1	0601-				●
