Sayfa 4-10 - Isuzu EPC

4-10 — FRONT AXLE (#9396) — 462 parça

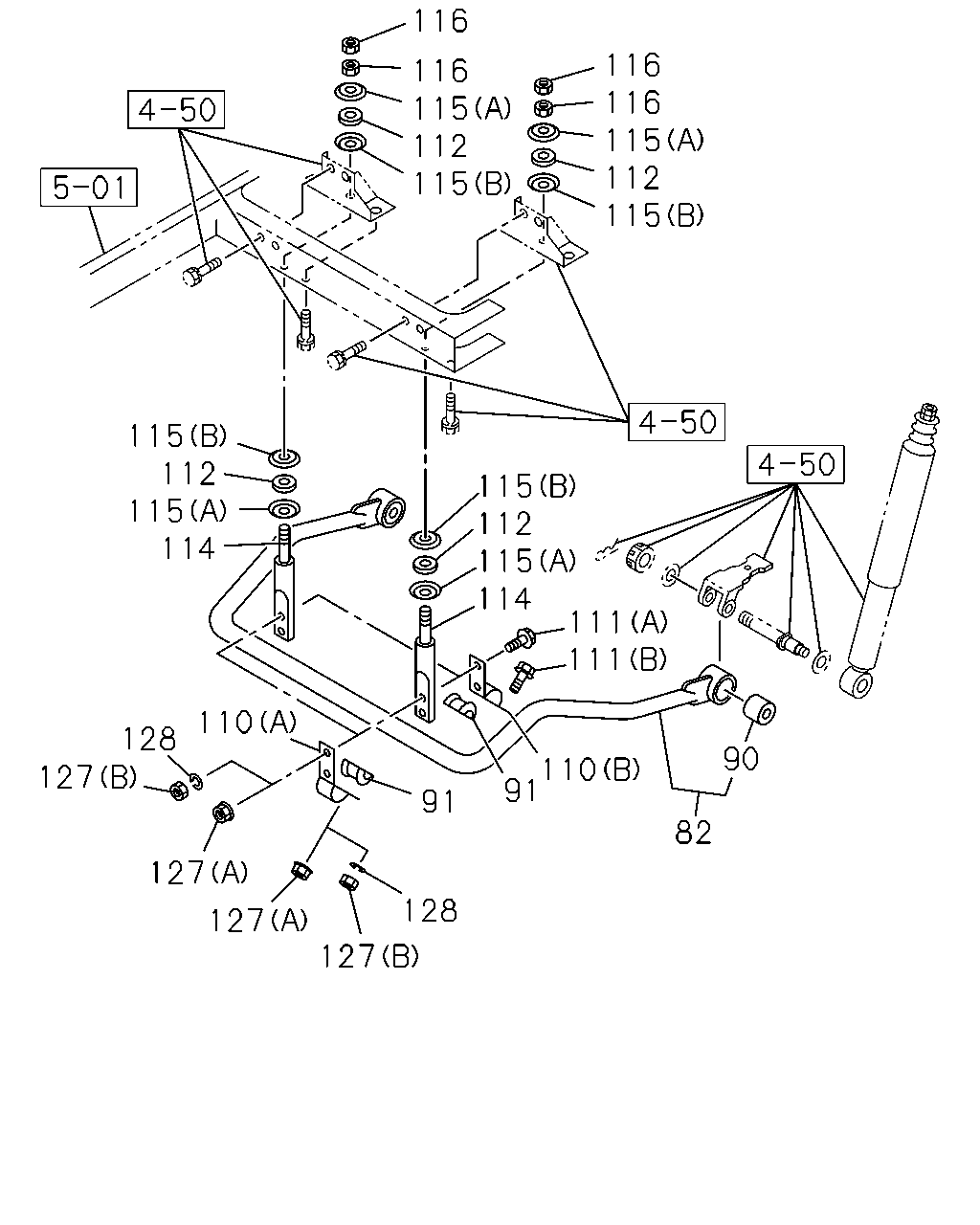

116 116 116 115 116 115 112 112 115 115 115 112 115 114 115 112 115 114 111 111 90 110 91 110 128 127 127 127 127 128 91 82

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
82	BAR; STAB,FRT SUSP FRONT STABILIZER SHAFT<F59>	1-51770-114-0	01	1	0211-0512	●
82	BAR; STAB,FRT SUSP FRONT STABILIZER SHAFT<F59>	1-51770-114-0	01	1	0601-	●	●
82	BAR; STAB,FRT SUSP	1-51770-036-2	01	1	0211-			●
90	BUSHING; RUBBER,STAB BAR FRONT STABILIZER SHAFT<F59>	1-51779-066-0	02	1	0211-0512	●
90	BUSHING; RUBBER,STAB BAR	1-51779-066-0	02	1	0211-0512			●
90	BUSHING; RUBBER,STAB BAR FRONT STABILIZER SHAFT<F59>	1-51779-066-0	02	1	0601-	●	●
90	BUSHING; RUBBER,STAB BAR	1-51779-066-0	02	1	0601-			●
91	BUSHING; RUBBER,STAB BAR FRONT STABILIZER SHAFT<F59>	1-51779-079-1	04	1	0211-0512	●
91	BUSHING; RUBBER,STAB BAR FRONT STABILIZER SHAFT<F59>	1-51779-079-1	04	1	0601-	●	●
91	BUSHING; RUBBER,STAB BAR	1-51779-043-0	04	1	0211-			●
110	CLAMP; STAB TO ROD FRONT STABILIZER SHAFT<F59> (A)	1-51789-027-2	02	1	0211-0512	●
110	CLAMP; STAB TO ROD FRONT STABILIZER SHAFT<F59> (A)	1-51789-027-2	02	1	0601-	●	●
110	CLAMP; STAB TO ROD FRONT STABILIZER SHAFT<F59> (B)	1-51789-028-1	02	1	0211-0512	●
110	CLAMP; STAB TO ROD FRONT STABILIZER SHAFT<F59> (B)	1-51789-028-1	02	1	0601-	●	●
110	CLAMP; STAB TO ROD (A)	1-51789-018-1	02	1	0211-			●
110	CLAMP; STAB TO ROD (B)	1-51789-019-0	02	1	0211-			●
111	BOLT; CLAMP TO ROD FRONT STABILIZER SHAFT<F59> (A) M12X50	0-20801-250-0	04	1	0211-0512	●
111	BOLT; CLAMP TO ROD (A) M12X50	0-20801-250-0	04	1	0211-0512			●
111	BOLT; CLAMP TO ROD FRONT STABILIZER SHAFT<F59> (A) M12X50	0-20801-250-0	04	1	0601-0710	●	●
111	BOLT; CLAMP TO ROD (A) M12X50	0-20801-250-0	04	1	0601-0710			●
111	BOLT; CLAMP TO ROD FRONT STABILIZER SHAFT<F59> (A) M12X50 FLANGE	0-28051-250-0	04	1	0711-	●	●
111	BOLT; CLAMP TO ROD (A) M12X50 FLANGE	0-28051-250-0	04	1	0711-			●
111	BOLT; CLAMP TO ROD FRONT STABILIZER SHAFT<F59> (B) M12X30 FLANGE	0-28681-230-0	02	1	0211-0512	●
111	BOLT; CLAMP TO ROD (B) M12X30 FLANGE	0-28681-230-0	02	1	0211-0512			●
111	BOLT; CLAMP TO ROD FRONT STABILIZER SHAFT<F59> (B) M12X30 FLANGE	0-28651-230-0	02	1	0601-0601	●
111	BOLT; CLAMP TO ROD (B) M12X30 FLANGE	0-28651-230-0	02	1	0601-0601			●
111	BOLT; CLAMP TO ROD FRONT STABILIZER SHAFT<F59> (B) M12X30 FLANGE	0-28651-230-0	02	1	0601-0710	●	●
111	BOLT; CLAMP TO ROD (B) M12X30 FLANGE	0-28651-230-0	02	1	0601-0710			●
111	BOLT; CLAMP TO ROD FRONT STABILIZER SHAFT<F59> (B) M12X30 FLANGE	0-28051-230-0	02	1	0711-	●	●
111	BOLT; CLAMP TO ROD (B) M12X30 FLANGE	0-28051-230-0	02	1	0711-			●
112	BUSHING; ROD FRONT STABILIZER SHAFT<F59>	9-51631-050-0	04	1	0211-0512	●
112	BUSHING; ROD	9-51631-050-0	04	1	0211-0512			●
112	BUSHING; ROD FRONT STABILIZER SHAFT<F59>	9-51631-050-0	04	1	0601-	●	●
112	BUSHING; ROD	9-51631-050-0	04	1	0601-			●
114	ROD; STAB BAR FRONT STABILIZER SHAFT<F59>	1-51773-082-0	02	1	0211-0512	●
114	ROD; STAB BAR FRONT STABILIZER SHAFT<F59>	1-51773-082-0	02	1	0601-	●	●
114	ROD; STAB BAR	1-51773-063-0	02	1	0211-			●
115	WASHER; CENTER,STAB TO FRAME FRONT STABILIZER SHAFT<F59> (B) ID=16.8	1-51631-022-0	04	1	0211-0512	●
115	WASHER; CENTER,STAB TO FRAME (B) ID=16.8	1-51631-022-0	04	1	0211-0512			●
115	WASHER; CENTER,STAB TO FRAME FRONT STABILIZER SHAFT<F59> (B) ID=16.8	1-51631-022-0	04	1	0601-	●	●
115	WASHER; CENTER,STAB TO FRAME (B) ID=16.8	1-51631-022-0	04	1	0601-			●
115	WASHER; CENTER,STAB TO FRAME FRONT STABILIZER SHAFT<F59> (A) ID=14.5	9-51631-051-0	04	1	0211-0512	●
115	WASHER; CENTER,STAB TO FRAME (A) ID=14.5	9-51631-051-0	04	1	0211-0512			●
115	WASHER; CENTER,STAB TO FRAME FRONT STABILIZER SHAFT<F59> (A) ID=14.5	9-51631-051-0	04	1	0601-	●	●
115	WASHER; CENTER,STAB TO FRAME (A) ID=14.5	9-51631-051-0	04	1	0601-			●
116	NUT; LK,STAB TO FRAME FRONT STABILIZER SHAFT<F59> M14	9-99111-414-0	04	1	0211-0512	●
116	NUT; LK,STAB TO FRAME M14	9-99111-414-0	04	1	0211-0512			●
116	NUT; LK,STAB TO FRAME FRONT STABILIZER SHAFT<F59> M14	0-91111-514-0	04	1	0601-0601	●
116	NUT; LK,STAB TO FRAME M14	0-91111-514-0	04	1	0601-0601			●
116	NUT; LK,STAB TO FRAME FRONT STABILIZER SHAFT<F59> M14	0-91111-514-0	04	1	0601-	●	●
116	NUT; LK,STAB TO FRAME M14	0-91111-514-0	04	1	0601-			●
127	NUT; CLAMP FRONT STABILIZER SHAFT<F59> (A) M12 FLANGE	0-91150-212-0	06	1	0211-0512	●
127	NUT; CLAMP (A) M12 FLANGE	0-91150-212-0	06	1	0211-0512			●
127	NUT; CLAMP FRONT STABILIZER SHAFT<F59> (A) M12 FLANGE	0-91150-212-0	06	1	0601-0602	●	●
127	NUT; CLAMP (A) M12 FLANGE	0-91150-212-0	06	1	0601-0602			●
127	NUT; CLAMP FRONT STABILIZER SHAFT<F59> (A) M12 FLANGE	0-91180-212-0	06	1	0603-0710	●	●
127	NUT; CLAMP (A) M12 FLANGE	0-91180-212-0	06	1	0603-0710			●
127	NUT; CLAMP FRONT STABILIZER SHAFT<F59> (B) M12	0-91110-512-0	06	1	0711-	●	●
127	NUT; CLAMP (B) M12	0-91110-512-0	06	1	0711-			●
128	WASHER; LK,CLAMP FRONT STABILIZER SHAFT<F59> ID=12.2	0-91510-812-0	06	1	0711-	●	●
128	WASHER; LK,CLAMP ID=12.2	0-91510-812-0	06	1	0711-			●

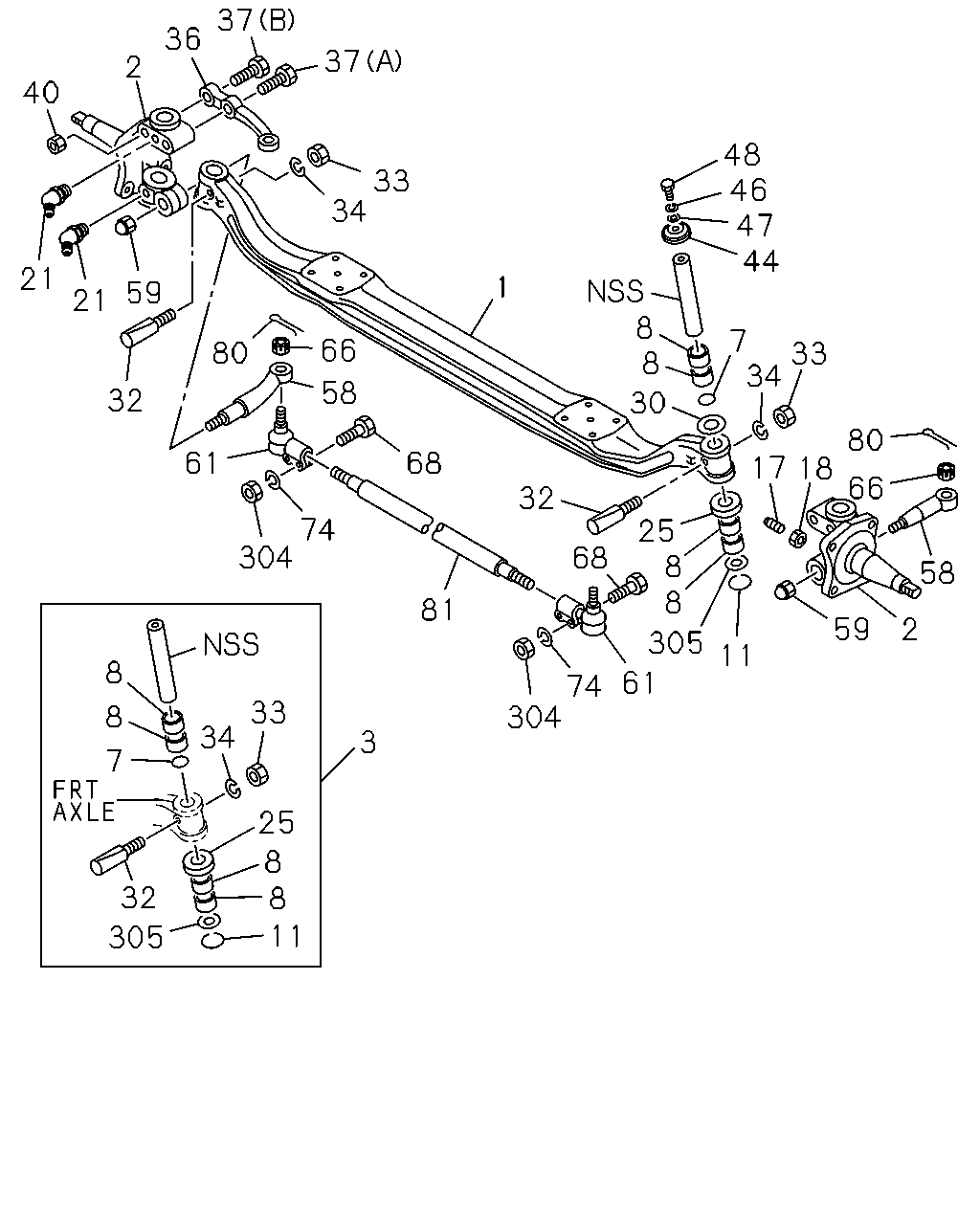

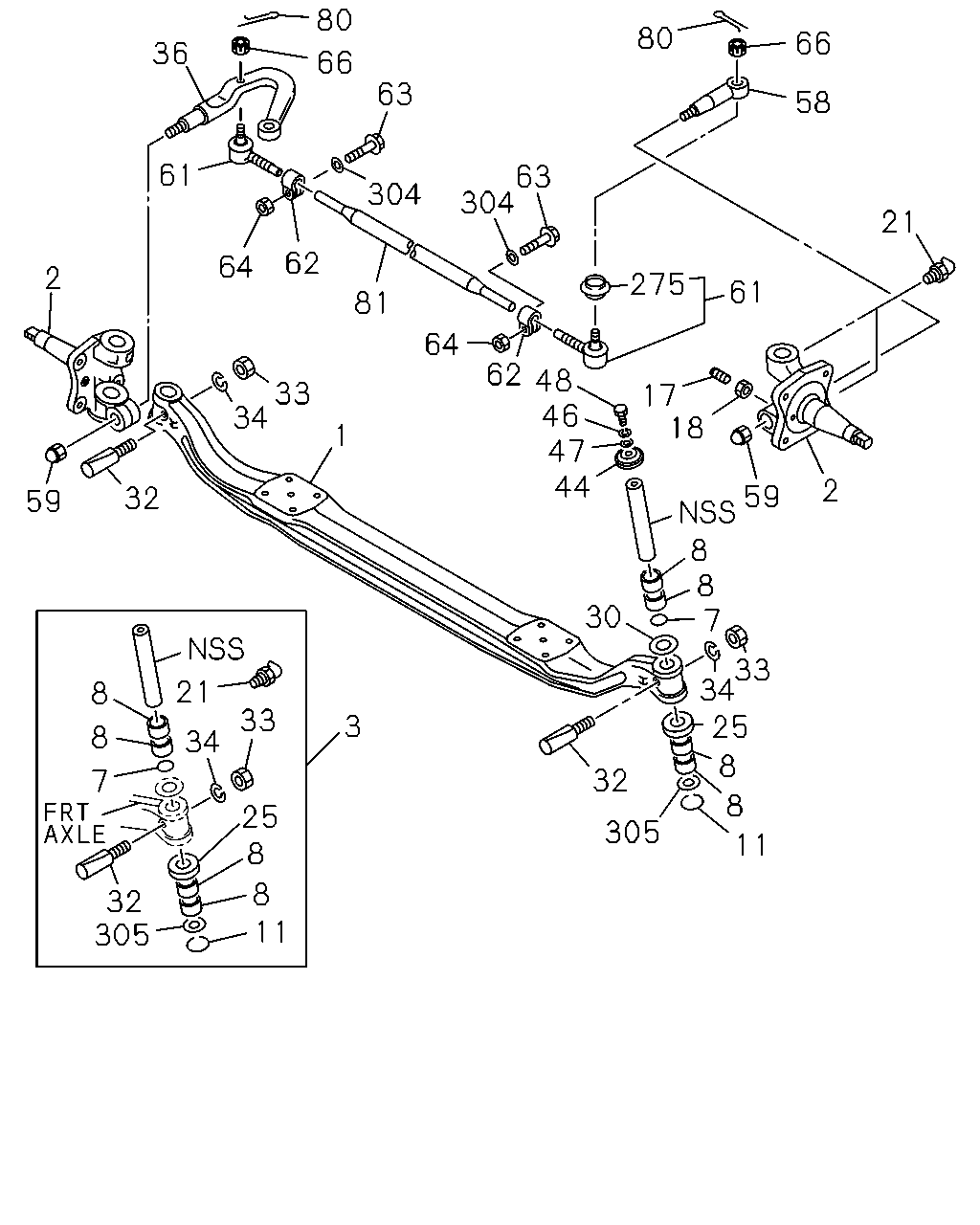

80 80 66 36 66 63 58 61 63 304 304 21 62 64 2 275 61 81 62 48 46 47 44 64 33 34 17 18 1 2 59 8 8 7 33 34 25 32 59 30 21 8 33 3 8 34 8 32 7 8 25 8 305 11 8 11 32 305

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	AXLE; FRT	1-43111-126-2	01	1	0005-0411	●			●
1	AXLE; FRT	1-43111-126-2	01	1	0412-	●	●		●
1	AXLE; FRT	1-43111-133-0	01	1	0005-			●
2	KNUCKLE; FRT AXLE	1-43132-097-0	01	1	0005-0411	●			●
2	KNUCKLE; FRT AXLE	1-43132-097-0	01	1	0412-	●	●		●
2	KNUCKLE; FRT AXLE	1-43131-097-0	01	1	0005-0411	●			●
2	KNUCKLE; FRT AXLE	1-43131-097-0	01	1	0412-	●	●		●
2	KNUCKLE; FRT AXLE	1-43132-083-0	01	1	0005-			●
2	KNUCKLE; FRT AXLE	1-43131-083-0	01	1	0005-			●
3	KING PIN SET	1-87831-145-6	01	1	0005-0411	●			●
3	KING PIN SET	1-87831-145-6	01	1	0412-	●	●		●
3	KING PIN SET	1-87831-144-6	01	1	0005-0411	●			●
3	KING PIN SET	1-87831-144-6	01	1	0412-	●	●		●
3	KING PIN SET	1-87830-837-2	01	1	0005-0704			●
3	KING PIN SET	1-87831-390-1	01	1	0705-			●
3	KING PIN SET	1-87830-804-2	01	1	0005-0704			●
3	KING PIN SET	1-87831-389-1	01	1	0705-			●
7	SEAL; OIL,KING PIN	1-09625-005-1	02	1	0005-0411	●			●
7	SEAL; OIL,KING PIN	1-09625-005-1	02	1	0412-	●	●		●
7	SEAL; OIL,KING PIN NSK	1-09625-087-0	02	1	0005-			●
7	SEAL; OIL,KING PIN NTN	1-09625-089-0	02	1	0005-			●
8	BEARING; NEEDLE,KING PIN NTN	1-09811-001-0	08	1	0005-0411	●			●
8	BEARING; NEEDLE,KING PIN NTN	1-09811-001-0	08	1	0412-	●	●		●
8	BEARING; NEEDLE,KING PIN NSK	1-09811-339-0	08	1	0005-0411	●			●
8	BEARING; NEEDLE,KING PIN NSK	1-09811-339-0	08	1	0412-	●	●		●
8	BEARING; NEEDLE,KING PIN NTN	1-09811-071-0	08	1	0005-			●
8	BEARING; NEEDLE,KING PIN NSK	1-09811-072-0	08	1	0005-			●
11	RING; SNAP,KNUCKLE PLUG	1-09589-017-1	02	1	0005-0411	●			●
11	RING; SNAP,KNUCKLE PLUG	1-09589-017-1	02	1	0412-	●	●		●
11	RING; SNAP,KNUCKLE PLUG	9-09950-204-0	02	1	0005-			●
17	BOLT; STOPPER KNUCKLE M14X42.5	1-09009-008-0	02	1	0005-0411	●			●
17	BOLT; STOPPER KNUCKLE M14X42.5	1-09009-008-0	02	1	0412-	●	●		●
17	BOLT; STOPPER KNUCKLE M14X47	1-09009-058-0	02	1	0005-0805			●
17	BOLT; STOPPER KNUCKLE M14X47	1-09009-191-0	02	1	0806-			●
18	NUT; STOPPER BOLT,KNUCKLE M14	5-09400-034-0	02	1	0005-0411	●			●
18	NUT; STOPPER BOLT,KNUCKLE M14	5-09400-034-0	02	1	0412-	●	●		●
18	NUT; STOPPER BOLT,KNUCKLE M14	9-99112-814-0	02	1	0005-0512			●
18	NUT; STOPPER BOLT,KNUCKLE M14	0-91112-814-0	02	1	0601-			●
21	NIPPLE; GREASE,KING PIN PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	04	1	0005-0306	●		●	●
21	NIPPLE; GREASE,KING PIN PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	04	1	0307-0411	●		●	●
21	NIPPLE; GREASE,KING PIN PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	04	1	0412-0512	●	●	●	●
21	NIPPLE; GREASE,KING PIN PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	04	1	0601-	●	●	●	●
25	BEARING; THRUST,KING PIN NSK	1-09829-033-1	01	1	0005-0411	●			●
25	BEARING; THRUST,KING PIN NSK	1-09829-033-1	01	1	0412-	●	●		●
25	BEARING; THRUST,KING PIN NSK	1-09829-031-0	01	1	0005-0411	●			●
25	BEARING; THRUST,KING PIN NSK	1-09829-031-0	01	1	0412-	●	●		●
25	BEARING; THRUST,KING PIN NSK	1-09829-040-0	01	1	0005-			●
25	BEARING; THRUST,KING PIN NTN	1-09829-026-0	01	1	0005-			●
25	BEARING; THRUST,KING PIN NSK	1-09829-028-0	01	1	0005-			●
30	WASHER; THRUST,KING PIN T=3.900	1-43171-261-1	AR	1	0005-0411	●			●
30	WASHER; THRUST,KING PIN T=3.900	1-43171-261-1	AR	1	0412-	●	●		●
30	WASHER; THRUST,KING PIN T=3.912	1-43171-262-1	AR	1	0005-0411	●			●
30	WASHER; THRUST,KING PIN T=3.912	1-43171-262-1	AR	1	0412-	●	●		●
30	WASHER; THRUST,KING PIN T=3.925	1-43171-263-1	AR	1	0005-0411	●			●
30	WASHER; THRUST,KING PIN T=3.925	1-43171-263-1	AR	1	0412-	●	●		●
30	WASHER; THRUST,KING PIN T=3.937	1-43171-264-1	AR	1	0005-0411	●			●
30	WASHER; THRUST,KING PIN T=3.937	1-43171-264-1	AR	1	0412-	●	●		●
30	WASHER; THRUST,KING PIN T=3.950	1-43171-265-1	AR	1	0005-0411	●			●
30	WASHER; THRUST,KING PIN T=3.950	1-43171-265-1	AR	1	0412-	●	●		●
30	WASHER; THRUST,KING PIN T=3.962	1-43171-266-1	AR	1	0005-0411	●			●
30	WASHER; THRUST,KING PIN T=3.962	1-43171-266-1	AR	1	0412-	●	●		●
30	WASHER; THRUST,KING PIN T=3.975	1-43171-267-1	AR	1	0005-0411	●			●
30	WASHER; THRUST,KING PIN T=3.975	1-43171-267-1	AR	1	0412-	●	●		●
30	WASHER; THRUST,KING PIN T=3.987	1-43171-268-1	AR	1	0005-0411	●			●
30	WASHER; THRUST,KING PIN T=3.987	1-43171-268-1	AR	1	0412-	●	●		●
30	WASHER; THRUST,KING PIN T=4.000	1-43171-269-1	AR	1	0005-0411	●			●
30	WASHER; THRUST,KING PIN T=4.000	1-43171-269-1	AR	1	0412-	●	●		●
30	WASHER; THRUST,KING PIN T=4.012	1-43171-270-1	AR	1	0005-0411	●			●
30	WASHER; THRUST,KING PIN T=4.012	1-43171-270-1	AR	1	0412-	●	●		●
30	WASHER; THRUST,KING PIN T=4.025	1-43171-271-1	AR	1	0005-0411	●			●
30	WASHER; THRUST,KING PIN T=4.025	1-43171-271-1	AR	1	0412-	●	●		●
30	WASHER; THRUST,KING PIN T=4.037	1-43171-272-1	AR	1	0005-0411	●			●
30	WASHER; THRUST,KING PIN T=4.037	1-43171-272-1	AR	1	0412-	●	●		●
30	WASHER; THRUST,KING PIN T=4.050	1-43171-273-1	AR	1	0005-0411	●			●
30	WASHER; THRUST,KING PIN T=4.050	1-43171-273-1	AR	1	0412-	●	●		●
30	WASHER; THRUST,KING PIN T=4.062	1-43171-274-1	AR	1	0005-0411	●			●
30	WASHER; THRUST,KING PIN T=4.062	1-43171-274-1	AR	1	0412-	●	●		●
30	WASHER; THRUST,KING PIN T=4.075	1-43171-275-1	AR	1	0005-0411	●			●
30	WASHER; THRUST,KING PIN T=4.075	1-43171-275-1	AR	1	0412-	●	●		●
30	WASHER; THRUST,KING PIN T=4.087	1-43171-276-1	AR	1	0005-0411	●			●
30	WASHER; THRUST,KING PIN T=4.087	1-43171-276-1	AR	1	0412-	●	●		●
30	WASHER; THRUST,KING PIN T=4.100	1-43171-277-1	AR	1	0005-0411	●			●
30	WASHER; THRUST,KING PIN T=4.100	1-43171-277-1	AR	1	0412-	●	●		●
30	WASHER; THRUST,KING PIN T=4.112	1-43171-278-1	AR	1	0005-0411	●			●
30	WASHER; THRUST,KING PIN T=4.112	1-43171-278-1	AR	1	0412-	●	●		●
30	WASHER; THRUST,KING PIN T=4.125	1-43171-279-1	AR	1	0005-0411	●			●
30	WASHER; THRUST,KING PIN T=4.125	1-43171-279-1	AR	1	0412-	●	●		●
30	WASHER; THRUST,KING PIN T=4.137	1-43171-280-1	AR	1	0005-0411	●			●
30	WASHER; THRUST,KING PIN T=4.137	1-43171-280-1	AR	1	0412-	●	●		●
30	WASHER; THRUST,KING PIN T=4.150	1-43171-281-1	AR	1	0005-0411	●			●
30	WASHER; THRUST,KING PIN T=4.150	1-43171-281-1	AR	1	0412-	●	●		●
30	WASHER; THRUST,KING PIN T=4.162	1-43171-311-0	AR	1	0005-0411	●			●
30	WASHER; THRUST,KING PIN T=4.162	1-43171-311-0	AR	1	0412-	●	●		●
30	WASHER; THRUST,KING PIN T=4.175	1-43171-312-0	AR	1	0005-0411	●			●
30	WASHER; THRUST,KING PIN T=4.175	1-43171-312-0	AR	1	0412-	●	●		●
30	WASHER; THRUST,KING PIN T=4.187	1-43171-313-0	AR	1	0005-0411	●			●
30	WASHER; THRUST,KING PIN T=4.187	1-43171-313-0	AR	1	0412-	●	●		●
30	WASHER; THRUST,KING PIN T=4.200	1-43171-314-0	AR	1	0005-0411	●			●
30	WASHER; THRUST,KING PIN T=4.200	1-43171-314-0	AR	1	0412-	●	●		●
30	WASHER; THRUST,KING PIN T=4.212	1-43171-315-0	AR	1	0005-0411	●			●
30	WASHER; THRUST,KING PIN T=4.212	1-43171-315-0	AR	1	0412-	●	●		●
30	WASHER; THRUST,KING PIN T=4.225	1-43171-316-0	AR	1	0005-0411	●			●
30	WASHER; THRUST,KING PIN T=4.225	1-43171-316-0	AR	1	0412-	●	●		●
30	WASHER; THRUST,KING PIN T=4.237	1-43171-317-0	AR	1	0005-0411	●			●
30	WASHER; THRUST,KING PIN T=4.237	1-43171-317-0	AR	1	0412-	●	●		●
30	WASHER; THRUST,KING PIN T=4.250	1-43171-318-0	AR	1	0005-0411	●			●
30	WASHER; THRUST,KING PIN T=4.250	1-43171-318-0	AR	1	0412-	●	●		●
30	WASHER; THRUST,KING PIN T=4.262	1-43171-319-0	AR	1	0005-0411	●			●
30	WASHER; THRUST,KING PIN T=4.262	1-43171-319-0	AR	1	0412-	●	●		●
30	WASHER; THRUST,KING PIN T=4.275	1-43171-320-0	AR	1	0005-0411	●			●
30	WASHER; THRUST,KING PIN T=4.275	1-43171-320-0	AR	1	0412-	●	●		●
30	WASHER; THRUST,KING PIN T=4.287	1-43171-321-0	AR	1	0005-0411	●			●
30	WASHER; THRUST,KING PIN T=4.287	1-43171-321-0	AR	1	0412-	●	●		●
30	WASHER; THRUST,KING PIN T=4.300	1-43171-322-0	AR	1	0005-0411	●			●
30	WASHER; THRUST,KING PIN T=4.300	1-43171-322-0	AR	1	0412-	●	●		●
30	WASHER; THRUST,KING PIN T=4.312	1-43171-323-0	AR	1	0005-0411	●			●
30	WASHER; THRUST,KING PIN T=4.312	1-43171-323-0	AR	1	0412-	●	●		●
30	WASHER; THRUST,KING PIN T=4.325	1-43171-324-0	AR	1	0005-0411	●			●
30	WASHER; THRUST,KING PIN T=4.325	1-43171-324-0	AR	1	0412-	●	●		●
30	WASHER; THRUST,KING PIN T=4.337	1-43171-325-0	AR	1	0005-0411	●			●
30	WASHER; THRUST,KING PIN T=4.337	1-43171-325-0	AR	1	0412-	●	●		●
30	WASHER; THRUST,KING PIN T=4.350	1-43171-326-0	AR	1	0005-0411	●			●
30	WASHER; THRUST,KING PIN T=4.350	1-43171-326-0	AR	1	0412-	●	●		●
30	WASHER; THRUST,KING PIN T=2.800	1-43171-229-0	AR	1	0005-			●
30	WASHER; THRUST,KING PIN T=2.850	1-43171-230-0	AR	1	0005-			●
30	WASHER; THRUST,KING PIN T=2.900	1-43171-231-0	AR	1	0005-			●
30	WASHER; THRUST,KING PIN T=2.950	1-43171-232-0	AR	1	0005-			●
30	WASHER; THRUST,KING PIN T=3.000	1-43171-233-0	AR	1	0005-			●
30	WASHER; THRUST,KING PIN T=3.050	1-43171-234-0	AR	1	0005-			●
30	WASHER; THRUST,KING PIN T=3.100	1-43171-235-0	AR	1	0005-			●
30	WASHER; THRUST,KING PIN T=3.150	1-43171-236-0	AR	1	0005-			●
30	WASHER; THRUST,KING PIN T=3.200	1-43171-237-0	AR	1	0005-			●
30	WASHER; THRUST,KING PIN T=3.250	1-43171-238-0	AR	1	0005-			●
30	WASHER; THRUST,KING PIN T=3.300	1-43171-239-0	AR	1	0005-			●
32	BOLT; KEY,KING PIN	1-43116-003-1	02	1	0005-0411	●			●
32	BOLT; KEY,KING PIN	1-43116-003-1	02	1	0412-	●	●		●
32	BOLT; KEY,KING PIN	1-43116-005-1	02	1	0005-			●
33	NUT; KEY BOLT M10	9-09110-410-0	02	1	0005-0411	●		●	●
33	NUT; KEY BOLT M10	9-09110-410-0	02	1	0412-0512	●	●	●	●
33	NUT; KEY BOLT M10	0-91110-510-0	02	1	0601-	●	●	●	●
34	WASHER; LK,KEY BOLT ID=10.2	9-09150-510-0	02	1	0005-0411	●		●	●
34	WASHER; LK,KEY BOLT ID=10.2	9-09150-510-0	02	1	0412-0603	●	●	●	●
34	WASHER; LK,KEY BOLT ID=10.2	0-91510-510-0	02	1	0604-	●	●	●	●
36	ARM; KNUCKLE	1-43133-070-3	01	1	0005-0411	●			●
36	ARM; KNUCKLE	1-43133-070-3	01	1	0412-	●	●		●
36	ARM; KNUCKLE	1-43133-068-2	01	1	0005-			●
44	COVER; KING PIN	1-43175-015-0	02	1	0005-0411	●			●
44	COVER; KING PIN	1-43175-015-0	02	1	0412-0704	●	●		●
44	COVER; KING PIN	1-43175-031-0	02	1	0705-	●	●		●
44	COVER; KING PIN	1-43175-016-0	02	1	0005-			●
46	WASHER; LK,COVER ID=12.2	9-09150-512-0	02	1	0005-0411	●		●	●
46	WASHER; LK,COVER ID=12.2	9-09150-512-0	02	1	0412-0603	●	●	●	●
46	WASHER; LK,COVER ID=12.2	0-91510-512-0	02	1	0604-	●	●	●	●
47	WASHER; PL,COVER,KING PIN ID=12.5 OD=32	9-09164-712-0	02	1	0005-0411	●		●	●
47	WASHER; PL,COVER,KING PIN ID=12.5 OD=32	9-09164-712-0	02	1	0412-0605	●	●	●	●
47	WASHER; PL,COVER,KING PIN ID=12.5 OD=32	0-91614-712-0	02	1	0606-	●	●	●	●
48	BOLT; COVER M12X25	1-09009-081-0	02	1	0005-0411	●		●	●
48	BOLT; COVER M12X25	1-09009-081-0	02	1	0412-	●	●	●	●
58	ARM; TIE ROD	1-43135-034-5	01	1	0005-0411	●			●
58	ARM; TIE ROD	1-43135-034-5	01	1	0412-	●	●		●
58	ARM; TIE ROD	1-43135-015-1	01	1	0005-			●
58	ARM; TIE ROD	1-43134-015-1	01	1	0005-			●
59	NUT; TIE ROD ARM M27	1-09449-016-0	02	1	0005-0411	●		●	●
59	NUT; TIE ROD ARM M27	1-09449-016-0	02	1	0412-0704	●	●	●	●
59	NUT; TIE ROD ARM M27 FLANGE	1-09449-082-0	02	1	0705-	●	●	●	●
61	ROD END; TIE ROD	1-43150-680-2	01	1	0005-0411	●			●
61	ROD END; TIE ROD	1-43150-680-2	01	1	0412-	●	●		●
61	ROD END; TIE ROD	1-43150-679-2	01	1	0005-0411	●			●
61	ROD END; TIE ROD	1-43150-679-2	01	1	0412-	●	●		●
61	ROD END; TIE ROD	1-43150-678-3	01	1	0005-			●
61	ROD END; TIE ROD	1-43150-677-3	01	1	0005-			●
62	CLAMP; TIE ROD	1-43159-002-3	02	1	0005-0411	●			●
62	CLAMP; TIE ROD	1-43159-002-3	02	1	0412-	●	●		●
63	BOLT; CLAMP TIE ROD M12X45 FLANGE	0-28091-245-0	02	1	0005-0411	●			●
63	BOLT; CLAMP TIE ROD M12X45 FLANGE	0-28091-245-0	02	1	0412-0512	●	●		●
63	BOLT; CLAMP TIE ROD M12X45 FLANGE	0-28061-245-0	02	1	0601-	●	●		●
64	NUT; CLAMP M12	9-99110-512-0	02	1	0005-0411	●			●
64	NUT; CLAMP M12	9-99110-512-0	02	1	0412-0512	●	●		●
64	NUT; CLAMP M12	0-91110-512-0	02	1	0601-	●	●		●
66	NUT; TIE ROD END M16 SLOTTED	1-09442-021-1	02	1	0005-0411	●			●
66	NUT; TIE ROD END M16 SLOTTED	1-09442-021-1	02	1	0412-0805	●	●		●
66	NUT; TIE ROD END M16 SLOTTED	1-09442-031-0	02	1	0806-	●	●		●
66	NUT; TIE ROD END M24 SLOTTED	1-09442-020-0	02	1	0005-0805			●
66	NUT; TIE ROD END M24	1-09442-032-0	02	1	0806-			●
80	PIN; SPLIT,ROD END OD=3.7 L=22	9-08114-022-0	02	1	0005-0411	●			●
80	PIN; SPLIT,ROD END OD=3.7 L=22	9-08114-022-0	02	1	0412-0606	●	●		●
80	PIN; SPLIT,ROD END OD=3.7 L=22	0-81124-022-0	02	1	0607-	●	●		●
80	PIN; SPLIT,ROD END OD=4.6 L=35	9-08115-035-0	02	1	0005-0606			●
80	PIN; SPLIT,ROD END OD=4.6 L=35	0-81125-035-0	02	1	0607-			●
81	ROD; TIE	1-43151-109-0	01	1	0005-0411	●			●
81	ROD; TIE	1-43151-109-0	01	1	0412-	●	●		●
81	ROD; TIE	1-43151-129-0	01	1	0005-			●
275	BOOT; ROD END,TIE	1-85574-046-0	02	1	0005-0411	●			●
275	BOOT; ROD END,TIE	1-85574-046-0	02	1	0412-	●	●		●
304	WASHER; PL ID=12.5	9-09164-512-0	02	1	0005-0411	●			●
304	WASHER; PL ID=12.5	9-09164-512-0	02	1	0412-	●	●		●
304	WASHER; PL ID=12.5	9-09164-512-0	04	1	0005-			●
305	COVER; KNUCKLE	1-43175-022-0	02	1	0005-0411	●			●
305	COVER; KNUCKLE	1-43175-022-0	02	1	0412-0704	●	●		●
305	COVER; KNUCKLE	1-43175-030-0	02	1	0705-	●	●		●
305	COVER; KNUCKLE	1-43175-021-0	02	1	0005-0704			●
305	COVER; KNUCKLE	8-98052-291-0	02	1	0705-			●

37 36 37 2 40 48 46 47 44 33 34 21 1 8 8 59 21 7 33 34 66 80 58 32 30 80 68 61 17 18 66 32 74 304 25 8 8 68 58 81 59 2 305 11 8 61 74 304 33 8 34 3 7 25 8 8 11 32 305

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	AXLE; FRT	1-43111-126-2	01	1	0005-0411	●			●
1	AXLE; FRT	1-43111-126-2	01	1	0412-	●	●		●
1	AXLE; FRT	1-43111-133-0	01	1	0005-			●
2	KNUCKLE; FRT AXLE	1-43132-097-0	01	1	0005-0411	●			●
2	KNUCKLE; FRT AXLE	1-43132-097-0	01	1	0412-	●	●		●
2	KNUCKLE; FRT AXLE	1-43131-097-0	01	1	0005-0411	●			●
2	KNUCKLE; FRT AXLE	1-43131-097-0	01	1	0412-	●	●		●
2	KNUCKLE; FRT AXLE	1-43132-083-0	01	1	0005-			●
2	KNUCKLE; FRT AXLE	1-43131-083-0	01	1	0005-			●
3	KING PIN SET	1-87831-145-6	01	1	0005-0411	●			●
3	KING PIN SET	1-87831-145-6	01	1	0412-	●	●		●
3	KING PIN SET	1-87831-144-6	01	1	0005-0411	●			●
3	KING PIN SET	1-87831-144-6	01	1	0412-	●	●		●
3	KING PIN SET	1-87830-837-2	01	1	0005-0704			●
3	KING PIN SET	1-87831-390-1	01	1	0705-			●
3	KING PIN SET	1-87830-804-2	01	1	0005-0704			●
3	KING PIN SET	1-87831-389-1	01	1	0705-			●
7	SEAL; OIL,KING PIN	1-09625-005-1	02	1	0005-0411	●			●
7	SEAL; OIL,KING PIN	1-09625-005-1	02	1	0412-	●	●		●
7	SEAL; OIL,KING PIN NSK	1-09625-087-0	02	1	0005-			●
7	SEAL; OIL,KING PIN NTN	1-09625-089-0	02	1	0005-			●
8	BEARING; NEEDLE,KING PIN NTN	1-09811-001-0	08	1	0005-0411	●			●
8	BEARING; NEEDLE,KING PIN NTN	1-09811-001-0	08	1	0412-	●	●		●
8	BEARING; NEEDLE,KING PIN NSK	1-09811-339-0	08	1	0005-0411	●			●
8	BEARING; NEEDLE,KING PIN NSK	1-09811-339-0	08	1	0412-	●	●		●
8	BEARING; NEEDLE,KING PIN NTN	1-09811-071-0	08	1	0005-			●
8	BEARING; NEEDLE,KING PIN NSK	1-09811-072-0	08	1	0005-			●
11	RING; SNAP,KNUCKLE PLUG	1-09589-017-1	02	1	0005-0411	●			●
11	RING; SNAP,KNUCKLE PLUG	1-09589-017-1	02	1	0412-	●	●		●
11	RING; SNAP,KNUCKLE PLUG	9-09950-204-0	02	1	0005-			●
17	BOLT; STOPPER KNUCKLE M14X42.5	1-09009-008-0	02	1	0005-0411	●			●
17	BOLT; STOPPER KNUCKLE M14X42.5	1-09009-008-0	02	1	0412-	●	●		●
17	BOLT; STOPPER KNUCKLE M14X47	1-09009-058-0	02	1	0005-0805			●
17	BOLT; STOPPER KNUCKLE M14X47	1-09009-191-0	02	1	0806-			●
18	NUT; STOPPER BOLT,KNUCKLE M14	5-09400-034-0	02	1	0005-0411	●			●
18	NUT; STOPPER BOLT,KNUCKLE M14	5-09400-034-0	02	1	0412-	●	●		●
18	NUT; STOPPER BOLT,KNUCKLE M14	9-99112-814-0	02	1	0005-0512			●
18	NUT; STOPPER BOLT,KNUCKLE M14	0-91112-814-0	02	1	0601-			●
21	NIPPLE; GREASE,KING PIN PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	04	1	0005-0306	●		●	●
21	NIPPLE; GREASE,KING PIN PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	04	1	0307-0411	●		●	●
21	NIPPLE; GREASE,KING PIN PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	04	1	0412-0512	●	●	●	●
21	NIPPLE; GREASE,KING PIN PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	04	1	0601-	●	●	●	●
25	BEARING; THRUST,KING PIN NSK	1-09829-033-1	01	1	0005-0411	●			●
25	BEARING; THRUST,KING PIN NSK	1-09829-033-1	01	1	0412-	●	●		●
25	BEARING; THRUST,KING PIN NSK	1-09829-031-0	01	1	0005-0411	●			●
25	BEARING; THRUST,KING PIN NSK	1-09829-031-0	01	1	0412-	●	●		●
25	BEARING; THRUST,KING PIN NSK	1-09829-040-0	01	1	0005-			●
25	BEARING; THRUST,KING PIN NTN	1-09829-026-0	01	1	0005-			●
25	BEARING; THRUST,KING PIN NSK	1-09829-028-0	01	1	0005-			●
30	WASHER; THRUST,KING PIN T=3.900	1-43171-261-1	AR	1	0005-0411	●			●
30	WASHER; THRUST,KING PIN T=3.900	1-43171-261-1	AR	1	0412-	●	●		●
30	WASHER; THRUST,KING PIN T=3.912	1-43171-262-1	AR	1	0005-0411	●			●
30	WASHER; THRUST,KING PIN T=3.912	1-43171-262-1	AR	1	0412-	●	●		●
30	WASHER; THRUST,KING PIN T=3.925	1-43171-263-1	AR	1	0005-0411	●			●
30	WASHER; THRUST,KING PIN T=3.925	1-43171-263-1	AR	1	0412-	●	●		●
30	WASHER; THRUST,KING PIN T=3.937	1-43171-264-1	AR	1	0005-0411	●			●
30	WASHER; THRUST,KING PIN T=3.937	1-43171-264-1	AR	1	0412-	●	●		●
30	WASHER; THRUST,KING PIN T=3.950	1-43171-265-1	AR	1	0005-0411	●			●
30	WASHER; THRUST,KING PIN T=3.950	1-43171-265-1	AR	1	0412-	●	●		●
30	WASHER; THRUST,KING PIN T=3.962	1-43171-266-1	AR	1	0005-0411	●			●
30	WASHER; THRUST,KING PIN T=3.962	1-43171-266-1	AR	1	0412-	●	●		●
30	WASHER; THRUST,KING PIN T=3.975	1-43171-267-1	AR	1	0005-0411	●			●
30	WASHER; THRUST,KING PIN T=3.975	1-43171-267-1	AR	1	0412-	●	●		●
30	WASHER; THRUST,KING PIN T=3.987	1-43171-268-1	AR	1	0005-0411	●			●
30	WASHER; THRUST,KING PIN T=3.987	1-43171-268-1	AR	1	0412-	●	●		●
30	WASHER; THRUST,KING PIN T=4.000	1-43171-269-1	AR	1	0005-0411	●			●
30	WASHER; THRUST,KING PIN T=4.000	1-43171-269-1	AR	1	0412-	●	●		●
30	WASHER; THRUST,KING PIN T=4.012	1-43171-270-1	AR	1	0005-0411	●			●
30	WASHER; THRUST,KING PIN T=4.012	1-43171-270-1	AR	1	0412-	●	●		●
30	WASHER; THRUST,KING PIN T=4.025	1-43171-271-1	AR	1	0005-0411	●			●
30	WASHER; THRUST,KING PIN T=4.025	1-43171-271-1	AR	1	0412-	●	●		●
30	WASHER; THRUST,KING PIN T=4.037	1-43171-272-1	AR	1	0005-0411	●			●
30	WASHER; THRUST,KING PIN T=4.037	1-43171-272-1	AR	1	0412-	●	●		●
30	WASHER; THRUST,KING PIN T=4.050	1-43171-273-1	AR	1	0005-0411	●			●
30	WASHER; THRUST,KING PIN T=4.050	1-43171-273-1	AR	1	0412-	●	●		●
30	WASHER; THRUST,KING PIN T=4.062	1-43171-274-1	AR	1	0005-0411	●			●
30	WASHER; THRUST,KING PIN T=4.062	1-43171-274-1	AR	1	0412-	●	●		●
30	WASHER; THRUST,KING PIN T=4.075	1-43171-275-1	AR	1	0005-0411	●			●
30	WASHER; THRUST,KING PIN T=4.075	1-43171-275-1	AR	1	0412-	●	●		●
30	WASHER; THRUST,KING PIN T=4.087	1-43171-276-1	AR	1	0005-0411	●			●
30	WASHER; THRUST,KING PIN T=4.087	1-43171-276-1	AR	1	0412-	●	●		●
30	WASHER; THRUST,KING PIN T=4.100	1-43171-277-1	AR	1	0005-0411	●			●
30	WASHER; THRUST,KING PIN T=4.100	1-43171-277-1	AR	1	0412-	●	●		●
30	WASHER; THRUST,KING PIN T=4.112	1-43171-278-1	AR	1	0005-0411	●			●
30	WASHER; THRUST,KING PIN T=4.112	1-43171-278-1	AR	1	0412-	●	●		●
30	WASHER; THRUST,KING PIN T=4.125	1-43171-279-1	AR	1	0005-0411	●			●
30	WASHER; THRUST,KING PIN T=4.125	1-43171-279-1	AR	1	0412-	●	●		●
30	WASHER; THRUST,KING PIN T=4.137	1-43171-280-1	AR	1	0005-0411	●			●
30	WASHER; THRUST,KING PIN T=4.137	1-43171-280-1	AR	1	0412-	●	●		●
30	WASHER; THRUST,KING PIN T=4.150	1-43171-281-1	AR	1	0005-0411	●			●
30	WASHER; THRUST,KING PIN T=4.150	1-43171-281-1	AR	1	0412-	●	●		●
30	WASHER; THRUST,KING PIN T=4.162	1-43171-311-0	AR	1	0005-0411	●			●
30	WASHER; THRUST,KING PIN T=4.162	1-43171-311-0	AR	1	0412-	●	●		●
30	WASHER; THRUST,KING PIN T=4.175	1-43171-312-0	AR	1	0005-0411	●			●
30	WASHER; THRUST,KING PIN T=4.175	1-43171-312-0	AR	1	0412-	●	●		●
30	WASHER; THRUST,KING PIN T=4.187	1-43171-313-0	AR	1	0005-0411	●			●
30	WASHER; THRUST,KING PIN T=4.187	1-43171-313-0	AR	1	0412-	●	●		●
30	WASHER; THRUST,KING PIN T=4.200	1-43171-314-0	AR	1	0005-0411	●			●
30	WASHER; THRUST,KING PIN T=4.200	1-43171-314-0	AR	1	0412-	●	●		●
30	WASHER; THRUST,KING PIN T=4.212	1-43171-315-0	AR	1	0005-0411	●			●
30	WASHER; THRUST,KING PIN T=4.212	1-43171-315-0	AR	1	0412-	●	●		●
30	WASHER; THRUST,KING PIN T=4.225	1-43171-316-0	AR	1	0005-0411	●			●
30	WASHER; THRUST,KING PIN T=4.225	1-43171-316-0	AR	1	0412-	●	●		●
30	WASHER; THRUST,KING PIN T=4.237	1-43171-317-0	AR	1	0005-0411	●			●
30	WASHER; THRUST,KING PIN T=4.237	1-43171-317-0	AR	1	0412-	●	●		●
30	WASHER; THRUST,KING PIN T=4.250	1-43171-318-0	AR	1	0005-0411	●			●
30	WASHER; THRUST,KING PIN T=4.250	1-43171-318-0	AR	1	0412-	●	●		●
30	WASHER; THRUST,KING PIN T=4.262	1-43171-319-0	AR	1	0005-0411	●			●
30	WASHER; THRUST,KING PIN T=4.262	1-43171-319-0	AR	1	0412-	●	●		●
30	WASHER; THRUST,KING PIN T=4.275	1-43171-320-0	AR	1	0005-0411	●			●
30	WASHER; THRUST,KING PIN T=4.275	1-43171-320-0	AR	1	0412-	●	●		●
30	WASHER; THRUST,KING PIN T=4.287	1-43171-321-0	AR	1	0005-0411	●			●
30	WASHER; THRUST,KING PIN T=4.287	1-43171-321-0	AR	1	0412-	●	●		●
30	WASHER; THRUST,KING PIN T=4.300	1-43171-322-0	AR	1	0005-0411	●			●
30	WASHER; THRUST,KING PIN T=4.300	1-43171-322-0	AR	1	0412-	●	●		●
30	WASHER; THRUST,KING PIN T=4.312	1-43171-323-0	AR	1	0005-0411	●			●
30	WASHER; THRUST,KING PIN T=4.312	1-43171-323-0	AR	1	0412-	●	●		●
30	WASHER; THRUST,KING PIN T=4.325	1-43171-324-0	AR	1	0005-0411	●			●
30	WASHER; THRUST,KING PIN T=4.325	1-43171-324-0	AR	1	0412-	●	●		●
30	WASHER; THRUST,KING PIN T=4.337	1-43171-325-0	AR	1	0005-0411	●			●
30	WASHER; THRUST,KING PIN T=4.337	1-43171-325-0	AR	1	0412-	●	●		●
30	WASHER; THRUST,KING PIN T=4.350	1-43171-326-0	AR	1	0005-0411	●			●
30	WASHER; THRUST,KING PIN T=4.350	1-43171-326-0	AR	1	0412-	●	●		●
30	WASHER; THRUST,KING PIN T=2.800	1-43171-229-0	AR	1	0005-			●
30	WASHER; THRUST,KING PIN T=2.850	1-43171-230-0	AR	1	0005-			●
30	WASHER; THRUST,KING PIN T=2.900	1-43171-231-0	AR	1	0005-			●
30	WASHER; THRUST,KING PIN T=2.950	1-43171-232-0	AR	1	0005-			●
30	WASHER; THRUST,KING PIN T=3.000	1-43171-233-0	AR	1	0005-			●
30	WASHER; THRUST,KING PIN T=3.050	1-43171-234-0	AR	1	0005-			●
30	WASHER; THRUST,KING PIN T=3.100	1-43171-235-0	AR	1	0005-			●
30	WASHER; THRUST,KING PIN T=3.150	1-43171-236-0	AR	1	0005-			●
30	WASHER; THRUST,KING PIN T=3.200	1-43171-237-0	AR	1	0005-			●
30	WASHER; THRUST,KING PIN T=3.250	1-43171-238-0	AR	1	0005-			●
30	WASHER; THRUST,KING PIN T=3.300	1-43171-239-0	AR	1	0005-			●
32	BOLT; KEY,KING PIN	1-43116-003-1	02	1	0005-0411	●			●
32	BOLT; KEY,KING PIN	1-43116-003-1	02	1	0412-	●	●		●
32	BOLT; KEY,KING PIN	1-43116-005-1	02	1	0005-			●
33	NUT; KEY BOLT M10	9-09110-410-0	02	1	0005-0411	●		●	●
33	NUT; KEY BOLT M10	9-09110-410-0	02	1	0412-0512	●	●	●	●
33	NUT; KEY BOLT M10	0-91110-510-0	02	1	0601-	●	●	●	●
34	WASHER; LK,KEY BOLT ID=10.2	9-09150-510-0	02	1	0005-0411	●		●	●
34	WASHER; LK,KEY BOLT ID=10.2	9-09150-510-0	02	1	0412-0603	●	●	●	●
34	WASHER; LK,KEY BOLT ID=10.2	0-91510-510-0	02	1	0604-	●	●	●	●
36	ARM; KNUCKLE	1-43133-070-3	01	1	0005-0411	●			●
36	ARM; KNUCKLE	1-43133-070-3	01	1	0412-	●	●		●
36	ARM; KNUCKLE	1-43133-068-2	01	1	0005-			●
37	BOLT; KNUCKLE ARM (A) M22X162	1-09000-107-1	01	1	0005-			●
37	BOLT; KNUCKLE ARM (B) M22X147	1-09000-108-1	01	1	0005-			●
40	NUT; KNUCKLE ARM M22	9-09844-670-1	02	1	0005-0704			●
40	NUT; KNUCKLE ARM M22	1-09449-084-0	02	1	0705-			●
44	COVER; KING PIN	1-43175-015-0	02	1	0005-0411	●			●
44	COVER; KING PIN	1-43175-015-0	02	1	0412-0704	●	●		●
44	COVER; KING PIN	1-43175-031-0	02	1	0705-	●	●		●
44	COVER; KING PIN	1-43175-016-0	02	1	0005-			●
46	WASHER; LK,COVER ID=12.2	9-09150-512-0	02	1	0005-0411	●		●	●
46	WASHER; LK,COVER ID=12.2	9-09150-512-0	02	1	0412-0603	●	●	●	●
46	WASHER; LK,COVER ID=12.2	0-91510-512-0	02	1	0604-	●	●	●	●
47	WASHER; PL,COVER,KING PIN ID=12.5 OD=32	9-09164-712-0	02	1	0005-0411	●		●	●
47	WASHER; PL,COVER,KING PIN ID=12.5 OD=32	9-09164-712-0	02	1	0412-0605	●	●	●	●
47	WASHER; PL,COVER,KING PIN ID=12.5 OD=32	0-91614-712-0	02	1	0606-	●	●	●	●
48	BOLT; COVER M12X25	1-09009-081-0	02	1	0005-0411	●		●	●
48	BOLT; COVER M12X25	1-09009-081-0	02	1	0412-	●	●	●	●
58	ARM; TIE ROD	1-43135-034-5	01	1	0005-0411	●			●
58	ARM; TIE ROD	1-43135-034-5	01	1	0412-	●	●		●
58	ARM; TIE ROD	1-43135-015-1	01	1	0005-			●
58	ARM; TIE ROD	1-43134-015-1	01	1	0005-			●
59	NUT; TIE ROD ARM M27	1-09449-016-0	02	1	0005-0411	●		●	●
59	NUT; TIE ROD ARM M27	1-09449-016-0	02	1	0412-0704	●	●	●	●
59	NUT; TIE ROD ARM M27 FLANGE	1-09449-082-0	02	1	0705-	●	●	●	●
61	ROD END; TIE ROD	1-43150-680-2	01	1	0005-0411	●			●
61	ROD END; TIE ROD	1-43150-680-2	01	1	0412-	●	●		●
61	ROD END; TIE ROD	1-43150-679-2	01	1	0005-0411	●			●
61	ROD END; TIE ROD	1-43150-679-2	01	1	0412-	●	●		●
61	ROD END; TIE ROD	1-43150-678-3	01	1	0005-			●
61	ROD END; TIE ROD	1-43150-677-3	01	1	0005-			●
66	NUT; TIE ROD END M16 SLOTTED	1-09442-021-1	02	1	0005-0411	●			●
66	NUT; TIE ROD END M16 SLOTTED	1-09442-021-1	02	1	0412-0805	●	●		●
66	NUT; TIE ROD END M16 SLOTTED	1-09442-031-0	02	1	0806-	●	●		●
66	NUT; TIE ROD END M24 SLOTTED	1-09442-020-0	02	1	0005-0805			●
66	NUT; TIE ROD END M24	1-09442-032-0	02	1	0806-			●
68	BOLT; TIE ROD END M12X55	9-91061-255-0	04	1	0005-			●
74	NUT; TIE ROD END M12	9-99110-512-0	04	1	0005-0512			●
74	NUT; TIE ROD END M12	0-91110-512-0	04	1	0601-			●
80	PIN; SPLIT,ROD END OD=3.7 L=22	9-08114-022-0	02	1	0005-0411	●			●
80	PIN; SPLIT,ROD END OD=3.7 L=22	9-08114-022-0	02	1	0412-0606	●	●		●
80	PIN; SPLIT,ROD END OD=3.7 L=22	0-81124-022-0	02	1	0607-	●	●		●
80	PIN; SPLIT,ROD END OD=4.6 L=35	9-08115-035-0	02	1	0005-0606			●
80	PIN; SPLIT,ROD END OD=4.6 L=35	0-81125-035-0	02	1	0607-			●
81	ROD; TIE	1-43151-109-0	01	1	0005-0411	●			●
81	ROD; TIE	1-43151-109-0	01	1	0412-	●	●		●
81	ROD; TIE	1-43151-129-0	01	1	0005-			●
304	WASHER; PL ID=12.5	9-09164-512-0	02	1	0005-0411	●			●
304	WASHER; PL ID=12.5	9-09164-512-0	02	1	0412-	●	●		●
304	WASHER; PL ID=12.5	9-09164-512-0	04	1	0005-			●
305	COVER; KNUCKLE	1-43175-022-0	02	1	0005-0411	●			●
305	COVER; KNUCKLE	1-43175-022-0	02	1	0412-0704	●	●		●
305	COVER; KNUCKLE	1-43175-030-0	02	1	0705-	●	●		●
305	COVER; KNUCKLE	1-43175-021-0	02	1	0005-0704			●
305	COVER; KNUCKLE	8-98052-291-0	02	1	0705-			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
