◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 10826 - FRR/FSR/FRD(AUST) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-01 - PROPELLER SHAFT ▶
4-01 — PROPELLER SHAFT (#9395) — 504 parça

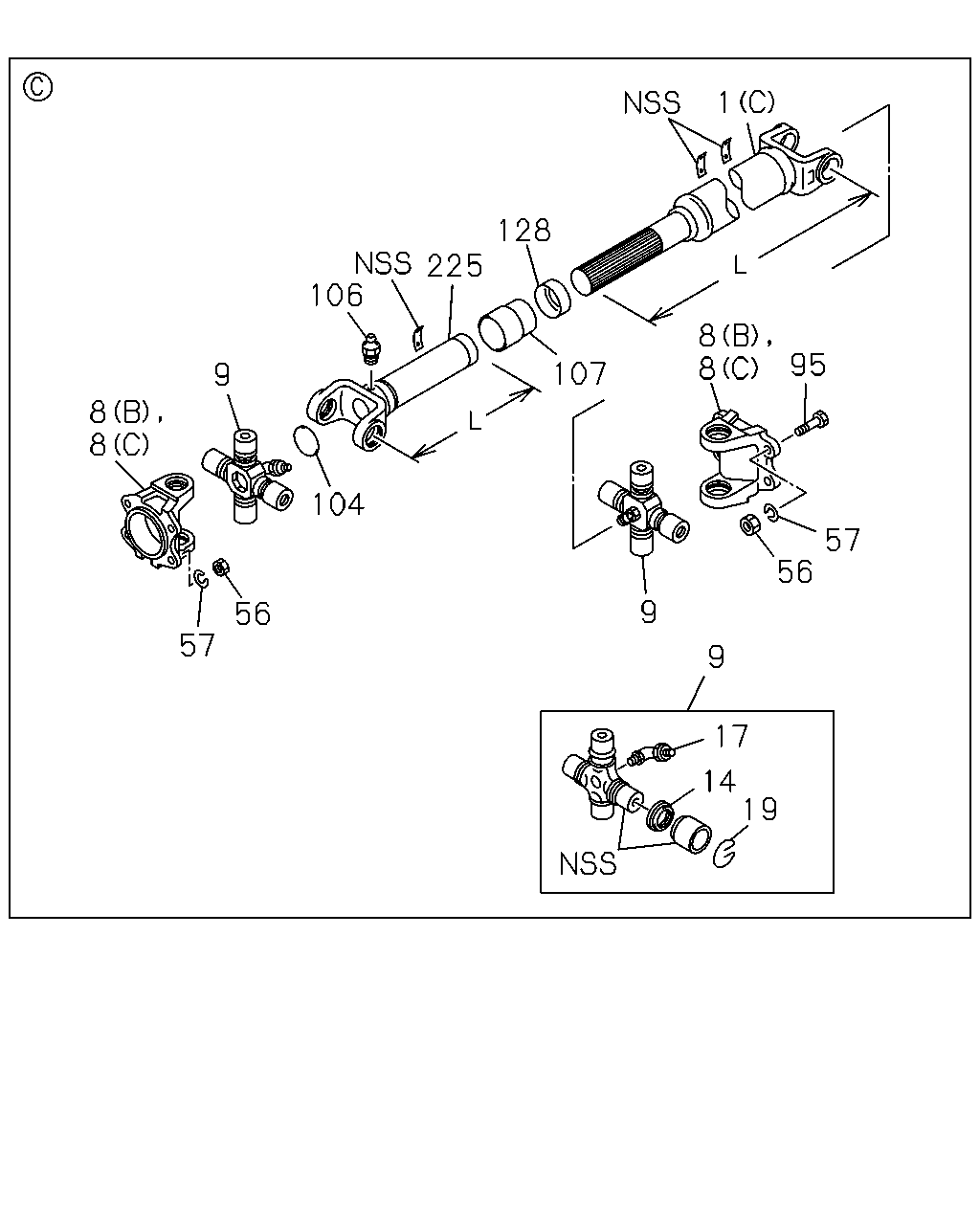

çizim 38338
1 128 106 225 8 8 95 107 9 8 8 104 57 56 9 56 57 9 17 14 19
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 SHAFT; PROP
FRD STD CAB(FRD***) (C) L=1241 		1-37123-396-3 01 1 0412- ●
1 SHAFT; PROP
6HK1 TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V) (A) L=951 		1-37152-001-1 01 1 0307- ●
1 SHAFT; PROP
6HK1 TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V) (A) L=956 		1-37153-449-0 01 1 0307-1111 ●
1 SHAFT; PROP
6HK1 TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V) (A) L=949 		8-98110-584-0 01 1 1112- ●
1 SHAFT; PROP
P30 PROP SHAFT(B2F) (C) L=747 		1-37123-758-1 01 1 0005-0210 ●
1 SHAFT; PROP
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 39/9 14.5" HYPOID(W4X) (C) L=987.5 		1-37123-944-1 01 1 0211- ●
1 SHAFT; PROP
P30 PROP SHAFT(B2F) (A) L=793 		1-37151-553-1 01 1 0005-0210 ●
1 SHAFT; PROP
(C) L=701 		1-37123-763-1 01 1 0211- ●
1 SHAFT; PROP
AT545 A/T ALLISON(MD1) (A) L=968 		1-37152-013-1 01 1 0005-0210 ●
1 SHAFT; PROP
AT545 A/T ALLISON(MD1) (A) L=981 		1-37153-364-0 01 1 0211- ●
1 SHAFT; PROP
MBJ6 M/T<Y9B> ENGINE REAR PTO(SV1) (A) L=953 		1-37152-012-1 01 1 0005-0210 ●
1 SHAFT; PROP
(A) L=849 		1-37151-573-1 01 1 0211- ●
1 SHAFT; PROP
MBJ6 M/T<Y9B> EXC. ENGINE REAR PTO(SV1) (A) L=1108 		1-37151-897-1 01 1 0005-0210 ●
1 SHAFT; PROP
ENGINE REAR PTO(SV1) (A) L=971 		1-37152-056-1 01 1 0211- ●
1 SHAFT; PROP
P30 PROP SHAFT(B2F) (C) L=997 		1-37122-946-1 01 1 0005-0210 ●
1 SHAFT; PROP
FINAL GEAR 43/11 14.5" HYPOID(W5T) (C) L=911 		1-37123-509-1 01 1 0211- ●
1 SHAFT; PROP
P30 PROP SHAFT(B2F) (C) L=1302 		1-37122-704-1 01 1 0005-0210 ●
1 SHAFT; PROP
(C) L=1266 		1-37123-424-3 01 1 0211-0411 ●
1 SHAFT; PROP
FRR STD CAB(FRR***) (C) L=1266 		1-37123-424-3 01 1 0412- ●
1 SHAFT; PROP
P30 PROP SHAFT(B2F) (A) L=1303 		1-37151-478-1 01 1 0005-0210 ●
1 SHAFT; PROP
(B) L=526 		1-37152-007-1 01 1 0211- ●
1 SHAFT; PROP
EXC. P30 PROP SHAFT(B2F) (C) L=1256 		1-37123-393-3 01 1 0005-0210 ●
1 SHAFT; PROP
(C) L=1256 		1-37123-393-3 01 1 0005-0210 ●
1 SHAFT; PROP
(C) L=1256 		1-37123-393-3 01 1 0211- ●
1 SHAFT; PROP
EXC. P30 PROP SHAFT(B2F) (A) L=1286 		1-37151-583-1 01 1 0005-0210 ●
1 SHAFT; PROP
MLD6Q M/T(X5J) EXC. ENGINE REAR PTO(SV1) (A) L=1026 		1-37153-345-0 01 1 0211- ●
1 SHAFT; PROP
(A) L=996 		1-37152-006-1 01 1 0005-0210 ●
1 SHAFT; PROP
6HK1 TCC ENG(81L) (A) L=1006 		1-37152-770-0 01 1 0211- ●
1 SHAFT; PROP
(B) L=526 		1-37152-007-1 01 1 0005-0210 ●
1 SHAFT; PROP
(B) L=926 		1-37152-790-0 01 1 0211- ●
1 SHAFT; PROP
6HK1 TCC ENG(81L),6HK1 TCN ENG(82L) MLD6Q M/T(X5J) (A) L=1001 		1-37151-574-1 01 1 0211- ●
8 YOKE; FLANGE,PROP SHAFT
6HK1 TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V) (A) 		1-37211-054-1 01 1 0307-1111 ● ●
8 YOKE; FLANGE,PROP SHAFT
6HK1 TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V) (A) 		8-98178-052-0 01 1 1112- ● ●
8 YOKE; FLANGE,PROP SHAFT
P30 PROP SHAFT(B2F) (A) D=80 		1-37211-037-4 01 1 0005-0210 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P30 PROP SHAFT(B2F) (B) D=80 		1-37211-037-4 02 1 0005-0210 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
(A),(B) 		1-37211-056-3 03 1 0211-0305 ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-056-3 01 1 0306-0410 ● ●
8 YOKE; FLANGE,PROP SHAFT
6HK1 TCC ENG(81L),6HK1 TCN ENG(82L) MLD6Q M/T(X5J) (A) 		1-37211-056-3 01 1 0306-0410 ●
8 YOKE; FLANGE,PROP SHAFT
6HK1 TCC ENG(81L) (A) 		1-37211-056-3 01 1 0306-0410 ●
8 YOKE; FLANGE,PROP SHAFT
(A),(B) 		1-37211-056-3 03 1 0411- ●
8 YOKE; FLANGE,PROP SHAFT
EXC. P30 PROP SHAFT(B2F) (A) 		1-37211-054-0 01 1 0005-0210 ●
8 YOKE; FLANGE,PROP SHAFT
MLD6 M/T<X9Y> (A) 		1-37211-054-0 01 1 0005-0210 ●
8 YOKE; FLANGE,PROP SHAFT
EXC. P30 PROP SHAFT(B2F) (B) 		1-37211-056-3 02 1 0005-0210 ●
8 YOKE; FLANGE,PROP SHAFT
(B) 		1-37211-056-3 02 1 0005-0210 ●
8 YOKE; FLANGE,PROP SHAFT
(B) 		1-37211-056-3 02 1 0211-0305 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
(B) 		1-37211-056-3 02 1 0306-0410 ● ●
8 YOKE; FLANGE,PROP SHAFT
(B) 		1-37211-056-3 02 1 0411- ● ● ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-056-3 01 1 0005-0210 ●
8 YOKE; FLANGE,PROP SHAFT
MBJ6 M/T<Y9B> (A) 		1-37211-056-3 01 1 0005-0210 ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-056-3 01 1 0211-0305 ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-056-3 01 1 0211-0305 ●
8 YOKE; FLANGE,PROP SHAFT
(C) 		1-37211-056-3 03 1 0306-0410 ● ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-056-3 01 1 0411- ● ● ●
8 YOKE; FLANGE,PROP SHAFT
6HK1 TCC ENG(81L),6HK1 TCN ENG(82L) MLD6Q M/T(X5J) (A) 		1-37211-056-3 01 1 0411- ●
8 YOKE; FLANGE,PROP SHAFT
6HK1 TCC ENG(81L) (A) 		1-37211-056-3 01 1 0411- ●
9 JOURNAL ASM; PROP SHAFT
6HK1 TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V) 1ST 		8-98048-925-0 AR 1 1112- ● ●
9 JOURNAL ASM; PROP SHAFT
P30 PROP SHAFT(B2F) 		1-37300-103-0 AR 1 0005-0210 ● ● ●
9 JOURNAL ASM; PROP SHAFT
EXC. P30 PROP SHAFT(B2F) 		1-37300-102-0 AR 1 0005-0210 ●
9 JOURNAL ASM; PROP SHAFT 1-37300-102-0 AR 1 0005-0210 ●
9 JOURNAL ASM; PROP SHAFT 1-37300-102-0 AR 1 0211-0512 ● ● ● ●
9 JOURNAL ASM; PROP SHAFT 1-37300-129-0 AR 1 0601-1111 ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
1ST 		1-37300-102-1 AR 1 1112- ● ●
9 JOURNAL ASM; PROP SHAFT
6HK1 TCC ENG(81L),6HK1 TCN ENG(82L) MLD6Q M/T(X5J) 1ST 		1-37300-102-1 AR 1 1112- ●
9 JOURNAL ASM; PROP SHAFT
6HK1 TCC ENG(81L) 1ST 		1-37300-102-1 AR 1 1112- ●
9 JOURNAL ASM; PROP SHAFT
2ND,END 		1-37300-102-1 AR 1 1112- ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
2ND,END 		1-37300-102-1 AR 1 1112- ● ●
14 COVER; DUST,SPIDER
6HK1 TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V) 1ST 		8-98020-800-0 AR 1 1112- ● ●
14 COVER; DUST,SPIDER
P30 PROP SHAFT(B2F) 		1-37319-011-0 AR 1 0005-0210 ● ● ●
14 COVER; DUST,SPIDER
EXC. P30 PROP SHAFT(B2F) 		1-37319-012-0 AR 1 0005-0210 ●
14 COVER; DUST,SPIDER 1-37319-012-0 AR 1 0005-0210 ●
14 COVER; DUST,SPIDER 1-37319-012-0 AR 1 0211-1111 ● ● ● ●
14 COVER; DUST,SPIDER
1ST 		1-37319-012-0 AR 1 1112- ● ●
14 COVER; DUST,SPIDER
6HK1 TCC ENG(81L),6HK1 TCN ENG(82L) MLD6Q M/T(X5J) 1ST 		1-37319-012-0 AR 1 1112- ●
14 COVER; DUST,SPIDER
6HK1 TCC ENG(81L) 1ST 		1-37319-012-0 AR 1 1112- ●
14 COVER; DUST,SPIDER
2ND,END 		1-37319-012-0 AR 1 1112- ● ● ● ●
14 COVER; DUST,SPIDER
2ND,END 		1-37319-012-0 AR 1 1112- ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		9-09031-210-0 AR 1 0005-0210 ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		9-09031-210-0 AR 1 0211-0512 ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 AR 1 0601- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P30 PROP SHAFT(B2F) T=1.95 		1-09587-014-0 AR 1 0005-0210 ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P30 PROP SHAFT(B2F) T=2.00 		1-09587-015-2 AR 1 0005-0210 ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P30 PROP SHAFT(B2F) T=2.05 		1-09587-016-1 AR 1 0005-0210 ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 AR 1 0211- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 AR 1 0211- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 AR 1 0211- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
EXC. P30 PROP SHAFT(B2F) OD=45.5 T=1.95 BLUE 		1-09587-086-0 AR 1 0005-0210 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 AR 1 0005-0210 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
EXC. P30 PROP SHAFT(B2F) OD=45.5 T=2.00 WHITE 		1-09587-087-2 AR 1 0005-0210 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 AR 1 0005-0210 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
EXC. P30 PROP SHAFT(B2F) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 AR 1 0005-0210 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 AR 1 0005-0210 ●
56 NUT; YOKE
P30 PROP SHAFT(B2F) M12 		9-99110-512-0 08 1 0005-0210 ● ● ●
56 NUT; YOKE
EXC. P30 PROP SHAFT(B2F) M14 		9-99110-514-0 08 1 0005-0210 ● ● ●
56 NUT; YOKE
M14 		9-99110-514-0 08 1 0005-0210 ●
56 NUT; YOKE
M14 		9-99110-514-0 08 1 0211-0512 ● ● ● ●
56 NUT; YOKE
M14 		0-91110-514-0 08 1 0601- ● ● ● ●
57 WASHER; LK,YOKE
P30 PROP SHAFT(B2F) ID=12.2 		9-09150-612-0 08 1 0005-0210 ● ● ●
57 WASHER; LK,YOKE
EXC. P30 PROP SHAFT(B2F) ID=14.2 		9-09150-614-0 08 1 0005-0210 ● ● ●
57 WASHER; LK,YOKE
ID=14.2 		9-09150-614-0 08 1 0005-0210 ●
57 WASHER; LK,YOKE
ID=14.2 		9-09150-614-0 08 1 0211-0603 ● ● ● ●
57 WASHER; LK,YOKE
ID=14.2 		0-91510-614-0 08 1 0604- ● ● ● ●
95 BOLT; YOKE,FINAL
P30 PROP SHAFT(B2F) M12X32 		1-09000-076-1 04 1 0005-0210 ● ● ●
95 BOLT; YOKE,FINAL
EXC. P30 PROP SHAFT(B2F) M14X37 		1-09000-121-0 04 1 0005-0210 ● ● ●
95 BOLT; YOKE,FINAL
M14X37 		1-09000-121-0 04 1 0005-0210 ●
95 BOLT; YOKE,FINAL
M14X37 		1-09000-121-0 04 1 0211- ● ● ● ●
104 PLUG; SLEEVE YOKE
P30 PROP SHAFT(B2F) 		1-09600-014-0 01 1 0005-0210 ● ● ●
104 PLUG; SLEEVE YOKE
EXC. P30 PROP SHAFT(B2F) 		1-09600-064-0 01 1 0005-0210 ●
104 PLUG; SLEEVE YOKE 1-09600-064-0 01 1 0005-0210 ●
104 PLUG; SLEEVE YOKE 1-09600-064-0 01 1 0211- ● ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		9-09031-010-0 01 1 0005-0512 ● ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		0-90301-410-0 01 1 0601- ● ● ● ●
107 COVER; RET,SLEEVE
EXC. P30 PROP SHAFT(B2F) 		1-37249-060-0 01 1 0005-0210 ●
107 COVER; RET,SLEEVE 1-37249-060-0 01 1 0005-0210 ●
107 COVER; RET,SLEEVE 1-37249-060-1 01 1 0211- ● ● ● ●
128 SEAL; SLEEVE
P30 PROP SHAFT(B2F) 		1-37247-001-1 01 1 0005-0210 ● ● ●
128 SEAL; SLEEVE
EXC. P30 PROP SHAFT(B2F) 		1-37247-024-0 01 1 0005-0210 ●
128 SEAL; SLEEVE 1-37247-024-0 01 1 0005-0210 ●
128 SEAL; SLEEVE 1-37247-024-0 01 1 0211- ● ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
P30 PROP SHAFT(B2F) L=228 		1-37241-098-2 01 1 0005-0210 ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
EXC. P30 PROP SHAFT(B2F) L=271 		1-37241-099-2 01 1 0005-0210 ●
225 YOKE; SLEEVE,PROP SHAFT
L=271 		1-37241-099-2 01 1 0005-0210 ●
225 YOKE; SLEEVE,PROP SHAFT
L=271 		1-37241-099-2 01 1 0211- ● ● ● ●

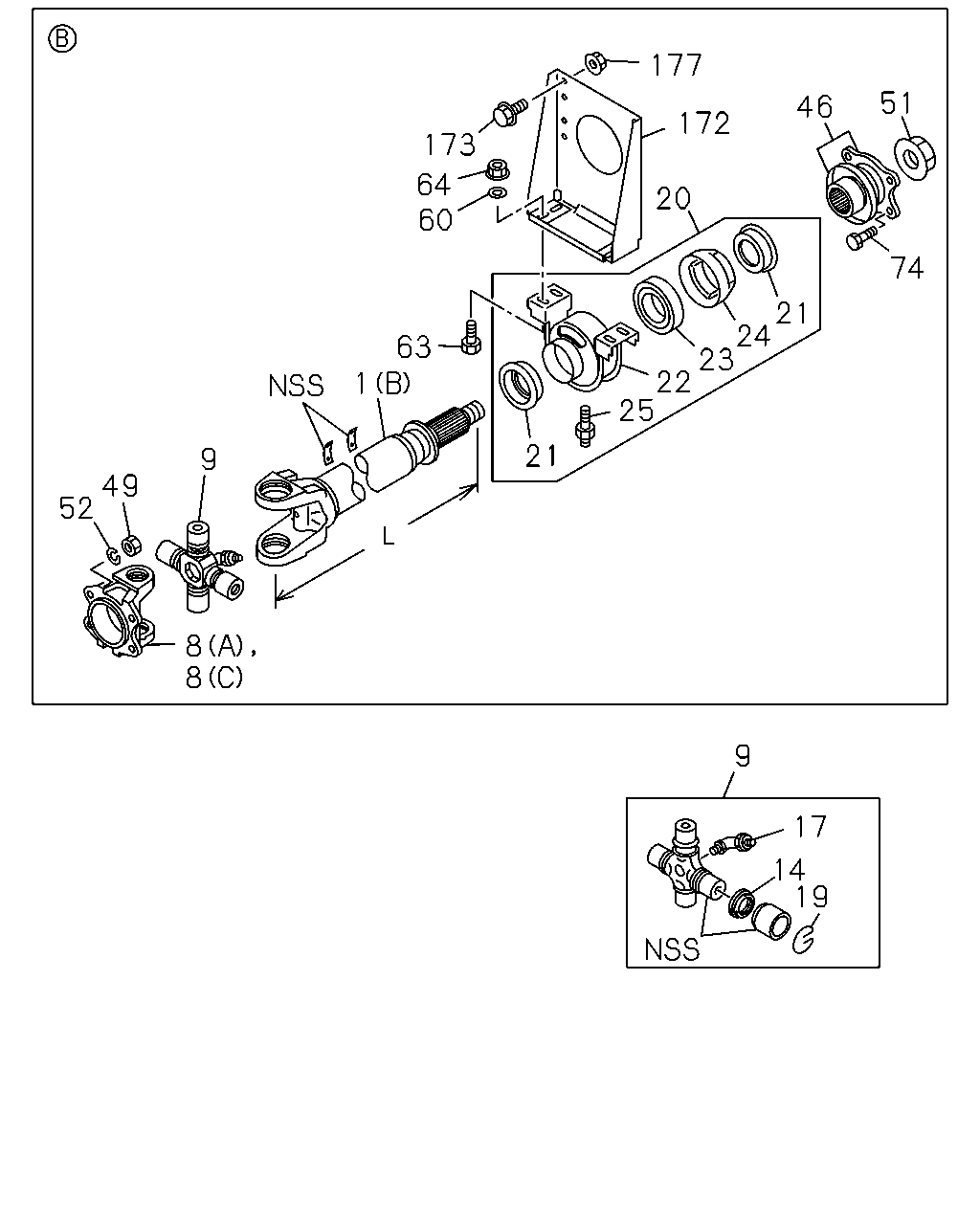

çizim 38557
177 51 46 172 173 64 60 20 74 21 24 23 22 25 63 1 21 9 49 52 8 8 9 17 14 19
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 SHAFT; PROP
FRD STD CAB(FRD***) (C) L=1241 		1-37123-396-3 01 1 0412- ●
1 SHAFT; PROP
6HK1 TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V) (A) L=951 		1-37152-001-1 01 1 0307- ●
1 SHAFT; PROP
6HK1 TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V) (A) L=956 		1-37153-449-0 01 1 0307-1111 ●
1 SHAFT; PROP
6HK1 TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V) (A) L=949 		8-98110-584-0 01 1 1112- ●
1 SHAFT; PROP
P30 PROP SHAFT(B2F) (C) L=747 		1-37123-758-1 01 1 0005-0210 ●
1 SHAFT; PROP
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 39/9 14.5" HYPOID(W4X) (C) L=987.5 		1-37123-944-1 01 1 0211- ●
1 SHAFT; PROP
P30 PROP SHAFT(B2F) (A) L=793 		1-37151-553-1 01 1 0005-0210 ●
1 SHAFT; PROP
(C) L=701 		1-37123-763-1 01 1 0211- ●
1 SHAFT; PROP
AT545 A/T ALLISON(MD1) (A) L=968 		1-37152-013-1 01 1 0005-0210 ●
1 SHAFT; PROP
AT545 A/T ALLISON(MD1) (A) L=981 		1-37153-364-0 01 1 0211- ●
1 SHAFT; PROP
MBJ6 M/T<Y9B> ENGINE REAR PTO(SV1) (A) L=953 		1-37152-012-1 01 1 0005-0210 ●
1 SHAFT; PROP
(A) L=849 		1-37151-573-1 01 1 0211- ●
1 SHAFT; PROP
MBJ6 M/T<Y9B> EXC. ENGINE REAR PTO(SV1) (A) L=1108 		1-37151-897-1 01 1 0005-0210 ●
1 SHAFT; PROP
ENGINE REAR PTO(SV1) (A) L=971 		1-37152-056-1 01 1 0211- ●
1 SHAFT; PROP
P30 PROP SHAFT(B2F) (C) L=997 		1-37122-946-1 01 1 0005-0210 ●
1 SHAFT; PROP
FINAL GEAR 43/11 14.5" HYPOID(W5T) (C) L=911 		1-37123-509-1 01 1 0211- ●
1 SHAFT; PROP
P30 PROP SHAFT(B2F) (C) L=1302 		1-37122-704-1 01 1 0005-0210 ●
1 SHAFT; PROP
(C) L=1266 		1-37123-424-3 01 1 0211-0411 ●

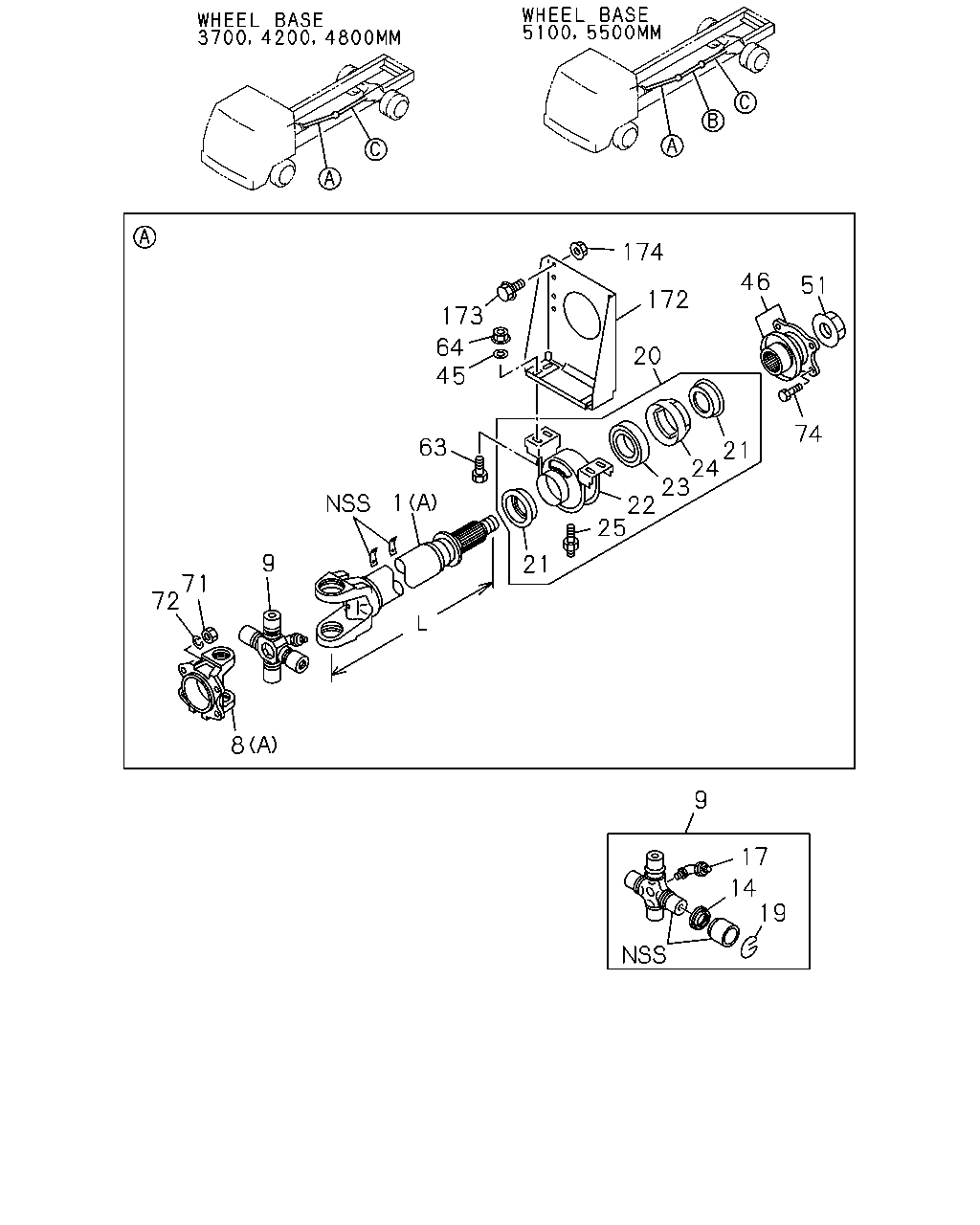

1 SHAFT; PROP
FRR STD CAB(FRR***) (C) L=1266 		1-37123-424-3 01 1 0412- ●
1 SHAFT; PROP
P30 PROP SHAFT(B2F) (A) L=1303 		1-37151-478-1 01 1 0005-0210 ●
1 SHAFT; PROP
(B) L=526 		1-37152-007-1 01 1 0211- ●
1 SHAFT; PROP
EXC. P30 PROP SHAFT(B2F) (C) L=1256 		1-37123-393-3 01 1 0005-0210 ●
1 SHAFT; PROP
(C) L=1256 		1-37123-393-3 01 1 0005-0210 ●
1 SHAFT; PROP
(C) L=1256 		1-37123-393-3 01 1 0211- ●
1 SHAFT; PROP
EXC. P30 PROP SHAFT(B2F) (A) L=1286 		1-37151-583-1 01 1 0005-0210 ●
1 SHAFT; PROP
MLD6Q M/T(X5J) EXC. ENGINE REAR PTO(SV1) (A) L=1026 		1-37153-345-0 01 1 0211- ●
1 SHAFT; PROP
(A) L=996 		1-37152-006-1 01 1 0005-0210 ●
1 SHAFT; PROP
6HK1 TCC ENG(81L) (A) L=1006 		1-37152-770-0 01 1 0211- ●
1 SHAFT; PROP
(B) L=526 		1-37152-007-1 01 1 0005-0210 ●
1 SHAFT; PROP
(B) L=926 		1-37152-790-0 01 1 0211- ●
1 SHAFT; PROP
6HK1 TCC ENG(81L),6HK1 TCN ENG(82L) MLD6Q M/T(X5J) (A) L=1001 		1-37151-574-1 01 1 0211- ●
8 YOKE; FLANGE,PROP SHAFT
6HK1 TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V) (A) 		1-37211-054-1 01 1 0307-1111 ● ●
8 YOKE; FLANGE,PROP SHAFT
6HK1 TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V) (A) 		8-98178-052-0 01 1 1112- ● ●
8 YOKE; FLANGE,PROP SHAFT
P30 PROP SHAFT(B2F) (A) D=80 		1-37211-037-4 01 1 0005-0210 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P30 PROP SHAFT(B2F) (B) D=80 		1-37211-037-4 02 1 0005-0210 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
(A),(B) 		1-37211-056-3 03 1 0211-0305 ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-056-3 01 1 0306-0410 ● ●
8 YOKE; FLANGE,PROP SHAFT
6HK1 TCC ENG(81L),6HK1 TCN ENG(82L) MLD6Q M/T(X5J) (A) 		1-37211-056-3 01 1 0306-0410 ●
8 YOKE; FLANGE,PROP SHAFT
6HK1 TCC ENG(81L) (A) 		1-37211-056-3 01 1 0306-0410 ●
8 YOKE; FLANGE,PROP SHAFT
(A),(B) 		1-37211-056-3 03 1 0411- ●
8 YOKE; FLANGE,PROP SHAFT
EXC. P30 PROP SHAFT(B2F) (A) 		1-37211-054-0 01 1 0005-0210 ●
8 YOKE; FLANGE,PROP SHAFT
MLD6 M/T<X9Y> (A) 		1-37211-054-0 01 1 0005-0210 ●
8 YOKE; FLANGE,PROP SHAFT
EXC. P30 PROP SHAFT(B2F) (B) 		1-37211-056-3 02 1 0005-0210 ●
8 YOKE; FLANGE,PROP SHAFT
(B) 		1-37211-056-3 02 1 0005-0210 ●
8 YOKE; FLANGE,PROP SHAFT
(B) 		1-37211-056-3 02 1 0211-0305 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
(B) 		1-37211-056-3 02 1 0306-0410 ● ●
8 YOKE; FLANGE,PROP SHAFT
(B) 		1-37211-056-3 02 1 0411- ● ● ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-056-3 01 1 0005-0210 ●
8 YOKE; FLANGE,PROP SHAFT
MBJ6 M/T<Y9B> (A) 		1-37211-056-3 01 1 0005-0210 ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-056-3 01 1 0211-0305 ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-056-3 01 1 0211-0305 ●
8 YOKE; FLANGE,PROP SHAFT
(C) 		1-37211-056-3 03 1 0306-0410 ● ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-056-3 01 1 0411- ● ● ●
8 YOKE; FLANGE,PROP SHAFT
6HK1 TCC ENG(81L),6HK1 TCN ENG(82L) MLD6Q M/T(X5J) (A) 		1-37211-056-3 01 1 0411- ●
8 YOKE; FLANGE,PROP SHAFT
6HK1 TCC ENG(81L) (A) 		1-37211-056-3 01 1 0411- ●
9 JOURNAL ASM; PROP SHAFT
6HK1 TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V) 1ST 		8-98048-925-0 AR 1 1112- ● ●
9 JOURNAL ASM; PROP SHAFT
P30 PROP SHAFT(B2F) 		1-37300-103-0 AR 1 0005-0210 ● ● ●
9 JOURNAL ASM; PROP SHAFT
EXC. P30 PROP SHAFT(B2F) 		1-37300-102-0 AR 1 0005-0210 ●
9 JOURNAL ASM; PROP SHAFT 1-37300-102-0 AR 1 0005-0210 ●
9 JOURNAL ASM; PROP SHAFT 1-37300-102-0 AR 1 0211-0512 ● ● ● ●
9 JOURNAL ASM; PROP SHAFT 1-37300-129-0 AR 1 0601-1111 ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
1ST 		1-37300-102-1 AR 1 1112- ● ●
9 JOURNAL ASM; PROP SHAFT
6HK1 TCC ENG(81L),6HK1 TCN ENG(82L) MLD6Q M/T(X5J) 1ST 		1-37300-102-1 AR 1 1112- ●
9 JOURNAL ASM; PROP SHAFT
6HK1 TCC ENG(81L) 1ST 		1-37300-102-1 AR 1 1112- ●
9 JOURNAL ASM; PROP SHAFT
2ND,END 		1-37300-102-1 AR 1 1112- ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
2ND,END 		1-37300-102-1 AR 1 1112- ● ●
14 COVER; DUST,SPIDER
6HK1 TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V) 1ST 		8-98020-800-0 AR 1 1112- ● ●
14 COVER; DUST,SPIDER
P30 PROP SHAFT(B2F) 		1-37319-011-0 AR 1 0005-0210 ● ● ●
14 COVER; DUST,SPIDER
EXC. P30 PROP SHAFT(B2F) 		1-37319-012-0 AR 1 0005-0210 ●
14 COVER; DUST,SPIDER 1-37319-012-0 AR 1 0005-0210 ●
14 COVER; DUST,SPIDER 1-37319-012-0 AR 1 0211-1111 ● ● ● ●
14 COVER; DUST,SPIDER
1ST 		1-37319-012-0 AR 1 1112- ● ●
14 COVER; DUST,SPIDER
6HK1 TCC ENG(81L),6HK1 TCN ENG(82L) MLD6Q M/T(X5J) 1ST 		1-37319-012-0 AR 1 1112- ●
14 COVER; DUST,SPIDER
6HK1 TCC ENG(81L) 1ST 		1-37319-012-0 AR 1 1112- ●
14 COVER; DUST,SPIDER
2ND,END 		1-37319-012-0 AR 1 1112- ● ● ● ●
14 COVER; DUST,SPIDER
2ND,END 		1-37319-012-0 AR 1 1112- ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		9-09031-210-0 AR 1 0005-0210 ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		9-09031-210-0 AR 1 0211-0512 ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 AR 1 0601- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P30 PROP SHAFT(B2F) T=1.95 		1-09587-014-0 AR 1 0005-0210 ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P30 PROP SHAFT(B2F) T=2.00 		1-09587-015-2 AR 1 0005-0210 ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P30 PROP SHAFT(B2F) T=2.05 		1-09587-016-1 AR 1 0005-0210 ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 AR 1 0211- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 AR 1 0211- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 AR 1 0211- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
EXC. P30 PROP SHAFT(B2F) OD=45.5 T=1.95 BLUE 		1-09587-086-0 AR 1 0005-0210 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 AR 1 0005-0210 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
EXC. P30 PROP SHAFT(B2F) OD=45.5 T=2.00 WHITE 		1-09587-087-2 AR 1 0005-0210 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 AR 1 0005-0210 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
EXC. P30 PROP SHAFT(B2F) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 AR 1 0005-0210 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 AR 1 0005-0210 ●
20 BEARING ASM; CTR,PROP SHAFT
6HK1 TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V) 1ST 		8-98020-881-0 01 1 1112- ● ●
20 BEARING ASM; CTR,PROP SHAFT 1-37510-105-0 01 1 0005-0210 ● ● ● ●
20 BEARING ASM; CTR,PROP SHAFT 1-37510-105-0 01 1 0005-0210 ●
20 BEARING ASM; CTR,PROP SHAFT 1-37510-105-0 01 1 0211-1111 ● ● ● ●
20 BEARING ASM; CTR,PROP SHAFT 1-37510-105-0 01 1 0211-1111 ● ●
20 BEARING ASM; CTR,PROP SHAFT
1ST 		1-37510-105-0 01 1 1112- ● ●
20 BEARING ASM; CTR,PROP SHAFT
6HK1 TCC ENG(81L),6HK1 TCN ENG(82L) MLD6Q M/T(X5J) 1ST 		1-37510-105-0 01 1 1112- ●
20 BEARING ASM; CTR,PROP SHAFT
6HK1 TCC ENG(81L) 1ST 		1-37510-105-0 01 1 1112- ●
20 BEARING ASM; CTR,PROP SHAFT
2ND 		1-37510-105-0 01 1 1112- ● ●
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 02 1 0005-0210 ● ● ● ●
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 02 1 0005-0210 ●
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 02 1 0211- ● ● ● ●
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 02 1 0211- ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 01 1 0005-0210 ● ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 01 1 0005-0210 ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 01 1 0211- ● ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 01 1 0211- ● ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 0005-0210 ● ● ● ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 0005-0210 ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 0211- ● ● ● ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 0211- ● ●
24 RETAINER; CENTER BRG,1ST
6HK1 TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V) 1ST 		8-98020-882-0 01 1 1112- ● ●
24 RETAINER; CENTER BRG,1ST 1-37529-068-0 01 1 0005-0210 ● ● ● ●
24 RETAINER; CENTER BRG,1ST 1-37529-068-0 01 1 0005-0210 ●
24 RETAINER; CENTER BRG,1ST 1-37529-068-0 01 1 0211-1111 ● ● ● ●
24 RETAINER; CENTER BRG,1ST 1-37529-068-0 01 1 0211-1111 ● ●
24 RETAINER; CENTER BRG,1ST
1ST 		1-37529-068-0 01 1 1112- ● ●
24 RETAINER; CENTER BRG,1ST
6HK1 TCC ENG(81L),6HK1 TCN ENG(82L) MLD6Q M/T(X5J) 1ST 		1-37529-068-0 01 1 1112- ●
24 RETAINER; CENTER BRG,1ST
6HK1 TCC ENG(81L) 1ST 		1-37529-068-0 01 1 1112- ●
24 RETAINER; CENTER BRG,1ST
2ND 		1-37529-068-0 01 1 1112- ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 0005-0210 ● ● ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 0005-0210 ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 0211- ● ● ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 0211- ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
6HK1 TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V) 1ST 		8-98020-815-0 01 1 1112- ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P30 PROP SHAFT(B2F) 		1-37245-115-0 01 1 0005-0210 ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
EXC. P30 PROP SHAFT(B2F) 		1-37245-071-0 01 1 0005-0210 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-071-0 01 1 0005-0210 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-071-0 01 1 0005-0210 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-071-0 01 1 0211-1111 ● ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-071-0 01 1 0211-1111 ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
1ST 		1-37245-071-0 01 1 1112- ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
6HK1 TCC ENG(81L),6HK1 TCN ENG(82L) MLD6Q M/T(X5J) 1ST 		1-37245-071-0 01 1 1112- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
6HK1 TCC ENG(81L) 1ST 		1-37245-071-0 01 1 1112- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
2ND 		1-37245-071-0 01 1 1112- ● ●
49 NUT; YOKE
M14 		9-99110-514-0 04 1 0005-0210 ●
49 NUT; YOKE
M14 		9-99110-514-0 04 1 0211-0512 ● ●
49 NUT; YOKE
M14 		0-91110-514-0 04 1 0601- ● ●
51 NUT; FLANGE,SPLINED
M30 		8-97160-857-0 01 1 0005-0210 ● ● ● ●
51 NUT; FLANGE,SPLINED
M30 		8-97160-857-0 01 1 0005-0210 ●
51 NUT; FLANGE,SPLINED
M30 		8-97160-857-0 01 1 0211- ● ● ● ●
51 NUT; FLANGE,SPLINED
M30 		8-97160-857-0 01 1 0211- ● ●
52 WASHER; LK,YOKE
ID=14.2 		9-09150-614-0 04 1 0005-0210 ●
52 WASHER; LK,YOKE
ID=14.2 		9-09150-614-0 04 1 0211-0603 ● ●
52 WASHER; LK,YOKE
ID=14.2 		0-91510-614-0 04 1 0604- ● ●
60 WASHER; PL,RET TO BRKT
ID=10.5 OD=22 		9-09164-610-0 04 1 0005-0210 ●
60 WASHER; PL,RET TO BRKT
ID=10.5 OD=22 		9-09164-610-0 04 1 0211-0605 ● ●
60 WASHER; PL,RET TO BRKT
ID=10.5 OD=22 		0-91614-610-0 04 1 0606- ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE 		0-28681-035-0 04 1 0005-0210 ● ● ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE 		0-28681-035-0 04 1 0005-0210 ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE 		0-28681-035-0 04 1 0211-0512 ● ● ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE 		0-28681-035-0 04 1 0211-0512 ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE 		0-28651-035-0 04 1 0601- ● ● ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE 		0-28651-035-0 04 1 0601- ● ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91150-210-0 04 1 0005-0210 ● ● ● ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91150-210-0 04 1 0005-0210 ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91150-210-0 04 1 0211-0602 ● ● ● ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91150-210-0 04 1 0211-0602 ● ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91180-210-0 04 1 0603- ● ● ● ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91180-210-0 04 1 0603- ● ●
74 BOLT; YOKE,TRANS
FRR STD CAB(FR**M*) FSR(FS****) FULLER M/T<X9B> M16X48 		1-09000-383-0 04 1 0307- ● ● ● ●
74 BOLT; YOKE,TRANS
P30 PROP SHAFT(B2F) M12X32 		1-09000-076-1 04 1 0005-0210 ● ● ●
74 BOLT; YOKE,TRANS
EXC. P30 PROP SHAFT(B2F) M14X37 		1-09000-121-0 04 1 0005-0210 ● ● ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 0005-0210 ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 0005-0210 ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 0211- ● ● ● ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 0211- ● ●
172 BRACKET; CENTER BRG
1ST 		1-37515-118-0 01 1 0005-0210 ●
172 BRACKET; CENTER BRG
1ST 		1-37515-122-0 01 1 0211- ● ●
172 BRACKET; CENTER BRG
1ST 		1-37515-122-0 01 1 0005-0210 ● ●
172 BRACKET; CENTER BRG
1ST 		1-37515-118-0 01 1 0211- ●
172 BRACKET; CENTER BRG
2ND 		1-37515-119-0 01 1 0005-0210 ●
172 BRACKET; CENTER BRG
2ND 		1-37515-121-0 01 1 0211- ●
172 BRACKET; CENTER BRG
2ND 		1-37515-119-0 01 1 0211- ●
173 BOLT; BRKT
M10X25 FLANGE 		0-28681-025-0 04 1 0005-0210 ● ● ●
173 BOLT; BRKT
M10X25 FLANGE 		0-28681-025-0 04 1 0005-0210 ●
173 BOLT; BRKT
M10X25 FLANGE 		0-28681-025-0 04 1 0211-0512 ● ● ●
173 BOLT; BRKT
M10X25 FLANGE 		0-28681-025-0 04 1 0211-0512 ● ●
173 BOLT; BRKT
M10X25 FLANGE 		0-28651-025-0 04 1 0601- ● ● ●
173 BOLT; BRKT
M10X25 FLANGE 		0-28651-025-0 04 1 0601- ● ●
177 NUT
M10 FLANGE 		0-91150-210-0 04 1 0005-0210 ●
177 NUT
M10 FLANGE 		0-91150-210-0 04 1 0211-0602 ● ●
177 NUT
M10 FLANGE 		0-91180-210-0 04 1 0603- ● ●
çizim 38940
174 46 51 172 173 64 45 20 74 63 21 24 23 22 25 1 9 21 71 72 8 9 17 14 19
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 SHAFT; PROP
FRD STD CAB(FRD***) (C) L=1241 		1-37123-396-3 01 1 0412- ●
1 SHAFT; PROP
6HK1 TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V) (A) L=951 		1-37152-001-1 01 1 0307- ●
1 SHAFT; PROP
6HK1 TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V) (A) L=956 		1-37153-449-0 01 1 0307-1111 ●
1 SHAFT; PROP
6HK1 TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V) (A) L=949 		8-98110-584-0 01 1 1112- ●
1 SHAFT; PROP
P30 PROP SHAFT(B2F) (C) L=747 		1-37123-758-1 01 1 0005-0210 ●
1 SHAFT; PROP
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 39/9 14.5" HYPOID(W4X) (C) L=987.5 		1-37123-944-1 01 1 0211- ●
1 SHAFT; PROP
P30 PROP SHAFT(B2F) (A) L=793 		1-37151-553-1 01 1 0005-0210 ●
1 SHAFT; PROP
(C) L=701 		1-37123-763-1 01 1 0211- ●
1 SHAFT; PROP
AT545 A/T ALLISON(MD1) (A) L=968 		1-37152-013-1 01 1 0005-0210 ●
1 SHAFT; PROP
AT545 A/T ALLISON(MD1) (A) L=981 		1-37153-364-0 01 1 0211- ●
1 SHAFT; PROP
MBJ6 M/T<Y9B> ENGINE REAR PTO(SV1) (A) L=953 		1-37152-012-1 01 1 0005-0210 ●
1 SHAFT; PROP
(A) L=849 		1-37151-573-1 01 1 0211- ●
1 SHAFT; PROP
MBJ6 M/T<Y9B> EXC. ENGINE REAR PTO(SV1) (A) L=1108 		1-37151-897-1 01 1 0005-0210 ●
1 SHAFT; PROP
ENGINE REAR PTO(SV1) (A) L=971 		1-37152-056-1 01 1 0211- ●
1 SHAFT; PROP
P30 PROP SHAFT(B2F) (C) L=997 		1-37122-946-1 01 1 0005-0210 ●
1 SHAFT; PROP
FINAL GEAR 43/11 14.5" HYPOID(W5T) (C) L=911 		1-37123-509-1 01 1 0211- ●
1 SHAFT; PROP
P30 PROP SHAFT(B2F) (C) L=1302 		1-37122-704-1 01 1 0005-0210 ●
1 SHAFT; PROP
(C) L=1266 		1-37123-424-3 01 1 0211-0411 ●
1 SHAFT; PROP
FRR STD CAB(FRR***) (C) L=1266 		1-37123-424-3 01 1 0412- ●
1 SHAFT; PROP
P30 PROP SHAFT(B2F) (A) L=1303 		1-37151-478-1 01 1 0005-0210 ●
1 SHAFT; PROP
(B) L=526 		1-37152-007-1 01 1 0211- ●
1 SHAFT; PROP
EXC. P30 PROP SHAFT(B2F) (C) L=1256 		1-37123-393-3 01 1 0005-0210 ●
1 SHAFT; PROP
(C) L=1256 		1-37123-393-3 01 1 0005-0210 ●
1 SHAFT; PROP
(C) L=1256 		1-37123-393-3 01 1 0211- ●
1 SHAFT; PROP
EXC. P30 PROP SHAFT(B2F) (A) L=1286 		1-37151-583-1 01 1 0005-0210 ●
1 SHAFT; PROP
MLD6Q M/T(X5J) EXC. ENGINE REAR PTO(SV1) (A) L=1026 		1-37153-345-0 01 1 0211- ●
1 SHAFT; PROP
(A) L=996 		1-37152-006-1 01 1 0005-0210 ●
1 SHAFT; PROP
6HK1 TCC ENG(81L) (A) L=1006 		1-37152-770-0 01 1 0211- ●
1 SHAFT; PROP
(B) L=526 		1-37152-007-1 01 1 0005-0210 ●
1 SHAFT; PROP
(B) L=926 		1-37152-790-0 01 1 0211- ●
1 SHAFT; PROP
6HK1 TCC ENG(81L),6HK1 TCN ENG(82L) MLD6Q M/T(X5J) (A) L=1001 		1-37151-574-1 01 1 0211- ●
8 YOKE; FLANGE,PROP SHAFT
6HK1 TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V) (A) 		1-37211-054-1 01 1 0307-1111 ● ●
8 YOKE; FLANGE,PROP SHAFT
6HK1 TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V) (A) 		8-98178-052-0 01 1 1112- ● ●
8 YOKE; FLANGE,PROP SHAFT
P30 PROP SHAFT(B2F) (A) D=80 		1-37211-037-4 01 1 0005-0210 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P30 PROP SHAFT(B2F) (B) D=80 		1-37211-037-4 02 1 0005-0210 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
(A),(B) 		1-37211-056-3 03 1 0211-0305 ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-056-3 01 1 0306-0410 ● ●
8 YOKE; FLANGE,PROP SHAFT
6HK1 TCC ENG(81L),6HK1 TCN ENG(82L) MLD6Q M/T(X5J) (A) 		1-37211-056-3 01 1 0306-0410 ●
8 YOKE; FLANGE,PROP SHAFT
6HK1 TCC ENG(81L) (A) 		1-37211-056-3 01 1 0306-0410 ●
8 YOKE; FLANGE,PROP SHAFT
(A),(B) 		1-37211-056-3 03 1 0411- ●
8 YOKE; FLANGE,PROP SHAFT
EXC. P30 PROP SHAFT(B2F) (A) 		1-37211-054-0 01 1 0005-0210 ●
8 YOKE; FLANGE,PROP SHAFT
MLD6 M/T<X9Y> (A) 		1-37211-054-0 01 1 0005-0210 ●
8 YOKE; FLANGE,PROP SHAFT
EXC. P30 PROP SHAFT(B2F) (B) 		1-37211-056-3 02 1 0005-0210 ●
8 YOKE; FLANGE,PROP SHAFT
(B) 		1-37211-056-3 02 1 0005-0210 ●
8 YOKE; FLANGE,PROP SHAFT
(B) 		1-37211-056-3 02 1 0211-0305 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
(B) 		1-37211-056-3 02 1 0306-0410 ● ●
8 YOKE; FLANGE,PROP SHAFT
(B) 		1-37211-056-3 02 1 0411- ● ● ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-056-3 01 1 0005-0210 ●
8 YOKE; FLANGE,PROP SHAFT
MBJ6 M/T<Y9B> (A) 		1-37211-056-3 01 1 0005-0210 ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-056-3 01 1 0211-0305 ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-056-3 01 1 0211-0305 ●
8 YOKE; FLANGE,PROP SHAFT
(C) 		1-37211-056-3 03 1 0306-0410 ● ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-056-3 01 1 0411- ● ● ●
8 YOKE; FLANGE,PROP SHAFT
6HK1 TCC ENG(81L),6HK1 TCN ENG(82L) MLD6Q M/T(X5J) (A) 		1-37211-056-3 01 1 0411- ●
8 YOKE; FLANGE,PROP SHAFT
6HK1 TCC ENG(81L) (A) 		1-37211-056-3 01 1 0411- ●
9 JOURNAL ASM; PROP SHAFT
6HK1 TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V) 1ST 		8-98048-925-0 AR 1 1112- ● ●
9 JOURNAL ASM; PROP SHAFT
P30 PROP SHAFT(B2F) 		1-37300-103-0 AR 1 0005-0210 ● ● ●
9 JOURNAL ASM; PROP SHAFT
EXC. P30 PROP SHAFT(B2F) 		1-37300-102-0 AR 1 0005-0210 ●
9 JOURNAL ASM; PROP SHAFT 1-37300-102-0 AR 1 0005-0210 ●
9 JOURNAL ASM; PROP SHAFT 1-37300-102-0 AR 1 0211-0512 ● ● ● ●
9 JOURNAL ASM; PROP SHAFT 1-37300-129-0 AR 1 0601-1111 ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
1ST 		1-37300-102-1 AR 1 1112- ● ●
9 JOURNAL ASM; PROP SHAFT
6HK1 TCC ENG(81L),6HK1 TCN ENG(82L) MLD6Q M/T(X5J) 1ST 		1-37300-102-1 AR 1 1112- ●
9 JOURNAL ASM; PROP SHAFT
6HK1 TCC ENG(81L) 1ST 		1-37300-102-1 AR 1 1112- ●
9 JOURNAL ASM; PROP SHAFT
2ND,END 		1-37300-102-1 AR 1 1112- ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
2ND,END 		1-37300-102-1 AR 1 1112- ● ●
14 COVER; DUST,SPIDER
6HK1 TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V) 1ST 		8-98020-800-0 AR 1 1112- ● ●
14 COVER; DUST,SPIDER
P30 PROP SHAFT(B2F) 		1-37319-011-0 AR 1 0005-0210 ● ● ●
14 COVER; DUST,SPIDER
EXC. P30 PROP SHAFT(B2F) 		1-37319-012-0 AR 1 0005-0210 ●
14 COVER; DUST,SPIDER 1-37319-012-0 AR 1 0005-0210 ●
14 COVER; DUST,SPIDER 1-37319-012-0 AR 1 0211-1111 ● ● ● ●
14 COVER; DUST,SPIDER
1ST 		1-37319-012-0 AR 1 1112- ● ●
14 COVER; DUST,SPIDER
6HK1 TCC ENG(81L),6HK1 TCN ENG(82L) MLD6Q M/T(X5J) 1ST 		1-37319-012-0 AR 1 1112- ●
14 COVER; DUST,SPIDER
6HK1 TCC ENG(81L) 1ST 		1-37319-012-0 AR 1 1112- ●
14 COVER; DUST,SPIDER
2ND,END 		1-37319-012-0 AR 1 1112- ● ● ● ●
14 COVER; DUST,SPIDER
2ND,END 		1-37319-012-0 AR 1 1112- ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		9-09031-210-0 AR 1 0005-0210 ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		9-09031-210-0 AR 1 0211-0512 ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 AR 1 0601- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P30 PROP SHAFT(B2F) T=1.95 		1-09587-014-0 AR 1 0005-0210 ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P30 PROP SHAFT(B2F) T=2.00 		1-09587-015-2 AR 1 0005-0210 ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P30 PROP SHAFT(B2F) T=2.05 		1-09587-016-1 AR 1 0005-0210 ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 AR 1 0211- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 AR 1 0211- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 AR 1 0211- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
EXC. P30 PROP SHAFT(B2F) OD=45.5 T=1.95 BLUE 		1-09587-086-0 AR 1 0005-0210 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 AR 1 0005-0210 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
EXC. P30 PROP SHAFT(B2F) OD=45.5 T=2.00 WHITE 		1-09587-087-2 AR 1 0005-0210 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 AR 1 0005-0210 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
EXC. P30 PROP SHAFT(B2F) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 AR 1 0005-0210 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 AR 1 0005-0210 ●
20 BEARING ASM; CTR,PROP SHAFT
6HK1 TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V) 1ST 		8-98020-881-0 01 1 1112- ● ●
20 BEARING ASM; CTR,PROP SHAFT 1-37510-105-0 01 1 0005-0210 ● ● ● ●
20 BEARING ASM; CTR,PROP SHAFT 1-37510-105-0 01 1 0005-0210 ●
20 BEARING ASM; CTR,PROP SHAFT 1-37510-105-0 01 1 0211-1111 ● ● ● ●
20 BEARING ASM; CTR,PROP SHAFT 1-37510-105-0 01 1 0211-1111 ● ●
20 BEARING ASM; CTR,PROP SHAFT
1ST 		1-37510-105-0 01 1 1112- ● ●
20 BEARING ASM; CTR,PROP SHAFT
6HK1 TCC ENG(81L),6HK1 TCN ENG(82L) MLD6Q M/T(X5J) 1ST 		1-37510-105-0 01 1 1112- ●
20 BEARING ASM; CTR,PROP SHAFT
6HK1 TCC ENG(81L) 1ST 		1-37510-105-0 01 1 1112- ●
20 BEARING ASM; CTR,PROP SHAFT
2ND 		1-37510-105-0 01 1 1112- ● ●
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 02 1 0005-0210 ● ● ● ●
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 02 1 0005-0210 ●
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 02 1 0211- ● ● ● ●
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 02 1 0211- ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 01 1 0005-0210 ● ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 01 1 0005-0210 ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 01 1 0211- ● ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 01 1 0211- ● ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 0005-0210 ● ● ● ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 0005-0210 ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 0211- ● ● ● ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 0211- ● ●
24 RETAINER; CENTER BRG,1ST
6HK1 TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V) 1ST 		8-98020-882-0 01 1 1112- ● ●
24 RETAINER; CENTER BRG,1ST 1-37529-068-0 01 1 0005-0210 ● ● ● ●
24 RETAINER; CENTER BRG,1ST 1-37529-068-0 01 1 0005-0210 ●
24 RETAINER; CENTER BRG,1ST 1-37529-068-0 01 1 0211-1111 ● ● ● ●
24 RETAINER; CENTER BRG,1ST 1-37529-068-0 01 1 0211-1111 ● ●
24 RETAINER; CENTER BRG,1ST
1ST 		1-37529-068-0 01 1 1112- ● ●
24 RETAINER; CENTER BRG,1ST
6HK1 TCC ENG(81L),6HK1 TCN ENG(82L) MLD6Q M/T(X5J) 1ST 		1-37529-068-0 01 1 1112- ●
24 RETAINER; CENTER BRG,1ST
6HK1 TCC ENG(81L) 1ST 		1-37529-068-0 01 1 1112- ●
24 RETAINER; CENTER BRG,1ST
2ND 		1-37529-068-0 01 1 1112- ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 0005-0210 ● ● ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 0005-0210 ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 0211- ● ● ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 0211- ● ●
45 WASHER; PL,RET TO BRKT
ID=10.5 OD=22 		9-09164-610-0 04 1 0005-0210 ● ● ● ●
45 WASHER; PL,RET TO BRKT
ID=10.5 OD=22 		9-09164-610-0 04 1 0211-0605 ● ● ● ●
45 WASHER; PL,RET TO BRKT
ID=10.5 OD=22 		0-91614-610-0 04 1 0606- ● ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
6HK1 TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V) 1ST 		8-98020-815-0 01 1 1112- ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P30 PROP SHAFT(B2F) 		1-37245-115-0 01 1 0005-0210 ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
EXC. P30 PROP SHAFT(B2F) 		1-37245-071-0 01 1 0005-0210 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-071-0 01 1 0005-0210 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-071-0 01 1 0005-0210 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-071-0 01 1 0211-1111 ● ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-071-0 01 1 0211-1111 ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
1ST 		1-37245-071-0 01 1 1112- ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
6HK1 TCC ENG(81L),6HK1 TCN ENG(82L) MLD6Q M/T(X5J) 1ST 		1-37245-071-0 01 1 1112- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
6HK1 TCC ENG(81L) 1ST 		1-37245-071-0 01 1 1112- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
2ND 		1-37245-071-0 01 1 1112- ● ●
51 NUT; FLANGE,SPLINED
M30 		8-97160-857-0 01 1 0005-0210 ● ● ● ●
51 NUT; FLANGE,SPLINED
M30 		8-97160-857-0 01 1 0005-0210 ●
51 NUT; FLANGE,SPLINED
M30 		8-97160-857-0 01 1 0211- ● ● ● ●
51 NUT; FLANGE,SPLINED
M30 		8-97160-857-0 01 1 0211- ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE 		0-28681-035-0 04 1 0005-0210 ● ● ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE 		0-28681-035-0 04 1 0005-0210 ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE 		0-28681-035-0 04 1 0211-0512 ● ● ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE 		0-28681-035-0 04 1 0211-0512 ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE 		0-28651-035-0 04 1 0601- ● ● ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE 		0-28651-035-0 04 1 0601- ● ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91150-210-0 04 1 0005-0210 ● ● ● ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91150-210-0 04 1 0005-0210 ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91150-210-0 04 1 0211-0602 ● ● ● ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91150-210-0 04 1 0211-0602 ● ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91180-210-0 04 1 0603- ● ● ● ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91180-210-0 04 1 0603- ● ●
71 NUT; YOKE
FRR STD CAB(FR**M*) FSR(FS****) FULLER M/T<X9B> M16 FLANGE 		1-09449-065-0 04 1 0307- ● ● ● ●
71 NUT; YOKE
P30 PROP SHAFT(B2F) M12 		9-99110-512-0 04 1 0005-0210 ● ● ●
71 NUT; YOKE
MLD6 M/T<X9Y> M16 FLANGE 		1-09449-065-0 04 1 0005-0210 ● ● ● ●
71 NUT; YOKE
EXC. MLD6 M/T<X9Y> M14 		9-99110-514-0 04 1 0005-0210 ●
71 NUT; YOKE
M14 		9-99110-514-0 04 1 0211-0306 ● ● ● ●
71 NUT; YOKE
FRR STD CAB(FR**M*) FSR(FS****) EXC. FULLER M/T<X9B> M14 		9-99110-514-0 04 1 0307-0411 ● ● ● ●
71 NUT; YOKE
FRR DOUBLE CAB(FR**W*) M14 		9-99110-514-0 04 1 0307-0411 ● ● ● ●
71 NUT; YOKE
FRD STD CAB(FRD5MF) FRR DOUBLE CAB(FRR5WF) M14 		9-99110-514-0 04 1 0412-0512 ● ● ● ●
71 NUT; YOKE
FRR STD CAB(FRR*M*) FSR(FS****) EXC. FULLER M/T<X9B> M14 		9-99110-514-0 04 1 0412-0512 ● ● ● ●
71 NUT; YOKE
FRD STD CAB(FRD5MF) FRR DOUBLE CAB(FRR5WF) M14 		0-91110-514-0 04 1 0601- ● ● ● ●
71 NUT; YOKE
FRR STD CAB(FRR*M*) FSR(FS****) EXC. FULLER M/T<X9B> M14 		0-91110-514-0 04 1 0601- ● ● ● ●
72 WASHER; LK,YOKE
P30 PROP SHAFT(B2F) ID=12.2 		9-09150-612-0 04 1 0005-0210 ● ● ●
72 WASHER; LK,YOKE
EXC. MLD6 M/T<X9Y> ID=14.2 		9-09150-614-0 04 1 0005-0210 ●
72 WASHER; LK,YOKE
ID=14.2 		9-09150-614-0 04 1 0211-0306 ● ● ● ●
72 WASHER; LK,YOKE
FRR STD CAB(FR**M*) FSR(FS****) EXC. FULLER M/T<X9B> ID=14.2 		9-09150-614-0 04 1 0307-0411 ● ● ● ●
72 WASHER; LK,YOKE
FRR DOUBLE CAB(FR**W*) ID=14.2 		9-09150-614-0 04 1 0307-0411 ● ● ● ●
72 WASHER; LK,YOKE
FRD STD CAB(FRD5MF) FRR DOUBLE CAB(FRR5WF) ID=14.2 		9-09150-614-0 04 1 0412-0603 ● ● ● ●
72 WASHER; LK,YOKE
FRR STD CAB(FRR*M*) FSR(FS****) EXC. FULLER M/T<X9B> ID=14.2 		9-09150-614-0 04 1 0412-0603 ● ● ● ●
72 WASHER; LK,YOKE
FRD STD CAB(FRD5MF) FRR DOUBLE CAB(FRR5WF) ID=14.2 		0-91510-614-0 04 1 0604- ● ● ● ●
72 WASHER; LK,YOKE
FRR STD CAB(FRR*M*) FSR(FS****) EXC. FULLER M/T<X9B> ID=14.2 		0-91510-614-0 04 1 0604- ● ● ● ●
74 BOLT; YOKE,TRANS
FRR STD CAB(FR**M*) FSR(FS****) FULLER M/T<X9B> M16X48 		1-09000-383-0 04 1 0307- ● ● ● ●
74 BOLT; YOKE,TRANS
P30 PROP SHAFT(B2F) M12X32 		1-09000-076-1 04 1 0005-0210 ● ● ●
74 BOLT; YOKE,TRANS
EXC. P30 PROP SHAFT(B2F) M14X37 		1-09000-121-0 04 1 0005-0210 ● ● ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 0005-0210 ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 0005-0210 ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 0211- ● ● ● ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 0211- ● ●
172 BRACKET; CENTER BRG
1ST 		1-37515-118-0 01 1 0005-0210 ●
172 BRACKET; CENTER BRG
1ST 		1-37515-122-0 01 1 0211- ● ●
172 BRACKET; CENTER BRG
1ST 		1-37515-122-0 01 1 0005-0210 ● ●
172 BRACKET; CENTER BRG
1ST 		1-37515-118-0 01 1 0211- ●
172 BRACKET; CENTER BRG
2ND 		1-37515-119-0 01 1 0005-0210 ●
172 BRACKET; CENTER BRG
2ND 		1-37515-121-0 01 1 0211- ●
172 BRACKET; CENTER BRG
2ND 		1-37515-119-0 01 1 0211- ●
173 BOLT; BRKT
M10X25 FLANGE 		0-28681-025-0 04 1 0005-0210 ● ● ●
173 BOLT; BRKT
M10X25 FLANGE 		0-28681-025-0 04 1 0005-0210 ●
173 BOLT; BRKT
M10X25 FLANGE 		0-28681-025-0 04 1 0211-0512 ● ● ●
173 BOLT; BRKT
M10X25 FLANGE 		0-28681-025-0 04 1 0211-0512 ● ●
173 BOLT; BRKT
M10X25 FLANGE 		0-28651-025-0 04 1 0601- ● ● ●
173 BOLT; BRKT
M10X25 FLANGE 		0-28651-025-0 04 1 0601- ● ●
174 NUT; BRKT
M10 FLANGE 		0-91150-210-0 04 1 0005-0210 ● ● ●
174 NUT; BRKT
M10 FLANGE 		0-91150-210-0 04 1 0211-0602 ● ● ●
174 NUT; BRKT
M10 FLANGE 		0-91180-210-0 04 1 0603- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
