Sayfa 3-78 - Isuzu EPC

3-78 — FIXING PARTS; AIR PIPING (#9394) — 396 parça

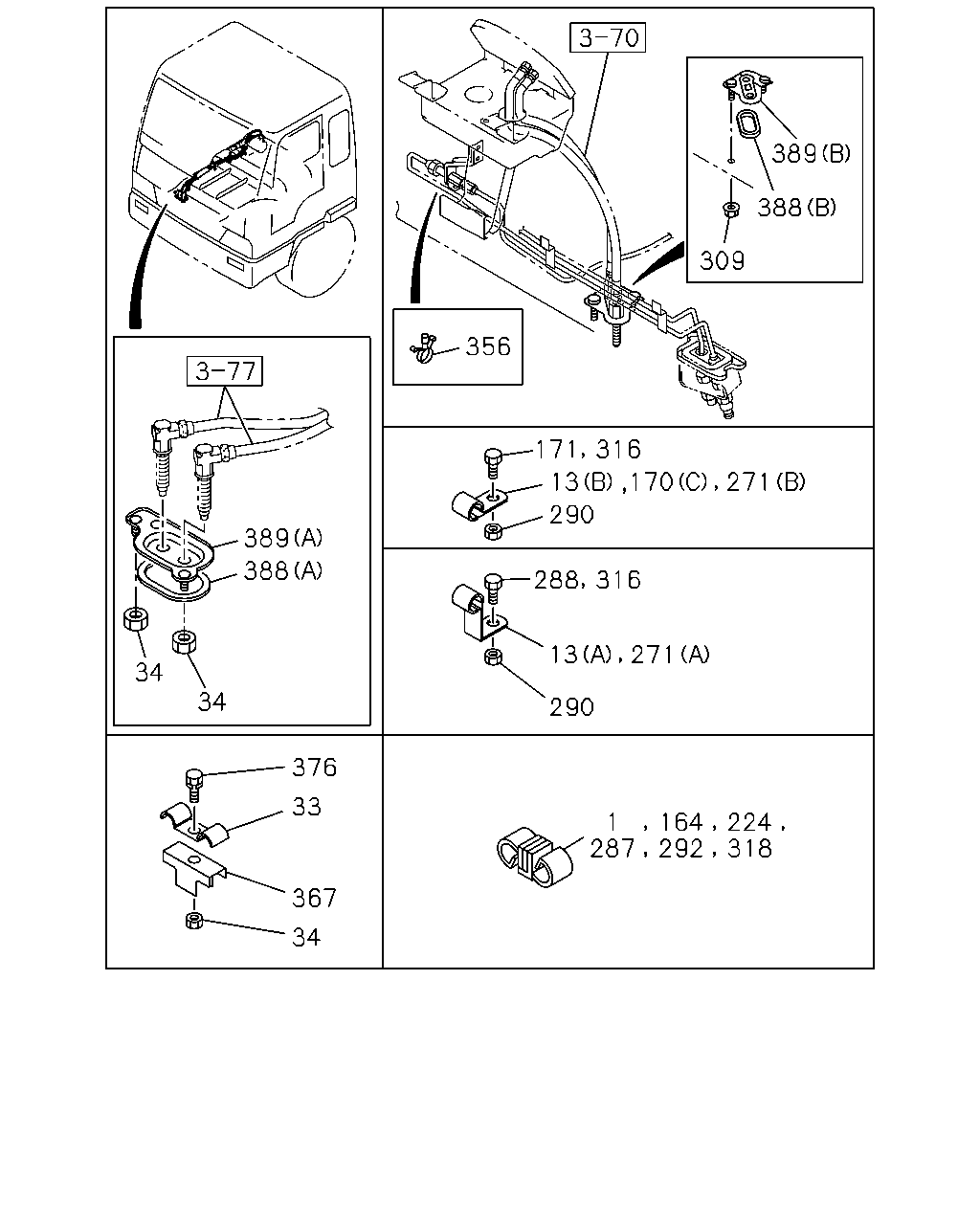

389 388 309 356 13 290 389 388 13 271 34 34 290 376 33 1 367 34 171 316 170 271 288 316 164 224 287 292 318

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	CLIP; AIR PIPE EXHAUST BRAKE<NF8> ID=6.35 & 6.35	1-09709-273-1	01	1	0211-0411	●
1	CLIP; AIR PIPE ID=6.35 & 6.35	1-09709-273-1	01	1	0211-0411		●
1	CLIP; AIR PIPE EXHAUST BRAKE<NF8> ID=6.35 & 6.35	1-09709-273-1	01	1	0412-	●
1	CLIP; AIR PIPE ID=6.35 & 6.35	1-09709-273-1	01	1	0412-		●	●
13	CLIP; AIR PIPE 6HK1 TCS ENG(80L) EXHAUST BRAKE<NF8> (A) ID=7 L=38 H=21	1-09700-916-0	01	1	0307-	●
13	CLIP; AIR PIPE 6HK1 TCS ENG(80L) (A) ID=7 L=38 H=21	1-09700-916-0	01	1	0307-		●
13	CLIP; AIR PIPE 6HK1 TCS ENG(80L) EXHAUST BRAKE<NF8> (B) ID=7 L=40	9-09524-675-0	01	1	0307-0606	●
13	CLIP; AIR PIPE 6HK1 TCS ENG(80L) (B) ID=7 L=40	9-09524-675-0	01	1	0307-0606		●
13	CLIP; AIR PIPE 6HK1 TCS ENG(80L) EXHAUST BRAKE<NF8> (B) ID=7 L=40	0-95234-675-0	01	1	0607-	●
13	CLIP; AIR PIPE 6HK1 TCS ENG(80L) (B) ID=7 L=40	0-95234-675-0	01	1	0607-		●
13	CLIP; AIR PIPE EXHAUST BRAKE<NF8> (A) ID=7 L=38 H=21	1-09700-916-0	01	1	0005-0210	●
13	CLIP; AIR PIPE (A) ID=7 L=38 H=21	1-09700-916-0	01	1	0005-0210		●		●
13	CLIP; AIR PIPE EXHAUST BRAKE<NF8> (A) ID=7 L=38 H=21	1-09700-916-0	02	1	0211-0305	●
13	CLIP; AIR PIPE (A) ID=7 L=38 H=21	1-09700-916-0	02	1	0211-0305		●
13	CLIP; AIR PIPE 6HK1 TCC ENG(81L),6HK1 TCN ENG(82L) EXHAUST BRAKE<NF8> (A) ID=7 L=38 H=21	1-09700-916-0	02	1	0306-0411	●
13	CLIP; AIR PIPE 6HK1 TCC ENG(81L) (A) ID=7 L=38 H=21	1-09700-916-0	02	1	0306-0411		●
13	CLIP; AIR PIPE 6HK1 TCC ENG(81L),6HK1 TCN ENG(82L) EXHAUST BRAKE<NF8> (A) ID=7 L=38 H=21	1-09700-916-0	02	1	0412-	●
13	CLIP; AIR PIPE 6HK1 TCC ENG(81L) (A) ID=7 L=38 H=21	1-09700-916-0	02	1	0412-		●
13	CLIP; AIR PIPE 6HK1 TCN ENG(82L) (A) ID=7 L=38 H=21	1-09700-916-0	02	1	0412-			●
13	CLIP; AIR PIPE EXHAUST BRAKE<NF8> (B) ID=7 L=40	9-09524-675-0	01	1	0005-0210	●
13	CLIP; AIR PIPE (B) ID=7 L=40	9-09524-675-0	01	1	0005-0210		●		●
13	CLIP; AIR PIPE (A) ID=6 H=20 L=20	1-09700-603-0	02	1	0211-				●
13	CLIP; AIR PIPE (C)	8-94435-553-0	03	1	0005-0411	●	●		●
13	CLIP; AIR PIPE (C)	8-94435-553-0	03	1	0412-	●	●	●	●
13	CLIP; AIR PIPE 6HE1 TC ENG(57L) EXHAUST BRAKE<NF8> (B) ID=7 L=20	9-09524-635-0	01	1	0005-0210	●	●
13	CLIP; AIR PIPE EXHAUST BRAKE<NF8> (B) ID=7 L=20	9-09524-635-0	01	1	0211-0411	●
13	CLIP; AIR PIPE (B) ID=7 L=20	9-09524-635-0	01	1	0211-0411		●
13	CLIP; AIR PIPE EXHAUST BRAKE<NF8> (B) ID=7 L=20	9-09524-635-0	01	1	0412-0606	●
13	CLIP; AIR PIPE (B) ID=7 L=20	9-09524-635-0	01	1	0412-0606		●	●
13	CLIP; AIR PIPE EXHAUST BRAKE<NF8> (B) ID=7 L=20	0-95234-635-0	01	1	0607-	●
13	CLIP; AIR PIPE (B) ID=7 L=20	0-95234-635-0	01	1	0607-		●	●
33	CLIP; BOLT 6HE1 TC ENG(57L) ID=16 & 7 L=21 & 17	1-09700-675-0	01	1	0005-0210		●
33	CLIP; BOLT ID=16 & 7 L=21 & 17	1-09700-675-0	01	1	0211-		●
34	NUT; BRKT M8 CUTTING NUT W/FLANGE	1-09985-340-0	03	1	0005-0411	●	●		●
34	NUT; BRKT M8 CUTTING NUT W/FLANGE	1-09985-340-0	03	1	0412-	●	●	●	●
164	CLIP; AIR PIPE ID=10 & 12	1-09709-278-1	01	1	0005-0411	●			●
164	CLIP; AIR PIPE ID=10 & 12	1-09709-278-1	01	1	0412-	●		●	●
170	CLIP; NYLON TUBE DRIVER ISRINGHAUSEN SEAT<SJA> (C) ID=11 L=50	9-09525-085-0	01	1	0005-0405	●
170	CLIP; NYLON TUBE (C) ID=11 L=50	9-09525-085-0	01	1	0005-0405		●		●
170	CLIP; NYLON TUBE DRIVER ISRINGHAUSEN SEAT<SJA> (C) ID=11 L=50	9-09525-085-0	01	1	0406-0606	●
170	CLIP; NYLON TUBE AIR HORN<WB8> SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (C) ID=11 L=50	9-09525-085-0	01	1	0406-0606	●
170	CLIP; NYLON TUBE (C) ID=11 L=50	9-09525-085-0	01	1	0406-0606		●		●
170	CLIP; NYLON TUBE DRIVER ISRINGHAUSEN SEAT<SJA> (C) ID=11 L=50	0-95235-085-0	01	1	0607-	●
170	CLIP; NYLON TUBE AIR HORN<WB8> SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (C) ID=11 L=50	0-95235-085-0	01	1	0607-	●
170	CLIP; NYLON TUBE (C) ID=11 L=50	0-95235-085-0	01	1	0607-		●		●
170	CLIP; NYLON TUBE (A) ID=27.5 H=23 L=24	1-09700-863-0	01	1	0005-0411	●	●		●
170	CLIP; NYLON TUBE (A) ID=27.5 H=23 L=24	1-09700-863-0	01	1	0412-	●	●	●	●
170	CLIP; NYLON TUBE (B) L=250	1-09707-126-0	01	1	0005-0210	●	●		●
170	CLIP; NYLON TUBE DRIVER ISRINGHAUSEN SEAT<SJA> (B) L=250	1-09707-126-0	01	1	0005-0210	●
170	CLIP; NYLON TUBE (B) L=250	1-09707-126-0	01	1	0005-0210		●		●
170	CLIP; NYLON TUBE (B) L=250	1-09707-126-0	01	1	0005-0210		●
170	CLIP; NYLON TUBE DRIVER ISRINGHAUSEN SEAT<SJA> (B) L=250	1-09707-126-0	17	1	0211-0405	●
170	CLIP; NYLON TUBE (B) L=250	1-09707-126-0	17	1	0211-0405				●
170	CLIP; NYLON TUBE DRIVER ISRINGHAUSEN SEAT<SJA> (B) L=250	1-09707-126-0	17	1	0406-	●
170	CLIP; NYLON TUBE AIR HORN<WB8> SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (B) L=250	1-09707-126-0	17	1	0406-	●
170	CLIP; NYLON TUBE (B) L=250	1-09707-126-0	17	1	0406-				●
170	CLIP; NYLON TUBE (B) L=250	1-09707-126-0	14	1	0005-0210	●	●		●
170	CLIP; NYLON TUBE SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (B) L=250	1-09707-126-0	16	1	0211-0405	●
170	CLIP; NYLON TUBE SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> EXC. AIR HORN<WB8> (B) L=250	1-09707-126-0	16	1	0406-0411	●
170	CLIP; NYLON TUBE SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> EXC. AIR HORN<WB8> (B) L=250	1-09707-126-0	16	1	0412-	●
170	CLIP; NYLON TUBE (B) L=250	1-09707-126-0	16	1	0412-			●
170	CLIP; NYLON TUBE (B) L=250	1-09707-126-0	21	1	0211-		●
171	BOLT; TUBE CLIP DRIVER ISRINGHAUSEN SEAT<SJA> M8X20 FLANGE	0-28680-820-0	01	1	0005-0405	●
171	BOLT; TUBE CLIP M8X20 FLANGE	0-28680-820-0	01	1	0005-0405		●		●
171	BOLT; TUBE CLIP DRIVER ISRINGHAUSEN SEAT<SJA> M8X20 FLANGE	0-28680-820-0	01	1	0406-0512	●
171	BOLT; TUBE CLIP AIR HORN<WB8> SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> M8X20 FLANGE	0-28680-820-0	01	1	0406-0512	●
171	BOLT; TUBE CLIP M8X20 FLANGE	0-28680-820-0	01	1	0406-0512		●		●
171	BOLT; TUBE CLIP DRIVER ISRINGHAUSEN SEAT<SJA> M8X20 FLANGE	0-28650-820-0	01	1	0601-	●
171	BOLT; TUBE CLIP AIR HORN<WB8> SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> M8X20 FLANGE	0-28650-820-0	01	1	0601-	●
171	BOLT; TUBE CLIP M8X20 FLANGE	0-28650-820-0	01	1	0601-		●		●
171	BOLT; TUBE CLIP M8X25 FLANGE	0-28680-825-0	01	1	0005-0411	●	●		●
171	BOLT; TUBE CLIP M8X25 FLANGE	0-28680-825-0	01	1	0412-0512	●	●	●	●
171	BOLT; TUBE CLIP M8X25 FLANGE	0-28650-825-0	01	1	0601-	●	●	●	●
224	CLIP; AIR PIPE ID=10 & 12	1-09709-278-1	01	1	0005-0411	●			●
224	CLIP; AIR PIPE ID=10 & 12	1-09709-278-1	01	1	0412-	●		●	●
271	CLIP; AIR PIPE FIX FINAL GEAR 39/9 14.5" HYPOID(W4X) (A) ID=8 H=20 L=20	1-09700-604-0	01	1	0005-0210	●
271	CLIP; AIR PIPE FIX FINAL GEAR 38/8 13.5" HYPOID(W1A),FINAL GEAR 39/9 13.5" HYPOID(W1N),FINAL GEAR 41/8 13.5" HYPOID(W4E) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) ID=8 H=20 L=20	1-09700-604-0	01	1	0005-0210	●
271	CLIP; AIR PIPE FIX (A) ID=8 H=20 L=20	1-09700-604-0	01	1	0005-0210		●		●
271	CLIP; AIR PIPE FIX REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) ID=8 H=20 L=20	1-09700-604-0	01	1	0211-	●
271	CLIP; AIR PIPE FIX (A) ID=8 H=20 L=20	1-09700-604-0	01	1	0211-		●		●
271	CLIP; AIR PIPE FIX (B) ID=9 L=40	9-09524-875-0	01	1	0005-0606		●
271	CLIP; AIR PIPE FIX (B) ID=9 L=40	0-95234-875-0	01	1	0607-		●
287	CLIP; AIR PIPE 6HE1 TC ENG(57L) ID=6.35 & 6.35	1-09709-273-1	01	1	0005-0210		●
287	CLIP; AIR PIPE ID=6.35 & 6.35	1-09709-273-1	01	1	0211-		●
287	CLIP; AIR PIPE 6HE1 TC ENG(57L) ID=6.35 & 15	1-09709-276-1	02	1	0005-0210		●
287	CLIP; AIR PIPE ID=6.35 & 15	1-09709-276-1	01	1	0211-		●
288	BOLT; CLIP,AIR PIPE 6HH1 STD ENG(65L),6HH1 N ENG(66L) EXHAUST BRAKE<NF8> M8X20 FLANGE	0-28680-820-0	02	1	0005-0210	●	●		●
288	BOLT; CLIP,AIR PIPE M8X20 FLANGE	0-28680-820-0	02	1	0211-0512				●
288	BOLT; CLIP,AIR PIPE M8X20 FLANGE	0-28650-820-0	02	1	0601-				●
288	BOLT; CLIP,AIR PIPE 6HE1 TC ENG(57L) EXHAUST BRAKE<NF8> M8X20 FLANGE	0-28680-820-0	03	1	0005-0210	●	●
288	BOLT; CLIP,AIR PIPE EXHAUST BRAKE<NF8> M8X20 FLANGE	0-28680-820-0	03	1	0211-0411	●
288	BOLT; CLIP,AIR PIPE M8X20 FLANGE	0-28680-820-0	03	1	0211-0411		●
288	BOLT; CLIP,AIR PIPE EXHAUST BRAKE<NF8> M8X20 FLANGE	0-28680-820-0	03	1	0412-0512	●
288	BOLT; CLIP,AIR PIPE M8X20 FLANGE	0-28680-820-0	03	1	0412-0512		●	●
288	BOLT; CLIP,AIR PIPE EXHAUST BRAKE<NF8> M8X20 FLANGE	0-28650-820-0	03	1	0601-	●
288	BOLT; CLIP,AIR PIPE M8X20 FLANGE	0-28650-820-0	03	1	0601-		●	●
290	NUT; CLIP,AIR PIPE 6HH1 STD ENG(65L),6HH1 N ENG(66L) EXHAUST BRAKE<NF8> M8 FLANGE	0-91150-108-0	02	1	0005-0210	●	●		●
290	NUT; CLIP,AIR PIPE M8 FLANGE	0-91150-108-0	02	1	0211-0602				●
290	NUT; CLIP,AIR PIPE M8 FLANGE	0-91180-108-0	02	1	0603-				●
290	NUT; CLIP,AIR PIPE 6HE1 TC ENG(57L) EXHAUST BRAKE<NF8> M8 FLANGE	0-91150-108-0	03	1	0005-0210	●	●
290	NUT; CLIP,AIR PIPE EXHAUST BRAKE<NF8> M8 FLANGE	0-91150-108-0	03	1	0211-0411	●
290	NUT; CLIP,AIR PIPE M8 FLANGE	0-91150-108-0	03	1	0211-0411		●
290	NUT; CLIP,AIR PIPE EXHAUST BRAKE<NF8> M8 FLANGE	0-91150-108-0	03	1	0412-0602	●
290	NUT; CLIP,AIR PIPE M8 FLANGE	0-91150-108-0	03	1	0412-0602		●	●
290	NUT; CLIP,AIR PIPE EXHAUST BRAKE<NF8> M8 FLANGE	0-91180-108-0	03	1	0603-	●
290	NUT; CLIP,AIR PIPE M8 FLANGE	0-91180-108-0	03	1	0603-		●	●
292	CLIP; AIR PIPE ID=6.35 & 15	1-09709-276-1	01	1	0005-0210	●			●
292	CLIP; AIR PIPE 6HH1 STD ENG(65L) ID=6.35 & 15	1-09709-276-1	01	1	0005-0210		●
292	CLIP; AIR PIPE ID=6.35 & 15	1-09709-276-1	01	1	0211-0411	●			●
292	CLIP; AIR PIPE ID=6.35 & 15	1-09709-276-1	01	1	0412-	●		●	●
292	CLIP; AIR PIPE 6HE1 TC ENG(57L) ID=6.35 & 15	1-09709-276-1	02	1	0005-0210		●
292	CLIP; AIR PIPE ID=6.35 & 15	1-09709-276-1	02	1	0211-		●
309	NUT; BRKT FIX M8 CUTTING NUT W/FLANGE	1-09985-340-0	02	1	0005-0411	●	●		●
309	NUT; BRKT FIX M8 CUTTING NUT W/FLANGE	1-09985-340-0	02	1	0412-	●	●	●	●
316	BOLT; CLIP FINAL GEAR 39/9 14.5" HYPOID(W4X) M8X10 FLANGE	0-28080-810-0	01	1	0005-0210	●
316	BOLT; CLIP FINAL GEAR 38/8 13.5" HYPOID(W1A),FINAL GEAR 39/9 13.5" HYPOID(W1N),FINAL GEAR 41/8 13.5" HYPOID(W4E) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X10 FLANGE	0-28080-810-0	01	1	0005-0210	●
316	BOLT; CLIP M8X10 FLANGE	0-28080-810-0	01	1	0005-0210				●
316	BOLT; CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X10 FLANGE	0-28080-810-0	01	1	0211-0512	●
316	BOLT; CLIP M8X10 FLANGE	0-28080-810-0	01	1	0211-0512				●
316	BOLT; CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X10 FLANGE	0-28050-810-0	01	1	0601-	●
316	BOLT; CLIP M8X10 FLANGE	0-28050-810-0	01	1	0601-				●
316	BOLT; CLIP M8X10 FLANGE	0-28080-810-0	02	1	0005-0512		●
316	BOLT; CLIP M8X10 FLANGE	0-28050-810-0	02	1	0601-		●
318	CLIP; AIR PIPE ID=6.35 & 12.2	1-09709-275-1	01	1	0005-0411	●			●
318	CLIP; AIR PIPE ID=6.35 & 12.2	1-09709-275-1	01	1	0412-	●		●	●
318	CLIP; AIR PIPE 6HE1 TC ENG(57L) ID=6.35 & 15	1-09709-276-1	01	1	0005-0210		●
318	CLIP; AIR PIPE ID=6.35 & 15	1-09709-276-1	02	1	0211-		●
318	CLIP; AIR PIPE 6HH1 STD ENG(65L) ID=6.35 & 10.0	1-09709-274-1	01	1	0005-0210		●
318	CLIP; AIR PIPE 6HH1 STD ENG(65L) ID=6.35 & 12.2	1-09709-275-1	02	1	0005-0210		●
356	CLIP; AIR PIPE DRIVER ISRINGHAUSEN SEAT<SJA> ID=4.8	8-94128-483-0	01	1	0005-	●
356	CLIP; AIR PIPE ID=4.8	8-94128-483-0	01	1	0005-		●		●
367	BRACKET ASM 6HE1 TC ENG(57L)	1-47475-427-1	01	1	0005-0210		●
367	BRACKET ASM	1-47475-427-1	01	1	0211-		●
376	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	01	1	0005-0210	●	●		●
376	BOLT; BRKT M8X30 FLANGE	0-28680-830-0	01	1	0211-0211				●
376	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	01	1	0212-0512				●
376	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	01	1	0601-				●
376	BOLT; BRKT 6HE1 TC ENG(57L) M8X45 FLANGE	0-28080-845-0	01	1	0005-0210		●
376	BOLT; BRKT M8X45 FLANGE	0-28080-845-0	01	1	0211-0512		●
376	BOLT; BRKT M8X45 FLANGE	0-28050-845-0	01	1	0601-		●
388	SEAL (A) L=280	1-79738-793-1	01	1	0005-0411	●	●		●
388	SEAL (A) L=280	1-79738-793-1	01	1	0412-	●	●	●	●
388	SEAL (B)	1-79738-826-0	01	1	0005-0411	●	●		●
388	SEAL (B)	1-79738-826-0	01	1	0412-	●	●	●	●
389	BRACKET; UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-79738-814-2	01	1	0005-	●
389	BRACKET; UNION (A)	1-79738-814-2	01	1	0005-		●		●
389	BRACKET; UNION EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-79738-796-2	01	1	0005-0411	●
389	BRACKET; UNION EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-79738-796-2	01	1	0412-	●
389	BRACKET; UNION (A)	1-79738-796-2	01	1	0412-			●
389	BRACKET; UNION (B)	1-79738-827-1	01	1	0005-0411	●	●		●
389	BRACKET; UNION (B)	1-79738-827-1	01	1	0412-	●	●	●	●

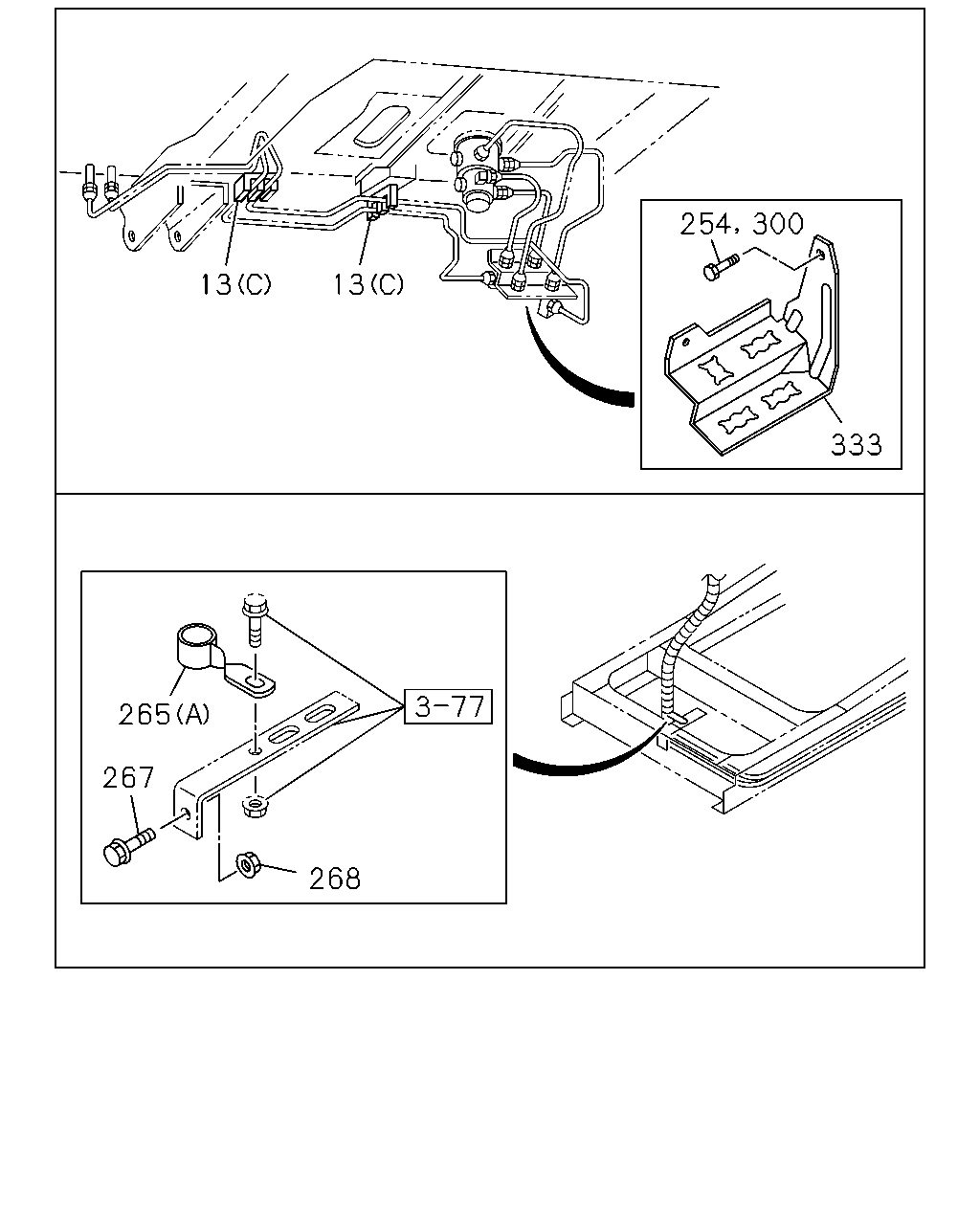

13 13 333 265 267 268 254 300

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
13	CLIP; AIR PIPE 6HK1 TCS ENG(80L) EXHAUST BRAKE<NF8> (A) ID=7 L=38 H=21	1-09700-916-0	01	1	0307-	●
13	CLIP; AIR PIPE 6HK1 TCS ENG(80L) (A) ID=7 L=38 H=21	1-09700-916-0	01	1	0307-		●
13	CLIP; AIR PIPE 6HK1 TCS ENG(80L) EXHAUST BRAKE<NF8> (B) ID=7 L=40	9-09524-675-0	01	1	0307-0606	●
13	CLIP; AIR PIPE 6HK1 TCS ENG(80L) (B) ID=7 L=40	9-09524-675-0	01	1	0307-0606		●
13	CLIP; AIR PIPE 6HK1 TCS ENG(80L) EXHAUST BRAKE<NF8> (B) ID=7 L=40	0-95234-675-0	01	1	0607-	●
13	CLIP; AIR PIPE 6HK1 TCS ENG(80L) (B) ID=7 L=40	0-95234-675-0	01	1	0607-		●
13	CLIP; AIR PIPE EXHAUST BRAKE<NF8> (A) ID=7 L=38 H=21	1-09700-916-0	01	1	0005-0210	●
13	CLIP; AIR PIPE (A) ID=7 L=38 H=21	1-09700-916-0	01	1	0005-0210		●		●
13	CLIP; AIR PIPE EXHAUST BRAKE<NF8> (A) ID=7 L=38 H=21	1-09700-916-0	02	1	0211-0305	●
13	CLIP; AIR PIPE (A) ID=7 L=38 H=21	1-09700-916-0	02	1	0211-0305		●
13	CLIP; AIR PIPE 6HK1 TCC ENG(81L),6HK1 TCN ENG(82L) EXHAUST BRAKE<NF8> (A) ID=7 L=38 H=21	1-09700-916-0	02	1	0306-0411	●
13	CLIP; AIR PIPE 6HK1 TCC ENG(81L) (A) ID=7 L=38 H=21	1-09700-916-0	02	1	0306-0411		●
13	CLIP; AIR PIPE 6HK1 TCC ENG(81L),6HK1 TCN ENG(82L) EXHAUST BRAKE<NF8> (A) ID=7 L=38 H=21	1-09700-916-0	02	1	0412-	●
13	CLIP; AIR PIPE 6HK1 TCC ENG(81L) (A) ID=7 L=38 H=21	1-09700-916-0	02	1	0412-		●
13	CLIP; AIR PIPE 6HK1 TCN ENG(82L) (A) ID=7 L=38 H=21	1-09700-916-0	02	1	0412-			●
13	CLIP; AIR PIPE EXHAUST BRAKE<NF8> (B) ID=7 L=40	9-09524-675-0	01	1	0005-0210	●
13	CLIP; AIR PIPE (B) ID=7 L=40	9-09524-675-0	01	1	0005-0210		●		●
13	CLIP; AIR PIPE (A) ID=6 H=20 L=20	1-09700-603-0	02	1	0211-				●
13	CLIP; AIR PIPE (C)	8-94435-553-0	03	1	0005-0411	●	●		●
13	CLIP; AIR PIPE (C)	8-94435-553-0	03	1	0412-	●	●	●	●
13	CLIP; AIR PIPE 6HE1 TC ENG(57L) EXHAUST BRAKE<NF8> (B) ID=7 L=20	9-09524-635-0	01	1	0005-0210	●	●
13	CLIP; AIR PIPE EXHAUST BRAKE<NF8> (B) ID=7 L=20	9-09524-635-0	01	1	0211-0411	●
13	CLIP; AIR PIPE (B) ID=7 L=20	9-09524-635-0	01	1	0211-0411		●
13	CLIP; AIR PIPE EXHAUST BRAKE<NF8> (B) ID=7 L=20	9-09524-635-0	01	1	0412-0606	●
13	CLIP; AIR PIPE (B) ID=7 L=20	9-09524-635-0	01	1	0412-0606		●	●
13	CLIP; AIR PIPE EXHAUST BRAKE<NF8> (B) ID=7 L=20	0-95234-635-0	01	1	0607-	●
13	CLIP; AIR PIPE (B) ID=7 L=20	0-95234-635-0	01	1	0607-		●	●
254	BOLT; PIPE CLIP M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	0005-0204	●	●		●
254	BOLT; PIPE CLIP M8X20.5 W/LK&PL WASHER	8-94279-207-0	02	1	0205-0205	●	●		●
265	CLIP; NYLON TUBE WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=250	1-09707-126-0	11	1	0612-	●
265	CLIP; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) ID=25 L=54	1-09700-392-0	01	1	0005-0005	●
265	CLIP; NYLON TUBE (A) ID=25 L=54	1-09700-392-0	01	1	0005-0005		●		●
265	CLIP; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) ID=31 H=30 L=35	1-09700-994-0	01	1	0006-	●
265	CLIP; NYLON TUBE (A) ID=31 H=30 L=35	1-09700-994-0	01	1	0006-		●		●
265	CLIP; NYLON TUBE WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=250	1-09707-126-0	11	1	0005-0210	●
265	CLIP; NYLON TUBE (B) L=250	1-09707-126-0	11	1	0005-0210		●		●
265	CLIP; NYLON TUBE WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=250	1-09707-126-0	13	1	0211-	●
265	CLIP; NYLON TUBE WHEEL BASE 4200MM(42W) (B) L=250	1-09707-126-0	13	1	0211-				●
265	CLIP; NYLON TUBE WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=250	1-09707-126-0	12	1	0005-0210	●			●
265	CLIP; NYLON TUBE (B) L=250	1-09707-126-0	12	1	0005-0210		●
265	CLIP; NYLON TUBE WHEEL BASE 5100MM(51W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=250	1-09707-126-0	16	1	0211-	●
265	CLIP; NYLON TUBE WHEEL BASE 5100MM(51W) (B) L=250	1-09707-126-0	16	1	0211-				●
265	CLIP; NYLON TUBE (B) L=250	1-09707-126-0	15	1	0211-0306		●
265	CLIP; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=250	1-09707-126-0	15	1	0307-		●
267	BOLT; CLIP BRKT WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28650-825-0	03	1	0612-	●
267	BOLT; CLIP BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20 FLANGE	0-28680-820-0	01	1	0005-0210	●
267	BOLT; CLIP BRKT M8X20 FLANGE	0-28680-820-0	01	1	0005-0210		●		●
267	BOLT; CLIP BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20 FLANGE	0-28680-820-0	02	1	0211-0512	●
267	BOLT; CLIP BRKT M8X20 FLANGE	0-28680-820-0	02	1	0211-0512		●		●
267	BOLT; CLIP BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20 FLANGE	0-28650-820-0	02	1	0601-	●
267	BOLT; CLIP BRKT M8X20 FLANGE	0-28650-820-0	02	1	0601-		●		●
268	NUT; CLIP BRKT WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91180-108-0	03	1	0612-	●
268	NUT; CLIP BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91150-108-0	01	1	0005-0210	●
268	NUT; CLIP BRKT M8 FLANGE	0-91150-108-0	01	1	0005-0210		●		●
268	NUT; CLIP BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91150-108-0	02	1	0211-0602	●
268	NUT; CLIP BRKT M8 FLANGE	0-91150-108-0	02	1	0211-0602		●		●
268	NUT; CLIP BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91180-108-0	02	1	0603-	●
268	NUT; CLIP BRKT M8 FLANGE	0-91180-108-0	02	1	0603-		●		●
300	BOLT; TUBE CLIP M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	0206-0411	●	●		●
300	BOLT; TUBE CLIP M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	0412-0904	●	●	●	●
300	BOLT; TUBE CLIP M8X24.5 W/LK&PL WASHER	8-98059-720-0	02	1	0905-	●	●	●	●
333	BRACKET; BRK AIR PIPE	1-79738-815-2	01	1	0005-0411	●	●		●
333	BRACKET; BRK AIR PIPE	1-79738-815-2	01	1	0412-	●	●	●	●

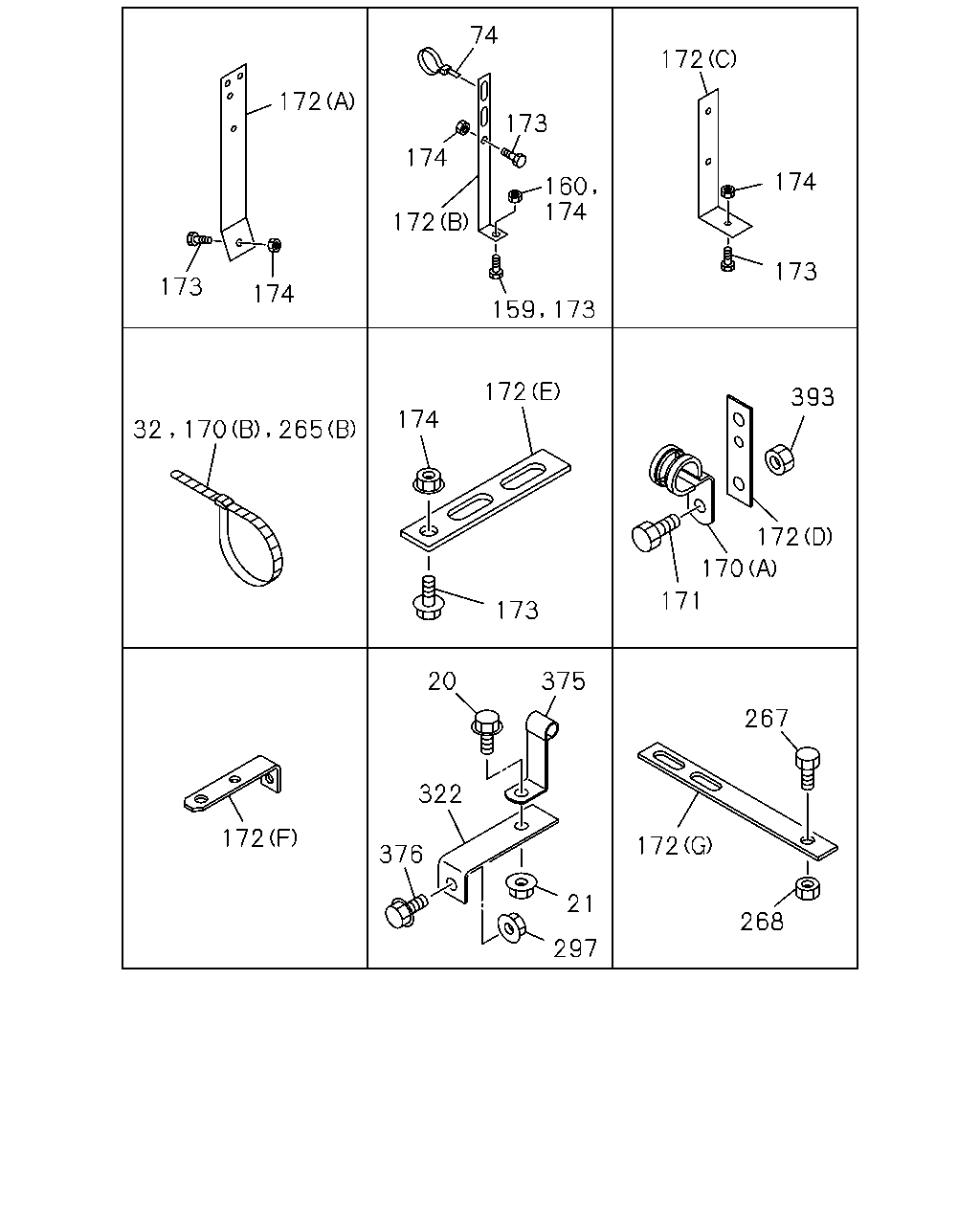

74 172 172 173 174 174 160 174 172 173 173 174 172 393 174 32 172 170 171 173 20 375 267 322 172 172 376 21 268 297 170 265 159 173

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
20	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	01	1	0005-0210	●	●		●
20	BOLT; CLIP M8X25 FLANGE	0-28680-825-0	01	1	0211-0512				●
20	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	01	1	0601-				●
21	NUT; CLIP M8 FLANGE	0-91150-108-0	01	1	0005-0210	●	●		●
21	NUT; CLIP M8 FLANGE	0-91150-108-0	01	1	0211-0602				●
21	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	0603-				●
32	CLIP; BAND,RUBBER SLEEVE L=250	5-09707-030-1	01	1	0005-0210				●
74	CLIP; NYLON TUBE WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=250	1-09707-126-0	02	1	0612-	●
159	BOLT; CLIP BRKT WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28650-825-0	01	1	0612-	●
160	NUT; CLIP BRKT WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91180-108-0	01	1	0612-	●
170	CLIP; NYLON TUBE DRIVER ISRINGHAUSEN SEAT<SJA> (C) ID=11 L=50	9-09525-085-0	01	1	0005-0405	●
170	CLIP; NYLON TUBE (C) ID=11 L=50	9-09525-085-0	01	1	0005-0405		●		●
170	CLIP; NYLON TUBE DRIVER ISRINGHAUSEN SEAT<SJA> (C) ID=11 L=50	9-09525-085-0	01	1	0406-0606	●
170	CLIP; NYLON TUBE AIR HORN<WB8> SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (C) ID=11 L=50	9-09525-085-0	01	1	0406-0606	●
170	CLIP; NYLON TUBE (C) ID=11 L=50	9-09525-085-0	01	1	0406-0606		●		●
170	CLIP; NYLON TUBE DRIVER ISRINGHAUSEN SEAT<SJA> (C) ID=11 L=50	0-95235-085-0	01	1	0607-	●
170	CLIP; NYLON TUBE AIR HORN<WB8> SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (C) ID=11 L=50	0-95235-085-0	01	1	0607-	●
170	CLIP; NYLON TUBE (C) ID=11 L=50	0-95235-085-0	01	1	0607-		●		●
170	CLIP; NYLON TUBE (A) ID=27.5 H=23 L=24	1-09700-863-0	01	1	0005-0411	●	●		●
170	CLIP; NYLON TUBE (A) ID=27.5 H=23 L=24	1-09700-863-0	01	1	0412-	●	●	●	●
170	CLIP; NYLON TUBE (B) L=250	1-09707-126-0	01	1	0005-0210	●	●		●
170	CLIP; NYLON TUBE DRIVER ISRINGHAUSEN SEAT<SJA> (B) L=250	1-09707-126-0	01	1	0005-0210	●
170	CLIP; NYLON TUBE (B) L=250	1-09707-126-0	01	1	0005-0210		●		●
170	CLIP; NYLON TUBE (B) L=250	1-09707-126-0	01	1	0005-0210		●
170	CLIP; NYLON TUBE DRIVER ISRINGHAUSEN SEAT<SJA> (B) L=250	1-09707-126-0	17	1	0211-0405	●
170	CLIP; NYLON TUBE (B) L=250	1-09707-126-0	17	1	0211-0405				●
170	CLIP; NYLON TUBE DRIVER ISRINGHAUSEN SEAT<SJA> (B) L=250	1-09707-126-0	17	1	0406-	●
170	CLIP; NYLON TUBE AIR HORN<WB8> SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (B) L=250	1-09707-126-0	17	1	0406-	●
170	CLIP; NYLON TUBE (B) L=250	1-09707-126-0	17	1	0406-				●
170	CLIP; NYLON TUBE (B) L=250	1-09707-126-0	14	1	0005-0210	●	●		●
170	CLIP; NYLON TUBE SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (B) L=250	1-09707-126-0	16	1	0211-0405	●
170	CLIP; NYLON TUBE SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> EXC. AIR HORN<WB8> (B) L=250	1-09707-126-0	16	1	0406-0411	●
170	CLIP; NYLON TUBE SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> EXC. AIR HORN<WB8> (B) L=250	1-09707-126-0	16	1	0412-	●
170	CLIP; NYLON TUBE (B) L=250	1-09707-126-0	16	1	0412-			●
170	CLIP; NYLON TUBE (B) L=250	1-09707-126-0	21	1	0211-		●
171	BOLT; TUBE CLIP DRIVER ISRINGHAUSEN SEAT<SJA> M8X20 FLANGE	0-28680-820-0	01	1	0005-0405	●
171	BOLT; TUBE CLIP M8X20 FLANGE	0-28680-820-0	01	1	0005-0405		●		●
171	BOLT; TUBE CLIP DRIVER ISRINGHAUSEN SEAT<SJA> M8X20 FLANGE	0-28680-820-0	01	1	0406-0512	●
171	BOLT; TUBE CLIP AIR HORN<WB8> SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> M8X20 FLANGE	0-28680-820-0	01	1	0406-0512	●
171	BOLT; TUBE CLIP M8X20 FLANGE	0-28680-820-0	01	1	0406-0512		●		●
171	BOLT; TUBE CLIP DRIVER ISRINGHAUSEN SEAT<SJA> M8X20 FLANGE	0-28650-820-0	01	1	0601-	●
171	BOLT; TUBE CLIP AIR HORN<WB8> SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> M8X20 FLANGE	0-28650-820-0	01	1	0601-	●
171	BOLT; TUBE CLIP M8X20 FLANGE	0-28650-820-0	01	1	0601-		●		●
171	BOLT; TUBE CLIP M8X25 FLANGE	0-28680-825-0	01	1	0005-0411	●	●		●
171	BOLT; TUBE CLIP M8X25 FLANGE	0-28680-825-0	01	1	0412-0512	●	●	●	●
171	BOLT; TUBE CLIP M8X25 FLANGE	0-28650-825-0	01	1	0601-	●	●	●	●
172	BRACKET; TUBE CLIP WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=100 H=30	1-47477-645-2	01	1	0612-	●
172	BRACKET; TUBE CLIP DRIVER ISRINGHAUSEN SEAT<SJA> (D) L=117	1-47478-116-0	01	1	0005-0405	●
172	BRACKET; TUBE CLIP (D) L=117	1-47478-116-0	01	1	0005-0405		●		●
172	BRACKET; TUBE CLIP DRIVER ISRINGHAUSEN SEAT<SJA> (D) L=117	1-47478-116-0	01	1	0406-	●
172	BRACKET; TUBE CLIP AIR HORN<WB8> SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (D) L=117	1-47478-116-0	01	1	0406-	●
172	BRACKET; TUBE CLIP (D) L=117	1-47478-116-0	01	1	0406-		●		●
172	BRACKET; TUBE CLIP (B) L=100 H=30	1-47477-645-2	01	1	0005-0005	●			●
172	BRACKET; TUBE CLIP (C) L=60 H=30	1-47477-716-1	01	1	0005-0411	●			●
172	BRACKET; TUBE CLIP (C) L=60 H=30	1-47477-716-1	01	1	0412-	●		●	●
172	BRACKET; TUBE CLIP (A)	1-47477-256-1	01	1	0005-0411	●	●		●
172	BRACKET; TUBE CLIP (A)	1-47477-256-1	01	1	0412-	●	●	●	●
172	BRACKET; TUBE CLIP (E) L=102	1-47477-514-3	01	1	0005-0411	●	●		●
172	BRACKET; TUBE CLIP (E) L=102	1-47477-514-3	01	1	0412-	●	●	●	●
172	BRACKET; TUBE CLIP (B) L=100 H=30	1-47477-645-2	03	1	0005-0005	●	●		●
172	BRACKET; TUBE CLIP (B) L=100 H=30	1-47477-645-2	04	1	0006-0006	●	●		●
172	BRACKET; TUBE CLIP (B) L=100 H=30	1-47477-645-2	03	1	0007-0411	●	●		●
172	BRACKET; TUBE CLIP (B) L=100 H=30	1-47477-645-2	03	1	0412-	●	●	●	●
172	BRACKET; TUBE CLIP (B) L=225	1-47477-646-3	01	1	0005-0210	●	●		●
172	BRACKET; TUBE CLIP (G) L=215	1-47479-288-0	01	1	0211-0411	●	●		●
172	BRACKET; TUBE CLIP (G) L=215	1-47479-288-0	01	1	0412-	●	●	●	●
172	BRACKET; TUBE CLIP (D) L=125	1-47477-975-1	02	1	0005-0411	●	●		●
172	BRACKET; TUBE CLIP (D) L=125	1-47477-975-1	02	1	0412-	●	●	●	●
172	BRACKET; TUBE CLIP (F) L=59 B=20	1-47479-048-0	01	1	0007-0411	●	●		●
172	BRACKET; TUBE CLIP (F) L=59 B=20	1-47479-048-0	01	1	0412-	●	●	●	●
172	BRACKET; TUBE CLIP (C) L=60 H=30	1-47477-716-1	02	1	0005-		●
172	BRACKET; TUBE CLIP (C) L=90	1-47477-755-1	01	1	0005-		●
173	BOLT; CLIP BRKT M8X25 FLANGE	0-28680-825-0	01	1	0005-0210	●	●		●
173	BOLT; CLIP BRKT DRIVER ISRINGHAUSEN SEAT<SJA> M8X25 FLANGE	0-28680-825-0	01	1	0005-0210	●
173	BOLT; CLIP BRKT M8X25 FLANGE	0-28680-825-0	01	1	0005-0210				●
173	BOLT; CLIP BRKT DRIVER ISRINGHAUSEN SEAT<SJA> M8X25 FLANGE	0-28680-825-0	12	1	0211-0405	●
173	BOLT; CLIP BRKT M8X25 FLANGE	0-28680-825-0	12	1	0211-0405				●
173	BOLT; CLIP BRKT DRIVER ISRINGHAUSEN SEAT<SJA> M8X25 FLANGE	0-28680-825-0	12	1	0406-0512	●
173	BOLT; CLIP BRKT AIR HORN<WB8> SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> M8X25 FLANGE	0-28680-825-0	12	1	0406-0512	●
173	BOLT; CLIP BRKT M8X25 FLANGE	0-28680-825-0	12	1	0406-0512				●
173	BOLT; CLIP BRKT DRIVER ISRINGHAUSEN SEAT<SJA> M8X25 FLANGE	0-28650-825-0	12	1	0601-	●
173	BOLT; CLIP BRKT AIR HORN<WB8> SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> M8X25 FLANGE	0-28650-825-0	12	1	0601-	●
173	BOLT; CLIP BRKT M8X25 FLANGE	0-28650-825-0	12	1	0601-				●
173	BOLT; CLIP BRKT M8X25 FLANGE	0-28680-825-0	10	1	0005-0210	●	●		●
173	BOLT; CLIP BRKT SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> M8X25 FLANGE	0-28680-825-0	11	1	0211-0405	●
173	BOLT; CLIP BRKT SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> EXC. AIR HORN<WB8> M8X25 FLANGE	0-28680-825-0	11	1	0406-0411	●
173	BOLT; CLIP BRKT SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> EXC. AIR HORN<WB8> M8X25 FLANGE	0-28680-825-0	11	1	0412-0512	●
173	BOLT; CLIP BRKT M8X25 FLANGE	0-28680-825-0	11	1	0412-0512			●
173	BOLT; CLIP BRKT SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> EXC. AIR HORN<WB8> M8X25 FLANGE	0-28650-825-0	11	1	0601-	●
173	BOLT; CLIP BRKT M8X25 FLANGE	0-28650-825-0	11	1	0601-			●
173	BOLT; CLIP BRKT M8X25 FLANGE	0-28680-825-0	02	1	0005-0005		●
173	BOLT; CLIP BRKT M8X25 FLANGE	0-28680-825-0	03	1	0006-0210		●
173	BOLT; CLIP BRKT M8X25 FLANGE	0-28680-825-0	15	1	0211-0512		●
173	BOLT; CLIP BRKT M8X25 FLANGE	0-28650-825-0	15	1	0601-		●
174	NUT; CLIP BRKT M8 FLANGE	0-91150-108-0	01	1	0005-0005	●	●		●
174	NUT; CLIP BRKT DRIVER ISRINGHAUSEN SEAT<SJA> M8 FLANGE	0-91150-108-0	01	1	0005-0005	●
174	NUT; CLIP BRKT M8 FLANGE	0-91150-108-0	01	1	0005-0005		●		●
174	NUT; CLIP BRKT M8 FLANGE	0-91150-108-0	01	1	0006-0210	●	●		●
174	NUT; CLIP BRKT DRIVER ISRINGHAUSEN SEAT<SJA> M8 FLANGE	0-91150-108-0	01	1	0006-0210	●
174	NUT; CLIP BRKT M8 FLANGE	0-91150-108-0	01	1	0006-0210				●
174	NUT; CLIP BRKT DRIVER ISRINGHAUSEN SEAT<SJA> M8 FLANGE	0-91150-108-0	12	1	0211-0405	●
174	NUT; CLIP BRKT M8 FLANGE	0-91150-108-0	12	1	0211-0405				●
174	NUT; CLIP BRKT DRIVER ISRINGHAUSEN SEAT<SJA> M8 FLANGE	0-91150-108-0	12	1	0406-0410	●
174	NUT; CLIP BRKT AIR HORN<WB8> SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> M8 FLANGE	0-91150-108-0	12	1	0406-0410	●
174	NUT; CLIP BRKT M8 FLANGE	0-91150-108-0	12	1	0406-0410				●
174	NUT; CLIP BRKT DRIVER ISRINGHAUSEN SEAT<SJA> M8 FLANGE	0-91150-108-0	10	1	0411-0602	●
174	NUT; CLIP BRKT AIR HORN<WB8> SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> M8 FLANGE	0-91150-108-0	10	1	0411-0602	●
174	NUT; CLIP BRKT M8 FLANGE	0-91150-108-0	10	1	0411-0602				●
174	NUT; CLIP BRKT DRIVER ISRINGHAUSEN SEAT<SJA> M8 FLANGE	0-91180-108-0	10	1	0603-	●
174	NUT; CLIP BRKT AIR HORN<WB8> SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> M8 FLANGE	0-91180-108-0	10	1	0603-	●
174	NUT; CLIP BRKT M8 FLANGE	0-91180-108-0	10	1	0603-				●
174	NUT; CLIP BRKT M8 FLANGE	0-91150-108-0	10	1	0005-0210	●	●		●
174	NUT; CLIP BRKT SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> M8 FLANGE	0-91150-108-0	11	1	0211-0405	●
174	NUT; CLIP BRKT SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> EXC. AIR HORN<WB8> M8 FLANGE	0-91150-108-0	11	1	0406-0410	●
174	NUT; CLIP BRKT SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> EXC. AIR HORN<WB8> M8 FLANGE	0-91150-108-0	09	1	0411-0411	●
174	NUT; CLIP BRKT SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> EXC. AIR HORN<WB8> M8 FLANGE	0-91150-108-0	09	1	0412-0602	●
174	NUT; CLIP BRKT M8 FLANGE	0-91150-108-0	09	1	0412-0602			●
174	NUT; CLIP BRKT SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> EXC. AIR HORN<WB8> M8 FLANGE	0-91180-108-0	09	1	0603-	●
174	NUT; CLIP BRKT M8 FLANGE	0-91180-108-0	09	1	0603-			●
174	NUT; CLIP BRKT M8 FLANGE	0-91150-108-0	02	1	0006-0210		●
174	NUT; CLIP BRKT M8 FLANGE	0-91150-108-0	14	1	0211-0602		●
174	NUT; CLIP BRKT M8 FLANGE	0-91180-108-0	14	1	0603-		●
265	CLIP; NYLON TUBE WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=250	1-09707-126-0	11	1	0612-	●
265	CLIP; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) ID=25 L=54	1-09700-392-0	01	1	0005-0005	●
265	CLIP; NYLON TUBE (A) ID=25 L=54	1-09700-392-0	01	1	0005-0005		●		●
265	CLIP; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) ID=31 H=30 L=35	1-09700-994-0	01	1	0006-	●
265	CLIP; NYLON TUBE (A) ID=31 H=30 L=35	1-09700-994-0	01	1	0006-		●		●
265	CLIP; NYLON TUBE WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=250	1-09707-126-0	11	1	0005-0210	●
265	CLIP; NYLON TUBE (B) L=250	1-09707-126-0	11	1	0005-0210		●		●
265	CLIP; NYLON TUBE WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=250	1-09707-126-0	13	1	0211-	●
265	CLIP; NYLON TUBE WHEEL BASE 4200MM(42W) (B) L=250	1-09707-126-0	13	1	0211-				●
265	CLIP; NYLON TUBE WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=250	1-09707-126-0	12	1	0005-0210	●			●
265	CLIP; NYLON TUBE (B) L=250	1-09707-126-0	12	1	0005-0210		●
265	CLIP; NYLON TUBE WHEEL BASE 5100MM(51W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=250	1-09707-126-0	16	1	0211-	●
265	CLIP; NYLON TUBE WHEEL BASE 5100MM(51W) (B) L=250	1-09707-126-0	16	1	0211-				●
265	CLIP; NYLON TUBE (B) L=250	1-09707-126-0	15	1	0211-0306		●
265	CLIP; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=250	1-09707-126-0	15	1	0307-		●
267	BOLT; CLIP BRKT WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28650-825-0	03	1	0612-	●
267	BOLT; CLIP BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20 FLANGE	0-28680-820-0	01	1	0005-0210	●
267	BOLT; CLIP BRKT M8X20 FLANGE	0-28680-820-0	01	1	0005-0210		●		●
267	BOLT; CLIP BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20 FLANGE	0-28680-820-0	02	1	0211-0512	●
267	BOLT; CLIP BRKT M8X20 FLANGE	0-28680-820-0	02	1	0211-0512		●		●
267	BOLT; CLIP BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20 FLANGE	0-28650-820-0	02	1	0601-	●
267	BOLT; CLIP BRKT M8X20 FLANGE	0-28650-820-0	02	1	0601-		●		●
268	NUT; CLIP BRKT WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91180-108-0	03	1	0612-	●
268	NUT; CLIP BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91150-108-0	01	1	0005-0210	●
268	NUT; CLIP BRKT M8 FLANGE	0-91150-108-0	01	1	0005-0210		●		●
268	NUT; CLIP BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91150-108-0	02	1	0211-0602	●
268	NUT; CLIP BRKT M8 FLANGE	0-91150-108-0	02	1	0211-0602		●		●
268	NUT; CLIP BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91180-108-0	02	1	0603-	●
268	NUT; CLIP BRKT M8 FLANGE	0-91180-108-0	02	1	0603-		●		●
297	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	0005-0210	●	●		●
297	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	0211-0602				●
297	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0603-				●
322	BRACKET; CLIP L=90 B=25	1-47475-530-0	01	1	0005-0210	●	●		●
322	BRACKET; CLIP L=90 B=25	1-47475-530-0	01	1	0211-				●
375	CLIP; AIR PIPE EXHAUST BRAKE<NF8> ID=16 H=45 L=20	1-09701-161-0	01	1	0005-0210	●
375	CLIP; AIR PIPE ID=16 H=45 L=20	1-09701-161-0	01	1	0005-0210		●		●
375	CLIP; AIR PIPE EXC. EXHAUST BRAKE<NF8> D=9 T=45	5-09700-021-0	01	1	0005-0210	●
375	CLIP; AIR PIPE D=9 T=45	5-09700-021-0	01	1	0211-				●
376	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	01	1	0005-0210	●	●		●
376	BOLT; BRKT M8X30 FLANGE	0-28680-830-0	01	1	0211-0211				●
376	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	01	1	0212-0512				●
376	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	01	1	0601-				●
376	BOLT; BRKT 6HE1 TC ENG(57L) M8X45 FLANGE	0-28080-845-0	01	1	0005-0210		●
376	BOLT; BRKT M8X45 FLANGE	0-28080-845-0	01	1	0211-0512		●
376	BOLT; BRKT M8X45 FLANGE	0-28050-845-0	01	1	0601-		●
393	NUT; UNION M8 FLANGE	0-91150-108-0	01	1	0005-0405	●	●		●
393	NUT; UNION DRIVER ISRINGHAUSEN SEAT<SJA> M8 FLANGE	0-91150-108-0	01	1	0005-0405	●
393	NUT; UNION M8 FLANGE	0-91150-108-0	01	1	0005-0405		●		●
393	NUT; UNION M8 FLANGE	0-91150-108-0	01	1	0406-0411	●	●		●
393	NUT; UNION DRIVER ISRINGHAUSEN SEAT<SJA> M8 FLANGE	0-91150-108-0	01	1	0406-0411	●
393	NUT; UNION AIR HORN<WB8> SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> M8 FLANGE	0-91150-108-0	01	1	0406-0411	●
393	NUT; UNION M8 FLANGE	0-91150-108-0	01	1	0406-0411		●		●
393	NUT; UNION M8 FLANGE	0-91150-108-0	01	1	0412-0602	●	●	●	●
393	NUT; UNION DRIVER ISRINGHAUSEN SEAT<SJA> M8 FLANGE	0-91150-108-0	01	1	0412-0602	●
393	NUT; UNION AIR HORN<WB8> SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> M8 FLANGE	0-91150-108-0	01	1	0412-0602	●
393	NUT; UNION M8 FLANGE	0-91150-108-0	01	1	0412-0602		●		●
393	NUT; UNION M8 FLANGE	0-91180-108-0	01	1	0603-	●	●	●	●
393	NUT; UNION DRIVER ISRINGHAUSEN SEAT<SJA> M8 FLANGE	0-91180-108-0	01	1	0603-	●
393	NUT; UNION AIR HORN<WB8> SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> M8 FLANGE	0-91180-108-0	01	1	0603-	●
393	NUT; UNION M8 FLANGE	0-91180-108-0	01	1	0603-		●		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
