3-77 — BRAKE PIPING; AIR,REAR (#9393) — 397 parça

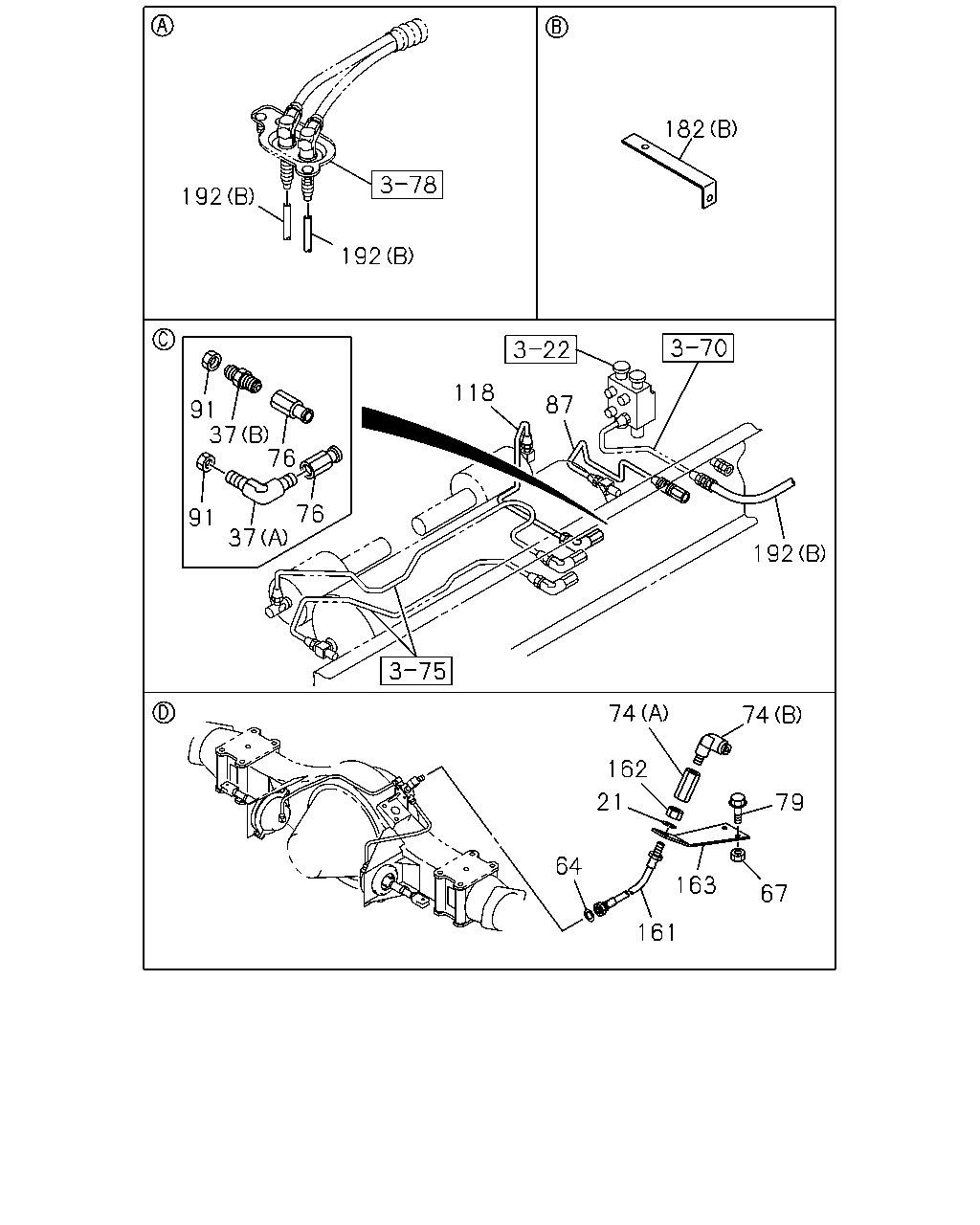

çizim 38524
182 192 192 118 87 91 37 76 76 91 37 192 74 74 162 21 79 64 163 67 161
BalonParca AdiParca NoAdetTipApplied Date A B C D
21 WASHER; LK,UNION
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=14.2 		9-09150-514-0 01 1 0005-0603 ●
21 WASHER; LK,UNION
ID=14.2 		9-09150-514-0 01 1 0005-0603 ● ●
21 WASHER; LK,UNION
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=14.2 		0-91510-514-0 01 1 0604- ●
21 WASHER; LK,UNION
ID=14.2 		0-91510-514-0 01 1 0604- ● ●
37 UNION; AIR PIPE
(B) M16 L=74 		9-09233-310-1 01 1 0005-0411 ● ●
37 UNION; AIR PIPE
(B) M16 L=74 		9-09233-310-1 01 1 0412-0607 ● ● ●
37 UNION; AIR PIPE
(B) M16 L=74 		0-92123-310-0 01 1 0608- ● ● ●
37 UNION; AIR PIPE
(A) M16 ELBOW 		9-09235-210-1 01 1 0005-0411 ● ●
37 UNION; AIR PIPE
(A) M16 ELBOW 		9-09235-210-1 01 1 0412-0607 ● ● ●
37 UNION; AIR PIPE
(A) M16 ELBOW 		0-92135-210-0 01 1 0608- ● ● ●
64 GASKET; FLEX HOSE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=11 OD=18 		9-09572-510-0 01 1 0005- ●
64 GASKET; FLEX HOSE
ID=11 OD=18 		9-09572-510-0 01 1 0005- ● ●
67 NUT; HOSE BRKT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE 		0-91150-108-0 02 1 0005-0602 ●
67 NUT; HOSE BRKT
M8 FLANGE 		0-91150-108-0 02 1 0005-0602 ● ●
67 NUT; HOSE BRKT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE 		0-91180-108-0 02 1 0603- ●
67 NUT; HOSE BRKT
M8 FLANGE 		0-91180-108-0 02 1 0603- ● ●
74 ADAPTER; UNION TO NYLON TUBE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		1-09660-881-0 01 1 0005- ●
74 ADAPTER; UNION TO NYLON TUBE
(A) 		1-09660-881-0 01 1 0005- ● ●
74 ADAPTER; UNION TO NYLON TUBE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0005- ●
74 ADAPTER; UNION TO NYLON TUBE
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0005- ● ●
76 ADAPTER; NYLON TUBE
DIN12 & M16 STRAIGHT 		1-09661-096-0 02 1 0005-0007 ● ●
76 ADAPTER; NYLON TUBE
DIN12 & M16 STRAIGHT 		1-09660-876-0 02 1 0008-0411 ● ●
76 ADAPTER; NYLON TUBE
DIN12 & M16 STRAIGHT 		1-09660-876-0 02 1 0412- ● ● ●
79 BOLT; HOSE BRKT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE 		0-28680-825-0 02 1 0005-0512 ●
79 BOLT; HOSE BRKT
M8X25 FLANGE 		0-28680-825-0 02 1 0005-0512 ● ●
79 BOLT; HOSE BRKT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE 		0-28650-825-0 02 1 0601- ●
79 BOLT; HOSE BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 0601- ● ●
87 PIPE; AIR,AIR TANK TO UNION 1-49119-151-1 01 1 0005-0411 ● ●
87 PIPE; AIR,AIR TANK TO UNION 1-49119-151-1 01 1 0412- ● ● ●
91 NUT; PIPE UNION
M16 		9-99111-416-0 02 1 0005-0411 ● ●
91 NUT; PIPE UNION
M16 		9-99111-416-0 02 1 0412-0512 ● ● ●
91 NUT; PIPE UNION
M16 		0-91111-516-0 02 1 0601- ● ● ●
118 PIPE; AIR,UNION TO AIR MASTER 1-49119-148-0 01 1 0005-0411 ● ●
118 PIPE; AIR,UNION TO AIR MASTER 1-49119-148-0 01 1 0412- ● ● ●
161 HOSE; FLEX,QUICK RELEASE VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=580 		0-07462-580-1 01 1 0005-0605 ●
161 HOSE; FLEX,QUICK RELEASE VLV
L=580 		0-07462-580-1 01 1 0005-0605 ● ●
161 HOSE; FLEX,QUICK RELEASE VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=580 		0-57462-580-1 01 1 0606- ●
161 HOSE; FLEX,QUICK RELEASE VLV
L=580 		0-57462-580-1 01 1 0606- ● ●
162 NUT; FLEX HOSE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14 		9-99111-414-0 01 1 0005-0512 ●
162 NUT; FLEX HOSE
M14 		9-99111-414-0 01 1 0005-0512 ● ●
162 NUT; FLEX HOSE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14 		0-91111-514-0 01 1 0601- ●
162 NUT; FLEX HOSE
M14 		0-91111-514-0 01 1 0601- ● ●
163 BRACKET; FLEX HOSE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-47475-464-0 01 1 0005- ●
163 BRACKET; FLEX HOSE 1-47475-464-0 01 1 0005- ● ●
182 BRACKET; TUBE CLIP
WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=150 H=30 		1-47477-629-2 02 1 0612- ●
182 BRACKET; TUBE CLIP
WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=100 H=30 		1-47477-645-2 01 1 0612- ●
182 BRACKET; TUBE CLIP
6HK1 TCS ENG(80L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) 		1-47479-801-0 01 1 0307-0310 ● ●
182 BRACKET; TUBE CLIP
6HK1 TCS ENG(80L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (E) 		1-47479-895-0 01 1 0311- ● ●
182 BRACKET; TUBE CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=100 H=30 		1-47477-645-2 01 1 0005-0210 ●
182 BRACKET; TUBE CLIP
(A) L=100 H=30 		1-47477-645-2 01 1 0005-0210 ● ●
182 BRACKET; TUBE CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) L=55 B=25 		1-47478-439-0 01 1 0211-0306 ●
182 BRACKET; TUBE CLIP
(C) L=55 B=25 		1-47478-439-0 01 1 0211-0306 ● ●
182 BRACKET; TUBE CLIP
6HK1 TCC ENG(81L),6HK1 TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) L=55 B=25 		1-47478-439-0 01 1 0307- ●
182 BRACKET; TUBE CLIP
6HK1 TCC ENG(81L),6HK1 TCN ENG(82L) (C) L=55 B=25 		1-47478-439-0 01 1 0307- ●
182 BRACKET; TUBE CLIP
6HK1 TCC ENG(81L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) L=55 B=25 		1-47478-439-0 01 1 0307- ●
182 BRACKET; TUBE CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) 		1-47479-287-0 01 1 0211- ●
182 BRACKET; TUBE CLIP
(B) 		1-47479-287-0 01 1 0211- ● ●
192 TUBE; NYLON
WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=6000 OD=12 		1-87411-013-0 02 1 0612- ●
192 TUBE; NYLON
(B) SERVICED BY L=6000 OD=12 		1-87411-013-0 01 1 0511- ●
192 TUBE; NYLON
(B) SERVICED BY L=8000 OD=12 		1-87411-014-0 01 1 0511- ●
192 TUBE; NYLON
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 02 1 0005- ●
192 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87410-073-0 02 1 0005- ● ●
192 TUBE; NYLON
WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=6000 OD=12 		1-87410-071-0 02 1 0005-0210 ●
192 TUBE; NYLON
WHEEL BASE 4200MM(42W) (B) SERVICED BY L=6000 OD=12 		1-87410-071-0 02 1 0005-0210 ●
192 TUBE; NYLON
WHEEL BASE 4200MM(42W),WHEEL BASE 5100MM(51W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=6000 OD=12 		1-87410-071-0 01 1 0211-0510 ●
192 TUBE; NYLON
WHEEL BASE 4200MM(42W),WHEEL BASE 5100MM(51W) (B) SERVICED BY L=6000 OD=12 		1-87410-071-0 01 1 0211-0510 ●
192 TUBE; NYLON
(B) SERVICED BY L=6000 OD=12 		1-87410-071-0 01 1 0211-0510 ●
192 TUBE; NYLON
WHEEL BASE 4200MM(42W),WHEEL BASE 5100MM(51W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=6000 OD=12 		1-87410-071-0 01 1 0511- ●
192 TUBE; NYLON
WHEEL BASE 4200MM(42W),WHEEL BASE 5100MM(51W) (B) SERVICED BY L=6000 OD=12 		1-87410-071-0 01 1 0511- ●
192 TUBE; NYLON
WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=4000 OD=12 		1-87410-070-0 01 1 0005-0005 ●
192 TUBE; NYLON
WHEEL BASE 4800MM(48W) (B) SERVICED BY L=4000 OD=12 		1-87410-070-0 01 1 0005-0005 ●
192 TUBE; NYLON
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=4000 OD=12 		1-87410-070-0 01 1 0006-0210 ● ●
192 TUBE; NYLON
WHEEL BASE 4200MM(42W),WHEEL BASE 5100MM(51W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=4000 OD=12 		1-87410-070-0 01 1 0211- ●
192 TUBE; NYLON
WHEEL BASE 4200MM(42W),WHEEL BASE 5100MM(51W) (B) SERVICED BY L=4000 OD=12 		1-87410-070-0 01 1 0211- ●
192 TUBE; NYLON
WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=2000 OD=12 		1-87410-069-0 01 1 0005-0005 ● ●
192 TUBE; NYLON
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=2000 OD=12 		1-87410-069-0 01 1 0005-0005 ●
192 TUBE; NYLON
(B) SERVICED BY L=2000 OD=12 		1-87410-069-0 01 1 0005-0005 ● ●
192 TUBE; NYLON
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=2000 OD=12 		1-87410-069-0 01 1 0006-0212 ●
192 TUBE; NYLON
(B) SERVICED BY L=2000 OD=12 		1-87410-069-0 01 1 0006-0212 ● ●
192 TUBE; NYLON
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=2000 OD=12 		1-87411-011-0 01 1 0301-0611 ●
192 TUBE; NYLON
(B) SERVICED BY L=2000 OD=12 		1-87411-011-0 01 1 0301-0611 ● ●
192 TUBE; NYLON
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=2000 OD=12 		1-87411-011-0 01 1 0612- ● ●
192 TUBE; NYLON
WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=2000 OD=12 		1-87411-011-0 01 1 0612- ●
192 TUBE; NYLON
(B) SERVICED BY L=2000 OD=12 		1-87411-011-0 01 1 0612- ●
192 TUBE; NYLON
WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=6000 OD=12 		1-87410-071-0 01 1 0005-0210 ● ●
192 TUBE; NYLON
(B) SERVICED BY L=6000 OD=12 		1-87410-071-0 01 1 0005-0210 ●
192 TUBE; NYLON
WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=8000 OD=12 		1-87410-072-0 01 1 0005-0210 ● ●
192 TUBE; NYLON
(B) SERVICED BY L=8000 OD=12 		1-87410-072-0 01 1 0005-0210 ●
192 TUBE; NYLON
WHEEL BASE 4200MM(42W),WHEEL BASE 5100MM(51W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=8000 OD=12 		1-87410-072-0 01 1 0211-0510 ●
192 TUBE; NYLON
WHEEL BASE 4200MM(42W),WHEEL BASE 5100MM(51W) (B) SERVICED BY L=8000 OD=12 		1-87410-072-0 01 1 0211-0510 ●
192 TUBE; NYLON
(B) SERVICED BY L=8000 OD=12 		1-87410-072-0 01 1 0211-0510 ●
192 TUBE; NYLON
WHEEL BASE 4200MM(42W),WHEEL BASE 5100MM(51W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=8000 OD=12 		1-87410-072-0 01 1 0511- ●
192 TUBE; NYLON
WHEEL BASE 4200MM(42W),WHEEL BASE 5100MM(51W) (B) SERVICED BY L=8000 OD=12 		1-87410-072-0 01 1 0511- ●

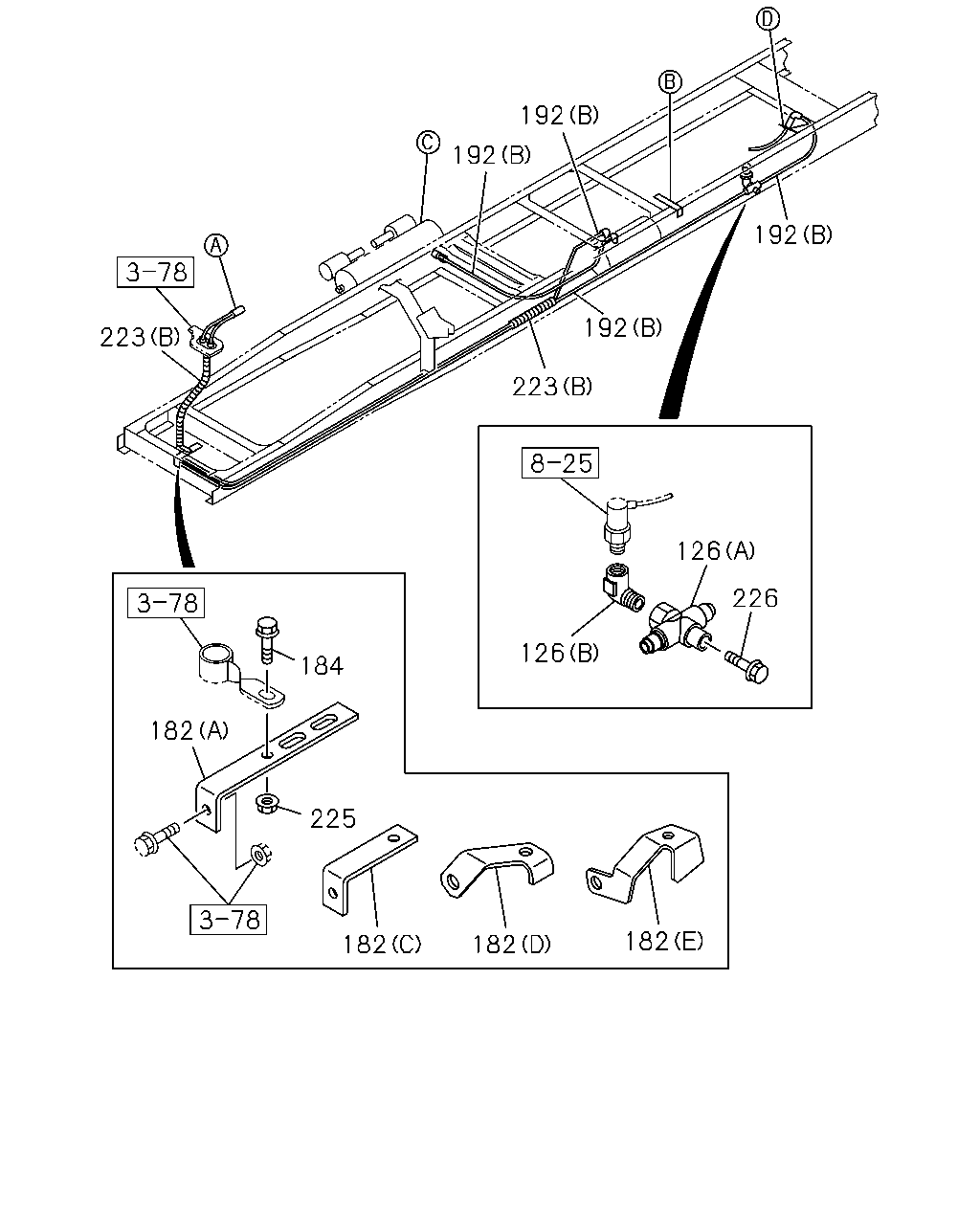

çizim 38526
192 192 192 192 223 223 126 226 126 184 182 225 182 182 182
BalonParca AdiParca NoAdetTipApplied Date A B C D
126 UNION; NYLON TUBE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 0005- ●
126 UNION; NYLON TUBE
(B) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 0005- ● ●
126 UNION; NYLON TUBE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) DIN8 & M20 ELBOW 		1-09661-015-0 02 1 0005- ●
126 UNION; NYLON TUBE
(C) DIN8 & M20 ELBOW 		1-09661-015-0 02 1 0005- ● ●
126 UNION; NYLON TUBE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) DIN12X2 & R3/8 3WAY 		1-09661-131-0 01 1 0005- ●
126 UNION; NYLON TUBE
(A) DIN12X2 & R3/8 3WAY 		1-09661-131-0 01 1 0005- ● ●
182 BRACKET; TUBE CLIP
WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=150 H=30 		1-47477-629-2 02 1 0612- ●
182 BRACKET; TUBE CLIP
WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=100 H=30 		1-47477-645-2 01 1 0612- ●
182 BRACKET; TUBE CLIP
6HK1 TCS ENG(80L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) 		1-47479-801-0 01 1 0307-0310 ● ●
182 BRACKET; TUBE CLIP
6HK1 TCS ENG(80L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (E) 		1-47479-895-0 01 1 0311- ● ●
182 BRACKET; TUBE CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=100 H=30 		1-47477-645-2 01 1 0005-0210 ●
182 BRACKET; TUBE CLIP
(A) L=100 H=30 		1-47477-645-2 01 1 0005-0210 ● ●
182 BRACKET; TUBE CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) L=55 B=25 		1-47478-439-0 01 1 0211-0306 ●
182 BRACKET; TUBE CLIP
(C) L=55 B=25 		1-47478-439-0 01 1 0211-0306 ● ●
182 BRACKET; TUBE CLIP
6HK1 TCC ENG(81L),6HK1 TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) L=55 B=25 		1-47478-439-0 01 1 0307- ●
182 BRACKET; TUBE CLIP
6HK1 TCC ENG(81L),6HK1 TCN ENG(82L) (C) L=55 B=25 		1-47478-439-0 01 1 0307- ●
182 BRACKET; TUBE CLIP
6HK1 TCC ENG(81L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) L=55 B=25 		1-47478-439-0 01 1 0307- ●
182 BRACKET; TUBE CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) 		1-47479-287-0 01 1 0211- ●
182 BRACKET; TUBE CLIP
(B) 		1-47479-287-0 01 1 0211- ● ●
184 BOLT; TUBE CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20 FLANGE 		0-28680-820-0 01 1 0005-0512 ●
184 BOLT; TUBE CLIP
M8X20 FLANGE 		0-28680-820-0 01 1 0005-0512 ● ●
184 BOLT; TUBE CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20 FLANGE 		0-28650-820-0 01 1 0601- ●
184 BOLT; TUBE CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 0601- ● ●
192 TUBE; NYLON
WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=6000 OD=12 		1-87411-013-0 02 1 0612- ●
192 TUBE; NYLON
(B) SERVICED BY L=6000 OD=12 		1-87411-013-0 01 1 0511- ●
192 TUBE; NYLON
(B) SERVICED BY L=8000 OD=12 		1-87411-014-0 01 1 0511- ●
192 TUBE; NYLON
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 02 1 0005- ●
192 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87410-073-0 02 1 0005- ● ●
192 TUBE; NYLON
WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=6000 OD=12 		1-87410-071-0 02 1 0005-0210 ●
192 TUBE; NYLON
WHEEL BASE 4200MM(42W) (B) SERVICED BY L=6000 OD=12 		1-87410-071-0 02 1 0005-0210 ●
192 TUBE; NYLON
WHEEL BASE 4200MM(42W),WHEEL BASE 5100MM(51W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=6000 OD=12 		1-87410-071-0 01 1 0211-0510 ●
192 TUBE; NYLON
WHEEL BASE 4200MM(42W),WHEEL BASE 5100MM(51W) (B) SERVICED BY L=6000 OD=12 		1-87410-071-0 01 1 0211-0510 ●
192 TUBE; NYLON
(B) SERVICED BY L=6000 OD=12 		1-87410-071-0 01 1 0211-0510 ●
192 TUBE; NYLON
WHEEL BASE 4200MM(42W),WHEEL BASE 5100MM(51W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=6000 OD=12 		1-87410-071-0 01 1 0511- ●
192 TUBE; NYLON
WHEEL BASE 4200MM(42W),WHEEL BASE 5100MM(51W) (B) SERVICED BY L=6000 OD=12 		1-87410-071-0 01 1 0511- ●
192 TUBE; NYLON
WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=4000 OD=12 		1-87410-070-0 01 1 0005-0005 ●
192 TUBE; NYLON
WHEEL BASE 4800MM(48W) (B) SERVICED BY L=4000 OD=12 		1-87410-070-0 01 1 0005-0005 ●
192 TUBE; NYLON
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=4000 OD=12 		1-87410-070-0 01 1 0006-0210 ● ●
192 TUBE; NYLON
WHEEL BASE 4200MM(42W),WHEEL BASE 5100MM(51W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=4000 OD=12 		1-87410-070-0 01 1 0211- ●
192 TUBE; NYLON
WHEEL BASE 4200MM(42W),WHEEL BASE 5100MM(51W) (B) SERVICED BY L=4000 OD=12 		1-87410-070-0 01 1 0211- ●
192 TUBE; NYLON
WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=2000 OD=12 		1-87410-069-0 01 1 0005-0005 ● ●
192 TUBE; NYLON
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=2000 OD=12 		1-87410-069-0 01 1 0005-0005 ●
192 TUBE; NYLON
(B) SERVICED BY L=2000 OD=12 		1-87410-069-0 01 1 0005-0005 ● ●
192 TUBE; NYLON
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=2000 OD=12 		1-87410-069-0 01 1 0006-0212 ●
192 TUBE; NYLON
(B) SERVICED BY L=2000 OD=12 		1-87410-069-0 01 1 0006-0212 ● ●
192 TUBE; NYLON
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=2000 OD=12 		1-87411-011-0 01 1 0301-0611 ●
192 TUBE; NYLON
(B) SERVICED BY L=2000 OD=12 		1-87411-011-0 01 1 0301-0611 ● ●
192 TUBE; NYLON
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=2000 OD=12 		1-87411-011-0 01 1 0612- ● ●
192 TUBE; NYLON
WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=2000 OD=12 		1-87411-011-0 01 1 0612- ●
192 TUBE; NYLON
(B) SERVICED BY L=2000 OD=12 		1-87411-011-0 01 1 0612- ●
192 TUBE; NYLON
WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=6000 OD=12 		1-87410-071-0 01 1 0005-0210 ● ●
192 TUBE; NYLON
(B) SERVICED BY L=6000 OD=12 		1-87410-071-0 01 1 0005-0210 ●
192 TUBE; NYLON
WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=8000 OD=12 		1-87410-072-0 01 1 0005-0210 ● ●
192 TUBE; NYLON
(B) SERVICED BY L=8000 OD=12 		1-87410-072-0 01 1 0005-0210 ●
192 TUBE; NYLON
WHEEL BASE 4200MM(42W),WHEEL BASE 5100MM(51W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=8000 OD=12 		1-87410-072-0 01 1 0211-0510 ●
192 TUBE; NYLON
WHEEL BASE 4200MM(42W),WHEEL BASE 5100MM(51W) (B) SERVICED BY L=8000 OD=12 		1-87410-072-0 01 1 0211-0510 ●
192 TUBE; NYLON
(B) SERVICED BY L=8000 OD=12 		1-87410-072-0 01 1 0211-0510 ●
192 TUBE; NYLON
WHEEL BASE 4200MM(42W),WHEEL BASE 5100MM(51W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=8000 OD=12 		1-87410-072-0 01 1 0511- ●
192 TUBE; NYLON
WHEEL BASE 4200MM(42W),WHEEL BASE 5100MM(51W) (B) SERVICED BY L=8000 OD=12 		1-87410-072-0 01 1 0511- ●
223 TUBE; CORRUGATE
WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=2000 ID=13 		1-87411-022-0 02 1 0612- ●
223 TUBE; CORRUGATE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) SERVICED BY L=2000 ID=15 		1-87410-102-0 01 1 0005- ●
223 TUBE; CORRUGATE
(A) SERVICED BY L=2000 ID=15 		1-87410-102-0 01 1 0005- ● ●
223 TUBE; CORRUGATE
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=2000 ID=13 		1-87410-091-0 02 1 0005-0210 ● ●
223 TUBE; CORRUGATE
WHEEL BASE 4200MM(42W),WHEEL BASE 5100MM(51W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=2000 ID=13 		1-87410-091-0 02 1 0211- ●
223 TUBE; CORRUGATE
WHEEL BASE 4200MM(42W),WHEEL BASE 5100MM(51W) (B) SERVICED BY L=2000 ID=13 		1-87410-091-0 02 1 0211- ●
223 TUBE; CORRUGATE
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=2000 ID=28 		1-87410-098-0 01 1 0005-0210 ● ●
223 TUBE; CORRUGATE
WHEEL BASE 4200MM(42W),WHEEL BASE 5100MM(51W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=2000 ID=28 		1-87410-098-0 01 1 0211- ●
223 TUBE; CORRUGATE
WHEEL BASE 4200MM(42W),WHEEL BASE 5100MM(51W) (B) SERVICED BY L=2000 ID=28 		1-87410-098-0 01 1 0211- ●
223 TUBE; CORRUGATE
(B) SERVICED BY L=2000 ID=13 		1-87410-091-0 04 1 0005-0210 ●
223 TUBE; CORRUGATE
(B) SERVICED BY L=2000 ID=13 		1-87410-091-0 03 1 0211-0510 ●
223 TUBE; CORRUGATE
(B) SERVICED BY L=2000 ID=13 		1-87411-022-0 03 1 0511- ●
223 TUBE; CORRUGATE
(B) SERVICED BY L=2000 ID=25 		1-87410-100-0 01 1 0005-0510 ●
223 TUBE; CORRUGATE
(B) SERVICED BY L=2000 ID=25 		1-87411-031-0 01 1 0511-0611 ●
223 TUBE; CORRUGATE
WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=2000 ID=25 		1-87411-031-0 01 1 0612- ●
223 TUBE; CORRUGATE
(B) SERVICED BY L=2000 ID=25 		1-87411-031-0 01 1 0612- ●
225 NUT; TUBE CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE 		0-91150-108-0 01 1 0005-0602 ●
225 NUT; TUBE CLIP
M8 FLANGE 		0-91150-108-0 01 1 0005-0602 ● ●
225 NUT; TUBE CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE 		0-91180-108-0 01 1 0603- ●
225 NUT; TUBE CLIP
M8 FLANGE 		0-91180-108-0 01 1 0603- ● ●
226 BOLT; UNION
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20 FLANGE 		0-28680-820-0 01 1 0005-0512 ●
226 BOLT; UNION
M8X20 FLANGE 		0-28680-820-0 01 1 0005-0512 ● ●
226 BOLT; UNION
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20 FLANGE 		0-28650-820-0 01 1 0601- ●
226 BOLT; UNION
M8X20 FLANGE 		0-28650-820-0 01 1 0601- ● ●

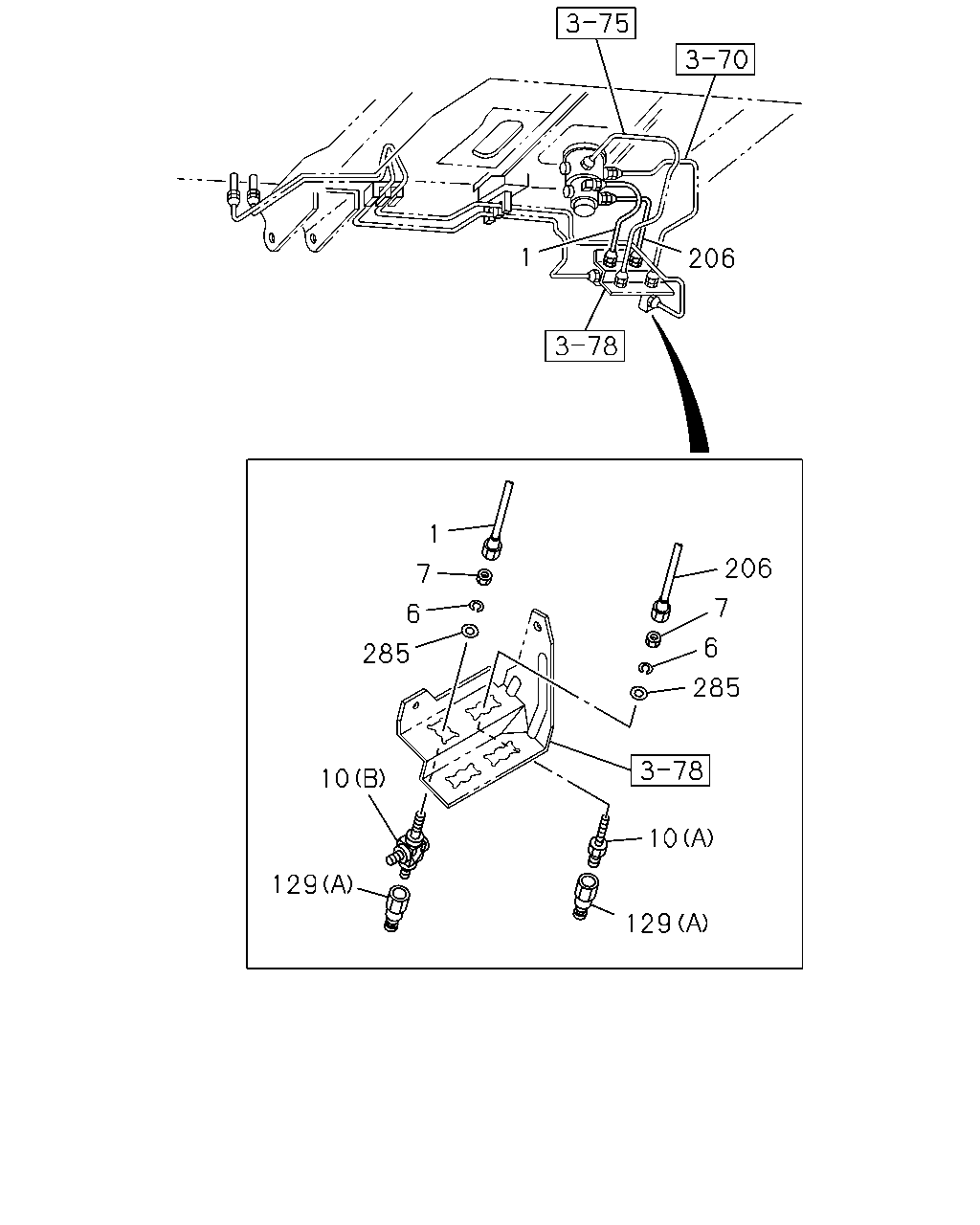

çizim 38879
1 206 1 206 7 7 6 6 285 285 10 10 129 129
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 PIPE; AIR,FLEX HOSE TO BRK VLV
L=277 		1-49121-487-0 01 1 0005-0411 ● ● ●
1 PIPE; AIR,FLEX HOSE TO BRK VLV
L=277 		1-49121-487-0 01 1 0412- ● ● ● ●
6 WASHER; LK,FLEX HOSE
ID=16.2 		9-09150-516-0 02 1 0005-0411 ● ● ●
6 WASHER; LK,FLEX HOSE
ID=16.2 		9-09150-516-0 02 1 0412-0603 ● ● ● ●
6 WASHER; LK,FLEX HOSE
ID=16.2 		0-91510-516-0 02 1 0604- ● ● ● ●
7 NUT; FLEX HOSE
M16 		9-99111-416-0 02 1 0005-0411 ● ● ●
7 NUT; FLEX HOSE
M16 		9-99111-416-0 02 1 0412-0512 ● ● ● ●
7 NUT; FLEX HOSE
M16 		0-91111-516-0 02 1 0601- ● ● ● ●
10 CONNECTOR; FLEX HOSE
(A) M16 STRAIGHT 		1-09654-380-0 01 1 0005-0411 ● ● ●
10 CONNECTOR; FLEX HOSE
(A) M16 STRAIGHT 		1-09654-380-0 01 1 0412- ● ● ● ●
10 CONNECTOR; FLEX HOSE
(B) 		1-09656-721-0 01 1 0005-0103 ● ● ●
10 CONNECTOR; FLEX HOSE
(B) 		1-09656-754-0 01 1 0104-0411 ● ● ●
10 CONNECTOR; FLEX HOSE
(B) 		1-09656-754-0 01 1 0412- ● ● ● ●
129 CONNECTOR; NYLON TUBE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) DIN12 & M20 STRAIGHT 		1-09661-097-0 02 1 0005-0007 ●
129 CONNECTOR; NYLON TUBE
(B) DIN12 & M20 STRAIGHT 		1-09661-097-0 02 1 0005-0007 ● ●
129 CONNECTOR; NYLON TUBE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) DIN12 & M20 STRAIGHT 		1-09660-877-0 02 1 0008-0411 ●
129 CONNECTOR; NYLON TUBE
(B) DIN12 & M20 STRAIGHT 		1-09660-877-0 02 1 0008-0411 ● ●
129 CONNECTOR; NYLON TUBE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) DIN12 & M20 STRAIGHT 		1-09660-877-0 02 1 0412- ●
129 CONNECTOR; NYLON TUBE
(B) DIN12 & M20 STRAIGHT 		1-09660-877-0 02 1 0412- ● ●
129 CONNECTOR; NYLON TUBE
(A) DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 0005-0411 ● ● ●
129 CONNECTOR; NYLON TUBE
(A) DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 0005-0411 ● ● ●
129 CONNECTOR; NYLON TUBE
(A) DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 0412- ● ● ● ●
129 CONNECTOR; NYLON TUBE
(A) DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 0412- ● ● ● ●
206 PIPE; AIR,BRK VLV TO FLEX HOSE
L=406 		1-47492-451-3 01 1 0005-0411 ● ● ●
206 PIPE; AIR,BRK VLV TO FLEX HOSE
L=406 		1-47492-451-3 01 1 0412- ● ● ● ●
285 WASHER; PL,CONNECTOR
ID=17 		9-09160-516-0 02 1 0005-0411 ● ● ●
285 WASHER; PL,CONNECTOR
ID=17 		9-09160-516-0 02 1 0412-0605 ● ● ● ●
285 WASHER; PL,CONNECTOR
ID=17 OD=30 		0-91610-516-0 02 1 0606- ● ● ● ●

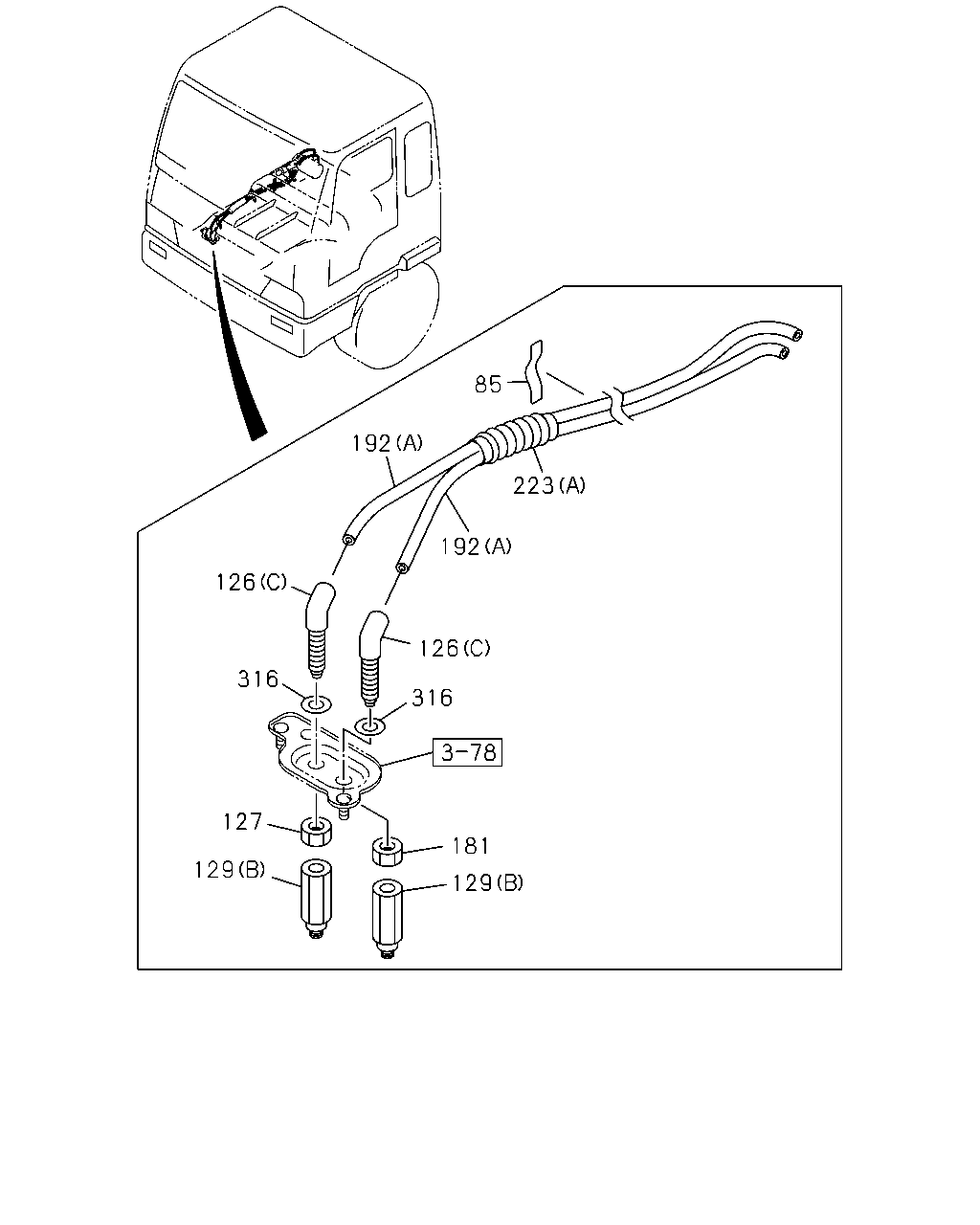

çizim 38882
85 192 223 192 126 126 316 316 127 181 129 129
BalonParca AdiParca NoAdetTipApplied Date A B C D
85 GASKET; NYLON TUBE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 100X40 		1-72498-022-1 05 1 0005- ●
85 GASKET; NYLON TUBE
100X40 		1-72498-022-1 05 1 0005- ● ●
126 UNION; NYLON TUBE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 0005- ●
126 UNION; NYLON TUBE
(B) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 0005- ● ●
126 UNION; NYLON TUBE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) DIN8 & M20 ELBOW 		1-09661-015-0 02 1 0005- ●
126 UNION; NYLON TUBE
(C) DIN8 & M20 ELBOW 		1-09661-015-0 02 1 0005- ● ●
126 UNION; NYLON TUBE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) DIN12X2 & R3/8 3WAY 		1-09661-131-0 01 1 0005- ●
126 UNION; NYLON TUBE
(A) DIN12X2 & R3/8 3WAY 		1-09661-131-0 01 1 0005- ● ●
127 NUT; UNION
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M20 		9-99111-420-0 01 1 0005-0512 ●
127 NUT; UNION
M20 		9-99111-420-0 01 1 0005-0512 ● ●
127 NUT; UNION
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M20 		0-91111-520-0 01 1 0601- ●
127 NUT; UNION
M20 		0-91111-520-0 01 1 0601- ● ●
129 CONNECTOR; NYLON TUBE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) DIN12 & M20 STRAIGHT 		1-09661-097-0 02 1 0005-0007 ●
129 CONNECTOR; NYLON TUBE
(B) DIN12 & M20 STRAIGHT 		1-09661-097-0 02 1 0005-0007 ● ●
129 CONNECTOR; NYLON TUBE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) DIN12 & M20 STRAIGHT 		1-09660-877-0 02 1 0008-0411 ●
129 CONNECTOR; NYLON TUBE
(B) DIN12 & M20 STRAIGHT 		1-09660-877-0 02 1 0008-0411 ● ●
129 CONNECTOR; NYLON TUBE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) DIN12 & M20 STRAIGHT 		1-09660-877-0 02 1 0412- ●
129 CONNECTOR; NYLON TUBE
(B) DIN12 & M20 STRAIGHT 		1-09660-877-0 02 1 0412- ● ●
129 CONNECTOR; NYLON TUBE
(A) DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 0005-0411 ● ● ●
129 CONNECTOR; NYLON TUBE
(A) DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 0005-0411 ● ● ●
129 CONNECTOR; NYLON TUBE
(A) DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 0412- ● ● ● ●
129 CONNECTOR; NYLON TUBE
(A) DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 0412- ● ● ● ●
181 NUT; TUBE UNION
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M20 		9-99111-420-0 01 1 0005-0512 ●
181 NUT; TUBE UNION
M20 		9-99111-420-0 01 1 0005-0512 ● ●
181 NUT; TUBE UNION
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M20 		0-91111-520-0 01 1 0601- ●
181 NUT; TUBE UNION
M20 		0-91111-520-0 01 1 0601- ● ●
192 TUBE; NYLON
WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=6000 OD=12 		1-87411-013-0 02 1 0612- ●
192 TUBE; NYLON
(B) SERVICED BY L=6000 OD=12 		1-87411-013-0 01 1 0511- ●
192 TUBE; NYLON
(B) SERVICED BY L=8000 OD=12 		1-87411-014-0 01 1 0511- ●
192 TUBE; NYLON
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 02 1 0005- ●
192 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87410-073-0 02 1 0005- ● ●
192 TUBE; NYLON
WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=6000 OD=12 		1-87410-071-0 02 1 0005-0210 ●
192 TUBE; NYLON
WHEEL BASE 4200MM(42W) (B) SERVICED BY L=6000 OD=12 		1-87410-071-0 02 1 0005-0210 ●
192 TUBE; NYLON
WHEEL BASE 4200MM(42W),WHEEL BASE 5100MM(51W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=6000 OD=12 		1-87410-071-0 01 1 0211-0510 ●
192 TUBE; NYLON
WHEEL BASE 4200MM(42W),WHEEL BASE 5100MM(51W) (B) SERVICED BY L=6000 OD=12 		1-87410-071-0 01 1 0211-0510 ●
192 TUBE; NYLON
(B) SERVICED BY L=6000 OD=12 		1-87410-071-0 01 1 0211-0510 ●
192 TUBE; NYLON
WHEEL BASE 4200MM(42W),WHEEL BASE 5100MM(51W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=6000 OD=12 		1-87410-071-0 01 1 0511- ●
192 TUBE; NYLON
WHEEL BASE 4200MM(42W),WHEEL BASE 5100MM(51W) (B) SERVICED BY L=6000 OD=12 		1-87410-071-0 01 1 0511- ●
192 TUBE; NYLON
WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=4000 OD=12 		1-87410-070-0 01 1 0005-0005 ●
192 TUBE; NYLON
WHEEL BASE 4800MM(48W) (B) SERVICED BY L=4000 OD=12 		1-87410-070-0 01 1 0005-0005 ●
192 TUBE; NYLON
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=4000 OD=12 		1-87410-070-0 01 1 0006-0210 ● ●
192 TUBE; NYLON
WHEEL BASE 4200MM(42W),WHEEL BASE 5100MM(51W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=4000 OD=12 		1-87410-070-0 01 1 0211- ●
192 TUBE; NYLON
WHEEL BASE 4200MM(42W),WHEEL BASE 5100MM(51W) (B) SERVICED BY L=4000 OD=12 		1-87410-070-0 01 1 0211- ●
192 TUBE; NYLON
WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=2000 OD=12 		1-87410-069-0 01 1 0005-0005 ● ●
192 TUBE; NYLON
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=2000 OD=12 		1-87410-069-0 01 1 0005-0005 ●
192 TUBE; NYLON
(B) SERVICED BY L=2000 OD=12 		1-87410-069-0 01 1 0005-0005 ● ●
192 TUBE; NYLON
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=2000 OD=12 		1-87410-069-0 01 1 0006-0212 ●
192 TUBE; NYLON
(B) SERVICED BY L=2000 OD=12 		1-87410-069-0 01 1 0006-0212 ● ●
192 TUBE; NYLON
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=2000 OD=12 		1-87411-011-0 01 1 0301-0611 ●
192 TUBE; NYLON
(B) SERVICED BY L=2000 OD=12 		1-87411-011-0 01 1 0301-0611 ● ●
192 TUBE; NYLON
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=2000 OD=12 		1-87411-011-0 01 1 0612- ● ●
192 TUBE; NYLON
WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=2000 OD=12 		1-87411-011-0 01 1 0612- ●
192 TUBE; NYLON
(B) SERVICED BY L=2000 OD=12 		1-87411-011-0 01 1 0612- ●
192 TUBE; NYLON
WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=6000 OD=12 		1-87410-071-0 01 1 0005-0210 ● ●
192 TUBE; NYLON
(B) SERVICED BY L=6000 OD=12 		1-87410-071-0 01 1 0005-0210 ●
192 TUBE; NYLON
WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=8000 OD=12 		1-87410-072-0 01 1 0005-0210 ● ●
192 TUBE; NYLON
(B) SERVICED BY L=8000 OD=12 		1-87410-072-0 01 1 0005-0210 ●
192 TUBE; NYLON
WHEEL BASE 4200MM(42W),WHEEL BASE 5100MM(51W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=8000 OD=12 		1-87410-072-0 01 1 0211-0510 ●
192 TUBE; NYLON
WHEEL BASE 4200MM(42W),WHEEL BASE 5100MM(51W) (B) SERVICED BY L=8000 OD=12 		1-87410-072-0 01 1 0211-0510 ●
192 TUBE; NYLON
(B) SERVICED BY L=8000 OD=12 		1-87410-072-0 01 1 0211-0510 ●
192 TUBE; NYLON
WHEEL BASE 4200MM(42W),WHEEL BASE 5100MM(51W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=8000 OD=12 		1-87410-072-0 01 1 0511- ●
192 TUBE; NYLON
WHEEL BASE 4200MM(42W),WHEEL BASE 5100MM(51W) (B) SERVICED BY L=8000 OD=12 		1-87410-072-0 01 1 0511- ●
223 TUBE; CORRUGATE
WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=2000 ID=13 		1-87411-022-0 02 1 0612- ●
223 TUBE; CORRUGATE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) SERVICED BY L=2000 ID=15 		1-87410-102-0 01 1 0005- ●
223 TUBE; CORRUGATE
(A) SERVICED BY L=2000 ID=15 		1-87410-102-0 01 1 0005- ● ●
223 TUBE; CORRUGATE
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=2000 ID=13 		1-87410-091-0 02 1 0005-0210 ● ●
223 TUBE; CORRUGATE
WHEEL BASE 4200MM(42W),WHEEL BASE 5100MM(51W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=2000 ID=13 		1-87410-091-0 02 1 0211- ●
223 TUBE; CORRUGATE
WHEEL BASE 4200MM(42W),WHEEL BASE 5100MM(51W) (B) SERVICED BY L=2000 ID=13 		1-87410-091-0 02 1 0211- ●
223 TUBE; CORRUGATE
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=2000 ID=28 		1-87410-098-0 01 1 0005-0210 ● ●
223 TUBE; CORRUGATE
WHEEL BASE 4200MM(42W),WHEEL BASE 5100MM(51W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=2000 ID=28 		1-87410-098-0 01 1 0211- ●
223 TUBE; CORRUGATE
WHEEL BASE 4200MM(42W),WHEEL BASE 5100MM(51W) (B) SERVICED BY L=2000 ID=28 		1-87410-098-0 01 1 0211- ●
223 TUBE; CORRUGATE
(B) SERVICED BY L=2000 ID=13 		1-87410-091-0 04 1 0005-0210 ●
223 TUBE; CORRUGATE
(B) SERVICED BY L=2000 ID=13 		1-87410-091-0 03 1 0211-0510 ●
223 TUBE; CORRUGATE
(B) SERVICED BY L=2000 ID=13 		1-87411-022-0 03 1 0511- ●
223 TUBE; CORRUGATE
(B) SERVICED BY L=2000 ID=25 		1-87410-100-0 01 1 0005-0510 ●
223 TUBE; CORRUGATE
(B) SERVICED BY L=2000 ID=25 		1-87411-031-0 01 1 0511-0611 ●
223 TUBE; CORRUGATE
WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=2000 ID=25 		1-87411-031-0 01 1 0612- ●
223 TUBE; CORRUGATE
(B) SERVICED BY L=2000 ID=25 		1-87411-031-0 01 1 0612- ●
316 WASHER; PL
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=21 		9-09160-520-0 02 1 0005-0605 ●
316 WASHER; PL
ID=21 		9-09160-520-0 02 1 0005-0605 ● ●
316 WASHER; PL
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=21 		0-91610-520-0 02 1 0606- ●
316 WASHER; PL
ID=21 		0-91610-520-0 02 1 0606- ● ●

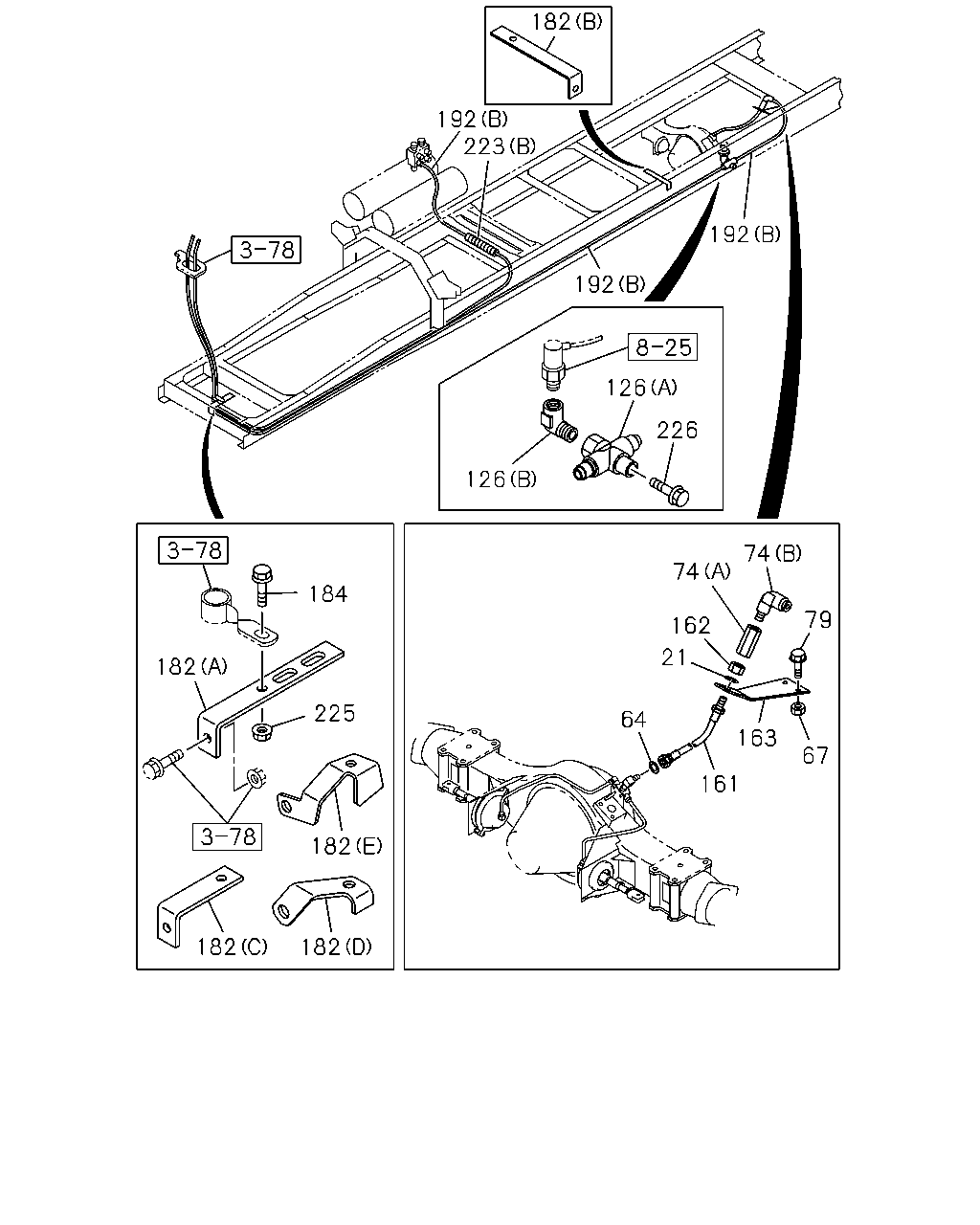

çizim 38937
182 192 223 192 192 126 226 126 74 74 184 79 162 21 182 225 64 163 67 161 182 182 182
BalonParca AdiParca NoAdetTipApplied Date A B C D
21 WASHER; LK,UNION
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=14.2 		9-09150-514-0 01 1 0005-0603 ●
21 WASHER; LK,UNION
ID=14.2 		9-09150-514-0 01 1 0005-0603 ● ●
21 WASHER; LK,UNION
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=14.2 		0-91510-514-0 01 1 0604- ●
21 WASHER; LK,UNION
ID=14.2 		0-91510-514-0 01 1 0604- ● ●
64 GASKET; FLEX HOSE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=11 OD=18 		9-09572-510-0 01 1 0005- ●
64 GASKET; FLEX HOSE
ID=11 OD=18 		9-09572-510-0 01 1 0005- ● ●
67 NUT; HOSE BRKT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE 		0-91150-108-0 02 1 0005-0602 ●
67 NUT; HOSE BRKT
M8 FLANGE 		0-91150-108-0 02 1 0005-0602 ● ●
67 NUT; HOSE BRKT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE 		0-91180-108-0 02 1 0603- ●
67 NUT; HOSE BRKT
M8 FLANGE 		0-91180-108-0 02 1 0603- ● ●
74 ADAPTER; UNION TO NYLON TUBE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		1-09660-881-0 01 1 0005- ●
74 ADAPTER; UNION TO NYLON TUBE
(A) 		1-09660-881-0 01 1 0005- ● ●
74 ADAPTER; UNION TO NYLON TUBE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0005- ●
74 ADAPTER; UNION TO NYLON TUBE
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0005- ● ●
79 BOLT; HOSE BRKT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE 		0-28680-825-0 02 1 0005-0512 ●
79 BOLT; HOSE BRKT
M8X25 FLANGE 		0-28680-825-0 02 1 0005-0512 ● ●
79 BOLT; HOSE BRKT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE 		0-28650-825-0 02 1 0601- ●
79 BOLT; HOSE BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 0601- ● ●
126 UNION; NYLON TUBE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 0005- ●
126 UNION; NYLON TUBE
(B) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 0005- ● ●
126 UNION; NYLON TUBE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) DIN8 & M20 ELBOW 		1-09661-015-0 02 1 0005- ●
126 UNION; NYLON TUBE
(C) DIN8 & M20 ELBOW 		1-09661-015-0 02 1 0005- ● ●
126 UNION; NYLON TUBE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) DIN12X2 & R3/8 3WAY 		1-09661-131-0 01 1 0005- ●
126 UNION; NYLON TUBE
(A) DIN12X2 & R3/8 3WAY 		1-09661-131-0 01 1 0005- ● ●
161 HOSE; FLEX,QUICK RELEASE VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=580 		0-07462-580-1 01 1 0005-0605 ●
161 HOSE; FLEX,QUICK RELEASE VLV
L=580 		0-07462-580-1 01 1 0005-0605 ● ●
161 HOSE; FLEX,QUICK RELEASE VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=580 		0-57462-580-1 01 1 0606- ●
161 HOSE; FLEX,QUICK RELEASE VLV
L=580 		0-57462-580-1 01 1 0606- ● ●
162 NUT; FLEX HOSE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14 		9-99111-414-0 01 1 0005-0512 ●
162 NUT; FLEX HOSE
M14 		9-99111-414-0 01 1 0005-0512 ● ●
162 NUT; FLEX HOSE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14 		0-91111-514-0 01 1 0601- ●
162 NUT; FLEX HOSE
M14 		0-91111-514-0 01 1 0601- ● ●
163 BRACKET; FLEX HOSE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-47475-464-0 01 1 0005- ●
163 BRACKET; FLEX HOSE 1-47475-464-0 01 1 0005- ● ●
182 BRACKET; TUBE CLIP
WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=150 H=30 		1-47477-629-2 02 1 0612- ●
182 BRACKET; TUBE CLIP
WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=100 H=30 		1-47477-645-2 01 1 0612- ●
182 BRACKET; TUBE CLIP
6HK1 TCS ENG(80L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) 		1-47479-801-0 01 1 0307-0310 ● ●
182 BRACKET; TUBE CLIP
6HK1 TCS ENG(80L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (E) 		1-47479-895-0 01 1 0311- ● ●
182 BRACKET; TUBE CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=100 H=30 		1-47477-645-2 01 1 0005-0210 ●
182 BRACKET; TUBE CLIP
(A) L=100 H=30 		1-47477-645-2 01 1 0005-0210 ● ●
182 BRACKET; TUBE CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) L=55 B=25 		1-47478-439-0 01 1 0211-0306 ●
182 BRACKET; TUBE CLIP
(C) L=55 B=25 		1-47478-439-0 01 1 0211-0306 ● ●
182 BRACKET; TUBE CLIP
6HK1 TCC ENG(81L),6HK1 TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) L=55 B=25 		1-47478-439-0 01 1 0307- ●
182 BRACKET; TUBE CLIP
6HK1 TCC ENG(81L),6HK1 TCN ENG(82L) (C) L=55 B=25 		1-47478-439-0 01 1 0307- ●
182 BRACKET; TUBE CLIP
6HK1 TCC ENG(81L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) L=55 B=25 		1-47478-439-0 01 1 0307- ●
182 BRACKET; TUBE CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) 		1-47479-287-0 01 1 0211- ●
182 BRACKET; TUBE CLIP
(B) 		1-47479-287-0 01 1 0211- ● ●
184 BOLT; TUBE CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20 FLANGE 		0-28680-820-0 01 1 0005-0512 ●
184 BOLT; TUBE CLIP
M8X20 FLANGE 		0-28680-820-0 01 1 0005-0512 ● ●
184 BOLT; TUBE CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20 FLANGE 		0-28650-820-0 01 1 0601- ●
184 BOLT; TUBE CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 0601- ● ●
192 TUBE; NYLON
WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=6000 OD=12 		1-87411-013-0 02 1 0612- ●
192 TUBE; NYLON
(B) SERVICED BY L=6000 OD=12 		1-87411-013-0 01 1 0511- ●
192 TUBE; NYLON
(B) SERVICED BY L=8000 OD=12 		1-87411-014-0 01 1 0511- ●
192 TUBE; NYLON
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 02 1 0005- ●
192 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87410-073-0 02 1 0005- ● ●
192 TUBE; NYLON
WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=6000 OD=12 		1-87410-071-0 02 1 0005-0210 ●
192 TUBE; NYLON
WHEEL BASE 4200MM(42W) (B) SERVICED BY L=6000 OD=12 		1-87410-071-0 02 1 0005-0210 ●
192 TUBE; NYLON
WHEEL BASE 4200MM(42W),WHEEL BASE 5100MM(51W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=6000 OD=12 		1-87410-071-0 01 1 0211-0510 ●
192 TUBE; NYLON
WHEEL BASE 4200MM(42W),WHEEL BASE 5100MM(51W) (B) SERVICED BY L=6000 OD=12 		1-87410-071-0 01 1 0211-0510 ●
192 TUBE; NYLON
(B) SERVICED BY L=6000 OD=12 		1-87410-071-0 01 1 0211-0510 ●
192 TUBE; NYLON
WHEEL BASE 4200MM(42W),WHEEL BASE 5100MM(51W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=6000 OD=12 		1-87410-071-0 01 1 0511- ●
192 TUBE; NYLON
WHEEL BASE 4200MM(42W),WHEEL BASE 5100MM(51W) (B) SERVICED BY L=6000 OD=12 		1-87410-071-0 01 1 0511- ●
192 TUBE; NYLON
WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=4000 OD=12 		1-87410-070-0 01 1 0005-0005 ●
192 TUBE; NYLON
WHEEL BASE 4800MM(48W) (B) SERVICED BY L=4000 OD=12 		1-87410-070-0 01 1 0005-0005 ●
192 TUBE; NYLON
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=4000 OD=12 		1-87410-070-0 01 1 0006-0210 ● ●
192 TUBE; NYLON
WHEEL BASE 4200MM(42W),WHEEL BASE 5100MM(51W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=4000 OD=12 		1-87410-070-0 01 1 0211- ●
192 TUBE; NYLON
WHEEL BASE 4200MM(42W),WHEEL BASE 5100MM(51W) (B) SERVICED BY L=4000 OD=12 		1-87410-070-0 01 1 0211- ●
192 TUBE; NYLON
WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=2000 OD=12 		1-87410-069-0 01 1 0005-0005 ● ●
192 TUBE; NYLON
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=2000 OD=12 		1-87410-069-0 01 1 0005-0005 ●
192 TUBE; NYLON
(B) SERVICED BY L=2000 OD=12 		1-87410-069-0 01 1 0005-0005 ● ●
192 TUBE; NYLON
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=2000 OD=12 		1-87410-069-0 01 1 0006-0212 ●
192 TUBE; NYLON
(B) SERVICED BY L=2000 OD=12 		1-87410-069-0 01 1 0006-0212 ● ●
192 TUBE; NYLON
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=2000 OD=12 		1-87411-011-0 01 1 0301-0611 ●
192 TUBE; NYLON
(B) SERVICED BY L=2000 OD=12 		1-87411-011-0 01 1 0301-0611 ● ●
192 TUBE; NYLON
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=2000 OD=12 		1-87411-011-0 01 1 0612- ● ●
192 TUBE; NYLON
WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=2000 OD=12 		1-87411-011-0 01 1 0612- ●
192 TUBE; NYLON
(B) SERVICED BY L=2000 OD=12 		1-87411-011-0 01 1 0612- ●
192 TUBE; NYLON
WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=6000 OD=12 		1-87410-071-0 01 1 0005-0210 ● ●
192 TUBE; NYLON
(B) SERVICED BY L=6000 OD=12 		1-87410-071-0 01 1 0005-0210 ●
192 TUBE; NYLON
WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=8000 OD=12 		1-87410-072-0 01 1 0005-0210 ● ●
192 TUBE; NYLON
(B) SERVICED BY L=8000 OD=12 		1-87410-072-0 01 1 0005-0210 ●
192 TUBE; NYLON
WHEEL BASE 4200MM(42W),WHEEL BASE 5100MM(51W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=8000 OD=12 		1-87410-072-0 01 1 0211-0510 ●
192 TUBE; NYLON
WHEEL BASE 4200MM(42W),WHEEL BASE 5100MM(51W) (B) SERVICED BY L=8000 OD=12 		1-87410-072-0 01 1 0211-0510 ●
192 TUBE; NYLON
(B) SERVICED BY L=8000 OD=12 		1-87410-072-0 01 1 0211-0510 ●
192 TUBE; NYLON
WHEEL BASE 4200MM(42W),WHEEL BASE 5100MM(51W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=8000 OD=12 		1-87410-072-0 01 1 0511- ●
192 TUBE; NYLON
WHEEL BASE 4200MM(42W),WHEEL BASE 5100MM(51W) (B) SERVICED BY L=8000 OD=12 		1-87410-072-0 01 1 0511- ●
223 TUBE; CORRUGATE
WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=2000 ID=13 		1-87411-022-0 02 1 0612- ●
223 TUBE; CORRUGATE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) SERVICED BY L=2000 ID=15 		1-87410-102-0 01 1 0005- ●
223 TUBE; CORRUGATE
(A) SERVICED BY L=2000 ID=15 		1-87410-102-0 01 1 0005- ● ●
223 TUBE; CORRUGATE
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=2000 ID=13 		1-87410-091-0 02 1 0005-0210 ● ●
223 TUBE; CORRUGATE
WHEEL BASE 4200MM(42W),WHEEL BASE 5100MM(51W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=2000 ID=13 		1-87410-091-0 02 1 0211- ●
223 TUBE; CORRUGATE
WHEEL BASE 4200MM(42W),WHEEL BASE 5100MM(51W) (B) SERVICED BY L=2000 ID=13 		1-87410-091-0 02 1 0211- ●
223 TUBE; CORRUGATE
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=2000 ID=28 		1-87410-098-0 01 1 0005-0210 ● ●
223 TUBE; CORRUGATE
WHEEL BASE 4200MM(42W),WHEEL BASE 5100MM(51W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=2000 ID=28 		1-87410-098-0 01 1 0211- ●
223 TUBE; CORRUGATE
WHEEL BASE 4200MM(42W),WHEEL BASE 5100MM(51W) (B) SERVICED BY L=2000 ID=28 		1-87410-098-0 01 1 0211- ●
223 TUBE; CORRUGATE
(B) SERVICED BY L=2000 ID=13 		1-87410-091-0 04 1 0005-0210 ●
223 TUBE; CORRUGATE
(B) SERVICED BY L=2000 ID=13 		1-87410-091-0 03 1 0211-0510 ●
223 TUBE; CORRUGATE
(B) SERVICED BY L=2000 ID=13 		1-87411-022-0 03 1 0511- ●
223 TUBE; CORRUGATE
(B) SERVICED BY L=2000 ID=25 		1-87410-100-0 01 1 0005-0510 ●
223 TUBE; CORRUGATE
(B) SERVICED BY L=2000 ID=25 		1-87411-031-0 01 1 0511-0611 ●
223 TUBE; CORRUGATE
WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=2000 ID=25 		1-87411-031-0 01 1 0612- ●
223 TUBE; CORRUGATE
(B) SERVICED BY L=2000 ID=25 		1-87411-031-0 01 1 0612- ●
225 NUT; TUBE CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE 		0-91150-108-0 01 1 0005-0602 ●
225 NUT; TUBE CLIP
M8 FLANGE 		0-91150-108-0 01 1 0005-0602 ● ●
225 NUT; TUBE CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE 		0-91180-108-0 01 1 0603- ●
225 NUT; TUBE CLIP
M8 FLANGE 		0-91180-108-0 01 1 0603- ● ●
226 BOLT; UNION
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20 FLANGE 		0-28680-820-0 01 1 0005-0512 ●
226 BOLT; UNION
M8X20 FLANGE 		0-28680-820-0 01 1 0005-0512 ● ●
226 BOLT; UNION
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20 FLANGE 		0-28650-820-0 01 1 0601- ●
226 BOLT; UNION
M8X20 FLANGE 		0-28650-820-0 01 1 0601- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
