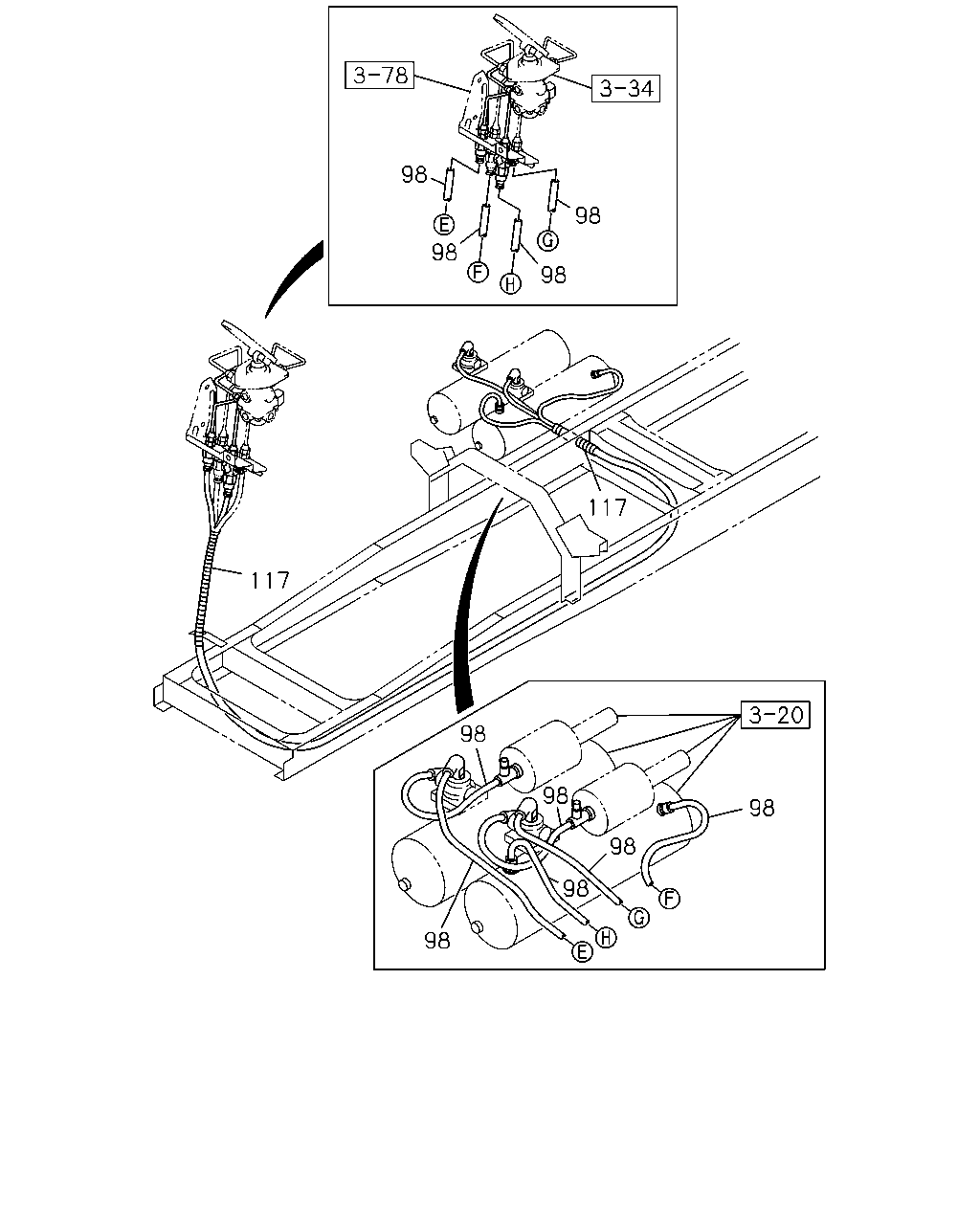

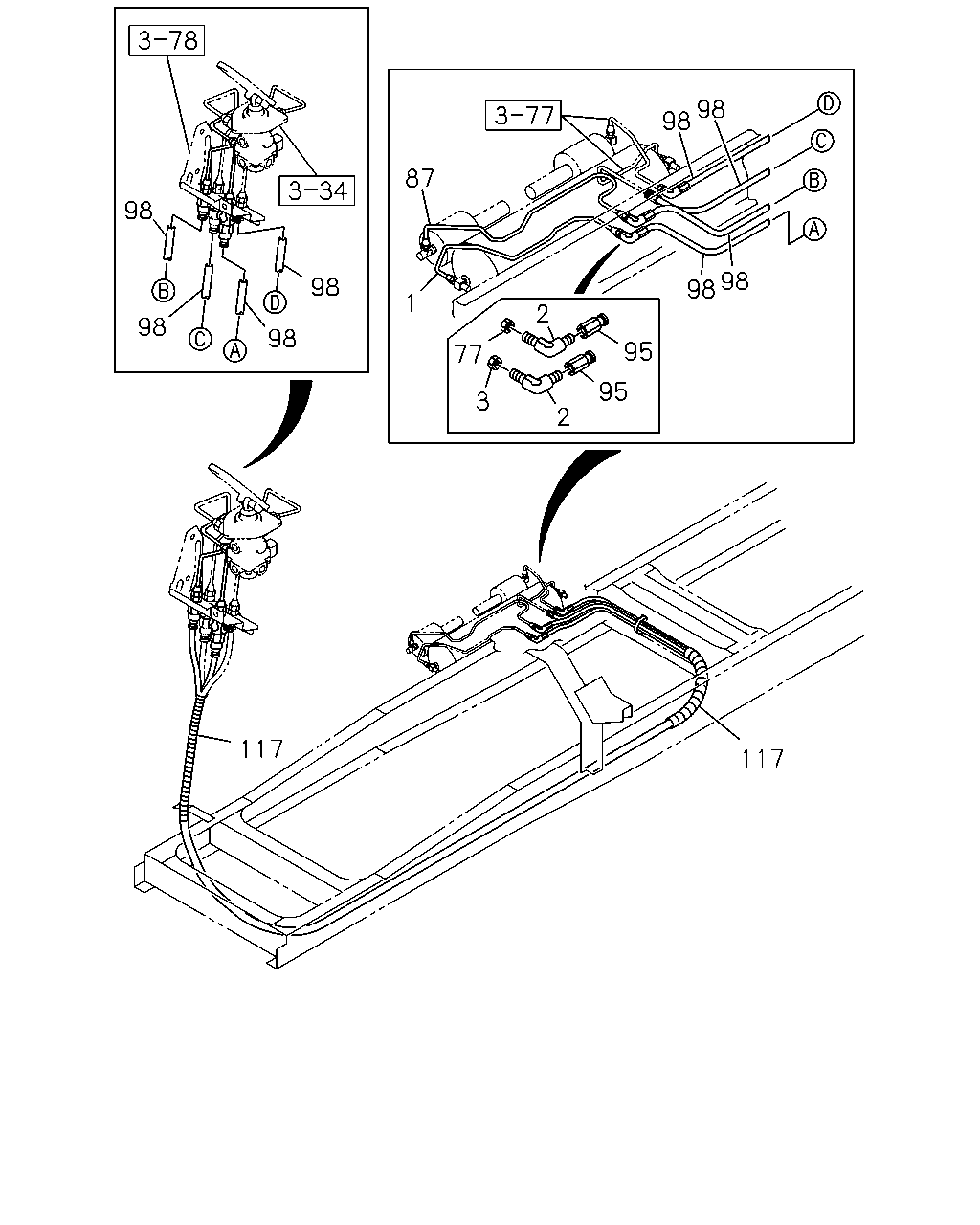

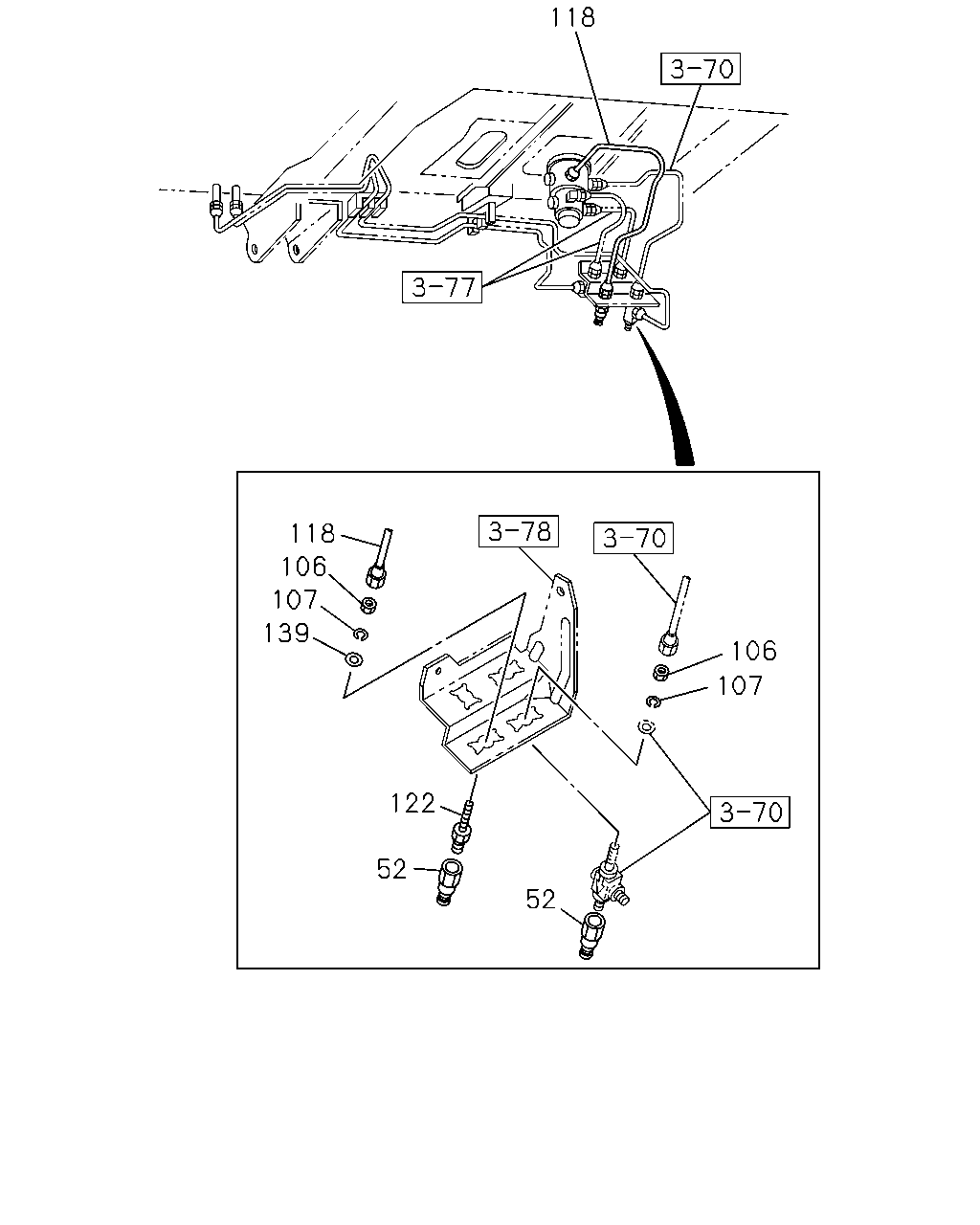

3-75 — BRAKE PIPING; AIR,FRONT (#9392) — 109 parça

98 98 87 98 98 98 98 1 2 98 98 95 77 95 3 2 117 117

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	PIPE; AIR,AIR TANK TO UNION	1-49118-367-0	01	1	0005-0302	●	●
1	PIPE; AIR,AIR TANK TO UNION	1-49124-022-0	01	1	0303-0411	●	●
1	PIPE; AIR,AIR TANK TO UNION	1-49124-022-0	01	1	0412-	●	●	●
2	UNION; AIR PIPE M16 ELBOW	9-09235-210-1	02	1	0005-0411	●	●
2	UNION; AIR PIPE M16 ELBOW	9-09235-210-1	02	1	0412-0607	●	●	●
2	UNION; AIR PIPE M16 ELBOW	0-92135-210-0	02	1	0608-	●	●	●
3	NUT; PIPE UNION M16	9-99111-416-0	01	1	0005-0411	●	●
3	NUT; PIPE UNION M16	9-99111-416-0	01	1	0412-0512	●	●	●
3	NUT; PIPE UNION M16	0-91111-516-0	01	1	0601-	●	●	●
77	NUT; PIPE UNION M16	9-99111-416-0	01	1	0005-0411	●	●
77	NUT; PIPE UNION M16	9-99111-416-0	01	1	0412-0512	●	●	●
77	NUT; PIPE UNION M16	0-91111-516-0	01	1	0601-	●	●	●
87	PIPE; AIR,UNION TO AIR MASTER	1-49119-149-0	01	1	0005-0106	●	●
87	PIPE; AIR,UNION TO AIR MASTER L=607	1-49123-213-0	01	1	0107-0411	●	●
87	PIPE; AIR,UNION TO AIR MASTER L=607	1-49123-213-0	01	1	0412-	●	●	●
95	ADAPTER; BRKT DIN12 & M16 STRAIGHT	1-09661-096-0	02	1	0005-0007	●	●
95	ADAPTER; BRKT DIN12 & M16 STRAIGHT	1-09660-876-0	02	1	0008-0411	●	●
95	ADAPTER; BRKT DIN12 & M16 STRAIGHT	1-09660-876-0	02	1	0412-	●	●	●
98	TUBE; NYLON DRIVER ISRINGHAUSEN SEAT<SJA> SERVICED BY L=4000 OD=8	1-87410-074-0	01	1	0005-0405	●
98	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87410-074-0	01	1	0005-0405		●		●
98	TUBE; NYLON DRIVER ISRINGHAUSEN SEAT<SJA> SERVICED BY L=4000 OD=8	1-87410-074-0	01	1	0406-	●
98	TUBE; NYLON AIR HORN<WB8> SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> SERVICED BY L=4000 OD=8	1-87410-074-0	01	1	0406-	●
98	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87410-074-0	01	1	0406-		●		●
98	TUBE; NYLON DRIVER ISRINGHAUSEN SEAT<SJA>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> SERVICED BY L=6000 OD=12	1-87410-071-0	04	1	0005-0411	●
98	TUBE; NYLON SERVICED BY L=6000 OD=12	1-87410-071-0	04	1	0005-0411		●
98	TUBE; NYLON DRIVER ISRINGHAUSEN SEAT<SJA>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> SERVICED BY L=6000 OD=12	1-87410-071-0	04	1	0412-	●
98	TUBE; NYLON SERVICED BY L=6000 OD=12	1-87410-071-0	04	1	0412-		●	●
98	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87410-069-0	02	1	0005-0212				●
98	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	02	1	0301-				●
98	TUBE; NYLON SERVICED BY L=6000 OD=12	1-87410-071-0	03	1	0005-				●
98	TUBE; NYLON SERVICED BY L=8000 OD=12	1-87410-072-0	01	1	0005-				●
117	TUBE; CORRUGATE DRIVER ISRINGHAUSEN SEAT<SJA> SERVICED BY L=2000 ID=10	1-87410-088-0	01	1	0005-0405	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87410-088-0	01	1	0005-0405		●		●
117	TUBE; CORRUGATE DRIVER ISRINGHAUSEN SEAT<SJA> SERVICED BY L=2000 ID=10	1-87410-088-0	01	1	0406-	●
117	TUBE; CORRUGATE AIR HORN<WB8> SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> SERVICED BY L=2000 ID=10	1-87410-088-0	01	1	0406-	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87410-088-0	01	1	0406-		●		●
117	TUBE; CORRUGATE DRIVER ISRINGHAUSEN SEAT<SJA> SERVICED BY L=2000 ID=28	1-87410-098-0	02	1	0005-0405	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=28	1-87410-098-0	02	1	0005-0405		●
117	TUBE; CORRUGATE DRIVER ISRINGHAUSEN SEAT<SJA> SERVICED BY L=2000 ID=28	1-87410-098-0	02	1	0406-	●
117	TUBE; CORRUGATE AIR HORN<WB8> SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> SERVICED BY L=2000 ID=28	1-87410-098-0	02	1	0406-	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=28	1-87410-098-0	02	1	0406-		●
117	TUBE; CORRUGATE DRIVER ISRINGHAUSEN SEAT<SJA> SERVICED BY L=2000 ID=32	1-87410-104-0	01	1	0005-0405	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=32	1-87410-104-0	01	1	0005-0405		●		●
117	TUBE; CORRUGATE DRIVER ISRINGHAUSEN SEAT<SJA> SERVICED BY L=2000 ID=32	1-87410-104-0	01	1	0406-	●
117	TUBE; CORRUGATE AIR HORN<WB8> SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> SERVICED BY L=2000 ID=32	1-87410-104-0	01	1	0406-	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=32	1-87410-104-0	01	1	0406-		●		●
117	TUBE; CORRUGATE DRIVER ISRINGHAUSEN SEAT<SJA>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> SERVICED BY L=2000 ID=13	1-87410-091-0	02	1	0005-0411	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87410-091-0	02	1	0005-0411		●
117	TUBE; CORRUGATE DRIVER ISRINGHAUSEN SEAT<SJA>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> SERVICED BY L=2000 ID=13	1-87410-091-0	02	1	0412-	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87410-091-0	02	1	0412-		●	●
117	TUBE; CORRUGATE SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> SERVICED BY L=2000 ID=28	1-87410-098-0	03	1	0005-0405	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=28	1-87410-098-0	03	1	0005-0405				●
117	TUBE; CORRUGATE SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> EXC. AIR HORN<WB8> SERVICED BY L=2000 ID=28	1-87410-098-0	03	1	0406-0411	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=28	1-87410-098-0	03	1	0406-0411				●
117	TUBE; CORRUGATE SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> EXC. AIR HORN<WB8> SERVICED BY L=2000 ID=28	1-87410-098-0	03	1	0412-	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=28	1-87410-098-0	03	1	0412-			●	●

98 98 98 98 117 117 98 98 98 98 98 98

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
98	TUBE; NYLON DRIVER ISRINGHAUSEN SEAT<SJA> SERVICED BY L=4000 OD=8	1-87410-074-0	01	1	0005-0405	●
98	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87410-074-0	01	1	0005-0405		●		●
98	TUBE; NYLON DRIVER ISRINGHAUSEN SEAT<SJA> SERVICED BY L=4000 OD=8	1-87410-074-0	01	1	0406-	●
98	TUBE; NYLON AIR HORN<WB8> SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> SERVICED BY L=4000 OD=8	1-87410-074-0	01	1	0406-	●
98	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87410-074-0	01	1	0406-		●		●
98	TUBE; NYLON DRIVER ISRINGHAUSEN SEAT<SJA>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> SERVICED BY L=6000 OD=12	1-87410-071-0	04	1	0005-0411	●
98	TUBE; NYLON SERVICED BY L=6000 OD=12	1-87410-071-0	04	1	0005-0411		●
98	TUBE; NYLON DRIVER ISRINGHAUSEN SEAT<SJA>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> SERVICED BY L=6000 OD=12	1-87410-071-0	04	1	0412-	●
98	TUBE; NYLON SERVICED BY L=6000 OD=12	1-87410-071-0	04	1	0412-		●	●
98	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87410-069-0	02	1	0005-0212				●
98	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	02	1	0301-				●
98	TUBE; NYLON SERVICED BY L=6000 OD=12	1-87410-071-0	03	1	0005-				●
98	TUBE; NYLON SERVICED BY L=8000 OD=12	1-87410-072-0	01	1	0005-				●
117	TUBE; CORRUGATE DRIVER ISRINGHAUSEN SEAT<SJA> SERVICED BY L=2000 ID=10	1-87410-088-0	01	1	0005-0405	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87410-088-0	01	1	0005-0405		●		●
117	TUBE; CORRUGATE DRIVER ISRINGHAUSEN SEAT<SJA> SERVICED BY L=2000 ID=10	1-87410-088-0	01	1	0406-	●
117	TUBE; CORRUGATE AIR HORN<WB8> SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> SERVICED BY L=2000 ID=10	1-87410-088-0	01	1	0406-	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87410-088-0	01	1	0406-		●		●
117	TUBE; CORRUGATE DRIVER ISRINGHAUSEN SEAT<SJA> SERVICED BY L=2000 ID=28	1-87410-098-0	02	1	0005-0405	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=28	1-87410-098-0	02	1	0005-0405		●
117	TUBE; CORRUGATE DRIVER ISRINGHAUSEN SEAT<SJA> SERVICED BY L=2000 ID=28	1-87410-098-0	02	1	0406-	●
117	TUBE; CORRUGATE AIR HORN<WB8> SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> SERVICED BY L=2000 ID=28	1-87410-098-0	02	1	0406-	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=28	1-87410-098-0	02	1	0406-		●
117	TUBE; CORRUGATE DRIVER ISRINGHAUSEN SEAT<SJA> SERVICED BY L=2000 ID=32	1-87410-104-0	01	1	0005-0405	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=32	1-87410-104-0	01	1	0005-0405		●		●
117	TUBE; CORRUGATE DRIVER ISRINGHAUSEN SEAT<SJA> SERVICED BY L=2000 ID=32	1-87410-104-0	01	1	0406-	●
117	TUBE; CORRUGATE AIR HORN<WB8> SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> SERVICED BY L=2000 ID=32	1-87410-104-0	01	1	0406-	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=32	1-87410-104-0	01	1	0406-		●		●
117	TUBE; CORRUGATE DRIVER ISRINGHAUSEN SEAT<SJA>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> SERVICED BY L=2000 ID=13	1-87410-091-0	02	1	0005-0411	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87410-091-0	02	1	0005-0411		●
117	TUBE; CORRUGATE DRIVER ISRINGHAUSEN SEAT<SJA>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> SERVICED BY L=2000 ID=13	1-87410-091-0	02	1	0412-	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87410-091-0	02	1	0412-		●	●
117	TUBE; CORRUGATE SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> SERVICED BY L=2000 ID=28	1-87410-098-0	03	1	0005-0405	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=28	1-87410-098-0	03	1	0005-0405				●
117	TUBE; CORRUGATE SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> EXC. AIR HORN<WB8> SERVICED BY L=2000 ID=28	1-87410-098-0	03	1	0406-0411	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=28	1-87410-098-0	03	1	0406-0411				●
117	TUBE; CORRUGATE SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> EXC. AIR HORN<WB8> SERVICED BY L=2000 ID=28	1-87410-098-0	03	1	0412-	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=28	1-87410-098-0	03	1	0412-			●	●

118 118 106 107 139 106 107 122 52 52

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
52	CONNECTOR; NYLON TUBE DIN12 & M16 STRAIGHT	1-09660-876-0	02	1	0005-0411	●	●		●
52	CONNECTOR; NYLON TUBE DIN12 & M16 STRAIGHT	1-09660-876-0	02	1	0412-	●	●	●	●
106	NUT; FLEX HOSE M16	9-99111-416-0	02	1	0005-0411	●	●		●
106	NUT; FLEX HOSE M16	9-99111-416-0	02	1	0412-0512	●	●	●	●
106	NUT; FLEX HOSE M16	0-91111-516-0	02	1	0601-	●	●	●	●
107	WASHER; LK,FLEX HOSE ID=16.2	9-09150-516-0	02	1	0005-0411	●	●		●
107	WASHER; LK,FLEX HOSE ID=16.2	9-09150-516-0	02	1	0412-0603	●	●	●	●
107	WASHER; LK,FLEX HOSE ID=16.2	0-91510-516-0	02	1	0604-	●	●	●	●
118	PIPE; AIR,BRK VLV TO FLEX HOSE L=419	1-49115-942-3	01	1	0005-0411	●	●		●
118	PIPE; AIR,BRK VLV TO FLEX HOSE L=419	1-49115-942-3	01	1	0412-	●	●	●	●
122	CONNECTOR; FLEX HOSE M16 STRAIGHT	1-09654-380-0	01	1	0005-0411	●	●		●
122	CONNECTOR; FLEX HOSE M16 STRAIGHT	1-09654-380-0	01	1	0412-	●	●	●	●
139	WASHER; PL,CONNECTOR ID=17	9-09160-516-0	01	1	0005-0411	●	●		●
139	WASHER; PL,CONNECTOR ID=17	9-09160-516-0	01	1	0412-0605	●	●	●	●
139	WASHER; PL,CONNECTOR ID=17 OD=30	0-91610-516-0	01	1	0606-	●	●	●	●
