◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 10826 - FRR/FSR/FRD(AUST) ▶ 3 - Brakes, Brake System ▶ 3-70 - BRAKE PIPING; AIR,AIR MASTER ▶
3-70 — BRAKE PIPING; AIR,AIR MASTER (#9391) — 544 parça

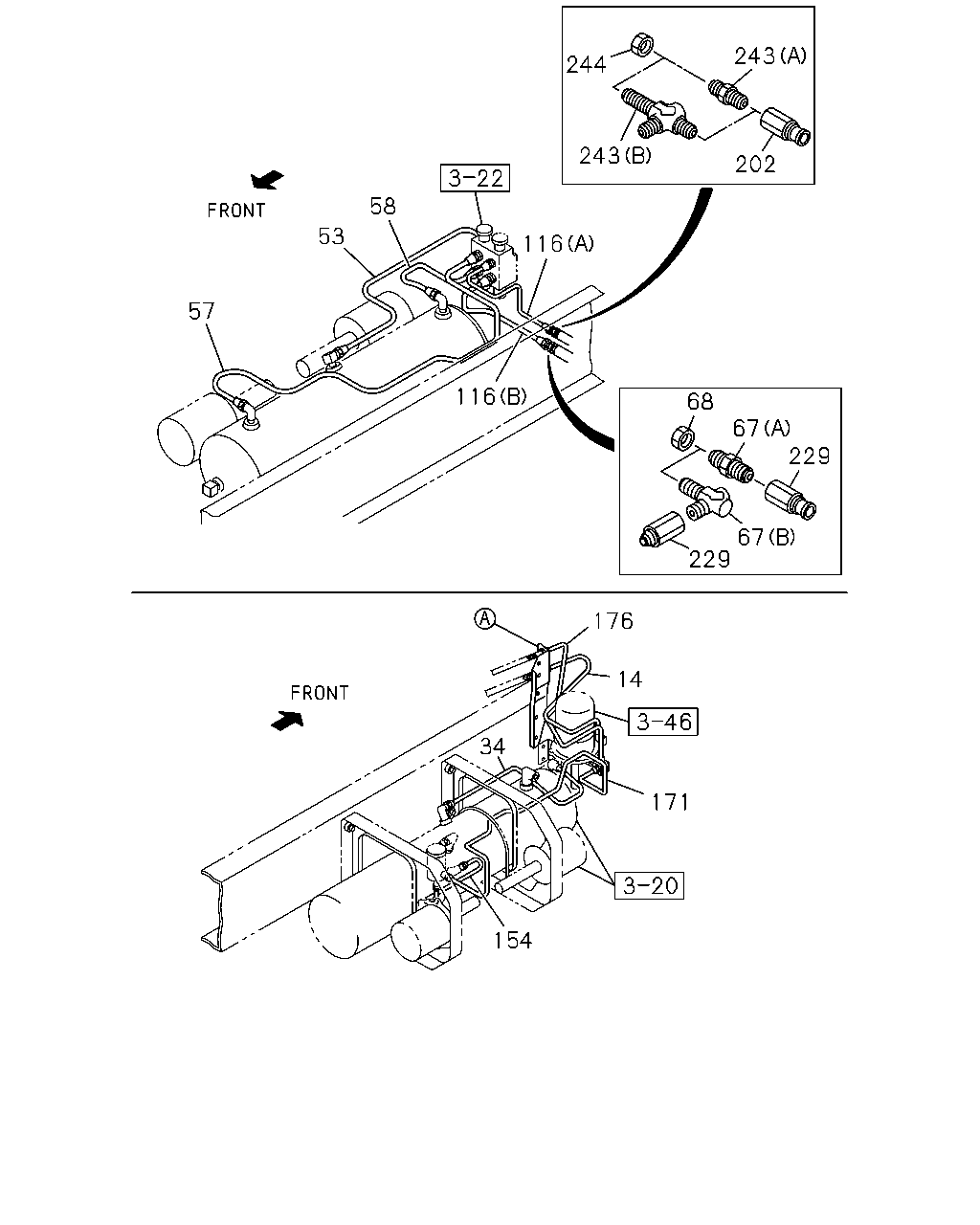

çizim 38522
243 244 243 202 58 53 116 57 116 68 67 229 67 229 176 14 34 171 154
BalonParca AdiParca NoAdetTipApplied Date A B C D
14 PIPE; AIR,FLEX HOSE TO AIR TANK 1-49114-920-0 01 1 0005-0210 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK 1-49123-691-0 01 1 0211-0411 ● ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK 1-49123-691-0 01 1 0412- ● ● ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK 1-49119-645-0 01 1 0005-0210 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HE1 TC ENG(57L) 		1-49122-483-0 01 1 0005-0210 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK 1-49122-483-0 01 1 0211- ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HH1 STD ENG(65L) 		1-49114-922-0 01 1 0005-0210 ●
34 PIPE; AIR 1-49119-150-1 01 1 0005-0411 ● ●
34 PIPE; AIR 1-49119-150-1 01 1 0412- ● ● ●
34 PIPE; AIR
6HE1 TC ENG(57L) 		1-49122-156-0 01 1 0005-0210 ●
34 PIPE; AIR 1-49122-156-0 01 1 0211- ●
34 PIPE; AIR
6HH1 STD ENG(65L) 		1-49118-293-0 01 1 0005-0210 ●
53 PIPE; AIR,AIR TANK TO VALVE 1-49118-361-0 01 1 0005-0411 ● ●
53 PIPE; AIR,AIR TANK TO VALVE 1-49118-361-0 01 1 0412- ● ● ●
57 PIPE; AIR,P/VALVE TO A/T 1-49118-725-0 01 1 0005-0411 ● ●
57 PIPE; AIR,P/VALVE TO A/T 1-49118-725-0 01 1 0412- ● ● ●
58 PIPE; AIR 1-49118-363-0 01 1 0005-0411 ● ●
58 PIPE; AIR 1-49118-363-0 01 1 0412- ● ● ●
67 JOINT; AIR PIPE
WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M16 ELBOW 		0-92135-210-0 01 1 0612- ●
67 JOINT; AIR PIPE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M16 L=74 		9-09233-310-1 01 1 0005-0607 ●
67 JOINT; AIR PIPE
(A) M16 L=74 		9-09233-310-1 01 1 0005-0607 ●
67 JOINT; AIR PIPE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M16 L=74 		0-92123-310-0 01 1 0608-0611 ●
67 JOINT; AIR PIPE
(A) M16 L=74 		0-92123-310-0 01 1 0608-0611 ●
67 JOINT; AIR PIPE
WHEEL BASE 4200MM(42W),WHEEL BASE 5100MM(51W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M16 L=74 		0-92123-310-0 01 1 0612- ●
67 JOINT; AIR PIPE
(A) M16 L=74 		0-92123-310-0 01 1 0612- ●
68 NUT; JOINT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M16 		9-99111-416-0 01 1 0005-0512 ●
68 NUT; JOINT
M16 		9-99111-416-0 01 1 0005-0512 ●
68 NUT; JOINT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M16 		0-91111-516-0 01 1 0601- ●
68 NUT; JOINT
M16 		0-91111-516-0 01 1 0601- ●
116 PIPE; AIR,PROTECTION VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) 		1-49118-537-0 01 1 0005- ●
116 PIPE; AIR,PROTECTION VLV
(B) 		1-49118-537-0 01 1 0005- ●
116 PIPE; AIR,PROTECTION VLV
(A) 		1-49118-370-0 01 1 0005-0210 ● ●
116 PIPE; AIR,PROTECTION VLV
EXHAUST BRAKE<NF8> (A) 		1-49118-370-0 01 1 0211-0411 ●
116 PIPE; AIR,PROTECTION VLV
(A) 		1-49118-370-0 01 1 0211-0411 ●
116 PIPE; AIR,PROTECTION VLV
EXHAUST BRAKE<NF8> (A) 		1-49118-370-0 01 1 0412- ●
116 PIPE; AIR,PROTECTION VLV
(A) 		1-49118-370-0 01 1 0412- ● ●
154 PIPE; AIR,AIR TANK TO AIR GOV 1-49122-146-0 01 1 0005-0411 ● ●
154 PIPE; AIR,AIR TANK TO AIR GOV 1-49122-146-0 01 1 0412- ● ● ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HE1 TC ENG(57L) 		1-49122-484-0 01 1 0005-0005 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HE1 TC ENG(57L) 		1-49122-663-0 01 1 0005-0210 ●
154 PIPE; AIR,AIR TANK TO AIR GOV 1-49122-663-0 01 1 0211- ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HH1 STD ENG(65L) 		1-49122-147-0 01 1 0005-0210 ●
171 PIPE; AIR,GOV TO AIR DRYER 1-49122-150-0 01 1 0005-0411 ● ●
171 PIPE; AIR,GOV TO AIR DRYER 1-49122-150-0 01 1 0412- ● ● ●
171 PIPE; AIR,GOV TO AIR DRYER
6HE1 TC ENG(57L) 		1-49122-153-0 01 1 0005-0005 ●
171 PIPE; AIR,GOV TO AIR DRYER
6HE1 TC ENG(57L) 		1-49122-662-0 01 1 0005-0210 ●
171 PIPE; AIR,GOV TO AIR DRYER 1-49122-662-0 01 1 0211- ●
171 PIPE; AIR,GOV TO AIR DRYER
6HH1 STD ENG(65L) L=1137 		1-49122-151-0 01 1 0005-0210 ●
176 PIPE; AIR,AIR DRYER TO UNION 1-49115-910-0 01 1 0005-0208 ●
176 PIPE; AIR,AIR DRYER TO UNION 1-49119-646-0 01 1 0005-0208 ●
176 PIPE; AIR,AIR DRYER TO UNION 1-49119-646-0 01 1 0209-0210 ● ●
176 PIPE; AIR,AIR DRYER TO UNION 1-49123-692-0 01 1 0211-0411 ● ●
176 PIPE; AIR,AIR DRYER TO UNION 1-49123-692-0 01 1 0412- ● ● ●
176 PIPE; AIR,AIR DRYER TO UNION
6HE1 TC ENG(57L) 		1-49122-485-0 01 1 0005-0210 ●
176 PIPE; AIR,AIR DRYER TO UNION 1-49122-485-0 01 1 0211- ●
176 PIPE; AIR,AIR DRYER TO UNION
6HH1 STD ENG(65L) 		1-49114-972-0 01 1 0005-0210 ●
202 ADAPTER
DIN8 & M12 STRAIGHT 		1-09661-093-0 01 1 0005-0007 ● ●
202 ADAPTER
DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0008-0210 ● ●
202 ADAPTER
EXHAUST BRAKE<NF8> DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0211-0411 ●
202 ADAPTER
DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0211-0411 ●
202 ADAPTER
EXHAUST BRAKE<NF8> DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0412- ●
202 ADAPTER
DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0412- ● ●
202 ADAPTER
DIN8 & M12 STRAIGHT 		1-09661-093-0 02 1 0005-0007 ●
202 ADAPTER
DIN8 & M12 STRAIGHT 		1-09660-873-0 02 1 0008- ●
229 ADAPTER; NYLON TUBE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) DIN12 & M16 STRAIGHT 		1-09661-096-0 01 1 0005-0007 ●
229 ADAPTER; NYLON TUBE
DIN12 & M16 STRAIGHT 		1-09661-096-0 01 1 0005-0007 ●
229 ADAPTER; NYLON TUBE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 0008- ●
229 ADAPTER; NYLON TUBE
DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 0008- ●
243 UNION; AIR PIPE
AIR ASSIST CLUTCH<PK1> (B) M12 3WAY 		9-09228-906-1 01 1 0005-0210 ● ●
243 UNION; AIR PIPE
AIR ASSIST CLUTCH<PK1> (B) M12 3WAY 		9-09228-906-1 01 1 0211-0411 ●
243 UNION; AIR PIPE
(B) M12 3WAY 		9-09228-906-1 01 1 0211-0411 ● ●
243 UNION; AIR PIPE
AIR ASSIST CLUTCH<PK1> (B) M12 3WAY 		9-09228-906-1 01 1 0412-0607 ●
243 UNION; AIR PIPE
(B) M12 3WAY 		9-09228-906-1 01 1 0412-0607 ● ● ●
243 UNION; AIR PIPE
AIR ASSIST CLUTCH<PK1> (B) M12 3WAY 		0-92138-906-0 01 1 0608- ●
243 UNION; AIR PIPE
(B) M12 3WAY 		0-92138-906-0 01 1 0608- ● ● ●
243 UNION; AIR PIPE
EXC. AIR ASSIST CLUTCH<PK1> (A) M12 L=66.5 		9-09223-306-1 01 1 0005-0210 ● ●
243 UNION; AIR PIPE
(A) M12 L=66.5 		9-09223-306-1 01 1 0005-0210 ●
244 NUT; UNION,AIR PIPE
M12 		9-09840-280-0 01 1 0005-0210 ● ● ●
244 NUT; UNION,AIR PIPE
EXHAUST BRAKE<NF8> M12 		9-09840-280-0 01 1 0211-0411 ●
244 NUT; UNION,AIR PIPE
M12 		9-09840-280-0 01 1 0211-0411 ● ●
244 NUT; UNION,AIR PIPE
EXHAUST BRAKE<NF8> M12 		9-09840-280-0 01 1 0412- ●
244 NUT; UNION,AIR PIPE
M12 		9-09840-280-0 01 1 0412- ● ● ●

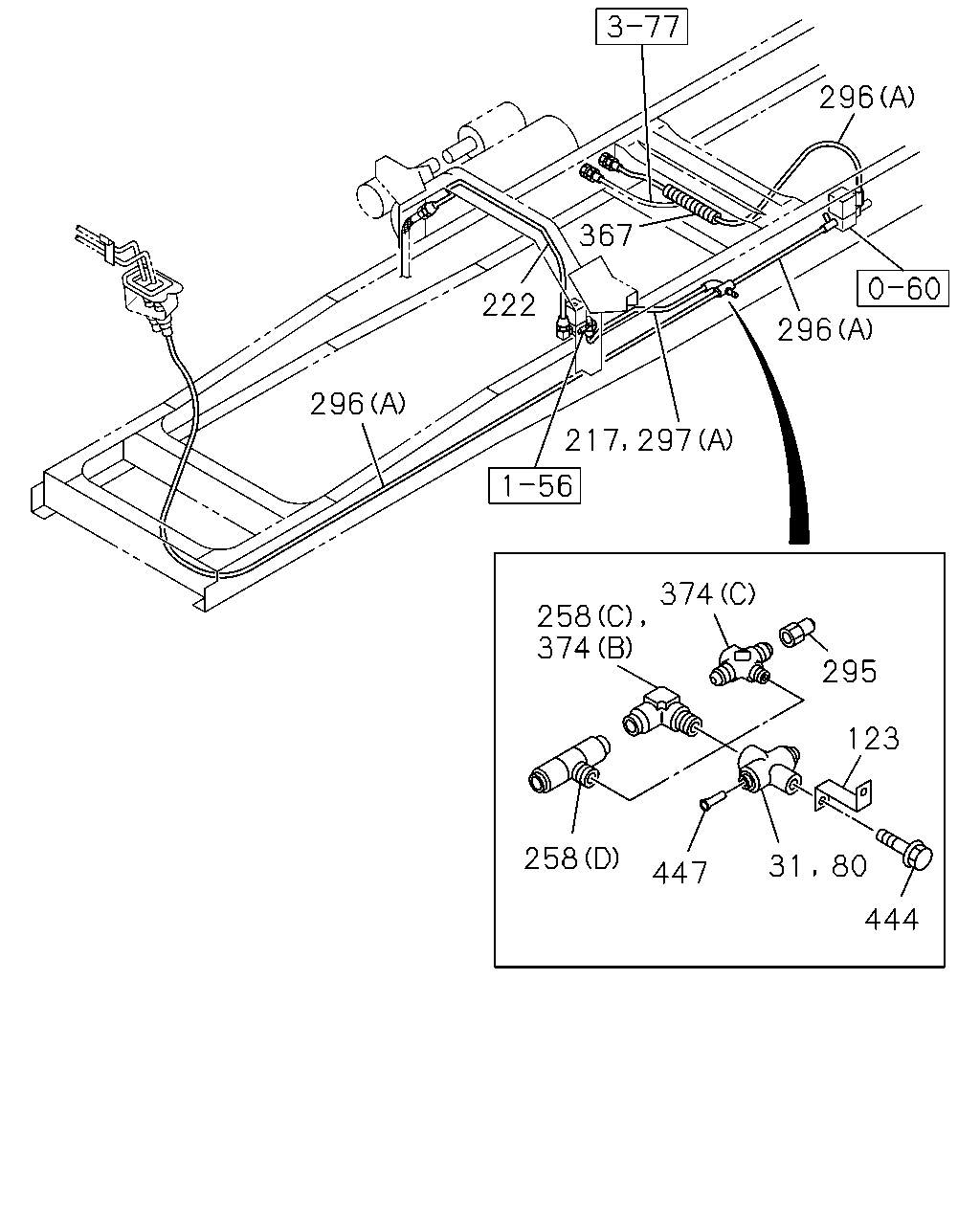

çizim 38906
296 367 222 296 296 374 258 374 295 123 258 31 80 447 444 217 297
BalonParca AdiParca NoAdetTipApplied Date A B C D
31 UNION; 3 WAY 1-09661-270-0 01 1 0412- ●
31 UNION; 3 WAY
EXHAUST BRAKE<NF8> EXC. DRIVER ISRINGHAUSEN SEAT<SJA> DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0211-0405 ●
31 UNION; 3 WAY
EXHAUST BRAKE<NF8> EXC. DRIVER ISRINGHAUSEN SEAT<SJA>,AIR HORN<WB8> DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0406- ●
80 UNION; 3 WAY
EXC. EXHAUST BRAKE<NF8>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0005-0005 ●
80 UNION; 3 WAY
EXHAUST BRAKE<NF8> DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0005-0005 ●
80 UNION; 3 WAY
DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0005-0005 ● ●
80 UNION; 3 WAY
DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0005-0005 ●
80 UNION; 3 WAY
EXC. EXHAUST BRAKE<NF8>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0006-0210 ●
80 UNION; 3 WAY
EXHAUST BRAKE<NF8> DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0006-0210 ●
80 UNION; 3 WAY
DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0006-0210 ● ●
80 UNION; 3 WAY
EXHAUST BRAKE<NF8> DRIVER ISRINGHAUSEN SEAT<SJA> DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0211-0405 ●
80 UNION; 3 WAY
DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0211-0405 ● ●
80 UNION; 3 WAY
EXHAUST BRAKE<NF8> DRIVER ISRINGHAUSEN SEAT<SJA> DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0406- ●
80 UNION; 3 WAY
EXHAUST BRAKE<NF8> AIR HORN<WB8> EXC. DRIVER ISRINGHAUSEN SEAT<SJA> DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0406- ●
80 UNION; 3 WAY
DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0406- ● ●
123 BRACKET; UNION
EXHAUST BRAKE<NF8> SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> 		1-47478-113-0 01 1 0006-0210 ●
217 PIPE; VAC,UNION TO MAG VLV
6HK1 TCC ENG(81L),6HK1 TCN ENG(82L) EXHAUST BRAKE<NF8> ASSISTOR SHIFT CONTROL<WX8> L=752 		1-49124-513-0 01 1 0406-0411 ●
217 PIPE; VAC,UNION TO MAG VLV
6HK1 TCC ENG(81L),6HK1 TCN ENG(82L) EXHAUST BRAKE<NF8> ASSISTOR SHIFT CONTROL<WX8> L=752 		1-49124-513-0 01 1 0412- ●
217 PIPE; VAC,UNION TO MAG VLV
6HK1 TCN ENG(82L) ASSISTOR SHIFT CONTROL<WX8> L=752 		1-49124-513-0 01 1 0412- ●
217 PIPE; VAC,UNION TO MAG VLV
6HK1 TCC ENG(81L) ASSISTOR SHIFT CONTROL<WX8> L=774 		1-49124-514-0 01 1 0406- ●
217 PIPE; VAC,UNION TO MAG VLV
6HK1 TCS ENG(80L) EXHAUST BRAKE<NF8> L=719 SERVICED BY L=800 		1-47428-812-0 01 1 0307- ●
217 PIPE; VAC,UNION TO MAG VLV
6HK1 TCS ENG(80L) L=733 SERVICED BY L=800 		1-47428-812-0 01 1 0307- ●
217 PIPE; VAC,UNION TO MAG VLV
EXHAUST BRAKE<NF8> 		1-49123-701-0 01 1 0211-0305 ●
217 PIPE; VAC,UNION TO MAG VLV
6HK1 TCC ENG(81L),6HK1 TCN ENG(82L) EXHAUST BRAKE<NF8> 		1-49123-701-0 01 1 0306-0405 ●
217 PIPE; VAC,UNION TO MAG VLV
6HK1 TCC ENG(81L),6HK1 TCN ENG(82L) EXHAUST BRAKE<NF8> EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-49123-701-0 01 1 0406-0411 ●
217 PIPE; VAC,UNION TO MAG VLV
6HK1 TCC ENG(81L),6HK1 TCN ENG(82L) EXHAUST BRAKE<NF8> EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-49123-701-0 01 1 0412- ●
217 PIPE; VAC,UNION TO MAG VLV
6HK1 TCN ENG(82L) EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-49123-701-0 01 1 0412- ●
217 PIPE; VAC,UNION TO MAG VLV 1-49123-702-0 01 1 0211-0212 ●
217 PIPE; VAC,UNION TO MAG VLV 1-49123-929-0 01 1 0301-0305 ●
217 PIPE; VAC,UNION TO MAG VLV
6HK1 TCC ENG(81L) 		1-49123-929-0 01 1 0306-0405 ●
217 PIPE; VAC,UNION TO MAG VLV
6HK1 TCC ENG(81L) EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-49123-929-0 01 1 0406- ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
6HK1 TCS ENG(80L) EXHAUST BRAKE<NF8> L=1257 SERVICED BY L=1250 		1-47428-817-0 01 1 0307- ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
6HK1 TCS ENG(80L) L=1257 SERVICED BY L=1250 		1-47428-817-0 01 1 0307- ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
6HE1 TC ENG(57L) EXHAUST BRAKE<NF8> L=1011 SERVICED BY L=1100 		1-47426-351-0 01 1 0005-0210 ● ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
EXHAUST BRAKE<NF8> L=1072 SERVICED BY L=1100 		1-47428-815-0 01 1 0211-0305 ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
L=1072 SERVICED BY L=1100 		1-47428-815-0 01 1 0211-0305 ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
6HK1 TCC ENG(81L),6HK1 TCN ENG(82L) EXHAUST BRAKE<NF8> L=1072 SERVICED BY L=1100 		1-47428-815-0 01 1 0306-0411 ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
6HK1 TCC ENG(81L) L=1072 SERVICED BY L=1100 		1-47428-815-0 01 1 0306-0411 ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
6HK1 TCC ENG(81L),6HK1 TCN ENG(82L) EXHAUST BRAKE<NF8> L=1072 SERVICED BY L=1100 		1-47428-815-0 01 1 0412- ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
6HK1 TCC ENG(81L) L=1072 SERVICED BY L=1100 		1-47428-815-0 01 1 0412- ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
6HK1 TCN ENG(82L) L=1072 SERVICED BY L=1100 		1-47428-815-0 01 1 0412- ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
6HH1 STD ENG(65L),6HH1 N ENG(66L) EXHAUST BRAKE<NF8> L=1078 SERVICED BY L=1100 		1-47434-387-0 01 1 0005-0210 ● ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
L=1042 SERVICED BY L=1100 		1-47428-815-0 01 1 0005-0005 ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
L=1046 SERVICED BY L=1100 		1-47428-815-0 01 1 0005-0210 ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE 1-49123-693-0 01 1 0211- ●
258 CONNECTOR; NYLON TUBE
EXC. DRIVER ISRINGHAUSEN SEAT<SJA>,AIR HORN<WB8> (B) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0408-0410 ●
258 CONNECTOR; NYLON TUBE
(B) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0408-0410 ●
258 CONNECTOR; NYLON TUBE
EXC. AIR HORN<WB8> (B) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0408-0410 ●
258 CONNECTOR; NYLON TUBE
DRIVER ISRINGHAUSEN SEAT<SJA> AIR HORN<WB8> (B) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0411- ●
258 CONNECTOR; NYLON TUBE
AIR HORN<WB8> (B) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0411- ●
258 CONNECTOR; NYLON TUBE
DRIVER ISRINGHAUSEN SEAT<SJA> (A) DIN6 & R1/8 STRAIGHT 		1-09660-691-1 01 1 0005-0302 ●
258 CONNECTOR; NYLON TUBE
(A) DIN6 & R1/8 STRAIGHT 		1-09660-691-1 01 1 0005-0302 ● ●
258 CONNECTOR; NYLON TUBE
DRIVER ISRINGHAUSEN SEAT<SJA> (A) DIN6 R1/8 STRAIGHT 		1-09660-759-1 01 1 0303- ●
258 CONNECTOR; NYLON TUBE
(A) DIN6 R1/8 STRAIGHT 		1-09660-759-1 01 1 0303- ● ●
258 CONNECTOR; NYLON TUBE
DRIVER ISRINGHAUSEN SEAT<SJA> (B) DIN8 & M16 STRAIGHT 		1-09661-095-0 01 1 0005-0007 ●
258 CONNECTOR; NYLON TUBE
(B) DIN8 & M16 STRAIGHT 		1-09661-095-0 01 1 0005-0007 ● ●
258 CONNECTOR; NYLON TUBE
DRIVER ISRINGHAUSEN SEAT<SJA> (B) DIN8 & M16 STRAIGHT 		1-09660-875-0 01 1 0008-0407 ●
258 CONNECTOR; NYLON TUBE
(B) DIN8 & M16 STRAIGHT 		1-09660-875-0 01 1 0008-0407 ● ●
258 CONNECTOR; NYLON TUBE
DRIVER ISRINGHAUSEN SEAT<SJA> EXC. AIR HORN<WB8> (B) DIN8 & M16 STRAIGHT 		1-09660-875-0 01 1 0408- ●
258 CONNECTOR; NYLON TUBE
(B) DIN8 & M16 STRAIGHT 		1-09660-875-0 01 1 0408- ●
258 CONNECTOR; NYLON TUBE
EXC. AIR HORN<WB8> (B) DIN8 & M16 STRAIGHT 		1-09660-875-0 01 1 0408- ●
258 CONNECTOR; NYLON TUBE
EXHAUST BRAKE<NF8> SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0005-0005 ●
258 CONNECTOR; NYLON TUBE
EXC. EXHAUST BRAKE<NF8>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0005-0005 ●
258 CONNECTOR; NYLON TUBE
EXHAUST BRAKE<NF8> SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0006-0210 ●
258 CONNECTOR; NYLON TUBE
EXC. EXHAUST BRAKE<NF8>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0006-0210 ●
258 CONNECTOR; NYLON TUBE
(C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0211- ●
258 CONNECTOR; NYLON TUBE
EXHAUST BRAKE<NF8> EXC. SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (D) DIN8X2 & R3/8 3WAY 		1-09660-996-0 01 1 0005-0210 ●
258 CONNECTOR; NYLON TUBE
(D) DIN8X2 & R3/8 3WAY 		1-09660-996-0 01 1 0005-0210 ● ●
258 CONNECTOR; NYLON TUBE
EXHAUST BRAKE<NF8> DRIVER ISRINGHAUSEN SEAT<SJA> (C) M12 & PT3/8 ELBOW 		1-09650-436-0 01 1 0211-0405 ●
258 CONNECTOR; NYLON TUBE
(C) M12 & PT3/8 ELBOW 		1-09650-436-0 01 1 0211-0405 ●
258 CONNECTOR; NYLON TUBE
EXHAUST BRAKE<NF8> DRIVER ISRINGHAUSEN SEAT<SJA> (C) M12 & PT3/8 ELBOW 		1-09650-436-0 01 1 0406- ●
258 CONNECTOR; NYLON TUBE
EXHAUST BRAKE<NF8> AIR HORN<WB8> EXC. DRIVER ISRINGHAUSEN SEAT<SJA> (C) M12 & PT3/8 ELBOW 		1-09650-436-0 01 1 0406- ●
258 CONNECTOR; NYLON TUBE
(C) M12 & PT3/8 ELBOW 		1-09650-436-0 01 1 0406- ●
295 CONNECTOR; NYLON TUBE
DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0412- ●
296 TUBE; NYLON
DRIVER ISRINGHAUSEN SEAT<SJA> (C) L=1200 OD=6 		1-09366-256-1 01 1 0005- ●
296 TUBE; NYLON
(C) L=1200 OD=6 		1-09366-256-1 01 1 0005- ● ●
296 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0005-0210 ● ●
296 TUBE; NYLON
EXHAUST BRAKE<NF8> (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0211-0212 ●
296 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0211-0212 ●
296 TUBE; NYLON
EXHAUST BRAKE<NF8> (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0301-0411 ●
296 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0301-0411 ● ●
296 TUBE; NYLON
EXHAUST BRAKE<NF8> (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0412-0611 ●
296 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0412-0611 ● ● ●
296 TUBE; NYLON
EXHAUST BRAKE<NF8> EXC. PTO CONTROL<SV6> (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0612- ●
296 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0612- ● ● ●
296 TUBE; NYLON
(B) SERVICED BY L=2000 OD=12 		1-87410-069-0 02 1 0005-0212 ●
296 TUBE; NYLON
(B) SERVICED BY L=2000 OD=12 		1-87411-011-0 02 1 0301- ●
296 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87410-073-0 02 1 0005-0212 ●
296 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0301-0611 ●
296 TUBE; NYLON
PTO CONTROL<SV6> (A) SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0612- ●
296 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0612- ●
297 TUBE; NYLON
EXHAUST BRAKE<NF8> (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0005-0210 ●
297 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0005-0210 ● ●
297 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0211- ●
297 TUBE; NYLON
(B) SERVICED BY L=2000 OD=12 		1-87410-069-0 01 1 0005-0212 ●
297 TUBE; NYLON
(B) SERVICED BY L=2000 OD=12 		1-87411-011-0 01 1 0301- ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 0005-0007 ● ● ●
367 TUBE; CORRUGATE
EXC. SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 0008-0210 ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 0008-0210 ● ●
367 TUBE; CORRUGATE
EXHAUST BRAKE<NF8> SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 0211-0411 ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 0211-0411 ● ●
367 TUBE; CORRUGATE
EXHAUST BRAKE<NF8> SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 0412-0611 ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 0412-0611 ● ● ●
367 TUBE; CORRUGATE
EXHAUST BRAKE<NF8> EXC. PTO CONTROL<SV6> SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 0612- ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 0612- ● ● ●
374 CONNECTOR
(C) M12X2 & PT1/4 3WAY 		1-09656-229-1 01 1 0412- ●
374 CONNECTOR
EXHAUST BRAKE<NF8> EXC. DRIVER ISRINGHAUSEN SEAT<SJA> (B) M12 & PT3/8 ELBOW 		1-09650-436-0 01 1 0211-0405 ●
374 CONNECTOR
EXHAUST BRAKE<NF8> EXC. DRIVER ISRINGHAUSEN SEAT<SJA>,AIR HORN<WB8> (B) M12 & PT3/8 ELBOW 		1-09650-436-0 01 1 0406- ●
374 CONNECTOR
(A) 		1-09656-721-0 01 1 0005-0103 ● ● ●
374 CONNECTOR
(A) 		1-09656-754-0 01 1 0104-0411 ● ● ●
374 CONNECTOR
(A) 		1-09656-754-0 01 1 0412- ● ● ● ●
444 BOLT; UNION
EXHAUST BRAKE<NF8> SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> M8X16 FLANGE 		0-28080-816-0 01 1 0006-0210 ●
444 BOLT; UNION
M8X25 FLANGE 		0-28680-825-0 01 1 0005-0210 ● ● ●
444 BOLT; UNION
EXHAUST BRAKE<NF8> M8X25 FLANGE 		0-28680-825-0 01 1 0211-0411 ●
444 BOLT; UNION
M8X25 FLANGE 		0-28680-825-0 01 1 0211-0411 ● ●
444 BOLT; UNION
EXHAUST BRAKE<NF8> M8X25 FLANGE 		0-28680-825-0 01 1 0412-0512 ●
444 BOLT; UNION
M8X25 FLANGE 		0-28680-825-0 01 1 0412-0512 ● ● ●
444 BOLT; UNION
EXHAUST BRAKE<NF8> M8X25 FLANGE 		0-28650-825-0 01 1 0601- ●
444 BOLT; UNION
M8X25 FLANGE 		0-28650-825-0 01 1 0601- ● ● ●
447 PLUG; UNION
EXHAUST BRAKE<NF8> EXC. DRIVER ISRINGHAUSEN SEAT<SJA> 		1-09661-563-0 01 1 0211-0304 ●
447 PLUG; UNION
EXHAUST BRAKE<NF8> EXC. DRIVER ISRINGHAUSEN SEAT<SJA> OD=8 		1-09661-616-0 01 1 0305-0405 ●
447 PLUG; UNION
EXHAUST BRAKE<NF8> EXC. DRIVER ISRINGHAUSEN SEAT<SJA>,AIR HORN<WB8> OD=8 		1-09661-616-0 01 1 0406-0411 ●
447 PLUG; UNION
EXHAUST BRAKE<NF8> EXC. DRIVER ISRINGHAUSEN SEAT<SJA>,AIR HORN<WB8> OD=8 		1-09661-616-0 01 1 0412- ●
447 PLUG; UNION
OD=8 		1-09661-616-0 01 1 0412- ●

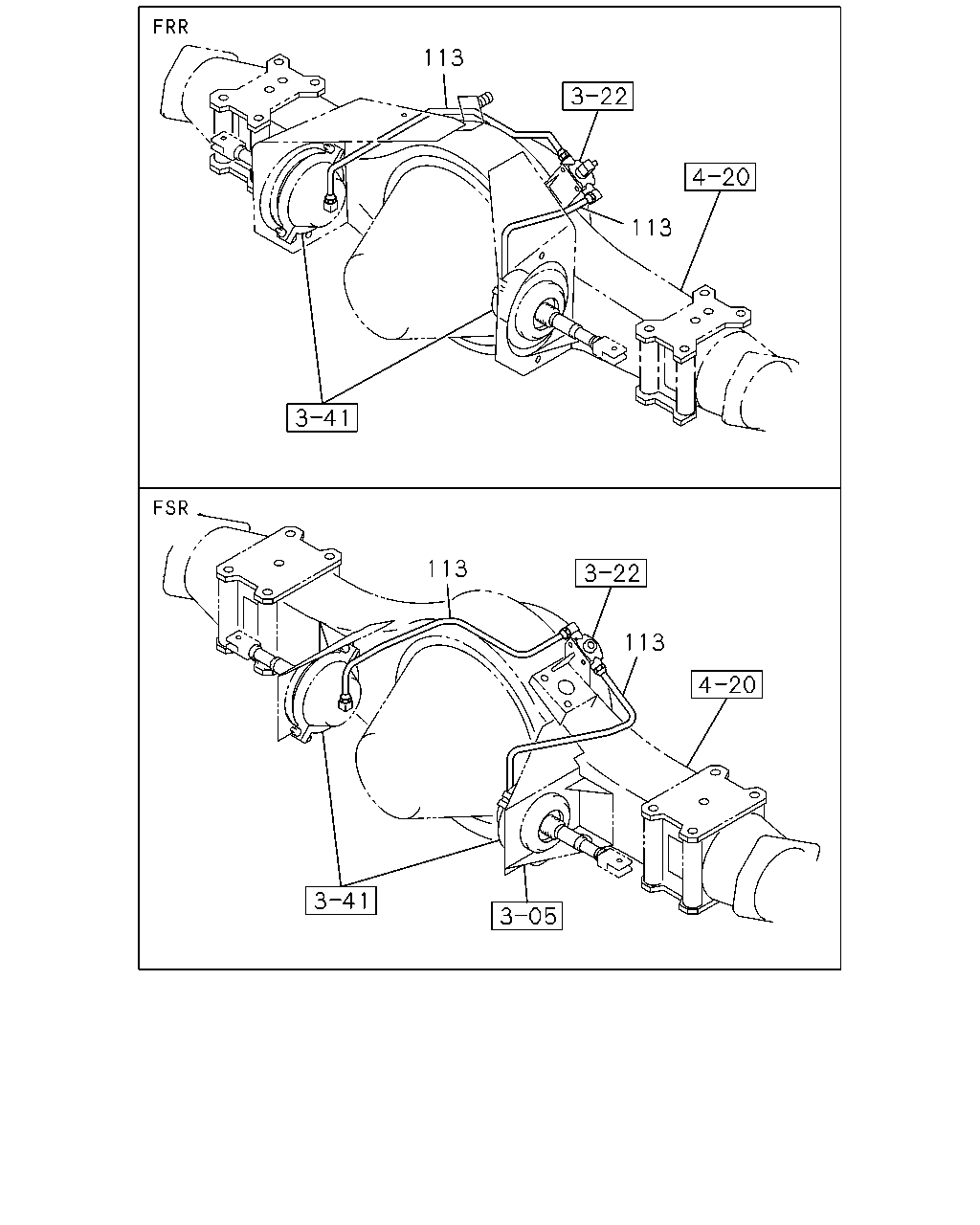

çizim 38907
113 113 113 113
BalonParca AdiParca NoAdetTipApplied Date A B C D
113 PIPE; AIR,QUICK RELAY VLV TO SPR CHAMB
FINAL GEAR 39/9 14.5" HYPOID(W4X) L=324 		1-49112-659-0 01 1 0005-0210 ●
113 PIPE; AIR,QUICK RELAY VLV TO SPR CHAMB
FINAL GEAR 38/8 13.5" HYPOID(W1A),FINAL GEAR 39/9 13.5" HYPOID(W1N),FINAL GEAR 41/8 13.5" HYPOID(W4E) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=324 		1-49112-659-0 01 1 0005-0210 ●
113 PIPE; AIR,QUICK RELAY VLV TO SPR CHAMB
L=324 		1-49112-659-0 01 1 0005-0210 ●
113 PIPE; AIR,QUICK RELAY VLV TO SPR CHAMB
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=324 		1-49112-659-0 01 1 0211- ●
113 PIPE; AIR,QUICK RELAY VLV TO SPR CHAMB
L=324 		1-49112-659-0 01 1 0211- ●
113 PIPE; AIR,QUICK RELAY VLV TO SPR CHAMB
FINAL GEAR 39/9 14.5" HYPOID(W4X) L=635 		1-49112-658-0 01 1 0005-0210 ●
113 PIPE; AIR,QUICK RELAY VLV TO SPR CHAMB
FINAL GEAR 38/8 13.5" HYPOID(W1A),FINAL GEAR 39/9 13.5" HYPOID(W1N),FINAL GEAR 41/8 13.5" HYPOID(W4E) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=635 		1-49112-658-0 01 1 0005-0210 ●
113 PIPE; AIR,QUICK RELAY VLV TO SPR CHAMB
L=635 		1-49112-658-0 01 1 0005-0210 ●
113 PIPE; AIR,QUICK RELAY VLV TO SPR CHAMB
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=635 		1-49112-658-0 01 1 0211- ●
113 PIPE; AIR,QUICK RELAY VLV TO SPR CHAMB
L=635 		1-49112-658-0 01 1 0211- ●
113 PIPE; AIR,QUICK RELAY VLV TO SPR CHAMB
L=409 SERVICED BY L=600 		1-47426-379-0 01 1 0005- ●
113 PIPE; AIR,QUICK RELAY VLV TO SPR CHAMB 1-49112-660-0 01 1 0005- ●

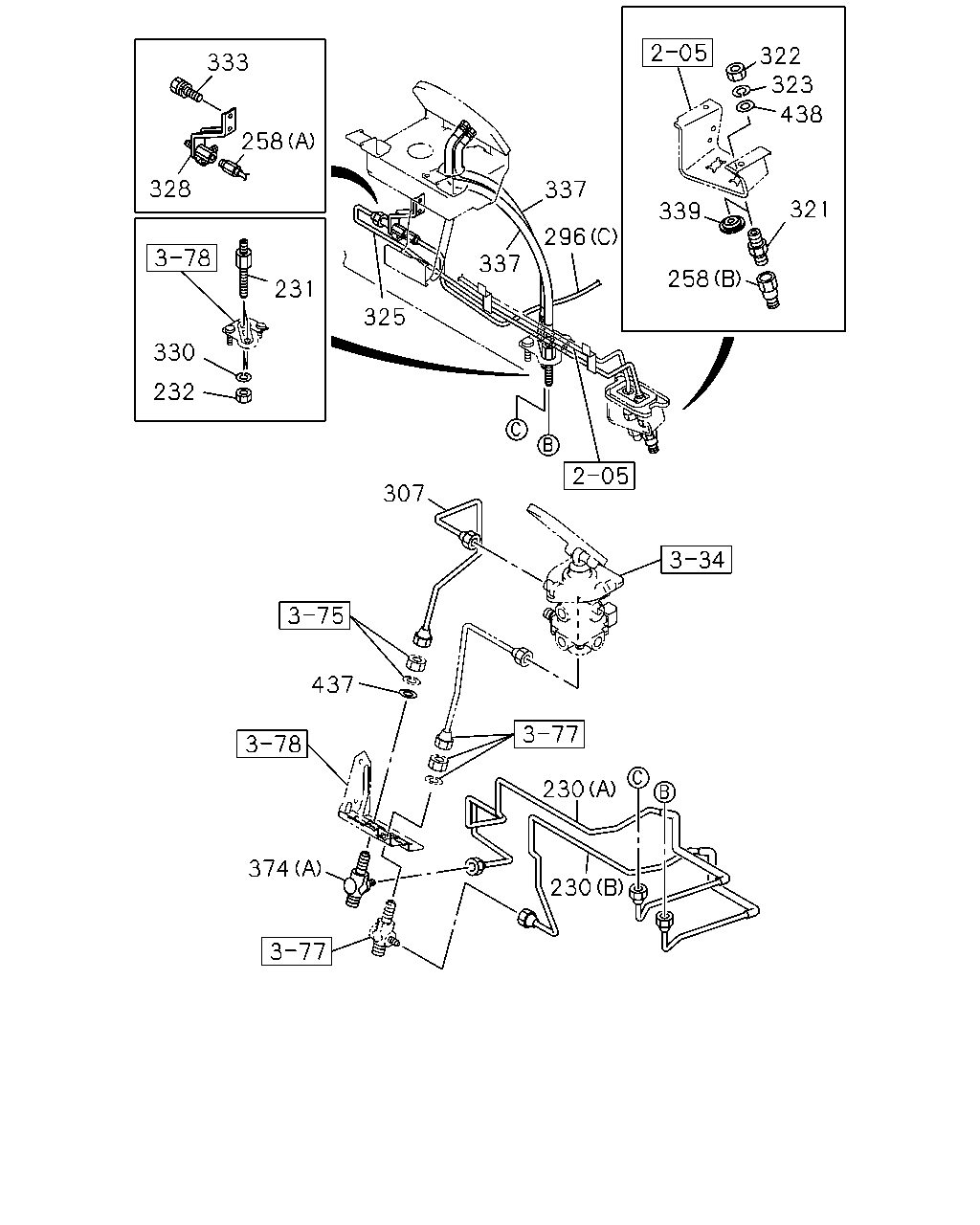

çizim 38908
322 323 333 438 258 328 337 321 339 296 337 258 231 325 330 232 307 437 230 374 230
BalonParca AdiParca NoAdetTipApplied Date A B C D
230 PIPE; AIR,UNION TO UNION
(A) 		1-49116-429-1 01 1 0005-0103 ● ● ●
230 PIPE; AIR,UNION TO UNION
(A) 		1-49122-777-0 01 1 0104-0411 ● ● ●
230 PIPE; AIR,UNION TO UNION
(A) 		1-49122-777-0 01 1 0412- ● ● ● ●
230 PIPE; AIR,UNION TO UNION
(B) 		1-49116-430-1 01 1 0005-0103 ● ● ●
230 PIPE; AIR,UNION TO UNION
(B) 		1-49122-778-0 01 1 0104-0411 ● ● ●
230 PIPE; AIR,UNION TO UNION
(B) 		1-49122-778-0 01 1 0412- ● ● ● ●
231 UNION; AIR PIPE
M10 STRAIGHT 		1-09654-361-0 02 1 0005-0411 ● ● ●
231 UNION; AIR PIPE
M10 STRAIGHT 		1-09654-361-0 02 1 0412- ● ● ● ●
232 NUT; UNION,AIR PIPE
M10 H=8 		1-09400-029-0 02 1 0005-0411 ● ● ●
232 NUT; UNION,AIR PIPE
M10 H=8 		1-09400-029-0 02 1 0412- ● ● ● ●
258 CONNECTOR; NYLON TUBE
EXC. DRIVER ISRINGHAUSEN SEAT<SJA>,AIR HORN<WB8> (B) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0408-0410 ●
258 CONNECTOR; NYLON TUBE
(B) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0408-0410 ●
258 CONNECTOR; NYLON TUBE
EXC. AIR HORN<WB8> (B) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0408-0410 ●
258 CONNECTOR; NYLON TUBE
DRIVER ISRINGHAUSEN SEAT<SJA> AIR HORN<WB8> (B) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0411- ●
258 CONNECTOR; NYLON TUBE
AIR HORN<WB8> (B) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0411- ●
258 CONNECTOR; NYLON TUBE
DRIVER ISRINGHAUSEN SEAT<SJA> (A) DIN6 & R1/8 STRAIGHT 		1-09660-691-1 01 1 0005-0302 ●
258 CONNECTOR; NYLON TUBE
(A) DIN6 & R1/8 STRAIGHT 		1-09660-691-1 01 1 0005-0302 ● ●
258 CONNECTOR; NYLON TUBE
DRIVER ISRINGHAUSEN SEAT<SJA> (A) DIN6 R1/8 STRAIGHT 		1-09660-759-1 01 1 0303- ●
258 CONNECTOR; NYLON TUBE
(A) DIN6 R1/8 STRAIGHT 		1-09660-759-1 01 1 0303- ● ●
258 CONNECTOR; NYLON TUBE
DRIVER ISRINGHAUSEN SEAT<SJA> (B) DIN8 & M16 STRAIGHT 		1-09661-095-0 01 1 0005-0007 ●
258 CONNECTOR; NYLON TUBE
(B) DIN8 & M16 STRAIGHT 		1-09661-095-0 01 1 0005-0007 ● ●
258 CONNECTOR; NYLON TUBE
DRIVER ISRINGHAUSEN SEAT<SJA> (B) DIN8 & M16 STRAIGHT 		1-09660-875-0 01 1 0008-0407 ●
258 CONNECTOR; NYLON TUBE
(B) DIN8 & M16 STRAIGHT 		1-09660-875-0 01 1 0008-0407 ● ●
258 CONNECTOR; NYLON TUBE
DRIVER ISRINGHAUSEN SEAT<SJA> EXC. AIR HORN<WB8> (B) DIN8 & M16 STRAIGHT 		1-09660-875-0 01 1 0408- ●
258 CONNECTOR; NYLON TUBE
(B) DIN8 & M16 STRAIGHT 		1-09660-875-0 01 1 0408- ●
258 CONNECTOR; NYLON TUBE
EXC. AIR HORN<WB8> (B) DIN8 & M16 STRAIGHT 		1-09660-875-0 01 1 0408- ●
258 CONNECTOR; NYLON TUBE
EXHAUST BRAKE<NF8> SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0005-0005 ●
258 CONNECTOR; NYLON TUBE
EXC. EXHAUST BRAKE<NF8>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0005-0005 ●
258 CONNECTOR; NYLON TUBE
EXHAUST BRAKE<NF8> SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0006-0210 ●
258 CONNECTOR; NYLON TUBE
EXC. EXHAUST BRAKE<NF8>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0006-0210 ●
258 CONNECTOR; NYLON TUBE
(C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0211- ●
258 CONNECTOR; NYLON TUBE
EXHAUST BRAKE<NF8> EXC. SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (D) DIN8X2 & R3/8 3WAY 		1-09660-996-0 01 1 0005-0210 ●
258 CONNECTOR; NYLON TUBE
(D) DIN8X2 & R3/8 3WAY 		1-09660-996-0 01 1 0005-0210 ● ●
258 CONNECTOR; NYLON TUBE
EXHAUST BRAKE<NF8> DRIVER ISRINGHAUSEN SEAT<SJA> (C) M12 & PT3/8 ELBOW 		1-09650-436-0 01 1 0211-0405 ●
258 CONNECTOR; NYLON TUBE
(C) M12 & PT3/8 ELBOW 		1-09650-436-0 01 1 0211-0405 ●
258 CONNECTOR; NYLON TUBE
EXHAUST BRAKE<NF8> DRIVER ISRINGHAUSEN SEAT<SJA> (C) M12 & PT3/8 ELBOW 		1-09650-436-0 01 1 0406- ●
258 CONNECTOR; NYLON TUBE
EXHAUST BRAKE<NF8> AIR HORN<WB8> EXC. DRIVER ISRINGHAUSEN SEAT<SJA> (C) M12 & PT3/8 ELBOW 		1-09650-436-0 01 1 0406- ●
258 CONNECTOR; NYLON TUBE
(C) M12 & PT3/8 ELBOW 		1-09650-436-0 01 1 0406- ●
296 TUBE; NYLON
DRIVER ISRINGHAUSEN SEAT<SJA> (C) L=1200 OD=6 		1-09366-256-1 01 1 0005- ●
296 TUBE; NYLON
(C) L=1200 OD=6 		1-09366-256-1 01 1 0005- ● ●
296 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0005-0210 ● ●
296 TUBE; NYLON
EXHAUST BRAKE<NF8> (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0211-0212 ●
296 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0211-0212 ●
296 TUBE; NYLON
EXHAUST BRAKE<NF8> (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0301-0411 ●
296 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0301-0411 ● ●
296 TUBE; NYLON
EXHAUST BRAKE<NF8> (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0412-0611 ●
296 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0412-0611 ● ● ●
296 TUBE; NYLON
EXHAUST BRAKE<NF8> EXC. PTO CONTROL<SV6> (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0612- ●
296 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0612- ● ● ●
296 TUBE; NYLON
(B) SERVICED BY L=2000 OD=12 		1-87410-069-0 02 1 0005-0212 ●
296 TUBE; NYLON
(B) SERVICED BY L=2000 OD=12 		1-87411-011-0 02 1 0301- ●
296 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87410-073-0 02 1 0005-0212 ●
296 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0301-0611 ●
296 TUBE; NYLON
PTO CONTROL<SV6> (A) SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0612- ●
296 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0612- ●
307 PIPE; AIR,FLEX HOSE TO BRK VLV
L=421 		1-49121-486-0 01 1 0005-0411 ● ● ●
307 PIPE; AIR,FLEX HOSE TO BRK VLV
L=421 		1-49121-486-0 01 1 0412- ● ● ● ●
321 JOINT; FLEX HOSE
DRIVER ISRINGHAUSEN SEAT<SJA> AIR HORN<WB8> 		1-09656-728-1 01 1 0406-0407 ●
321 JOINT; FLEX HOSE
AIR HORN<WB8> 		1-09656-728-1 01 1 0406-0407 ●
321 JOINT; FLEX HOSE
DRIVER ISRINGHAUSEN SEAT<SJA> AIR HORN<WB8> 		1-09656-712-0 01 1 0408- ●
321 JOINT; FLEX HOSE
AIR HORN<WB8> 		1-09656-712-0 01 1 0408- ●
321 JOINT; FLEX HOSE
DRIVER ISRINGHAUSEN SEAT<SJA> 		1-09656-738-0 01 1 0005-0405 ●
321 JOINT; FLEX HOSE 1-09656-738-0 01 1 0005-0405 ● ●
321 JOINT; FLEX HOSE
DRIVER ISRINGHAUSEN SEAT<SJA> EXC. AIR HORN<WB8> 		1-09656-738-0 01 1 0406- ●
321 JOINT; FLEX HOSE 1-09656-738-0 01 1 0406- ●
321 JOINT; FLEX HOSE
EXC. AIR HORN<WB8> 		1-09656-738-0 01 1 0406- ●
322 NUT; JOINT,FLEX HOSE
DRIVER ISRINGHAUSEN SEAT<SJA> M10 H=8 		1-09400-029-0 01 1 0005- ●
322 NUT; JOINT,FLEX HOSE
M10 H=8 		1-09400-029-0 01 1 0005- ● ●
323 WASHER; LK,JOINT
DRIVER ISRINGHAUSEN SEAT<SJA> ID=10.2 		9-09150-510-0 01 1 0005-0603 ●
323 WASHER; LK,JOINT
ID=10.2 		9-09150-510-0 01 1 0005-0603 ● ●
323 WASHER; LK,JOINT
DRIVER ISRINGHAUSEN SEAT<SJA> ID=10.2 		0-91510-510-0 01 1 0604- ●
323 WASHER; LK,JOINT
ID=10.2 		0-91510-510-0 01 1 0604- ● ●
325 PIPE; AIR,FLEX HOSE TO UNION
DRIVER ISRINGHAUSEN SEAT<SJA> 		1-47492-452-2 01 1 0005- ●
325 PIPE; AIR,FLEX HOSE TO UNION 1-47492-452-2 01 1 0005- ● ●
328 UNION; AIR PIPE
DRIVER ISRINGHAUSEN SEAT<SJA> 		1-47470-392-0 01 1 0005- ●
328 UNION; AIR PIPE 1-47470-392-0 01 1 0005- ● ●
330 WASHER; LK,UNION,AIR PIPE
ID=10.2 		9-09150-510-0 02 1 0005-0411 ● ● ●
330 WASHER; LK,UNION,AIR PIPE
ID=10.2 		9-09150-510-0 02 1 0412-0603 ● ● ● ●
330 WASHER; LK,UNION,AIR PIPE
ID=10.2 		0-91510-510-0 02 1 0604- ● ● ● ●
333 BOLT; PIPE UNION
DRIVER ISRINGHAUSEN SEAT<SJA> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0005- ●
333 BOLT; PIPE UNION
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0005- ● ●
337 HOSE; FLEX,UNION TO AIR PRESS GAGE
L=720 		0-07210-720-0 02 1 0005-0411 ● ● ●
337 HOSE; FLEX,UNION TO AIR PRESS GAGE
L=720 		0-07210-720-0 02 1 0412-0608 ● ● ● ●
337 HOSE; FLEX,UNION TO AIR PRESS GAGE
L=720 		0-57210-720-0 02 1 0609- ● ● ● ●
339 GROMMET; AIR PIPE
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> OD=28 		8-94279-720-0 01 1 0005-0411 ●
339 GROMMET; AIR PIPE
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> OD=28 		8-94279-720-0 01 1 0412- ●
339 GROMMET; AIR PIPE
OD=28 		8-94279-720-0 01 1 0412- ●
374 CONNECTOR
(C) M12X2 & PT1/4 3WAY 		1-09656-229-1 01 1 0412- ●
374 CONNECTOR
EXHAUST BRAKE<NF8> EXC. DRIVER ISRINGHAUSEN SEAT<SJA> (B) M12 & PT3/8 ELBOW 		1-09650-436-0 01 1 0211-0405 ●
374 CONNECTOR
EXHAUST BRAKE<NF8> EXC. DRIVER ISRINGHAUSEN SEAT<SJA>,AIR HORN<WB8> (B) M12 & PT3/8 ELBOW 		1-09650-436-0 01 1 0406- ●
374 CONNECTOR
(A) 		1-09656-721-0 01 1 0005-0103 ● ● ●
374 CONNECTOR
(A) 		1-09656-754-0 01 1 0104-0411 ● ● ●
374 CONNECTOR
(A) 		1-09656-754-0 01 1 0412- ● ● ● ●
437 WASHER; PL,CONNECTOR
ID=17 		9-09160-516-0 01 1 0005-0411 ● ● ●
437 WASHER; PL,CONNECTOR
ID=17 		9-09160-516-0 01 1 0412-0605 ● ● ● ●
437 WASHER; PL,CONNECTOR
ID=17 OD=30 		0-91610-516-0 01 1 0606- ● ● ● ●
438 WASHER; PL,JOINT
DRIVER ISRINGHAUSEN SEAT<SJA> ID=10.5 OD=26 T=2.6 		1-09985-184-0 01 1 0005- ●
438 WASHER; PL,JOINT
ID=10.5 OD=26 T=2.6 		1-09985-184-0 01 1 0005- ● ●
çizim 38909
184 1 6 5 186 185 3 2 176 7 14
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 HOSE; FLEX,AIR TANK
6HK1 TCS ENG(80L) EXC. ENGINE REAR PTO(SV1) L=350 		1-09363-558-0 01 1 0307- ●
1 HOSE; FLEX,AIR TANK
6HK1 TCS ENG(80L) L=350 		1-09363-558-0 01 1 0307- ●
1 HOSE; FLEX,AIR TANK
6HH1 STD ENG(65L),6HH1 N ENG(66L) ENGINE REAR PTO(SV1) L=430 		1-09363-559-0 01 1 0007-0210 ●
1 HOSE; FLEX,AIR TANK
ENGINE REAR PTO(SV1) L=430 		1-09363-559-0 01 1 0211-0305 ●
1 HOSE; FLEX,AIR TANK
6HK1 TCC ENG(81L),6HK1 TCN ENG(82L) ENGINE REAR PTO(SV1) L=430 		1-09363-559-0 01 1 0306- ●
1 HOSE; FLEX,AIR TANK
6HH1 STD ENG(65L),6HH1 N ENG(66L) L=350 		1-09363-558-0 01 1 0005-0006 ● ●
1 HOSE; FLEX,AIR TANK
6HH1 STD ENG(65L) L=350 		1-09363-558-0 01 1 0005-0006 ●
1 HOSE; FLEX,AIR TANK
6HH1 STD ENG(65L),6HH1 N ENG(66L) EXC. ENGINE REAR PTO(SV1) L=350 		1-09363-558-0 01 1 0007-0210 ●
1 HOSE; FLEX,AIR TANK
6HH1 STD ENG(65L),6HH1 N ENG(66L) L=350 		1-09363-558-0 01 1 0007-0210 ●
1 HOSE; FLEX,AIR TANK
6HH1 STD ENG(65L) L=350 		1-09363-558-0 01 1 0007-0210 ●
1 HOSE; FLEX,AIR TANK
EXC. ENGINE REAR PTO(SV1) L=320 		1-09363-560-1 01 1 0211-0305 ●
1 HOSE; FLEX,AIR TANK
L=320 		1-09363-560-1 01 1 0211-0305 ● ●
1 HOSE; FLEX,AIR TANK
6HK1 TCC ENG(81L),6HK1 TCN ENG(82L) EXC. ENGINE REAR PTO(SV1) L=320 		1-09363-560-1 01 1 0306-0411 ●
1 HOSE; FLEX,AIR TANK
6HK1 TCC ENG(81L),6HK1 TCN ENG(82L) L=320 		1-09363-560-1 01 1 0306-0411 ●
1 HOSE; FLEX,AIR TANK
6HK1 TCC ENG(81L) L=320 		1-09363-560-1 01 1 0306-0411 ●
1 HOSE; FLEX,AIR TANK
6HK1 TCC ENG(81L),6HK1 TCN ENG(82L) EXC. ENGINE REAR PTO(SV1) L=320 		1-09363-560-1 01 1 0412- ●
1 HOSE; FLEX,AIR TANK
6HK1 TCC ENG(81L),6HK1 TCN ENG(82L) L=320 		1-09363-560-1 01 1 0412- ●
1 HOSE; FLEX,AIR TANK
6HK1 TCC ENG(81L) L=320 		1-09363-560-1 01 1 0412- ●
1 HOSE; FLEX,AIR TANK
6HK1 TCN ENG(82L) L=320 		1-09363-560-1 01 1 0412- ●
1 HOSE; FLEX,AIR TANK
6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> L=320 		1-09363-560-1 01 1 0005-0210 ● ●
2 NUT; FLEX HOSE,AIR TANK
M22 		9-09111-422-0 01 1 0005-0411 ● ● ●
2 NUT; FLEX HOSE,AIR TANK
M22 		9-09111-422-0 01 1 0412-0512 ● ● ● ●
2 NUT; FLEX HOSE,AIR TANK
M22 		0-91111-522-0 01 1 0601- ● ● ● ●
3 WASHER; LK,FLEX HOSE,AIR TANK
ID=22.5 		9-09150-522-0 01 1 0005-0411 ● ● ●
3 WASHER; LK,FLEX HOSE,AIR TANK
ID=22.5 		9-09150-522-0 01 1 0412-0603 ● ● ● ●
3 WASHER; LK,FLEX HOSE,AIR TANK
ID=22.5 		0-91510-522-0 01 1 0604- ● ● ● ●
5 SLEEVE; FLEX HOSE
ID=32 OD=36 L=50 		1-09337-023-0 01 1 0005-0210 ●
6 BRACKET; FLEX HOSE,AIR TANK 1-47477-264-2 01 1 0005-0304 ● ●
6 BRACKET; FLEX HOSE,AIR TANK 1-47478-864-0 01 1 0005-0304 ●
6 BRACKET; FLEX HOSE,AIR TANK 1-47478-864-0 01 1 0305-0411 ● ● ●
6 BRACKET; FLEX HOSE,AIR TANK 1-47478-864-0 01 1 0412- ● ● ● ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X30 FLANGE 		0-28680-830-0 02 1 0005-0411 ● ● ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X30 FLANGE 		0-28680-830-0 02 1 0412-0512 ● ● ● ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X30 FLANGE 		0-28650-830-0 02 1 0601- ● ● ● ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK 1-49114-920-0 01 1 0005-0210 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK 1-49123-691-0 01 1 0211-0411 ● ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK 1-49123-691-0 01 1 0412- ● ● ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK 1-49119-645-0 01 1 0005-0210 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HE1 TC ENG(57L) 		1-49122-483-0 01 1 0005-0210 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK 1-49122-483-0 01 1 0211- ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HH1 STD ENG(65L) 		1-49114-922-0 01 1 0005-0210 ●
176 PIPE; AIR,AIR DRYER TO UNION 1-49115-910-0 01 1 0005-0208 ●
176 PIPE; AIR,AIR DRYER TO UNION 1-49119-646-0 01 1 0005-0208 ●
176 PIPE; AIR,AIR DRYER TO UNION 1-49119-646-0 01 1 0209-0210 ● ●
176 PIPE; AIR,AIR DRYER TO UNION 1-49123-692-0 01 1 0211-0411 ● ●
176 PIPE; AIR,AIR DRYER TO UNION 1-49123-692-0 01 1 0412- ● ● ●
176 PIPE; AIR,AIR DRYER TO UNION
6HE1 TC ENG(57L) 		1-49122-485-0 01 1 0005-0210 ●
176 PIPE; AIR,AIR DRYER TO UNION 1-49122-485-0 01 1 0211- ●
176 PIPE; AIR,AIR DRYER TO UNION
6HH1 STD ENG(65L) 		1-49114-972-0 01 1 0005-0210 ●
184 HOSE; FLEX,AIR GOV
6HH1 STD ENG(65L),6HH1 N ENG(66L) ENGINE REAR PTO(SV1) L=370 		1-09363-586-0 01 1 0007-0210 ●
184 HOSE; FLEX,AIR GOV
ENGINE REAR PTO(SV1) L=370 		1-09363-586-0 01 1 0211- ●
184 HOSE; FLEX,AIR GOV
6HH1 STD ENG(65L),6HH1 N ENG(66L) L=350 		1-09363-651-0 01 1 0005-0006 ● ●
184 HOSE; FLEX,AIR GOV
6HH1 STD ENG(65L) L=350 		1-09363-651-0 01 1 0005-0006 ●
184 HOSE; FLEX,AIR GOV
6HH1 STD ENG(65L),6HH1 N ENG(66L) EXC. ENGINE REAR PTO(SV1) L=350 		1-09363-651-0 01 1 0007-0210 ●
184 HOSE; FLEX,AIR GOV
6HH1 STD ENG(65L),6HH1 N ENG(66L) L=350 		1-09363-651-0 01 1 0007-0210 ●
184 HOSE; FLEX,AIR GOV
6HH1 STD ENG(65L) L=350 		1-09363-651-0 01 1 0007-0210 ●
184 HOSE; FLEX,AIR GOV
EXC. ENGINE REAR PTO(SV1) L=330 		1-09363-584-0 01 1 0211-0411 ●
184 HOSE; FLEX,AIR GOV
L=330 		1-09363-584-0 01 1 0211-0411 ● ●
184 HOSE; FLEX,AIR GOV
EXC. ENGINE REAR PTO(SV1) L=330 		1-09363-584-0 01 1 0412- ●
184 HOSE; FLEX,AIR GOV
L=330 		1-09363-584-0 01 1 0412- ● ● ●
184 HOSE; FLEX,AIR GOV
6HE1 TC ENG(57L) L=330 		1-09363-584-0 01 1 0005-0210 ● ●
185 NUT; FLEX HOSE,AIR GOV
M12 		9-09840-280-0 01 1 0005-0411 ● ● ●
185 NUT; FLEX HOSE,AIR GOV
M12 		9-09840-280-0 01 1 0412- ● ● ● ●
186 WASHER; LK,FLEX HOSE,AIR GOV
ID=12.2 		9-09150-512-0 01 1 0005-0411 ● ● ●
186 WASHER; LK,FLEX HOSE,AIR GOV
ID=12.2 		9-09150-512-0 01 1 0412-0603 ● ● ● ●
186 WASHER; LK,FLEX HOSE,AIR GOV
ID=12.2 		0-91510-512-0 01 1 0604- ● ● ● ●

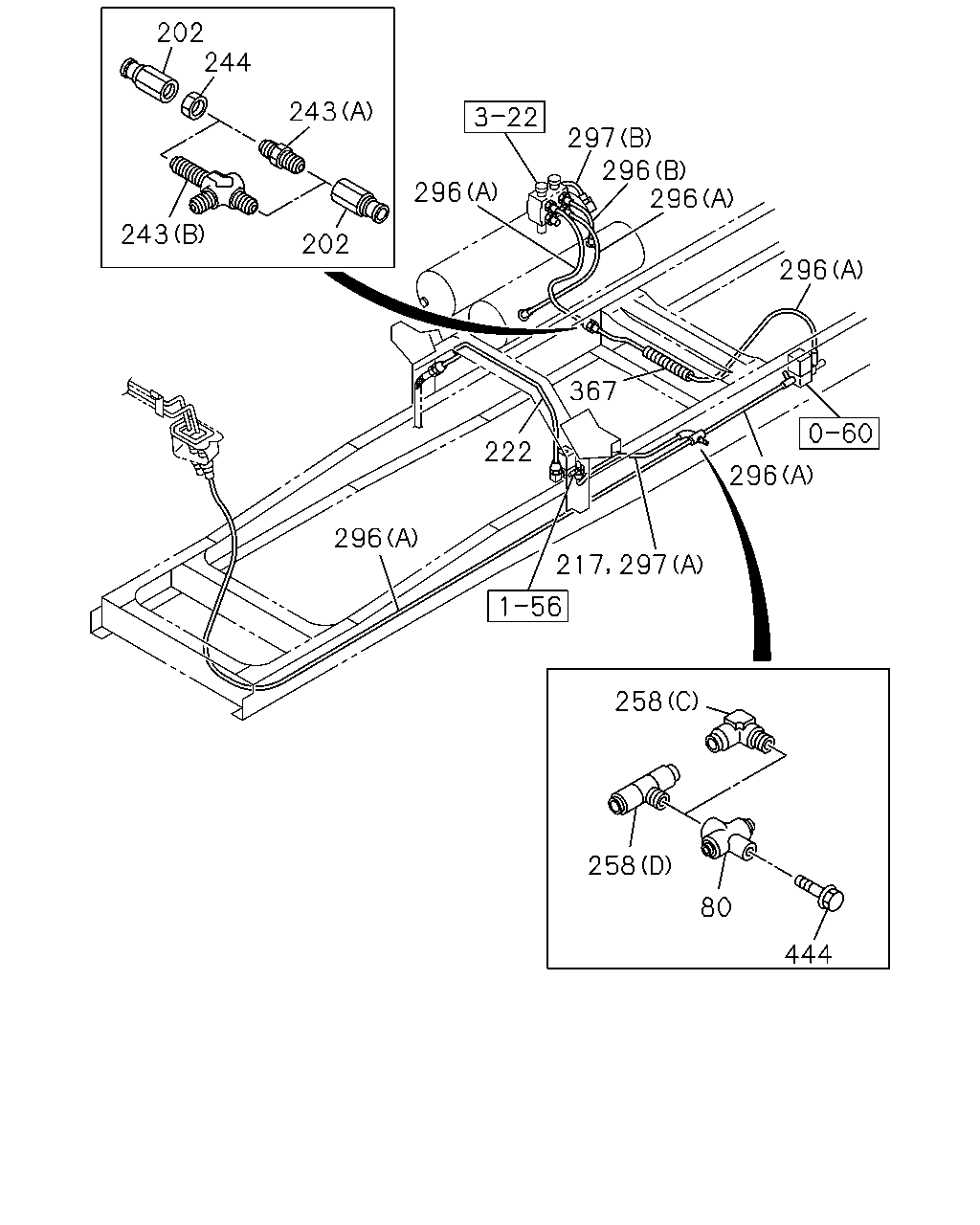

çizim 38967
202 244 243 297 296 296 296 243 202 296 367 222 296 296 258 258 80 444 217 297
BalonParca AdiParca NoAdetTipApplied Date A B C D
80 UNION; 3 WAY
EXC. EXHAUST BRAKE<NF8>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0005-0005 ●
80 UNION; 3 WAY
EXHAUST BRAKE<NF8> DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0005-0005 ●
80 UNION; 3 WAY
DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0005-0005 ● ●
80 UNION; 3 WAY
DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0005-0005 ●
80 UNION; 3 WAY
EXC. EXHAUST BRAKE<NF8>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0006-0210 ●
80 UNION; 3 WAY
EXHAUST BRAKE<NF8> DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0006-0210 ●
80 UNION; 3 WAY
DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0006-0210 ● ●
80 UNION; 3 WAY
EXHAUST BRAKE<NF8> DRIVER ISRINGHAUSEN SEAT<SJA> DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0211-0405 ●
80 UNION; 3 WAY
DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0211-0405 ● ●
80 UNION; 3 WAY
EXHAUST BRAKE<NF8> DRIVER ISRINGHAUSEN SEAT<SJA> DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0406- ●
80 UNION; 3 WAY
EXHAUST BRAKE<NF8> AIR HORN<WB8> EXC. DRIVER ISRINGHAUSEN SEAT<SJA> DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0406- ●
80 UNION; 3 WAY
DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0406- ● ●
202 ADAPTER
DIN8 & M12 STRAIGHT 		1-09661-093-0 01 1 0005-0007 ● ●
202 ADAPTER
DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0008-0210 ● ●
202 ADAPTER
EXHAUST BRAKE<NF8> DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0211-0411 ●
202 ADAPTER
DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0211-0411 ●
202 ADAPTER
EXHAUST BRAKE<NF8> DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0412- ●
202 ADAPTER
DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0412- ● ●
202 ADAPTER
DIN8 & M12 STRAIGHT 		1-09661-093-0 02 1 0005-0007 ●
202 ADAPTER
DIN8 & M12 STRAIGHT 		1-09660-873-0 02 1 0008- ●
217 PIPE; VAC,UNION TO MAG VLV
6HK1 TCC ENG(81L),6HK1 TCN ENG(82L) EXHAUST BRAKE<NF8> ASSISTOR SHIFT CONTROL<WX8> L=752 		1-49124-513-0 01 1 0406-0411 ●
217 PIPE; VAC,UNION TO MAG VLV
6HK1 TCC ENG(81L),6HK1 TCN ENG(82L) EXHAUST BRAKE<NF8> ASSISTOR SHIFT CONTROL<WX8> L=752 		1-49124-513-0 01 1 0412- ●
217 PIPE; VAC,UNION TO MAG VLV
6HK1 TCN ENG(82L) ASSISTOR SHIFT CONTROL<WX8> L=752 		1-49124-513-0 01 1 0412- ●
217 PIPE; VAC,UNION TO MAG VLV
6HK1 TCC ENG(81L) ASSISTOR SHIFT CONTROL<WX8> L=774 		1-49124-514-0 01 1 0406- ●
217 PIPE; VAC,UNION TO MAG VLV
6HK1 TCS ENG(80L) EXHAUST BRAKE<NF8> L=719 SERVICED BY L=800 		1-47428-812-0 01 1 0307- ●
217 PIPE; VAC,UNION TO MAG VLV
6HK1 TCS ENG(80L) L=733 SERVICED BY L=800 		1-47428-812-0 01 1 0307- ●
217 PIPE; VAC,UNION TO MAG VLV
EXHAUST BRAKE<NF8> 		1-49123-701-0 01 1 0211-0305 ●
217 PIPE; VAC,UNION TO MAG VLV
6HK1 TCC ENG(81L),6HK1 TCN ENG(82L) EXHAUST BRAKE<NF8> 		1-49123-701-0 01 1 0306-0405 ●
217 PIPE; VAC,UNION TO MAG VLV
6HK1 TCC ENG(81L),6HK1 TCN ENG(82L) EXHAUST BRAKE<NF8> EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-49123-701-0 01 1 0406-0411 ●
217 PIPE; VAC,UNION TO MAG VLV
6HK1 TCC ENG(81L),6HK1 TCN ENG(82L) EXHAUST BRAKE<NF8> EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-49123-701-0 01 1 0412- ●
217 PIPE; VAC,UNION TO MAG VLV
6HK1 TCN ENG(82L) EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-49123-701-0 01 1 0412- ●
217 PIPE; VAC,UNION TO MAG VLV 1-49123-702-0 01 1 0211-0212 ●
217 PIPE; VAC,UNION TO MAG VLV 1-49123-929-0 01 1 0301-0305 ●
217 PIPE; VAC,UNION TO MAG VLV
6HK1 TCC ENG(81L) 		1-49123-929-0 01 1 0306-0405 ●
217 PIPE; VAC,UNION TO MAG VLV
6HK1 TCC ENG(81L) EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-49123-929-0 01 1 0406- ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
6HK1 TCS ENG(80L) EXHAUST BRAKE<NF8> L=1257 SERVICED BY L=1250 		1-47428-817-0 01 1 0307- ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
6HK1 TCS ENG(80L) L=1257 SERVICED BY L=1250 		1-47428-817-0 01 1 0307- ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
6HE1 TC ENG(57L) EXHAUST BRAKE<NF8> L=1011 SERVICED BY L=1100 		1-47426-351-0 01 1 0005-0210 ● ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
EXHAUST BRAKE<NF8> L=1072 SERVICED BY L=1100 		1-47428-815-0 01 1 0211-0305 ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
L=1072 SERVICED BY L=1100 		1-47428-815-0 01 1 0211-0305 ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
6HK1 TCC ENG(81L),6HK1 TCN ENG(82L) EXHAUST BRAKE<NF8> L=1072 SERVICED BY L=1100 		1-47428-815-0 01 1 0306-0411 ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
6HK1 TCC ENG(81L) L=1072 SERVICED BY L=1100 		1-47428-815-0 01 1 0306-0411 ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
6HK1 TCC ENG(81L),6HK1 TCN ENG(82L) EXHAUST BRAKE<NF8> L=1072 SERVICED BY L=1100 		1-47428-815-0 01 1 0412- ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
6HK1 TCC ENG(81L) L=1072 SERVICED BY L=1100 		1-47428-815-0 01 1 0412- ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
6HK1 TCN ENG(82L) L=1072 SERVICED BY L=1100 		1-47428-815-0 01 1 0412- ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
6HH1 STD ENG(65L),6HH1 N ENG(66L) EXHAUST BRAKE<NF8> L=1078 SERVICED BY L=1100 		1-47434-387-0 01 1 0005-0210 ● ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
L=1042 SERVICED BY L=1100 		1-47428-815-0 01 1 0005-0005 ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
L=1046 SERVICED BY L=1100 		1-47428-815-0 01 1 0005-0210 ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE 1-49123-693-0 01 1 0211- ●
243 UNION; AIR PIPE
AIR ASSIST CLUTCH<PK1> (B) M12 3WAY 		9-09228-906-1 01 1 0005-0210 ● ●
243 UNION; AIR PIPE
AIR ASSIST CLUTCH<PK1> (B) M12 3WAY 		9-09228-906-1 01 1 0211-0411 ●
243 UNION; AIR PIPE
(B) M12 3WAY 		9-09228-906-1 01 1 0211-0411 ● ●
243 UNION; AIR PIPE
AIR ASSIST CLUTCH<PK1> (B) M12 3WAY 		9-09228-906-1 01 1 0412-0607 ●
243 UNION; AIR PIPE
(B) M12 3WAY 		9-09228-906-1 01 1 0412-0607 ● ● ●
243 UNION; AIR PIPE
AIR ASSIST CLUTCH<PK1> (B) M12 3WAY 		0-92138-906-0 01 1 0608- ●
243 UNION; AIR PIPE
(B) M12 3WAY 		0-92138-906-0 01 1 0608- ● ● ●
243 UNION; AIR PIPE
EXC. AIR ASSIST CLUTCH<PK1> (A) M12 L=66.5 		9-09223-306-1 01 1 0005-0210 ● ●
243 UNION; AIR PIPE
(A) M12 L=66.5 		9-09223-306-1 01 1 0005-0210 ●
244 NUT; UNION,AIR PIPE
M12 		9-09840-280-0 01 1 0005-0210 ● ● ●
244 NUT; UNION,AIR PIPE
EXHAUST BRAKE<NF8> M12 		9-09840-280-0 01 1 0211-0411 ●
244 NUT; UNION,AIR PIPE
M12 		9-09840-280-0 01 1 0211-0411 ● ●
244 NUT; UNION,AIR PIPE
EXHAUST BRAKE<NF8> M12 		9-09840-280-0 01 1 0412- ●
244 NUT; UNION,AIR PIPE
M12 		9-09840-280-0 01 1 0412- ● ● ●
258 CONNECTOR; NYLON TUBE
EXC. DRIVER ISRINGHAUSEN SEAT<SJA>,AIR HORN<WB8> (B) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0408-0410 ●
258 CONNECTOR; NYLON TUBE
(B) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0408-0410 ●
258 CONNECTOR; NYLON TUBE
EXC. AIR HORN<WB8> (B) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0408-0410 ●
258 CONNECTOR; NYLON TUBE
DRIVER ISRINGHAUSEN SEAT<SJA> AIR HORN<WB8> (B) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0411- ●
258 CONNECTOR; NYLON TUBE
AIR HORN<WB8> (B) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0411- ●
258 CONNECTOR; NYLON TUBE
DRIVER ISRINGHAUSEN SEAT<SJA> (A) DIN6 & R1/8 STRAIGHT 		1-09660-691-1 01 1 0005-0302 ●
258 CONNECTOR; NYLON TUBE
(A) DIN6 & R1/8 STRAIGHT 		1-09660-691-1 01 1 0005-0302 ● ●
258 CONNECTOR; NYLON TUBE
DRIVER ISRINGHAUSEN SEAT<SJA> (A) DIN6 R1/8 STRAIGHT 		1-09660-759-1 01 1 0303- ●
258 CONNECTOR; NYLON TUBE
(A) DIN6 R1/8 STRAIGHT 		1-09660-759-1 01 1 0303- ● ●
258 CONNECTOR; NYLON TUBE
DRIVER ISRINGHAUSEN SEAT<SJA> (B) DIN8 & M16 STRAIGHT 		1-09661-095-0 01 1 0005-0007 ●
258 CONNECTOR; NYLON TUBE
(B) DIN8 & M16 STRAIGHT 		1-09661-095-0 01 1 0005-0007 ● ●
258 CONNECTOR; NYLON TUBE
DRIVER ISRINGHAUSEN SEAT<SJA> (B) DIN8 & M16 STRAIGHT 		1-09660-875-0 01 1 0008-0407 ●
258 CONNECTOR; NYLON TUBE
(B) DIN8 & M16 STRAIGHT 		1-09660-875-0 01 1 0008-0407 ● ●
258 CONNECTOR; NYLON TUBE
DRIVER ISRINGHAUSEN SEAT<SJA> EXC. AIR HORN<WB8> (B) DIN8 & M16 STRAIGHT 		1-09660-875-0 01 1 0408- ●
258 CONNECTOR; NYLON TUBE
(B) DIN8 & M16 STRAIGHT 		1-09660-875-0 01 1 0408- ●
258 CONNECTOR; NYLON TUBE
EXC. AIR HORN<WB8> (B) DIN8 & M16 STRAIGHT 		1-09660-875-0 01 1 0408- ●
258 CONNECTOR; NYLON TUBE
EXHAUST BRAKE<NF8> SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0005-0005 ●
258 CONNECTOR; NYLON TUBE
EXC. EXHAUST BRAKE<NF8>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0005-0005 ●
258 CONNECTOR; NYLON TUBE
EXHAUST BRAKE<NF8> SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0006-0210 ●
258 CONNECTOR; NYLON TUBE
EXC. EXHAUST BRAKE<NF8>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0006-0210 ●
258 CONNECTOR; NYLON TUBE
(C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0211- ●
258 CONNECTOR; NYLON TUBE
EXHAUST BRAKE<NF8> EXC. SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (D) DIN8X2 & R3/8 3WAY 		1-09660-996-0 01 1 0005-0210 ●
258 CONNECTOR; NYLON TUBE
(D) DIN8X2 & R3/8 3WAY 		1-09660-996-0 01 1 0005-0210 ● ●
258 CONNECTOR; NYLON TUBE
EXHAUST BRAKE<NF8> DRIVER ISRINGHAUSEN SEAT<SJA> (C) M12 & PT3/8 ELBOW 		1-09650-436-0 01 1 0211-0405 ●
258 CONNECTOR; NYLON TUBE
(C) M12 & PT3/8 ELBOW 		1-09650-436-0 01 1 0211-0405 ●
258 CONNECTOR; NYLON TUBE
EXHAUST BRAKE<NF8> DRIVER ISRINGHAUSEN SEAT<SJA> (C) M12 & PT3/8 ELBOW 		1-09650-436-0 01 1 0406- ●
258 CONNECTOR; NYLON TUBE
EXHAUST BRAKE<NF8> AIR HORN<WB8> EXC. DRIVER ISRINGHAUSEN SEAT<SJA> (C) M12 & PT3/8 ELBOW 		1-09650-436-0 01 1 0406- ●
258 CONNECTOR; NYLON TUBE
(C) M12 & PT3/8 ELBOW 		1-09650-436-0 01 1 0406- ●
296 TUBE; NYLON
DRIVER ISRINGHAUSEN SEAT<SJA> (C) L=1200 OD=6 		1-09366-256-1 01 1 0005- ●
296 TUBE; NYLON
(C) L=1200 OD=6 		1-09366-256-1 01 1 0005- ● ●
296 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0005-0210 ● ●
296 TUBE; NYLON
EXHAUST BRAKE<NF8> (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0211-0212 ●
296 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0211-0212 ●
296 TUBE; NYLON
EXHAUST BRAKE<NF8> (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0301-0411 ●
296 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0301-0411 ● ●
296 TUBE; NYLON
EXHAUST BRAKE<NF8> (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0412-0611 ●
296 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0412-0611 ● ● ●
296 TUBE; NYLON
EXHAUST BRAKE<NF8> EXC. PTO CONTROL<SV6> (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0612- ●
296 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0612- ● ● ●
296 TUBE; NYLON
(B) SERVICED BY L=2000 OD=12 		1-87410-069-0 02 1 0005-0212 ●
296 TUBE; NYLON
(B) SERVICED BY L=2000 OD=12 		1-87411-011-0 02 1 0301- ●
296 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87410-073-0 02 1 0005-0212 ●
296 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0301-0611 ●
296 TUBE; NYLON
PTO CONTROL<SV6> (A) SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0612- ●
296 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0612- ●
297 TUBE; NYLON
EXHAUST BRAKE<NF8> (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0005-0210 ●
297 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0005-0210 ● ●
297 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0211- ●
297 TUBE; NYLON
(B) SERVICED BY L=2000 OD=12 		1-87410-069-0 01 1 0005-0212 ●
297 TUBE; NYLON
(B) SERVICED BY L=2000 OD=12 		1-87411-011-0 01 1 0301- ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 0005-0007 ● ● ●
367 TUBE; CORRUGATE
EXC. SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 0008-0210 ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 0008-0210 ● ●
367 TUBE; CORRUGATE
EXHAUST BRAKE<NF8> SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 0211-0411 ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 0211-0411 ● ●
367 TUBE; CORRUGATE
EXHAUST BRAKE<NF8> SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 0412-0611 ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 0412-0611 ● ● ●
367 TUBE; CORRUGATE
EXHAUST BRAKE<NF8> EXC. PTO CONTROL<SV6> SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 0612- ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 0612- ● ● ●
444 BOLT; UNION
EXHAUST BRAKE<NF8> SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> M8X16 FLANGE 		0-28080-816-0 01 1 0006-0210 ●
444 BOLT; UNION
M8X25 FLANGE 		0-28680-825-0 01 1 0005-0210 ● ● ●
444 BOLT; UNION
EXHAUST BRAKE<NF8> M8X25 FLANGE 		0-28680-825-0 01 1 0211-0411 ●
444 BOLT; UNION
M8X25 FLANGE 		0-28680-825-0 01 1 0211-0411 ● ●
444 BOLT; UNION
EXHAUST BRAKE<NF8> M8X25 FLANGE 		0-28680-825-0 01 1 0412-0512 ●
444 BOLT; UNION
M8X25 FLANGE 		0-28680-825-0 01 1 0412-0512 ● ● ●
444 BOLT; UNION
EXHAUST BRAKE<NF8> M8X25 FLANGE 		0-28650-825-0 01 1 0601- ●
444 BOLT; UNION
M8X25 FLANGE 		0-28650-825-0 01 1 0601- ● ● ●

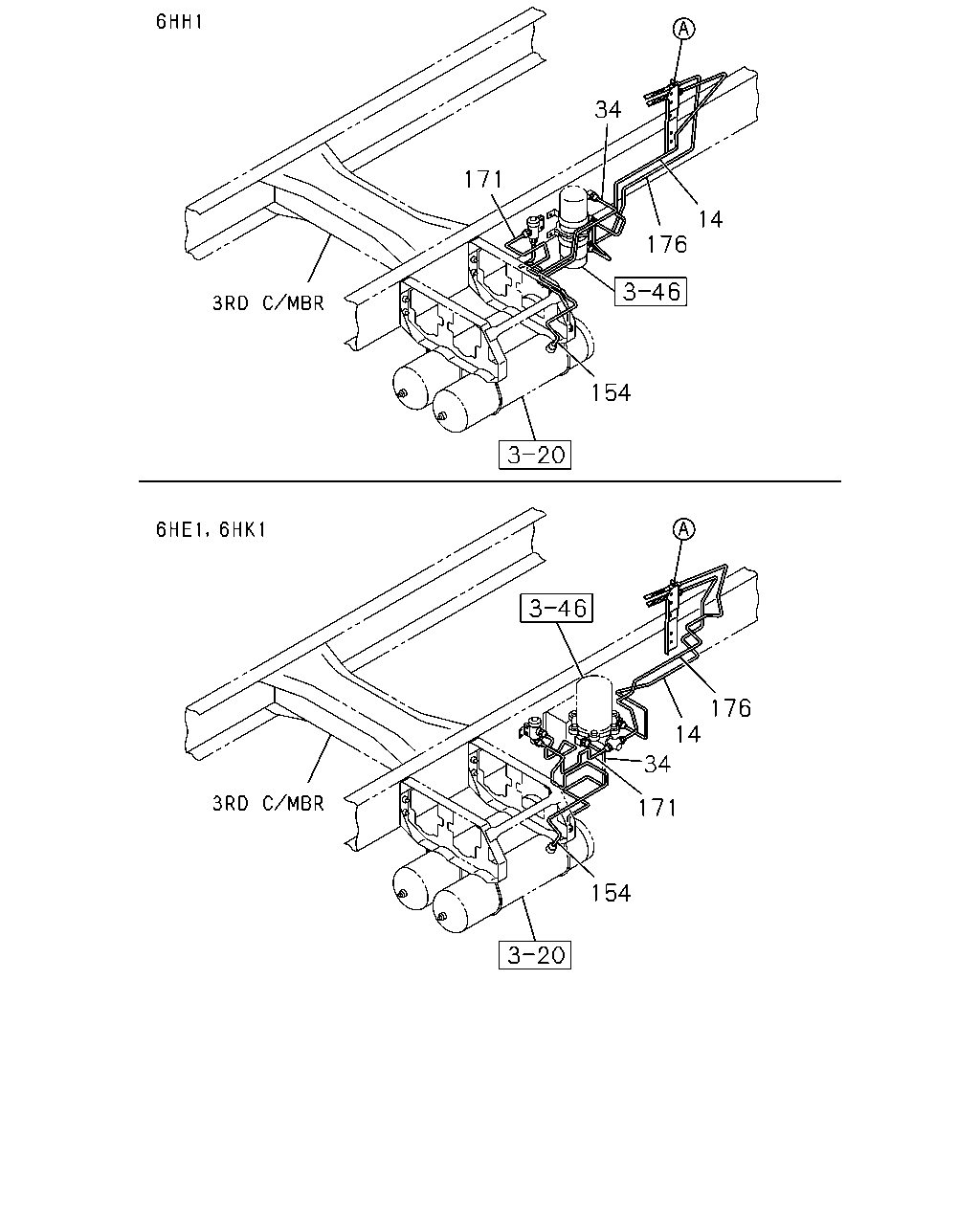

çizim 100267
34 171 14 176 154 176 14 34 171 154
BalonParca AdiParca NoAdetTipApplied Date A B C D
14 PIPE; AIR,FLEX HOSE TO AIR TANK 1-49114-920-0 01 1 0005-0210 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK 1-49123-691-0 01 1 0211-0411 ● ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK 1-49123-691-0 01 1 0412- ● ● ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK 1-49119-645-0 01 1 0005-0210 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HE1 TC ENG(57L) 		1-49122-483-0 01 1 0005-0210 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK 1-49122-483-0 01 1 0211- ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HH1 STD ENG(65L) 		1-49114-922-0 01 1 0005-0210 ●
34 PIPE; AIR 1-49119-150-1 01 1 0005-0411 ● ●
34 PIPE; AIR 1-49119-150-1 01 1 0412- ● ● ●
34 PIPE; AIR
6HE1 TC ENG(57L) 		1-49122-156-0 01 1 0005-0210 ●
34 PIPE; AIR 1-49122-156-0 01 1 0211- ●
34 PIPE; AIR
6HH1 STD ENG(65L) 		1-49118-293-0 01 1 0005-0210 ●
154 PIPE; AIR,AIR TANK TO AIR GOV 1-49122-146-0 01 1 0005-0411 ● ●
154 PIPE; AIR,AIR TANK TO AIR GOV 1-49122-146-0 01 1 0412- ● ● ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HE1 TC ENG(57L) 		1-49122-484-0 01 1 0005-0005 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HE1 TC ENG(57L) 		1-49122-663-0 01 1 0005-0210 ●
154 PIPE; AIR,AIR TANK TO AIR GOV 1-49122-663-0 01 1 0211- ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HH1 STD ENG(65L) 		1-49122-147-0 01 1 0005-0210 ●
171 PIPE; AIR,GOV TO AIR DRYER 1-49122-150-0 01 1 0005-0411 ● ●
171 PIPE; AIR,GOV TO AIR DRYER 1-49122-150-0 01 1 0412- ● ● ●
171 PIPE; AIR,GOV TO AIR DRYER
6HE1 TC ENG(57L) 		1-49122-153-0 01 1 0005-0005 ●
171 PIPE; AIR,GOV TO AIR DRYER
6HE1 TC ENG(57L) 		1-49122-662-0 01 1 0005-0210 ●
171 PIPE; AIR,GOV TO AIR DRYER 1-49122-662-0 01 1 0211- ●
171 PIPE; AIR,GOV TO AIR DRYER
6HH1 STD ENG(65L) L=1137 		1-49122-151-0 01 1 0005-0210 ●
176 PIPE; AIR,AIR DRYER TO UNION 1-49115-910-0 01 1 0005-0208 ●
176 PIPE; AIR,AIR DRYER TO UNION 1-49119-646-0 01 1 0005-0208 ●
176 PIPE; AIR,AIR DRYER TO UNION 1-49119-646-0 01 1 0209-0210 ● ●
176 PIPE; AIR,AIR DRYER TO UNION 1-49123-692-0 01 1 0211-0411 ● ●
176 PIPE; AIR,AIR DRYER TO UNION 1-49123-692-0 01 1 0412- ● ● ●
176 PIPE; AIR,AIR DRYER TO UNION
6HE1 TC ENG(57L) 		1-49122-485-0 01 1 0005-0210 ●
176 PIPE; AIR,AIR DRYER TO UNION 1-49122-485-0 01 1 0211- ●
176 PIPE; AIR,AIR DRYER TO UNION
6HH1 STD ENG(65L) 		1-49114-972-0 01 1 0005-0210 ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
