◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 10627 - FTR-LHD ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-20 - REAR AXLE CASE AND SHAFT ▶
4-20 — REAR AXLE CASE AND SHAFT (#939) — 87 parça

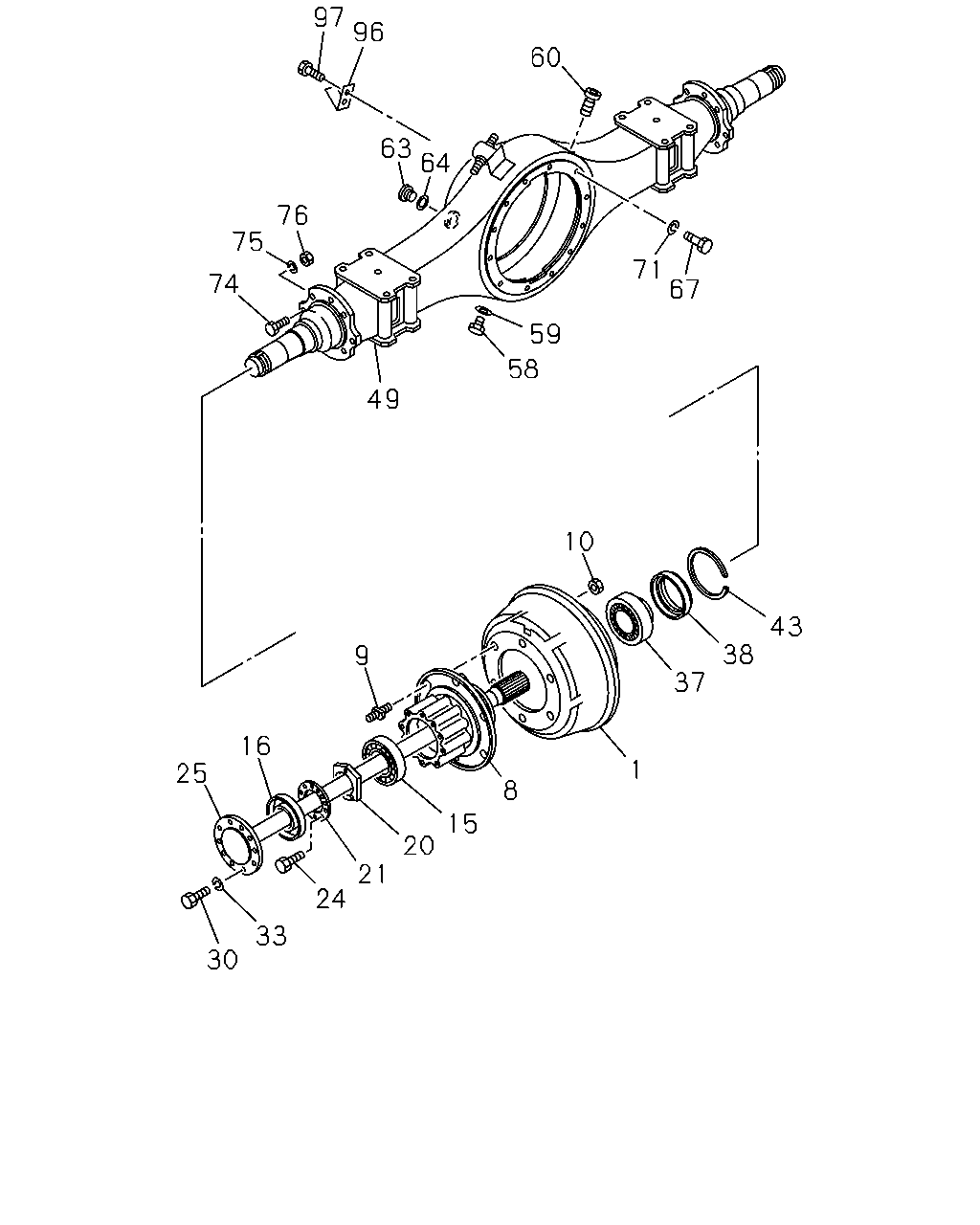

çizim 92535
97 96 60 63 64 76 75 71 67 74 59 58 49 10 43 38 9 37 16 1 25 8 15 20 21 24 33 30
BalonParca AdiParca NoAdetTipApplied Date A B
1 DRUM; BRK,RR
WHEEL 10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50X22.5 162-12(Q87) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> 		1-42315-218-4 02 1 9202- ● ●
1 DRUM; BRK,RR
WHEEL 8STUD 7.50X22.5 162-12(QM2),8STUD 6.50TX20 152-11(Q50),8STUD 7.00TX20(Q54),WHEEL 8STUD 7.00TX20 152-12(SDP) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> H=195 		1-42315-208-1 02 1 9202- ● ●
1 DRUM; BRK,RR
HEAVY DUTY PACKAGE TRUCK<RD2> 		1-42315-194-3 02 1 9202- ●
8 HUB; RR AXLE
WHEEL 10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50X22.5 162-12(Q87) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> 		1-42311-039-7 02 1 9202- ● ●
8 HUB; RR AXLE
WHEEL 8STUD 7.50X22.5 162-12(QM2),8STUD 6.50TX20 152-11(Q50),8STUD 7.00TX20(Q54),WHEEL 8STUD 7.00TX20 152-12(SDP) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> 		1-42311-041-2 02 1 9202- ● ●
8 HUB; RR AXLE
HEAVY DUTY PACKAGE TRUCK<RD2> H=237.5 		1-42311-032-4 02 1 9202-9508 ●
8 HUB; RR AXLE
HEAVY DUTY PACKAGE TRUCK<RD2> 		1-42311-100-0 02 1 9509- ●
9 PIN; WHEEL,RR AXLE
WHEEL 10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50X22.5 162-12(Q87) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> M22X59.8,M22X51.5 RH THREAD 		1-42337-010-0 20 1 9202- ● ●
9 PIN; WHEEL,RR AXLE
WHEEL 8STUD 7.50X22.5 162-12(QM2),8STUD 6.50TX20 152-11(Q50),8STUD 7.00TX20(Q54),WHEEL 8STUD 7.00TX20 152-12(SDP) M20X34.5,M22X51.5 RH THREAD 		1-42331-110-0 08 1 9202- ● ●
9 PIN; WHEEL,RR AXLE
HEAVY DUTY PACKAGE TRUCK<RD2> M20X34.5,M22X51.5 RH THREAD 		1-42331-110-0 08 1 9202- ●
9 PIN; WHEEL,RR AXLE
WHEEL 8STUD 7.50X22.5 162-12(QM2),8STUD 6.50TX20 152-11(Q50),8STUD 7.00TX20(Q54),WHEEL 8STUD 7.00TX20 152-12(SDP) M20X34.5 LH THREAD,M22X51.5 RH THREAD 		1-42332-110-0 08 1 9202- ● ●
9 PIN; WHEEL,RR AXLE
HEAVY DUTY PACKAGE TRUCK<RD2> M20X34.5 LH THREAD,M22X51.5 RH THREAD 		1-42332-110-0 08 1 9202- ●
10 NUT; WHEEL PIN,RR AXLE
WHEEL 10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50X22.5 162-12(Q87) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> M22 		1-09400-071-0 20 1 9202- ● ●
10 NUT; WHEEL PIN,RR AXLE
WHEEL 8STUD 7.50X22.5 162-12(QM2),8STUD 6.50TX20 152-11(Q50),8STUD 7.00TX20(Q54),WHEEL 8STUD 7.00TX20 152-12(SDP) M22 		9-09110-522-0 16 1 9202- ● ●
10 NUT; WHEEL PIN,RR AXLE
HEAVY DUTY PACKAGE TRUCK<RD2> M22 		9-09110-522-0 16 1 9202- ●
15 BEARING; HUB OUTER,RR AXLE
NSK 		1-09812-153-0 02 1 9202- ●
15 BEARING; HUB OUTER,RR AXLE
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> NSK 		1-09812-153-0 02 1 9202- ●
15 BEARING; HUB OUTER,RR AXLE
KOYO 		1-09812-154-0 02 1 9202- ●
15 BEARING; HUB OUTER,RR AXLE
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> KOYO 		1-09812-154-0 02 1 9202- ●
15 BEARING; HUB OUTER,RR AXLE
HEAVY DUTY PACKAGE TRUCK<RD2> NSK 		1-09812-079-0 02 1 9202- ●
15 BEARING; HUB OUTER,RR AXLE
HEAVY DUTY PACKAGE TRUCK<RD2> NACHI 		1-09812-166-0 02 1 9202- ●
16 SEAL; OIL,RR HUB,OUTER
NOK 		9-09924-468-0 02 1 9202- ●
16 SEAL; OIL,RR HUB,OUTER
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> NOK 		9-09924-468-0 02 1 9202- ●
16 SEAL; OIL,RR HUB,OUTER
TKK 		9-09924-470-0 02 1 9202- ●
16 SEAL; OIL,RR HUB,OUTER
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> TKK 		9-09924-470-0 02 1 9202- ●
16 SEAL; OIL,RR HUB,OUTER
KOYO 		9-09924-499-0 02 1 9202- ●
16 SEAL; OIL,RR HUB,OUTER
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> KOYO 		9-09924-499-0 02 1 9202- ●
16 SEAL; OIL,RR HUB,OUTER
HEAVY DUTY PACKAGE TRUCK<RD2> NOK 		1-09625-226-1 02 1 9202- ●
16 SEAL; OIL,RR HUB,OUTER
HEAVY DUTY PACKAGE TRUCK<RD2> TKK 		1-09625-444-0 02 1 9202- ●
20 NUT; BRG,RR HUB
M74.6 		9-09843-064-2 02 1 9202- ●
20 NUT; BRG,RR HUB
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> M74.6 		9-09843-064-2 02 1 9202- ●
20 NUT; BRG,RR HUB
HEAVY DUTY PACKAGE TRUCK<RD2> M88 		9-09843-062-2 02 1 9202- ●
21 WASHER; LK,BRG NUT
ID=74.6 		1-09533-008-0 02 1 9202- ●
21 WASHER; LK,BRG NUT
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> ID=74.6 		1-09533-008-0 02 1 9202- ●
21 WASHER; LK,BRG NUT
HEAVY DUTY PACKAGE TRUCK<RD2> ID=88 		9-09854-112-0 02 1 9202- ●
24 BOLT; LK WASHER
M6X16 W/LK WASHER 		0-50040-616-0 06 1 9202- ● ●
25 SHAFT; AXLE,RR
L=986 		1-42171-280-0 02 1 9202- ●
25 SHAFT; AXLE,RR
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> L=986 		1-42171-280-0 02 1 9202- ●
25 SHAFT; AXLE,RR
HEAVY DUTY PACKAGE TRUCK<RD2> 		1-42171-242-1 02 1 9202-9406 ●
25 SHAFT; AXLE,RR
HEAVY DUTY PACKAGE TRUCK<RD2> 		1-42171-420-0 02 1 9407- ●
30 BOLT; HUB TO AXLE SHAFT
M14X58 		1-09020-095-1 20 1 9202- ● ●
33 WASHER; AXLE SHAFT
ID=14.2 		9-09150-814-0 20 1 9202-9408 ●
33 WASHER; AXLE SHAFT
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> ID=14.2 		9-09150-814-0 20 1 9202-9408 ●
33 WASHER; AXLE SHAFT
ID=14.2 		9-09150-814-0 20 1 9409- ● ●
33 WASHER; AXLE SHAFT
HEAVY DUTY PACKAGE TRUCK<RD2> ID=14.2 		9-09150-614-0 20 1 9202-9408 ●
37 BEARING; HUB INNER,RR AXLE
NSK 		1-09812-150-0 02 1 9202- ●
37 BEARING; HUB INNER,RR AXLE
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> NSK 		1-09812-150-0 02 1 9202- ●
37 BEARING; HUB INNER,RR AXLE
NACHI 		1-09812-151-0 02 1 9202- ●
37 BEARING; HUB INNER,RR AXLE
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> NACHI 		1-09812-151-0 02 1 9202- ●
37 BEARING; HUB INNER,RR AXLE
HEAVY DUTY PACKAGE TRUCK<RD2> NSK 		1-09812-077-0 02 1 9202- ●
37 BEARING; HUB INNER,RR AXLE
HEAVY DUTY PACKAGE TRUCK<RD2> NACHI 		1-09812-165-0 02 1 9202- ●
38 SEAL; OIL,RR HUB,INNER
TKK 		9-09924-415-0 02 1 9202- ●
38 SEAL; OIL,RR HUB,INNER
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> TKK 		9-09924-415-0 02 1 9202- ●
38 SEAL; OIL,RR HUB,INNER
NOK 		9-09924-416-0 02 1 9202- ●
38 SEAL; OIL,RR HUB,INNER
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> NOK 		9-09924-416-0 02 1 9202- ●
38 SEAL; OIL,RR HUB,INNER
KOYO 		9-09924-417-0 02 1 9202- ●
38 SEAL; OIL,RR HUB,INNER
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> KOYO 		9-09924-417-0 02 1 9202- ●
38 SEAL; OIL,RR HUB,INNER
HEAVY DUTY PACKAGE TRUCK<RD2> NOK 		1-09625-265-0 02 1 9202- ●
38 SEAL; OIL,RR HUB,INNER
HEAVY DUTY PACKAGE TRUCK<RD2> TKK 		1-09625-350-0 02 1 9202- ●
43 RING; SNAP,HUB SEAL,RR AXLE
OD=150 		9-09950-147-0 02 1 9202- ●
43 RING; SNAP,HUB SEAL,RR AXLE
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> OD=150 		9-09950-147-0 02 1 9202- ●
43 RING; SNAP,HUB SEAL,RR AXLE
HEAVY DUTY PACKAGE TRUCK<RD2> OD=179 		1-09587-057-0 02 1 9202- ●
49 CASE; RR AXLE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> 		1-42130-874-7 01 1 9202- ● ●
49 CASE; RR AXLE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), HEAVY DUTY PACKAGE TRUCK<RD2> 		1-42150-029-4 01 1 9202- ● ●
49 CASE; RR AXLE
HEAVY DUTY PACKAGE TRUCK<RD2> 		1-42130-943-4 01 1 9202- ●
58 PLUG; DRAIN,AXLE CASE
M24X17 FLANGE 		1-09604-023-0 01 1 9202- ● ●
59 GASKET; DRAIN PLUG
ID=26.8 		9-09920-605-0 01 1 9202- ● ●
60 BREATHER; RR AXLE CASE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-09893-016-0 01 1 9202- ● ●
60 BREATHER; RR AXLE CASE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-09893-003-0 01 1 9202- ● ●
63 PLUG; OIL FILLER,AXLE CASE 1-09604-021-0 01 1 9202-9307 ● ●
63 PLUG; OIL FILLER,AXLE CASE 1-09604-022-0 01 1 9308- ● ●
64 GASKET; OIL FILLER,AXLE CASE
ID=24.5 OD=32.5 		9-09920-392-0 01 1 9202-9307 ● ●
64 GASKET; OIL FILLER,AXLE CASE
ID=26.8 		9-09920-605-0 01 1 9308- ● ●
67 BOLT; FINAL DRIVE SETTING
M14X65 		9-91066-465-0 04 1 9202- ● ●
67 BOLT; FINAL DRIVE SETTING
M14X40 		9-92061-440-0 08 1 9202- ● ●
67 BOLT; FINAL DRIVE SETTING
HEAVY DUTY PACKAGE TRUCK<RD2> M16X40 		9-92061-640-0 08 1 9202- ●
71 WASHER; LK,FINAL DRIVE SETTING
ID=14.2 		9-09150-814-0 12 1 9202- ● ●
71 WASHER; LK,FINAL DRIVE SETTING
HEAVY DUTY PACKAGE TRUCK<RD2> ID=16.2 		9-09150-816-0 12 1 9202- ●
74 BOLT; RR BRK ASM SETTING
M14X50 		1-09040-066-0 16 1 9202- ●
74 BOLT; RR BRK ASM SETTING
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> M14X50 		1-09040-066-0 16 1 9202- ●
74 BOLT; RR BRK ASM SETTING
HEAVY DUTY PACKAGE TRUCK<RD2> M14X50 		1-09040-066-0 14 1 9202- ●
75 WASHER; LK,RR BRK ASM SETTING
ID=14.2 		9-09150-614-0 16 1 9202-9401 ● ●
75 WASHER; LK,RR BRK ASM SETTING
ID=14.2 		9-09150-814-0 16 1 9402- ● ●
76 NUT; RR BRK ASM SETTING
M14 		9-99110-514-0 16 1 9202- ● ●
96 BRACKET; LSPV,AXLE CASE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-47475-073-0 01 1 9202- ● ●
97 BOLT; BRKT,LSPV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X18 W/LK WASHER 		0-50040-818-0 02 1 9202-9409 ● ●
97 BOLT; BRKT,LSPV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X16 FLANGE 		0-28080-816-0 02 1 9410- ● ●
