3-55 — BRAKE PIPING; OIL,REAR (#9389) — 101 parça

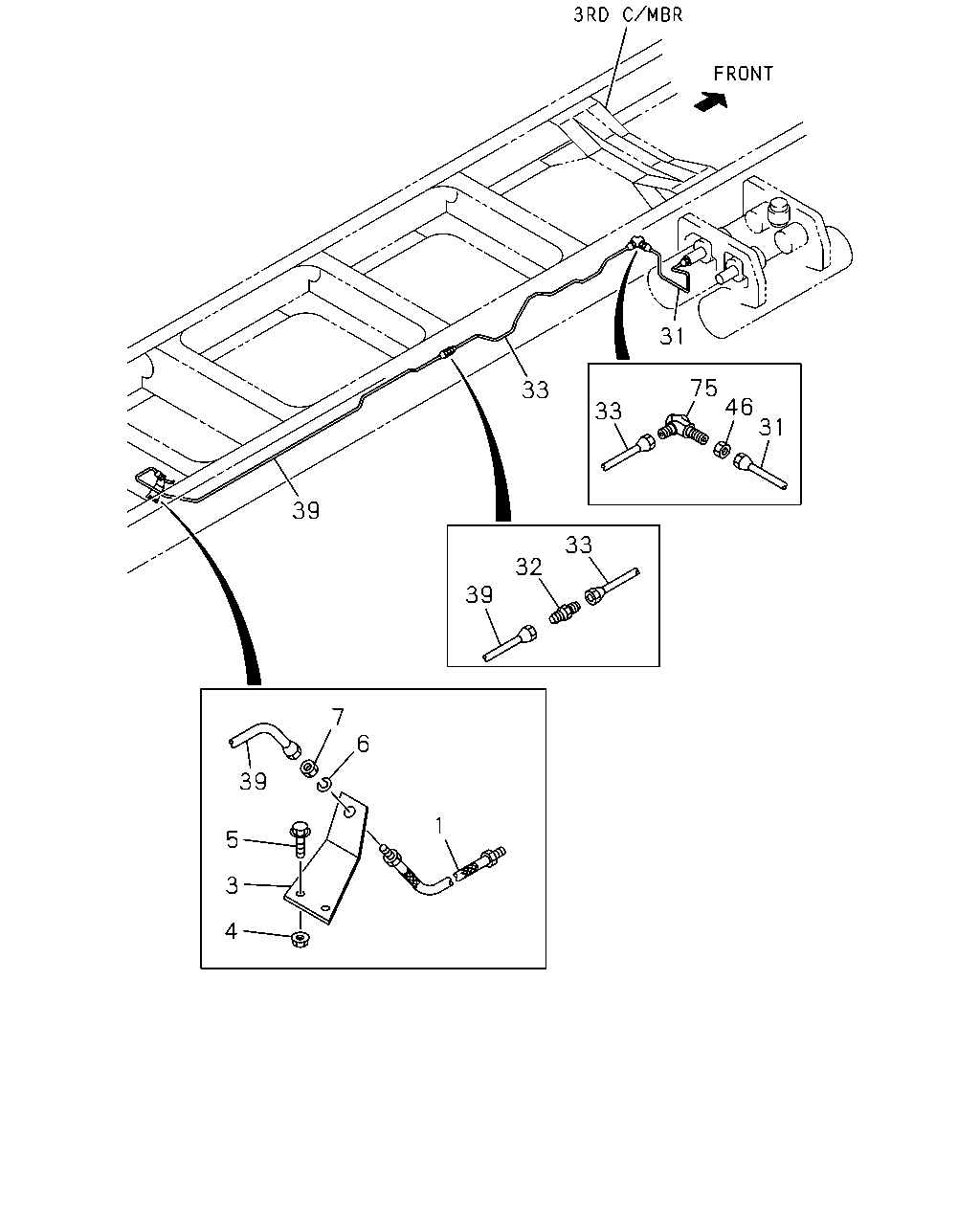

31 75 46 31 33 33 39 33 32 39 7 6 39 1 5 3 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	HOSE; FLEX,RR BRK L=480	0-05313-480-0	01	1	0412-0511	●
1	HOSE; FLEX,RR BRK L=480	0-05213-480-0	01	1	0512-	●
1	HOSE; FLEX,RR BRK L=610	0-05313-610-0	01	1	0005-0511		●	●	●
1	HOSE; FLEX,RR BRK L=610	0-05213-610-0	01	1	0512-		●	●	●
3	BRACKET; FLEX HOSE,RR BRK	1-47478-645-0	01	1	0412-	●
3	BRACKET; FLEX HOSE,RR BRK	1-47465-251-0	01	1	0005-		●	●	●
4	NUT; BRKT,FLEX HOSE,RR BRK M8 FLANGE	0-91150-108-0	02	1	0005-0602		●	●	●
4	NUT; BRKT,FLEX HOSE,RR BRK M8 FLANGE	0-91180-108-0	02	1	0603-		●	●	●
5	BOLT; BRKT,FLEX HOSE,RR BRK M8X20 FLANGE	0-28680-820-0	02	1	0412-0512	●
5	BOLT; BRKT,FLEX HOSE,RR BRK M8X20 FLANGE	0-28650-820-0	02	1	0601-	●
5	BOLT; BRKT,FLEX HOSE,RR BRK M8X25 FLANGE	0-28680-825-0	02	1	0005-0512		●	●	●
5	BOLT; BRKT,FLEX HOSE,RR BRK M8X25 FLANGE	0-28650-825-0	02	1	0601-		●	●	●
6	WASHER; LK,FLEX HOSE ID=12.2	9-09150-512-0	01	1	0005-0411		●	●	●
6	WASHER; LK,FLEX HOSE ID=12.2	9-09150-512-0	01	1	0412-0603	●	●	●	●
6	WASHER; LK,FLEX HOSE ID=12.2	0-91510-512-0	01	1	0604-	●	●	●	●
7	NUT; FLEX HOSE M12	9-09840-280-0	01	1	0005-0411		●	●	●
7	NUT; FLEX HOSE M12	9-09840-280-0	01	1	0412-	●	●	●	●
31	PIPE; OIL,AIR MASTER TO UNION L=890	1-49161-560-0	01	1	0005-0411		●	●
31	PIPE; OIL,AIR MASTER TO UNION L=890	1-49161-560-0	01	1	0412-	●	●	●
31	PIPE; OIL,AIR MASTER TO UNION L=413	1-49161-588-0	01	1	0005-				●
32	UNION; OIL PIPE M12 L=40	9-09223-006-1	01	1	0005-0411		●	●	●
32	UNION; OIL PIPE M12 L=40	9-09223-006-1	01	1	0412-0607	●	●	●	●
32	UNION; OIL PIPE M12 L=40	0-92113-006-0	01	1	0608-	●	●	●	●
33	PIPE; OIL,UNION TO UNION WHEEL BASE 3700MM(37W) L=1082 SERVICED BY L=1100	1-47426-351-0	01	1	0005-0611		●
33	PIPE; OIL,UNION TO UNION WHEEL BASE 3700MM(37W) L=975 SERVICED BY L=1000	1-47426-350-0	01	1	0612-		●
33	PIPE; OIL,UNION TO UNION WHEEL BASE 4200MM(42W) L=1545 SERVICED BY L=1620	1-47426-356-0	01	1	0005-		●	●
33	PIPE; OIL,UNION TO UNION WHEEL BASE 4800MM(48W) L=2156 SERVICED BY L=2200	1-47426-360-0	01	1	0005-0210		●	●
33	PIPE; OIL,UNION TO UNION WHEEL BASE 5100MM(51W) L=2456 SERVICED BY L=2500	1-47426-362-0	01	1	0211-0411		●	●
33	PIPE; OIL,UNION TO UNION WHEEL BASE 5100MM(51W) L=2456 SERVICED BY L=2500	1-47426-362-0	01	1	0412-	●	●	●
33	PIPE; OIL,UNION TO UNION L=1871 SERVICED BY L=2000	1-47426-359-0	01	1	0005-0210				●
33	PIPE; OIL,UNION TO UNION L=2271 SERVICED BY L=2350	1-47426-361-0	01	1	0211-				●
39	PIPE; OIL,UNION TO RR FLEX HOSE WHEEL BASE 3700MM(37W) L=2159 SERVICED BY L=2200	1-47426-360-0	01	1	0612-		●
39	PIPE; OIL,UNION TO RR FLEX HOSE L=1129 SERVICED BY L=1200	1-47426-352-0	01	1	0412-	●
39	PIPE; OIL,UNION TO RR FLEX HOSE WHEEL BASE 3700MM(37W),WHEEL BASE 4200MM(42W) L=2040 SERVICED BY L=2200	1-47426-360-0	01	1	0005-0611		●	●
39	PIPE; OIL,UNION TO RR FLEX HOSE WHEEL BASE 4200MM(42W) L=2040 SERVICED BY L=2200	1-47426-360-0	01	1	0612-		●	●
39	PIPE; OIL,UNION TO RR FLEX HOSE WHEEL BASE 4800MM(48W) L=1966 SERVICED BY L=2000	1-47426-359-0	01	1	0005-0210		●	●
39	PIPE; OIL,UNION TO RR FLEX HOSE L=1966 SERVICED BY L=2000	1-47426-359-0	01	1	0005-0210				●
39	PIPE; OIL,UNION TO RR FLEX HOSE WHEEL BASE 5100MM(51W) L=1966 SERVICED BY L=2000	1-47426-359-0	01	1	0211-		●	●
39	PIPE; OIL,UNION TO RR FLEX HOSE L=1966 SERVICED BY L=2000	1-47426-359-0	01	1	0211-				●
46	NUT; UNION,OIL PIPE M12	9-09840-280-0	01	1	0005-0411		●	●	●
46	NUT; UNION,OIL PIPE M12	9-09840-280-0	01	1	0412-	●	●	●	●
75	UNION; OIL PIPE M12 ELBOW	9-09225-206-1	01	1	0005-0411		●	●	●
75	UNION; OIL PIPE M12 ELBOW	9-09225-206-1	01	1	0412-0607	●	●	●	●
75	UNION; OIL PIPE M12 ELBOW	0-92125-206-0	01	1	0608-	●	●	●	●

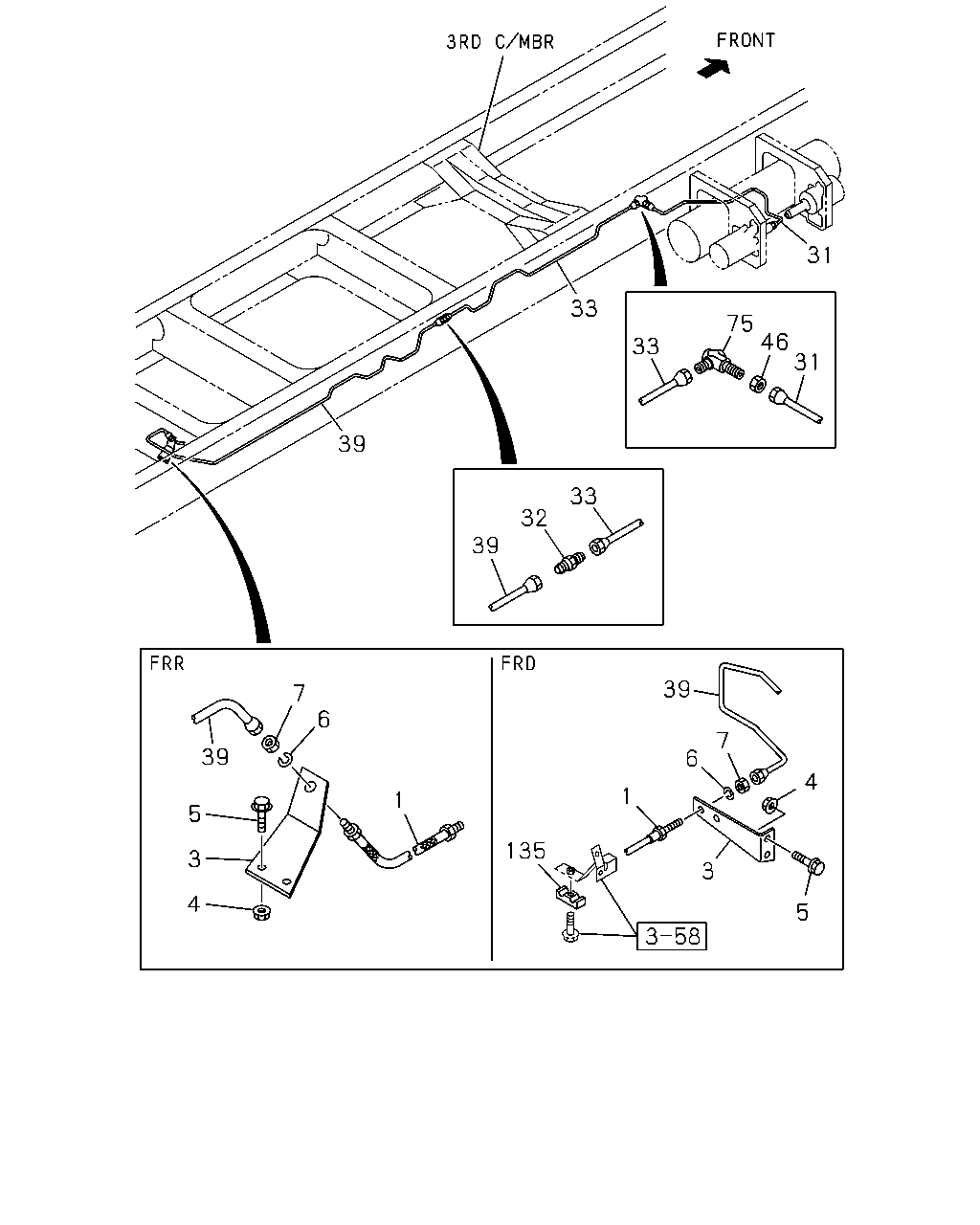

31 33 75 46 31 33 39 33 32 39 39 7 6 7 39 6 4 1 1 5 135 3 3 4 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	HOSE; FLEX,RR BRK L=480	0-05313-480-0	01	1	0412-0511	●
1	HOSE; FLEX,RR BRK L=480	0-05213-480-0	01	1	0512-	●
1	HOSE; FLEX,RR BRK L=610	0-05313-610-0	01	1	0005-0511		●	●	●
1	HOSE; FLEX,RR BRK L=610	0-05213-610-0	01	1	0512-		●	●	●
3	BRACKET; FLEX HOSE,RR BRK	1-47478-645-0	01	1	0412-	●
3	BRACKET; FLEX HOSE,RR BRK	1-47465-251-0	01	1	0005-		●	●	●
4	NUT; BRKT,FLEX HOSE,RR BRK M8 FLANGE	0-91150-108-0	02	1	0005-0602		●	●	●
4	NUT; BRKT,FLEX HOSE,RR BRK M8 FLANGE	0-91180-108-0	02	1	0603-		●	●	●
5	BOLT; BRKT,FLEX HOSE,RR BRK M8X20 FLANGE	0-28680-820-0	02	1	0412-0512	●
5	BOLT; BRKT,FLEX HOSE,RR BRK M8X20 FLANGE	0-28650-820-0	02	1	0601-	●
5	BOLT; BRKT,FLEX HOSE,RR BRK M8X25 FLANGE	0-28680-825-0	02	1	0005-0512		●	●	●
5	BOLT; BRKT,FLEX HOSE,RR BRK M8X25 FLANGE	0-28650-825-0	02	1	0601-		●	●	●
6	WASHER; LK,FLEX HOSE ID=12.2	9-09150-512-0	01	1	0005-0411		●	●	●
6	WASHER; LK,FLEX HOSE ID=12.2	9-09150-512-0	01	1	0412-0603	●	●	●	●
6	WASHER; LK,FLEX HOSE ID=12.2	0-91510-512-0	01	1	0604-	●	●	●	●
7	NUT; FLEX HOSE M12	9-09840-280-0	01	1	0005-0411		●	●	●
7	NUT; FLEX HOSE M12	9-09840-280-0	01	1	0412-	●	●	●	●
31	PIPE; OIL,AIR MASTER TO UNION L=890	1-49161-560-0	01	1	0005-0411		●	●
31	PIPE; OIL,AIR MASTER TO UNION L=890	1-49161-560-0	01	1	0412-	●	●	●
31	PIPE; OIL,AIR MASTER TO UNION L=413	1-49161-588-0	01	1	0005-				●
32	UNION; OIL PIPE M12 L=40	9-09223-006-1	01	1	0005-0411		●	●	●
32	UNION; OIL PIPE M12 L=40	9-09223-006-1	01	1	0412-0607	●	●	●	●
32	UNION; OIL PIPE M12 L=40	0-92113-006-0	01	1	0608-	●	●	●	●
33	PIPE; OIL,UNION TO UNION WHEEL BASE 3700MM(37W) L=1082 SERVICED BY L=1100	1-47426-351-0	01	1	0005-0611		●
33	PIPE; OIL,UNION TO UNION WHEEL BASE 3700MM(37W) L=975 SERVICED BY L=1000	1-47426-350-0	01	1	0612-		●
33	PIPE; OIL,UNION TO UNION WHEEL BASE 4200MM(42W) L=1545 SERVICED BY L=1620	1-47426-356-0	01	1	0005-		●	●
33	PIPE; OIL,UNION TO UNION WHEEL BASE 4800MM(48W) L=2156 SERVICED BY L=2200	1-47426-360-0	01	1	0005-0210		●	●
33	PIPE; OIL,UNION TO UNION WHEEL BASE 5100MM(51W) L=2456 SERVICED BY L=2500	1-47426-362-0	01	1	0211-0411		●	●
33	PIPE; OIL,UNION TO UNION WHEEL BASE 5100MM(51W) L=2456 SERVICED BY L=2500	1-47426-362-0	01	1	0412-	●	●	●
33	PIPE; OIL,UNION TO UNION L=1871 SERVICED BY L=2000	1-47426-359-0	01	1	0005-0210				●
33	PIPE; OIL,UNION TO UNION L=2271 SERVICED BY L=2350	1-47426-361-0	01	1	0211-				●
39	PIPE; OIL,UNION TO RR FLEX HOSE WHEEL BASE 3700MM(37W) L=2159 SERVICED BY L=2200	1-47426-360-0	01	1	0612-		●
39	PIPE; OIL,UNION TO RR FLEX HOSE L=1129 SERVICED BY L=1200	1-47426-352-0	01	1	0412-	●
39	PIPE; OIL,UNION TO RR FLEX HOSE WHEEL BASE 3700MM(37W),WHEEL BASE 4200MM(42W) L=2040 SERVICED BY L=2200	1-47426-360-0	01	1	0005-0611		●	●
39	PIPE; OIL,UNION TO RR FLEX HOSE WHEEL BASE 4200MM(42W) L=2040 SERVICED BY L=2200	1-47426-360-0	01	1	0612-		●	●
39	PIPE; OIL,UNION TO RR FLEX HOSE WHEEL BASE 4800MM(48W) L=1966 SERVICED BY L=2000	1-47426-359-0	01	1	0005-0210		●	●
39	PIPE; OIL,UNION TO RR FLEX HOSE L=1966 SERVICED BY L=2000	1-47426-359-0	01	1	0005-0210				●
39	PIPE; OIL,UNION TO RR FLEX HOSE WHEEL BASE 5100MM(51W) L=1966 SERVICED BY L=2000	1-47426-359-0	01	1	0211-		●	●
39	PIPE; OIL,UNION TO RR FLEX HOSE L=1966 SERVICED BY L=2000	1-47426-359-0	01	1	0211-				●
46	NUT; UNION,OIL PIPE M12	9-09840-280-0	01	1	0005-0411		●	●	●
46	NUT; UNION,OIL PIPE M12	9-09840-280-0	01	1	0412-	●	●	●	●
75	UNION; OIL PIPE M12 ELBOW	9-09225-206-1	01	1	0005-0411		●	●	●
75	UNION; OIL PIPE M12 ELBOW	9-09225-206-1	01	1	0412-0607	●	●	●	●
75	UNION; OIL PIPE M12 ELBOW	0-92125-206-0	01	1	0608-	●	●	●	●
135	CLIP; FLEX HOSE	1-09701-278-2	01	1	0412-	●

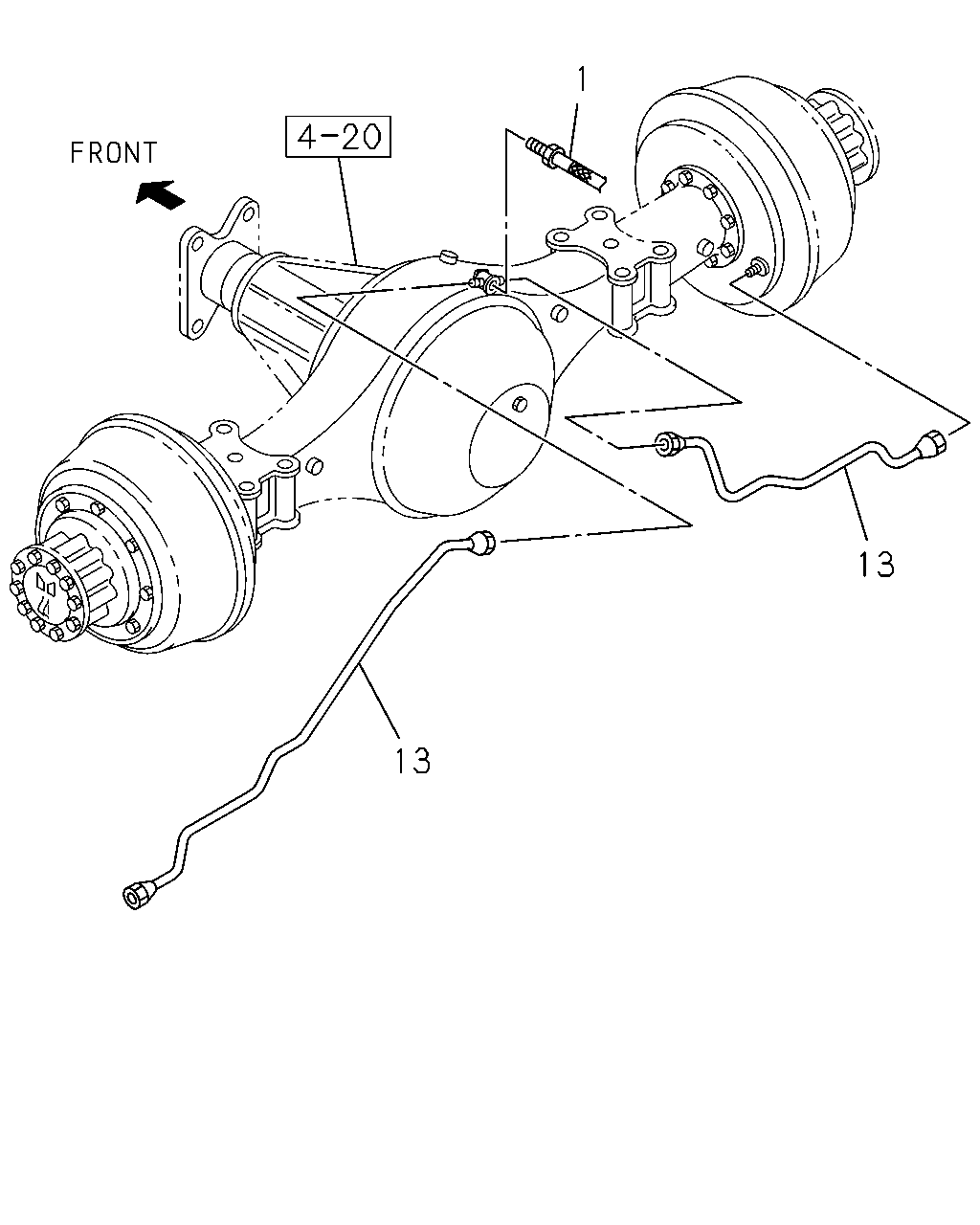

1 13 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	HOSE; FLEX,RR BRK L=480	0-05313-480-0	01	1	0412-0511	●
1	HOSE; FLEX,RR BRK L=480	0-05213-480-0	01	1	0512-	●
1	HOSE; FLEX,RR BRK L=610	0-05313-610-0	01	1	0005-0511		●	●	●
1	HOSE; FLEX,RR BRK L=610	0-05213-610-0	01	1	0512-		●	●	●
13	PIPE; BRK,RR AXLE	8-97388-296-0	01	1	0412-0412	●
13	PIPE; BRK,RR AXLE	8-98006-147-0	01	1	0412-	●
13	PIPE; BRK,RR AXLE	8-97388-297-0	01	1	0412-0412	●
13	PIPE; BRK,RR AXLE	8-98006-148-0	01	1	0412-	●
13	PIPE; BRK,RR AXLE L=847	1-47427-106-0	01	1	0005-		●	●
13	PIPE; BRK,RR AXLE L=675	1-47427-105-0	01	1	0005-		●	●
13	PIPE; BRK,RR AXLE L=858	1-47427-108-0	01	1	0005-				●
13	PIPE; BRK,RR AXLE L=685	1-47427-107-0	01	1	0005-				●
