3-52 — BRAKE PIPING; OIL,FRONT (#9388) — 119 parça

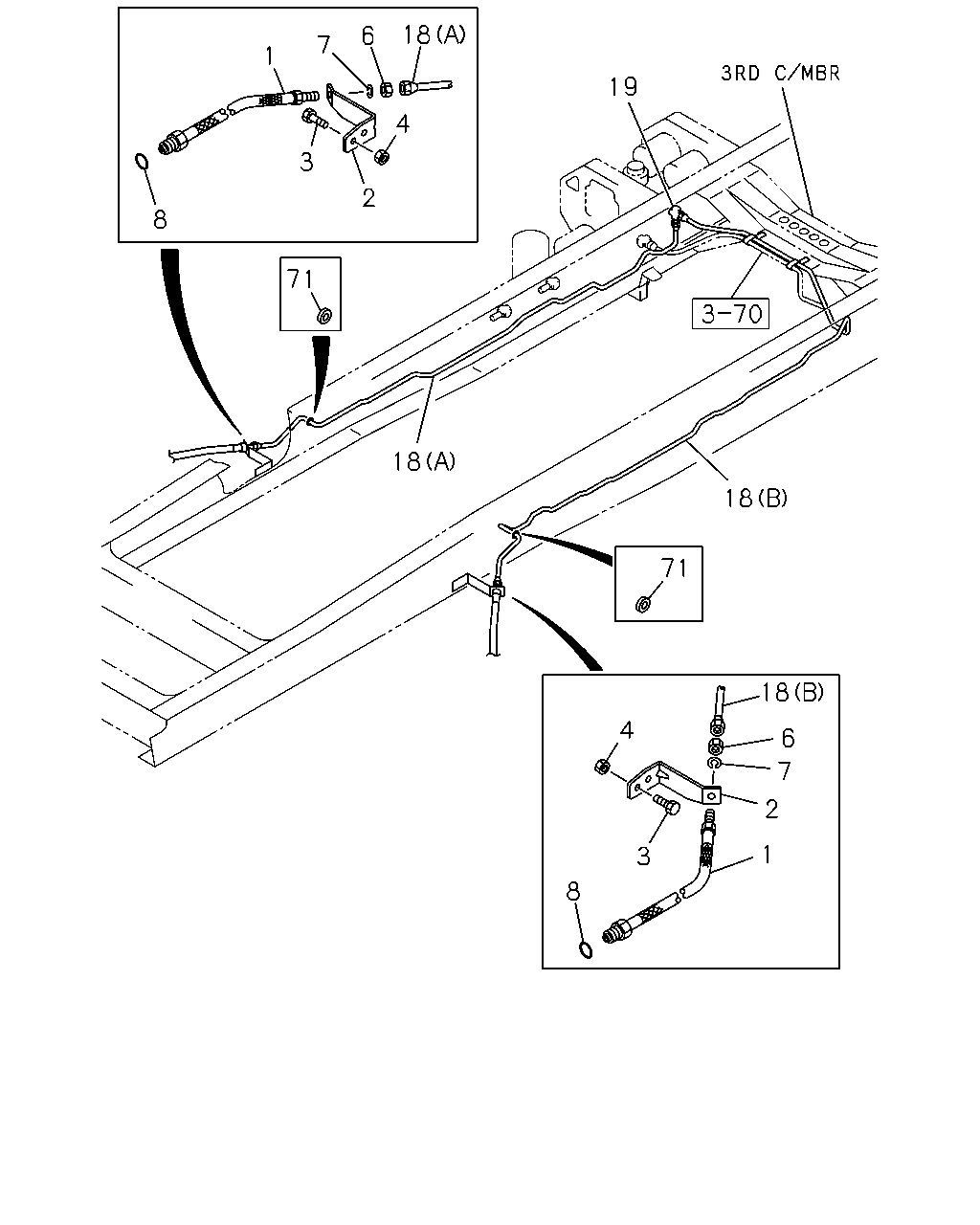

çizim 38844
18 6 7 1 19 4 3 2 8 71 18 18 71 18 4 6 7 2 1 3 8
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 HOSE; FLEX,FRT BRK
L=530 		0-05313-530-0 02 1 0005-0411 ● ●
1 HOSE; FLEX,FRT BRK
L=530 		0-05313-530-0 02 1 0412-0511 ● ● ●
1 HOSE; FLEX,FRT BRK
L=530 		0-05213-530-0 02 1 0512- ● ● ●
1 HOSE; FLEX,FRT BRK
L=550 		0-05312-550-0 02 1 0005- ●
2 BRACKET; FLEX HOSE,FRT BRK 1-47476-497-1 02 1 0005-0411 ● ●
2 BRACKET; FLEX HOSE,FRT BRK 1-47476-497-1 02 1 0412- ● ● ●
2 BRACKET; FLEX HOSE,FRT BRK 1-47476-295-1 02 1 0005- ●
3 BOLT; BRKT,FLEX HOSE,FRT BRK
M8X25 FLANGE 		0-28680-825-0 04 1 0005-0411 ● ● ●
3 BOLT; BRKT,FLEX HOSE,FRT BRK
M8X25 FLANGE 		0-28680-825-0 04 1 0412-0512 ● ● ● ●
3 BOLT; BRKT,FLEX HOSE,FRT BRK
M8X25 FLANGE 		0-28650-825-0 04 1 0601- ● ● ● ●
4 NUT; FLEX HOSE BRKT,FRT BRK
M8 FLANGE 		0-91150-108-0 04 1 0005-0411 ● ● ●
4 NUT; FLEX HOSE BRKT,FRT BRK
M8 FLANGE 		0-91150-108-0 04 1 0412-0602 ● ● ● ●
4 NUT; FLEX HOSE BRKT,FRT BRK
M8 FLANGE 		0-91180-108-0 04 1 0603- ● ● ● ●
6 NUT; FLEX HOSE,FRT BRK
M12 		9-09840-280-0 02 1 0005-0411 ● ● ●
6 NUT; FLEX HOSE,FRT BRK
M12 		9-09840-280-0 02 1 0412- ● ● ● ●
7 WASHER; LK,FLEX HOSE,FRT BRK
ID=12.2 		9-09150-512-0 02 1 0005-0411 ● ● ●
7 WASHER; LK,FLEX HOSE,FRT BRK
ID=12.2 		9-09150-512-0 02 1 0412-0603 ● ● ● ●
7 WASHER; LK,FLEX HOSE,FRT BRK
ID=12.2 		0-91510-512-0 02 1 0604- ● ● ● ●
8 GASKET; FLEX HOSE,FRT BRK
ID=9 OD=17 		9-09920-472-0 02 1 0005- ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
(B) L=2890 SERVICED BY L=2900 		1-47426-364-0 01 1 0005-0212 ● ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
(B) L=2909 SERVICED BY L=3200 		1-47426-365-0 01 1 0301-0411 ● ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
(B) L=2909 SERVICED BY L=3200 		1-47426-365-0 01 1 0412- ● ● ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
(A) L=1803 SERVICED BY L=1820 		1-47426-358-0 01 1 0005-0210 ● ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
(A) L=1775 SERVICED BY L=1820 		1-47426-358-0 01 1 0211-0411 ● ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
(A) L=1775 SERVICED BY L=1820 		1-47426-358-0 01 1 0412- ● ● ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
(B) L=2703 SERVICED BY L=2900 		1-47426-364-0 01 1 0005-0109 ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
(B) L=2684 SERVICED BY L=2900 		1-47426-364-0 01 1 0110-0508 ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
(B) L=2674 SERVICED BY L=2900 		1-47426-364-0 01 1 0509- ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
(A) L=1924 SERVICED BY L=2000 		1-47426-359-0 01 1 0005-0210 ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
(A) L=1928 SERVICED BY L=2000 		1-47426-359-0 01 1 0211- ●
19 UNION; OIL PIPE
M12 3WAY 		9-09228-606-1 01 1 0005-0411 ● ●
19 UNION; OIL PIPE
M12 3WAY 		9-09228-606-1 01 1 0412-0607 ● ● ●
19 UNION; OIL PIPE
M12 3WAY 		0-92138-606-0 01 1 0608- ● ● ●
19 UNION; OIL PIPE
M12 3WAY 		9-09228-906-1 01 1 0005-0607 ●
19 UNION; OIL PIPE
M12 3WAY 		0-92138-906-0 01 1 0608- ●
71 GROMMET; OIL PIPE
ID=24 OD=30 T=17 		9-09956-092-1 02 1 0005-0411 ● ● ●
71 GROMMET; OIL PIPE
ID=24 OD=30 T=17 		9-09956-092-1 02 1 0412- ● ● ● ●

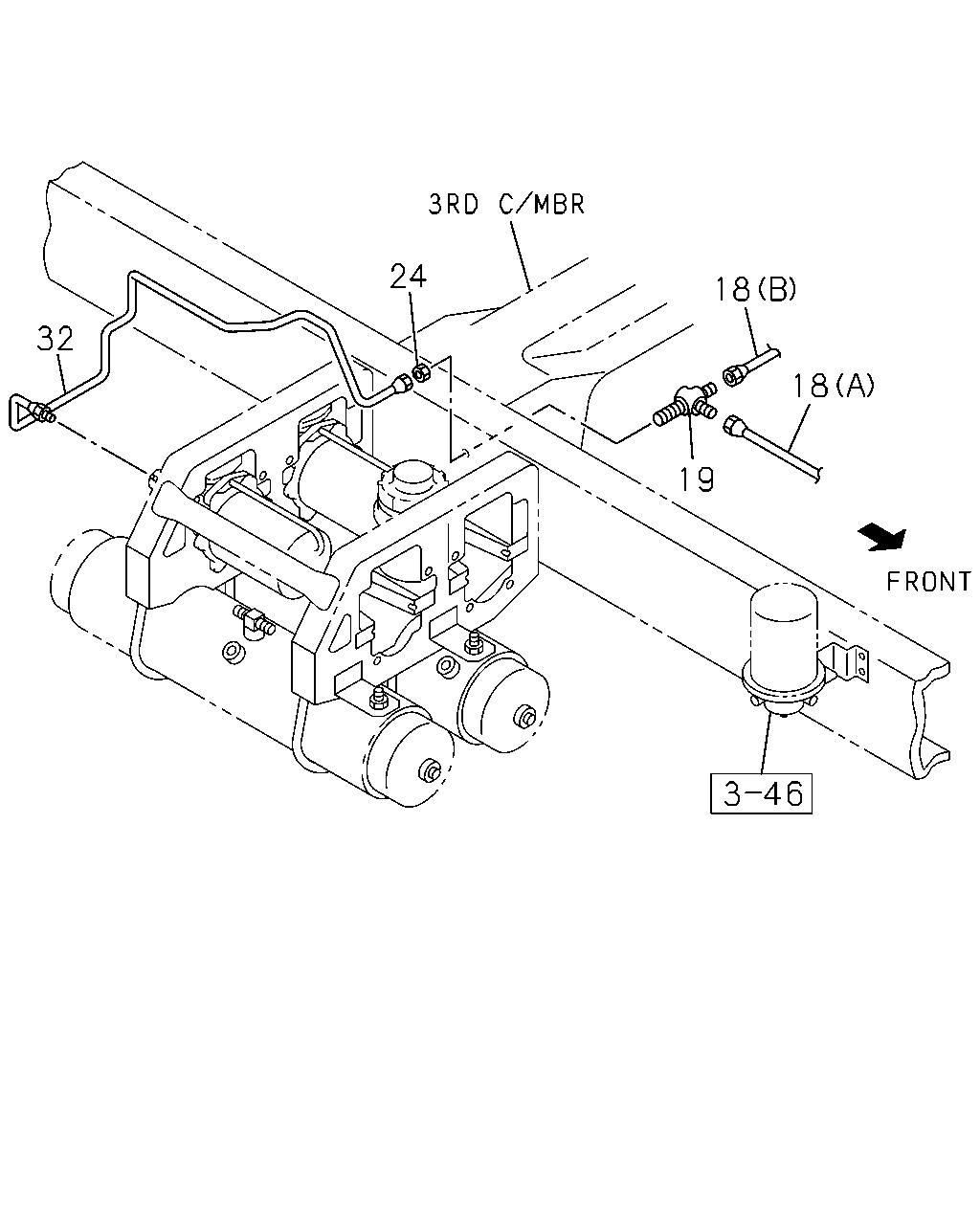

çizim 38877
24 18 32 18 19
BalonParca AdiParca NoAdetTipApplied Date A B C D
18 PIPE; OIL,UNION TO FRT FLEX HOSE
(B) L=2890 SERVICED BY L=2900 		1-47426-364-0 01 1 0005-0212 ● ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
(B) L=2909 SERVICED BY L=3200 		1-47426-365-0 01 1 0301-0411 ● ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
(B) L=2909 SERVICED BY L=3200 		1-47426-365-0 01 1 0412- ● ● ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
(A) L=1803 SERVICED BY L=1820 		1-47426-358-0 01 1 0005-0210 ● ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
(A) L=1775 SERVICED BY L=1820 		1-47426-358-0 01 1 0211-0411 ● ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
(A) L=1775 SERVICED BY L=1820 		1-47426-358-0 01 1 0412- ● ● ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
(B) L=2703 SERVICED BY L=2900 		1-47426-364-0 01 1 0005-0109 ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
(B) L=2684 SERVICED BY L=2900 		1-47426-364-0 01 1 0110-0508 ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
(B) L=2674 SERVICED BY L=2900 		1-47426-364-0 01 1 0509- ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
(A) L=1924 SERVICED BY L=2000 		1-47426-359-0 01 1 0005-0210 ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
(A) L=1928 SERVICED BY L=2000 		1-47426-359-0 01 1 0211- ●
19 UNION; OIL PIPE
M12 3WAY 		9-09228-606-1 01 1 0005-0411 ● ●
19 UNION; OIL PIPE
M12 3WAY 		9-09228-606-1 01 1 0412-0607 ● ● ●
19 UNION; OIL PIPE
M12 3WAY 		0-92138-606-0 01 1 0608- ● ● ●
19 UNION; OIL PIPE
M12 3WAY 		9-09228-906-1 01 1 0005-0607 ●
19 UNION; OIL PIPE
M12 3WAY 		0-92138-906-0 01 1 0608- ●
24 NUT; UNION,OIL PIPE
M12 		9-09840-280-0 01 1 0005-0411 ● ● ●
24 NUT; UNION,OIL PIPE
M12 		9-09840-280-0 01 1 0412- ● ● ● ●
32 PIPE; OIL,AIR MASTER TO UNION
L=978 		1-49161-959-0 01 1 0005-0411 ● ●
32 PIPE; OIL,AIR MASTER TO UNION
L=978 		1-49161-959-0 01 1 0412- ● ● ●
32 PIPE; OIL,AIR MASTER TO UNION
L=1138 SERVICED BY L=1200 		1-47426-352-0 01 1 0005-0006 ●
32 PIPE; OIL,AIR MASTER TO UNION
L=1148 SERVICED BY L=1200 		1-47426-352-0 01 1 0007-0302 ●
32 PIPE; OIL,AIR MASTER TO UNION
L=1160 SERVICED BY L=1200 		1-47426-352-0 01 1 0303- ●

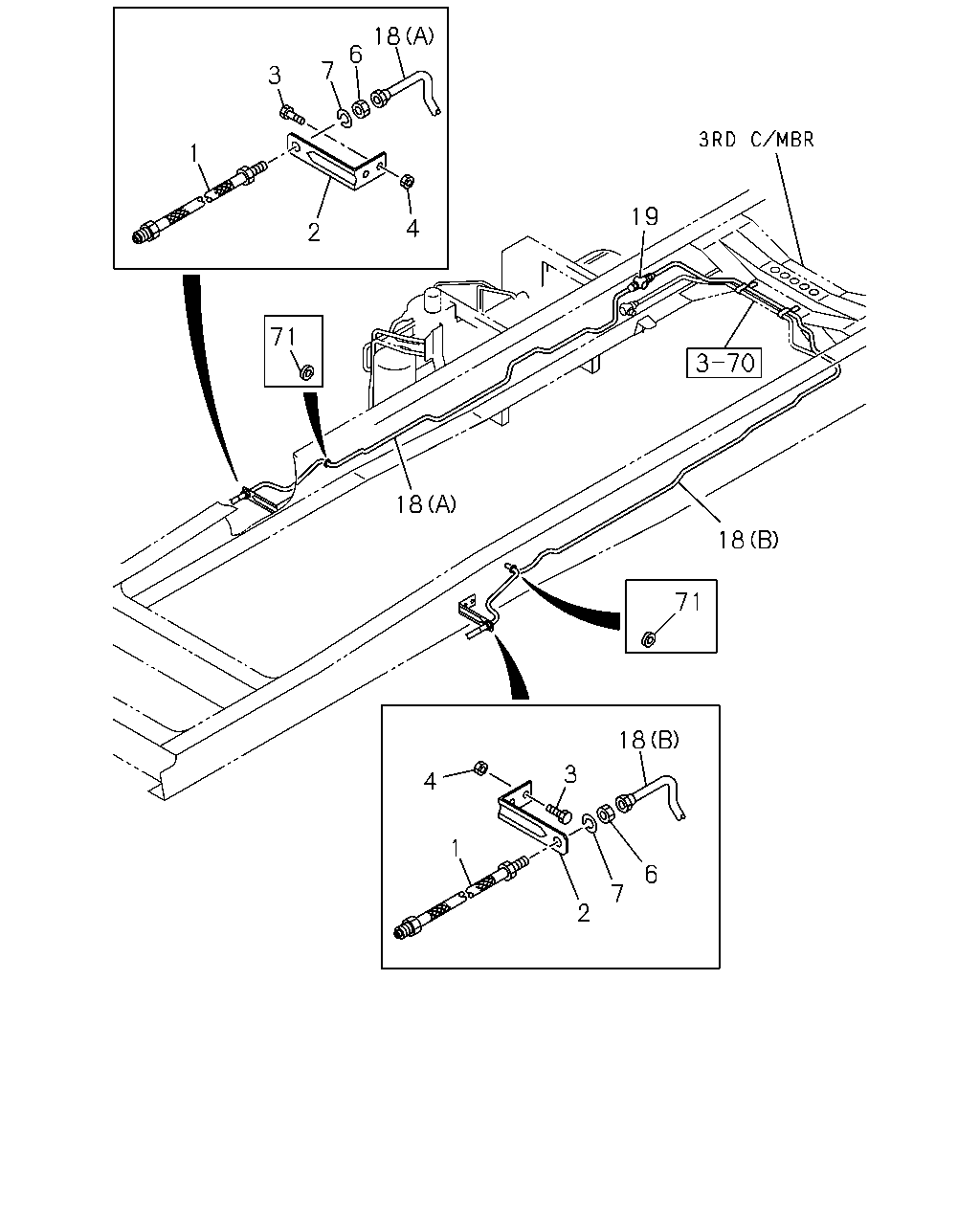

çizim 38905
18 6 7 3 1 19 4 2 71 18 18 71 18 3 4 1 6 7 2
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 HOSE; FLEX,FRT BRK
L=530 		0-05313-530-0 02 1 0005-0411 ● ●
1 HOSE; FLEX,FRT BRK
L=530 		0-05313-530-0 02 1 0412-0511 ● ● ●
1 HOSE; FLEX,FRT BRK
L=530 		0-05213-530-0 02 1 0512- ● ● ●
1 HOSE; FLEX,FRT BRK
L=550 		0-05312-550-0 02 1 0005- ●
2 BRACKET; FLEX HOSE,FRT BRK 1-47476-497-1 02 1 0005-0411 ● ●
2 BRACKET; FLEX HOSE,FRT BRK 1-47476-497-1 02 1 0412- ● ● ●
2 BRACKET; FLEX HOSE,FRT BRK 1-47476-295-1 02 1 0005- ●
3 BOLT; BRKT,FLEX HOSE,FRT BRK
M8X25 FLANGE 		0-28680-825-0 04 1 0005-0411 ● ● ●
3 BOLT; BRKT,FLEX HOSE,FRT BRK
M8X25 FLANGE 		0-28680-825-0 04 1 0412-0512 ● ● ● ●
3 BOLT; BRKT,FLEX HOSE,FRT BRK
M8X25 FLANGE 		0-28650-825-0 04 1 0601- ● ● ● ●
4 NUT; FLEX HOSE BRKT,FRT BRK
M8 FLANGE 		0-91150-108-0 04 1 0005-0411 ● ● ●
4 NUT; FLEX HOSE BRKT,FRT BRK
M8 FLANGE 		0-91150-108-0 04 1 0412-0602 ● ● ● ●
4 NUT; FLEX HOSE BRKT,FRT BRK
M8 FLANGE 		0-91180-108-0 04 1 0603- ● ● ● ●
6 NUT; FLEX HOSE,FRT BRK
M12 		9-09840-280-0 02 1 0005-0411 ● ● ●
6 NUT; FLEX HOSE,FRT BRK
M12 		9-09840-280-0 02 1 0412- ● ● ● ●
7 WASHER; LK,FLEX HOSE,FRT BRK
ID=12.2 		9-09150-512-0 02 1 0005-0411 ● ● ●
7 WASHER; LK,FLEX HOSE,FRT BRK
ID=12.2 		9-09150-512-0 02 1 0412-0603 ● ● ● ●
7 WASHER; LK,FLEX HOSE,FRT BRK
ID=12.2 		0-91510-512-0 02 1 0604- ● ● ● ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
(B) L=2890 SERVICED BY L=2900 		1-47426-364-0 01 1 0005-0212 ● ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
(B) L=2909 SERVICED BY L=3200 		1-47426-365-0 01 1 0301-0411 ● ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
(B) L=2909 SERVICED BY L=3200 		1-47426-365-0 01 1 0412- ● ● ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
(A) L=1803 SERVICED BY L=1820 		1-47426-358-0 01 1 0005-0210 ● ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
(A) L=1775 SERVICED BY L=1820 		1-47426-358-0 01 1 0211-0411 ● ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
(A) L=1775 SERVICED BY L=1820 		1-47426-358-0 01 1 0412- ● ● ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
(B) L=2703 SERVICED BY L=2900 		1-47426-364-0 01 1 0005-0109 ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
(B) L=2684 SERVICED BY L=2900 		1-47426-364-0 01 1 0110-0508 ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
(B) L=2674 SERVICED BY L=2900 		1-47426-364-0 01 1 0509- ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
(A) L=1924 SERVICED BY L=2000 		1-47426-359-0 01 1 0005-0210 ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
(A) L=1928 SERVICED BY L=2000 		1-47426-359-0 01 1 0211- ●
19 UNION; OIL PIPE
M12 3WAY 		9-09228-606-1 01 1 0005-0411 ● ●
19 UNION; OIL PIPE
M12 3WAY 		9-09228-606-1 01 1 0412-0607 ● ● ●
19 UNION; OIL PIPE
M12 3WAY 		0-92138-606-0 01 1 0608- ● ● ●
19 UNION; OIL PIPE
M12 3WAY 		9-09228-906-1 01 1 0005-0607 ●
19 UNION; OIL PIPE
M12 3WAY 		0-92138-906-0 01 1 0608- ●
71 GROMMET; OIL PIPE
ID=24 OD=30 T=17 		9-09956-092-1 02 1 0005-0411 ● ● ●
71 GROMMET; OIL PIPE
ID=24 OD=30 T=17 		9-09956-092-1 02 1 0412- ● ● ● ●

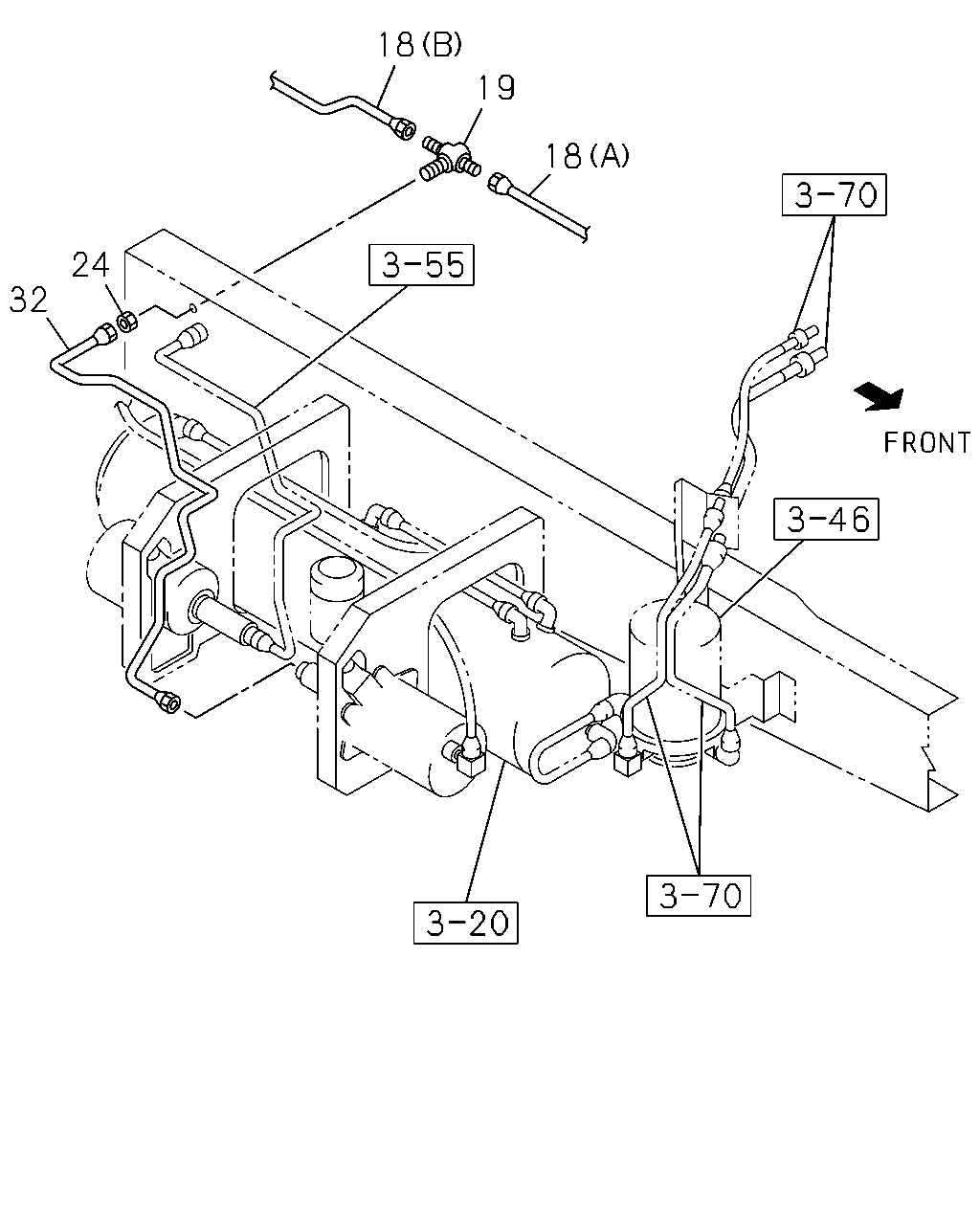

çizim 100270
18 19 18 24 32
BalonParca AdiParca NoAdetTipApplied Date A B C D
18 PIPE; OIL,UNION TO FRT FLEX HOSE
(B) L=2890 SERVICED BY L=2900 		1-47426-364-0 01 1 0005-0212 ● ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
(B) L=2909 SERVICED BY L=3200 		1-47426-365-0 01 1 0301-0411 ● ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
(B) L=2909 SERVICED BY L=3200 		1-47426-365-0 01 1 0412- ● ● ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
(A) L=1803 SERVICED BY L=1820 		1-47426-358-0 01 1 0005-0210 ● ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
(A) L=1775 SERVICED BY L=1820 		1-47426-358-0 01 1 0211-0411 ● ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
(A) L=1775 SERVICED BY L=1820 		1-47426-358-0 01 1 0412- ● ● ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
(B) L=2703 SERVICED BY L=2900 		1-47426-364-0 01 1 0005-0109 ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
(B) L=2684 SERVICED BY L=2900 		1-47426-364-0 01 1 0110-0508 ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
(B) L=2674 SERVICED BY L=2900 		1-47426-364-0 01 1 0509- ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
(A) L=1924 SERVICED BY L=2000 		1-47426-359-0 01 1 0005-0210 ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
(A) L=1928 SERVICED BY L=2000 		1-47426-359-0 01 1 0211- ●
19 UNION; OIL PIPE
M12 3WAY 		9-09228-606-1 01 1 0005-0411 ● ●
19 UNION; OIL PIPE
M12 3WAY 		9-09228-606-1 01 1 0412-0607 ● ● ●
19 UNION; OIL PIPE
M12 3WAY 		0-92138-606-0 01 1 0608- ● ● ●
19 UNION; OIL PIPE
M12 3WAY 		9-09228-906-1 01 1 0005-0607 ●
19 UNION; OIL PIPE
M12 3WAY 		0-92138-906-0 01 1 0608- ●
24 NUT; UNION,OIL PIPE
M12 		9-09840-280-0 01 1 0005-0411 ● ● ●
24 NUT; UNION,OIL PIPE
M12 		9-09840-280-0 01 1 0412- ● ● ● ●
32 PIPE; OIL,AIR MASTER TO UNION
L=978 		1-49161-959-0 01 1 0005-0411 ● ●
32 PIPE; OIL,AIR MASTER TO UNION
L=978 		1-49161-959-0 01 1 0412- ● ● ●
32 PIPE; OIL,AIR MASTER TO UNION
L=1138 SERVICED BY L=1200 		1-47426-352-0 01 1 0005-0006 ●
32 PIPE; OIL,AIR MASTER TO UNION
L=1148 SERVICED BY L=1200 		1-47426-352-0 01 1 0007-0302 ●
32 PIPE; OIL,AIR MASTER TO UNION
L=1160 SERVICED BY L=1200 		1-47426-352-0 01 1 0303- ●
