Sayfa 3-46 - Isuzu EPC

3-46 — AIR DRYER (#9387) — 231 parça

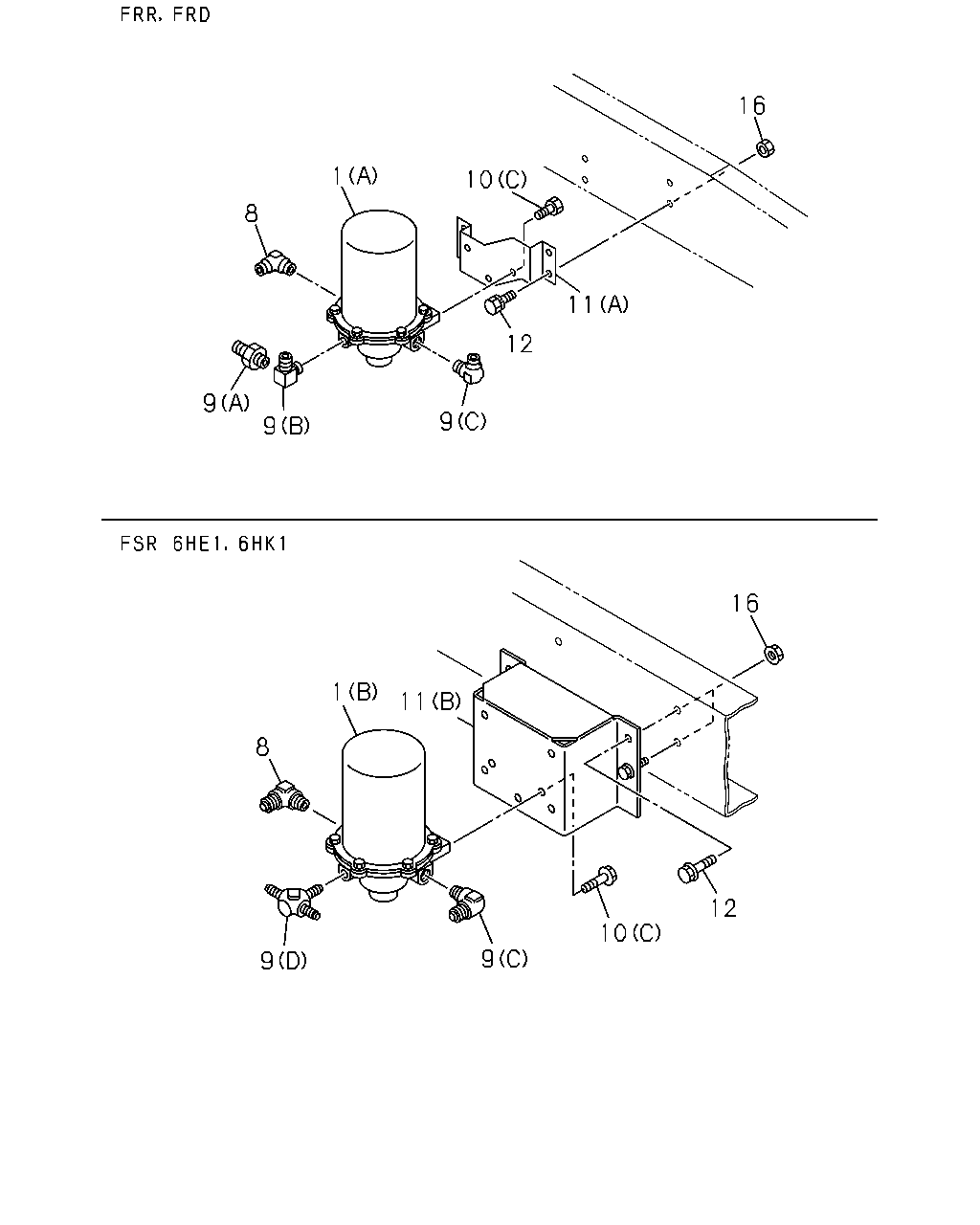

16 1 10 8 11 12 9 9 9 16 1 11 8 12 10 9 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	DRYER; AIR (A)	1-48190-200-0	01	1	0005-0210	●	●
1	DRYER; AIR (A)	1-48190-215-1	01	1	0211-0411	●	●
1	DRYER; AIR (A)	1-48190-215-1	01	1	0412-	●	●	●
1	DRYER; AIR 6HE1 TC ENG(57L) (B)	1-48190-210-0	01	1	0005-0210				●
1	DRYER; AIR (B)	1-48190-210-1	01	1	0211-				●
1	DRYER; AIR 6HH1 STD ENG(65L) (C)	1-48190-114-1	01	1	0005-0210				●
8	CONNECTOR; OUT,AIR DRYER M20 & PT1/2 ELBOW	1-09650-443-0	01	1	0005-0411	●	●
8	CONNECTOR; OUT,AIR DRYER M20 & PT1/2 ELBOW	1-09650-443-0	01	1	0412-	●	●	●
8	CONNECTOR; OUT,AIR DRYER M22 & PT1/2 ELBOW	1-09650-444-0	01	1	0005-0607				●
8	CONNECTOR; OUT,AIR DRYER M22 & PT1/2 ELBOW	0-92134-315-0	01	1	0608-				●
9	CONNECTOR; PIPE,AIR DRYER (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0005-0411	●	●
9	CONNECTOR; PIPE,AIR DRYER (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0412-	●	●	●
9	CONNECTOR; PIPE,AIR DRYER (B) PT1/4 & M12 ELBOW	1-09656-665-0	01	1	0005-0411	●	●
9	CONNECTOR; PIPE,AIR DRYER (B) PT1/4 & M12 ELBOW	1-09656-665-0	01	1	0412-	●	●	●
9	CONNECTOR; PIPE,AIR DRYER (C) M22 & R1/2 W/VALVE	1-48320-026-2	01	1	0005-0411	●	●		●
9	CONNECTOR; PIPE,AIR DRYER (C) M22 & R1/2 W/VALVE	1-48320-026-2	01	1	0412-	●	●	●	●
9	CONNECTOR; PIPE,AIR DRYER 6HE1 TC ENG(57L) (D) M12X2 & PT1/4 3WAY	1-09656-229-1	01	1	0005-0210				●
9	CONNECTOR; PIPE,AIR DRYER (D) M12X2 & PT1/4 3WAY	1-09656-229-1	01	1	0211-				●
9	CONNECTOR; PIPE,AIR DRYER 6HH1 STD ENG(65L) (E) M12X2 & PT1/4 3WAY	1-09656-230-1	01	1	0005-0210				●
10	BOLT; AIR DRYER (C) M10X16	0-20801-016-0	03	1	0005-0210	●	●
10	BOLT; AIR DRYER 6HE1 TC ENG(57L) (C) M10X16	0-20801-016-0	03	1	0005-0210				●
10	BOLT; AIR DRYER (C) M10X16	0-20801-016-0	03	1	0211-0411	●	●		●
10	BOLT; AIR DRYER (C) M10X16	0-20801-016-0	03	1	0412-0512	●	●	●	●
10	BOLT; AIR DRYER (C) M10X16	0-20851-016-0	03	1	0601-	●	●	●	●
10	BOLT; AIR DRYER 6HH1 STD ENG(65L) (B) M10X25 FLANGE	0-28681-025-0	04	1	0005-0210				●
10	BOLT; AIR DRYER 6HH1 STD ENG(65L) (A) M10X35 FLANGE	0-28681-035-0	04	1	0005-0210				●
11	BRACKET; AIR DRYER (A)	1-48195-066-0	01	1	0005-0411	●	●
11	BRACKET; AIR DRYER (A)	1-48195-066-0	01	1	0412-	●	●	●
11	BRACKET; AIR DRYER 6HE1 TC ENG(57L) (B)	1-48195-107-0	01	1	0005-0005				●
11	BRACKET; AIR DRYER 6HE1 TC ENG(57L) (B)	1-48195-108-0	01	1	0006-0210				●
11	BRACKET; AIR DRYER (B)	1-48195-108-0	01	1	0211-				●
11	BRACKET; AIR DRYER 6HH1 STD ENG(65L) (C)	1-48195-045-0	01	1	0005-0210				●
12	BOLT; BRKT M10X30 FLANGE	0-28681-030-0	04	1	0005-0301	●	●
12	BOLT; BRKT M10X35 FLANGE	0-28681-035-0	04	1	0302-0411	●	●
12	BOLT; BRKT M10X35 FLANGE	0-28681-035-0	04	1	0412-0512	●	●	●
12	BOLT; BRKT M10X35 FLANGE	0-28651-035-0	04	1	0601-	●	●	●
12	BOLT; BRKT 6HE1 TC ENG(57L) M10X30 FLANGE	0-28681-030-0	02	1	0005-0210				●
12	BOLT; BRKT M10X30 FLANGE	0-28681-030-0	02	1	0211-0301				●
12	BOLT; BRKT M10X35 FLANGE	0-28681-035-0	02	1	0302-0512				●
12	BOLT; BRKT M10X35 FLANGE	0-28651-035-0	02	1	0601-				●
16	NUT; BRKT M10 FLANGE	0-91150-210-0	04	1	0005-0210	●	●
16	NUT; BRKT 6HE1 TC ENG(57L) M10 FLANGE	0-91150-210-0	04	1	0005-0210				●
16	NUT; BRKT M10 FLANGE	0-91150-210-0	04	1	0211-0410				●
16	NUT; BRKT M10 FLANGE	0-91150-210-0	04	1	0411-0411	●	●		●
16	NUT; BRKT M10 FLANGE	0-91150-210-0	04	1	0412-0602	●	●	●	●
16	NUT; BRKT M10 FLANGE	0-91180-210-0	04	1	0603-	●	●	●	●

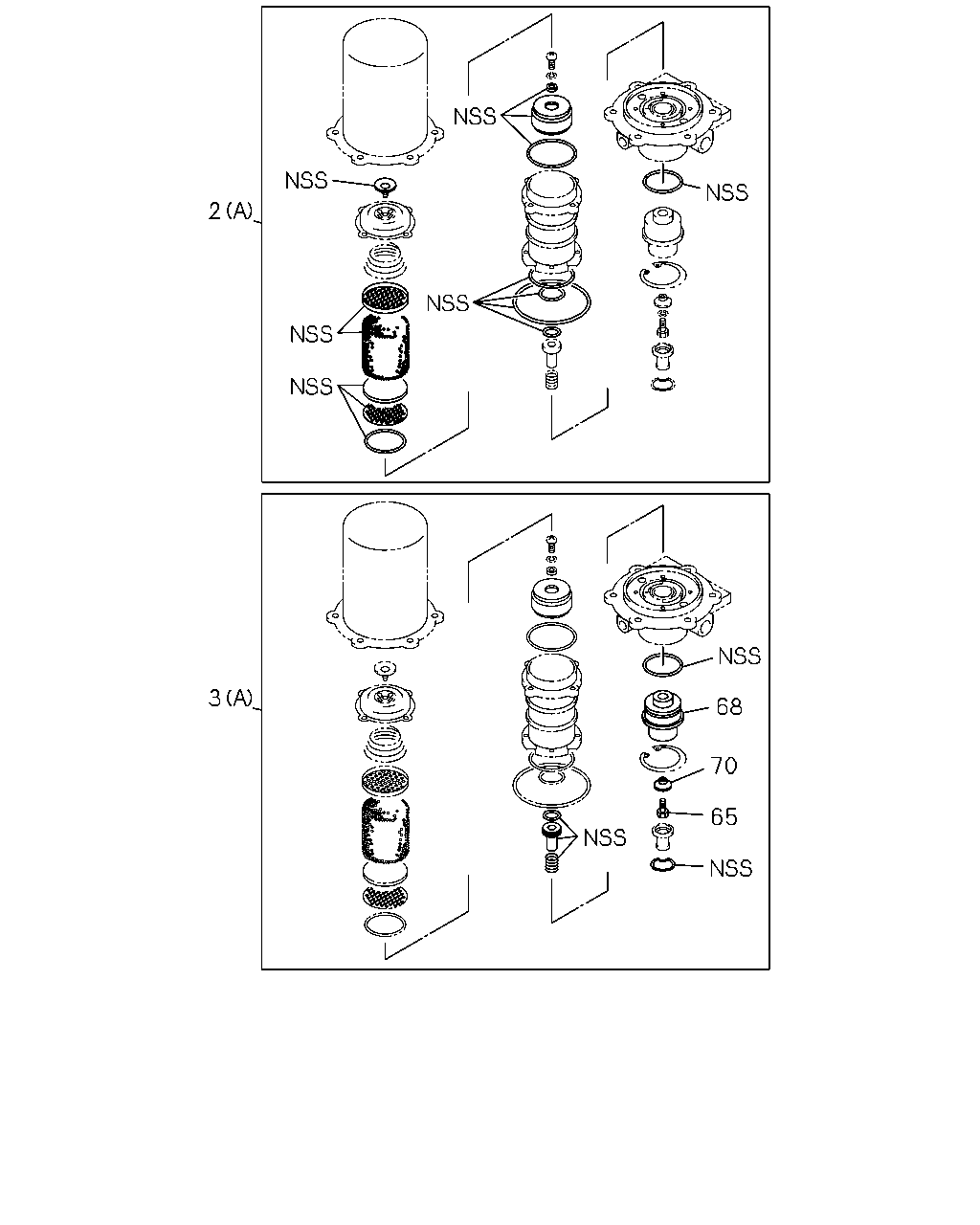

2 3 68 70 65

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	REPAIR KIT; AIR DRYER (A)	1-85576-194-0	01	1	0005-0411	●	●
2	REPAIR KIT; AIR DRYER (A)	1-85576-194-0	01	1	0412-	●	●	●
2	REPAIR KIT; AIR DRYER 6HE1 TC ENG(57L) (A)	1-85576-217-0	01	1	0005-0210				●
2	REPAIR KIT; AIR DRYER (A)	1-85576-217-0	01	1	0211-				●
2	REPAIR KIT; AIR DRYER 6HH1 STD ENG(65L) (B)	1-85576-083-0	01	1	0005-0210				●
3	PISTON KIT; AIR DRYER (A)	1-85576-193-0	01	1	0005-0210	●	●
3	PISTON KIT; AIR DRYER 6HE1 TC ENG(57L) (A)	1-85576-193-0	01	1	0005-0210				●
3	PISTON KIT; AIR DRYER (A)	1-85576-193-0	01	1	0211-0411	●	●		●
3	PISTON KIT; AIR DRYER (A)	1-85576-193-0	01	1	0412-	●	●	●	●
3	PISTON KIT; AIR DRYER 6HH1 STD ENG(65L) (B)	1-85576-084-0	01	1	0005-0210				●
65	BOLT; PURGE VLV	1-48199-393-0	01	1	0005-0210	●	●
65	BOLT; PURGE VLV 6HE1 TC ENG(57L)	1-48199-393-0	01	1	0005-0210				●
65	BOLT; PURGE VLV	1-48199-393-0	01	1	0211-0411	●	●		●
65	BOLT; PURGE VLV	1-48199-393-0	01	1	0412-	●	●	●	●
65	BOLT; PURGE VLV 6HH1 STD ENG(65L)	1-48199-102-0	01	1	0005-0210				●
68	BODY; VALVE	1-48199-408-0	01	1	0005-0210	●	●
68	BODY; VALVE 6HE1 TC ENG(57L)	1-48199-408-0	01	1	0005-0210				●
68	BODY; VALVE	1-48199-408-0	01	1	0211-0411	●	●		●
68	BODY; VALVE	1-48199-408-0	01	1	0412-	●	●	●	●
68	BODY; VALVE 6HH1 STD ENG(65L)	1-48199-216-0	01	1	0005-0210				●
70	VALVE; AIR DRYER	1-48199-105-0	01	1	0005-0411	●	●		●
70	VALVE; AIR DRYER	1-48199-105-0	01	1	0412-	●	●	●	●

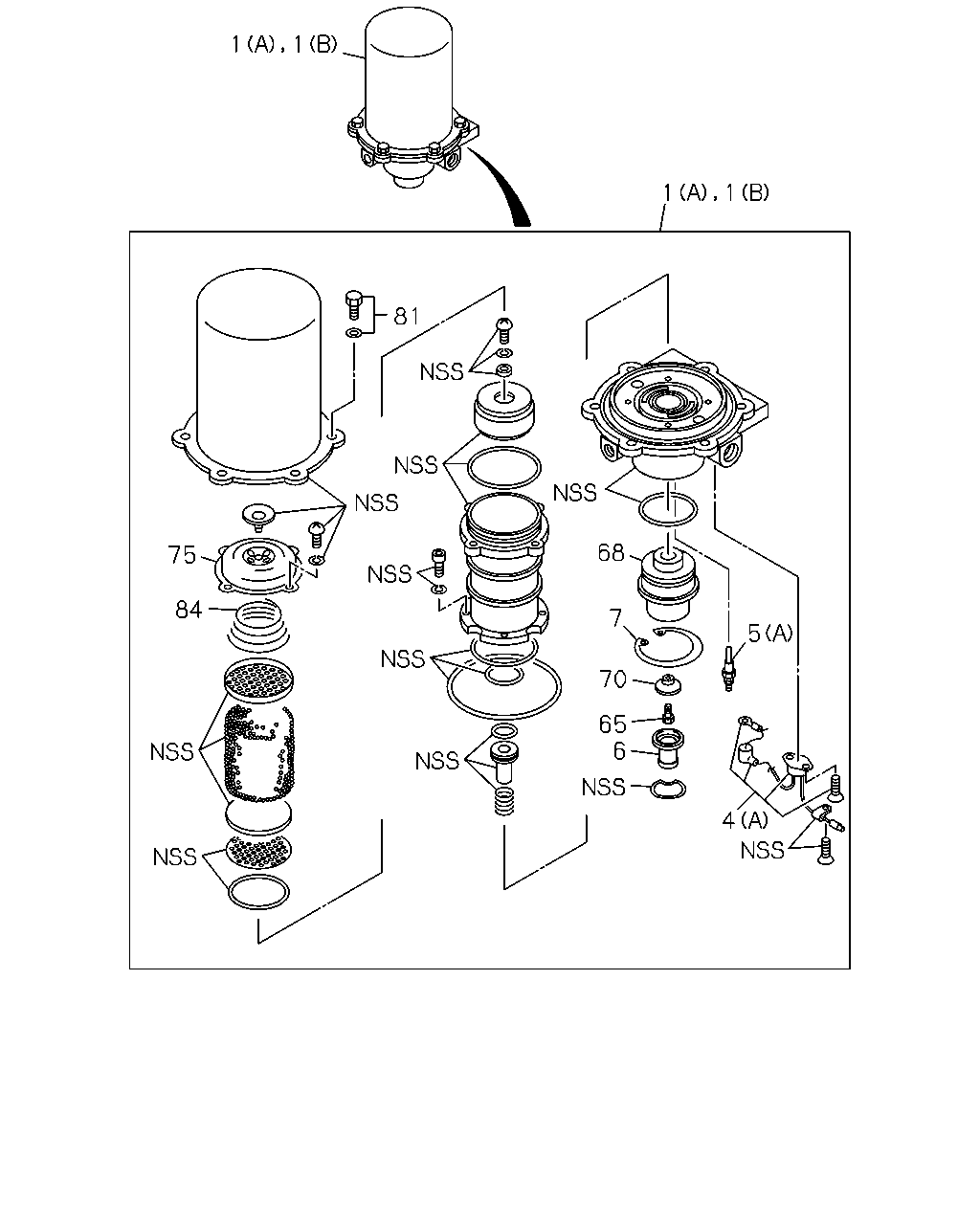

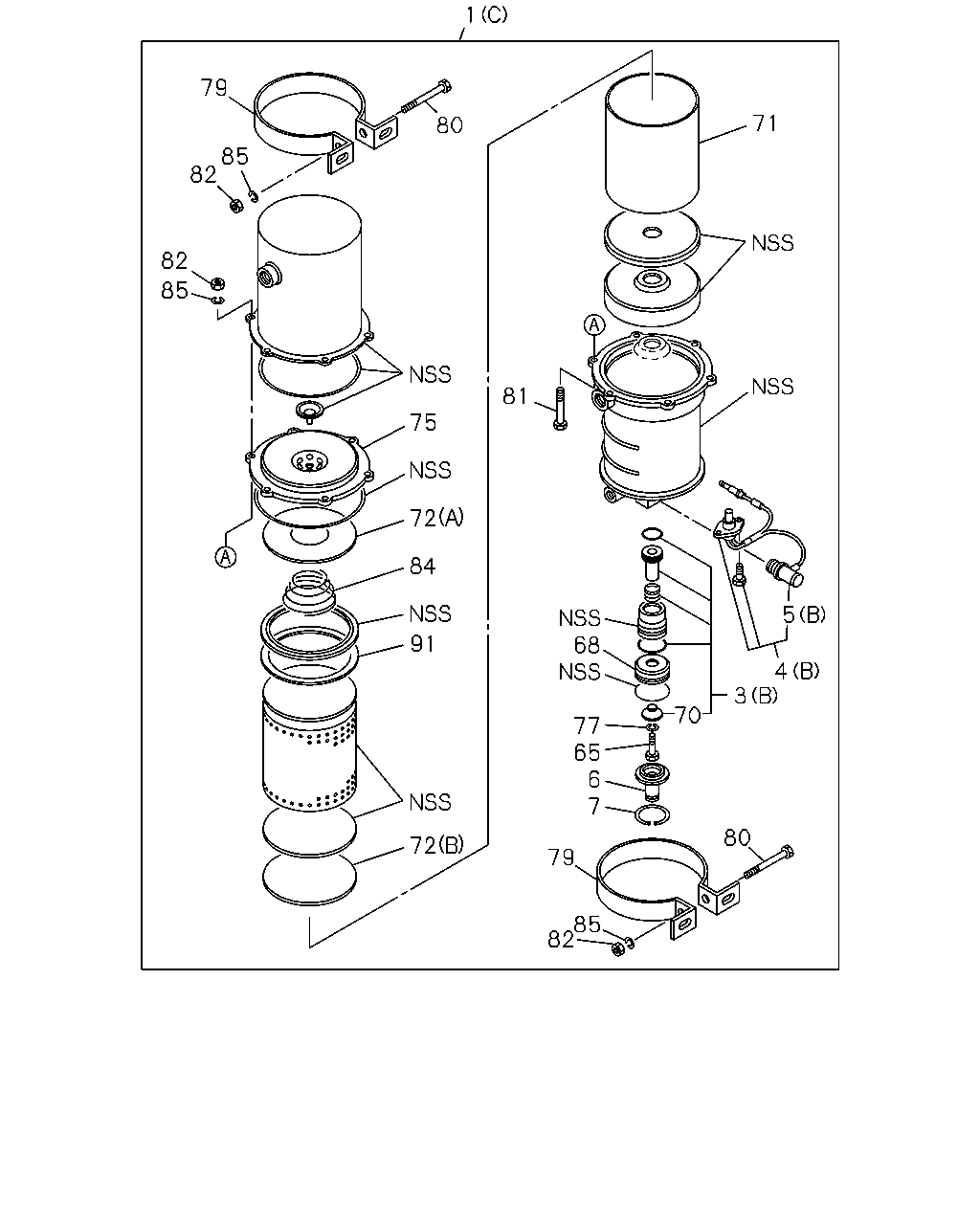

1 79 71 80 85 82 82 85 81 75 72 84 5 68 91 4 3 70 77 65 6 7 80 72 79 85 82

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	DRYER; AIR (A)	1-48190-200-0	01	1	0005-0210	●	●
1	DRYER; AIR (A)	1-48190-215-1	01	1	0211-0411	●	●
1	DRYER; AIR (A)	1-48190-215-1	01	1	0412-	●	●	●
1	DRYER; AIR 6HE1 TC ENG(57L) (B)	1-48190-210-0	01	1	0005-0210				●
1	DRYER; AIR (B)	1-48190-210-1	01	1	0211-				●
1	DRYER; AIR 6HH1 STD ENG(65L) (C)	1-48190-114-1	01	1	0005-0210				●
3	PISTON KIT; AIR DRYER (A)	1-85576-193-0	01	1	0005-0210	●	●
3	PISTON KIT; AIR DRYER 6HE1 TC ENG(57L) (A)	1-85576-193-0	01	1	0005-0210				●
3	PISTON KIT; AIR DRYER (A)	1-85576-193-0	01	1	0211-0411	●	●		●
3	PISTON KIT; AIR DRYER (A)	1-85576-193-0	01	1	0412-	●	●	●	●
3	PISTON KIT; AIR DRYER 6HH1 STD ENG(65L) (B)	1-85576-084-0	01	1	0005-0210				●
4	THERMOSTAT KIT; AIR DRYER (A)	1-85576-152-0	01	1	0005-0210	●	●
4	THERMOSTAT KIT; AIR DRYER (A)	1-85576-213-0	01	1	0211-0411	●	●
4	THERMOSTAT KIT; AIR DRYER (A)	1-85576-213-0	01	1	0412-	●	●	●
4	THERMOSTAT KIT; AIR DRYER 6HE1 TC ENG(57L) (A)	1-85576-218-0	01	1	0005-0210				●
4	THERMOSTAT KIT; AIR DRYER (A)	1-85576-218-0	01	1	0211-				●
4	THERMOSTAT KIT; AIR DRYER 6HH1 STD ENG(65L) (B)	1-85576-121-0	01	1	0005-0210				●
5	HEATER ASM; AIR DRYER (A)	1-48199-085-0	01	1	0005-0210	●	●
5	HEATER ASM; AIR DRYER 6HE1 TC ENG(57L) (A)	1-48199-085-0	01	1	0005-0210				●
5	HEATER ASM; AIR DRYER (A)	1-48199-085-0	01	1	0211-0411	●	●		●
5	HEATER ASM; AIR DRYER (A)	1-48199-085-0	01	1	0412-	●	●	●	●
5	HEATER ASM; AIR DRYER 6HH1 STD ENG(65L) (B)	1-48199-200-0	01	1	0005-0210				●
6	COVER; EXH,AIR DRYER	1-48199-404-0	01	1	0005-0210	●	●
6	COVER; EXH,AIR DRYER 6HE1 TC ENG(57L)	1-48199-404-0	01	1	0005-0210				●
6	COVER; EXH,AIR DRYER	1-48199-404-0	01	1	0211-0411	●	●		●
6	COVER; EXH,AIR DRYER	1-48199-404-0	01	1	0412-	●	●	●	●
6	COVER; EXH,AIR DRYER 6HH1 STD ENG(65L)	1-48199-101-0	01	1	0005-0210				●
7	RING; SNAP,AIR DRYER	1-48199-403-0	01	1	0005-0210	●	●
7	RING; SNAP,AIR DRYER 6HE1 TC ENG(57L)	1-48199-403-0	01	1	0005-0210				●
7	RING; SNAP,AIR DRYER	1-48199-403-0	01	1	0211-0411	●	●		●
7	RING; SNAP,AIR DRYER	1-48199-403-0	01	1	0412-	●	●	●	●
7	RING; SNAP,AIR DRYER 6HH1 STD ENG(65L)	1-48199-100-0	01	1	0005-0210				●
65	BOLT; PURGE VLV	1-48199-393-0	01	1	0005-0210	●	●
65	BOLT; PURGE VLV 6HE1 TC ENG(57L)	1-48199-393-0	01	1	0005-0210				●
65	BOLT; PURGE VLV	1-48199-393-0	01	1	0211-0411	●	●		●
65	BOLT; PURGE VLV	1-48199-393-0	01	1	0412-	●	●	●	●
65	BOLT; PURGE VLV 6HH1 STD ENG(65L)	1-48199-102-0	01	1	0005-0210				●
68	BODY; VALVE	1-48199-408-0	01	1	0005-0210	●	●
68	BODY; VALVE 6HE1 TC ENG(57L)	1-48199-408-0	01	1	0005-0210				●
68	BODY; VALVE	1-48199-408-0	01	1	0211-0411	●	●		●
68	BODY; VALVE	1-48199-408-0	01	1	0412-	●	●	●	●
68	BODY; VALVE 6HH1 STD ENG(65L)	1-48199-216-0	01	1	0005-0210				●
70	VALVE; AIR DRYER	1-48199-105-0	01	1	0005-0411	●	●		●
70	VALVE; AIR DRYER	1-48199-105-0	01	1	0412-	●	●	●	●
71	CASE; INNER,AIR DRYER 6HH1 STD ENG(65L)	1-48199-099-0	01	1	0005-0210				●
72	PLATE; FILTER,AIR DRYER 6HH1 STD ENG(65L) (A)	1-48199-097-0	01	1	0005-0210				●
72	PLATE; FILTER,AIR DRYER 6HH1 STD ENG(65L) (B)	1-48199-098-0	01	1	0005-0210				●
75	COVER; CASE,AIR DRYER	1-48199-395-0	01	1	0005-0411	●	●
75	COVER; CASE,AIR DRYER	1-48199-395-0	01	1	0412-	●	●	●
75	COVER; CASE,AIR DRYER 6HE1 TC ENG(57L)	1-48199-427-0	01	1	0005-0210				●
75	COVER; CASE,AIR DRYER	1-48199-427-0	01	1	0211-				●
75	COVER; CASE,AIR DRYER 6HH1 STD ENG(65L)	1-48199-201-0	01	1	0005-0210				●
77	WASHER; LK,VALVE 6HH1 STD ENG(65L)	1-48199-103-0	01	1	0005-0210				●
79	BRACKET; AIR DRYER 6HH1 STD ENG(65L)	1-48199-209-0	02	1	0005-0210				●
80	BOLT; BRKT 6HH1 STD ENG(65L)	1-48199-212-0	02	1	0005-0210				●
81	BOLT; CASE,AIR DRYER	1-48199-365-0	06	1	0005-0411	●	●
81	BOLT; CASE,AIR DRYER	1-48199-365-0	06	1	0412-	●	●	●
81	BOLT; CASE,AIR DRYER 6HE1 TC ENG(57L)	1-48199-436-0	06	1	0005-0210				●
81	BOLT; CASE,AIR DRYER	1-48199-436-0	06	1	0211-				●
81	BOLT; CASE,AIR DRYER 6HH1 STD ENG(65L)	1-48199-208-0	06	1	0005-0210				●
82	NUT; CASE,AIR DRYER 6HH1 STD ENG(65L)	1-48199-211-0	08	1	0005-0210				●
84	SPRING; AIR DRYER	1-48199-396-0	01	1	0005-0411	●	●
84	SPRING; AIR DRYER	1-48199-396-0	01	1	0412-	●	●	●
84	SPRING; AIR DRYER 6HE1 TC ENG(57L)	1-48199-425-0	01	1	0005-0210				●
84	SPRING; AIR DRYER	1-48199-425-0	01	1	0211-				●
84	SPRING; AIR DRYER 6HH1 STD ENG(65L)	1-48199-092-0	01	1	0005-0210				●
85	WASHER; CASE,AIR DRYER 6HH1 STD ENG(65L)	1-48199-024-0	08	1	0005-0210				●
91	GUIDE; CASE,AIR DRYER 6HH1 STD ENG(65L)	1-48199-091-0	01	1	0005-0210				●

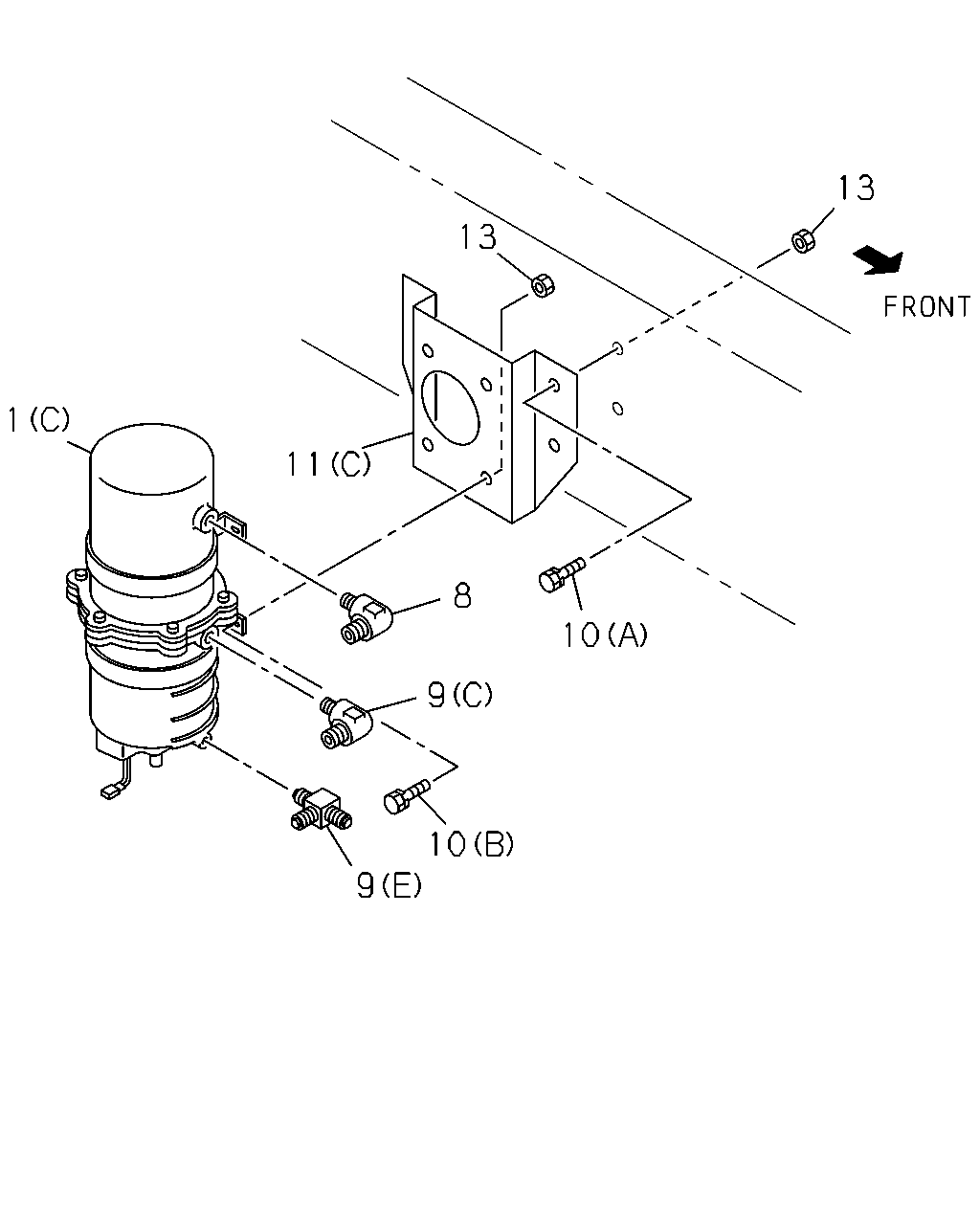

13 13 1 11 8 10 9 10 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	DRYER; AIR (A)	1-48190-200-0	01	1	0005-0210	●	●
1	DRYER; AIR (A)	1-48190-215-1	01	1	0211-0411	●	●
1	DRYER; AIR (A)	1-48190-215-1	01	1	0412-	●	●	●
1	DRYER; AIR 6HE1 TC ENG(57L) (B)	1-48190-210-0	01	1	0005-0210				●
1	DRYER; AIR (B)	1-48190-210-1	01	1	0211-				●
1	DRYER; AIR 6HH1 STD ENG(65L) (C)	1-48190-114-1	01	1	0005-0210				●
8	CONNECTOR; OUT,AIR DRYER M20 & PT1/2 ELBOW	1-09650-443-0	01	1	0005-0411	●	●
8	CONNECTOR; OUT,AIR DRYER M20 & PT1/2 ELBOW	1-09650-443-0	01	1	0412-	●	●	●
8	CONNECTOR; OUT,AIR DRYER M22 & PT1/2 ELBOW	1-09650-444-0	01	1	0005-0607				●
8	CONNECTOR; OUT,AIR DRYER M22 & PT1/2 ELBOW	0-92134-315-0	01	1	0608-				●
9	CONNECTOR; PIPE,AIR DRYER (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0005-0411	●	●
9	CONNECTOR; PIPE,AIR DRYER (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0412-	●	●	●
9	CONNECTOR; PIPE,AIR DRYER (B) PT1/4 & M12 ELBOW	1-09656-665-0	01	1	0005-0411	●	●
9	CONNECTOR; PIPE,AIR DRYER (B) PT1/4 & M12 ELBOW	1-09656-665-0	01	1	0412-	●	●	●
9	CONNECTOR; PIPE,AIR DRYER (C) M22 & R1/2 W/VALVE	1-48320-026-2	01	1	0005-0411	●	●		●
9	CONNECTOR; PIPE,AIR DRYER (C) M22 & R1/2 W/VALVE	1-48320-026-2	01	1	0412-	●	●	●	●
9	CONNECTOR; PIPE,AIR DRYER 6HE1 TC ENG(57L) (D) M12X2 & PT1/4 3WAY	1-09656-229-1	01	1	0005-0210				●
9	CONNECTOR; PIPE,AIR DRYER (D) M12X2 & PT1/4 3WAY	1-09656-229-1	01	1	0211-				●
9	CONNECTOR; PIPE,AIR DRYER 6HH1 STD ENG(65L) (E) M12X2 & PT1/4 3WAY	1-09656-230-1	01	1	0005-0210				●
10	BOLT; AIR DRYER (C) M10X16	0-20801-016-0	03	1	0005-0210	●	●
10	BOLT; AIR DRYER 6HE1 TC ENG(57L) (C) M10X16	0-20801-016-0	03	1	0005-0210				●
10	BOLT; AIR DRYER (C) M10X16	0-20801-016-0	03	1	0211-0411	●	●		●
10	BOLT; AIR DRYER (C) M10X16	0-20801-016-0	03	1	0412-0512	●	●	●	●
10	BOLT; AIR DRYER (C) M10X16	0-20851-016-0	03	1	0601-	●	●	●	●
10	BOLT; AIR DRYER 6HH1 STD ENG(65L) (B) M10X25 FLANGE	0-28681-025-0	04	1	0005-0210				●
10	BOLT; AIR DRYER 6HH1 STD ENG(65L) (A) M10X35 FLANGE	0-28681-035-0	04	1	0005-0210				●
11	BRACKET; AIR DRYER (A)	1-48195-066-0	01	1	0005-0411	●	●
11	BRACKET; AIR DRYER (A)	1-48195-066-0	01	1	0412-	●	●	●
11	BRACKET; AIR DRYER 6HE1 TC ENG(57L) (B)	1-48195-107-0	01	1	0005-0005				●
11	BRACKET; AIR DRYER 6HE1 TC ENG(57L) (B)	1-48195-108-0	01	1	0006-0210				●
11	BRACKET; AIR DRYER (B)	1-48195-108-0	01	1	0211-				●
11	BRACKET; AIR DRYER 6HH1 STD ENG(65L) (C)	1-48195-045-0	01	1	0005-0210				●
13	NUT; AIR DRYER 6HH1 STD ENG(65L) M10 FLANGE	0-91150-210-0	04	1	0005-0210				●
13	NUT; AIR DRYER 6HH1 STD ENG(65L) M10 FLANGE	0-91150-210-0	04	1	0005-0210				●

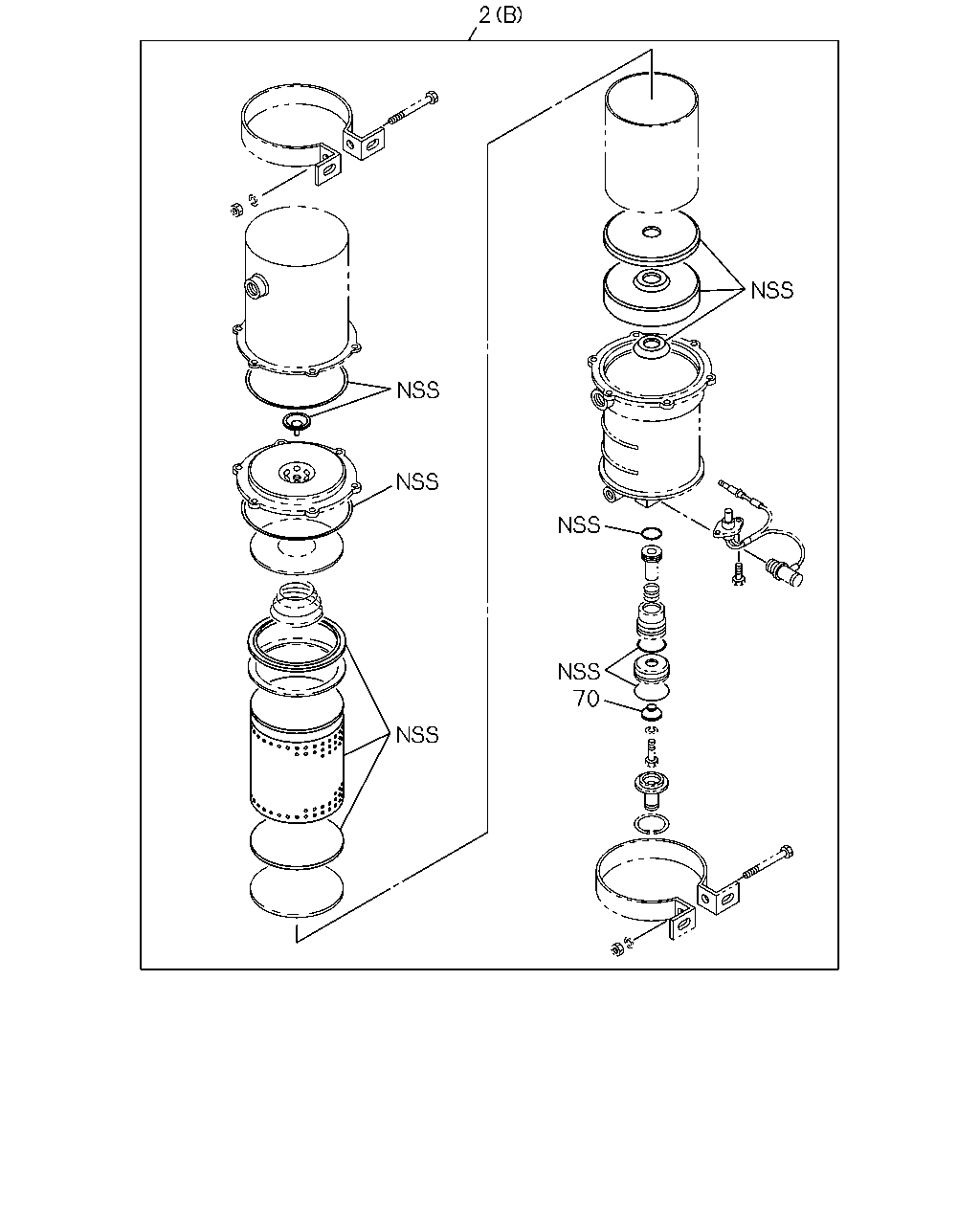

2 70

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	REPAIR KIT; AIR DRYER (A)	1-85576-194-0	01	1	0005-0411	●	●
2	REPAIR KIT; AIR DRYER (A)	1-85576-194-0	01	1	0412-	●	●	●
2	REPAIR KIT; AIR DRYER 6HE1 TC ENG(57L) (A)	1-85576-217-0	01	1	0005-0210				●
2	REPAIR KIT; AIR DRYER (A)	1-85576-217-0	01	1	0211-				●
2	REPAIR KIT; AIR DRYER 6HH1 STD ENG(65L) (B)	1-85576-083-0	01	1	0005-0210				●
70	VALVE; AIR DRYER	1-48199-105-0	01	1	0005-0411	●	●		●
70	VALVE; AIR DRYER	1-48199-105-0	01	1	0412-	●	●	●	●

1 1 1 1 81 68 75 84 7 5 70 65 6 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	DRYER; AIR (A)	1-48190-200-0	01	1	0005-0210	●	●
1	DRYER; AIR (A)	1-48190-215-1	01	1	0211-0411	●	●
1	DRYER; AIR (A)	1-48190-215-1	01	1	0412-	●	●	●
1	DRYER; AIR 6HE1 TC ENG(57L) (B)	1-48190-210-0	01	1	0005-0210				●
1	DRYER; AIR (B)	1-48190-210-1	01	1	0211-				●
1	DRYER; AIR 6HH1 STD ENG(65L) (C)	1-48190-114-1	01	1	0005-0210				●
4	THERMOSTAT KIT; AIR DRYER (A)	1-85576-152-0	01	1	0005-0210	●	●
4	THERMOSTAT KIT; AIR DRYER (A)	1-85576-213-0	01	1	0211-0411	●	●
4	THERMOSTAT KIT; AIR DRYER (A)	1-85576-213-0	01	1	0412-	●	●	●
4	THERMOSTAT KIT; AIR DRYER 6HE1 TC ENG(57L) (A)	1-85576-218-0	01	1	0005-0210				●
4	THERMOSTAT KIT; AIR DRYER (A)	1-85576-218-0	01	1	0211-				●
4	THERMOSTAT KIT; AIR DRYER 6HH1 STD ENG(65L) (B)	1-85576-121-0	01	1	0005-0210				●
5	HEATER ASM; AIR DRYER (A)	1-48199-085-0	01	1	0005-0210	●	●
5	HEATER ASM; AIR DRYER 6HE1 TC ENG(57L) (A)	1-48199-085-0	01	1	0005-0210				●
5	HEATER ASM; AIR DRYER (A)	1-48199-085-0	01	1	0211-0411	●	●		●
5	HEATER ASM; AIR DRYER (A)	1-48199-085-0	01	1	0412-	●	●	●	●
5	HEATER ASM; AIR DRYER 6HH1 STD ENG(65L) (B)	1-48199-200-0	01	1	0005-0210				●
6	COVER; EXH,AIR DRYER	1-48199-404-0	01	1	0005-0210	●	●
6	COVER; EXH,AIR DRYER 6HE1 TC ENG(57L)	1-48199-404-0	01	1	0005-0210				●
6	COVER; EXH,AIR DRYER	1-48199-404-0	01	1	0211-0411	●	●		●
6	COVER; EXH,AIR DRYER	1-48199-404-0	01	1	0412-	●	●	●	●
6	COVER; EXH,AIR DRYER 6HH1 STD ENG(65L)	1-48199-101-0	01	1	0005-0210				●
7	RING; SNAP,AIR DRYER	1-48199-403-0	01	1	0005-0210	●	●
7	RING; SNAP,AIR DRYER 6HE1 TC ENG(57L)	1-48199-403-0	01	1	0005-0210				●
7	RING; SNAP,AIR DRYER	1-48199-403-0	01	1	0211-0411	●	●		●
7	RING; SNAP,AIR DRYER	1-48199-403-0	01	1	0412-	●	●	●	●
7	RING; SNAP,AIR DRYER 6HH1 STD ENG(65L)	1-48199-100-0	01	1	0005-0210				●
65	BOLT; PURGE VLV	1-48199-393-0	01	1	0005-0210	●	●
65	BOLT; PURGE VLV 6HE1 TC ENG(57L)	1-48199-393-0	01	1	0005-0210				●
65	BOLT; PURGE VLV	1-48199-393-0	01	1	0211-0411	●	●		●
65	BOLT; PURGE VLV	1-48199-393-0	01	1	0412-	●	●	●	●
65	BOLT; PURGE VLV 6HH1 STD ENG(65L)	1-48199-102-0	01	1	0005-0210				●
68	BODY; VALVE	1-48199-408-0	01	1	0005-0210	●	●
68	BODY; VALVE 6HE1 TC ENG(57L)	1-48199-408-0	01	1	0005-0210				●
68	BODY; VALVE	1-48199-408-0	01	1	0211-0411	●	●		●
68	BODY; VALVE	1-48199-408-0	01	1	0412-	●	●	●	●
68	BODY; VALVE 6HH1 STD ENG(65L)	1-48199-216-0	01	1	0005-0210				●
70	VALVE; AIR DRYER	1-48199-105-0	01	1	0005-0411	●	●		●
70	VALVE; AIR DRYER	1-48199-105-0	01	1	0412-	●	●	●	●
75	COVER; CASE,AIR DRYER	1-48199-395-0	01	1	0005-0411	●	●
75	COVER; CASE,AIR DRYER	1-48199-395-0	01	1	0412-	●	●	●
75	COVER; CASE,AIR DRYER 6HE1 TC ENG(57L)	1-48199-427-0	01	1	0005-0210				●
75	COVER; CASE,AIR DRYER	1-48199-427-0	01	1	0211-				●
75	COVER; CASE,AIR DRYER 6HH1 STD ENG(65L)	1-48199-201-0	01	1	0005-0210				●
81	BOLT; CASE,AIR DRYER	1-48199-365-0	06	1	0005-0411	●	●
81	BOLT; CASE,AIR DRYER	1-48199-365-0	06	1	0412-	●	●	●
81	BOLT; CASE,AIR DRYER 6HE1 TC ENG(57L)	1-48199-436-0	06	1	0005-0210				●
81	BOLT; CASE,AIR DRYER	1-48199-436-0	06	1	0211-				●
81	BOLT; CASE,AIR DRYER 6HH1 STD ENG(65L)	1-48199-208-0	06	1	0005-0210				●
84	SPRING; AIR DRYER	1-48199-396-0	01	1	0005-0411	●	●
84	SPRING; AIR DRYER	1-48199-396-0	01	1	0412-	●	●	●
84	SPRING; AIR DRYER 6HE1 TC ENG(57L)	1-48199-425-0	01	1	0005-0210				●
84	SPRING; AIR DRYER	1-48199-425-0	01	1	0211-				●
84	SPRING; AIR DRYER 6HH1 STD ENG(65L)	1-48199-092-0	01	1	0005-0210				●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
