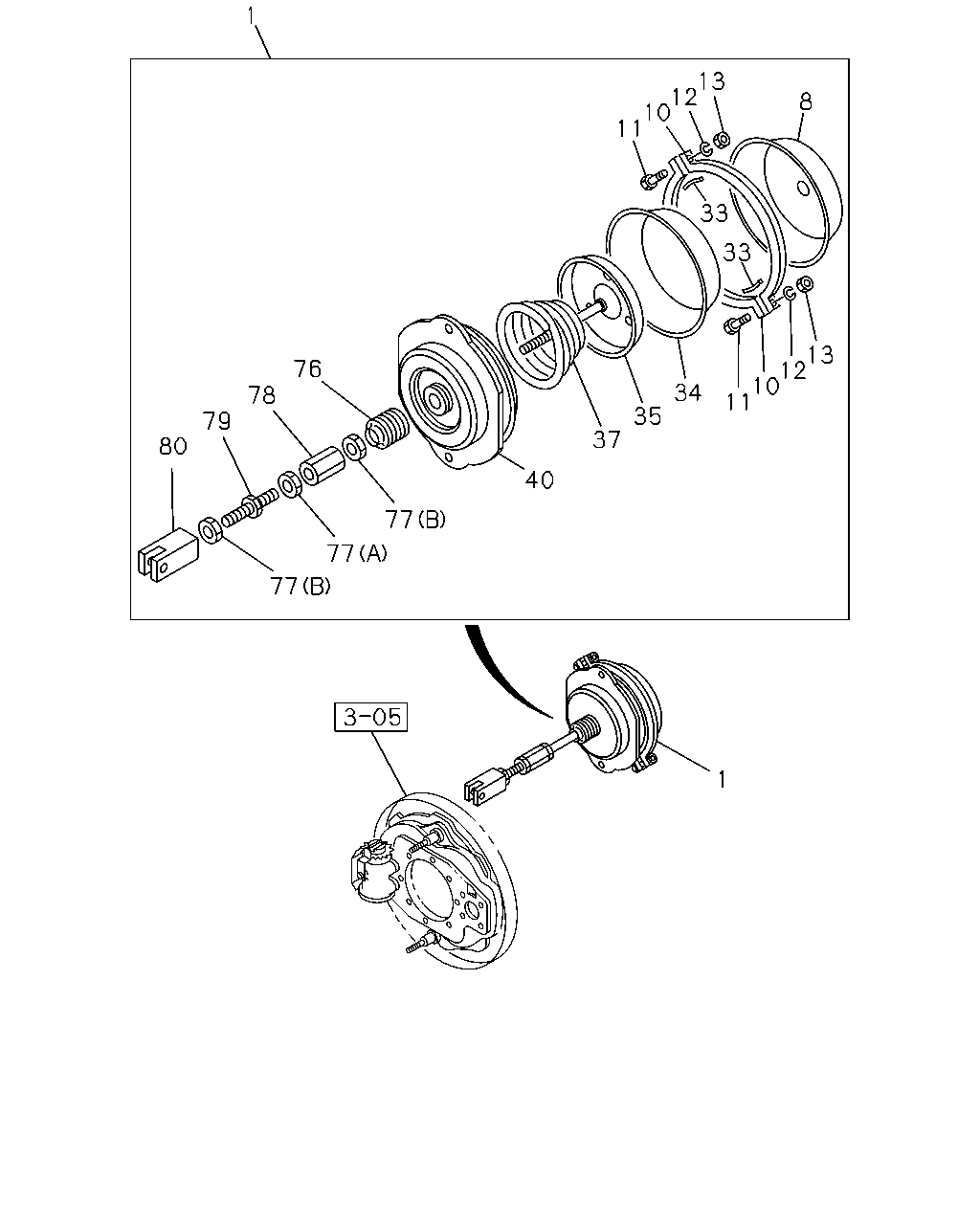

3-41 — REAR BRAKE POWER CHAMBER (#9386) — 93 parça
çizim 38876
1 13 12 10 11 8 33 33 13 12 10 11 76 34 78 35 79 37 80 40 77 77 77 1
BalonParca AdiParca NoAdetTipApplied Date A B C
1 CHAMBER ASM; SPRING
FINAL GEAR 39/9 14.5" HYPOID(W4X) 		1-48250-433-1 01 1 0005-0210 ●
1 CHAMBER ASM; SPRING
FINAL GEAR 38/8 13.5" HYPOID(W1A),FINAL GEAR 39/9 13.5" HYPOID(W1N),FINAL GEAR 41/8 13.5" HYPOID(W4E) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-48250-433-1 01 1 0005-0210 ●
1 CHAMBER ASM; SPRING 1-48250-433-1 01 1 0005-0210 ●
1 CHAMBER ASM; SPRING
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-48250-433-1 01 1 0211- ●
1 CHAMBER ASM; SPRING 1-48250-433-1 01 1 0211- ●
1 CHAMBER ASM; SPRING
FINAL GEAR 39/9 14.5" HYPOID(W4X) 		1-48250-432-1 01 1 0005-0210 ●
1 CHAMBER ASM; SPRING
FINAL GEAR 38/8 13.5" HYPOID(W1A),FINAL GEAR 39/9 13.5" HYPOID(W1N),FINAL GEAR 41/8 13.5" HYPOID(W4E) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-48250-432-1 01 1 0005-0210 ●
1 CHAMBER ASM; SPRING 1-48250-432-1 01 1 0005-0210 ●
1 CHAMBER ASM; SPRING
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-48250-432-1 01 1 0211- ●
1 CHAMBER ASM; SPRING 1-48250-432-1 01 1 0211- ●
1 CHAMBER ASM; SPRING 1-48250-305-1 01 1 0005- ●
1 CHAMBER ASM; SPRING 1-48250-304-1 01 1 0005- ●
8 SHELL; CYL,SPR CHAMBER
FINAL GEAR 39/9 14.5" HYPOID(W4X) 		1-48251-031-0 02 1 0005-0210 ●
8 SHELL; CYL,SPR CHAMBER
FINAL GEAR 38/8 13.5" HYPOID(W1A),FINAL GEAR 39/9 13.5" HYPOID(W1N),FINAL GEAR 41/8 13.5" HYPOID(W4E) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-48251-031-0 02 1 0005-0210 ●
8 SHELL; CYL,SPR CHAMBER 1-48251-031-0 02 1 0005-0210 ● ●
8 SHELL; CYL,SPR CHAMBER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-48251-031-0 02 1 0211- ●
8 SHELL; CYL,SPR CHAMBER 1-48251-031-0 02 1 0211- ● ●
10 RING; CLAMP,SPR CHAMBER
FINAL GEAR 39/9 14.5" HYPOID(W4X) 		1-48259-016-0 04 1 0005-0210 ●
10 RING; CLAMP,SPR CHAMBER
FINAL GEAR 38/8 13.5" HYPOID(W1A),FINAL GEAR 39/9 13.5" HYPOID(W1N),FINAL GEAR 41/8 13.5" HYPOID(W4E) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-48259-016-0 04 1 0005-0210 ●
10 RING; CLAMP,SPR CHAMBER 1-48259-016-0 04 1 0005-0210 ● ●
10 RING; CLAMP,SPR CHAMBER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-48259-016-0 04 1 0211- ●
10 RING; CLAMP,SPR CHAMBER 1-48259-016-0 04 1 0211- ● ●
11 BOLT; CLAMP RING
FINAL GEAR 39/9 14.5" HYPOID(W4X) 		1-48259-035-0 04 1 0005-0210 ●
11 BOLT; CLAMP RING
FINAL GEAR 38/8 13.5" HYPOID(W1A),FINAL GEAR 39/9 13.5" HYPOID(W1N),FINAL GEAR 41/8 13.5" HYPOID(W4E) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-48259-035-0 04 1 0005-0210 ●
11 BOLT; CLAMP RING 1-48259-035-0 04 1 0005-0210 ● ●
11 BOLT; CLAMP RING
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-48259-035-0 04 1 0211- ●
11 BOLT; CLAMP RING 1-48259-035-0 04 1 0211- ● ●
12 WASHER; LK,CLAMP RING
FINAL GEAR 39/9 14.5" HYPOID(W4X) ID=10.2 		9-09150-510-0 04 1 0005-0210 ●
12 WASHER; LK,CLAMP RING
FINAL GEAR 38/8 13.5" HYPOID(W1A),FINAL GEAR 39/9 13.5" HYPOID(W1N),FINAL GEAR 41/8 13.5" HYPOID(W4E) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=10.2 		9-09150-510-0 04 1 0005-0210 ●
12 WASHER; LK,CLAMP RING
ID=10.2 		9-09150-510-0 04 1 0005-0210 ● ●
12 WASHER; LK,CLAMP RING
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=10.2 		9-09150-510-0 04 1 0211- ●
12 WASHER; LK,CLAMP RING
ID=10.2 		9-09150-510-0 04 1 0211- ● ●
13 NUT; CLAMP RING
FINAL GEAR 39/9 14.5" HYPOID(W4X) 		9-83315-080-0 04 1 0005-0210 ●
13 NUT; CLAMP RING
FINAL GEAR 38/8 13.5" HYPOID(W1A),FINAL GEAR 39/9 13.5" HYPOID(W1N),FINAL GEAR 41/8 13.5" HYPOID(W4E) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		9-83315-080-0 04 1 0005-0210 ●
13 NUT; CLAMP RING 9-83315-080-0 04 1 0005-0210 ● ●
13 NUT; CLAMP RING
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		9-83315-080-0 04 1 0211- ●
13 NUT; CLAMP RING 9-83315-080-0 04 1 0211- ● ●
33 RETAINER; DIAPH
FINAL GEAR 39/9 14.5" HYPOID(W4X) 		1-48259-044-0 04 1 0005-0210 ●
33 RETAINER; DIAPH
FINAL GEAR 38/8 13.5" HYPOID(W1A),FINAL GEAR 39/9 13.5" HYPOID(W1N),FINAL GEAR 41/8 13.5" HYPOID(W4E) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-48259-044-0 04 1 0005-0210 ●
33 RETAINER; DIAPH 1-48259-044-0 04 1 0005-0210 ● ●
33 RETAINER; DIAPH
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-48259-044-0 04 1 0211- ●
33 RETAINER; DIAPH 1-48259-044-0 04 1 0211- ● ●
34 DIAPHRAGM
FINAL GEAR 39/9 14.5" HYPOID(W4X) 		1-48252-026-0 02 1 0005-0210 ●
34 DIAPHRAGM
FINAL GEAR 38/8 13.5" HYPOID(W1A),FINAL GEAR 39/9 13.5" HYPOID(W1N),FINAL GEAR 41/8 13.5" HYPOID(W4E) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-48252-026-0 02 1 0005-0210 ●
34 DIAPHRAGM 1-48252-026-0 02 1 0005-0210 ● ●
34 DIAPHRAGM
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-48252-026-0 02 1 0211- ●
34 DIAPHRAGM 1-48252-026-0 02 1 0211- ● ●
35 PLATE; ROD END,SPR CHAMBER
FINAL GEAR 39/9 14.5" HYPOID(W4X) 		1-48253-024-0 02 1 0005-0210 ●
35 PLATE; ROD END,SPR CHAMBER
FINAL GEAR 38/8 13.5" HYPOID(W1A),FINAL GEAR 39/9 13.5" HYPOID(W1N),FINAL GEAR 41/8 13.5" HYPOID(W4E) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-48253-024-0 02 1 0005-0210 ●
35 PLATE; ROD END,SPR CHAMBER 1-48253-024-0 02 1 0005-0210 ● ●
35 PLATE; ROD END,SPR CHAMBER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-48253-024-0 02 1 0211- ●
35 PLATE; ROD END,SPR CHAMBER 1-48253-024-0 02 1 0211- ● ●
37 SPRING; LWR,SPR CHAMBER
FINAL GEAR 39/9 14.5" HYPOID(W4X) 		1-48255-008-0 02 1 0005-0210 ●
37 SPRING; LWR,SPR CHAMBER
FINAL GEAR 38/8 13.5" HYPOID(W1A),FINAL GEAR 39/9 13.5" HYPOID(W1N),FINAL GEAR 41/8 13.5" HYPOID(W4E) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-48255-008-0 02 1 0005-0210 ●
37 SPRING; LWR,SPR CHAMBER 1-48255-008-0 02 1 0005-0210 ● ●
37 SPRING; LWR,SPR CHAMBER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-48255-008-0 02 1 0211- ●
37 SPRING; LWR,SPR CHAMBER 1-48255-008-0 02 1 0211- ● ●
40 COVER ASM; LWR,SPR CHAMBER
FINAL GEAR 39/9 14.5" HYPOID(W4X) 		1-48251-032-0 02 1 0005-0210 ●
40 COVER ASM; LWR,SPR CHAMBER
FINAL GEAR 38/8 13.5" HYPOID(W1A),FINAL GEAR 39/9 13.5" HYPOID(W1N),FINAL GEAR 41/8 13.5" HYPOID(W4E) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-48251-032-0 02 1 0005-0210 ●
40 COVER ASM; LWR,SPR CHAMBER 1-48251-032-0 02 1 0005-0210 ● ●
40 COVER ASM; LWR,SPR CHAMBER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-48251-032-0 02 1 0211- ●
40 COVER ASM; LWR,SPR CHAMBER 1-48251-032-0 02 1 0211- ● ●
76 GUARD; SPR CHAMBER BRK
FINAL GEAR 39/9 14.5" HYPOID(W4X) 		1-48259-096-0 02 1 0005-0210 ●
76 GUARD; SPR CHAMBER BRK
FINAL GEAR 38/8 13.5" HYPOID(W1A),FINAL GEAR 39/9 13.5" HYPOID(W1N),FINAL GEAR 41/8 13.5" HYPOID(W4E) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-48259-096-0 02 1 0005-0210 ●
76 GUARD; SPR CHAMBER BRK 1-48259-096-0 02 1 0005-0210 ● ●
76 GUARD; SPR CHAMBER BRK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-48259-096-0 02 1 0211- ●
76 GUARD; SPR CHAMBER BRK 1-48259-096-0 02 1 0211- ● ●
77 NUT; SPR CHAMBER BRK
FINAL GEAR 39/9 14.5" HYPOID(W4X) (A) 		1-48253-021-0 02 1 0005-0210 ●
77 NUT; SPR CHAMBER BRK
FINAL GEAR 38/8 13.5" HYPOID(W1A),FINAL GEAR 39/9 13.5" HYPOID(W1N),FINAL GEAR 41/8 13.5" HYPOID(W4E) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		1-48253-021-0 02 1 0005-0210 ●
77 NUT; SPR CHAMBER BRK
(A) 		1-48253-021-0 02 1 0005-0210 ● ●
77 NUT; SPR CHAMBER BRK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		1-48253-021-0 02 1 0211- ●
77 NUT; SPR CHAMBER BRK
(A) 		1-48253-021-0 02 1 0211- ● ●
77 NUT; SPR CHAMBER BRK
FINAL GEAR 39/9 14.5" HYPOID(W4X) (B) 		9-88510-432-0 04 1 0005-0210 ●
77 NUT; SPR CHAMBER BRK
FINAL GEAR 38/8 13.5" HYPOID(W1A),FINAL GEAR 39/9 13.5" HYPOID(W1N),FINAL GEAR 41/8 13.5" HYPOID(W4E) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) 		9-88510-432-0 04 1 0005-0210 ●
77 NUT; SPR CHAMBER BRK
(B) 		9-88510-432-0 04 1 0005-0210 ● ●
77 NUT; SPR CHAMBER BRK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) 		9-88510-432-0 04 1 0211- ●
77 NUT; SPR CHAMBER BRK
(B) 		9-88510-432-0 04 1 0211- ● ●
78 TURNBACKLE; SPR CHAMBER BRK
FINAL GEAR 39/9 14.5" HYPOID(W4X) 		1-48253-023-0 02 1 0005-0210 ●
78 TURNBACKLE; SPR CHAMBER BRK
FINAL GEAR 38/8 13.5" HYPOID(W1A),FINAL GEAR 39/9 13.5" HYPOID(W1N),FINAL GEAR 41/8 13.5" HYPOID(W4E) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-48253-023-0 02 1 0005-0210 ●
78 TURNBACKLE; SPR CHAMBER BRK 1-48253-023-0 02 1 0005-0210 ● ●
78 TURNBACKLE; SPR CHAMBER BRK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-48253-023-0 02 1 0211- ●
78 TURNBACKLE; SPR CHAMBER BRK 1-48253-023-0 02 1 0211- ● ●
79 STUD; SPR CHAMBER BRK
FINAL GEAR 39/9 14.5" HYPOID(W4X) 		1-48253-027-0 02 1 0005-0210 ●
79 STUD; SPR CHAMBER BRK
FINAL GEAR 38/8 13.5" HYPOID(W1A),FINAL GEAR 39/9 13.5" HYPOID(W1N),FINAL GEAR 41/8 13.5" HYPOID(W4E) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-48253-027-0 02 1 0005-0210 ●
79 STUD; SPR CHAMBER BRK 1-48253-027-0 02 1 0005-0210 ● ●
79 STUD; SPR CHAMBER BRK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-48253-027-0 02 1 0211- ●
79 STUD; SPR CHAMBER BRK 1-48253-027-0 02 1 0211- ● ●
80 CLEVIS; SPR CHAMBER BRK
FINAL GEAR 39/9 14.5" HYPOID(W4X) 		1-48253-038-0 02 1 0005-0210 ●
80 CLEVIS; SPR CHAMBER BRK
FINAL GEAR 38/8 13.5" HYPOID(W1A),FINAL GEAR 39/9 13.5" HYPOID(W1N),FINAL GEAR 41/8 13.5" HYPOID(W4E) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-48253-038-0 02 1 0005-0210 ●
80 CLEVIS; SPR CHAMBER BRK 1-48253-038-0 02 1 0005-0210 ●
80 CLEVIS; SPR CHAMBER BRK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-48253-038-0 02 1 0211- ●
80 CLEVIS; SPR CHAMBER BRK 1-48253-038-0 02 1 0211- ●
80 CLEVIS; SPR CHAMBER BRK 1-48253-026-0 02 1 0005- ●
