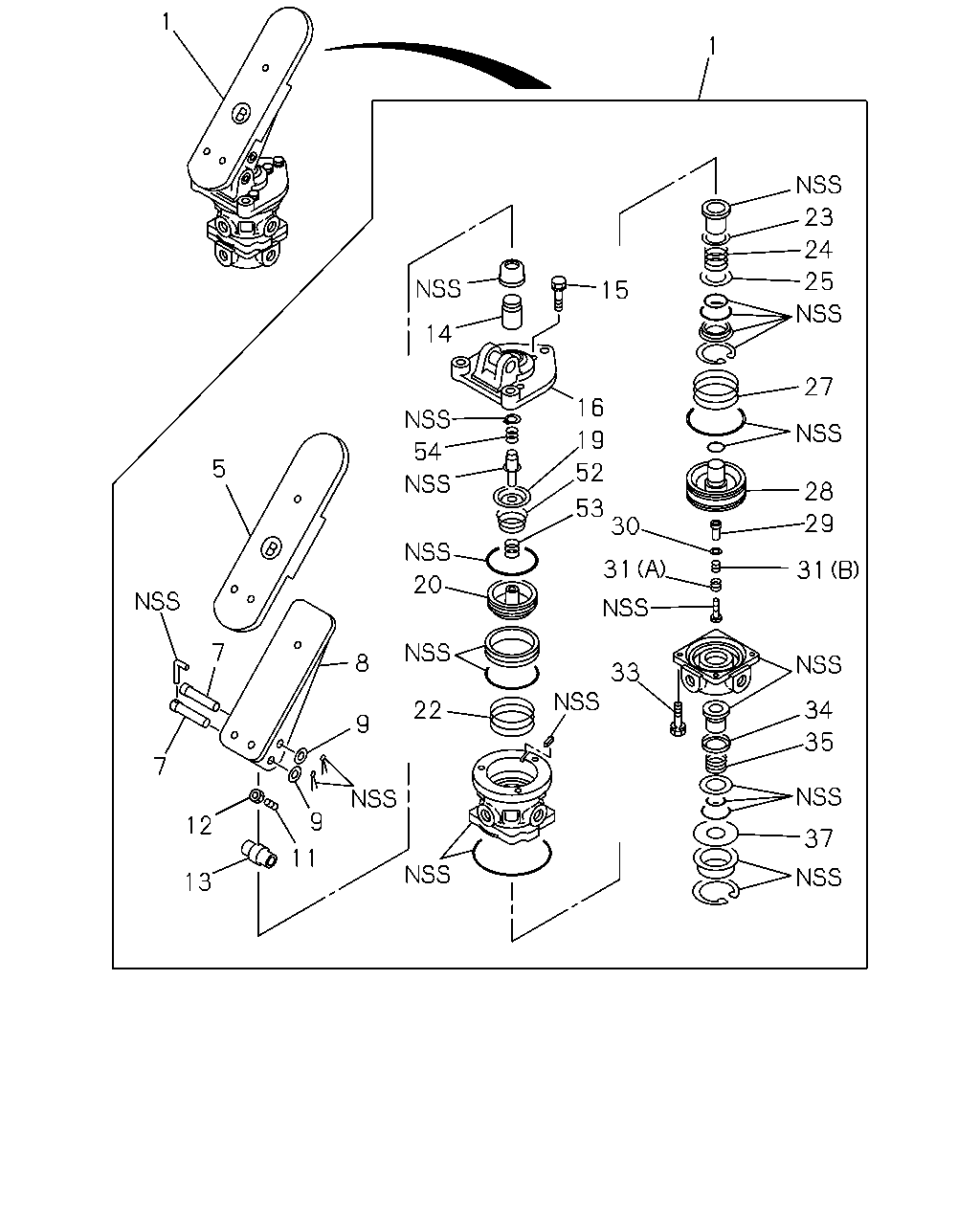

3-34 — BRAKE VALVE; AIR (#9385) — 74 parça
çizim 41511
1 1 23 24 25 15 14 27 16 19 54 5 52 28 53 30 29 31 31 20 7 8 33 34 22 9 35 7 9 12 37 11 13
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 VALVE; BRK 1-48100-709-2 01 1 0005-0101 ● ● ●
1 VALVE; BRK 1-48100-841-0 01 1 0102-0411 ● ● ●
1 VALVE; BRK 1-48100-841-0 01 1 0412-1211 ● ● ● ●
1 VALVE; BRK 8-98222-793-0 01 1 1212- ● ● ● ●
5 COVER; PEDAL,BRK VLV 1-48119-333-0 01 1 0005-0101 ● ● ●
5 COVER; PEDAL,BRK VLV 1-48119-432-0 01 1 0102-0411 ● ● ●
5 COVER; PEDAL,BRK VLV 1-48119-432-0 01 1 0412- ● ● ● ●
7 PIN; PEDAL,BRK VLV 1-48119-244-0 02 1 0005-0101 ● ● ●
7 PIN; PEDAL,BRK VLV 1-48119-431-0 02 1 0102-0411 ● ● ●
7 PIN; PEDAL,BRK VLV 1-48119-431-0 02 1 0412- ● ● ● ●
8 PEDAL; BRK VLV 1-48119-332-0 01 1 0005-0101 ● ● ●
8 PEDAL; BRK VLV 1-48119-429-0 01 1 0102-0411 ● ● ●
8 PEDAL; BRK VLV 1-48119-429-0 01 1 0412- ● ● ● ●
9 WASHER; PIN,BRK VLV 1-48119-106-0 02 1 0005-0101 ● ● ●
11 SCREW; SET,BRK VLV 1-48119-245-0 01 1 0005-0101 ● ● ●
11 SCREW; SET,BRK VLV 1-48119-003-1 01 1 0102-0411 ● ● ●
11 SCREW; SET,BRK VLV 1-48119-003-1 01 1 0412- ● ● ● ●
12 NUT; SCREW,PEDAL,BRK VLV 9-88510-123-0 01 1 0005-0411 ● ● ●
12 NUT; SCREW,PEDAL,BRK VLV 9-88510-123-0 01 1 0412- ● ● ● ●
13 ROLLER; PEDAL,BRK VLV 1-48119-243-0 01 1 0005-0101 ● ● ●
13 ROLLER; PEDAL,BRK VLV 1-48119-430-0 01 1 0102-0411 ● ● ●
13 ROLLER; PEDAL,BRK VLV 1-48119-430-0 01 1 0412- ● ● ● ●
14 PLUNGER; BRK VLV 1-48119-382-0 01 1 0005-0101 ● ● ●
14 PLUNGER; BRK VLV 1-48119-556-0 01 1 0102-0411 ● ● ●
14 PLUNGER; BRK VLV 1-48119-556-0 01 1 0412- ● ● ● ●
15 BOLT; PLATE,BRK VLV 1-48219-039-0 03 1 0005-0411 ● ● ●
15 BOLT; PLATE,BRK VLV 1-48219-039-0 03 1 0412- ● ● ● ●
16 PLATE; MTG,BRKT VLV 1-48119-268-0 01 1 0005-0101 ● ● ●
16 PLATE; MTG,BRKT VLV 1-48119-547-0 01 1 0102-0411 ● ● ●
16 PLATE; MTG,BRKT VLV 1-48119-547-0 01 1 0412- ● ● ● ●
19 SEAT; SPRING,BRK VLV 1-48123-041-0 01 1 0005-0411 ● ● ●
19 SEAT; SPRING,BRK VLV 1-48123-041-0 01 1 0412- ● ● ● ●
20 PISTON; UPR,BRK VLV 1-48119-379-0 01 1 0005-0101 ● ● ●
20 PISTON; UPR,BRK VLV 1-48119-551-0 01 1 0102-0411 ● ● ●
20 PISTON; UPR,BRK VLV 1-48119-551-0 01 1 0412- ● ● ● ●
22 SPRING; PISTON,LWR,BRK VLV 1-48123-071-0 01 1 0005-0411 ● ● ●
22 SPRING; PISTON,LWR,BRK VLV 1-48123-071-0 01 1 0412- ● ● ● ●
23 WASHER; UPR,BRK VLV 1-48129-145-0 01 1 0005-0411 ● ● ●
23 WASHER; UPR,BRK VLV 1-48129-145-0 01 1 0412- ● ● ● ●
24 SPRING; UPR,BRK VLV 1-48123-018-0 01 1 0005-0411 ● ● ●
24 SPRING; UPR,BRK VLV 1-48123-018-0 01 1 0412- ● ● ● ●
25 WASHER; PISTON,BRK VLV 1-48129-138-0 01 1 0005-0411 ● ● ●
25 WASHER; PISTON,BRK VLV 1-48129-138-0 01 1 0412- ● ● ● ●
27 SPRING; PISTON,LWR,BRK VLV 1-48123-055-0 01 1 0005-0411 ● ● ●
27 SPRING; PISTON,LWR,BRK VLV 1-48123-055-0 01 1 0412- ● ● ● ●
28 PISTON; LWR,BRK VLV 1-48129-140-0 01 1 0005-0101 ● ● ●
28 PISTON; LWR,BRK VLV 1-48129-313-0 01 1 0102-0411 ● ● ●
28 PISTON; LWR,BRK VLV 1-48129-313-0 01 1 0412- ● ● ● ●
29 SLEEVE; VLV,BRK VLV 1-48129-083-1 01 1 0005-0411 ● ● ●
29 SLEEVE; VLV,BRK VLV 1-48129-083-1 01 1 0412- ● ● ● ●
30 WASHER; SLEEVE,BRK VLV 1-48129-082-0 01 1 0005-0411 ● ● ●
30 WASHER; SLEEVE,BRK VLV 1-48129-082-0 01 1 0412- ● ● ● ●
31 SPRING; VLV,BRK VLV
(A) 		1-48123-032-0 01 1 0005-0411 ● ● ●
31 SPRING; VLV,BRK VLV
(A) 		1-48123-032-0 01 1 0412- ● ● ● ●
31 SPRING; VLV,BRK VLV
(B) 		1-48123-033-0 01 1 0005-0411 ● ● ●
31 SPRING; VLV,BRK VLV
(B) 		1-48123-033-0 01 1 0412- ● ● ● ●
33 BOLT; BODY,BRK VLV 1-48119-213-0 04 1 0005-0411 ● ● ●
33 BOLT; BODY,BRK VLV 1-48119-213-0 04 1 0412- ● ● ● ●
34 RETAINER; VLV,BRK VLV 1-48129-144-0 01 1 0005-0411 ● ● ●
34 RETAINER; VLV,BRK VLV 1-48129-144-0 01 1 0412- ● ● ● ●
35 SPRING; VLV,BRK VLV 1-48123-019-0 01 1 0005-0411 ● ● ●
35 SPRING; VLV,BRK VLV 1-48123-019-0 01 1 0412- ● ● ● ●
37 WASHER; VLV LWR,BRK VLV 1-48129-080-0 01 1 0005-0411 ● ● ●
37 WASHER; VLV LWR,BRK VLV 1-48129-080-0 01 1 0412- ● ● ● ●
52 SPRING; PISTON,OUTER,BRK VLV 1-48123-040-0 01 1 0005-0411 ● ● ●
52 SPRING; PISTON,OUTER,BRK VLV 1-48123-040-0 01 1 0412- ● ● ● ●
53 SPRING; PISTON,INNER,BRK VLV 1-48123-066-0 01 1 0005-0411 ● ● ●
53 SPRING; PISTON,INNER,BRK VLV 1-48123-066-0 01 1 0412- ● ● ● ●
54 SPRING; PISTON,UPR,BRK VLV 1-48123-067-0 01 1 0005-0411 ● ● ●
54 SPRING; PISTON,UPR,BRK VLV 1-48123-067-0 01 1 0412- ● ● ● ●

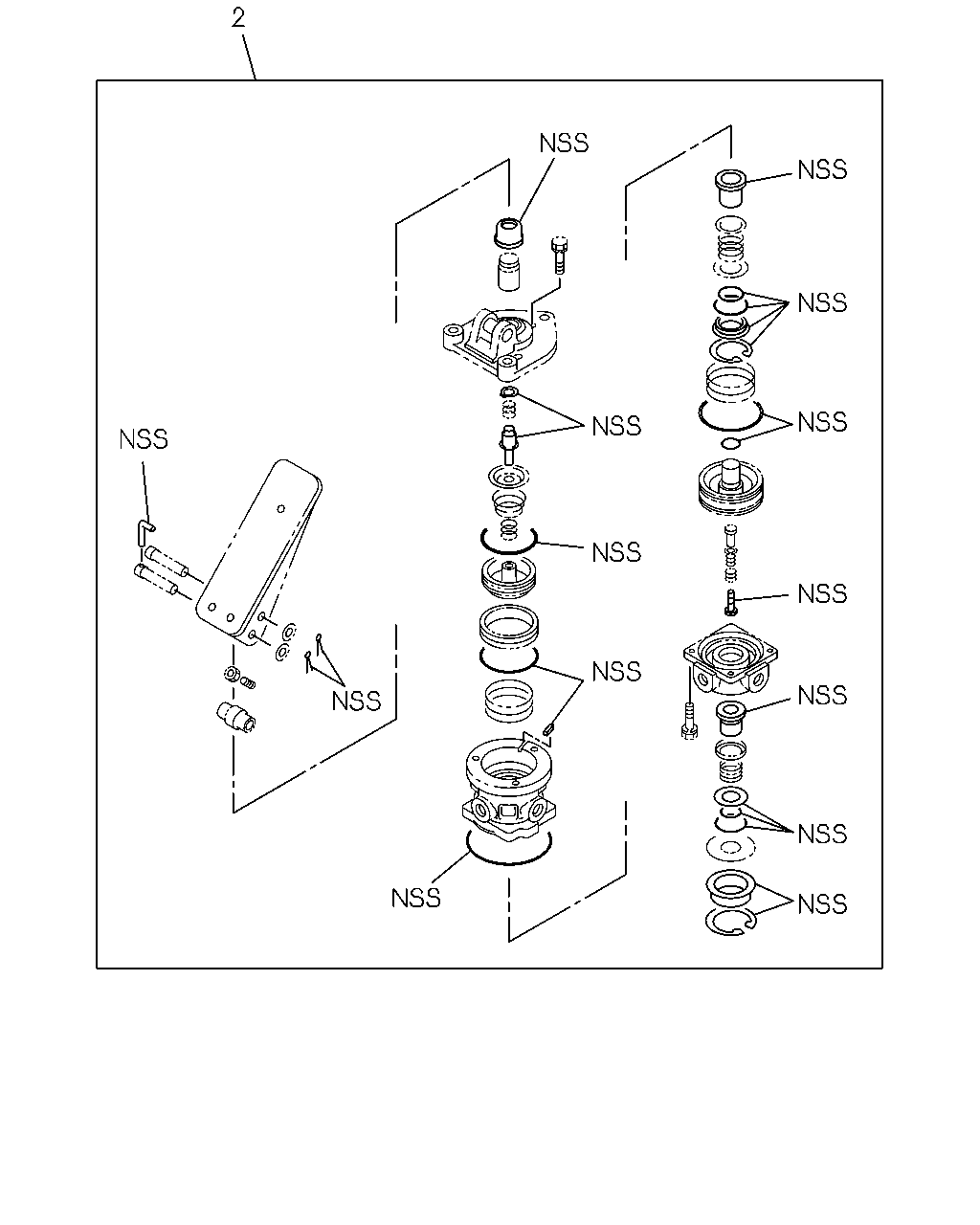

çizim 100207
2
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 REPAIR KIT; BRK VLV 1-85576-182-0 01 1 0005-0101 ● ● ●
2 REPAIR KIT; BRK VLV 1-85576-285-0 01 1 0102-0411 ● ● ●
2 REPAIR KIT; BRK VLV 1-85576-285-0 01 1 0412-1211 ● ● ● ●
2 REPAIR KIT; BRK VLV 8-98222-819-0 01 1 1212- ● ● ● ●
