3-22 — AIR CONTROL PARTS (#9382) — 346 parça

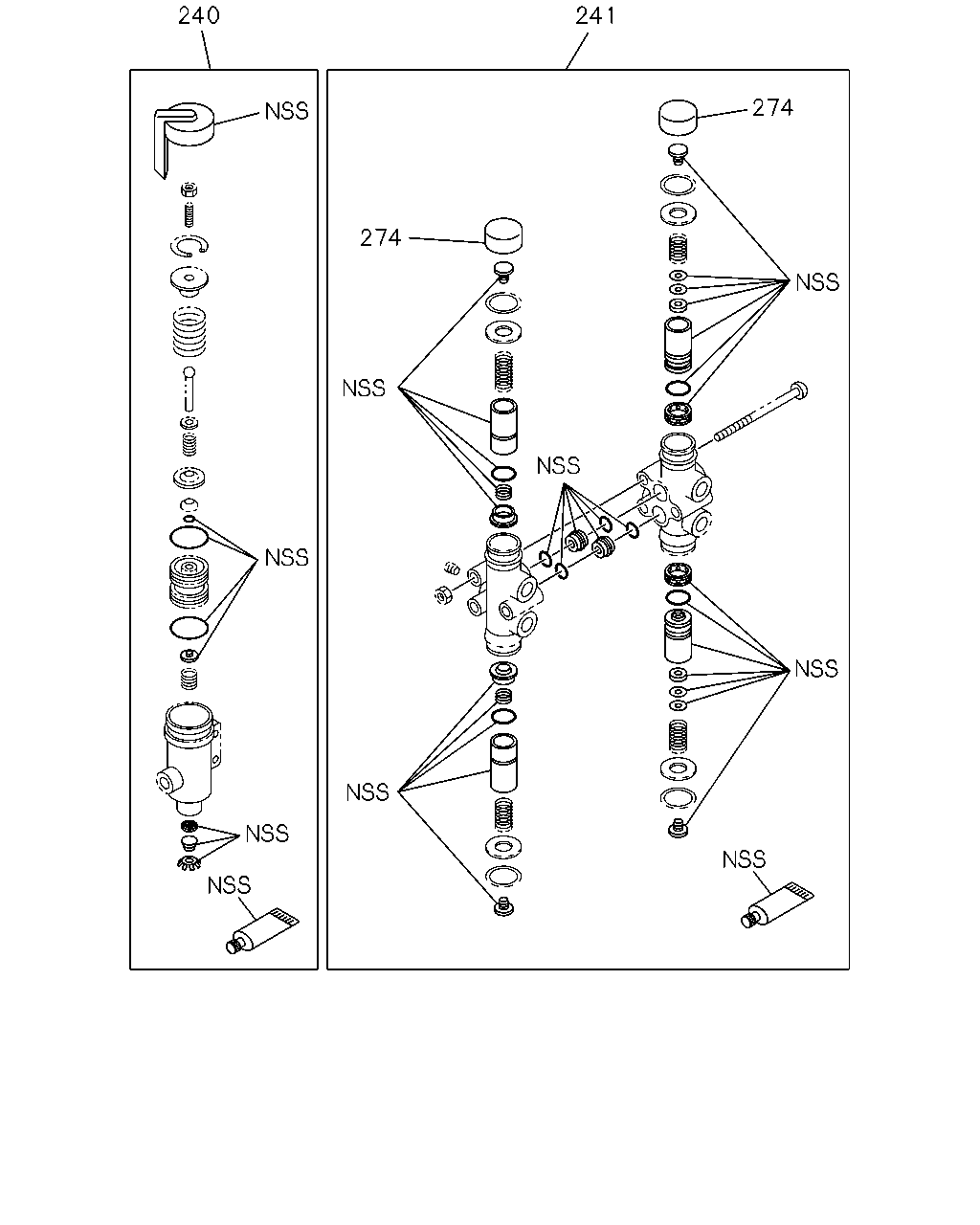

240 241 274 274

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
240	REPAIR KIT; AIR CONT GOV	1-85576-467-0	01	1	0211-0411	●	●	●
240	REPAIR KIT; AIR CONT GOV	1-85576-467-0	01	1	0412-	●	●	●	●
240	REPAIR KIT; AIR CONT GOV	1-85576-303-0	01	1	0005-0210	●	●	●
241	REPAIR KIT; PROTECTION VALVE	1-85576-224-0	01	1	0005-0210	●	●	●
241	REPAIR KIT; PROTECTION VALVE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. EXHAUST BRAKE<NF8>	1-85576-224-0	01	1	0211-0410	●
241	REPAIR KIT; PROTECTION VALVE EXHAUST BRAKE<NF8>	1-85576-224-0	01	1	0211-0410	●
241	REPAIR KIT; PROTECTION VALVE	1-85576-224-0	01	1	0211-0410		●	●
241	REPAIR KIT; PROTECTION VALVE EXHAUST BRAKE<NF8> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-85576-224-0	01	1	0411-0411	●
241	REPAIR KIT; PROTECTION VALVE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-85576-224-0	01	1	0411-0411	●
241	REPAIR KIT; PROTECTION VALVE	1-85576-224-0	01	1	0411-0411		●	●
241	REPAIR KIT; PROTECTION VALVE EXHAUST BRAKE<NF8> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-85576-224-0	01	1	0412-	●
241	REPAIR KIT; PROTECTION VALVE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-85576-224-0	01	1	0412-	●
241	REPAIR KIT; PROTECTION VALVE	1-85576-224-0	01	1	0412-		●	●	●
274	COVER; DUST REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. EXHAUST BRAKE<NF8>	1-48119-450-0	02	1	0211-0410	●
274	COVER; DUST EXHAUST BRAKE<NF8>	1-48119-450-0	02	1	0211-0410	●
274	COVER; DUST	1-48119-450-0	02	1	0211-0410		●	●
274	COVER; DUST EXHAUST BRAKE<NF8> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48119-450-0	02	1	0411-0411	●
274	COVER; DUST REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48119-450-0	02	1	0411-0411	●
274	COVER; DUST	1-48119-450-0	02	1	0411-0411		●	●
274	COVER; DUST EXHAUST BRAKE<NF8> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48119-450-0	02	1	0412-	●
274	COVER; DUST REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48119-450-0	02	1	0412-	●
274	COVER; DUST	1-48119-450-0	02	1	0412-		●	●	●

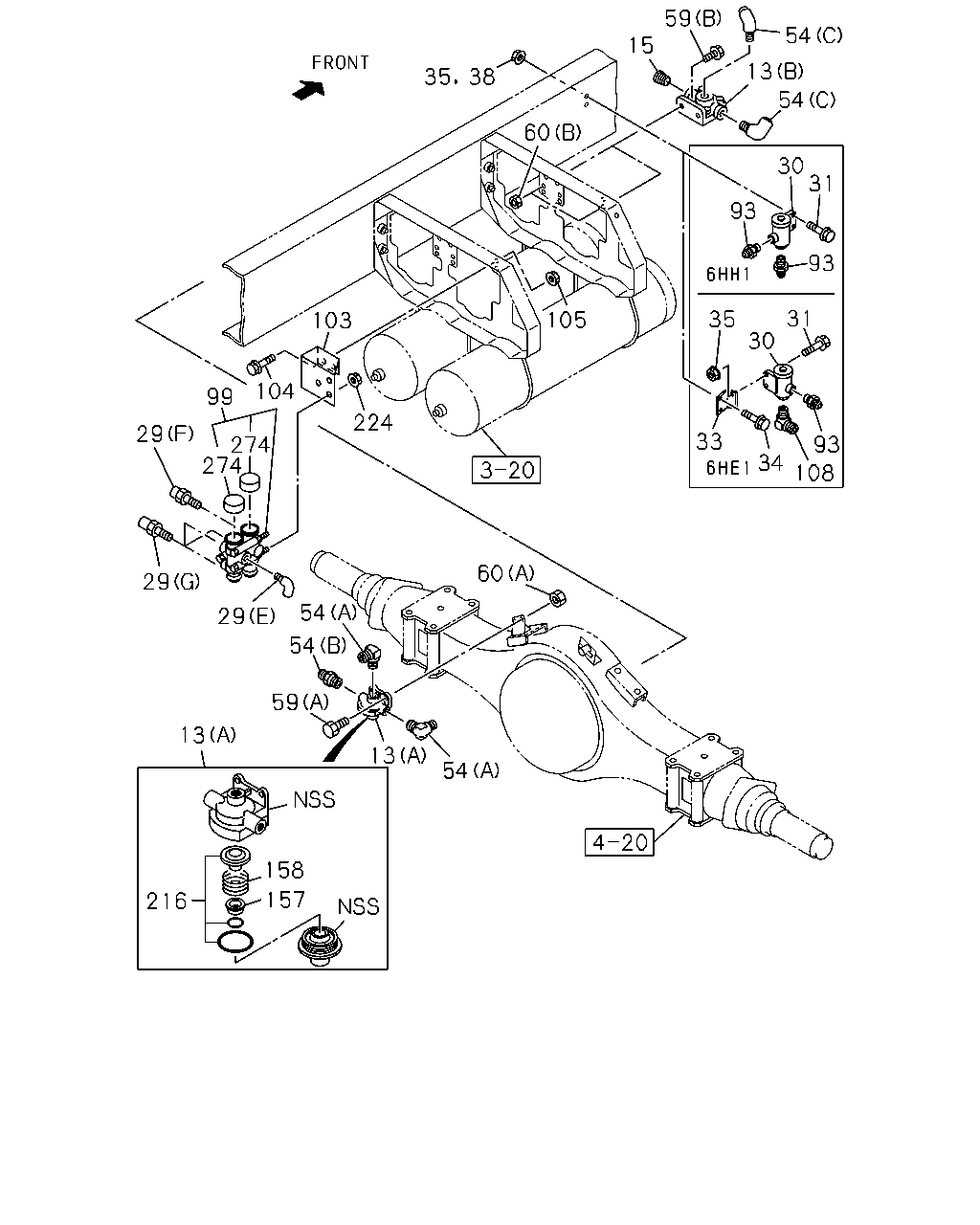

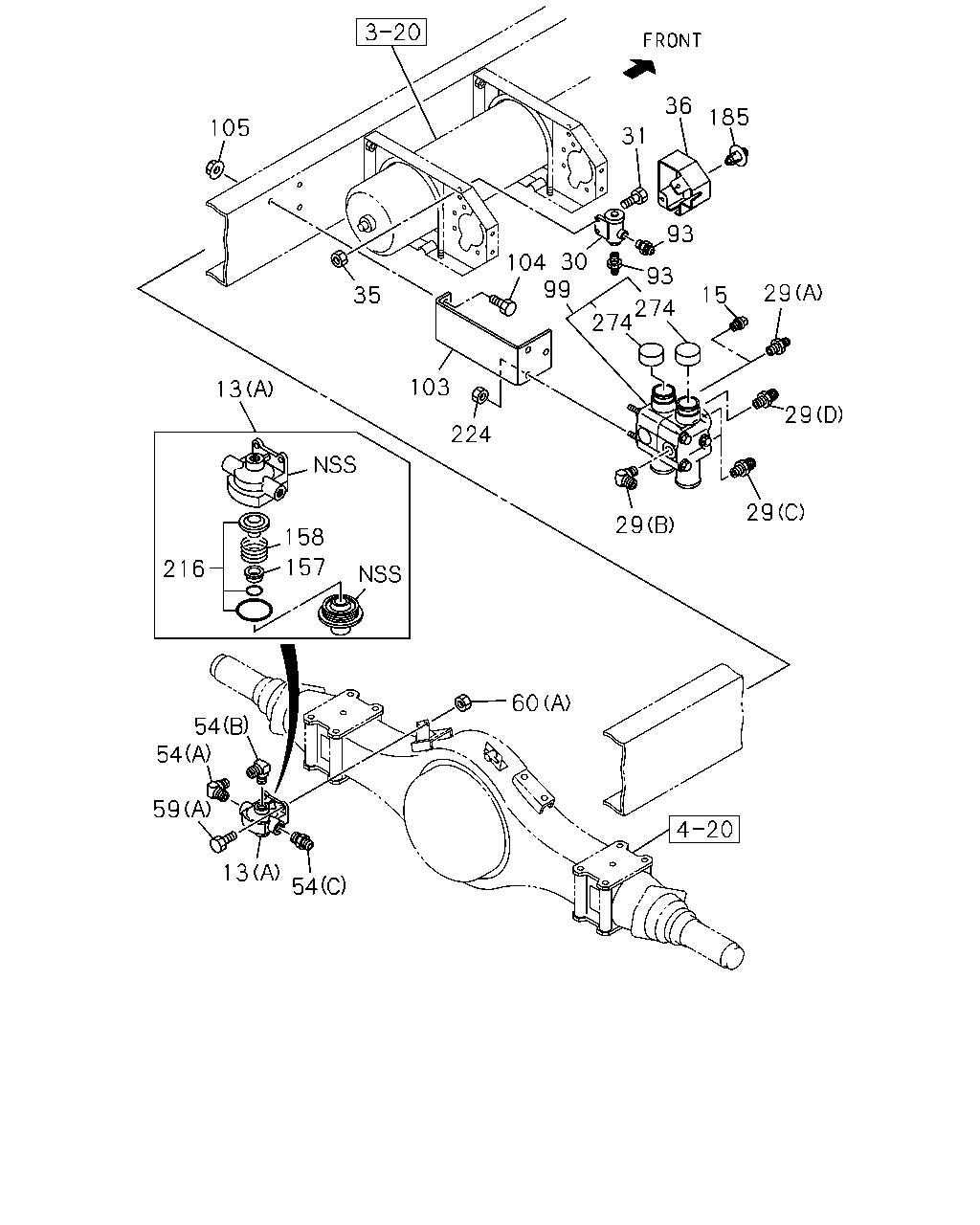

36 185 105 31 93 99 93 29 15 35 274 274 103 13 29 224 29 29 158 157 216 60 54 54 59 13 54 104 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
13	VALVE ASM; QUICK RELEASE FINAL GEAR 39/9 14.5" HYPOID(W4X) (A)	1-48410-320-0	01	1	0005-0109	●
13	VALVE ASM; QUICK RELEASE FINAL GEAR 38/8 13.5" HYPOID(W1A),FINAL GEAR 39/9 13.5" HYPOID(W1N),FINAL GEAR 41/8 13.5" HYPOID(W4E) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-48410-320-0	01	1	0005-0109	●
13	VALVE ASM; QUICK RELEASE (A)	1-48410-320-0	01	1	0005-0109		●	●
13	VALVE ASM; QUICK RELEASE FINAL GEAR 39/9 14.5" HYPOID(W4X) (A)	1-48410-659-0	01	1	0110-0210	●
13	VALVE ASM; QUICK RELEASE FINAL GEAR 38/8 13.5" HYPOID(W1A),FINAL GEAR 39/9 13.5" HYPOID(W1N),FINAL GEAR 41/8 13.5" HYPOID(W4E) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-48410-659-0	01	1	0110-0210	●
13	VALVE ASM; QUICK RELEASE (A)	1-48410-659-0	01	1	0110-0210		●	●
13	VALVE ASM; QUICK RELEASE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-48410-659-0	01	1	0211-	●
13	VALVE ASM; QUICK RELEASE (A)	1-48410-659-0	01	1	0211-		●	●
13	VALVE ASM; QUICK RELEASE (B)	1-48410-234-0	02	1	0005-0701			●
13	VALVE ASM; QUICK RELEASE (B)	1-48410-782-0	02	1	0702-			●
15	PLUG; VALVE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) PT3/8	9-09204-517-0	01	1	0005-0210	●
15	PLUG; VALVE EXHAUST BRAKE<NF8> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) PT3/8	9-09204-517-0	01	1	0211-0411	●
15	PLUG; VALVE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. EXHAUST BRAKE<NF8> PT3/8	9-09204-517-0	01	1	0211-0411	●
15	PLUG; VALVE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. EXHAUST BRAKE<NF8> PT3/8	9-09204-517-0	01	1	0412-	●
15	PLUG; VALVE EXHAUST BRAKE<NF8> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) PT3/8	9-09204-517-0	01	1	0412-	●
15	PLUG; VALVE PT3/8	9-09204-517-0	01	1	0412-				●
15	PLUG; VALVE NPTF3/8-18	8-94231-272-1	02	1	0005-0805			●
15	PLUG; VALVE NPTF3/8-18	8-97329-623-0	02	1	0806-			●
29	CONNECTOR; AIR VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) M16 & PT3/8 STRAIGHT	1-09650-179-1	01	1	0005-	●
29	CONNECTOR; AIR VLV (D) M16 & PT3/8 STRAIGHT	1-09650-179-1	01	1	0005-		●
29	CONNECTOR; AIR VLV (A)	1-09650-283-1	01	1	0005-0210	●	●
29	CONNECTOR; AIR VLV EXHAUST BRAKE<NF8> (A)	1-09650-283-1	01	1	0211-0411	●
29	CONNECTOR; AIR VLV (A)	1-09650-283-1	01	1	0211-0411		●
29	CONNECTOR; AIR VLV EXHAUST BRAKE<NF8> (A)	1-09650-283-1	01	1	0412-	●
29	CONNECTOR; AIR VLV (A)	1-09650-283-1	01	1	0412-		●		●
29	CONNECTOR; AIR VLV (B) M20 & PT3/8 ELBOW	1-09650-439-0	01	1	0005-0210	●	●
29	CONNECTOR; AIR VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. EXHAUST BRAKE<NF8> (B) M20 & PT3/8 ELBOW	1-09650-439-0	01	1	0211-0410	●
29	CONNECTOR; AIR VLV EXHAUST BRAKE<NF8> (B) M20 & PT3/8 ELBOW	1-09650-439-0	01	1	0211-0410	●
29	CONNECTOR; AIR VLV (B) M20 & PT3/8 ELBOW	1-09650-439-0	01	1	0211-0410		●
29	CONNECTOR; AIR VLV EXHAUST BRAKE<NF8> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M20 & PT3/8 ELBOW	1-09650-439-0	01	1	0411-0411	●
29	CONNECTOR; AIR VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M20 & PT3/8 ELBOW	1-09650-439-0	01	1	0411-0411	●
29	CONNECTOR; AIR VLV (B) M20 & PT3/8 ELBOW	1-09650-439-0	01	1	0411-0411		●
29	CONNECTOR; AIR VLV EXHAUST BRAKE<NF8> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M20 & PT3/8 ELBOW	1-09650-439-0	01	1	0412-0607	●
29	CONNECTOR; AIR VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M20 & PT3/8 ELBOW	1-09650-439-0	01	1	0412-0607	●
29	CONNECTOR; AIR VLV (B) M20 & PT3/8 ELBOW	1-09650-439-0	01	1	0412-0607		●		●
29	CONNECTOR; AIR VLV EXHAUST BRAKE<NF8> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M20	0-92121-812-0	02	1	0608-	●
29	CONNECTOR; AIR VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M20	0-92121-812-0	02	1	0608-	●
29	CONNECTOR; AIR VLV (B) M20	0-92121-812-0	02	1	0608-		●		●
29	CONNECTOR; AIR VLV (C) FLARE M20 PT3/8	9-09231-812-1	02	1	0005-0210	●	●
29	CONNECTOR; AIR VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. EXHAUST BRAKE<NF8> (C) FLARE M20 PT3/8	9-09231-812-1	02	1	0211-0410	●
29	CONNECTOR; AIR VLV EXHAUST BRAKE<NF8> (C) FLARE M20 PT3/8	9-09231-812-1	02	1	0211-0410	●
29	CONNECTOR; AIR VLV (C) FLARE M20 PT3/8	9-09231-812-1	02	1	0211-0410		●
29	CONNECTOR; AIR VLV EXHAUST BRAKE<NF8> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) FLARE M20 PT3/8	9-09231-812-1	02	1	0411-0411	●
29	CONNECTOR; AIR VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) FLARE M20 PT3/8	9-09231-812-1	02	1	0411-0411	●
29	CONNECTOR; AIR VLV (C) FLARE M20 PT3/8	9-09231-812-1	02	1	0411-0411		●
29	CONNECTOR; AIR VLV EXHAUST BRAKE<NF8> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) FLARE M20 PT3/8	9-09231-812-1	02	1	0412-0607	●
29	CONNECTOR; AIR VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) FLARE M20 PT3/8	9-09231-812-1	02	1	0412-0607	●
29	CONNECTOR; AIR VLV (C) FLARE M20 PT3/8	9-09231-812-1	02	1	0412-0607		●		●
29	CONNECTOR; AIR VLV EXHAUST BRAKE<NF8> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) M20 & PT3/8 ELBOW	0-92134-312-0	01	1	0608-	●
29	CONNECTOR; AIR VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) M20 & PT3/8 ELBOW	0-92134-312-0	01	1	0608-	●
29	CONNECTOR; AIR VLV (C) M20 & PT3/8 ELBOW	0-92134-312-0	01	1	0608-		●		●
29	CONNECTOR; AIR VLV (E) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0005-			●
29	CONNECTOR; AIR VLV (F) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	0005-			●
29	CONNECTOR; AIR VLV (G) DIN12 & R3/8 STRAIGHT	1-09660-965-0	03	1	0005-			●
30	GOVERNOR; AIR CONT	1-48350-063-2	01	1	0005-0411	●	●	●
30	GOVERNOR; AIR CONT	1-48350-063-2	01	1	0412-	●	●	●	●
31	BOLT; GOV TO FRAME M8X30 FLANGE	0-28680-830-0	02	1	0005-0411	●	●
31	BOLT; GOV TO FRAME M8X30 FLANGE	0-28680-830-0	02	1	0412-0512	●	●		●
31	BOLT; GOV TO FRAME M8X30 FLANGE	0-28650-830-0	02	1	0601-	●	●		●
31	BOLT; GOV TO FRAME 6HE1 TC ENG(57L) M8X25 FLANGE	0-28680-825-0	02	1	0005-0210			●
31	BOLT; GOV TO FRAME M8X25 FLANGE	0-28680-825-0	02	1	0211-0512			●
31	BOLT; GOV TO FRAME M8X25 FLANGE	0-28650-825-0	02	1	0601-			●
31	BOLT; GOV TO FRAME 6HH1 STD ENG(65L) M8X35 FLANGE	0-28680-835-0	02	1	0005-0210			●
35	NUT; GOV TO FRAME M8 FLANGE	0-91150-108-0	02	1	0005-0411	●	●	●
35	NUT; GOV TO FRAME M8 FLANGE	0-91150-108-0	02	1	0412-0602	●	●	●	●
35	NUT; GOV TO FRAME M8 FLANGE	0-91180-108-0	02	1	0603-	●	●	●	●
36	COVER; GOV	1-48359-043-3	01	1	0005-0210	●	●
54	CONNECTOR; QUICK RELEASE VLV FINAL GEAR 39/9 14.5" HYPOID(W4X) (C) M14 & PT3/8 STRAIGHT	1-09650-085-1	01	1	0005-0210	●
54	CONNECTOR; QUICK RELEASE VLV FINAL GEAR 38/8 13.5" HYPOID(W1A),FINAL GEAR 39/9 13.5" HYPOID(W1N),FINAL GEAR 41/8 13.5" HYPOID(W4E) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) M14 & PT3/8 STRAIGHT	1-09650-085-1	01	1	0005-0210	●
54	CONNECTOR; QUICK RELEASE VLV (C) M14 & PT3/8 STRAIGHT	1-09650-085-1	01	1	0005-0210		●
54	CONNECTOR; QUICK RELEASE VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) M14 & PT3/8 STRAIGHT	1-09650-085-1	01	1	0211-	●
54	CONNECTOR; QUICK RELEASE VLV (C) M14 & PT3/8 STRAIGHT	1-09650-085-1	01	1	0211-		●
54	CONNECTOR; QUICK RELEASE VLV FINAL GEAR 39/9 14.5" HYPOID(W4X) (A) M14 & PT3/8 ELBOW	1-09650-437-0	01	1	0005-0210	●
54	CONNECTOR; QUICK RELEASE VLV FINAL GEAR 38/8 13.5" HYPOID(W1A),FINAL GEAR 39/9 13.5" HYPOID(W1N),FINAL GEAR 41/8 13.5" HYPOID(W4E) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M14 & PT3/8 ELBOW	1-09650-437-0	01	1	0005-0210	●
54	CONNECTOR; QUICK RELEASE VLV (A) M14 & PT3/8 ELBOW	1-09650-437-0	01	1	0005-0210		●
54	CONNECTOR; QUICK RELEASE VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M14 & PT3/8 ELBOW	1-09650-437-0	01	1	0211-	●
54	CONNECTOR; QUICK RELEASE VLV (A) M14 & PT3/8 ELBOW	1-09650-437-0	01	1	0211-		●
54	CONNECTOR; QUICK RELEASE VLV FINAL GEAR 39/9 14.5" HYPOID(W4X) (B) M20 & PT3/8 ELBOW	1-09660-684-0	01	1	0005-0210	●
54	CONNECTOR; QUICK RELEASE VLV FINAL GEAR 38/8 13.5" HYPOID(W1A),FINAL GEAR 39/9 13.5" HYPOID(W1N),FINAL GEAR 41/8 13.5" HYPOID(W4E) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M20 & PT3/8 ELBOW	1-09660-684-0	01	1	0005-0210	●
54	CONNECTOR; QUICK RELEASE VLV (B) M20 & PT3/8 ELBOW	1-09660-684-0	01	1	0005-0210		●	●
54	CONNECTOR; QUICK RELEASE VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M20 & PT3/8 ELBOW	1-09660-684-0	01	1	0211-	●
54	CONNECTOR; QUICK RELEASE VLV (B) M20 & PT3/8 ELBOW	1-09660-684-0	01	1	0211-		●	●
54	CONNECTOR; QUICK RELEASE VLV (A) M14 & PT3/8 ELBOW	1-09650-437-0	02	1	0005-			●
54	CONNECTOR; QUICK RELEASE VLV (C) DIN12 & NPTF3/8 ELBOW	1-09660-962-0	04	1	0005-			●
59	BOLT; RELEASE VALVE FIX FINAL GEAR 39/9 14.5" HYPOID(W4X) (A) M8X20 W/LK WASHER	0-50040-820-0	02	1	0005-0210	●
59	BOLT; RELEASE VALVE FIX FINAL GEAR 38/8 13.5" HYPOID(W1A),FINAL GEAR 39/9 13.5" HYPOID(W1N),FINAL GEAR 41/8 13.5" HYPOID(W4E) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M8X20 W/LK WASHER	0-50040-820-0	02	1	0005-0210	●
59	BOLT; RELEASE VALVE FIX (A) M8X20 W/LK WASHER	0-50040-820-0	02	1	0005-0210		●	●
59	BOLT; RELEASE VALVE FIX REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M8X20 W/LK WASHER	0-50040-820-0	02	1	0211-0906	●
59	BOLT; RELEASE VALVE FIX (A) M8X20 W/LK WASHER	0-50040-820-0	02	1	0211-0906		●	●
59	BOLT; RELEASE VALVE FIX REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M8X20 W/LK WASHER	0-50540-820-0	02	1	0907-	●
59	BOLT; RELEASE VALVE FIX (A) M8X20 W/LK WASHER	0-50540-820-0	02	1	0907-		●	●
59	BOLT; RELEASE VALVE FIX (B) M8X20 FLANGE	0-28680-820-0	04	1	0005-0512			●
59	BOLT; RELEASE VALVE FIX (B) M8X20 FLANGE	0-28650-820-0	04	1	0601-			●
60	NUT; RELEASE VALVE FIX FINAL GEAR 39/9 14.5" HYPOID(W4X) (A) M8	9-09110-408-0	02	1	0005-0210	●
60	NUT; RELEASE VALVE FIX FINAL GEAR 38/8 13.5" HYPOID(W1A),FINAL GEAR 39/9 13.5" HYPOID(W1N),FINAL GEAR 41/8 13.5" HYPOID(W4E) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M8	9-09110-408-0	02	1	0005-0210	●
60	NUT; RELEASE VALVE FIX (A) M8	9-09110-408-0	02	1	0005-0210		●	●
60	NUT; RELEASE VALVE FIX REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M8	9-09110-408-0	02	1	0211-0512	●
60	NUT; RELEASE VALVE FIX (A) M8	9-09110-408-0	02	1	0211-0512		●	●
60	NUT; RELEASE VALVE FIX REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M8	0-91110-508-0	02	1	0601-	●
60	NUT; RELEASE VALVE FIX (A) M8	0-91110-508-0	02	1	0601-		●	●
60	NUT; RELEASE VALVE FIX (B) M8 FLANGE	0-91150-108-0	04	1	0005-0602			●
60	NUT; RELEASE VALVE FIX (B) M8 FLANGE	0-91180-108-0	04	1	0603-			●
93	CONNECTOR; GOV M12 & PT1/4 STRAIGHT	1-09650-074-1	02	1	0005-0210	●	●
93	CONNECTOR; GOV 6HH1 STD ENG(65L) M12 & PT1/4 STRAIGHT	1-09650-074-1	02	1	0005-0210			●
93	CONNECTOR; GOV M12 & PT1/4 STRAIGHT	1-09650-074-1	02	1	0211-0411	●	●
93	CONNECTOR; GOV M12 & PT1/4 STRAIGHT	1-09650-074-1	02	1	0412-	●	●		●
93	CONNECTOR; GOV 6HE1 TC ENG(57L) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0005-0210			●
93	CONNECTOR; GOV M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0211-			●
99	VALVE; PROTECTION	1-48110-135-5	01	1	0005-0210	●	●
99	VALVE; PROTECTION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. EXHAUST BRAKE<NF8>	1-48110-135-5	01	1	0211-0410	●
99	VALVE; PROTECTION EXHAUST BRAKE<NF8>	1-48110-135-5	01	1	0211-0410	●
99	VALVE; PROTECTION	1-48110-135-5	01	1	0211-0410		●
99	VALVE; PROTECTION EXHAUST BRAKE<NF8> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48110-135-5	01	1	0411-0411	●
99	VALVE; PROTECTION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48110-135-5	01	1	0411-0411	●
99	VALVE; PROTECTION	1-48110-135-5	01	1	0411-0411		●
99	VALVE; PROTECTION EXHAUST BRAKE<NF8> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48110-135-5	01	1	0412-	●
99	VALVE; PROTECTION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48110-135-5	01	1	0412-	●
99	VALVE; PROTECTION	1-48110-135-5	01	1	0412-		●		●
99	VALVE; PROTECTION	1-48110-113-5	01	1	0005-			●
103	BRACKET; PROTECTION VALVE	1-47477-971-0	01	1	0005-0411	●	●
103	BRACKET; PROTECTION VALVE	1-47477-971-0	01	1	0412-	●	●		●
103	BRACKET; PROTECTION VALVE	1-47478-057-0	01	1	0005-			●
104	BOLT; BRKT,VALVE M8X30 FLANGE	0-28680-830-0	02	1	0005-0411	●	●
104	BOLT; BRKT,VALVE M8X30 FLANGE	0-28680-830-0	02	1	0412-0512	●	●		●
104	BOLT; BRKT,VALVE M8X30 FLANGE	0-28650-830-0	02	1	0601-	●	●		●
104	BOLT; BRKT,VALVE M8X25 FLANGE	0-28680-825-0	02	1	0005-0512			●
104	BOLT; BRKT,VALVE M8X25 FLANGE	0-28650-825-0	02	1	0601-			●
105	NUT; BRKT,VALVE M8 FLANGE	0-91150-108-0	02	1	0005-0411	●	●	●
105	NUT; BRKT,VALVE M8 FLANGE	0-91150-108-0	02	1	0412-0602	●	●	●	●
105	NUT; BRKT,VALVE M8 FLANGE	0-91180-108-0	02	1	0603-	●	●	●	●
157	RETAINER; VALVE FINAL GEAR 39/9 14.5" HYPOID(W4X)	1-48419-020-0	01	1	0110-0210	●
157	RETAINER; VALVE FINAL GEAR 38/8 13.5" HYPOID(W1A),FINAL GEAR 39/9 13.5" HYPOID(W1N),FINAL GEAR 41/8 13.5" HYPOID(W4E) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48419-020-0	01	1	0110-0210	●
157	RETAINER; VALVE	1-48419-020-0	01	1	0110-0210		●	●
157	RETAINER; VALVE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48419-020-0	01	1	0211-	●
157	RETAINER; VALVE	1-48419-020-0	01	1	0211-		●	●
158	SPRING; VALVE FINAL GEAR 39/9 14.5" HYPOID(W4X)	9-48419-003-0	01	1	0110-0210	●
158	SPRING; VALVE FINAL GEAR 38/8 13.5" HYPOID(W1A),FINAL GEAR 39/9 13.5" HYPOID(W1N),FINAL GEAR 41/8 13.5" HYPOID(W4E) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	9-48419-003-0	01	1	0110-0210	●
158	SPRING; VALVE	9-48419-003-0	01	1	0110-0210		●	●
158	SPRING; VALVE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	9-48419-003-0	01	1	0211-	●
158	SPRING; VALVE	9-48419-003-0	01	1	0211-		●	●
185	FASTENER; COVER	1-09470-006-0	02	1	0005-0210	●	●
216	REPAIR KIT; QUICK RELEASE VLV FINAL GEAR 39/9 14.5" HYPOID(W4X)	1-85576-235-0	01	1	0110-0210	●
216	REPAIR KIT; QUICK RELEASE VLV FINAL GEAR 38/8 13.5" HYPOID(W1A),FINAL GEAR 39/9 13.5" HYPOID(W1N),FINAL GEAR 41/8 13.5" HYPOID(W4E) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-85576-235-0	01	1	0110-0210	●
216	REPAIR KIT; QUICK RELEASE VLV	1-85576-235-0	01	1	0110-0210		●	●
216	REPAIR KIT; QUICK RELEASE VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-85576-235-0	01	1	0211-	●
216	REPAIR KIT; QUICK RELEASE VLV	1-85576-235-0	01	1	0211-		●	●
224	NUT; PROTECTION VALVE M8 FLANGE	0-91150-108-0	03	1	0005-0411	●	●	●
224	NUT; PROTECTION VALVE M8 FLANGE	0-91150-108-0	03	1	0412-0602	●	●	●	●
224	NUT; PROTECTION VALVE M8 FLANGE	0-91180-108-0	03	1	0603-	●	●	●	●
274	COVER; DUST REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. EXHAUST BRAKE<NF8>	1-48119-450-0	02	1	0211-0410	●
274	COVER; DUST EXHAUST BRAKE<NF8>	1-48119-450-0	02	1	0211-0410	●
274	COVER; DUST	1-48119-450-0	02	1	0211-0410		●	●
274	COVER; DUST EXHAUST BRAKE<NF8> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48119-450-0	02	1	0411-0411	●
274	COVER; DUST REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48119-450-0	02	1	0411-0411	●
274	COVER; DUST	1-48119-450-0	02	1	0411-0411		●	●
274	COVER; DUST EXHAUST BRAKE<NF8> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48119-450-0	02	1	0412-	●
274	COVER; DUST REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48119-450-0	02	1	0412-	●
274	COVER; DUST	1-48119-450-0	02	1	0412-		●	●	●

59 54 15 13 35 38 54 60 30 31 93 93 31 35 105 103 30 104 99 224 29 33 34 93 274 274 108 60 29 54 29 54 59 13 13 54 158 157 216

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
13	VALVE ASM; QUICK RELEASE FINAL GEAR 39/9 14.5" HYPOID(W4X) (A)	1-48410-320-0	01	1	0005-0109	●
13	VALVE ASM; QUICK RELEASE FINAL GEAR 38/8 13.5" HYPOID(W1A),FINAL GEAR 39/9 13.5" HYPOID(W1N),FINAL GEAR 41/8 13.5" HYPOID(W4E) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-48410-320-0	01	1	0005-0109	●
13	VALVE ASM; QUICK RELEASE (A)	1-48410-320-0	01	1	0005-0109		●	●
13	VALVE ASM; QUICK RELEASE FINAL GEAR 39/9 14.5" HYPOID(W4X) (A)	1-48410-659-0	01	1	0110-0210	●
13	VALVE ASM; QUICK RELEASE FINAL GEAR 38/8 13.5" HYPOID(W1A),FINAL GEAR 39/9 13.5" HYPOID(W1N),FINAL GEAR 41/8 13.5" HYPOID(W4E) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-48410-659-0	01	1	0110-0210	●
13	VALVE ASM; QUICK RELEASE (A)	1-48410-659-0	01	1	0110-0210		●	●
13	VALVE ASM; QUICK RELEASE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-48410-659-0	01	1	0211-	●
13	VALVE ASM; QUICK RELEASE (A)	1-48410-659-0	01	1	0211-		●	●
13	VALVE ASM; QUICK RELEASE (B)	1-48410-234-0	02	1	0005-0701			●
13	VALVE ASM; QUICK RELEASE (B)	1-48410-782-0	02	1	0702-			●
15	PLUG; VALVE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) PT3/8	9-09204-517-0	01	1	0005-0210	●
15	PLUG; VALVE EXHAUST BRAKE<NF8> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) PT3/8	9-09204-517-0	01	1	0211-0411	●
15	PLUG; VALVE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. EXHAUST BRAKE<NF8> PT3/8	9-09204-517-0	01	1	0211-0411	●
15	PLUG; VALVE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. EXHAUST BRAKE<NF8> PT3/8	9-09204-517-0	01	1	0412-	●
15	PLUG; VALVE EXHAUST BRAKE<NF8> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) PT3/8	9-09204-517-0	01	1	0412-	●
15	PLUG; VALVE PT3/8	9-09204-517-0	01	1	0412-				●
15	PLUG; VALVE NPTF3/8-18	8-94231-272-1	02	1	0005-0805			●
15	PLUG; VALVE NPTF3/8-18	8-97329-623-0	02	1	0806-			●
29	CONNECTOR; AIR VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) M16 & PT3/8 STRAIGHT	1-09650-179-1	01	1	0005-	●
29	CONNECTOR; AIR VLV (D) M16 & PT3/8 STRAIGHT	1-09650-179-1	01	1	0005-		●
29	CONNECTOR; AIR VLV (A)	1-09650-283-1	01	1	0005-0210	●	●
29	CONNECTOR; AIR VLV EXHAUST BRAKE<NF8> (A)	1-09650-283-1	01	1	0211-0411	●
29	CONNECTOR; AIR VLV (A)	1-09650-283-1	01	1	0211-0411		●
29	CONNECTOR; AIR VLV EXHAUST BRAKE<NF8> (A)	1-09650-283-1	01	1	0412-	●
29	CONNECTOR; AIR VLV (A)	1-09650-283-1	01	1	0412-		●		●
29	CONNECTOR; AIR VLV (B) M20 & PT3/8 ELBOW	1-09650-439-0	01	1	0005-0210	●	●
29	CONNECTOR; AIR VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. EXHAUST BRAKE<NF8> (B) M20 & PT3/8 ELBOW	1-09650-439-0	01	1	0211-0410	●
29	CONNECTOR; AIR VLV EXHAUST BRAKE<NF8> (B) M20 & PT3/8 ELBOW	1-09650-439-0	01	1	0211-0410	●
29	CONNECTOR; AIR VLV (B) M20 & PT3/8 ELBOW	1-09650-439-0	01	1	0211-0410		●
29	CONNECTOR; AIR VLV EXHAUST BRAKE<NF8> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M20 & PT3/8 ELBOW	1-09650-439-0	01	1	0411-0411	●
29	CONNECTOR; AIR VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M20 & PT3/8 ELBOW	1-09650-439-0	01	1	0411-0411	●
29	CONNECTOR; AIR VLV (B) M20 & PT3/8 ELBOW	1-09650-439-0	01	1	0411-0411		●
29	CONNECTOR; AIR VLV EXHAUST BRAKE<NF8> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M20 & PT3/8 ELBOW	1-09650-439-0	01	1	0412-0607	●
29	CONNECTOR; AIR VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M20 & PT3/8 ELBOW	1-09650-439-0	01	1	0412-0607	●
29	CONNECTOR; AIR VLV (B) M20 & PT3/8 ELBOW	1-09650-439-0	01	1	0412-0607		●		●
29	CONNECTOR; AIR VLV EXHAUST BRAKE<NF8> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M20	0-92121-812-0	02	1	0608-	●
29	CONNECTOR; AIR VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M20	0-92121-812-0	02	1	0608-	●
29	CONNECTOR; AIR VLV (B) M20	0-92121-812-0	02	1	0608-		●		●
29	CONNECTOR; AIR VLV (C) FLARE M20 PT3/8	9-09231-812-1	02	1	0005-0210	●	●
29	CONNECTOR; AIR VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. EXHAUST BRAKE<NF8> (C) FLARE M20 PT3/8	9-09231-812-1	02	1	0211-0410	●
29	CONNECTOR; AIR VLV EXHAUST BRAKE<NF8> (C) FLARE M20 PT3/8	9-09231-812-1	02	1	0211-0410	●
29	CONNECTOR; AIR VLV (C) FLARE M20 PT3/8	9-09231-812-1	02	1	0211-0410		●
29	CONNECTOR; AIR VLV EXHAUST BRAKE<NF8> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) FLARE M20 PT3/8	9-09231-812-1	02	1	0411-0411	●
29	CONNECTOR; AIR VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) FLARE M20 PT3/8	9-09231-812-1	02	1	0411-0411	●
29	CONNECTOR; AIR VLV (C) FLARE M20 PT3/8	9-09231-812-1	02	1	0411-0411		●
29	CONNECTOR; AIR VLV EXHAUST BRAKE<NF8> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) FLARE M20 PT3/8	9-09231-812-1	02	1	0412-0607	●
29	CONNECTOR; AIR VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) FLARE M20 PT3/8	9-09231-812-1	02	1	0412-0607	●
29	CONNECTOR; AIR VLV (C) FLARE M20 PT3/8	9-09231-812-1	02	1	0412-0607		●		●
29	CONNECTOR; AIR VLV EXHAUST BRAKE<NF8> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) M20 & PT3/8 ELBOW	0-92134-312-0	01	1	0608-	●
29	CONNECTOR; AIR VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) M20 & PT3/8 ELBOW	0-92134-312-0	01	1	0608-	●
29	CONNECTOR; AIR VLV (C) M20 & PT3/8 ELBOW	0-92134-312-0	01	1	0608-		●		●
29	CONNECTOR; AIR VLV (E) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0005-			●
29	CONNECTOR; AIR VLV (F) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	0005-			●
29	CONNECTOR; AIR VLV (G) DIN12 & R3/8 STRAIGHT	1-09660-965-0	03	1	0005-			●
30	GOVERNOR; AIR CONT	1-48350-063-2	01	1	0005-0411	●	●	●
30	GOVERNOR; AIR CONT	1-48350-063-2	01	1	0412-	●	●	●	●
31	BOLT; GOV TO FRAME M8X30 FLANGE	0-28680-830-0	02	1	0005-0411	●	●
31	BOLT; GOV TO FRAME M8X30 FLANGE	0-28680-830-0	02	1	0412-0512	●	●		●
31	BOLT; GOV TO FRAME M8X30 FLANGE	0-28650-830-0	02	1	0601-	●	●		●
31	BOLT; GOV TO FRAME 6HE1 TC ENG(57L) M8X25 FLANGE	0-28680-825-0	02	1	0005-0210			●
31	BOLT; GOV TO FRAME M8X25 FLANGE	0-28680-825-0	02	1	0211-0512			●
31	BOLT; GOV TO FRAME M8X25 FLANGE	0-28650-825-0	02	1	0601-			●
31	BOLT; GOV TO FRAME 6HH1 STD ENG(65L) M8X35 FLANGE	0-28680-835-0	02	1	0005-0210			●
33	BRACKET; GOV,AIR CONT 6HE1 TC ENG(57L)	1-48359-107-1	01	1	0005-0210			●
33	BRACKET; GOV,AIR CONT	1-48359-107-1	01	1	0211-			●
34	BOLT; BRKT,GOV 6HE1 TC ENG(57L) M8X25 FLANGE	0-28680-825-0	02	1	0005-0210			●
34	BOLT; BRKT,GOV M8X25 FLANGE	0-28680-825-0	02	1	0211-0512			●
34	BOLT; BRKT,GOV M8X25 FLANGE	0-28650-825-0	02	1	0601-			●
35	NUT; GOV TO FRAME M8 FLANGE	0-91150-108-0	02	1	0005-0411	●	●	●
35	NUT; GOV TO FRAME M8 FLANGE	0-91150-108-0	02	1	0412-0602	●	●	●	●
35	NUT; GOV TO FRAME M8 FLANGE	0-91180-108-0	02	1	0603-	●	●	●	●
38	NUT; BRKT,GOV 6HE1 TC ENG(57L) M8 FLANGE	0-91150-108-0	02	1	0005-0210			●
38	NUT; BRKT,GOV M8 FLANGE	0-91150-108-0	02	1	0211-0602			●
38	NUT; BRKT,GOV M8 FLANGE	0-91180-108-0	02	1	0603-			●
54	CONNECTOR; QUICK RELEASE VLV FINAL GEAR 39/9 14.5" HYPOID(W4X) (C) M14 & PT3/8 STRAIGHT	1-09650-085-1	01	1	0005-0210	●
54	CONNECTOR; QUICK RELEASE VLV FINAL GEAR 38/8 13.5" HYPOID(W1A),FINAL GEAR 39/9 13.5" HYPOID(W1N),FINAL GEAR 41/8 13.5" HYPOID(W4E) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) M14 & PT3/8 STRAIGHT	1-09650-085-1	01	1	0005-0210	●
54	CONNECTOR; QUICK RELEASE VLV (C) M14 & PT3/8 STRAIGHT	1-09650-085-1	01	1	0005-0210		●
54	CONNECTOR; QUICK RELEASE VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) M14 & PT3/8 STRAIGHT	1-09650-085-1	01	1	0211-	●
54	CONNECTOR; QUICK RELEASE VLV (C) M14 & PT3/8 STRAIGHT	1-09650-085-1	01	1	0211-		●
54	CONNECTOR; QUICK RELEASE VLV FINAL GEAR 39/9 14.5" HYPOID(W4X) (A) M14 & PT3/8 ELBOW	1-09650-437-0	01	1	0005-0210	●
54	CONNECTOR; QUICK RELEASE VLV FINAL GEAR 38/8 13.5" HYPOID(W1A),FINAL GEAR 39/9 13.5" HYPOID(W1N),FINAL GEAR 41/8 13.5" HYPOID(W4E) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M14 & PT3/8 ELBOW	1-09650-437-0	01	1	0005-0210	●
54	CONNECTOR; QUICK RELEASE VLV (A) M14 & PT3/8 ELBOW	1-09650-437-0	01	1	0005-0210		●
54	CONNECTOR; QUICK RELEASE VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M14 & PT3/8 ELBOW	1-09650-437-0	01	1	0211-	●
54	CONNECTOR; QUICK RELEASE VLV (A) M14 & PT3/8 ELBOW	1-09650-437-0	01	1	0211-		●
54	CONNECTOR; QUICK RELEASE VLV FINAL GEAR 39/9 14.5" HYPOID(W4X) (B) M20 & PT3/8 ELBOW	1-09660-684-0	01	1	0005-0210	●
54	CONNECTOR; QUICK RELEASE VLV FINAL GEAR 38/8 13.5" HYPOID(W1A),FINAL GEAR 39/9 13.5" HYPOID(W1N),FINAL GEAR 41/8 13.5" HYPOID(W4E) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M20 & PT3/8 ELBOW	1-09660-684-0	01	1	0005-0210	●
54	CONNECTOR; QUICK RELEASE VLV (B) M20 & PT3/8 ELBOW	1-09660-684-0	01	1	0005-0210		●	●
54	CONNECTOR; QUICK RELEASE VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M20 & PT3/8 ELBOW	1-09660-684-0	01	1	0211-	●
54	CONNECTOR; QUICK RELEASE VLV (B) M20 & PT3/8 ELBOW	1-09660-684-0	01	1	0211-		●	●
54	CONNECTOR; QUICK RELEASE VLV (A) M14 & PT3/8 ELBOW	1-09650-437-0	02	1	0005-			●
54	CONNECTOR; QUICK RELEASE VLV (C) DIN12 & NPTF3/8 ELBOW	1-09660-962-0	04	1	0005-			●
59	BOLT; RELEASE VALVE FIX FINAL GEAR 39/9 14.5" HYPOID(W4X) (A) M8X20 W/LK WASHER	0-50040-820-0	02	1	0005-0210	●
59	BOLT; RELEASE VALVE FIX FINAL GEAR 38/8 13.5" HYPOID(W1A),FINAL GEAR 39/9 13.5" HYPOID(W1N),FINAL GEAR 41/8 13.5" HYPOID(W4E) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M8X20 W/LK WASHER	0-50040-820-0	02	1	0005-0210	●
59	BOLT; RELEASE VALVE FIX (A) M8X20 W/LK WASHER	0-50040-820-0	02	1	0005-0210		●	●
59	BOLT; RELEASE VALVE FIX REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M8X20 W/LK WASHER	0-50040-820-0	02	1	0211-0906	●
59	BOLT; RELEASE VALVE FIX (A) M8X20 W/LK WASHER	0-50040-820-0	02	1	0211-0906		●	●
59	BOLT; RELEASE VALVE FIX REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M8X20 W/LK WASHER	0-50540-820-0	02	1	0907-	●
59	BOLT; RELEASE VALVE FIX (A) M8X20 W/LK WASHER	0-50540-820-0	02	1	0907-		●	●
59	BOLT; RELEASE VALVE FIX (B) M8X20 FLANGE	0-28680-820-0	04	1	0005-0512			●
59	BOLT; RELEASE VALVE FIX (B) M8X20 FLANGE	0-28650-820-0	04	1	0601-			●
60	NUT; RELEASE VALVE FIX FINAL GEAR 39/9 14.5" HYPOID(W4X) (A) M8	9-09110-408-0	02	1	0005-0210	●
60	NUT; RELEASE VALVE FIX FINAL GEAR 38/8 13.5" HYPOID(W1A),FINAL GEAR 39/9 13.5" HYPOID(W1N),FINAL GEAR 41/8 13.5" HYPOID(W4E) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M8	9-09110-408-0	02	1	0005-0210	●
60	NUT; RELEASE VALVE FIX (A) M8	9-09110-408-0	02	1	0005-0210		●	●
60	NUT; RELEASE VALVE FIX REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M8	9-09110-408-0	02	1	0211-0512	●
60	NUT; RELEASE VALVE FIX (A) M8	9-09110-408-0	02	1	0211-0512		●	●
60	NUT; RELEASE VALVE FIX REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M8	0-91110-508-0	02	1	0601-	●
60	NUT; RELEASE VALVE FIX (A) M8	0-91110-508-0	02	1	0601-		●	●
60	NUT; RELEASE VALVE FIX (B) M8 FLANGE	0-91150-108-0	04	1	0005-0602			●
60	NUT; RELEASE VALVE FIX (B) M8 FLANGE	0-91180-108-0	04	1	0603-			●
93	CONNECTOR; GOV M12 & PT1/4 STRAIGHT	1-09650-074-1	02	1	0005-0210	●	●
93	CONNECTOR; GOV 6HH1 STD ENG(65L) M12 & PT1/4 STRAIGHT	1-09650-074-1	02	1	0005-0210			●
93	CONNECTOR; GOV M12 & PT1/4 STRAIGHT	1-09650-074-1	02	1	0211-0411	●	●
93	CONNECTOR; GOV M12 & PT1/4 STRAIGHT	1-09650-074-1	02	1	0412-	●	●		●
93	CONNECTOR; GOV 6HE1 TC ENG(57L) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0005-0210			●
93	CONNECTOR; GOV M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0211-			●
99	VALVE; PROTECTION	1-48110-135-5	01	1	0005-0210	●	●
99	VALVE; PROTECTION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. EXHAUST BRAKE<NF8>	1-48110-135-5	01	1	0211-0410	●
99	VALVE; PROTECTION EXHAUST BRAKE<NF8>	1-48110-135-5	01	1	0211-0410	●
99	VALVE; PROTECTION	1-48110-135-5	01	1	0211-0410		●
99	VALVE; PROTECTION EXHAUST BRAKE<NF8> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48110-135-5	01	1	0411-0411	●
99	VALVE; PROTECTION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48110-135-5	01	1	0411-0411	●
99	VALVE; PROTECTION	1-48110-135-5	01	1	0411-0411		●
99	VALVE; PROTECTION EXHAUST BRAKE<NF8> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48110-135-5	01	1	0412-	●
99	VALVE; PROTECTION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48110-135-5	01	1	0412-	●
99	VALVE; PROTECTION	1-48110-135-5	01	1	0412-		●		●
99	VALVE; PROTECTION	1-48110-113-5	01	1	0005-			●
103	BRACKET; PROTECTION VALVE	1-47477-971-0	01	1	0005-0411	●	●
103	BRACKET; PROTECTION VALVE	1-47477-971-0	01	1	0412-	●	●		●
103	BRACKET; PROTECTION VALVE	1-47478-057-0	01	1	0005-			●
104	BOLT; BRKT,VALVE M8X30 FLANGE	0-28680-830-0	02	1	0005-0411	●	●
104	BOLT; BRKT,VALVE M8X30 FLANGE	0-28680-830-0	02	1	0412-0512	●	●		●
104	BOLT; BRKT,VALVE M8X30 FLANGE	0-28650-830-0	02	1	0601-	●	●		●
104	BOLT; BRKT,VALVE M8X25 FLANGE	0-28680-825-0	02	1	0005-0512			●
104	BOLT; BRKT,VALVE M8X25 FLANGE	0-28650-825-0	02	1	0601-			●
105	NUT; BRKT,VALVE M8 FLANGE	0-91150-108-0	02	1	0005-0411	●	●	●
105	NUT; BRKT,VALVE M8 FLANGE	0-91150-108-0	02	1	0412-0602	●	●	●	●
105	NUT; BRKT,VALVE M8 FLANGE	0-91180-108-0	02	1	0603-	●	●	●	●
108	CONNECTOR; ELBOW 6HE1 TC ENG(57L) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0005-0210			●
108	CONNECTOR; ELBOW M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0211-			●
157	RETAINER; VALVE FINAL GEAR 39/9 14.5" HYPOID(W4X)	1-48419-020-0	01	1	0110-0210	●
157	RETAINER; VALVE FINAL GEAR 38/8 13.5" HYPOID(W1A),FINAL GEAR 39/9 13.5" HYPOID(W1N),FINAL GEAR 41/8 13.5" HYPOID(W4E) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48419-020-0	01	1	0110-0210	●
157	RETAINER; VALVE	1-48419-020-0	01	1	0110-0210		●	●
157	RETAINER; VALVE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48419-020-0	01	1	0211-	●
157	RETAINER; VALVE	1-48419-020-0	01	1	0211-		●	●
158	SPRING; VALVE FINAL GEAR 39/9 14.5" HYPOID(W4X)	9-48419-003-0	01	1	0110-0210	●
158	SPRING; VALVE FINAL GEAR 38/8 13.5" HYPOID(W1A),FINAL GEAR 39/9 13.5" HYPOID(W1N),FINAL GEAR 41/8 13.5" HYPOID(W4E) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	9-48419-003-0	01	1	0110-0210	●
158	SPRING; VALVE	9-48419-003-0	01	1	0110-0210		●	●
158	SPRING; VALVE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	9-48419-003-0	01	1	0211-	●
158	SPRING; VALVE	9-48419-003-0	01	1	0211-		●	●
216	REPAIR KIT; QUICK RELEASE VLV FINAL GEAR 39/9 14.5" HYPOID(W4X)	1-85576-235-0	01	1	0110-0210	●
216	REPAIR KIT; QUICK RELEASE VLV FINAL GEAR 38/8 13.5" HYPOID(W1A),FINAL GEAR 39/9 13.5" HYPOID(W1N),FINAL GEAR 41/8 13.5" HYPOID(W4E) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-85576-235-0	01	1	0110-0210	●
216	REPAIR KIT; QUICK RELEASE VLV	1-85576-235-0	01	1	0110-0210		●	●
216	REPAIR KIT; QUICK RELEASE VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-85576-235-0	01	1	0211-	●
216	REPAIR KIT; QUICK RELEASE VLV	1-85576-235-0	01	1	0211-		●	●
224	NUT; PROTECTION VALVE M8 FLANGE	0-91150-108-0	03	1	0005-0411	●	●	●
224	NUT; PROTECTION VALVE M8 FLANGE	0-91150-108-0	03	1	0412-0602	●	●	●	●
224	NUT; PROTECTION VALVE M8 FLANGE	0-91180-108-0	03	1	0603-	●	●	●	●
274	COVER; DUST REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. EXHAUST BRAKE<NF8>	1-48119-450-0	02	1	0211-0410	●
274	COVER; DUST EXHAUST BRAKE<NF8>	1-48119-450-0	02	1	0211-0410	●
274	COVER; DUST	1-48119-450-0	02	1	0211-0410		●	●
274	COVER; DUST EXHAUST BRAKE<NF8> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48119-450-0	02	1	0411-0411	●
274	COVER; DUST REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48119-450-0	02	1	0411-0411	●
274	COVER; DUST	1-48119-450-0	02	1	0411-0411		●	●
274	COVER; DUST EXHAUST BRAKE<NF8> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48119-450-0	02	1	0412-	●
274	COVER; DUST REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48119-450-0	02	1	0412-	●
274	COVER; DUST	1-48119-450-0	02	1	0412-		●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
