Sayfa 3-20 - Isuzu EPC

3-20 — AIR TANK (#9381) — 371 parça

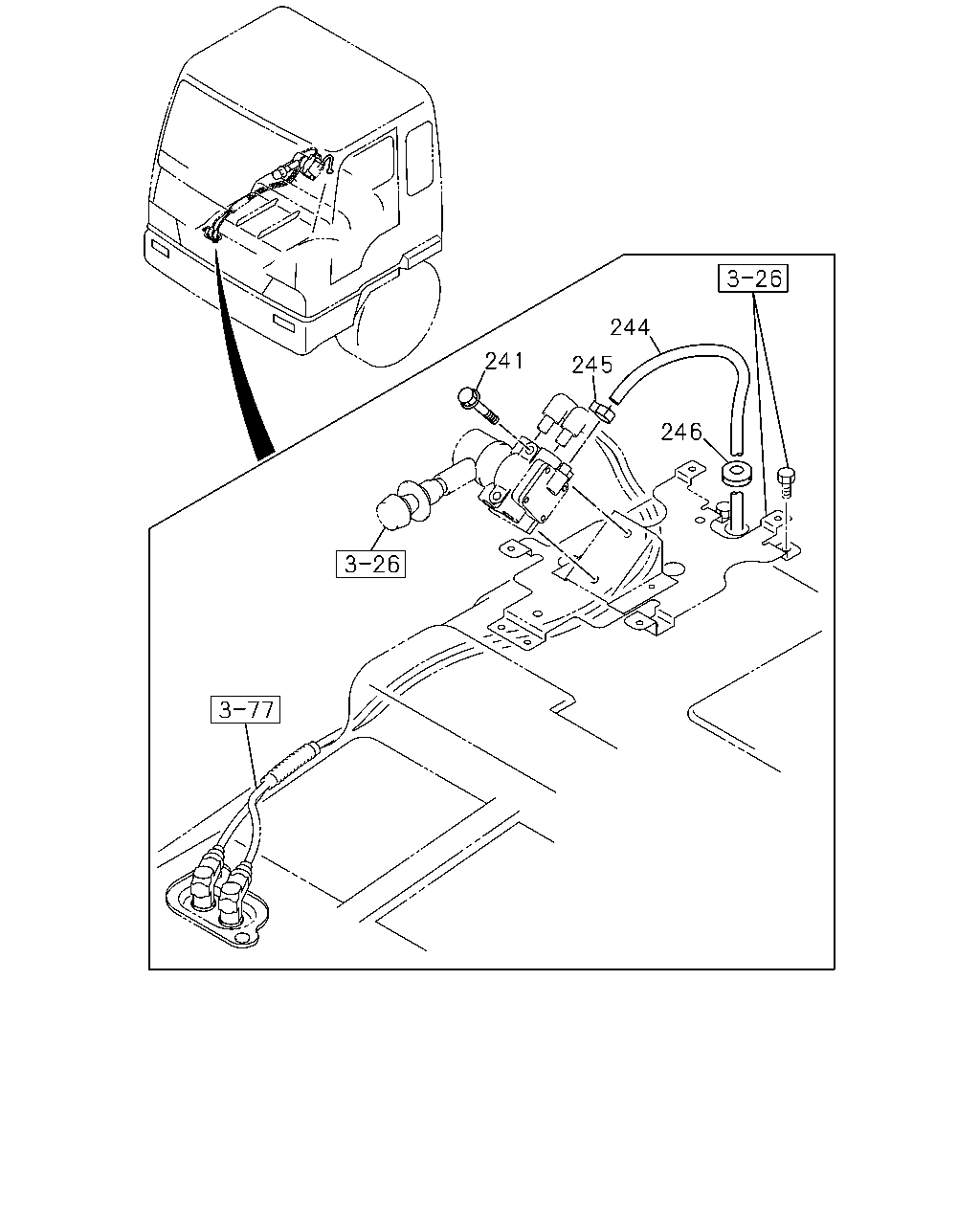

244 241 245 246

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
241	BOLT; SET,CONT VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X70 FLANGE	0-28080-870-0	02	1	0005-0512	●
241	BOLT; SET,CONT VLV M8X70 FLANGE	0-28080-870-0	02	1	0005-0512		●	●
241	BOLT; SET,CONT VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X70 FLANGE	0-28050-870-0	02	1	0601-	●
241	BOLT; SET,CONT VLV M8X70 FLANGE	0-28050-870-0	02	1	0601-		●	●
244	PIPE; VINYL,EXH REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=260 ID=9.5 SERVICED BY L=10000	9-09914-701-0	01	1	0005-	●
244	PIPE; VINYL,EXH L=260 ID=9.5 SERVICED BY L=10000	9-09914-701-0	01	1	0005-		●	●
245	CLIP; VINYL PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=14	8-94238-572-0	01	1	0005-	●
245	CLIP; VINYL PIPE ID=14	8-94238-572-0	01	1	0005-		●	●
246	GROMMET; VINYL PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=24	9-61166-007-0	01	1	0005-	●
246	GROMMET; VINYL PIPE OD=24	9-61166-007-0	01	1	0005-		●	●
246	GROMMET; VINYL PIPE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=35	8-94122-971-0	01	1	0005-0411	●
246	GROMMET; VINYL PIPE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=35	8-94122-971-0	01	1	0412-	●
246	GROMMET; VINYL PIPE OD=35	8-94122-971-0	01	1	0412-				●

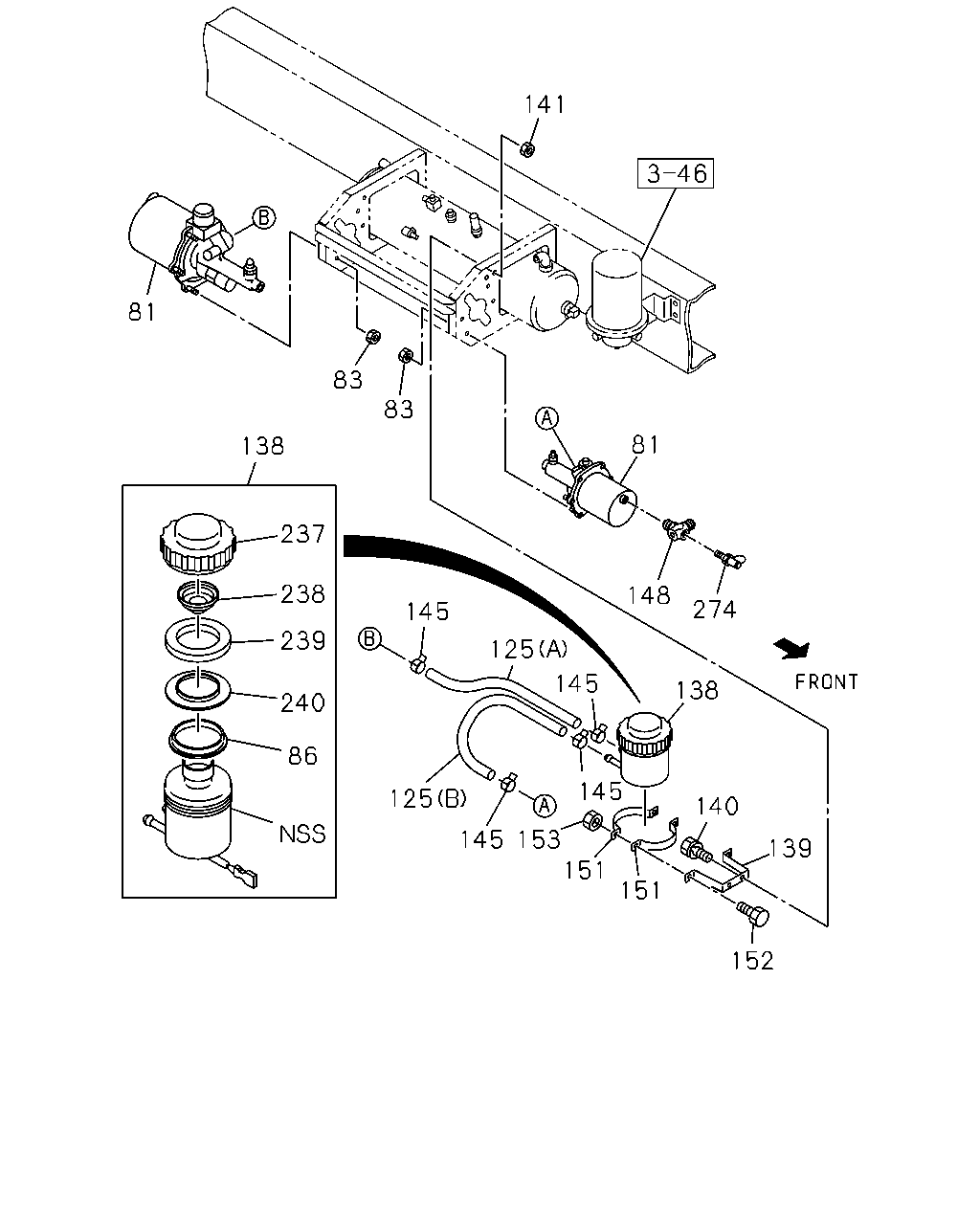

141 81 83 83 81 138 237 238 148 274 145 239 125 145 138 240 86 145 125 140 145 153 139 151 151 152

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT.	1-47800-702-1	02	1	0005-0202	●	●
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT.	1-47800-792-0	02	1	0203-0411	●	●
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT.	1-47800-792-0	02	1	0412-0905	●	●		●
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT.	1-47800-829-0	02	1	0906-	●	●		●
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT. PRIMARY	1-47800-665-1	01	1	0005-			●
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT. SECONDARY	1-47800-666-2	01	1	0005-			●
83	NUT; AIR MASTER M8 FLANGE	0-91150-108-0	08	1	0005-0410	●	●
83	NUT; AIR MASTER M8 FLANGE	0-91150-108-0	12	1	0411-0411	●	●
83	NUT; AIR MASTER M8 FLANGE	0-91150-108-0	12	1	0412-0602	●	●		●
83	NUT; AIR MASTER M8 FLANGE	0-91180-108-0	12	1	0603-	●	●		●
83	NUT; AIR MASTER M10 FLANGE	0-91150-210-0	10	1	0005-0602			●
83	NUT; AIR MASTER M10 FLANGE	0-91180-210-0	10	1	0603-			●
86	SEAL; DUST	1-47529-019-0	01	1	0005-0411	●	●	●
86	SEAL; DUST	1-47529-019-0	01	1	0412-	●	●	●	●
125	HOSE; OIL TANK TO AIR MASTER (A) L=240 SERVICED BY L=1800	1-09360-320-0	01	1	0005-0411	●	●
125	HOSE; OIL TANK TO AIR MASTER (A) L=240 SERVICED BY L=1800	1-09360-320-0	01	1	0412-	●	●		●
125	HOSE; OIL TANK TO AIR MASTER (B) L=335	1-47469-045-0	01	1	0005-0411	●	●
125	HOSE; OIL TANK TO AIR MASTER (B) L=335	1-47469-045-0	01	1	0412-	●	●		●
125	HOSE; OIL TANK TO AIR MASTER (C) L=270 SERVICED BY L=1800	1-09360-320-0	02	1	0005-			●
138	TANK ASM; OIL,AIR MASTER	1-47530-170-1	01	1	0005-0011	●	●	●
138	TANK ASM; OIL,AIR MASTER	1-47530-184-0	01	1	0012-0206	●	●	●
138	TANK ASM; OIL,AIR MASTER	1-47530-185-1	01	1	0207-0411	●	●	●
138	TANK ASM; OIL,AIR MASTER	1-47530-185-1	01	1	0412-	●	●	●	●
139	BRACKET; OIL TANK	1-47537-123-1	01	1	0005-0411	●	●
139	BRACKET; OIL TANK	1-47537-123-1	01	1	0412-	●	●		●
139	BRACKET; OIL TANK	1-47537-081-2	01	1	0005-			●
140	BOLT; OIL TANK TO BRKT M10X20 FLANGE	0-28681-020-0	02	1	0005-0411	●	●	●
140	BOLT; OIL TANK TO BRKT M10X20 FLANGE	0-28681-020-0	02	1	0412-0512	●	●	●	●
140	BOLT; OIL TANK TO BRKT M10X20 FLANGE	0-28651-020-0	02	1	0601-	●	●	●	●
141	NUT; OIL TANK TO BRKT M10 FLANGE	0-91150-210-0	02	1	0005-0411	●	●	●
141	NUT; OIL TANK TO BRKT M10 FLANGE	0-91150-210-0	02	1	0412-0602	●	●	●	●
141	NUT; OIL TANK TO BRKT M10 FLANGE	0-91180-210-0	02	1	0603-	●	●	●	●
145	CLIP; OIL TANK TO AIR MASTER HOSE ID=14	1-09704-102-0	04	1	0005-0411	●	●	●
145	CLIP; OIL TANK TO AIR MASTER HOSE ID=14	1-09704-102-0	04	1	0412-	●	●	●	●
148	CONNECTOR; AIR MASTER	1-09656-462-1	02	1	0005-0411	●	●
148	CONNECTOR; AIR MASTER	1-09656-462-1	02	1	0412-	●	●		●
148	CONNECTOR; AIR MASTER	1-09661-027-0	02	1	0005-			●
151	BAND; OIL TANK,AIR MASTER	1-47537-056-2	02	1	0005-0411	●	●	●
151	BAND; OIL TANK,AIR MASTER	1-47537-056-2	02	1	0412-	●	●	●	●
152	BOLT; OIL TANK TO BAND M8X20 FLANGE	0-28680-820-0	02	1	0005-0411	●	●	●
152	BOLT; OIL TANK TO BAND M8X20 FLANGE	0-28680-820-0	02	1	0412-0512	●	●	●	●
152	BOLT; OIL TANK TO BAND M8X20 FLANGE	0-28650-820-0	02	1	0601-	●	●	●	●
153	NUT; OIL TANK TO BAND M8 FLANGE	0-91150-108-0	02	1	0005-0411	●	●	●
153	NUT; OIL TANK TO BAND M8 FLANGE	0-91150-108-0	02	1	0412-0602	●	●	●	●
153	NUT; OIL TANK TO BAND M8 FLANGE	0-91180-108-0	02	1	0603-	●	●	●	●
237	CAP; OIL TANK	1-47525-024-0	01	1	0005-0011	●	●	●
237	CAP; OIL TANK	1-47525-030-0	01	1	0012-0411	●	●	●
237	CAP; OIL TANK	1-47525-030-0	01	1	0412-	●	●	●	●
238	PLATE; BAFFLE	1-47529-022-0	01	1	0005-0411	●	●	●
238	PLATE; BAFFLE	1-47529-022-0	01	1	0412-	●	●	●	●
239	FILTER; DUST	1-47529-017-0	01	1	0005-0411	●	●	●
239	FILTER; DUST	1-47529-017-0	01	1	0412-	●	●	●	●
240	HOLDER; FILTER	1-47529-018-0	01	1	0005-0411	●	●	●
240	HOLDER; FILTER	1-47529-018-0	01	1	0412-	●	●	●	●
274	CONNECTOR; VLV	1-47459-013-1	02	1	0005-0411	●	●	●
274	CONNECTOR; VLV	1-47459-013-1	02	1	0412-	●	●	●	●

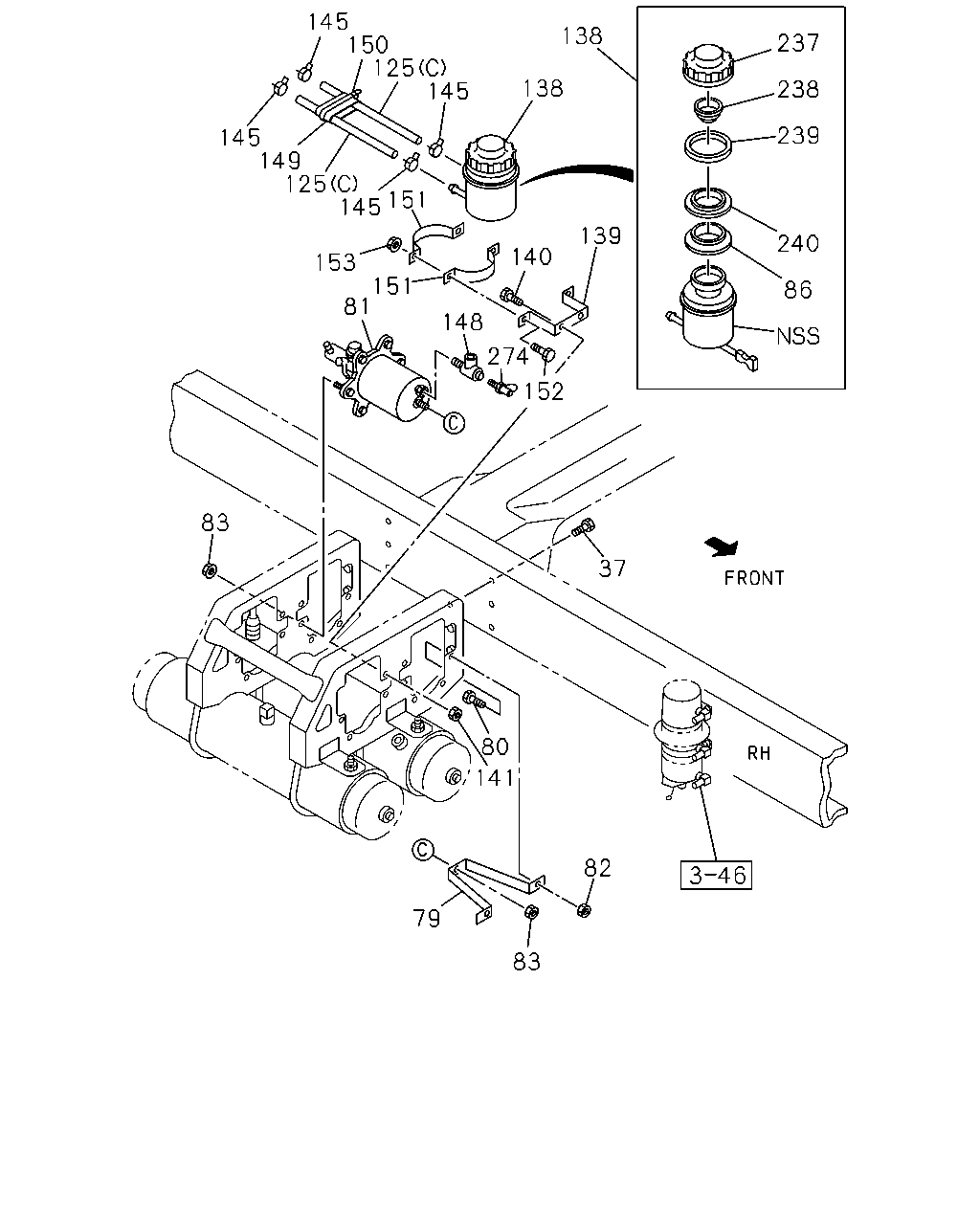

145 150 125 145 138 237 138 238 239 145 149 125 151 145 139 240 140 153 151 81 86 148 274 152 83 37 80 141 82 79 83

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
37	BOLT; AIR TANK M10X35 FLANGE	0-28681-035-0	04	1	0005-0411	●	●
37	BOLT; AIR TANK M10X35 FLANGE	0-28681-035-0	04	1	0412-0512	●	●		●
37	BOLT; AIR TANK M10X35 FLANGE	0-28651-035-0	04	1	0601-	●	●		●
37	BOLT; AIR TANK M12X40 FLANGE	0-28681-240-0	06	1	0005-0512			●
37	BOLT; AIR TANK M12X40 FLANGE	0-28651-240-0	06	1	0601-			●
79	STAY; AIR MASTER TO BRKT	1-53318-347-0	02	1	0005-0805			●
79	STAY; AIR MASTER TO BRKT	8-98120-254-0	02	1	0806-			●
80	BOLT; BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10X25 FLANGE	0-28681-025-0	04	1	0005-0512	●
80	BOLT; BRKT M10X25 FLANGE	0-28681-025-0	04	1	0005-0512		●
80	BOLT; BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10X25 FLANGE	0-28651-025-0	04	1	0601-0611	●
80	BOLT; BRKT M10X25 FLANGE	0-28651-025-0	04	1	0601-0611		●
80	BOLT; BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10X25 FLANGE	0-28651-025-0	04	1	0612-	●
80	BOLT; BRKT M10X25 FLANGE	0-28651-025-0	04	1	0612-		●
80	BOLT; BRKT M10X30 FLANGE	0-28681-030-0	04	1	0005-0512			●
80	BOLT; BRKT M10X30 FLANGE	0-28651-030-0	04	1	0601-			●
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT.	1-47800-702-1	02	1	0005-0202	●	●
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT.	1-47800-792-0	02	1	0203-0411	●	●
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT.	1-47800-792-0	02	1	0412-0905	●	●		●
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT.	1-47800-829-0	02	1	0906-	●	●		●
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT. PRIMARY	1-47800-665-1	01	1	0005-			●
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT. SECONDARY	1-47800-666-2	01	1	0005-			●
82	NUT; STAY,AIR MASTER BRKT M10 FLANGE	0-91150-210-0	04	1	0005-0602			●
82	NUT; STAY,AIR MASTER BRKT M10 FLANGE	0-91180-210-0	04	1	0603-			●
83	NUT; AIR MASTER M8 FLANGE	0-91150-108-0	08	1	0005-0410	●	●
83	NUT; AIR MASTER M8 FLANGE	0-91150-108-0	12	1	0411-0411	●	●
83	NUT; AIR MASTER M8 FLANGE	0-91150-108-0	12	1	0412-0602	●	●		●
83	NUT; AIR MASTER M8 FLANGE	0-91180-108-0	12	1	0603-	●	●		●
83	NUT; AIR MASTER M10 FLANGE	0-91150-210-0	10	1	0005-0602			●
83	NUT; AIR MASTER M10 FLANGE	0-91180-210-0	10	1	0603-			●
86	SEAL; DUST	1-47529-019-0	01	1	0005-0411	●	●	●
86	SEAL; DUST	1-47529-019-0	01	1	0412-	●	●	●	●
125	HOSE; OIL TANK TO AIR MASTER (A) L=240 SERVICED BY L=1800	1-09360-320-0	01	1	0005-0411	●	●
125	HOSE; OIL TANK TO AIR MASTER (A) L=240 SERVICED BY L=1800	1-09360-320-0	01	1	0412-	●	●		●
125	HOSE; OIL TANK TO AIR MASTER (B) L=335	1-47469-045-0	01	1	0005-0411	●	●
125	HOSE; OIL TANK TO AIR MASTER (B) L=335	1-47469-045-0	01	1	0412-	●	●		●
125	HOSE; OIL TANK TO AIR MASTER (C) L=270 SERVICED BY L=1800	1-09360-320-0	02	1	0005-			●
138	TANK ASM; OIL,AIR MASTER	1-47530-170-1	01	1	0005-0011	●	●	●
138	TANK ASM; OIL,AIR MASTER	1-47530-184-0	01	1	0012-0206	●	●	●
138	TANK ASM; OIL,AIR MASTER	1-47530-185-1	01	1	0207-0411	●	●	●
138	TANK ASM; OIL,AIR MASTER	1-47530-185-1	01	1	0412-	●	●	●	●
139	BRACKET; OIL TANK	1-47537-123-1	01	1	0005-0411	●	●
139	BRACKET; OIL TANK	1-47537-123-1	01	1	0412-	●	●		●
139	BRACKET; OIL TANK	1-47537-081-2	01	1	0005-			●
140	BOLT; OIL TANK TO BRKT M10X20 FLANGE	0-28681-020-0	02	1	0005-0411	●	●	●
140	BOLT; OIL TANK TO BRKT M10X20 FLANGE	0-28681-020-0	02	1	0412-0512	●	●	●	●
140	BOLT; OIL TANK TO BRKT M10X20 FLANGE	0-28651-020-0	02	1	0601-	●	●	●	●
141	NUT; OIL TANK TO BRKT M10 FLANGE	0-91150-210-0	02	1	0005-0411	●	●	●
141	NUT; OIL TANK TO BRKT M10 FLANGE	0-91150-210-0	02	1	0412-0602	●	●	●	●
141	NUT; OIL TANK TO BRKT M10 FLANGE	0-91180-210-0	02	1	0603-	●	●	●	●
145	CLIP; OIL TANK TO AIR MASTER HOSE ID=14	1-09704-102-0	04	1	0005-0411	●	●	●
145	CLIP; OIL TANK TO AIR MASTER HOSE ID=14	1-09704-102-0	04	1	0412-	●	●	●	●
148	CONNECTOR; AIR MASTER	1-09656-462-1	02	1	0005-0411	●	●
148	CONNECTOR; AIR MASTER	1-09656-462-1	02	1	0412-	●	●		●
148	CONNECTOR; AIR MASTER	1-09661-027-0	02	1	0005-			●
149	SLEEVE; RUBBER,HOSE ID=23 OD=27 L=40	1-09337-015-0	01	1	0005-			●
150	CLIP; BAND,RUBBER SLEEVE L=140	5-09707-031-1	01	1	0005-			●
151	BAND; OIL TANK,AIR MASTER	1-47537-056-2	02	1	0005-0411	●	●	●
151	BAND; OIL TANK,AIR MASTER	1-47537-056-2	02	1	0412-	●	●	●	●
152	BOLT; OIL TANK TO BAND M8X20 FLANGE	0-28680-820-0	02	1	0005-0411	●	●	●
152	BOLT; OIL TANK TO BAND M8X20 FLANGE	0-28680-820-0	02	1	0412-0512	●	●	●	●
152	BOLT; OIL TANK TO BAND M8X20 FLANGE	0-28650-820-0	02	1	0601-	●	●	●	●
153	NUT; OIL TANK TO BAND M8 FLANGE	0-91150-108-0	02	1	0005-0411	●	●	●
153	NUT; OIL TANK TO BAND M8 FLANGE	0-91150-108-0	02	1	0412-0602	●	●	●	●
153	NUT; OIL TANK TO BAND M8 FLANGE	0-91180-108-0	02	1	0603-	●	●	●	●
237	CAP; OIL TANK	1-47525-024-0	01	1	0005-0011	●	●	●
237	CAP; OIL TANK	1-47525-030-0	01	1	0012-0411	●	●	●
237	CAP; OIL TANK	1-47525-030-0	01	1	0412-	●	●	●	●
238	PLATE; BAFFLE	1-47529-022-0	01	1	0005-0411	●	●	●
238	PLATE; BAFFLE	1-47529-022-0	01	1	0412-	●	●	●	●
239	FILTER; DUST	1-47529-017-0	01	1	0005-0411	●	●	●
239	FILTER; DUST	1-47529-017-0	01	1	0412-	●	●	●	●
240	HOLDER; FILTER	1-47529-018-0	01	1	0005-0411	●	●	●
240	HOLDER; FILTER	1-47529-018-0	01	1	0412-	●	●	●	●
274	CONNECTOR; VLV	1-47459-013-1	02	1	0005-0411	●	●	●
274	CONNECTOR; VLV	1-47459-013-1	02	1	0412-	●	●	●	●

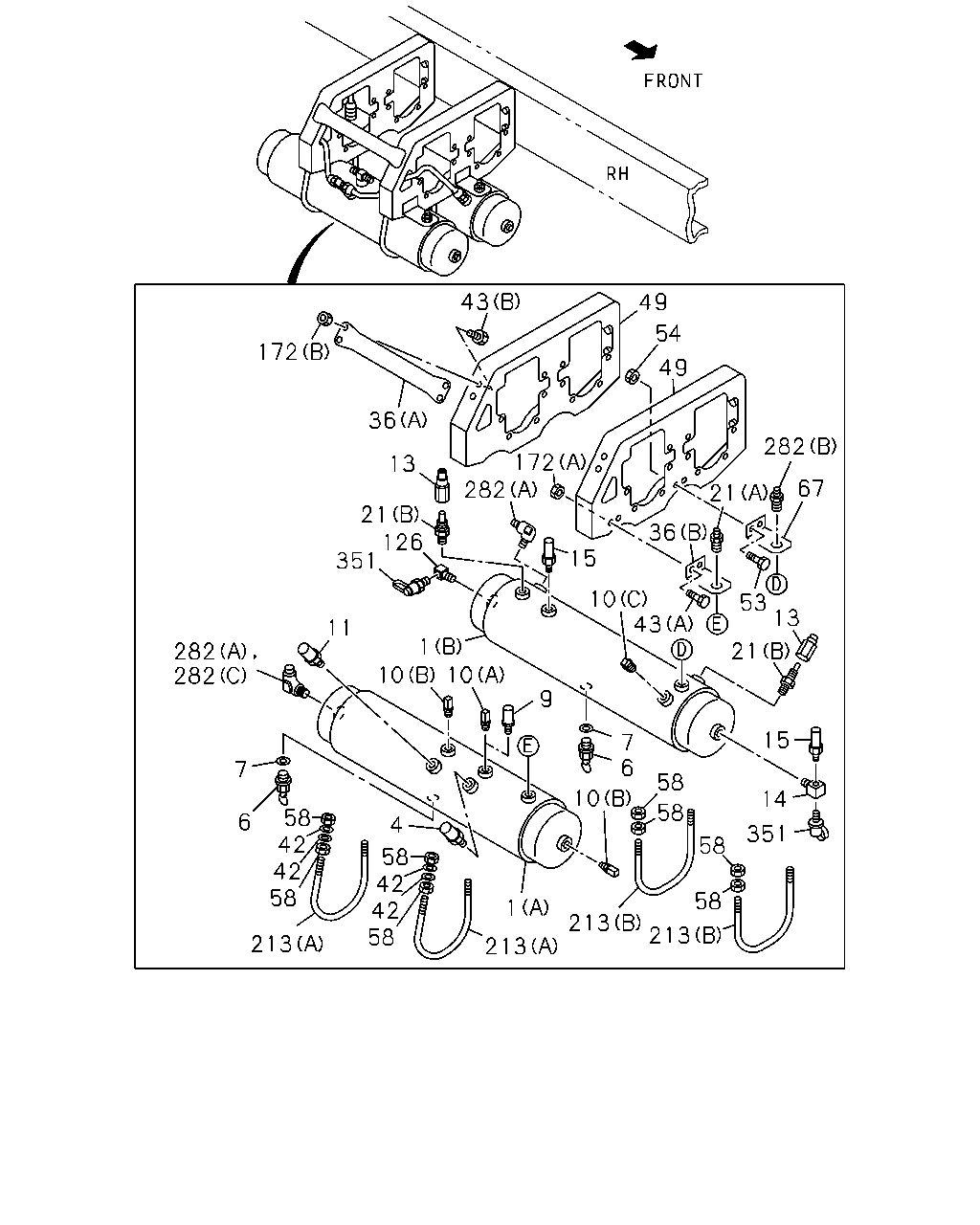

43 49 172 54 49 36 282 21 172 282 13 67 21 126 36 15 351 53 13 10 43 11 1 10 10 21 282 282 9 15 7 6 7 58 10 14 58 58 42 42 58 6 4 351 58 58 42 42 58 58 1 213 213 213 213

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	TANK ASM; AIR (B)	1-48370-512-2	01	1	0005-			●
1	TANK ASM; AIR WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-48371-485-0	01	1	0612-	●
1	TANK ASM; AIR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-48370-536-0	01	1	0005-0611	●
1	TANK ASM; AIR (B)	1-48370-536-0	01	1	0005-0611		●
1	TANK ASM; AIR WHEEL BASE 4200MM(42W),WHEEL BASE 5100MM(51W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-48370-536-0	01	1	0612-	●
1	TANK ASM; AIR (B)	1-48370-536-0	01	1	0612-		●
1	TANK ASM; AIR (A)	1-48330-686-1	01	1	0005-0411	●	●
1	TANK ASM; AIR (A)	1-48330-686-1	01	1	0412-	●	●		●
1	TANK ASM; AIR (A)	1-48370-513-0	01	1	0005-0212			●
1	TANK ASM; AIR (A)	1-48330-598-0	01	1	0301-			●
4	CONNECTOR; FLARE	1-09650-283-1	01	1	0005-			●
6	COCK; DRAIN,AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48312-015-0	01	1	0005-0611	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	0005-0611		●
6	COCK; DRAIN,AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48312-015-0	01	1	0612-	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	0612-		●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	03	1	0005-0411	●	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	03	1	0412-	●	●		●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	04	1	0005-			●
7	GASKET; DRAIN COCK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=14	1-09630-145-0	01	1	0005-0611	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	0005-0611		●
7	GASKET; DRAIN COCK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=14	1-09630-145-0	01	1	0612-	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	0612-		●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	03	1	0005-0411	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	03	1	0412-	●	●		●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	04	1	0005-			●
9	SWITCH; LOW PRESSURE GAGE,AIR TANK 530KPA	1-48340-054-1	02	1	0005-0210	●	●
9	SWITCH; LOW PRESSURE GAGE,AIR TANK 530KPA	1-48340-054-1	03	1	0211-0411	●	●
9	SWITCH; LOW PRESSURE GAGE,AIR TANK 530KPA	1-48340-054-1	03	1	0412-	●	●		●
9	SWITCH; LOW PRESSURE GAGE,AIR TANK 530KPA	1-48340-054-1	01	1	0211-			●
10	PLUG; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) PT3/8	9-09204-517-0	03	1	0005-0611	●
10	PLUG; AIR TANK (B) PT3/8	9-09204-517-0	03	1	0005-0611		●
10	PLUG; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) PT3/8	9-09204-517-0	03	1	0612-	●
10	PLUG; AIR TANK (B) PT3/8	9-09204-517-0	03	1	0612-		●
10	PLUG; AIR TANK (B) PT3/8	9-09204-517-0	01	1	0005-0411	●	●
10	PLUG; AIR TANK (B) PT3/8	9-09204-517-0	01	1	0412-	●	●		●
10	PLUG; AIR TANK (A) PT1/4	9-99204-513-0	02	1	0005-0210	●	●
10	PLUG; AIR TANK (A) PT1/4	9-99204-513-0	01	1	0211-0411	●	●
10	PLUG; AIR TANK (A) PT1/4	9-99204-513-0	01	1	0412-	●	●		●
10	PLUG; AIR TANK (B) PT3/8	9-09204-517-0	02	1	0005-0212			●
10	PLUG; AIR TANK (B) PT1/4	9-99204-513-0	02	1	0301-			●
10	PLUG; AIR TANK (C) PT3/4	9-09204-526-0	01	1	0005-			●
10	PLUG; AIR TANK (A) PT1/4	9-99204-513-0	01	1	0005-0210			●
11	VALVE; SAFETY,AIR TANK	1-48320-012-2	01	1	0005-0411	●	●	●
11	VALVE; SAFETY,AIR TANK	1-48320-012-2	01	1	0412-	●	●	●	●
13	ADAPTER; NYLON TUBE DIN12 & M20 STRAIGHT	1-09660-877-0	02	1	0005-			●
14	UNION; 3 WAY,AIR TANK	1-09656-709-0	02	1	0005-0411	●	●
14	UNION; 3 WAY,AIR TANK	1-09656-709-0	02	1	0412-	●	●		●
14	UNION; 3 WAY,AIR TANK	1-09660-363-0	01	1	0005-			●
15	SWITCH; LOW PRESS,AIR TANK 530KPA	1-48340-054-1	02	1	0005-			●
21	VALVE; CHECK,AIR TANK (A) M22 & PT3/4	1-48410-136-3	01	1	0005-			●
21	VALVE; CHECK,AIR TANK (B)	1-48410-182-3	02	1	0005-			●
36	STAY; MAIN TANK (A)	1-53318-293-1	01	1	0005-			●
36	STAY; MAIN TANK (B)	8-94301-490-0	01	1	0005-			●
42	WASHER; PL ID=8.4 OD=18	9-09160-608-0	04	1	0005-0605			●
42	WASHER; PL ID=8.4 OD=18	0-91610-608-0	04	1	0606-			●
43	BOLT; STAY,AIR TANK,MAIN (A) M8X20 FLANGE	0-28680-820-0	02	1	0005-0411	●	●	●
43	BOLT; STAY,AIR TANK,MAIN (A) M8X20 FLANGE	0-28680-820-0	02	1	0412-0512	●	●	●	●
43	BOLT; STAY,AIR TANK,MAIN (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-	●	●	●	●
43	BOLT; STAY,AIR TANK,MAIN (B) M10X25 FLANGE	0-28681-025-0	04	1	0005-0512			●
43	BOLT; STAY,AIR TANK,MAIN (B) M10X25 FLANGE	0-28651-025-0	04	1	0601-			●
49	BRACKET; AIR TANK	1-53318-338-6	02	1	0005-			●
53	BOLT; STAY,AIR TANK M8X20 FLANGE	0-28680-820-0	02	1	0005-0512			●
53	BOLT; STAY,AIR TANK M8X20 FLANGE	0-28650-820-0	02	1	0601-			●
54	NUT; STAY M8 FLANGE	0-91150-108-0	02	1	0005-0602			●
54	NUT; STAY M8 FLANGE	0-91180-108-0	02	1	0603-			●
58	NUT; BAND,AIR TANK M8	9-09110-408-0	16	1	0005-0512			●
58	NUT; BAND,AIR TANK M8	0-91110-508-0	16	1	0601-			●
67	STAY; SUB TANK	1-48317-349-0	01	1	0005-			●
126	CONNECTOR; ELBOW PT1/4 2WAY	1-09660-693-0	01	1	0005-			●
172	NUT; STAY,AIR TANK,MAIN (A) M8 FLANGE	0-91150-108-0	02	1	0005-0411	●	●	●
172	NUT; STAY,AIR TANK,MAIN (A) M8 FLANGE	0-91150-108-0	02	1	0412-0602	●	●	●	●
172	NUT; STAY,AIR TANK,MAIN (A) M8 FLANGE	0-91180-108-0	02	1	0603-	●	●	●	●
172	NUT; STAY,AIR TANK,MAIN (B) M10 FLANGE	0-91150-210-0	04	1	0005-0602			●
172	NUT; STAY,AIR TANK,MAIN (B) M10 FLANGE	0-91180-210-0	04	1	0603-			●
213	BOLT; U AIR TANK (A) L=97.5	1-48317-323-1	02	1	0005-			●
213	BOLT; U AIR TANK (B) L=195	1-48317-367-2	02	1	0005-			●
282	UNION; 2 WAY (C) DIN12 & R1/4 ELBOW	1-09660-958-0	01	1	0301-			●
282	UNION; 2 WAY (A) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	0005-0212			●
282	UNION; 2 WAY (A) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0301-			●
282	UNION; 2 WAY (B) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	0005-			●
351	CONNECTOR; TEST	1-47459-013-1	02	1	0005-			●

34 46 31 46 28 166 5 5 80 33 28 5 5 46 10 10 39 1 7 39 10 6 9 14 28 8 5 37 43 9 10 10 3 3 10 11 3 1 39 9 134 14 172 5 39 8 64 28 7 6 46 46 133 135

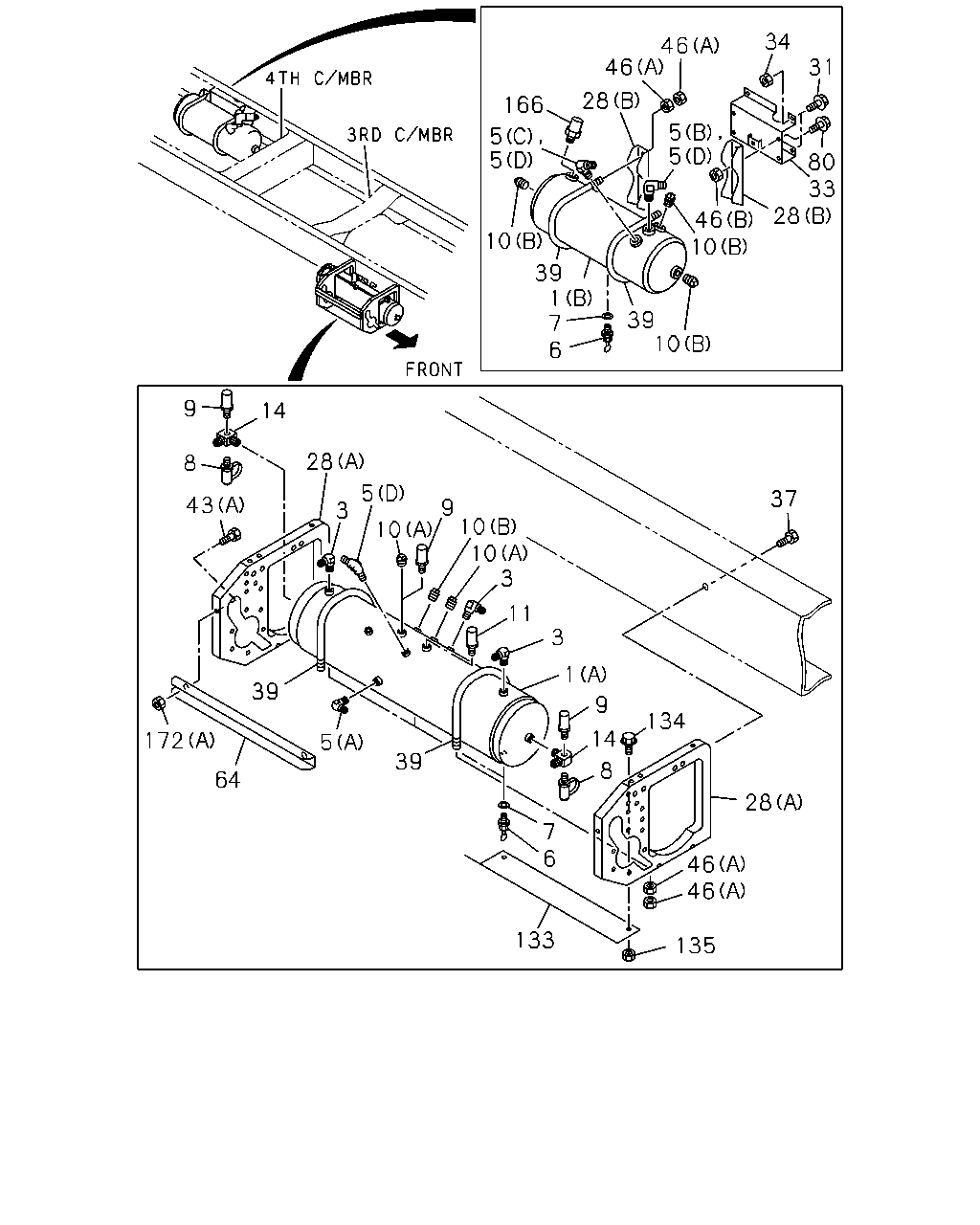

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	TANK ASM; AIR (B)	1-48370-512-2	01	1	0005-			●
1	TANK ASM; AIR WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-48371-485-0	01	1	0612-	●
1	TANK ASM; AIR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-48370-536-0	01	1	0005-0611	●
1	TANK ASM; AIR (B)	1-48370-536-0	01	1	0005-0611		●
1	TANK ASM; AIR WHEEL BASE 4200MM(42W),WHEEL BASE 5100MM(51W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-48370-536-0	01	1	0612-	●
1	TANK ASM; AIR (B)	1-48370-536-0	01	1	0612-		●
1	TANK ASM; AIR (A)	1-48330-686-1	01	1	0005-0411	●	●
1	TANK ASM; AIR (A)	1-48330-686-1	01	1	0412-	●	●		●
1	TANK ASM; AIR (A)	1-48370-513-0	01	1	0005-0212			●
1	TANK ASM; AIR (A)	1-48330-598-0	01	1	0301-			●
3	VALVE; CHECK,AIR TANK M20 & PT3/4 ELBOW	1-48410-412-0	03	1	0005-0411	●	●
3	VALVE; CHECK,AIR TANK M20 & PT3/4 ELBOW	1-48410-412-0	03	1	0412-	●	●		●
5	UNION; AIR TANK WHEEL BASE 4200MM(42W),WHEEL BASE 5100MM(51W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0612-	●
5	UNION; AIR TANK (C) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0612-		●
5	UNION; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0005-0611	●
5	UNION; AIR TANK (C) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0005-0611		●
5	UNION; AIR TANK WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	0612-	●
5	UNION; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) DIN12 & R1/2 ELBOW	1-09660-960-0	01	1	0005-0611	●
5	UNION; AIR TANK (B) DIN12 & R1/2 ELBOW	1-09660-960-0	01	1	0005-0611		●
5	UNION; AIR TANK WHEEL BASE 4200MM(42W),WHEEL BASE 5100MM(51W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) DIN12 & R1/2 ELBOW	1-09660-960-0	01	1	0612-	●
5	UNION; AIR TANK (B) DIN12 & R1/2 ELBOW	1-09660-960-0	01	1	0612-		●
5	UNION; AIR TANK (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0005-0411	●	●
5	UNION; AIR TANK (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0412-	●	●		●
5	UNION; AIR TANK (D) M20 & PT3/8 ELBOW	1-09650-439-0	01	1	0005-0411	●	●
5	UNION; AIR TANK (D) M20 & PT3/8 ELBOW	1-09650-439-0	01	1	0412-0607	●	●		●
5	UNION; AIR TANK (D) M20 & PT3/8 ELBOW	0-92134-312-0	01	1	0608-	●	●		●
6	COCK; DRAIN,AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48312-015-0	01	1	0005-0611	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	0005-0611		●
6	COCK; DRAIN,AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48312-015-0	01	1	0612-	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	0612-		●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	03	1	0005-0411	●	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	03	1	0412-	●	●		●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	04	1	0005-			●
7	GASKET; DRAIN COCK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=14	1-09630-145-0	01	1	0005-0611	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	0005-0611		●
7	GASKET; DRAIN COCK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=14	1-09630-145-0	01	1	0612-	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	0612-		●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	03	1	0005-0411	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	03	1	0412-	●	●		●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	04	1	0005-			●
8	CONNECTOR; AIR TANK	1-47459-013-1	02	1	0005-0411	●	●
8	CONNECTOR; AIR TANK	1-47459-013-1	02	1	0412-	●	●		●
9	SWITCH; LOW PRESSURE GAGE,AIR TANK 530KPA	1-48340-054-1	02	1	0005-0210	●	●
9	SWITCH; LOW PRESSURE GAGE,AIR TANK 530KPA	1-48340-054-1	03	1	0211-0411	●	●
9	SWITCH; LOW PRESSURE GAGE,AIR TANK 530KPA	1-48340-054-1	03	1	0412-	●	●		●
9	SWITCH; LOW PRESSURE GAGE,AIR TANK 530KPA	1-48340-054-1	01	1	0211-			●
10	PLUG; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) PT3/8	9-09204-517-0	03	1	0005-0611	●
10	PLUG; AIR TANK (B) PT3/8	9-09204-517-0	03	1	0005-0611		●
10	PLUG; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) PT3/8	9-09204-517-0	03	1	0612-	●
10	PLUG; AIR TANK (B) PT3/8	9-09204-517-0	03	1	0612-		●
10	PLUG; AIR TANK (B) PT3/8	9-09204-517-0	01	1	0005-0411	●	●
10	PLUG; AIR TANK (B) PT3/8	9-09204-517-0	01	1	0412-	●	●		●
10	PLUG; AIR TANK (A) PT1/4	9-99204-513-0	02	1	0005-0210	●	●
10	PLUG; AIR TANK (A) PT1/4	9-99204-513-0	01	1	0211-0411	●	●
10	PLUG; AIR TANK (A) PT1/4	9-99204-513-0	01	1	0412-	●	●		●
10	PLUG; AIR TANK (B) PT3/8	9-09204-517-0	02	1	0005-0212			●
10	PLUG; AIR TANK (B) PT1/4	9-99204-513-0	02	1	0301-			●
10	PLUG; AIR TANK (C) PT3/4	9-09204-526-0	01	1	0005-			●
10	PLUG; AIR TANK (A) PT1/4	9-99204-513-0	01	1	0005-0210			●
11	VALVE; SAFETY,AIR TANK	1-48320-012-2	01	1	0005-0411	●	●	●
11	VALVE; SAFETY,AIR TANK	1-48320-012-2	01	1	0412-	●	●	●	●
14	UNION; 3 WAY,AIR TANK	1-09656-709-0	02	1	0005-0411	●	●
14	UNION; 3 WAY,AIR TANK	1-09656-709-0	02	1	0412-	●	●		●
14	UNION; 3 WAY,AIR TANK	1-09660-363-0	01	1	0005-			●
28	BRACKET; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-48317-430-0	02	1	0005-0611	●
28	BRACKET; AIR TANK (B)	1-48317-430-0	02	1	0005-0611		●
28	BRACKET; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-48317-430-0	02	1	0612-	●
28	BRACKET; AIR TANK (B)	1-48317-430-0	02	1	0612-		●
28	BRACKET; AIR TANK (A)	1-48317-709-4	02	1	0005-0411	●	●
28	BRACKET; AIR TANK (A)	1-48317-709-4	02	1	0412-	●	●		●
31	BOLT; BRKT TO FRAME REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10X35 FLANGE	0-28681-035-0	04	1	0005-0512	●
31	BOLT; BRKT TO FRAME M10X35 FLANGE	0-28681-035-0	04	1	0005-0512		●
31	BOLT; BRKT TO FRAME REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10X35 FLANGE	0-28651-035-0	04	1	0601-	●
31	BOLT; BRKT TO FRAME M10X35 FLANGE	0-28651-035-0	04	1	0601-		●
33	BRACKET; BRKT,AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48317-431-2	01	1	0005-0611	●
33	BRACKET; BRKT,AIR TANK	1-48317-431-2	01	1	0005-0611		●
33	BRACKET; BRKT,AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48317-431-2	01	1	0612-	●
33	BRACKET; BRKT,AIR TANK	1-48317-431-2	01	1	0612-		●
34	NUT; BRKT,AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10 FLANGE	0-91150-210-0	02	1	0005-0602	●
34	NUT; BRKT,AIR TANK M10 FLANGE	0-91150-210-0	02	1	0005-0602		●
34	NUT; BRKT,AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10 FLANGE	0-91180-210-0	02	1	0603-	●
34	NUT; BRKT,AIR TANK M10 FLANGE	0-91180-210-0	02	1	0603-		●
37	BOLT; AIR TANK M10X35 FLANGE	0-28681-035-0	04	1	0005-0411	●	●
37	BOLT; AIR TANK M10X35 FLANGE	0-28681-035-0	04	1	0412-0512	●	●		●
37	BOLT; AIR TANK M10X35 FLANGE	0-28651-035-0	04	1	0601-	●	●		●
37	BOLT; AIR TANK M12X40 FLANGE	0-28681-240-0	06	1	0005-0512			●
37	BOLT; AIR TANK M12X40 FLANGE	0-28651-240-0	06	1	0601-			●
39	U-BOLT; AIR TANK L=250	1-48317-308-0	02	1	0005-0411	●	●
39	U-BOLT; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=250	1-48317-308-0	02	1	0005-0411	●
39	U-BOLT; AIR TANK L=250	1-48317-308-0	02	1	0005-0411		●
39	U-BOLT; AIR TANK L=250	1-48317-308-0	02	1	0412-0611	●	●		●
39	U-BOLT; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=250	1-48317-308-0	02	1	0412-0611	●
39	U-BOLT; AIR TANK L=250	1-48317-308-0	02	1	0412-0611		●
39	U-BOLT; AIR TANK L=250	1-48317-308-0	02	1	0612-	●	●		●
39	U-BOLT; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=250	1-48317-308-0	02	1	0612-	●
39	U-BOLT; AIR TANK L=250	1-48317-308-0	02	1	0612-		●
43	BOLT; STAY,AIR TANK,MAIN (A) M8X20 FLANGE	0-28680-820-0	02	1	0005-0411	●	●	●
43	BOLT; STAY,AIR TANK,MAIN (A) M8X20 FLANGE	0-28680-820-0	02	1	0412-0512	●	●	●	●
43	BOLT; STAY,AIR TANK,MAIN (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-	●	●	●	●
43	BOLT; STAY,AIR TANK,MAIN (B) M10X25 FLANGE	0-28681-025-0	04	1	0005-0512			●
43	BOLT; STAY,AIR TANK,MAIN (B) M10X25 FLANGE	0-28651-025-0	04	1	0601-			●
46	NUT; U-BOLT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M10 FLANGE	0-91150-210-0	04	1	0005-0602	●
46	NUT; U-BOLT (B) M10 FLANGE	0-91150-210-0	04	1	0005-0602		●
46	NUT; U-BOLT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M10 FLANGE	0-91180-210-0	04	1	0603-0611	●
46	NUT; U-BOLT (B) M10 FLANGE	0-91180-210-0	04	1	0603-0611		●
46	NUT; U-BOLT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M10 FLANGE	0-91180-210-0	04	1	0612-	●
46	NUT; U-BOLT (B) M10 FLANGE	0-91180-210-0	04	1	0612-		●
46	NUT; U-BOLT (A) M8	9-09110-408-0	08	1	0005-0411	●	●
46	NUT; U-BOLT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M8	9-09110-408-0	08	1	0005-0411	●
46	NUT; U-BOLT (A) M8	9-09110-408-0	08	1	0005-0411		●
46	NUT; U-BOLT (A) M8	9-09110-408-0	08	1	0412-0512	●	●		●
46	NUT; U-BOLT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M8	9-09110-408-0	08	1	0412-0512	●
46	NUT; U-BOLT (A) M8	9-09110-408-0	08	1	0412-0512		●
46	NUT; U-BOLT (A) M8	0-91110-508-0	08	1	0601-0611	●	●		●
46	NUT; U-BOLT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M8	0-91110-508-0	08	1	0601-0611	●
46	NUT; U-BOLT (A) M8	0-91110-508-0	08	1	0601-0611		●
46	NUT; U-BOLT (A) M8	0-91110-508-0	08	1	0612-	●	●		●
46	NUT; U-BOLT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M8	0-91110-508-0	08	1	0612-	●
46	NUT; U-BOLT (A) M8	0-91110-508-0	08	1	0612-		●
64	STAY; AIR TANK,MAIN	1-48317-307-2	01	1	0005-0411	●	●
64	STAY; AIR TANK,MAIN	1-48317-307-2	01	1	0412-	●	●		●
80	BOLT; BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10X25 FLANGE	0-28681-025-0	04	1	0005-0512	●
80	BOLT; BRKT M10X25 FLANGE	0-28681-025-0	04	1	0005-0512		●
80	BOLT; BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10X25 FLANGE	0-28651-025-0	04	1	0601-0611	●
80	BOLT; BRKT M10X25 FLANGE	0-28651-025-0	04	1	0601-0611		●
80	BOLT; BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10X25 FLANGE	0-28651-025-0	04	1	0612-	●
80	BOLT; BRKT M10X25 FLANGE	0-28651-025-0	04	1	0612-		●
80	BOLT; BRKT M10X30 FLANGE	0-28681-030-0	04	1	0005-0512			●
80	BOLT; BRKT M10X30 FLANGE	0-28651-030-0	04	1	0601-			●
133	COVER; AIR MASTER	1-48317-641-1	01	1	0005-0411	●	●
133	COVER; AIR MASTER	1-48317-641-1	01	1	0412-	●	●		●
134	BOLT; COVER FIX M8X20 FLANGE	0-28680-820-0	04	1	0005-0411	●	●
134	BOLT; COVER FIX M8X20 FLANGE	0-28680-820-0	04	1	0412-0512	●	●		●
134	BOLT; COVER FIX M8X20 FLANGE	0-28650-820-0	04	1	0601-	●	●		●
135	NUT; COVER M8 FLANGE	0-91150-108-0	04	1	0005-0411	●	●
135	NUT; COVER M8 FLANGE	0-91150-108-0	04	1	0412-0602	●	●		●
135	NUT; COVER M8 FLANGE	0-91180-108-0	04	1	0603-	●	●		●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 530KPA	1-48340-054-1	01	1	0005-0611	●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK 530KPA	1-48340-054-1	01	1	0005-0611		●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 530KPA	1-48340-054-1	01	1	0612-	●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK 530KPA	1-48340-054-1	01	1	0612-		●
172	NUT; STAY,AIR TANK,MAIN (A) M8 FLANGE	0-91150-108-0	02	1	0005-0411	●	●	●
172	NUT; STAY,AIR TANK,MAIN (A) M8 FLANGE	0-91150-108-0	02	1	0412-0602	●	●	●	●
172	NUT; STAY,AIR TANK,MAIN (A) M8 FLANGE	0-91180-108-0	02	1	0603-	●	●	●	●
172	NUT; STAY,AIR TANK,MAIN (B) M10 FLANGE	0-91150-210-0	04	1	0005-0602			●
172	NUT; STAY,AIR TANK,MAIN (B) M10 FLANGE	0-91180-210-0	04	1	0603-			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
